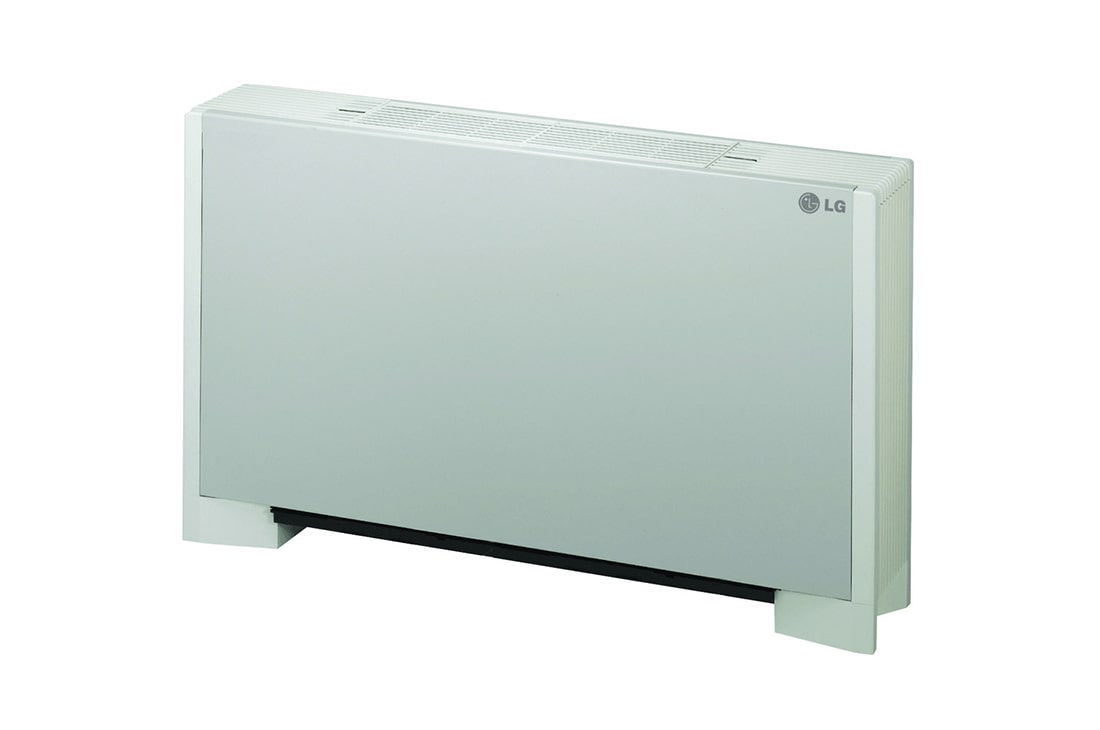

ARNU18GCFA4
Fitur Utama
Semua Spesifikasi
CAPACITY
Cooling(Nom) - kW
5.6
Cooling(Nom) - kcal/h
4,800
Cooling(Nom) - Btu/h
19,100
Heating(Nom) - kW
6.3
Heating(Nom) - kcal/h
5,400
Heating(Nom) - Btu/h
21,500
POWER INPUT
Power Input(H / M / L) - W
54 / 41 / 29
CASING
Casing
Galvanized Steel Plate
DIMENSIONS (W × H × D)
Body - ㎜
1,345 x 635 x 203
Body - inch
52-15/16 x 25 x 8
COIL
Rows x Columns x FPI
3 x 11 x 19
Face Area - ㎡
0.23
FAN
Type
Sirocco Fan
Motor Output × Number - W × No.
19 x 2
Running Current - A
0.97
Air Flow Rate(H / M / L) - m³/min
16.0 / 14.0 / 12.0
Air Flow Rate(H / M / L) - ft³/min
565 / 494 / 424
Drive
Direct
Motor type
BLDC
TEMPERATURE CONTROL
Temperature Control
Microprocessor, Thermostat for cooling and heating
SOUND ABSORBING THERMAL INSULATION MATERIAL
Sound Absorbing Thermal Insulation Material
Foamed polystyrene
AIR FILTER
Air Filter
Resin Net(washable)
SAFETY DEVICE
Safety Device
Fuse
PIPE CONNECTIONS
Liquid Side - ㎜(inch)
Ø 6.35 (1/4)
Gas Side - ㎜(inch)
Ø 12.7 (1/2)
Drain Pipe(Internal Dia.) - ㎜(inch)
Ø 12 (15/32)
NET WEIGHT
Net Weight - kg(lbs)
34 (75.0)
SOUND PRESSURE LEVELS
H / M / L - dB(A)
40 / 37 / 34
SOUND POWER LEVELS
H / M / L - dB(A)
57 / 54 / 50
POWER SUPPLY
Power Supply - Ø, V, Hz
1, 220-240, 501, 220, 60
REFRIGERANT CONTROL
Refrigerant Control
EEV
TRANSMISSION CABLE
Transmission Cable - mm² × Cores
1.0 ~ 1.5 × 2C
