Pro:Centric SMART Set Top Box

Enjoy Seamless and Smart TV with Pro:Centric Set Top Box

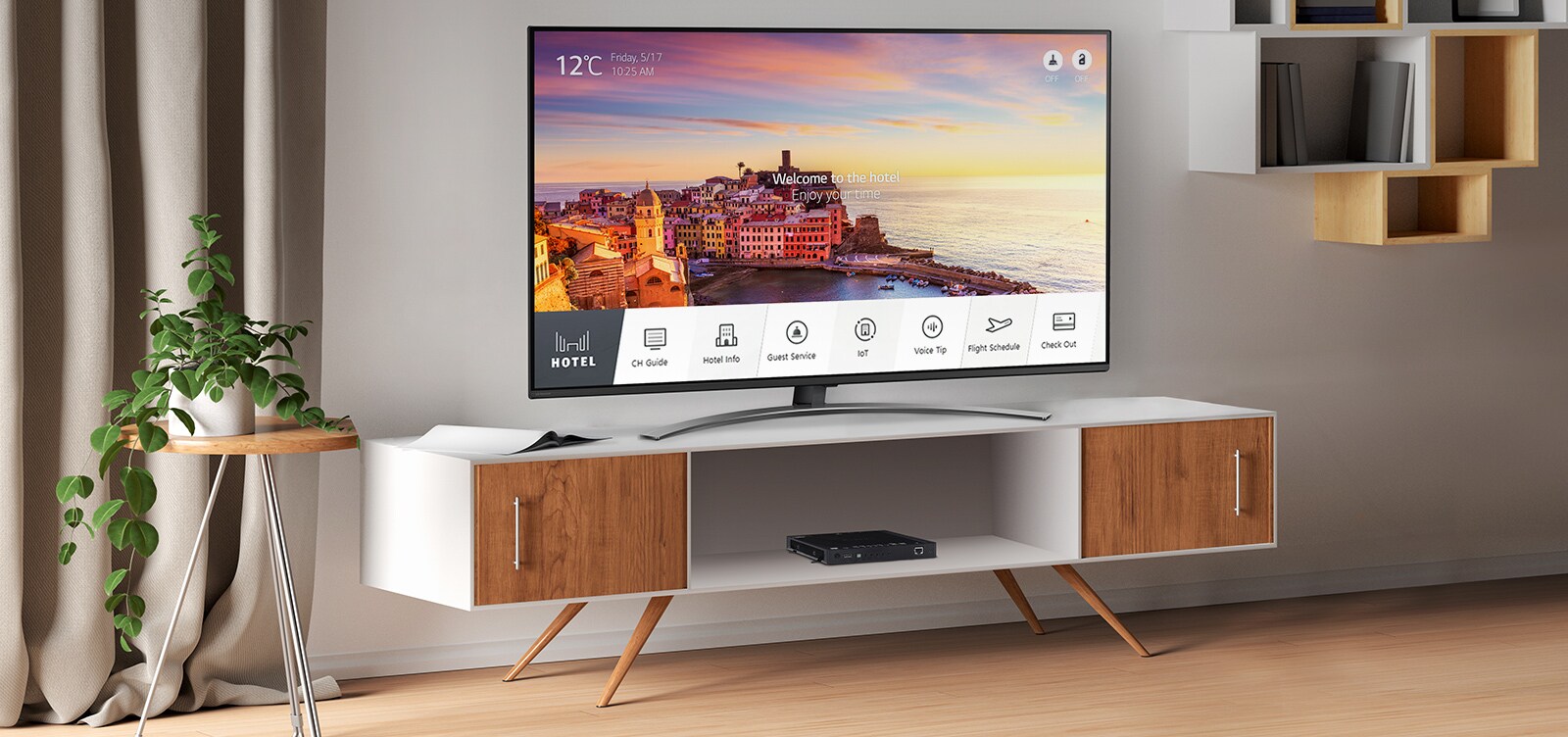

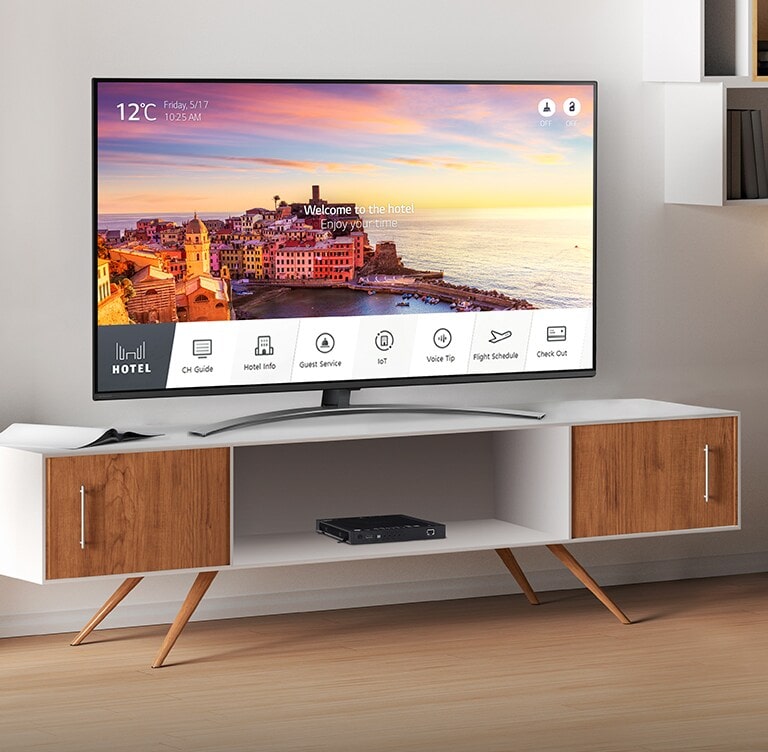

There is a simulated image to show Pro:Centric Set Top Box, STB-6500, installed in the hotel room. The TV connected to STB-6500 provides various information and services to guests. There is a simulated image to show Pro:Centric Set Top Box, STB-6500, installed in the hotel room. The TV connected to STB-6500 provides various information and services to guests.
*All images in this web page are for illustrative purposes only and may differ from the actual product.
The image shows that Pro:Centric SMART help you optimize hospital services for hotel brand and guest. The image shows that Pro:Centric SMART help you optimize hospital services for hotel brand and guest.
HOTEL MANAGEMENT SOLUTION

Pro:Centric Smart Application Platform

Pro:Centric SMART is optimized for customizing hospitality services for hotel brands and guests through an IP & RF infrastructure. With LG’s smart customization tools and content management software, it increases convenience through implementation of high-end technology.
*Actual UI may differ
*Only TA Type supports RF infrastracutre.

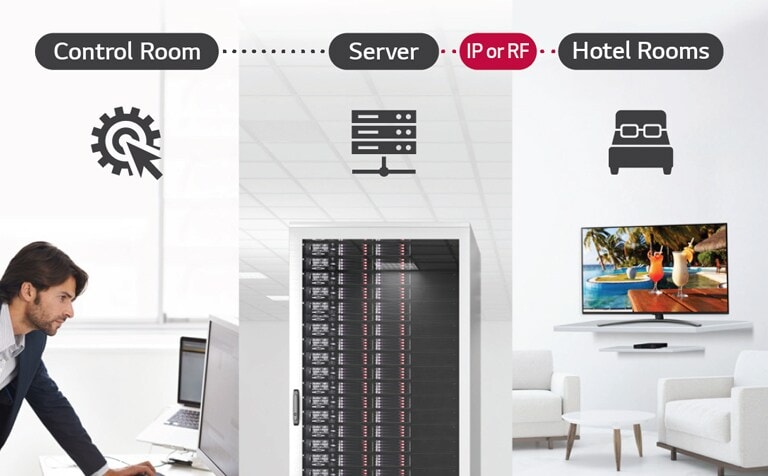

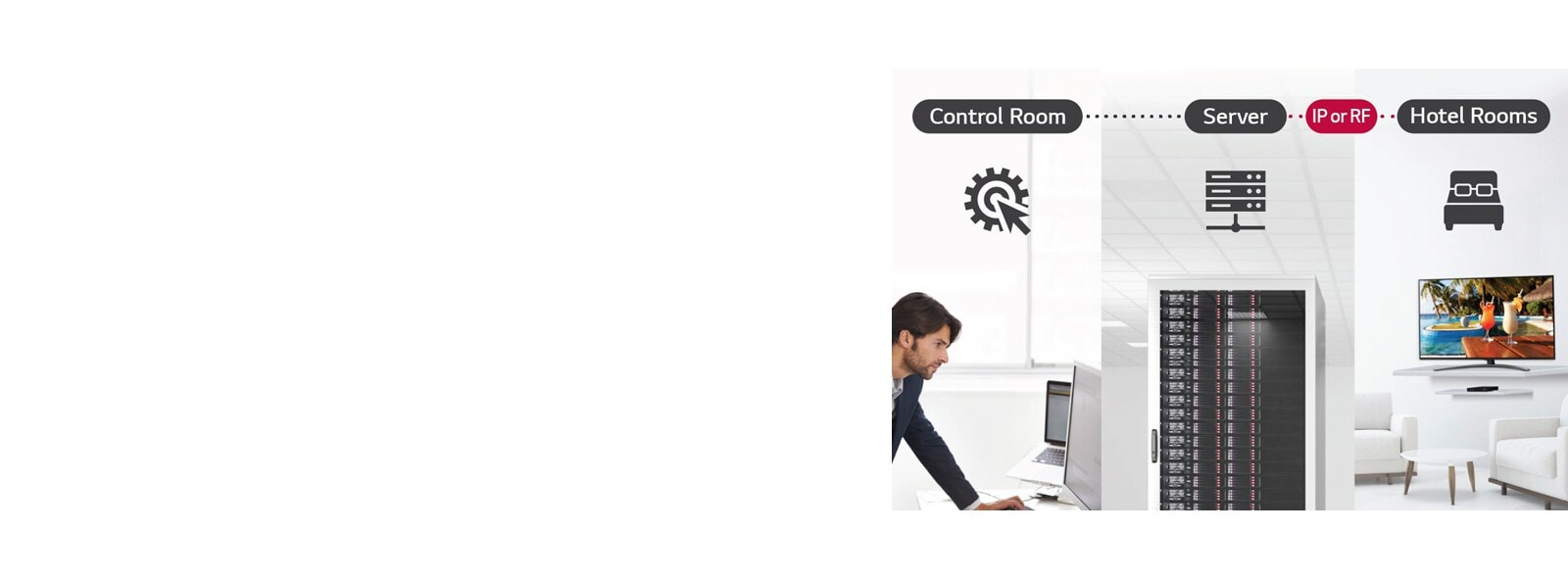

A man is managing some contents and settings of TV which is connected to the set top box in the hotel using Pro:Centric Direct solution through server. A man is managing some contents and settings of TV which is connected to the set top box in the hotel using Pro:Centric Direct solution through server.
HOTEL MANAGEMENT SOLUTION

Pro:Centric Direct

The hotel management solution Pro:Centric Direct offers easy and simple editing tools, making it easy to perform service and IP network-based remote management. The Pro:Centric Direct solution enables users to edit their interface easily by providing customized interface and efficiently manages the TVs in the rooms. The current PCD version provides IoT-based in-room control as well as voice control function through LG Natural Language Processing (NLP). These IoT and voice-related functions will be your starting point to prepare for the hotel rooms of next generation through artificial intelligence.
*Some devices may have limited compatibility, thus may not support voice control and IoT function.
A TV with STB-6500 is screening the natural scenery at high resolution. A TV with STB-6500 is screening the natural scenery at high resolution.
SUPERB PICTURE QUALITY

Support Ultra HD Resolution

STB-6500 supports 4 types of video output resolutions which are UHD, FHD, HD and 1,366 × 768px. Also, it automatically upscales Full HD content on the HDMI/USB inputs to Ultra HD.* With this, you can deliver clear messages and add animation on the content.
*The output resolution should be set and selected 2160p, and the native resolution of the connected display panel should support Ultra HD. For example, 2160p requires a UHD display panel.
A TV connected to the STB6500 is screening an art piece with Gallery Mode based on webOS 5.0. A TV connected to the STB6500 is screening an art piece with Gallery Mode based on webOS 5.0.
SMART PLATFORM

More Innovative LG webOS 5.0

Explore the latest LG Smart TV features. Newly added Gallery mode enables you to utilize the TV as an artwork which harmonizes with your space and life.
STB-6500 decrypts and unlocks access to premium content through embedded Pro:Idiom technology. STB-6500 decrypts and unlocks access to premium content through embedded Pro:Idiom technology.
SMART DRM

Embedded Pro:Idiom Decryption

STB-6500 provides embedded Pro:Idiom decryption for non-Pro:Idiom TVs. Pro:Idiom, DRM (Digital Right Management) technology unlocks access to premium content to help assure rapid and broad deployment of HDTV and other high value digital contents.

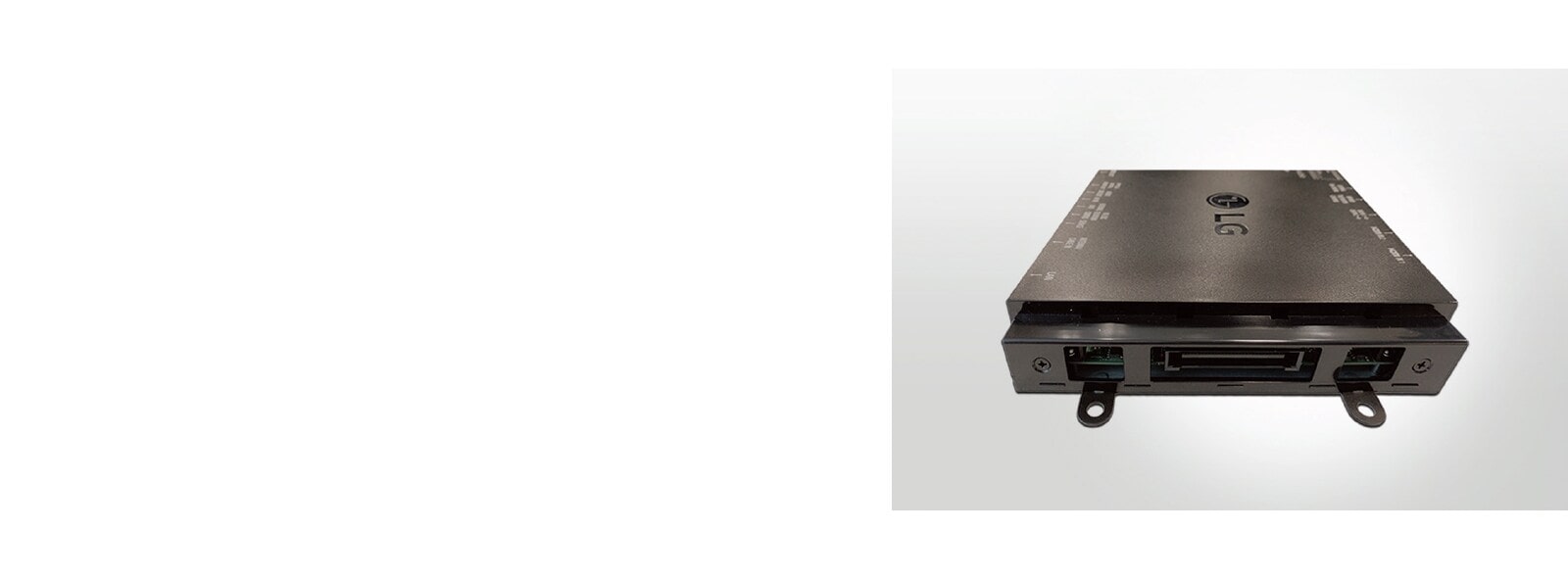

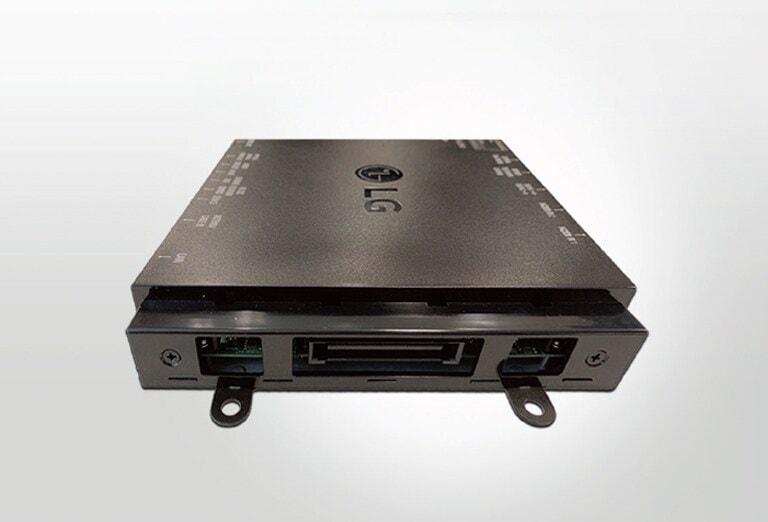

STB-6500 has side connector that can extend additional 3rd party external modules. STB-6500 has side connector that can extend additional 3rd party external modules.
HARDWARE DESIGN

Enclosure Design with an Expansion Side-connector

STB-6500 is designed for additional 3rd party external module expansion to deliver additional capabilities such as DOCSIS 3.0 cable modem card for IP-over-coax installation.
*The external modules must be tested for compatibility with STB-6500.

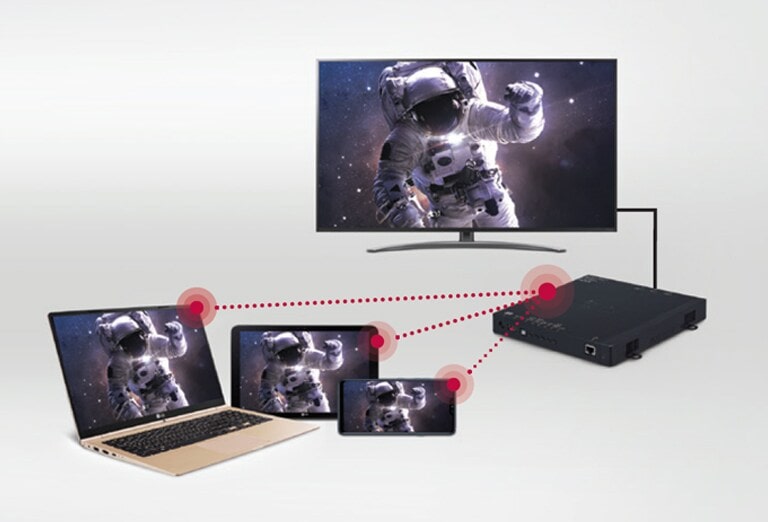

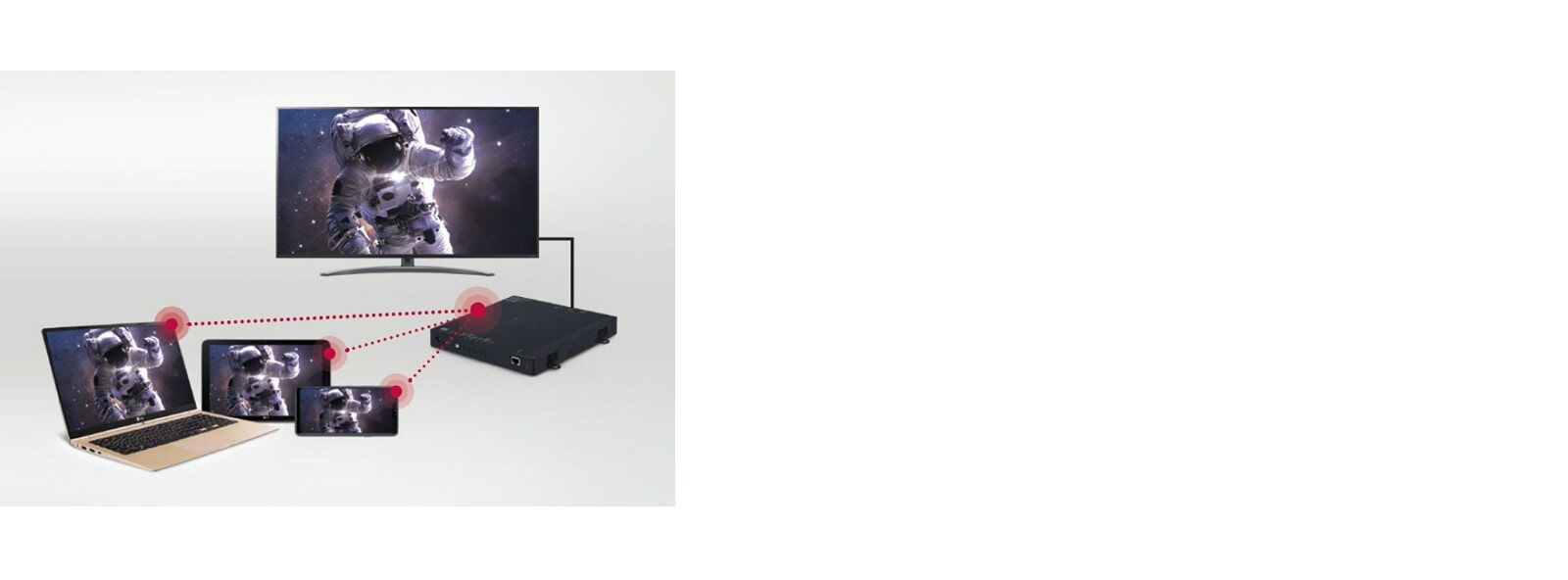

LT660H-11-Bluetooth Sound Sync-Hotel TV-Commercial TV-ID_1566194439214 LT660H-11-Bluetooth Sound Sync-Hotel TV-Commercial TV-ID_1566194439214
SMART CONNECTIVITY

SmartShare

SmartShare allows users to share content more easily and quickly across various devices. It also simplifies the process by easily searching for the desired content and share content.
*The devices must be DLNA certified to support this feature.

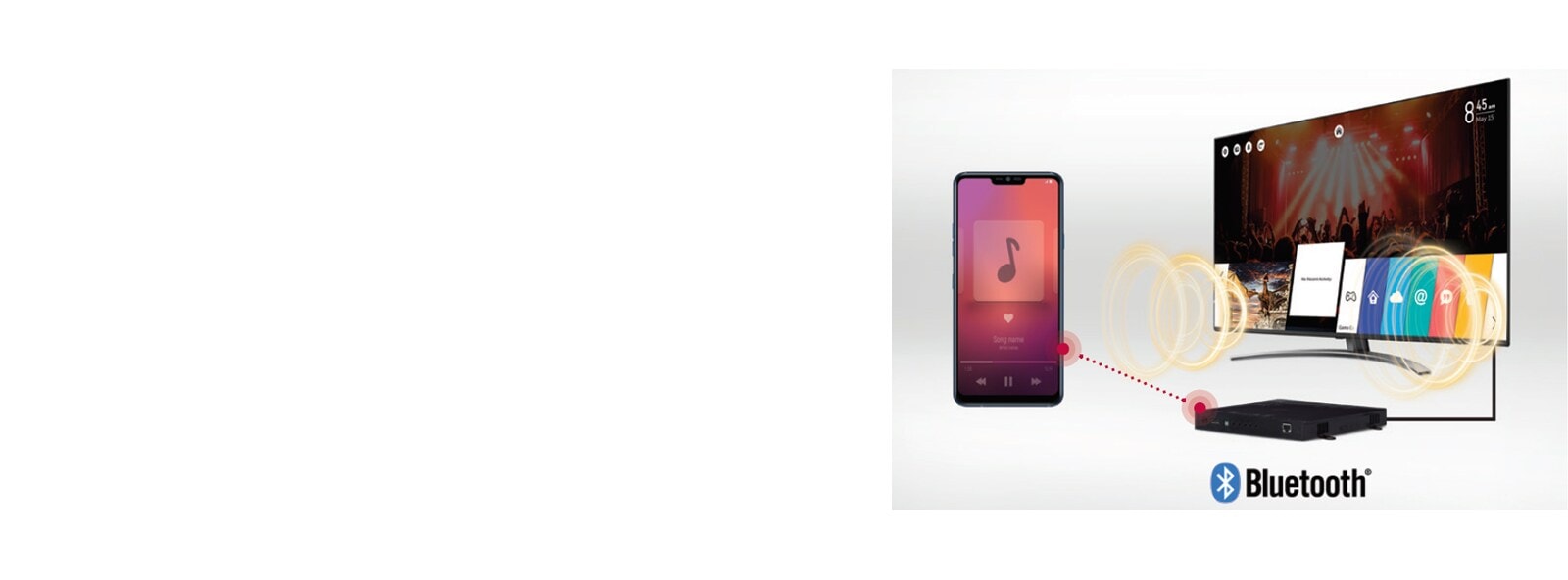

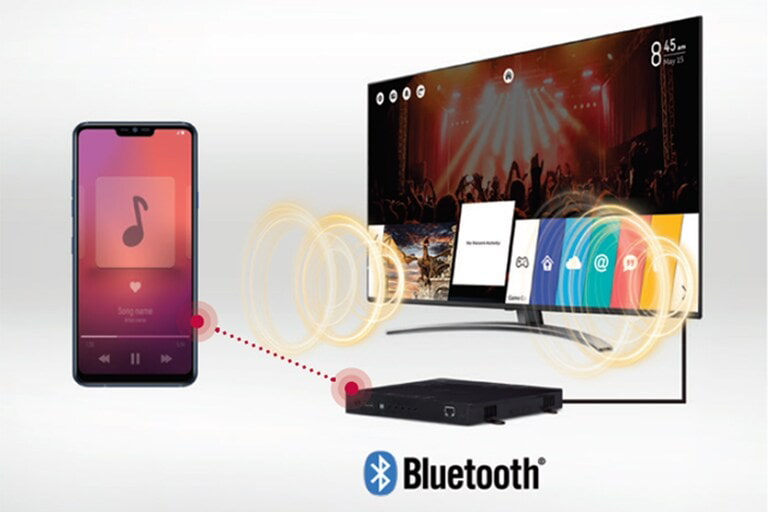

Mobile device and TV with STB6500 are connected via Bluetooth, so music on the device is played on TV. Mobile device and TV with STB6500 are connected via Bluetooth, so music on the device is played on TV.
SMART CONNECTIVITY

Bluetooth Sound Sync

Bluetooth Sound Sync enables users to listen to music on a mobile device through TV speakers via Bluetooth connection.
*Support devices for Bluetooth Sound Sync : Android, iOS based mobile device.

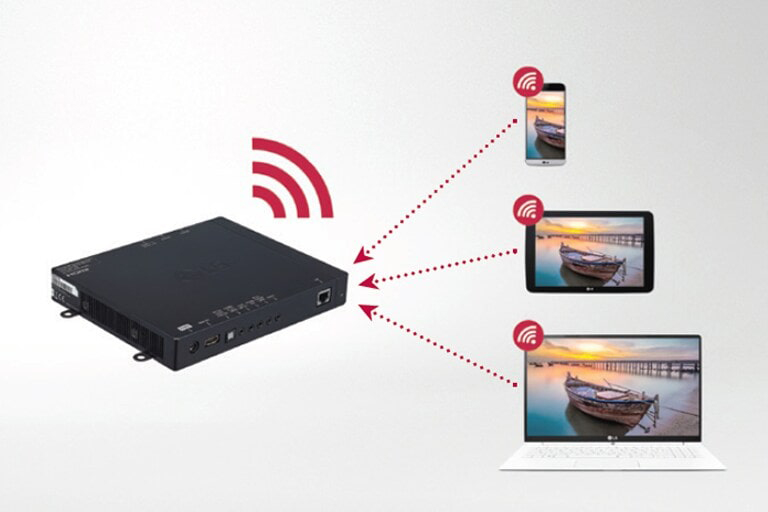

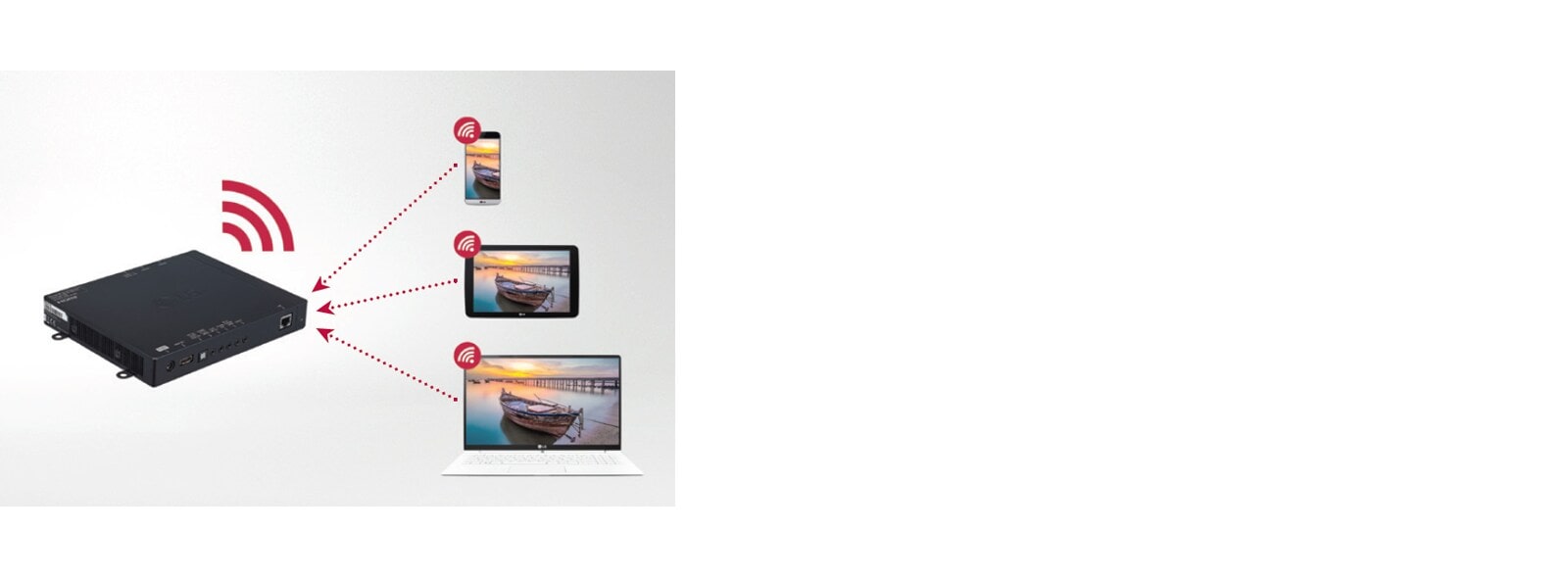

Set Top Box can function as wireless hotspot through SoftAP. Set Top Box can function as wireless hotspot through SoftAP.
SMART CONNECTIVITY

Soft AP

Software-enabled Access Point (Soft AP) functions as Wi-Fi that uses TV as a wireless hotspot, enabling guests to connect their own devices to the Soft AP.
*Soft AP should be set in installation menu.
*Smart Mirroring may not be operated at the same time.
*This feature may not be available in certain devices because of different encryption method.
Close
HOSPITALITY FEATURE
  • Diagnostics
    YES (IP Remote)
    HTNG-CEC (Version)
    YES (1.4)
  • IR Out
    YES (RS-232C)
    Simplink(HDMI-CEC) (Version)
    YES (1.4)
  • SNMP
    YES
    USB Cloning
    YES
  • Wake on RF
    YES
    WOL
    YES
  • External Speaker Out / Line Out
    YES (Line Out)
    EzManager
    YES
  • Hotel Mode / PDM / Installer Menu
    YES
    Insert Image
    YES
  • Instant ON
    YES
    Lock mode
    YES (Limited)
  • Modular Interface
    YES (60pin Interface)
    Multi IR Code
    YES
  • Port Block
    YES
    RJP (Remote Jack Pack) Compatibility
    YES
  • V-Lan Tag
    YES
INFO
  • Category
    Settop Box
AUDIO(SOUND)
  • AI Acoustic Tuning
    YES (Ready, MMR Required)
    AI Sound
    YES
  • LG Sound Sync
    YES
DIMENSIONS/WEIGHT
  • Dimension in Shipping (W x H x D)
    366 x 143 x 218 mm
    Dimension (W x H x D)
    233 x 180.5 x 29.8 mm
  • Weight
    0.72 kg
    Weight in Shipping
    1.85 kg
POWER SPEC.
  • Power Consumption(Max)
    60W
    Power Consumption(Typ)
    STB only : 17.6W STB + Exp Module : 47.5W
  • Power Supply (Voltage, Hz)
    DC IN : 19V/2.7A
    Standby Power Consumption
    Under 0.5W
STANDARD
  • EMC
    YES
    Safety
    YES
ACCESSORIES
  • AC Adaptor
    YES
    Cables
    HDMI, RS232 (Phone to RS232C)
VIDEO
  • Output Resolution
    2160p / 1080p / 1366x768 / 720p
VERTICAL FUNCTION(CORPORATE/RETAIL)
  • BEACON
    YES
    NTP sync timer
    YES
SMART FUNCTION
  • Bluetooth
    YES
    Bluetooth Audio Playback
    YES
  • DIAL
    YES
    Gallery Mode
    YES
  • IoT
    YES
    Magic Remote Compatibility
    YES (Ready)
  • Screen Share
    YES
    Soft AP
    YES
  • Voice Recognition (Standalone/Solution)
    YES
    webOS version
    webOS 5.0
  • Web Browser
    YES
    Wi-Fi
    YES
CONNECTIVITY
  • Audio Line Out(3.5mm Phone jack)
    YES
    DC Adapter In
    YES
  • Digital Audio Out (Optical)
    YES
    Expansion slot (60pin)
    YES
  • External RS-232C control (4pin Phone Jack)
    YES
    EXT. IR In
    YES
  • HDMI In
    YES (2ea)
    HDMI Out
    YES (1ea)
  • RF In
    YES (1ea)
    RJ45 (Usage Purpose)
    1 (Ethernet)
  • RS-232C (D-Sub 9pin / Phone jack)
    YES (Phone jack)
    Service Port (For Debugging)
    YES
  • USB (Ver.)
    YES(2ea / 2.0)
HOSPITALITY SOLUTION
  • Pro:Centric Direct
    YES
    Pro:Centric Server
    YES
  • Pro:Centric Smart
    YES
    Pro:Centric V
    YES
  • Pro:Idiom (DRM)
    YES
    Pro:Idiom Media (DRM)
    YES
  • Quick Menu (Customizable Portal)
    YES
    webRTC (Real Time Communication)
    YES
