30EW5TP-A component-copyModelName
EW5TP Series - 30'' Transparent OLED Touch Signage

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (30EW5TP-A)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (30EW5TP-A)
    $
    $
    LG Members Price
Total

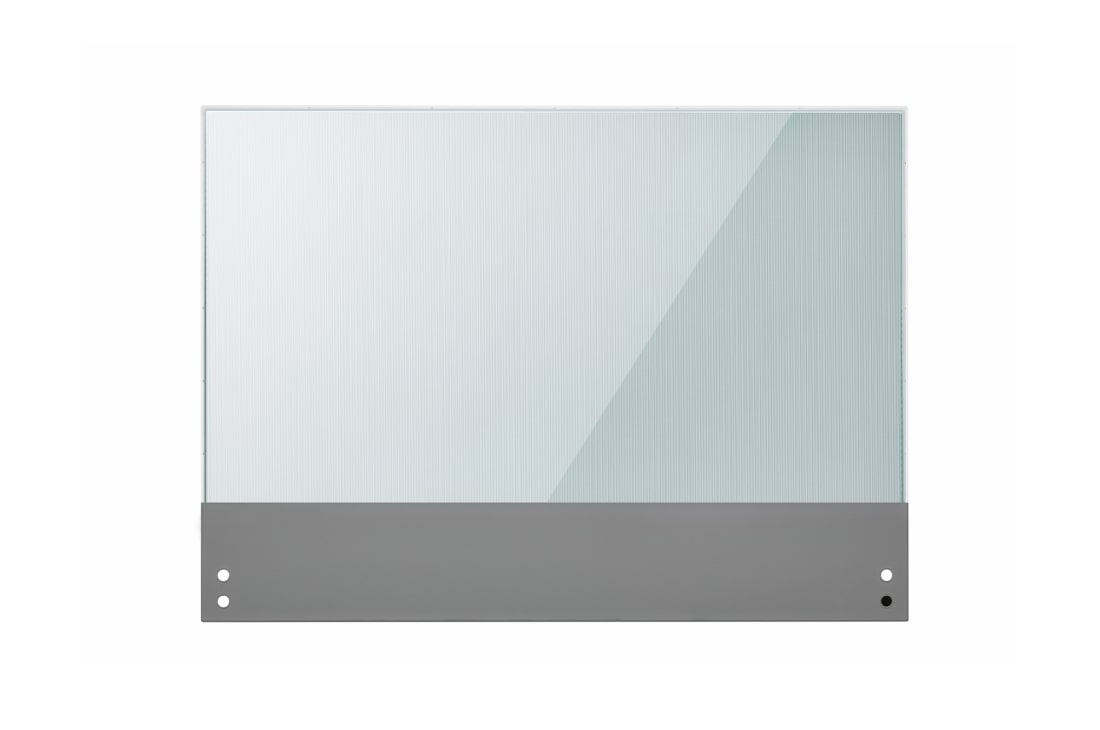

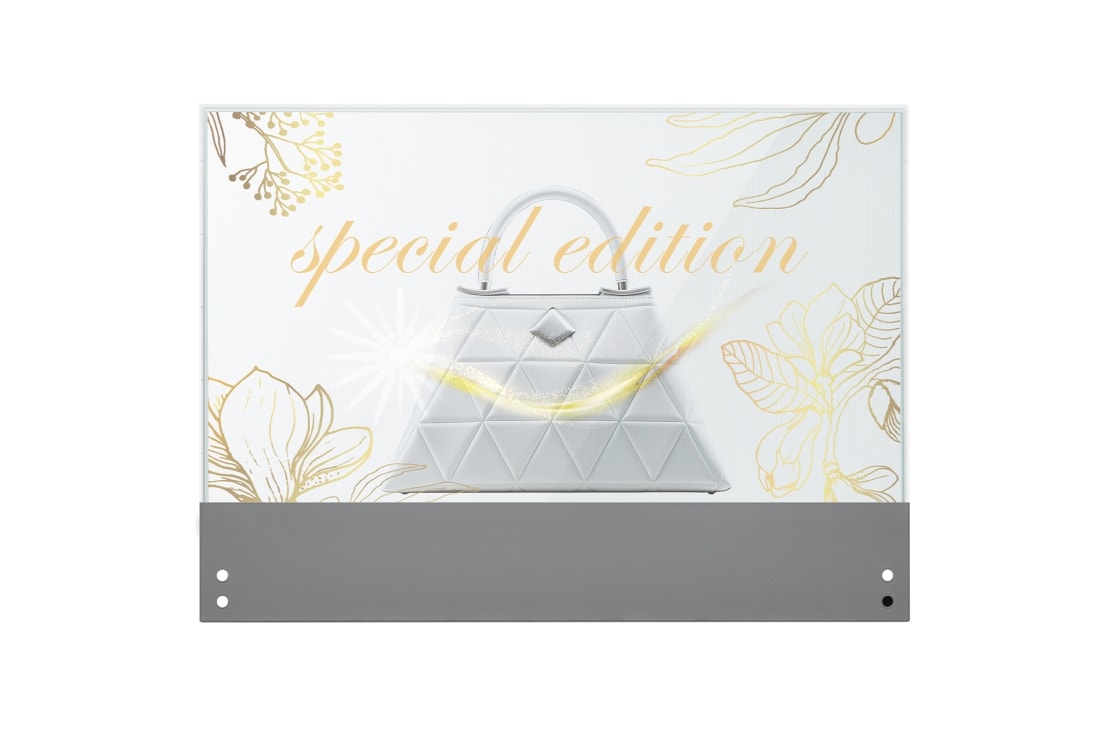

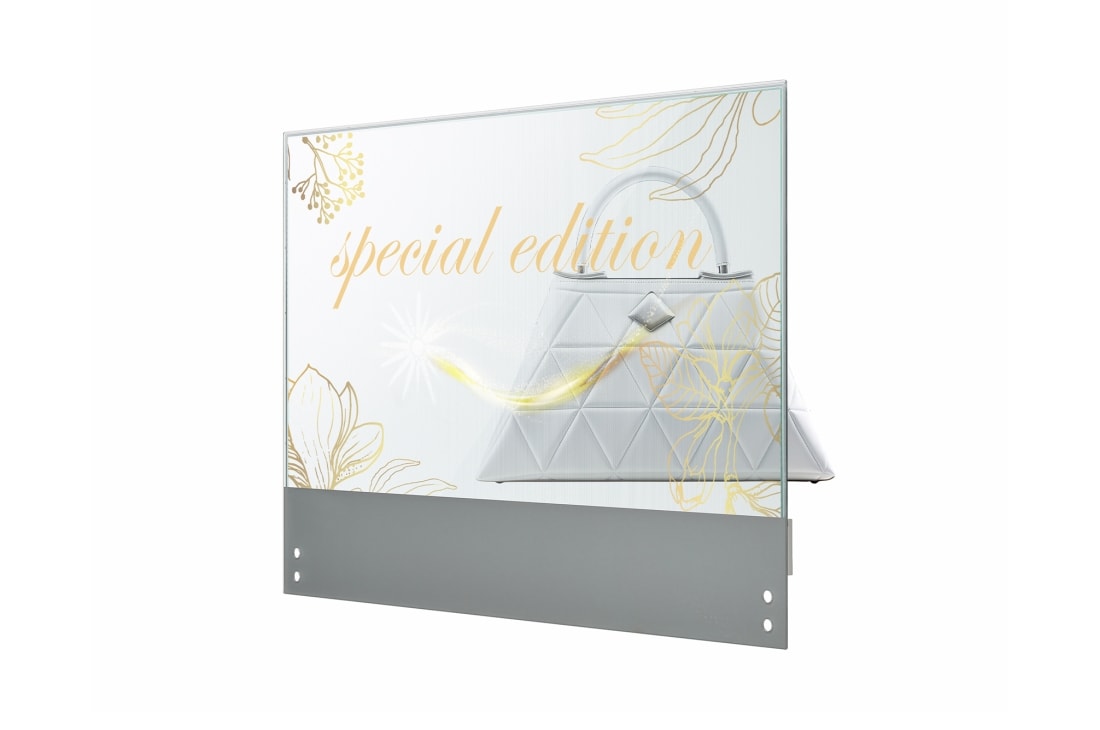

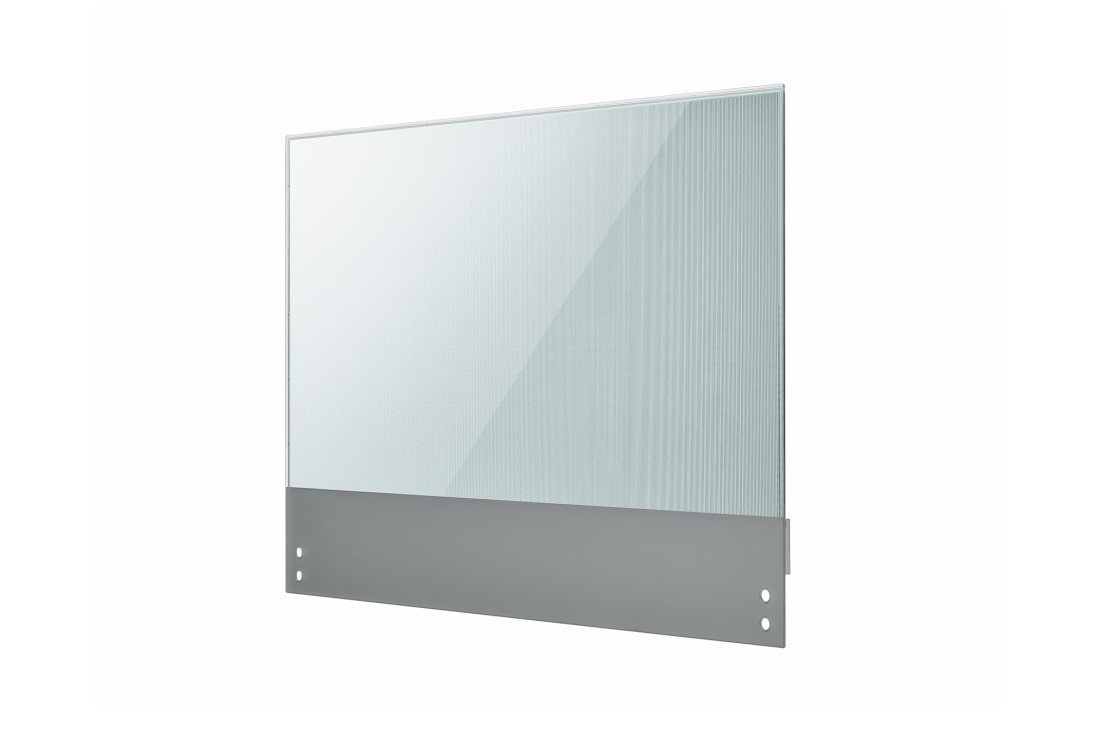

EW5TP Series - 30" Transparent OLED Touch Signage

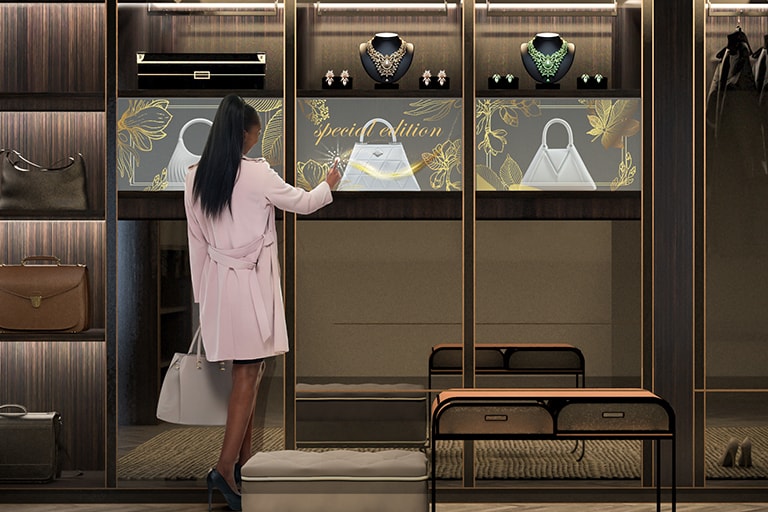

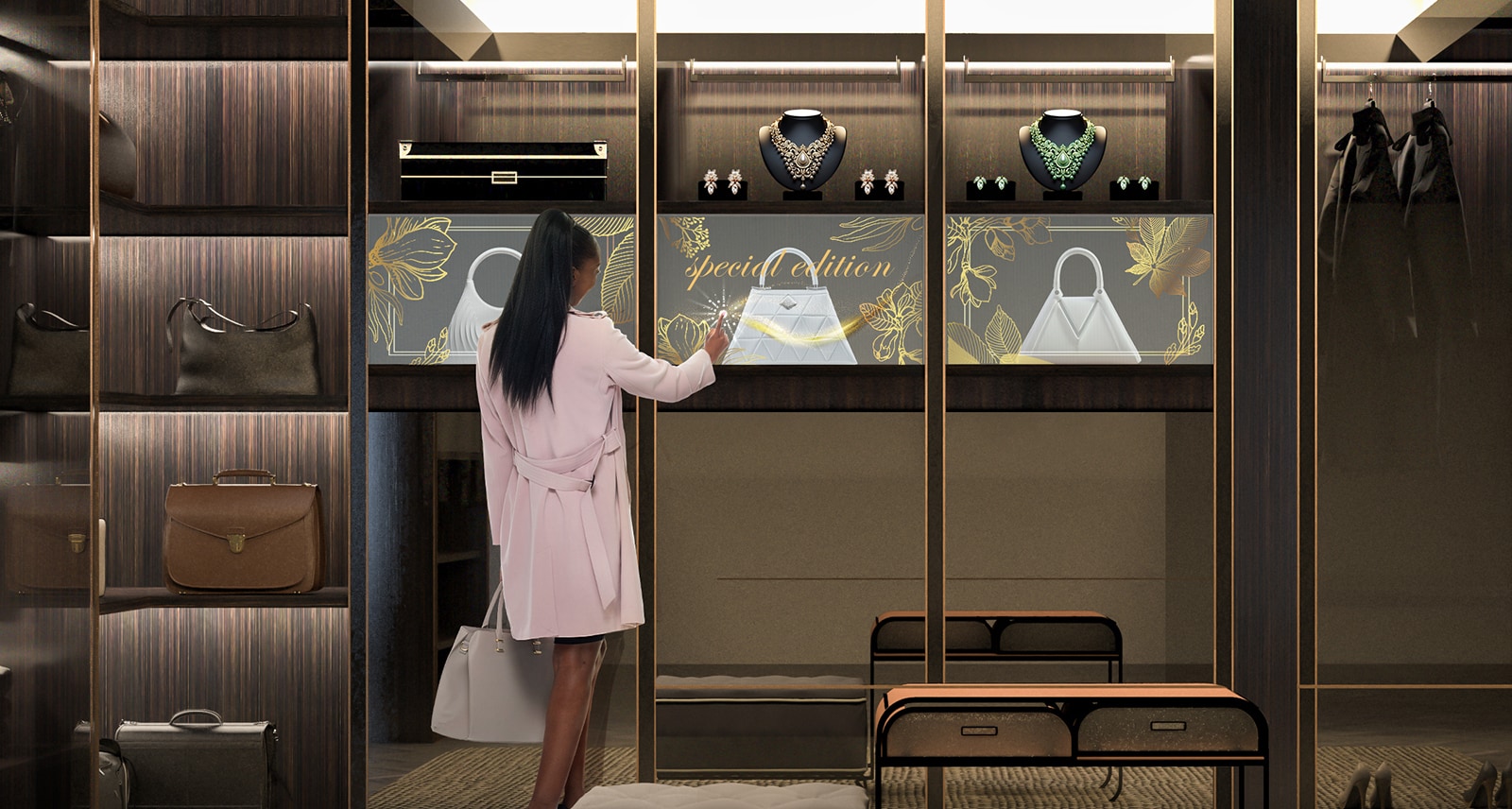

See the Unseen,
LG Transparent OLED Signage

30EW5TP-A-01-See-the-Unseen-LG-Transparent-OLED-Signage-Transparent-OLED-Signage-ID 30EW5TP-A-01-See-the-Unseen-LG-Transparent-OLED-Signage-Transparent-OLED-Signage-ID
* All images in this page are for illustrative purposes only.

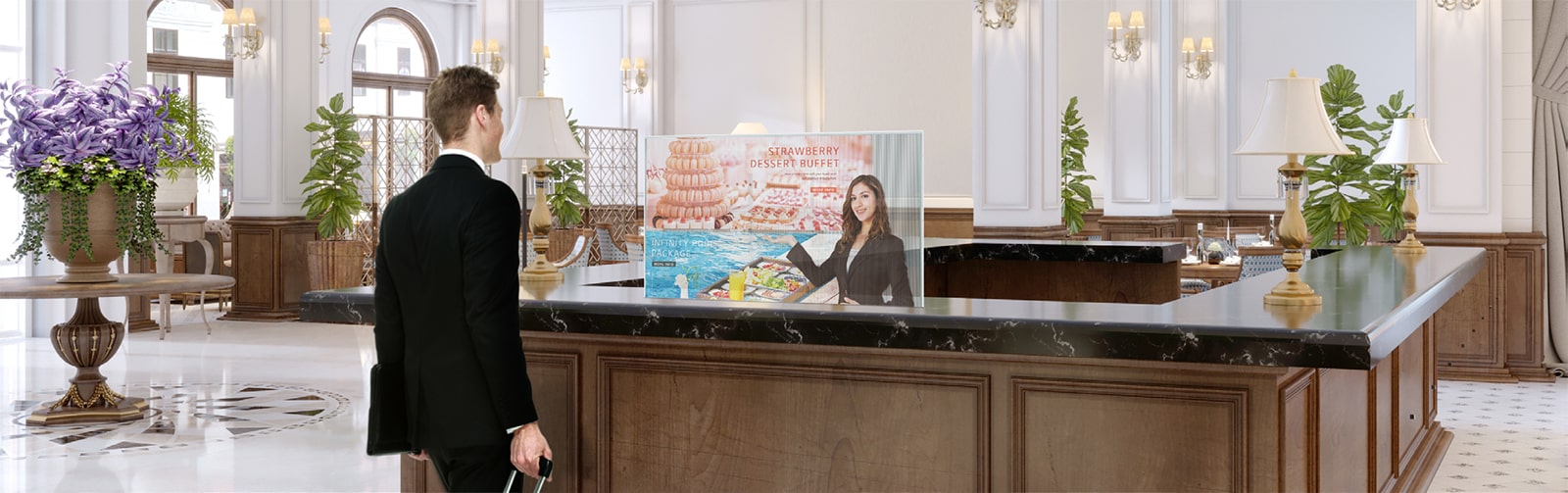

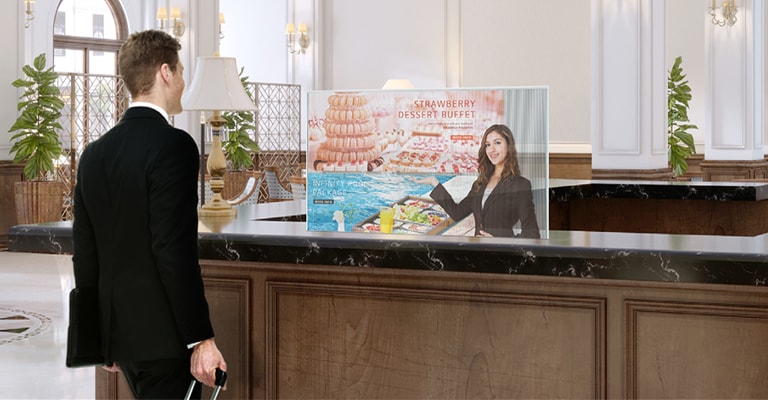

Accurate and Vivid Colors

Featuring self-lighting pixels, the display maintains vivid colors and high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally.

30EW5TP-A-02-Accurate-and-Vivid-Colors-Transparent-OLED-Signage-ID 30EW5TP-A-02-Accurate-and-Vivid-Colors-Transparent-OLED-Signage-ID

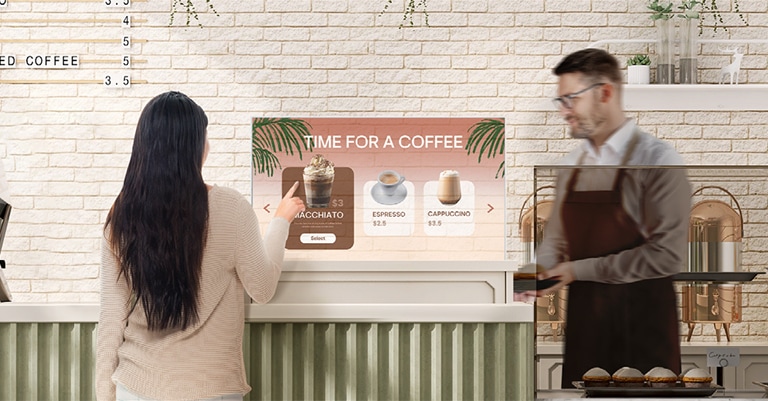

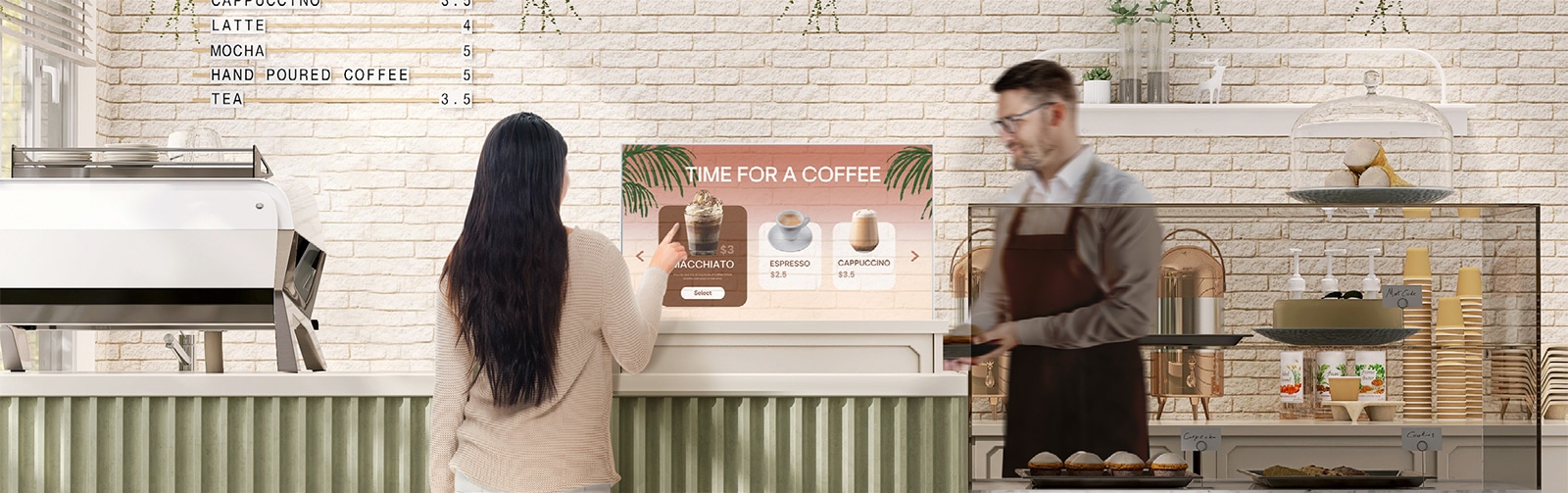

Intuitive P-Cap Touch

By adding P-Cap touch sensor film to the display, the utilization possibilities expand to various industries where customer interaction services are demanding. Users could enjoy its fascinating content using their fingertips.

30EW5TP-A-03-Intuitive-P-Cap-Touch-Transparent-OLED-Signage-ID 30EW5TP-A-03-Intuitive-P-Cap-Touch-Transparent-OLED-Signage-ID
0EW5TP-A-04-High-Transparency-Transparent-OLED-Signage-ID-

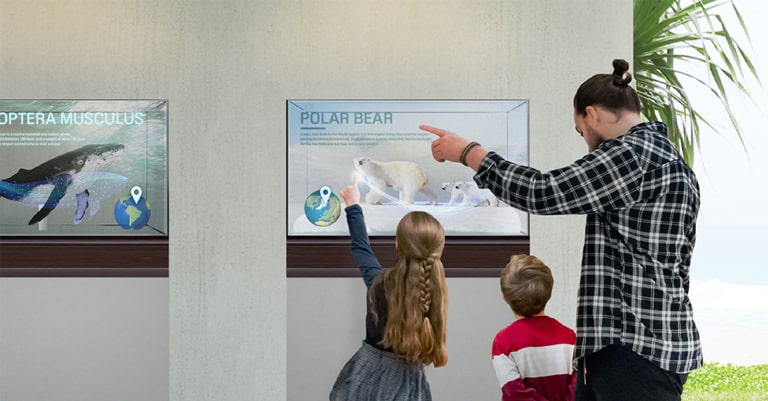

High Transparency

LG’s OLED technology makes the Transparent OLED Touch Signage have slimmer structure without backlight unit nor a liquid crystal layer, achieving high transparency even with P-Cap touch film. While clearly showing objects behind the screen, it overlays the relevant information right before them.

30EW5TP-A-05-Protective-Tempered-Glass-Transparent-OLED-Signage-ID

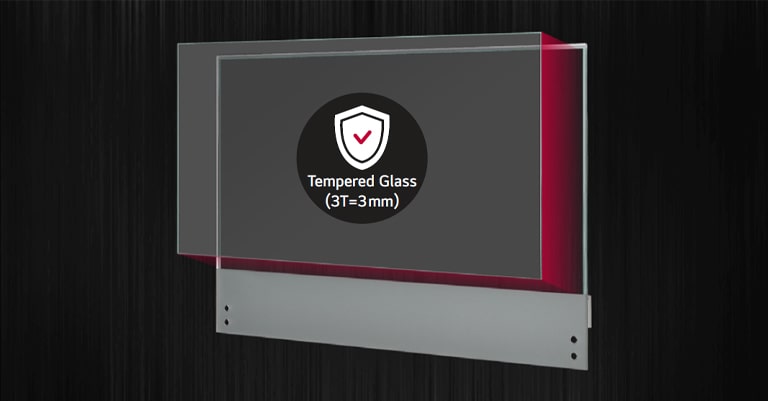

Protective Tempered Glass

Touching a display directly can cause damage or scratches. The tempered front glass protects product from such external impacts and its anti-shatter glass is designed to minimize customers’ injuries.

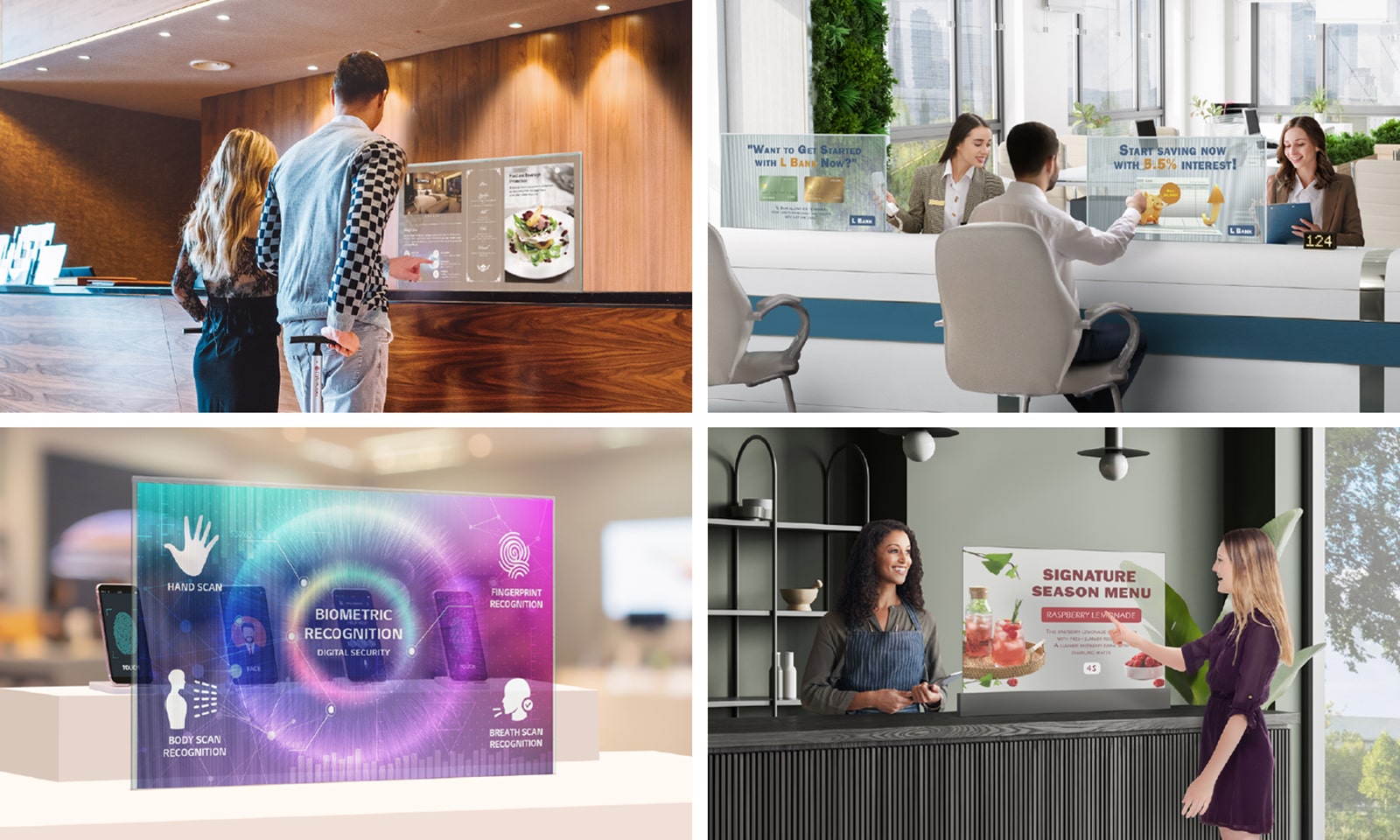

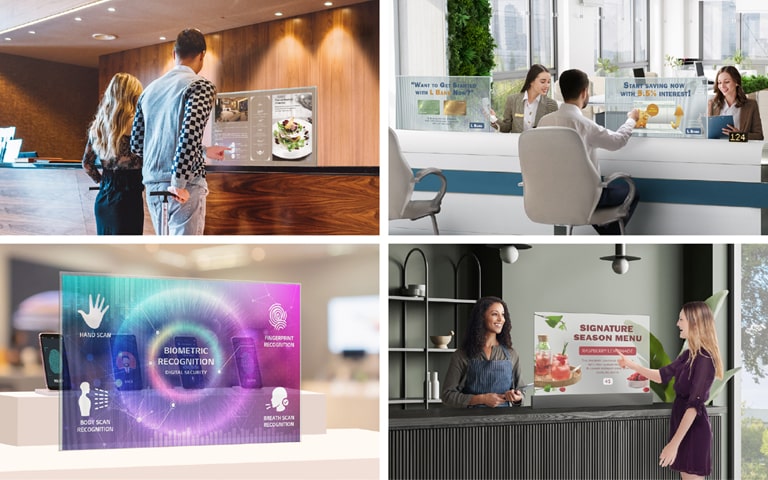

Enhanced Spatial Versatility

Experience the extraordinary with the state-of-the-art LG Transparent OLED Signage, which breaks down the barriers between the screen and surrounding environment, seamlessly connecting different spaces and people.

30EW5TP-A-06-Enhanced-Spatial-Versatility-Transparent-OLED-Signage-ID 30EW5TP-A-06-Enhanced-Spatial-Versatility-Transparent-OLED-Signage-ID
* Installation accessories are not supplied by LG.
Close
ACCESSORY
  • Basic
    Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, MCX/Harness Cables(3Mx4ea/3Mx2ea for connection between panel and Signage Box), HDMI Cable(3M), Micro to A type USB cable(3M, for connection between Touch and Signage Box), A to B type USB cable(Touch out), Screw(M4xL22,12ea / M4 Nut 12ea / M3xL5.5(Silver),M3xL5.5(Black) 8ea), Shield Cover Assy', Rubber Damper 4ea, Touch Cable Holder 2ea, MCX Cable Holder 2ea
    Optional
    No
CERTIFICATION
  • EMC
    FCC Class "A" / CE / KC
    ePEAT(US only)
    NO
  • ErP / Energy Star
    YES / NO
    Safety
    CB / NRTL
CONNECTIVITY
  • Audio In
    NO
    Audio Out
    YES
  • Daisy Chain
    NO
    DP In
    YES (HDCP 1.3)
  • DP Out
    YES
    DVI-D In
    NO
  • External Speaker Out
    NO
    HDMI In
    YES (1ea)
  • HDMI In (HDCP Ver.)
    2.2/1.4
    HDMI Out
    NO
  • IR In
    YES
    IR Out
    YES (Sharing RS232C Out)
  • RGB In
    NO
    RJ45(LAN) In
    YES (1ea)
  • RJ45(LAN) Out
    YES
    RS232C In
    YES
  • RS232C Out
    YES
    Touch USB
    USB2.0 Type B (1ea)
  • USB In
    USB2.0 Type A (2ea)
DEDICATED FEATURE - TOUCH
  • Accuracy (Typ.)
    2mm
    Available Object Size for Touch
    Ø8 mm ↑
  • Interface
    USB2.0
    Multi Touch Point
    Max. 10 Points
  • Operating System Support
    Windows 10/11
    Protection Glass Thickness
    3mm (Anti-Reflective / Anti-Finger print)
  • Protection Glass Transmission
    85% (Typ.)
    Response Time ('Paint' app on Windows 10 PC)
    100ms ↓
ENVIRONMENT CONDITIONS
  • Operation Humidity
    10 % to 80 %
    Operation Temperature
    0 °C to 40 °C
FEATURE - HARDWARE
  • Acceleration(Gyro) Sensor
    NO
    Auto Brightness Sensor
    NO
  • BLU Sensor
    NO
    Current Sensor
    NO
  • FAN (Built-in)
    NO
    Humidity Sensor
    NO
  • Internal Memory (eMMC)
    16GB
    Local Key Operation
    NO
  • Pixel Sensor
    NO
    Power Indicator
    NO
  • Proximity Sensor
    NO
    Temperature Sensor
    Yes
  • Wi-Fi/BT (Built-in)
    NO
FEATURE - SOFTWARE
  • Auto Set ID
    NO
    Backlight Sync
    NO
  • Beacon
    NO
    Booting Logo Image
    NO
  • Brightness Compensation
    NO
    Cisco Certification
    NO
  • Control Manager
    YES
    Crestron Connected
    NO
  • External Input Rotation
    NO
    Fail over
    YES
  • Gapless Playback
    YES
    Group Manager
    YES
  • HDMI-CEC
    Yes
    ISM Method
    YES
  • Local Contents Scheduling
    YES
    Local Network Sync
    YES
  • Network Ready
    NO
    No Signal Image
    NO
  • OS Ver. (webOS)
    webOS 7.5
    PBP
    NO
  • PIP
    NO
    Play via URL
    NO
  • PM mode
    YES
    Pro:Idiom
    NO
  • RS232C Sync
    YES
    Scan Inversion
    NO
  • Screen Rotation
    NO
    Screen Share
    NO
  • Setting Data Cloning
    YES
    SI Server Setting
    YES
  • Smart Energy Saving
    NO
    SNMP
    YES
  • Status Mailing
    YES
    Tile Mode Setting
    NO
  • USB Plug & Play
    YES
    Video Tag
    YES (4 Video Tag)
  • Wake on LAN
    Yes
    webRTC
    NO
  • W/B Setting by Grey scale
    NO
LANGUAGE
  • OSD
    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Polski, Türkçe, Arabic
MECHANICAL SPECIFICATION
  • Bezel Color
    Transparent
    Bezel Width
    T/R/L/B : 7.9/7.9/7.9/114.7mm
  • Carton Dimensions (W x H x D)
    826 x 593 x 195mm
    Handle
    NO
  • Monitor Dimensions (W x H x D)
    680.2 x 496.2 x 15.3mm (Head), 449.2 x 288.6 x 42.8mm (Signage Box)
    Monitor Dimension with Stand (W x H x D)
    N/A
  • Packed Weight
    10.1Kg
    VESA Standard Mount Interface
    N/A
  • Weight (Head)
    4.2Kg (Head), 2.4Kg (Signage Box)
    Weight (Head+Stand)
    N/A
OPS COMPATIBILITY
  • OPS Power Built-in
    N/A
    OPS Type Compatible
    N/A
PANEL
  • Aspect Ratio
    16:9
    Back Light Type
    OLED
  • Brightness
    200/600nit (APL 100%/25%, without Glass)
    Color Depth (Number of Colors)
    1.07 Billion colors
  • Color gamut
    BT709 110%
    Contrast Ratio
    200,000:1
  • Dynamic CR
    NO
    Life time
    30,000Hrs (Typ.)
  • Native Resolution
    1366 x 768 (HD)
    Operation Hours (Hours/Day)
    18/7 (Moving Content Only)
  • Panel Technology
    OLED
    Portait / Landscape
    Yes / Yes
  • QWP (Quarter Wave Plate)
    N/A
    Refresh Rate
    120Hz
  • Response Time
    0.1ms (G to G), 8ms (MPRT)
    Screen Size (Inch)
    30
  • Surface Treatment (Haze)
    Haze 3% (SET)
    Transparency
    37% (SET)
  • Viewing Angle (H x V)
    178º x 178º
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • BTU (British Thermal Unit)
    154 BTU/Hr(Typ.), 294 BTU/Hr(Max.)
    DPM
    0.5W
  • Max.
    86W
    Power off
    0.5W
  • Smart Energy Saving (70%)
    N/A
    Typ.
    45W (IEC 62087)
PROTECTION GLASS
  • Anti-Reflective
    YES
    Degree of Protection
    N/A
  • Infrared - Resistance (IR)
    N/A
    Shatter-Proof
    YES
  • Tempered / Chemical strengthening
    Chemical strengthening
    Thickness
    3mm
SOFTWARE COMPATIBILITY
  • Connected Care
    Yes
    Mobile CMS
    YES
  • Promota
    NO
    SuperSign Cloud
    YES
  • SuperSign CMS
    YES
    SuperSign Control+
    YES
  • SuperSign WB
    NO
SOUND
  • Speaker (Built-in)
    NO
SPECIAL FEATURE
  • Conformal Coating (Power Board)
    YES
    Direct Sunlight
    N/A
  • IP Rating
    N/A
    Overlay Touch Compatibility
    N/A
  • Power Protection
    N/A
    Smart Calibration
    N/A
  • Tilt (Face down)
    N/A
    Tilt (Face up)
    N/A
