55XF3P-B component-copyModelName
Open-frame Display

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (55XF3P-B)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (55XF3P-B)
    $
    $
    LG Members Price
Total
Open-frame Display

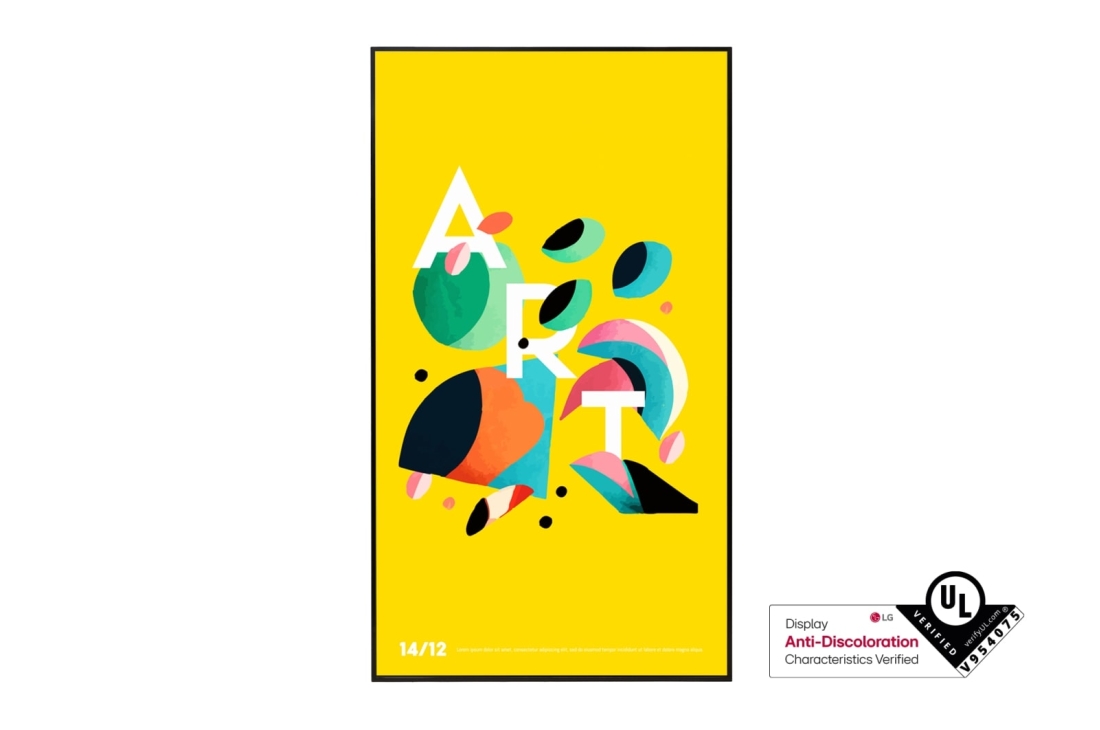

UL Solutions Display Anti-Discoloration Characterstics verified UL Solutions Display Anti-Discoloration Characterstics verified

Customizable Open-frame Display for Smart Efficiency

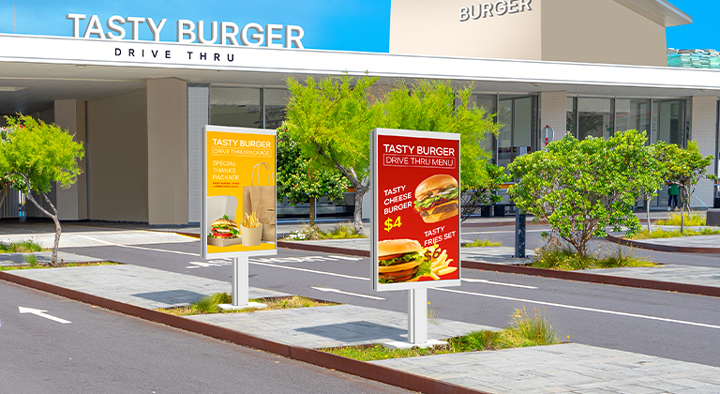

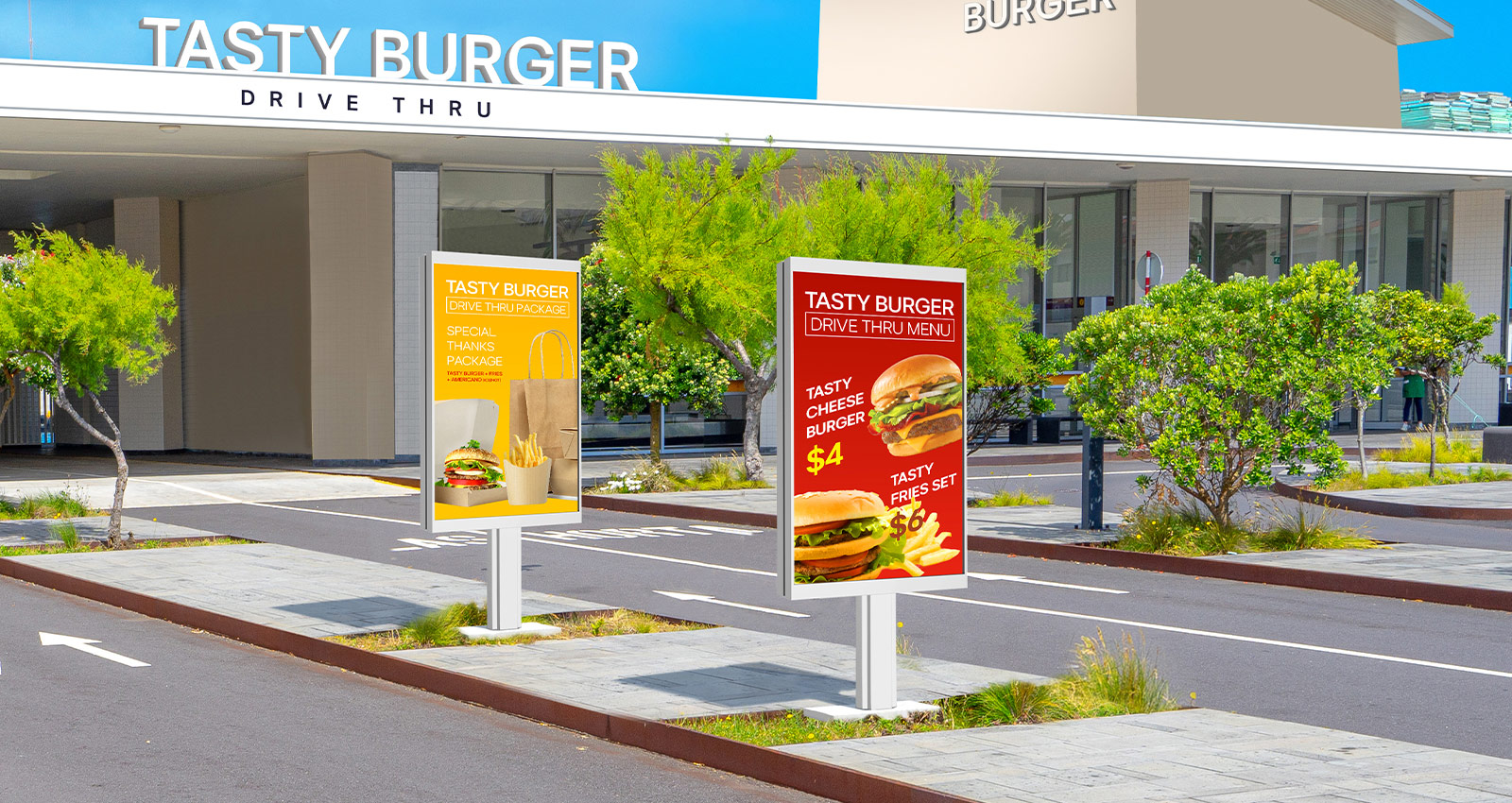

There are two 55XF3Ps installed in the drive-thru zone at the burger place, and they vividly display the burger menu and ads even in bright sunlight. There are two 55XF3Ps installed in the drive-thru zone at the burger place, and they vividly display the burger menu and ads even in bright sunlight.
* All images are for illustrative purposes only.

Open-frame Outdoor Display

LG Open Frame display empowers you to personalize not only the casing design but also the function, granting you the flexibility to tailor the display to your exact preferences.

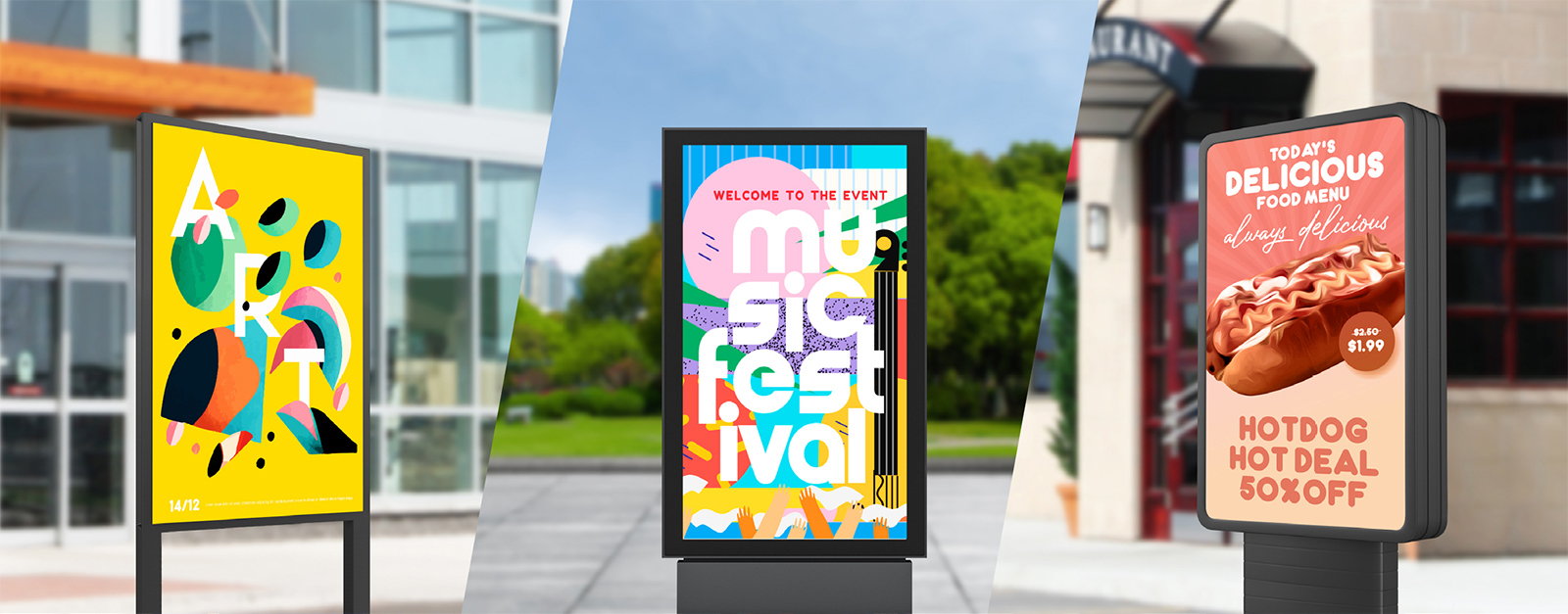

Various frame-shaped displays are installed outdoors. Various frame-shaped displays are installed outdoors.
* Please reach out to your local sales representatives for detailed casing guide.

World’s First UL Verification
for Display Anti-Discoloration Characteristics

By focusing on the pain points of our customers, we obtained the world’s first UL Verification for Display Anti-Discoloration Characteristics. Our new technology helps prevent ‘screen-yellowing’, while maintaining display quality and performance stability.
The display on the left shows yellowing, degrading its quality, but with XF3P, which acquired the UL Verification for Display Anti-Discoloration Characteristics, the screen, as shown on the right, remains clear, safeguarding display quality. The display on the left shows yellowing, degrading its quality, but with XF3P, which acquired the UL Verification for Display Anti-Discoloration Characteristics, the screen, as shown on the right, remains clear, safeguarding display quality.
* World's first UL Verification in the manufacturing industry
** For more details about UL Verification, please visit https://verify.ul.com/verifications/1382.
*** The comparison images are simulated for illustrative purposes only and do not represent the actual performance of the products.

High Visibility Under Strong Sunlight

With outstanding high brightness of 3,000 nits (Typ.), the XF3P outdoor display delivers content clearly while captivating passerby. In addition, its outdoor visibility can deliver a variety of information even to those wearing polarized sunglasses.

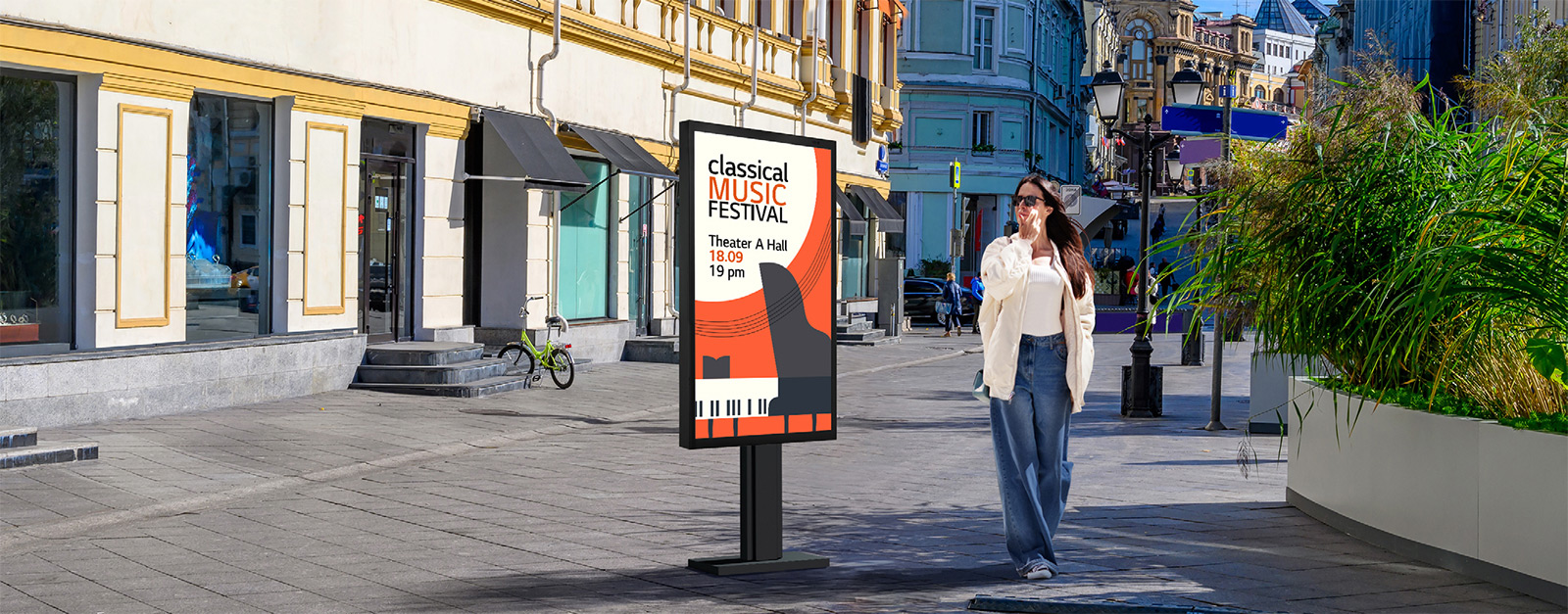

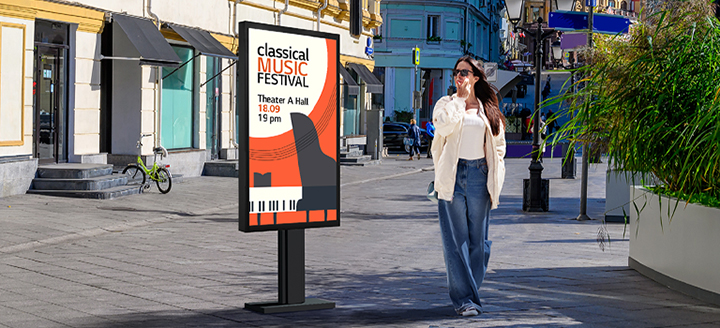

A display is installed on the street, and a woman is looking at a vivid-quality advertisement on the screen. A display is installed on the street, and a woman is looking at a vivid-quality advertisement on the screen.

Optimized Design for Double-sided Display

The XF3P, featuring a sleeker design than the conventional model, excels in maximizing space efficiency with its convenient double-sided display.

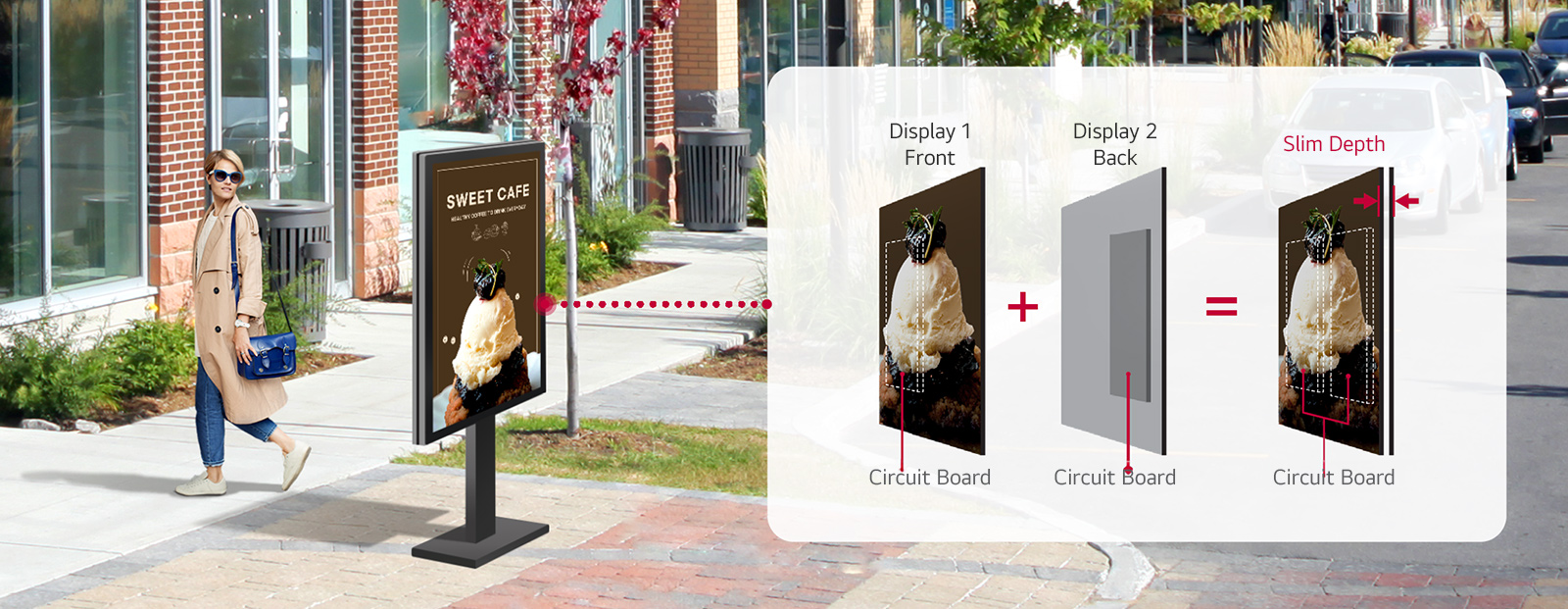

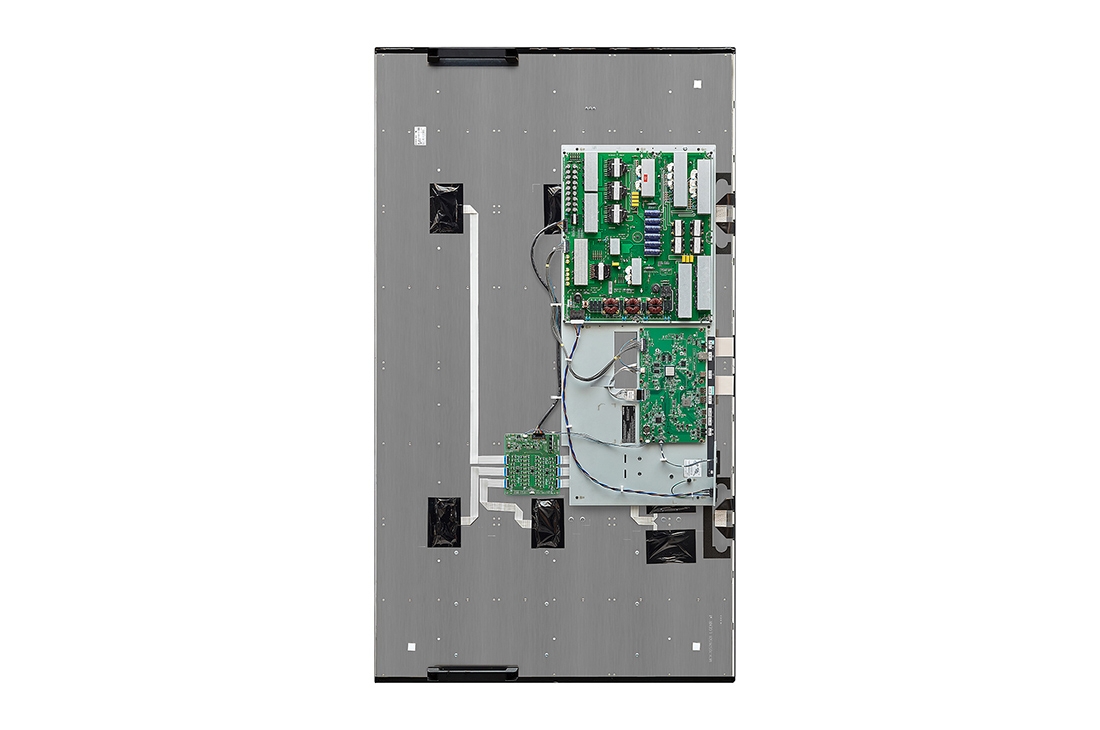

A double-sided display is set up on the street. The effective placement of the circuit board allows for a slim design of the double-sided display. A double-sided display is set up on the street. The effective placement of the circuit board allows for a slim design of the double-sided display.
* The conventional model refers to the XF3C.

Efficient Energy Management

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management. Also, XF3P uses M+ panel that can offer high energy efficiency and cost savings by decreasing power consumption.
The XF3P screen can adjust its brightness automatically according to the ambient light. The XF3P screen can adjust its brightness automatically according to the ambient light.
* M+ IPS reduced approximately 35% BLU Power consumption (IEC62087, 10 min) compared to RGB IPS, tested under same brightness (@fullwhite, 400 nits). The test was conducted internally.
** Specific features can differ from circumstances.
*** Actual results may vary depending on the use environment.

High-performance with webOS 6.1

Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 6.1 platform enhances not only user convenience with intuitive UI but also web-app integration with updated Node JS / Chromium version.
It has improved user convenience by utilizing the Quad Core SoC and webOS. It has improved user convenience by utilizing the Quad Core SoC and webOS.
A display is working well in an environment of 0~50°C.

Wide Range of Operating Temperature

The XF3P can be used under a wide range of operating temperature from 0℃ to 50℃.* Conducted by LG internal test, Operating temperature: 0℃~50℃ (without direct sunlight; with direct sunlight in cooling system), 0℃~40℃ (with direct sunlight)** Actual performance may vary depending on the use environment.
The XF3P has a conformal coating making it resistant to dust and salinity in moisture.

Conformal Coating

Conformal Coating* protects the circuit board and power board against dust, iron powder, humidity, etc.


* Thin protective films/breathing membranes that filter water vapor and solid debris

Installation Guide for a Customized Casing

LG offers an installation guide for designing a customized casing to ensure stable performance for outdoor displays. It includes information about the size of ventilation and the location of partitions within the casing.

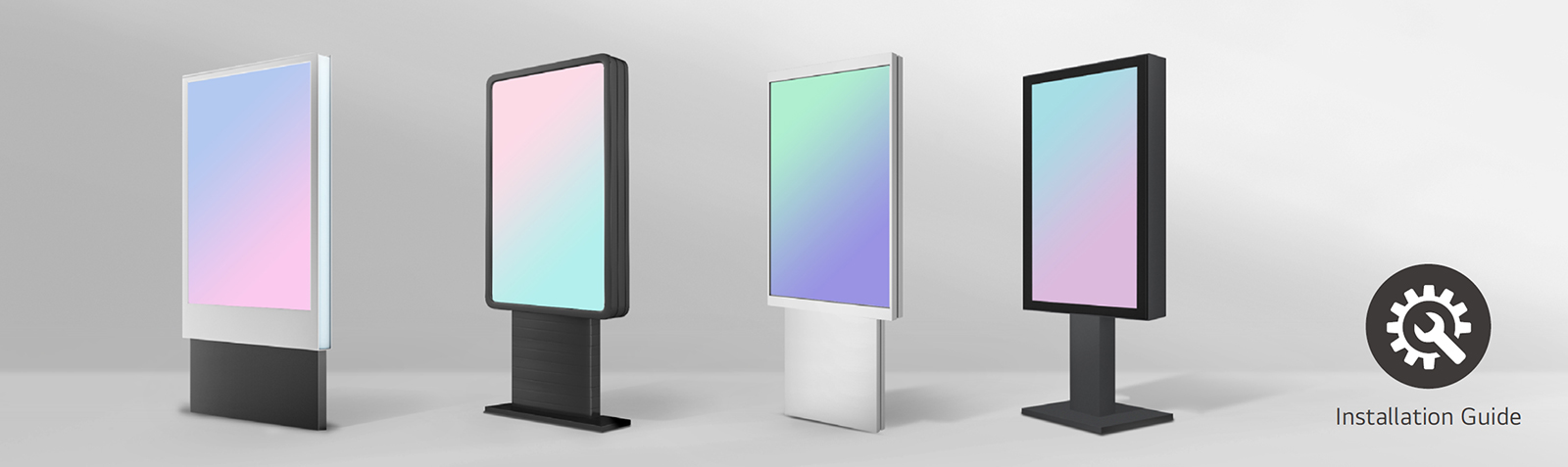

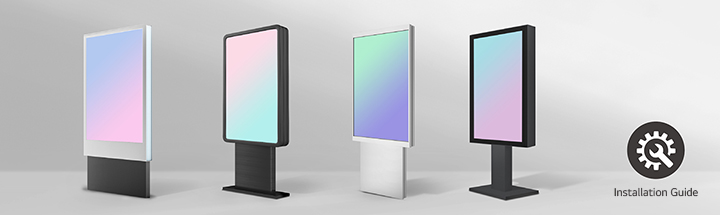

Each of the four XF3Ps has a customized casing. Each of the four XF3Ps has a customized casing.
Users can monitor and control their displays through a mobile phone and laptop.

Web Monitoring

The LG Control Manager, the embedded web monitoring program, is user-friendly and enables the user to have full access anywhere at anytime from their mobile phone or PC while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.

* Enabled by wired LAN connection
Partner content is being utilized to compose the content intended for playback on the signage.

Professional Content Partners

Pairing the XF3P with LG SW solutions would enhance its utilization.

* Sold separately
Close
ACCESSORY
  • Basic
    Remote Controller(including battery 2ea), Power Cord, HDMI Cable, IR Extension Kit, Manual (ESG&EIG)
    Optional
    AN-WF500 ** Stand is not available
CERTIFICATION
  • EMC
    FCC Class "A" / CE / KC / VCCI
    ErP / Energy Star
    YES / NO
  • Safety
    CB / NRTL
CONNECTIVITY
  • DP In
    Yes(1), HDCP1.3
    DP Out
    Yes(1), Input DP/HDMI
  • External Speaker Out
    Yes(1, L/R, 10W+10W) , (4pin phone jack)
    HDMI In
    Yes(2), HDCP2.2
  • RJ45(LAN) In
    Yes(1)
    RS232C In
    Yes(1) (4pin phone jack)
  • RS232C Out
    Yes(1) (4pin phone jack)
    USB In
    USB2.0 Type A (1)
ENVIRONMENT CONDITIONS
  • Operation Humidity
    10 % to 80 %
    Operation Temperature
    0 °C to 50°C (w/o Direct Sunlight)
    0 °C to 40°C (Direct Sunlight)
FEATURE - HARDWARE
  • Auto Brightness Sensor
    Yes
    FAN (Built-in)
    YES
  • Humidity Sensor
    YES
    Internal Memory (eMMC)
    8GB
  • Local Key Operation
    Yes
    Power Indicator
    Yes
  • Temperature Sensor
    Yes
FEATURE - SOFTWARE
  • Auto Set ID
    Yes
    Backlight Sync
    YES
  • Booting Logo Image
    Yes
    Control Manager
    YES
  • External Input Rotation
    Yes
    Fail over
    YES
  • Gapless Playback
    YES
    Group Manager
    YES
  • HDMI-CEC
    Yes
    ISM Method
    YES
  • Local Contents Scheduling
    YES
    Local Network Sync
    YES
  • Network Ready
    Yes
    No Signal Image
    Yes
  • OS Ver. (webOS)
    webOS6.1
    Play via URL
    Yes
  • PM mode
    YES
    RS232C Sync
    YES
  • Screen Rotation
    Yes
    Pro:Idiom
    Yes
  • Setting Data Cloning
    YES
    SI Server Setting
    YES
  • Smart Energy Saving
    Yes
    SNMP
    YES
  • Status Mailing
    YES
    Tile Mode Setting
    Yes (Max. 15x15)
  • USB Plug & Play
    YES
    Video Tag
    Yes
  • Wake on LAN
    Yes
    webRTC
    Yes
LANGUAGE
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arab, Türkçe, polski (Polska)
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    12.0/9.9/9.9/12.0 mm
  • Carton Dimensions (W x H x D)
    1344 x 236 x 820mm
    Handle
    Yes(2)
  • Monitor Dimensions (W x H x D)
    1235.5 x 709.4 x 106.8mm
    Packed Weight
    32.25kg
  • VESA Standard Mount Interface
    600 x 400
    Weight (Head)
    26.5kg
PANEL
  • Aspect Ratio
    16:9
    Back Light Type
    Direct
  • Brightness
    3,000nit (Typ), 2,400nit(Min)
    Color Depth (Number of Colors)
    8bit, 16.7Million colors
  • Color gamut
    NTSC 72%
    Contrast Ratio
    1,300:1
  • Dynamic CR
    500,000:1
    Life time
    50,000 Hrs (Typ)
  • Native Resolution
    1920 x 1080 (FHD)
    Operation Hours (Hours/Day)
    24/7
  • Panel Technology
    IPS, M+
    Portait / Landscape
    Yes / Yes
  • QWP (Quarter Wave Plate)
    YES
    Refresh Rate
    60Hz
  • Response Time
    9ms (G to G)
    Screen Size (Inch)
    55"
  • Surface Treatment (Haze)
    3%
    Viewing Angle (H x V)
    178 x 178
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • BTU (British Thermal Unit)
    TBD
    DPM
    TBD
  • Max.
    TBD
    Power off
    0.5W ↓
  • Smart Energy Saving (70%)
    TBD
    Typ.
    TBD
SOFTWARE COMPATIBILITY
  • Connected Care
    Yes
    SuperSign Cloud
    YES
  • SuperSign CMS
    YES
    SuperSign Control+
    YES
SPECIAL FEATURE
  • Conformal Coating (Power Board)
    YES
    Direct Sunlight
    Yes
