75UH5N-M component-copyModelName
UHD Signage

Key Features

Choose your Size

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (75UH5N-M)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (75UH5N-M)
    $
    $
    LG Members Price
Total
UHD Signage

Large UHD Signage Display with Slim Design

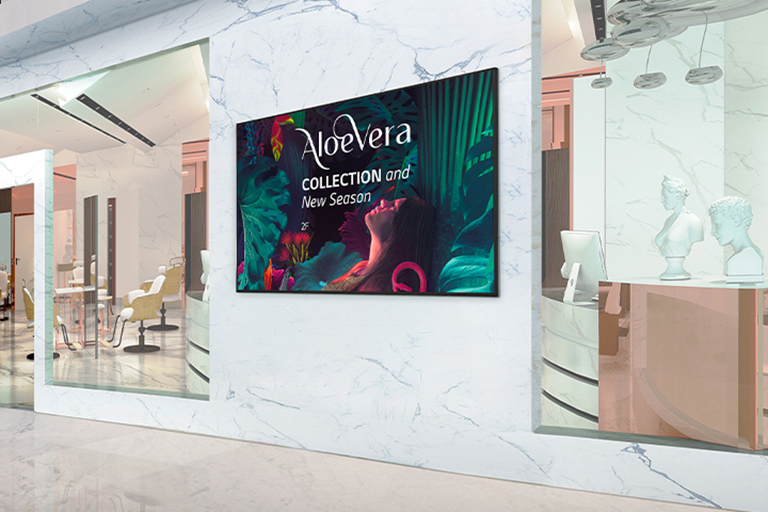

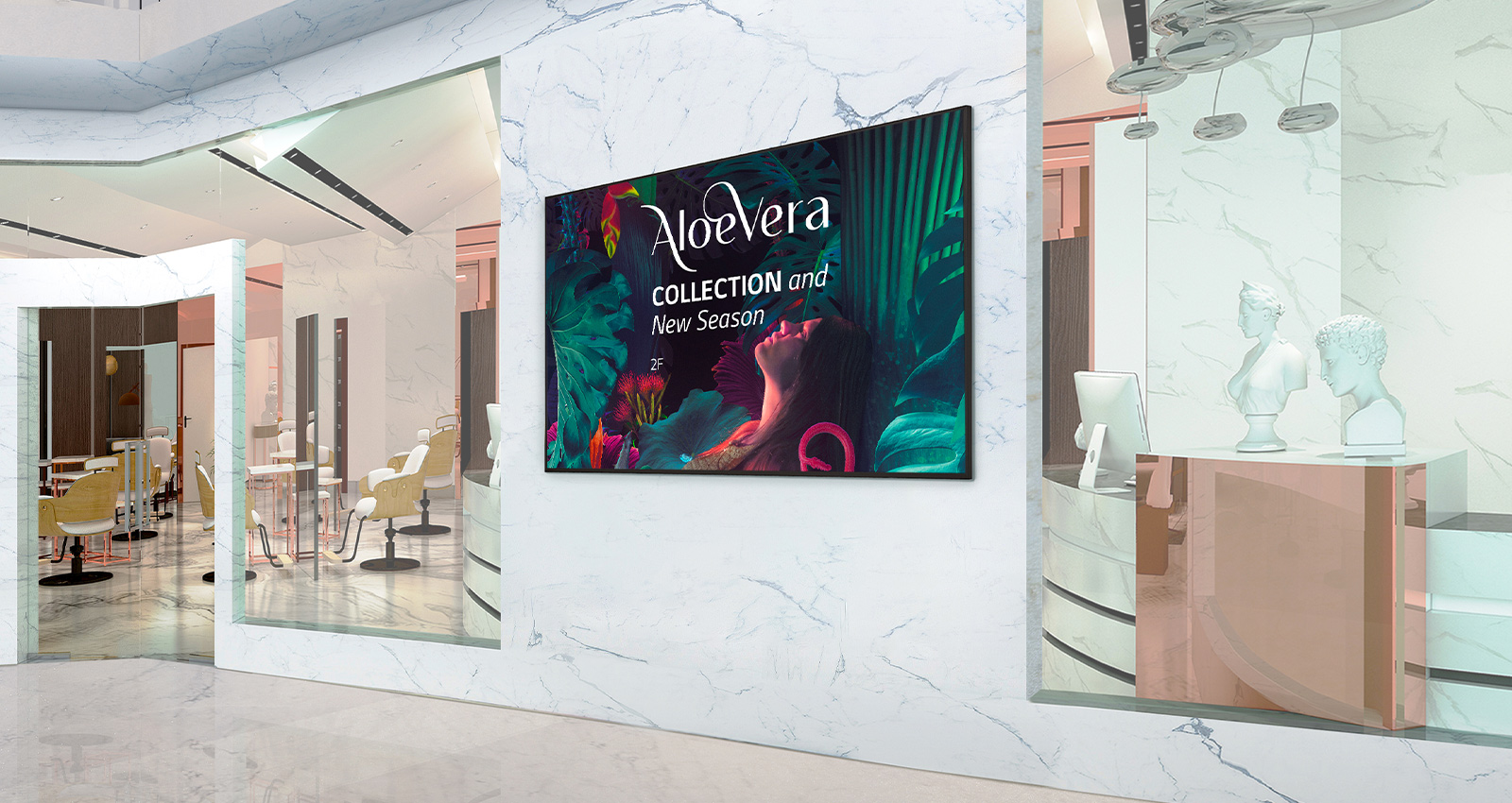

Signage installed on the interior walls of the shopping mall displays advertisements vividly. Signage installed on the interior walls of the shopping mall displays advertisements vividly.
* All images in this page are for illustrative purposes only.

Eye-catching Large Screen

A large screen effectively captures people's attention. Especially, 75-inch model supports 60Hz, enabling smooth content operation.

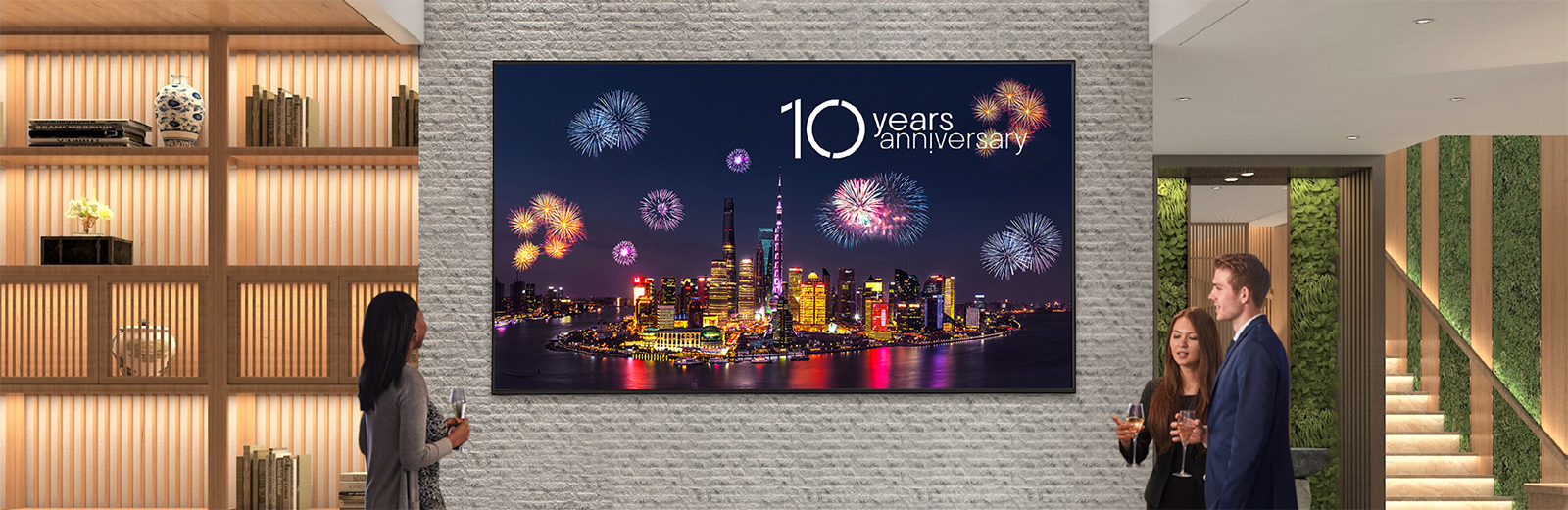

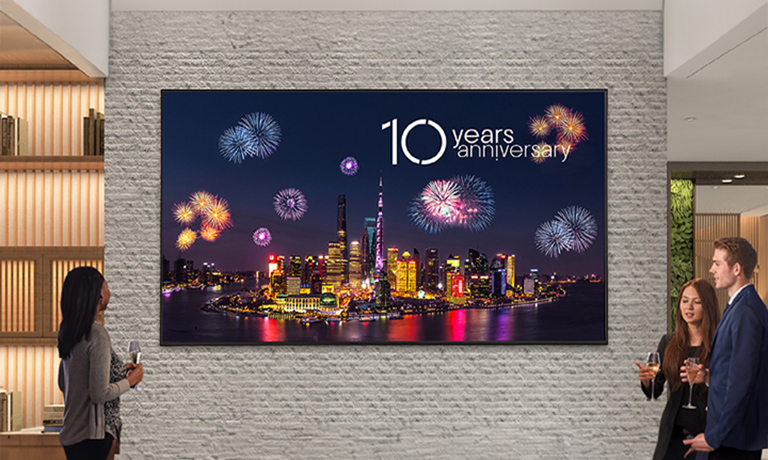

The company lounge features a sizable UH5N-M installed on the wall. The large screen vividly displays images, easily capturing people’s attention. The company lounge features a sizable UH5N-M installed on the wall. The large screen vividly displays images, easily capturing people’s attention.

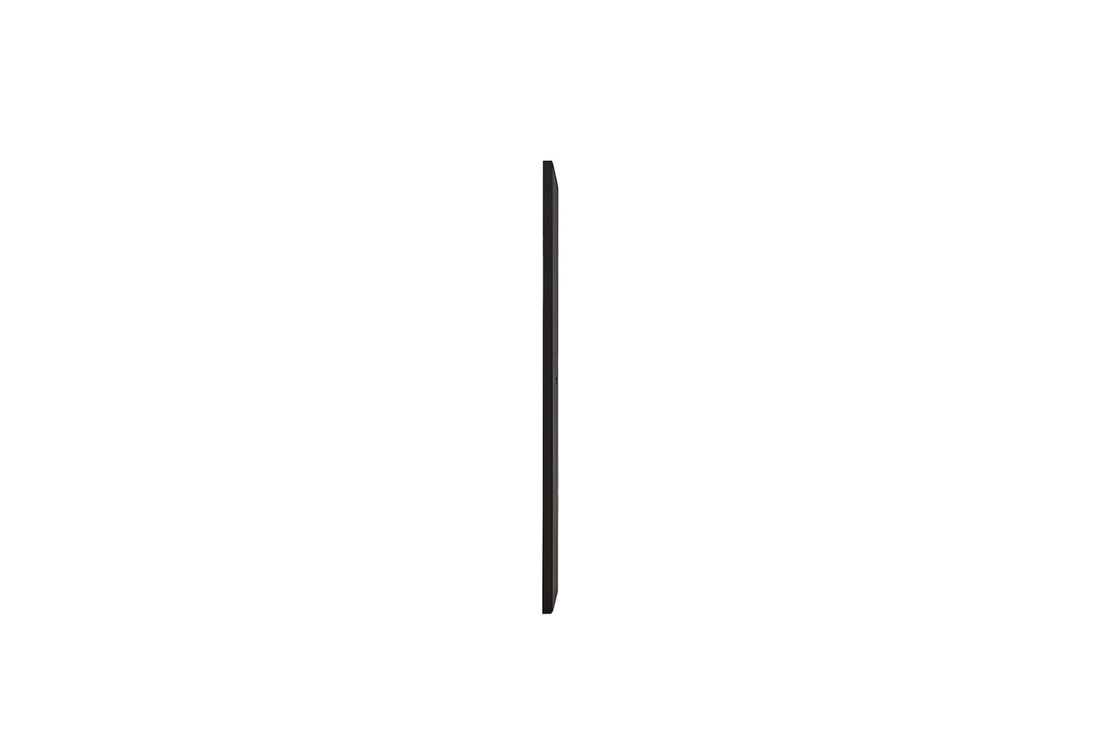

Slim Depth with Even Bezel

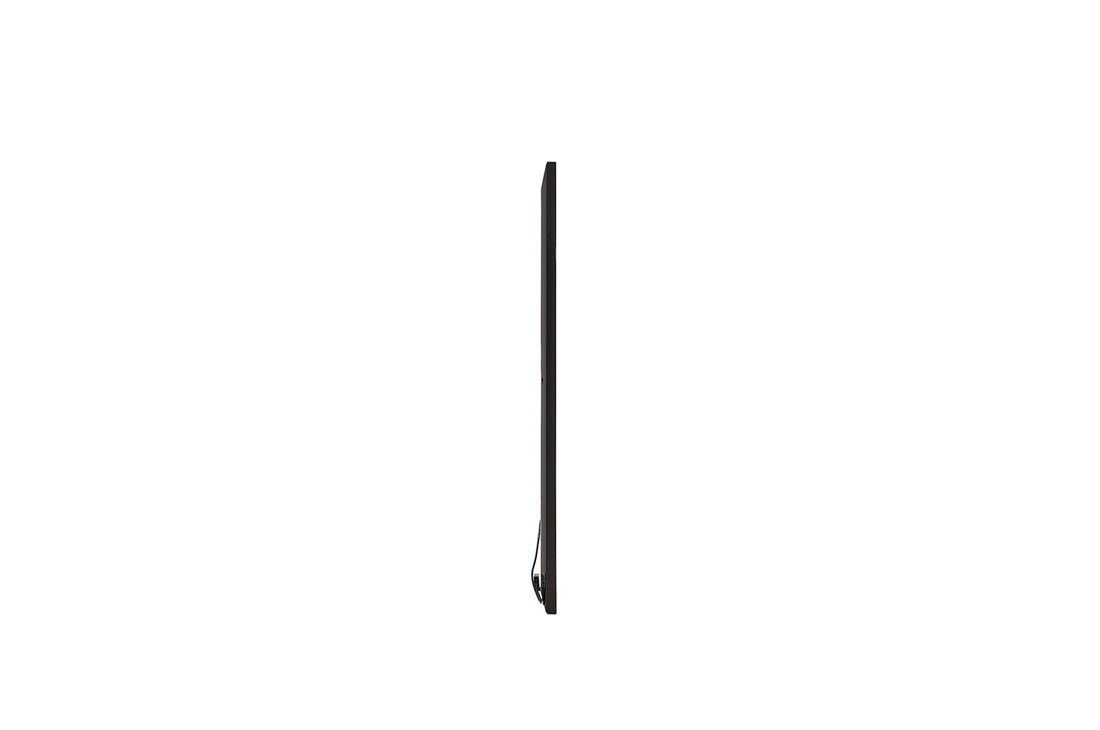

Despite its large screen, UH5N-M boasts a slim depth, which is advantageous for interior design. To avoid visual issues when adjusting to portrait mode, the bezel maintains uniform thickness on all four sides, providing even symmetry on the top, bottom, left, and right. Therefore, it is a model suitable for various styling options.

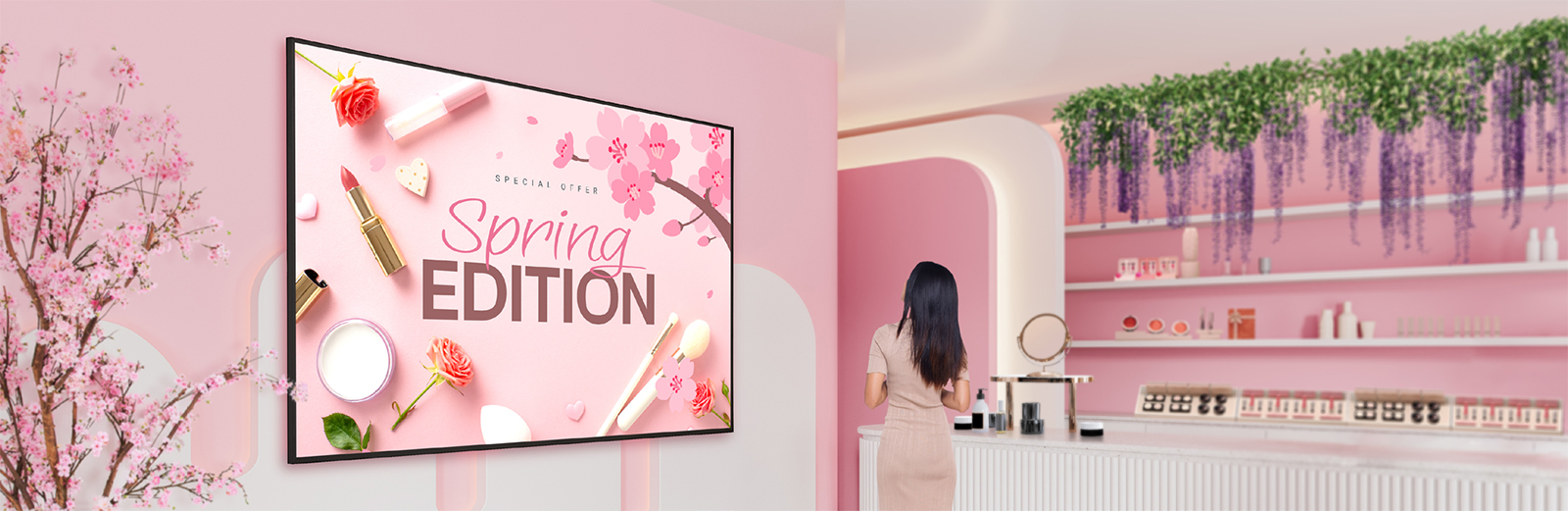

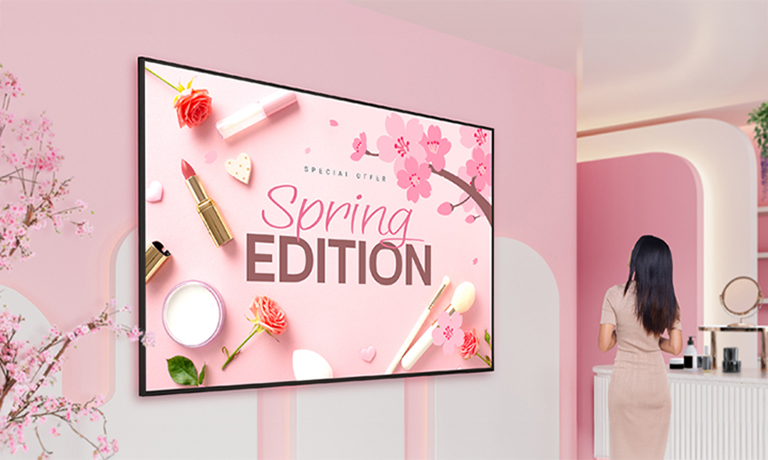

In the cosmetic shop, the UH5N-M is mounted on the wall, and its slim design and uniform bezel seamlessly blend with the interior. In the cosmetic shop, the UH5N-M is mounted on the wall, and its slim design and uniform bezel seamlessly blend with the interior.

Versatile Operation with
Multi-USB

With support for two USB ports, UH5N-M offers versatile usage options. For example, operating content on the screen while simultaneously using other connected devices is possible. This includes convenient tasks like downloading PPT files from external storage devices while using a mouse or keyboard during a meeting.

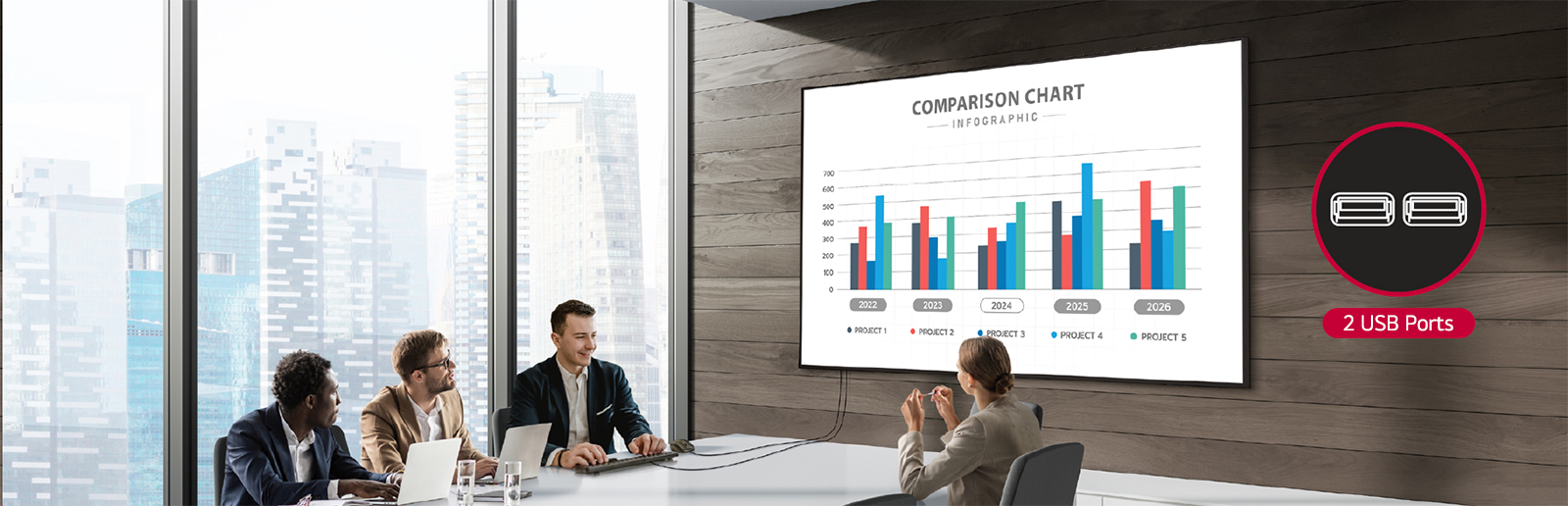

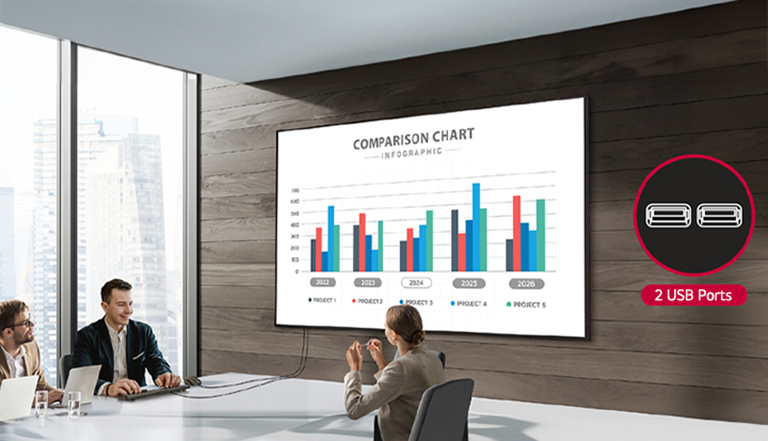

A man in the meeting room is conducting the meeting using both a mouse and keyboard, which are connected to the UH5N-M and used simultaneously. A man in the meeting room is conducting the meeting using both a mouse and keyboard, which are connected to the UH5N-M and used simultaneously.
The difference comparing at a glance is shown in Ultra HD quality, which is four times higher than Full HD. The difference comparing at a glance is shown in Ultra HD quality, which is four times higher than Full HD.

High Resolution Display

It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.

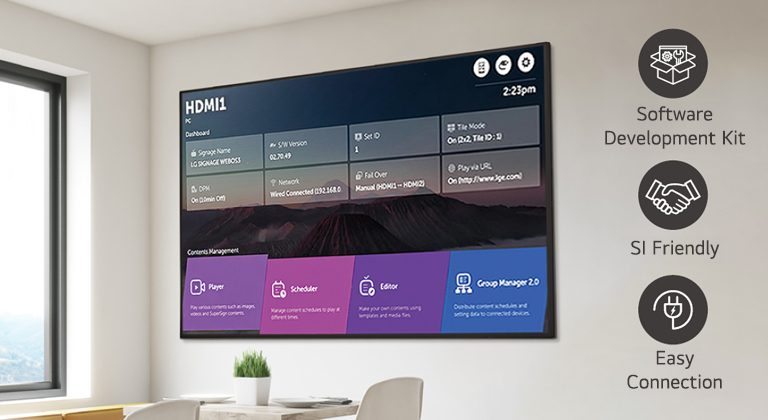

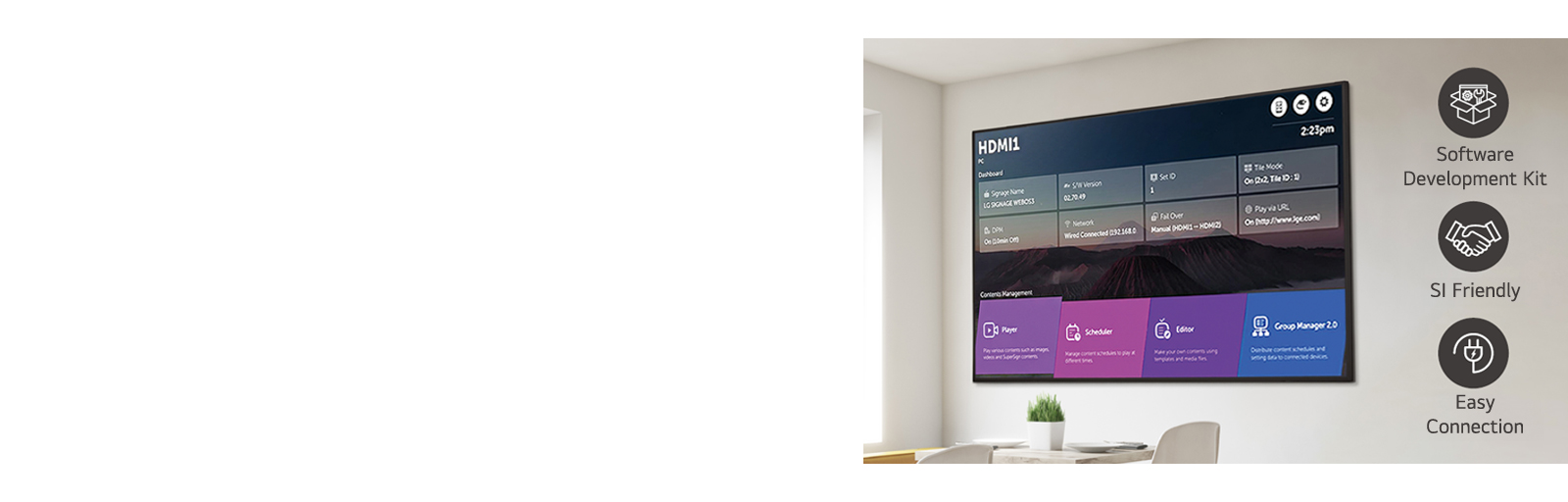

A number of tasks can be done at the same time with the intuitive UI. A number of tasks can be done at the same time with the intuitive UI.

Convenient webOS Platform

The UH5N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.

Durability that Provides Reliability

Optimized for business environments, the UH5N-M is protected against rust and dust with conformal coating and IP5x certification, allowing for stable operation.

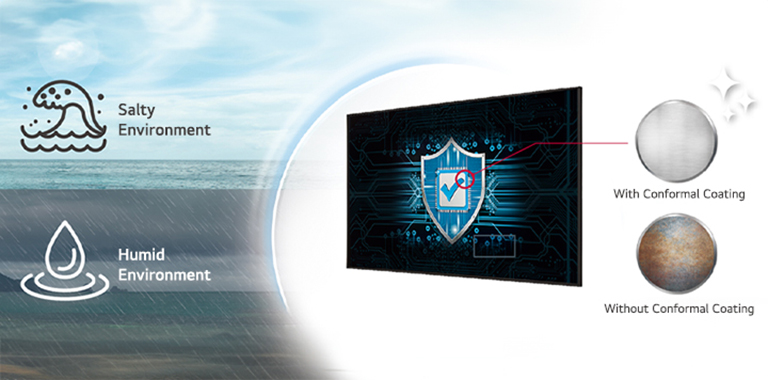

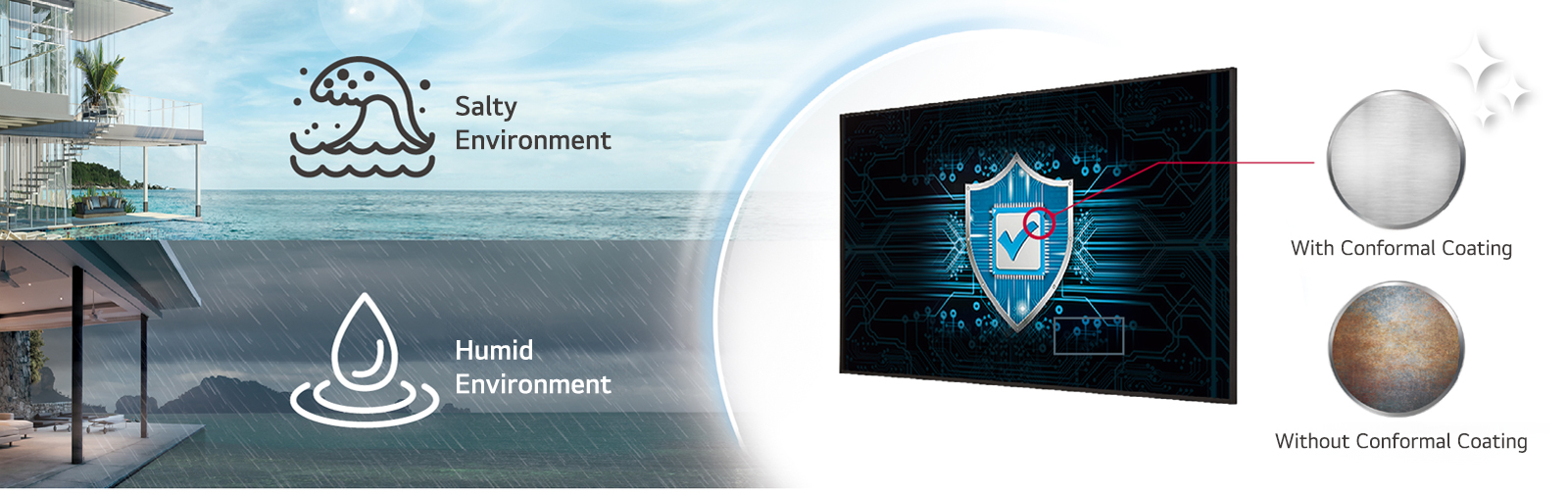

The UH5N-M has conformal coating to protect the display even in salty or humid environments. The UH5N-M has conformal coating to protect the display even in salty or humid environments.

Enhanced Security Features

The UH5N-M provides advanced security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certifications in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.
The UH5N-M provides security features to protect important data from external access or attacks. The UH5N-M provides security features to protect important data from external access or attacks.

SuperSign Solutions

SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

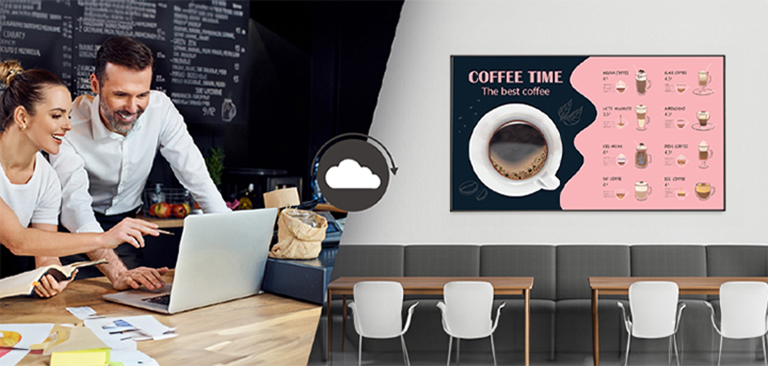

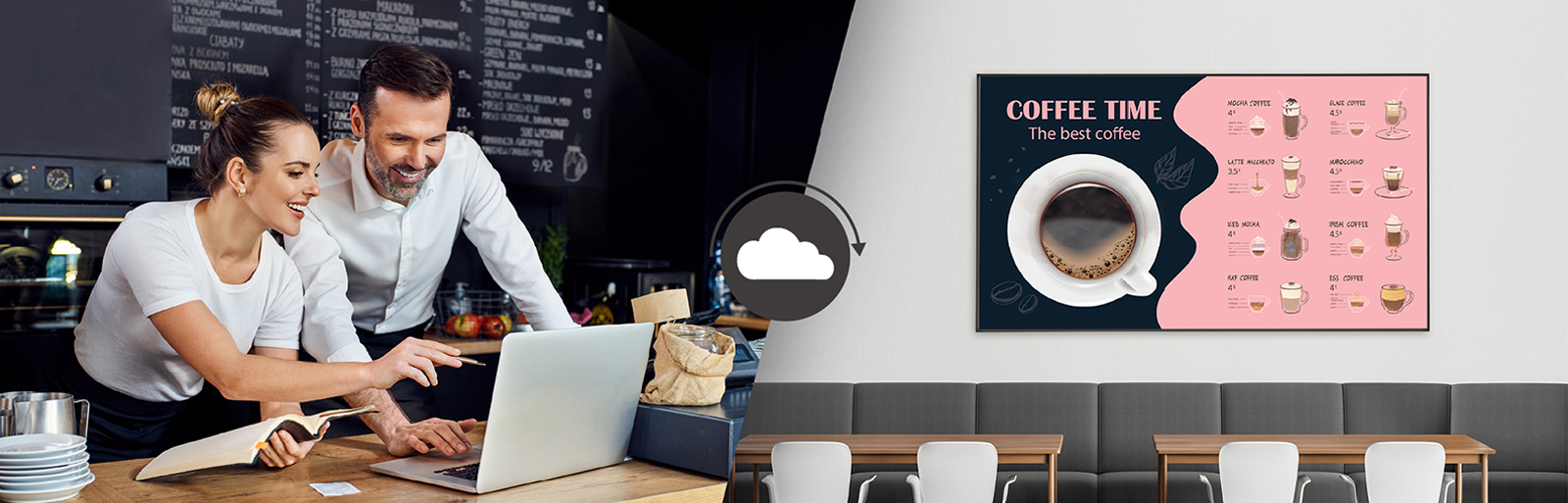

Cafe managers are creating menus that will be displayed on the display installed on the cafe wall using content management software. Cafe managers are creating menus that will be displayed on the display installed on the cafe wall using content management software.
Close
ACCESSORY
  • Basic
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic
    Optional
    Wall Mount (LSW640A/B)
CERTIFICATION
  • EMC
    FCC Class "B" / CE / KC
    ePEAT(US only)
    Yes / Carbon "Measured" (TBD)
  • ErP / Energy Star
    N/A / Yes
    Safety
    CB / NRTL
CONNECTIVITY
  • Audio Out
    Yes(1)
    DP In
    Yes(1), 3840x2160@60Hz, HDCP 2.2/1.3
  • HDMI In
    Yes(3), 3840x2160@60Hz, HDCP 2.2/1.4
    IR In
    Yes(1)
  • IR Out
    No(Support IR daisy chain via RS232C IN/OUT)
    RJ45(LAN) In
    Yes(1)
  • RS232C In
    Yes(1), 4pin Phone-jack
    RS232C Out
    Yes(1), 4pin Phone-jack
  • USB In
    USB2.0 Type A(2)
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0 °C to 40 °C
FEATURE - HARDWARE
  • Acceleration(Gyro) Sensor
    Yes
    Auto Brightness Sensor
    Yes(IR)
  • Internal Memory (eMMC)
    16GB
    Local Key Operation
    Yes
  • Temperature Sensor
    Yes
    Wi-Fi/BT (Built-in)
    Yes
FEATURE - SOFTWARE
  • Auto Set ID
    Yes
    Beacon
    Yes
  • Booting Logo Image
    Yes
    Cisco Certification
    Yes (TBD)
  • Control Manager
    YES
    Crestron Connected
    Yes
  • External Input Rotation
    Yes
    Fail over
    YES
  • Gapless Playback
    YES
    Group Manager
    YES
  • HDMI-CEC
    Yes
    ISM Method
    YES
  • Local Contents Scheduling
    YES
    Local Network Sync
    YES
  • Network Ready
    Yes
    No Signal Image
    Yes
  • OS Ver. (webOS)
    webOS6.0
    PBP
    Yes(4)
  • PIP
    Yes
    Play via URL
    Yes
  • PM mode
    YES
    Pro:Idiom
    Yes
  • RS232C Sync
    YES
    Screen Rotation
    Yes
  • Screen Share
    Yes
    Setting Data Cloning
    YES
  • SI Server Setting
    YES
    Smart Energy Saving
    Yes
  • SNMP
    YES
    Status Mailing
    YES
  • Tile Mode Setting
    Yes (Max. 15x15)
    USB Plug & Play
    YES
  • Video Tag
    Yes(4)
    Wake on LAN
    Yes
  • webRTC
    Yes
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    12.9mm (Even)
  • Handle
    Yes
    Monitor Dimensions (W x H x D)
    1679.5 x 958.7 x 29.7 mm (without IR, Handle)
  • Monitor Dimension with Stand (W x H x D)
    1820 x 1115 x 200 mm
    Packed Weight
    44 kg
  • VESA Standard Mount Interface
    600 x 400
    Weight (Head)
    35.7 kg
PANEL
  • Aspect Ratio
    16:9
    Back Light Type
    Edge
  • Brightness
    500nit (Typ.)
    Color Depth (Number of Colors)
    1.07G (8bits + FRC)
  • Color gamut
    BT709 95%
    Contrast Ratio
    1,200:1
  • Dynamic CR
    1,000,000 : 1
    Life time
    50,000Hrs (Min.)
  • Native Resolution
    3840 x 2160 (UHD)
    Operation Hours (Hours/Day)
    24/7
  • Panel Technology
    ADS
    Portait / Landscape
    Yes / Yes
  • Refresh Rate
    60Hz
    Response Time
    8ms (G to G)
  • Screen Size (Inch)
    75
    Surface Treatment (Haze)
    25%
  • Viewing Angle(H x V)
    178 x 178
POWER
  • Power Type
    Built-In Power
POWER CONSUMPTION
  • BTU (British Thermal Unit)
    546 BTU/Hr(Typ.), 843 BTU/Hr(Max)
    DPM
    0.5W
  • Max.
    247W
    Power off
    0.5W
  • Smart Energy Saving (70%)
    112W
    Typ.
    160W
SOFTWARE COMPATIBILITY
  • Connected Care
    Yes
    Mobile CMS
    Yes
  • SuperSign Cloud
    Yes
    SuperSign CMS
    Yes
  • SuperSign Control+
    Yes
    SuperSign WB
    Yes
SOUND
  • Speaker (Built-in)
    Yes (10W X 2)
SPECIAL FEATURE
  • Conformal Coating (Power Board)
    Yes (Partial space coating)
    Tilt (Face down)
    IP5X
