LCCM025-GN component-copyModelName

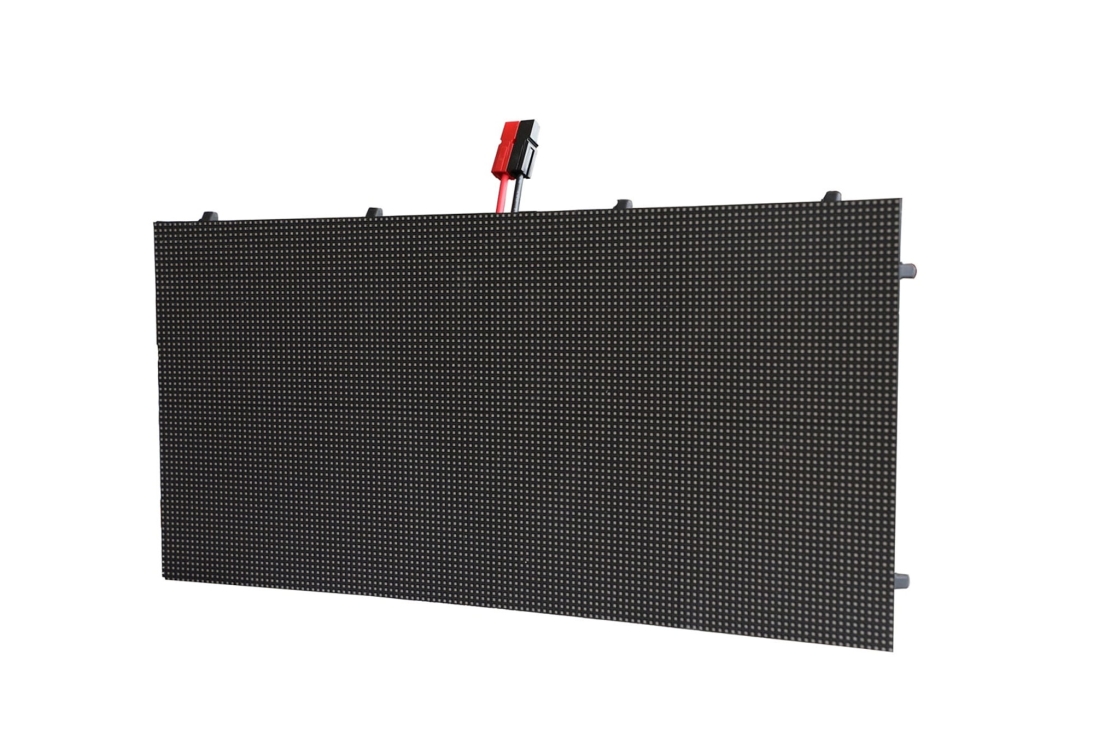

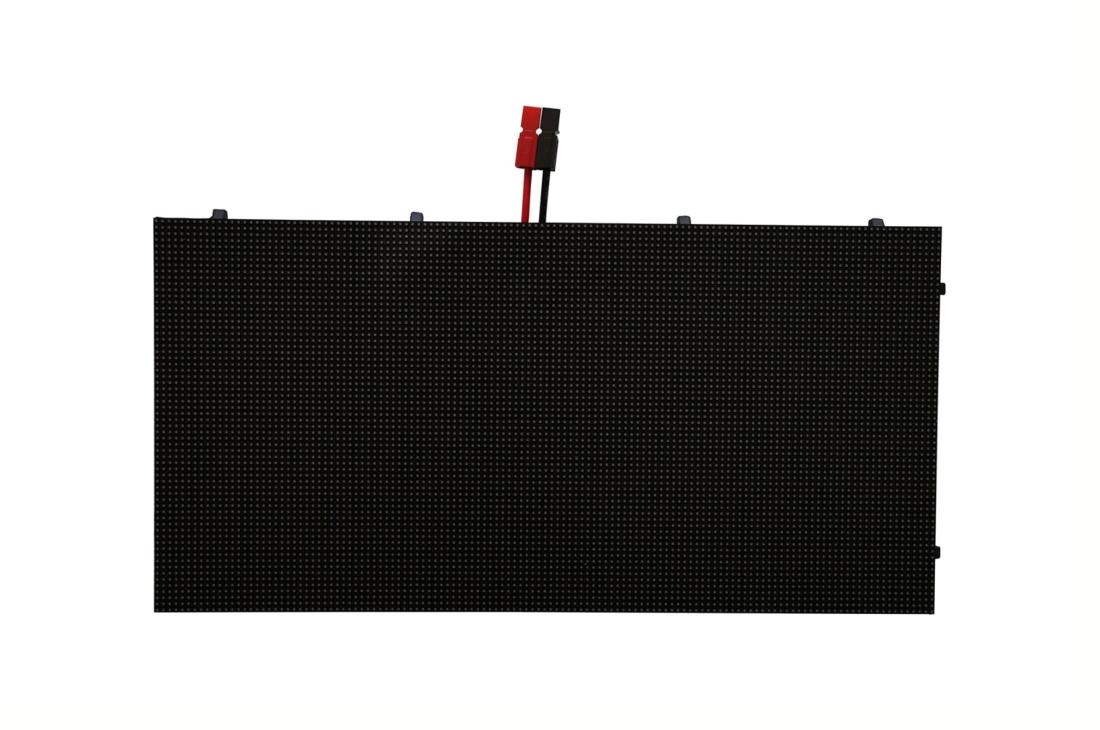

Flexible LED Display

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (LCCM025-GN)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (LCCM025-GN)
    $
    $
    LG Members Price
Total
Flexible LED Display

Flexible LED Display

Flexible LED Display Flexible LED Display
* All images in this page are for illustrative purposes only.
The depth of the LSCB cabinet is comparable to the diameter of a table tennis ball, showing its similar depth. The depth of the LSCB cabinet is comparable to the diameter of a table tennis ball, showing its similar depth.

Flexible LED Display

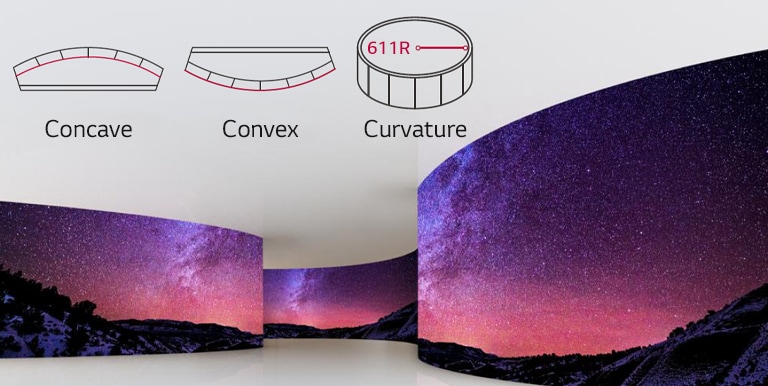

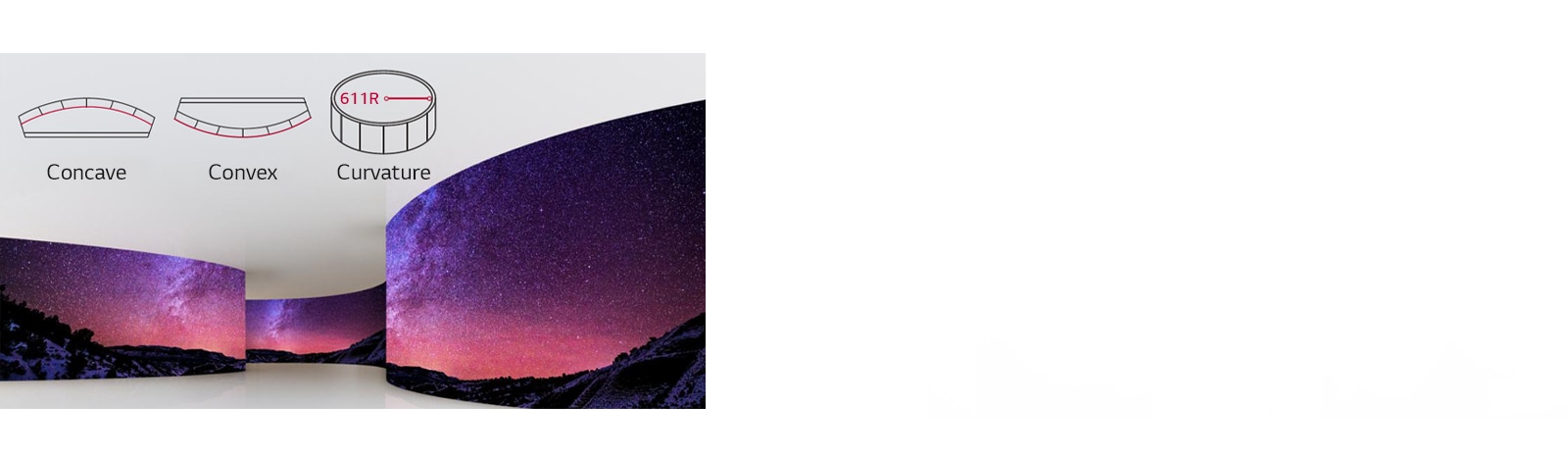

With a specially designed flexible LDM (LED Display Module), the LCCM series supports true concave and convex curvature from 611R. The LCCM series also greatly amplifies design flexibility, providing users with the ability to create true curved screens.

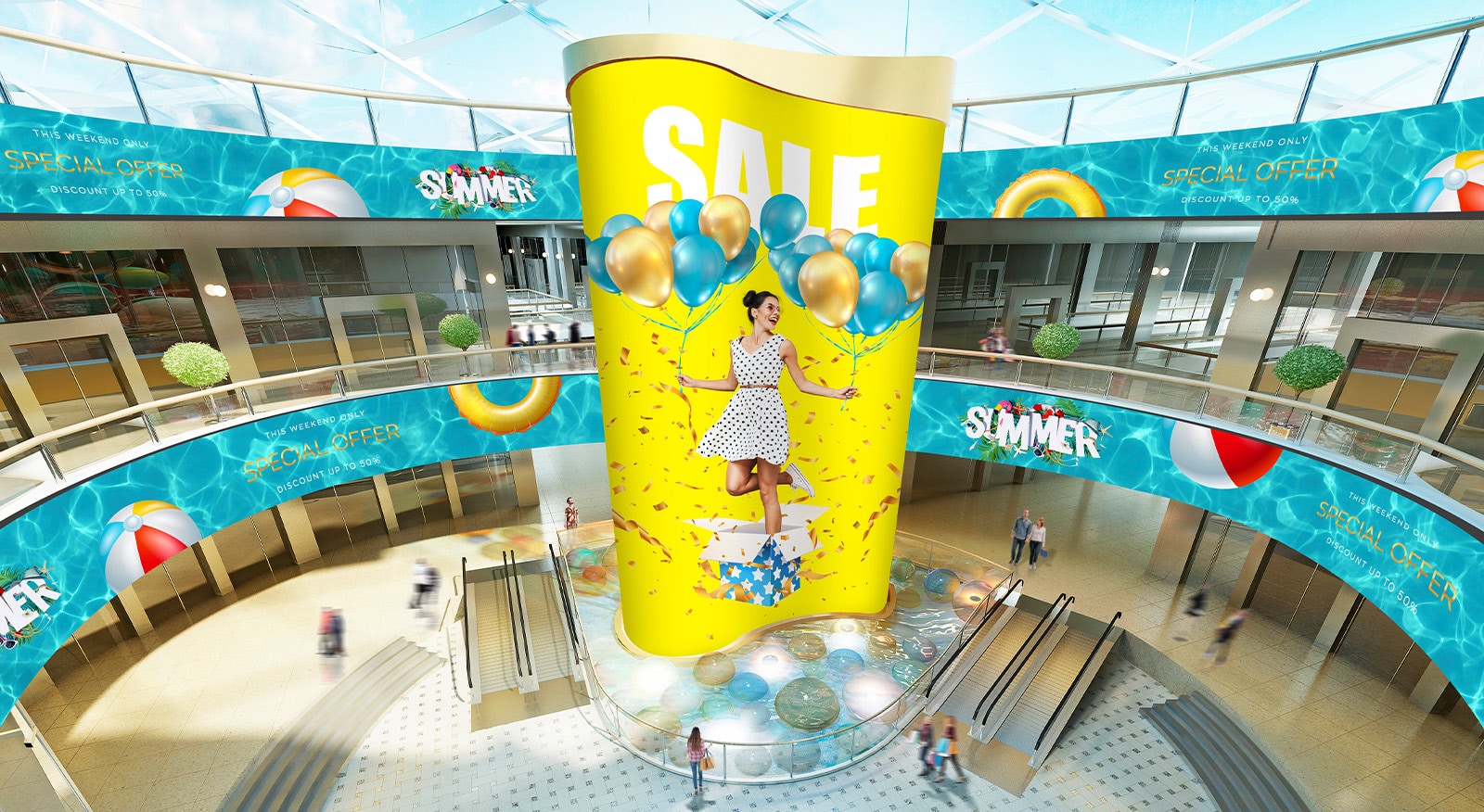

Creative LED Screen Creative LED Screen

Creative LED Screen

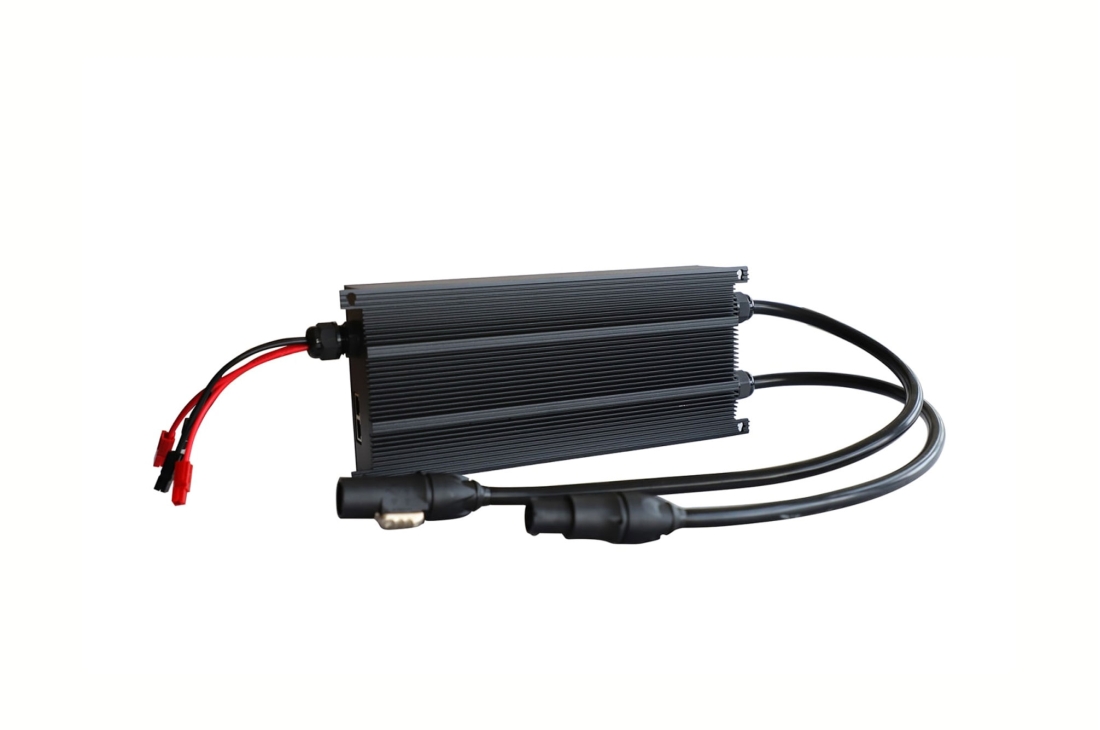

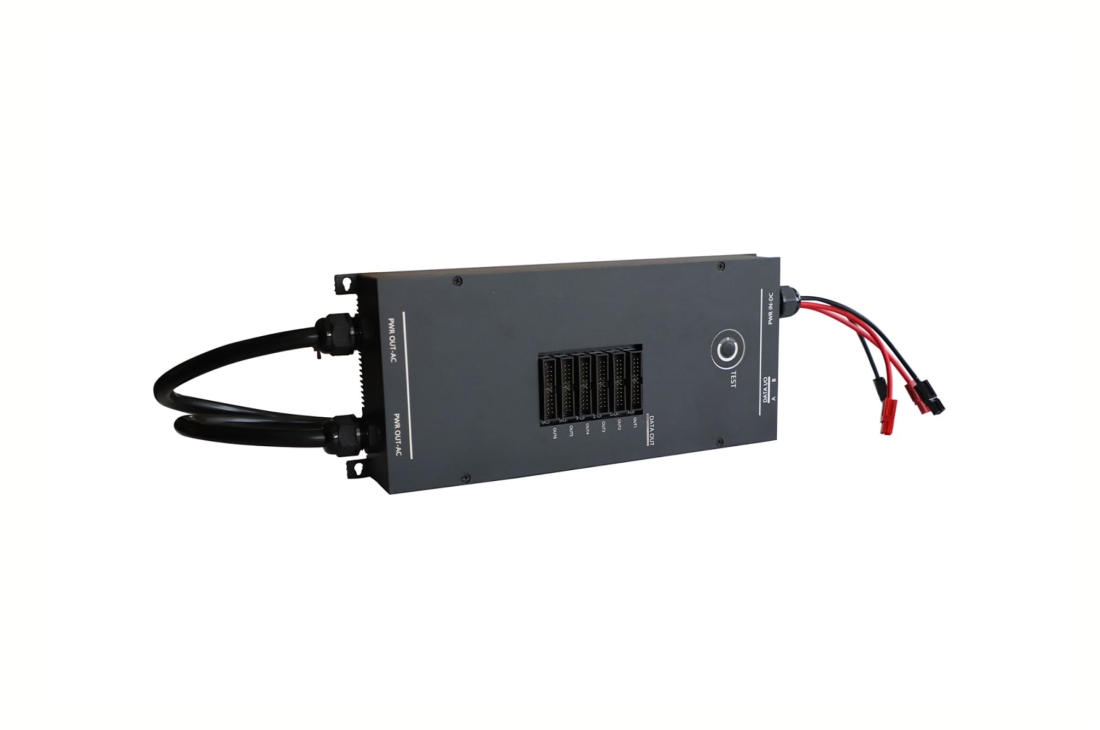

Different from the conventional LED display, LCCM series breaks free from the rectangular shape, allowing to be designed in various shapes as to display highly creative content on screen. In addition, the separation of the PDU (Power & Data Unit) from the cabinet gives a lot of freedom and advantage for creative installations.

Easy Installation & Maintenance

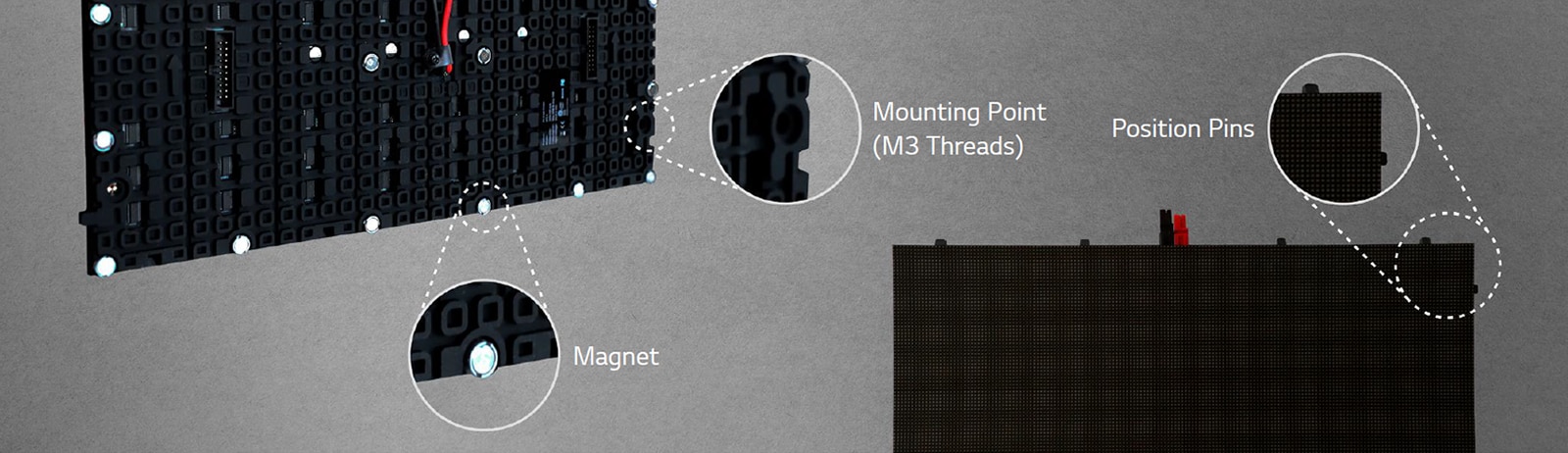

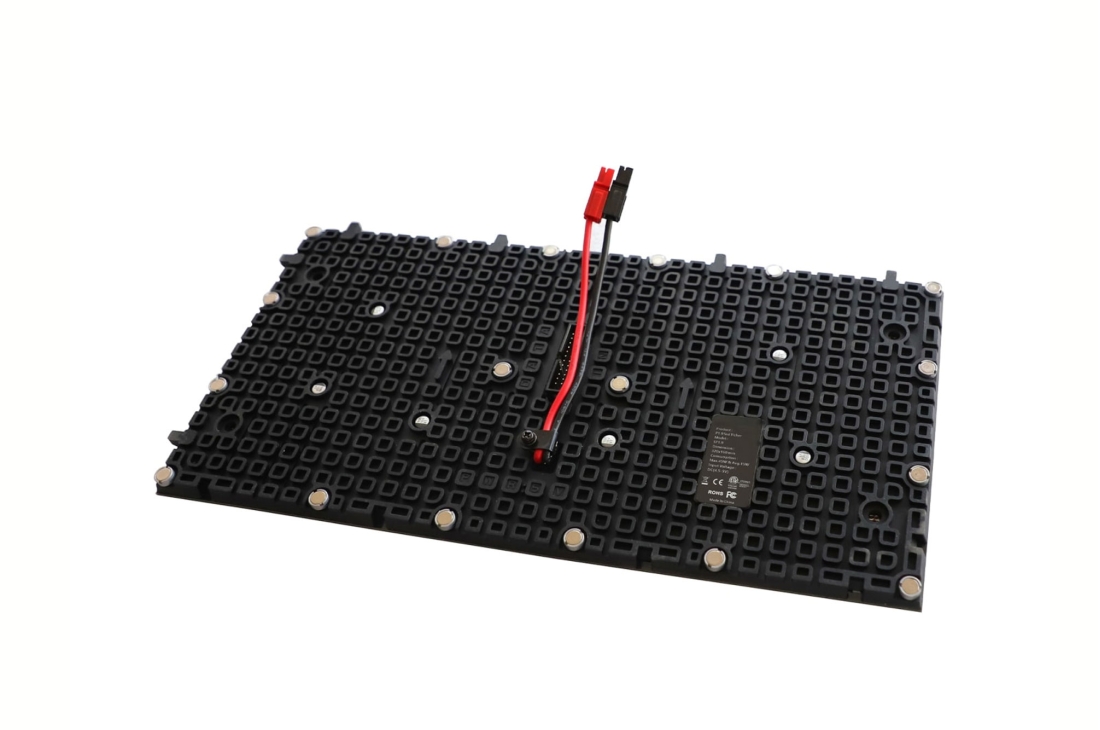

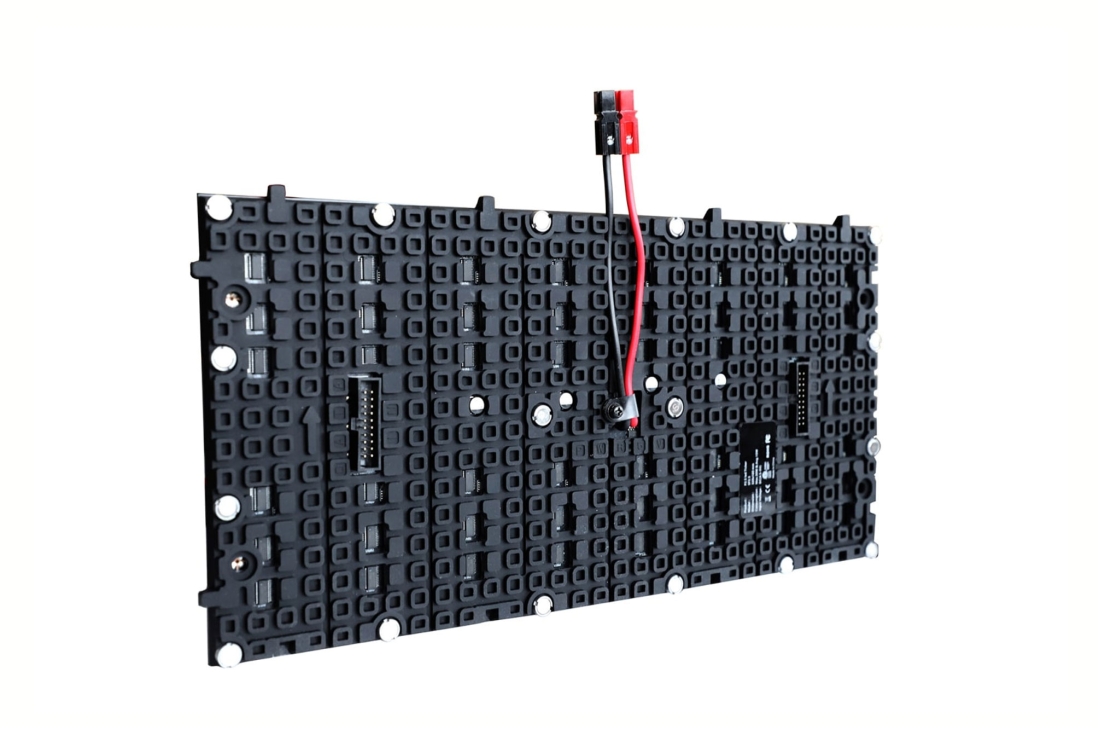

The easy-handling lightweight LDM (LED Display Module) makes installation easy. Also, with various factors including magnets and positioning pins, the installers can easily install and dismantle the LED screen with dedicated tool, making it convenient to manage.
Easy Installation & Maintenance Easy Installation & Maintenance

Compatibility with LG Software Solutions

Powered by LG’s high performance system controller, the LCCM series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.
Compatibility with LG Software Solutions Compatibility with LG Software Solutions
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* Available when using with CVCA cotroller.
Close
PHYSICAL PARAMETERS
  • Pixel Configuration
    3 in 1
    Pixel Pitch (mm)
    2.50
  • Module Resolution (WxH)
    128x64
    Module Dimensions(WxH,mm)
    320x160
  • Weight per Module (kg)
    0.50
    Physical Pixel Density (pixels/㎡)
    160,000
  • Flatness of Cabinet (mm)
    ±1.0
    Cabinet material
    Al
  • Service access
    Front
OPTICAL SPECIFICATIONS
  • Max Brightness (After Calibration, nit)
    1,200
    Color Temperature (K)
    3,200~9,300
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    160
  • Brightness Uniformity(%)
    97%
    Color Uniformity
    ±0.003CxCy
  • Contrast Ratio
    5,000:1
    Processing Depth (bit)
    14 (HDR10, HDR10 Pro)
ELECTRICAL SPECIFICATIONS
  • Power Consumption (W/Cabinet, Max.)
    36
    Power Consumption (W/Cabinet, Avg.)
    12
  • Power Consumption (W/㎡, Max.)
    720
    Heat Dissipation (BTU/h/Cabinet, Max.)
    123
  • Heat Dissipation (BTU/h/Cabinet, Avg.)
    41
    Heat Dissipation (BTU/h/㎡, Max.)
    2,457
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    1,920
OPERATION SPECIFICATIONS
  • LED Lifetime (Half brightness)
    100,000
    Operating Temperature(℃)
    -30℃ to +45℃
  • Operating Humidity
    10~90%RH
    IP rating Front
    IP30
  • IP rating Rear
    IP30
STANDARD
  • Certification
    CE, FCC, ETL
ENVIRONMENT
  • Environment
    RoHS, REACH
CONTROLLER
  • Controller
    CVCA
