LSBB015-GD component-copyModelName
Fine-pitch Essential Series

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (LSBB015-GD)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (LSBB015-GD)
    $
    $
    LG Members Price
Total

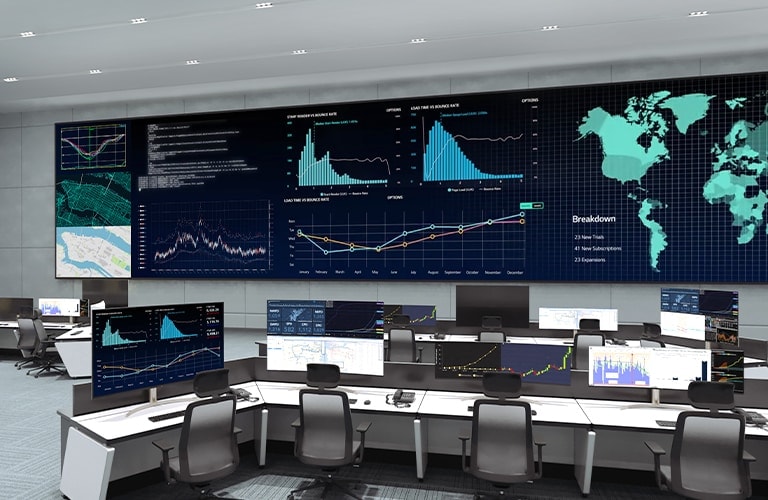

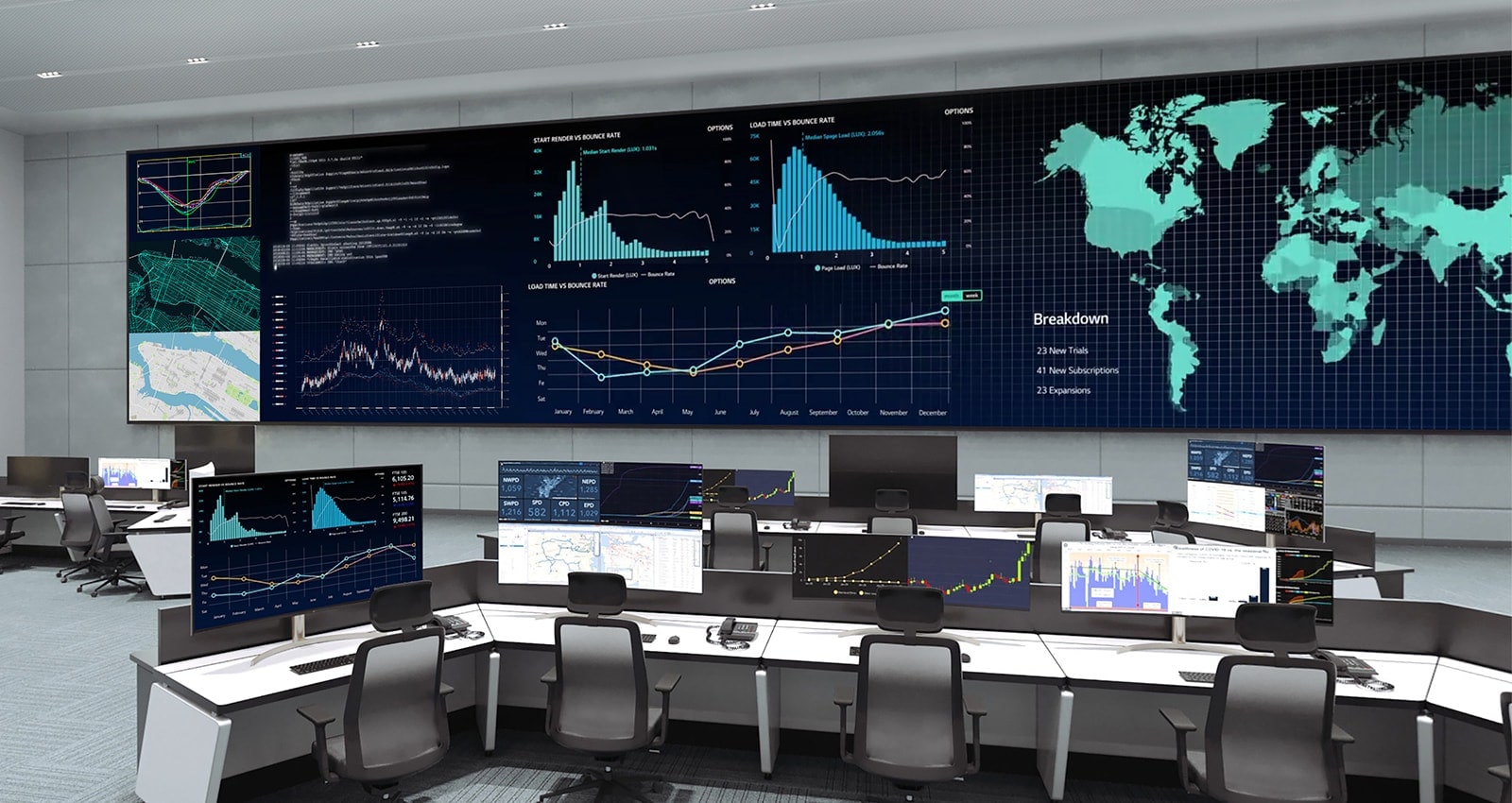

Fine-pitch Essential Series

Fine-pitch Essential Series

Fine-pitch Essential Series Fine-pitch Essential Series
*All images in this web page are for illustrative purposes only.

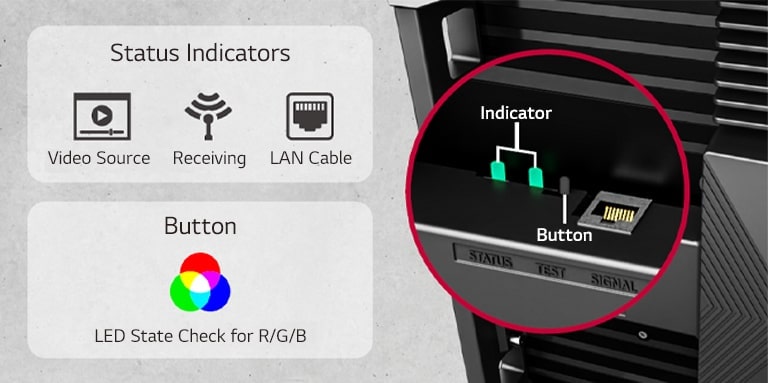

Status Indicator of Signal Detection Status Indicator of Signal Detection

Status Indicator of Signal Detection

Status indicators and button are in the main frame of the cabinet structure, and can be accessed from both front and back.
* GUI : Graphical User Interface

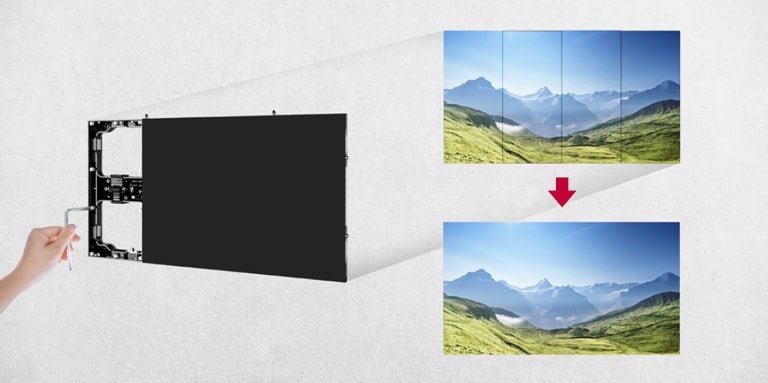

Easy Alignment in Z-direction Easy Alignment in Z-direction

Easy Alignment in Z-direction

A uniform tool can be used for X/Y/Z 6-axis adjustment between panels. Module can be easily adjusted in Z-direction, and flatness can be optimized again.

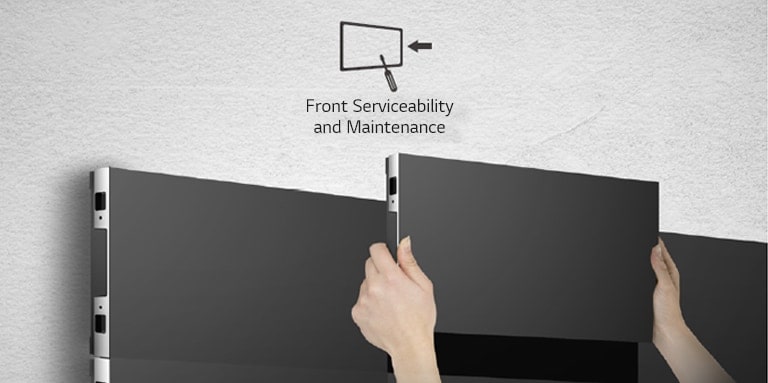

Front Serviceability Front Serviceability

Front Serviceability

The product offers front access, freeing customers from needing rear access space.
Easy-handling Lightweight Cabinet Easy-handling Lightweight Cabinet

Easy-handling Lightweight Cabinet

It’s lightweight and easy to install, effectively reducing the risk of damage during installation. A full set of LED screens is still light, reducing strain on the structure holding the screens.

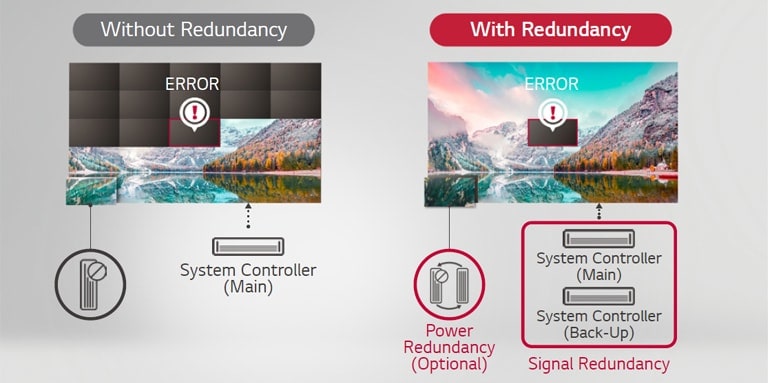

Signal / Power Redundancy Signal / Power Redundancy

Signal / Power Redundancy

With an additional controller and power unit, a back-up controller activates if a signal transmission error occurs, preventing a screen blackout error (Signal Redundancy). The product also offers Power Redundancy as an option.* Two power units are provided in single LED cabinet one activates to provide power when the other fails.
*In the case of Power Redundancy, additional options are available as add-ons while ordering and will incur additional costs.
Built-In Brightness Sensor Built-In Brightness Sensor

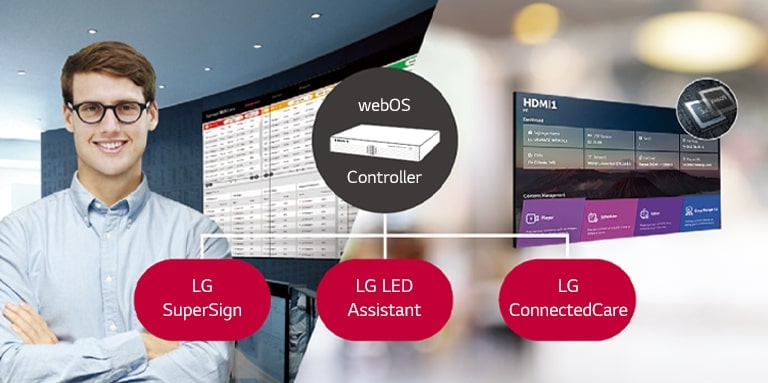

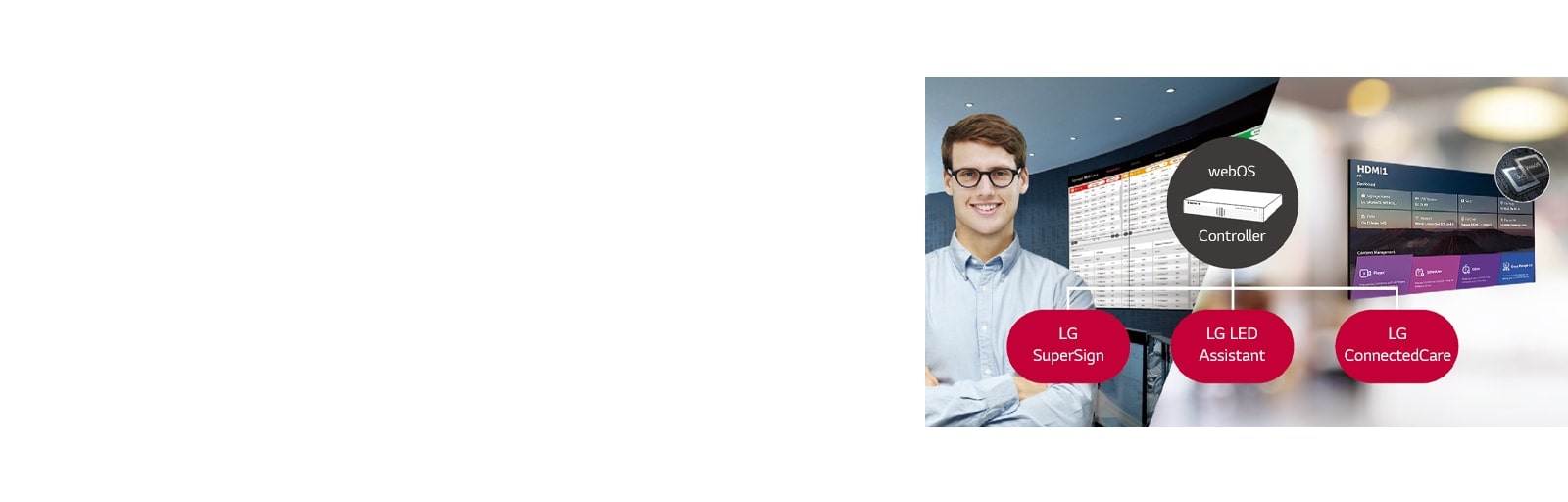

Compatibility with LG Software Solutions

Powered by LG’s high performance system controller, the LSBB series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.
*The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
*The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power).
Close
INFORMATION
  • Model name
    LSBB015-GD
ELECTRICAL SPECIFICATIONS
  • Frame Rate (Hz)
    50 / 60
    Power Consumption (W/Cabinet, Avg.)
    40
  • Power Consumption (W/Cabinet, Max.)
    120
    Power Consumption (W/㎡, Max.)
    600
  • Power Supply (V)
    AC 100-240 V (50-60 Hz)
OPERATION SPECIFICATIONS
  • IP rating Front
    IP5X
    IP rating Rear
    IP5X
  • LED Lifetime (Half brightness)
    100,000
    Operating Humidity
    0~80%RH
  • Operating Temperature(℃)
    -20 to +40
OPTICAL SPECIFICATIONS
  • Brightness Uniformity(%)
    97
    Color Temperature (K)
    3,200-9,300
  • Color Uniformity
    ±0.003 Cx,Cy
    Contrast Ratio
    5,000 : 1
  • Max. Brightness (After Calibration)
    600
    Processing Depth (bit)
    16 (HDR10, HDR10 Pro)
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    140
PHYSICAL PARAMETERS
  • Cabinet material
    Die Casting Aluminum
    Cabinet Dimensions (W x H x D, mm)
    600 × 337.5 × 56
  • Cabinet Resolution (WxH)
    384 × 216
    Cabinet Surface Area (㎡)
    0.203
  • Flatness of Cabinet (mm)
    0.5
    Module Dimensions(WxH,mm)
    150 × 337.5
  • Module Resolution (WxH)
    96 × 216
    No. of Modules per Cabinet (WxH)
    4 × 1
  • Physical Pixel Density (pixels/㎡)
    409,600
    Pixel Configuration
    3 in 1 SMD
  • Pixel Pitch (mm)
    1.563
    Service access
    Front
  • Weight per Cabinet (kg/unit)
    6.0
    Weight per Module (kg)
    0.50
  • Weight per Square Meter (kg/㎡)
    30.0
