LG Ultra Slim Series

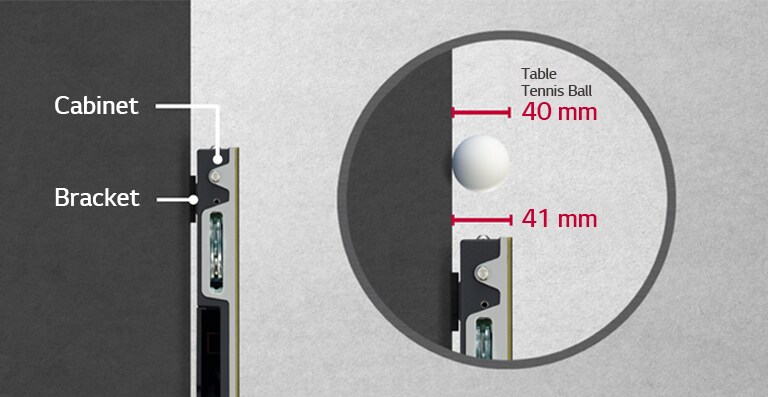

Ultra Slim Depth Ultra Slim Depth

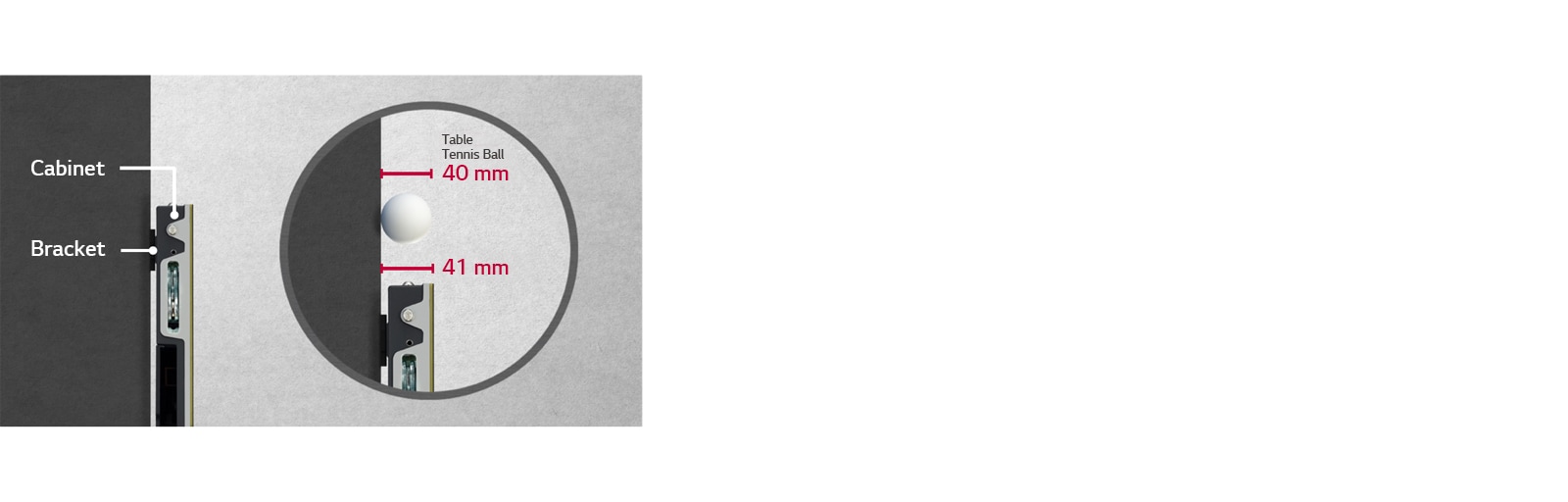

Ultra Slim Depth

Its ultra-slim design with 41 mm edge thickness is the biggest advantage of the product. This feature enables the LSCB series to be installed in a variety of venues, as its thinness helps it to harmonize with its surroundings.
Easy & Seamless Installation Easy & Seamless Installation

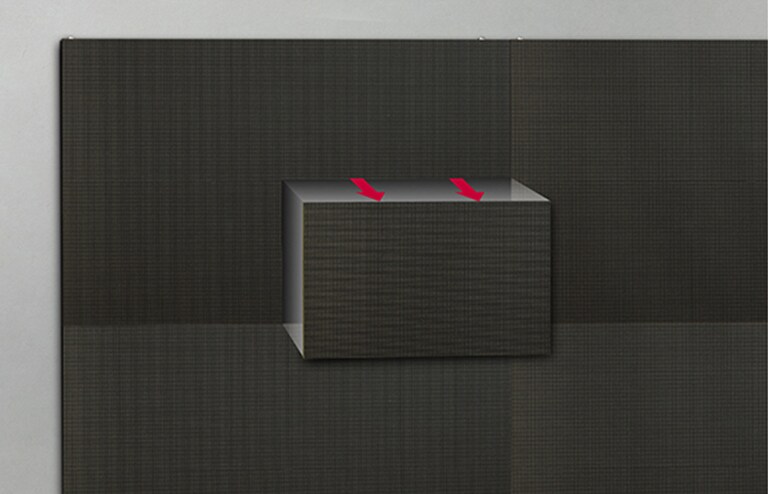

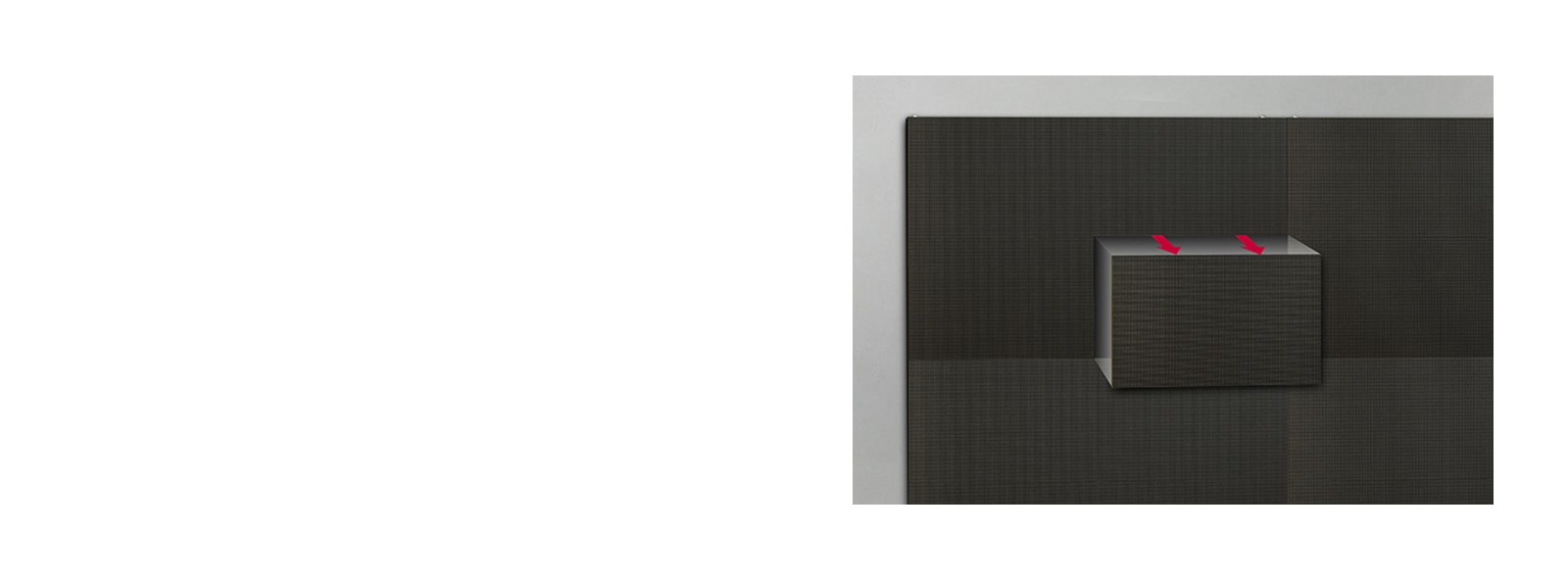

Easy & Seamless Installation

The LSCB series can be easily installed and managed from the front side for easy operation. Thanks to this feature, no additional space for maintenance behind the product is required. Its LED modules can also be simply attached or detached with a suction tool.

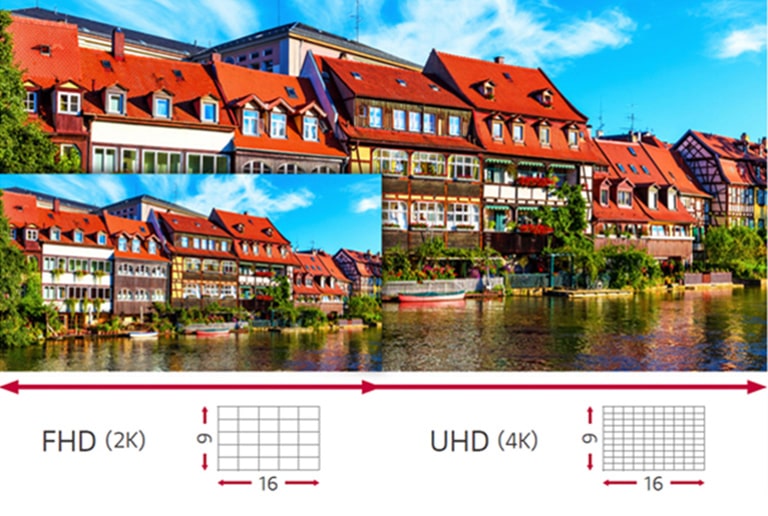

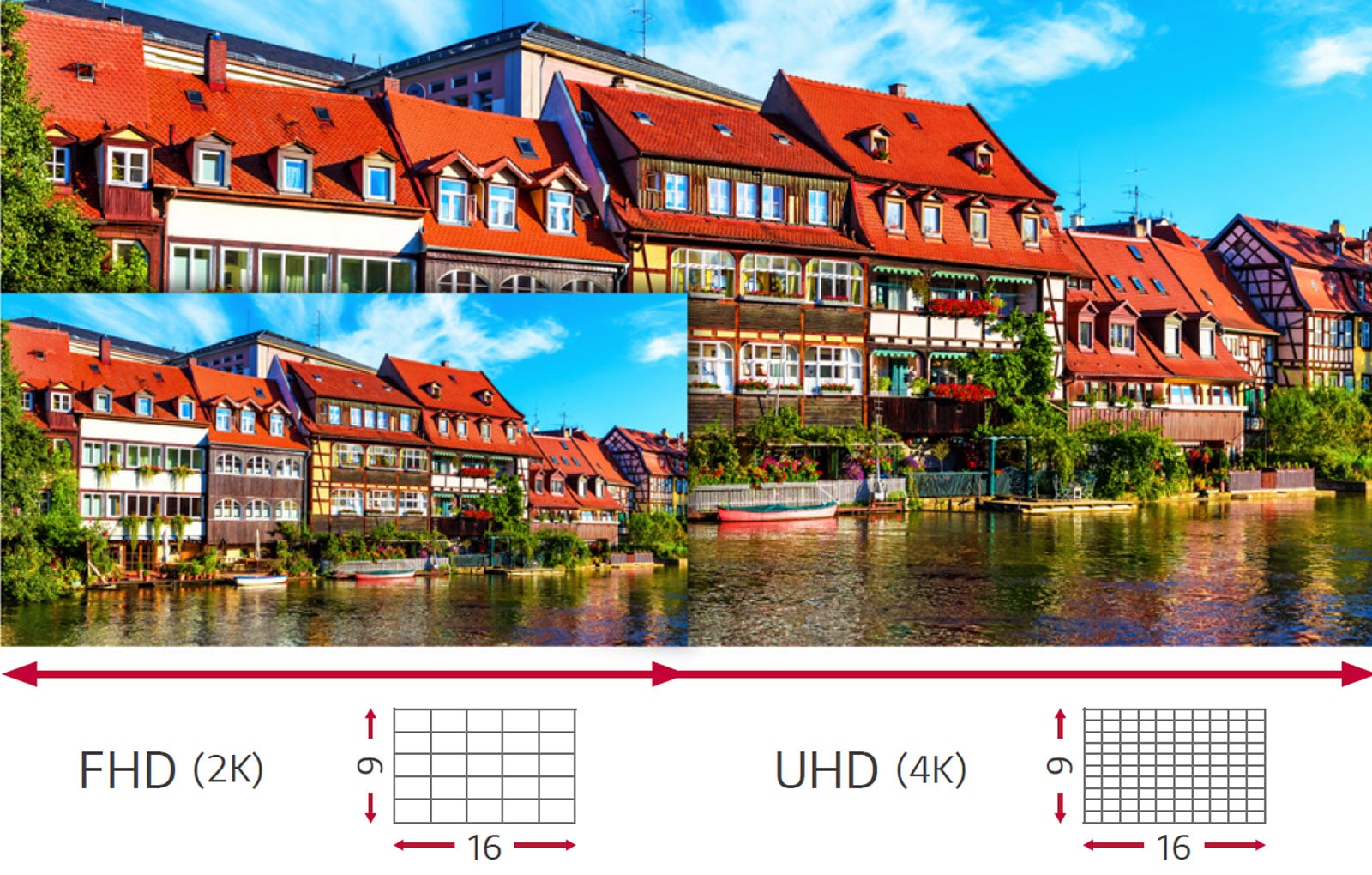

16:9 FHD/UHD Configuration

Each cabinet uses a 16:9 aspect ratio, the same most commonly used in displays for FHD and UHD content. This allows you to keep using existing content without additional cost and time for editing.
16:9 FHD/UHD Configuration 16:9 FHD/UHD Configuration

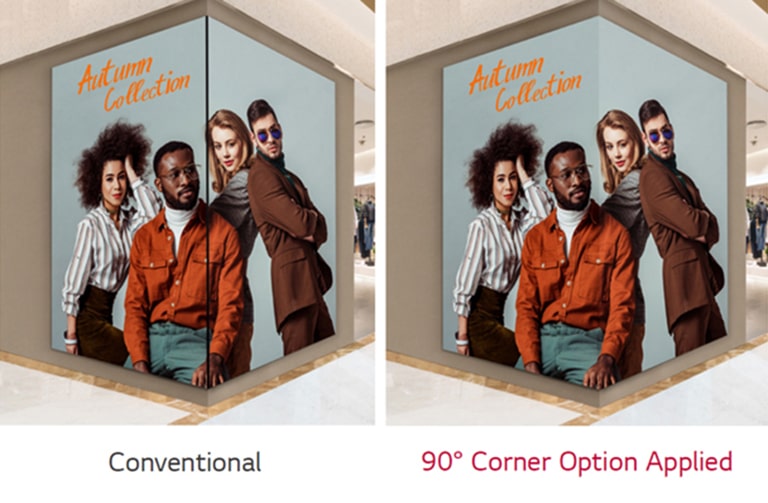

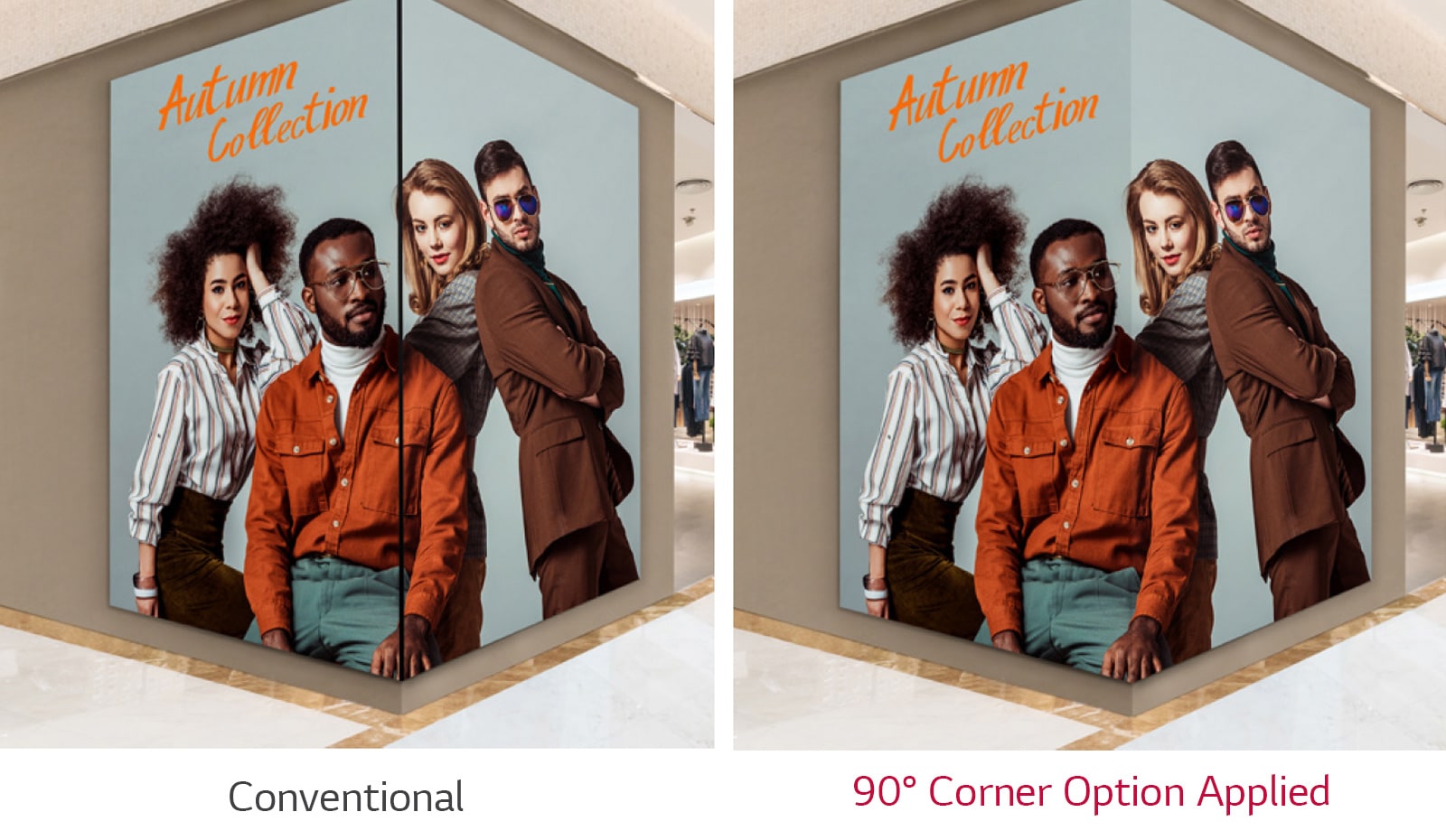

90° Corner Design Available

If you add 90°corner option, the LSCB series fits naturally into the space and delivers smooth content to customers.
90° Corner Design Available 90° Corner Design Available
EMC Class B Certified & Fire Resistant Design EMC Class B Certified & Fire Resistant Design

EMC Class B Certified & Fire Resistant Design

The LSCB series is safe from electromagnetic waves, which are harmful to the environment and human body, with EMC Class B certification and is designed with fire protection certification to prevent the fast spread of flames even if it catches on fire.

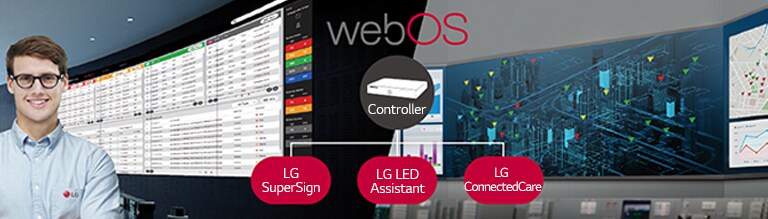

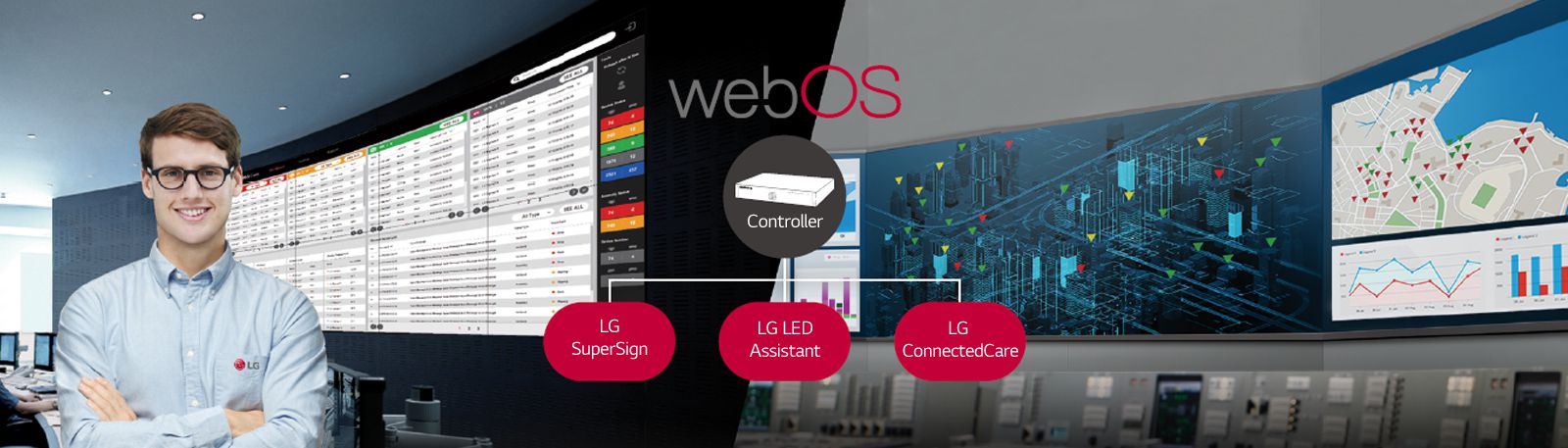

Compatibility with
LG Software Solution

When connected with LG's CVCA system controller, the LSCB series is compatible with LG software solutions including SuperSignCMS, LED Assistant, and ConnectedCare, which help customers operate their own business deftly.
Compatibility with LG Software Solution Compatibility with LG Software Solution
*The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
*The items that can be monitored by LG ConnectedCare: Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power).

Flexible Curve LED Display

The LSCB-CKF, a specially-designed flexible curved LED display, supports true concave and convex curvatures up to 383 mm*. This greatly enhances the design’s flexibility, which allows users to freely create the curved screen as they want.
Flexible Curve LED Display Flexible Curve LED Display
*Applied to the LSCB15-CKF, LSCB18-CKF, and LSCB25-CKF models only. The LSCB12-CKF supports curvatures of up to 1,720 mm.
Close
PHYSICAL PARAMETERS
  • Pixel Configuration
    3 in 1
    Pixel Pitch (mm)
    1.250
  • Module Resolution (WxH)
    240x135
    Module Dimensions(WxH,mm)
    300x168.75
  • Weight per Module (kg)
    0.37 (-RK,-CK)/ 0.67 (-CKF)
    No. of Modules per Cabinet (WxH)
    2x2 (-RK)/ 1x2 (-CK,-CKF)
  • Cabinet Resolution (WxH)
    480x270 (-RK)/ 240x270 (-CK, -CKF)
    Cabinet Dimensions (W x H x D, mm)
    600x337.5x34 (-RK)/ 300x337.5x29.7 (-CK)/ 300x337.5x35.6 (-CKF, Cabinet Mounting Depth)
  • Cabinet Surface Area (㎡)
    0.203 (-RK)/ 0.101 (-CK, -CKF)
    Weight per Cabinet (kg/unit)
    5.3 (-RK)/ 4.0 (-CK)/ 3.5 (-CKF, Weight Changes for Different Curves)
  • Weight per Square Meter (kg/㎡)
    26.2 (-RK)/ 39.0 (-CK)/ 34.6 (-CKF)
    Physical Pixel Density (pixels/㎡)
    640,000
  • Flatness of Cabinet (mm)
    ±0.1
    Cabinet material
    Die-casting Aluminum (-RK)/ Aluminum Machine (-CK, CKF)
  • Service access
    Front
OPTICAL SPECIFICATIONS
  • Max Brightness (After Calibration, nit)
    800
    Color Temperature (K)
    3,200~9,300
  • Visual Viewing Angle (Vertical)
    160 × 160
    Color Uniformity
    ±0.003CxCy
  • Brightness Uniformity(%)
    97%
    Contrast Ratio
    5,000:1
  • Processing Depth (bit)
    14 (HDR10, HDR10 Pro)
ELECTRICAL SPECIFICATIONS
  • Power Consumption (W/Cabinet, Max.)
    150 (-RK)/ 75 (-CK, -CKF)
    Power Consumption (W/Cabinet, Avg.)
    50 (-RK)/ 25 (-CK, CKF)
  • Power Consumption (W/㎡, Max.)
    740
    Power Supply (V)
    100 to 240
  • Frame Rate (Hz)
    50 / 60
    Refresh Rate (Hz)
    3,840
OPERATION SPECIFICATIONS
  • LED Lifetime (Half brightness)
    100,000
    Operating Temperature(℃)
    -10∘to +45∘
  • Operating Humidity
    0~80%RH
    IP rating Front
    IP30
  • IP rating Rear
    IP30
CONTROLLER
  • Controller
    CVCA
90 DEGREE CORNER CUT
  • 90 degree corner cut
    Yes
