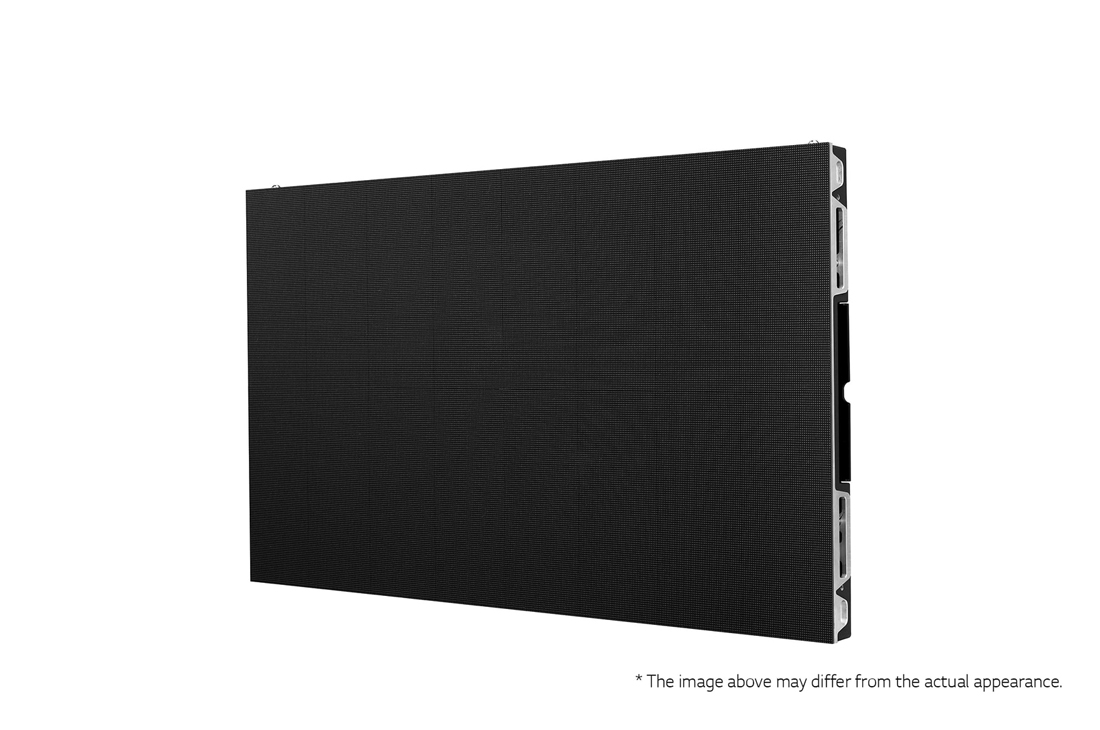

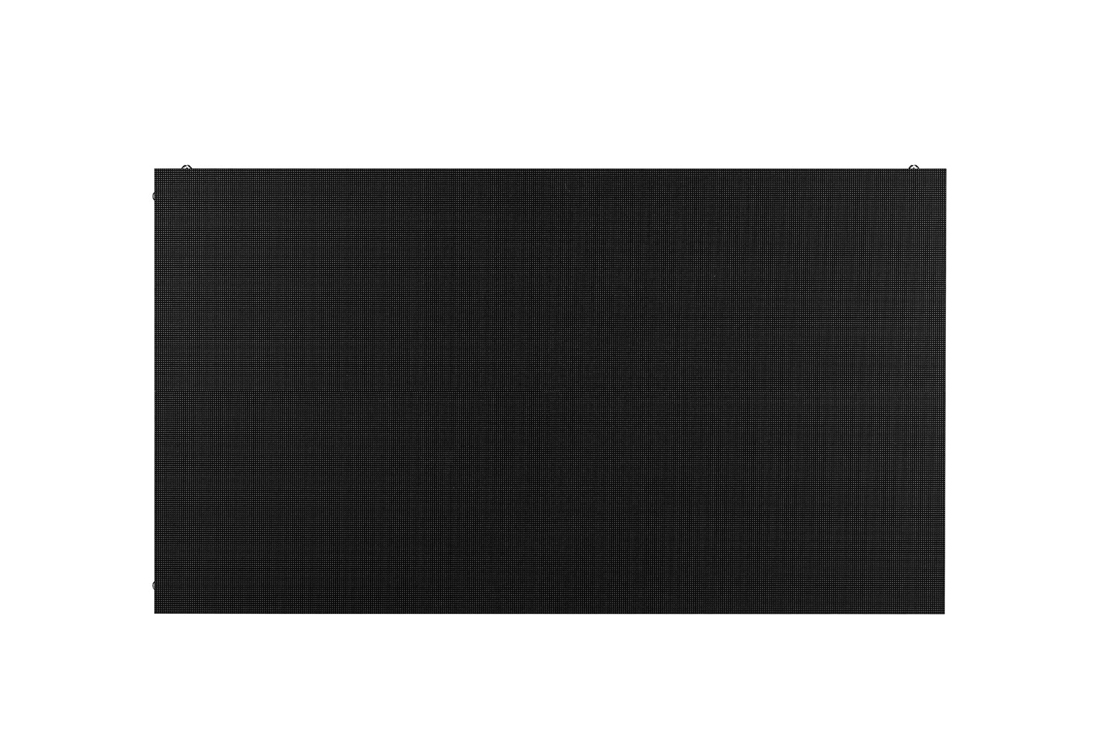

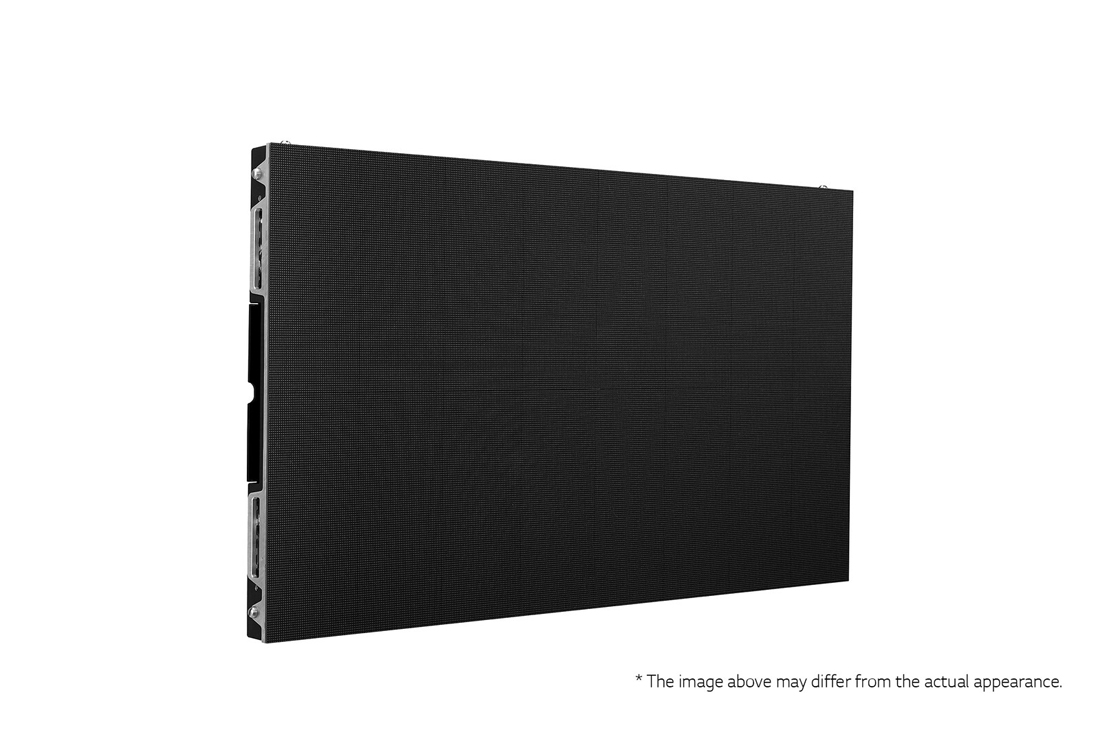

P1.25" Indoor LED Signage

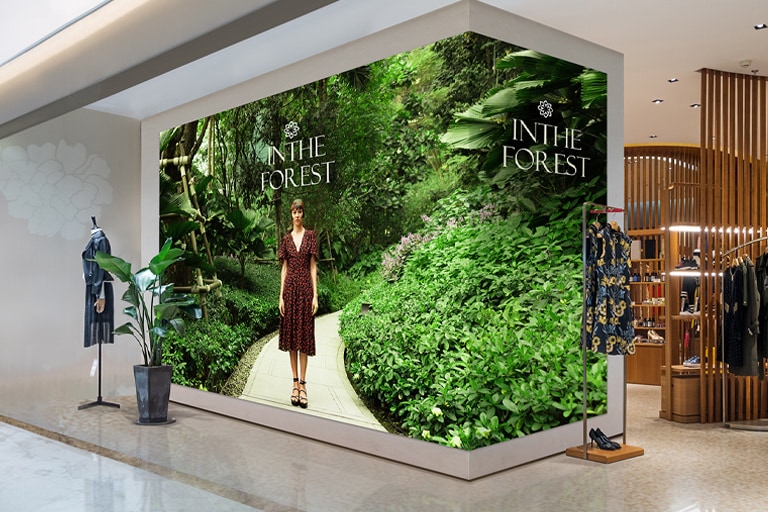

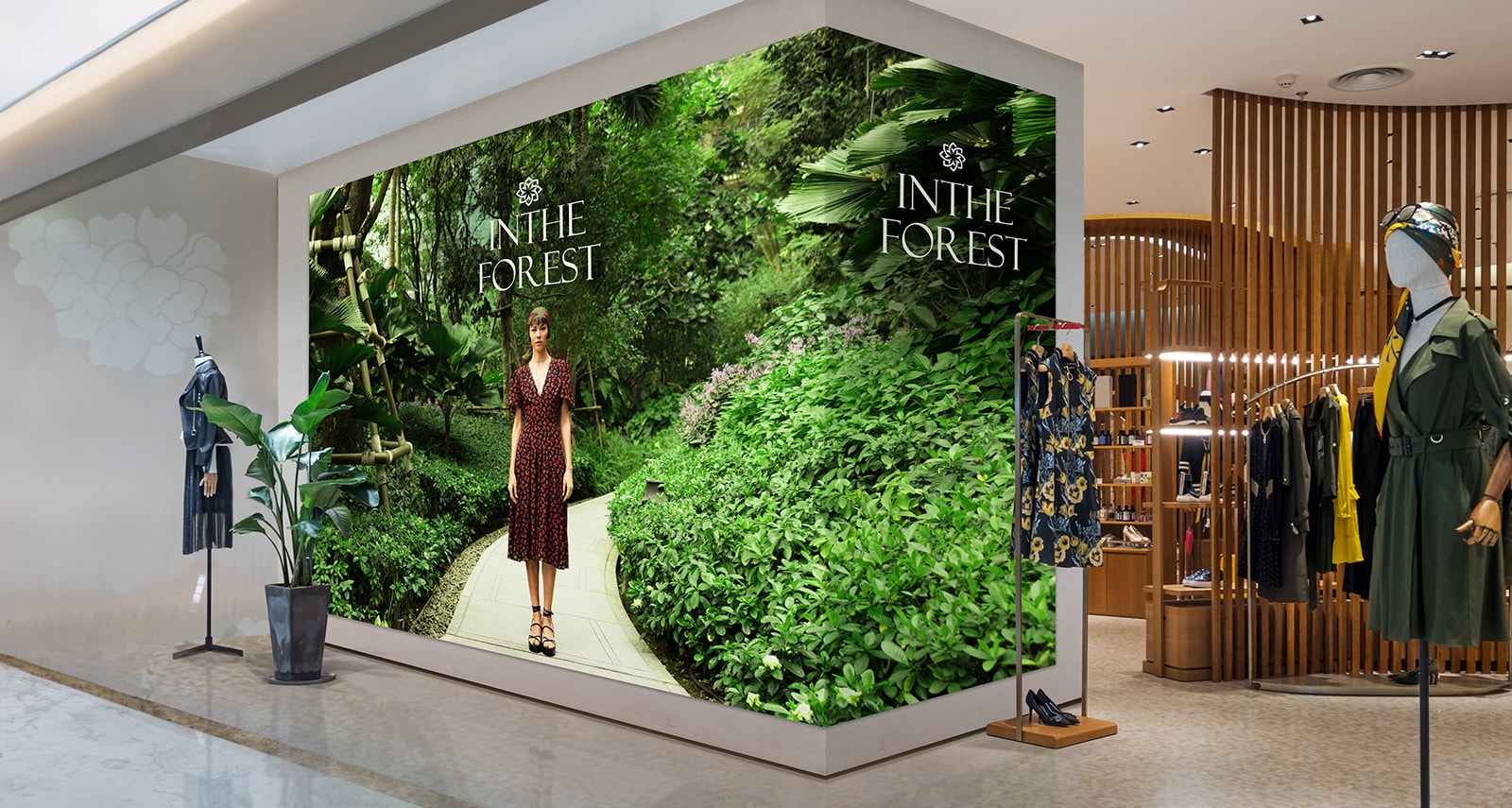

LSCC Ultra Slim Series

LSCC Ultra Slim Series LSCC Ultra Slim Series
* All images in this page are for illustrative purposes only.

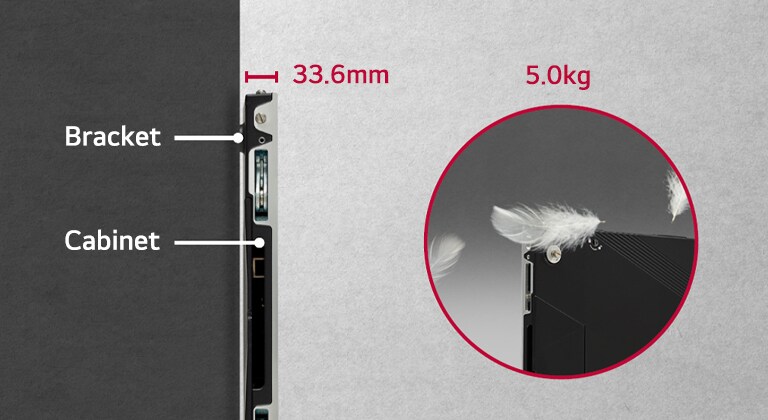

Ultra Slim Depth and Lightweight Ultra Slim Depth and Lightweight

Ultra Slim Depth and Lightweight

The ultra slim design, with a cabinet thickness of just 33.6 mm and a weight of only 5.0 kg, is the standout feature of this product. This sleek and lightweight design allows the LSCC series to be seamlessly installed in a variety of venues, harmonizing effortlessly with its surroundings.
Stunning Picture Quality with 4K HDR Stunning Picture Quality with 4K HDR

Stunning Picture Quality with 4K HDR

All models of the LSCC series deliver 4K HDR while maintaining 800 nits of brightness. Not only do they offer a great contrast ratio and wide viewing angle, but the 4K HDR feature also ensures stunning picture quality.
* This feature is only supported when using LG’s controller, CVCA.

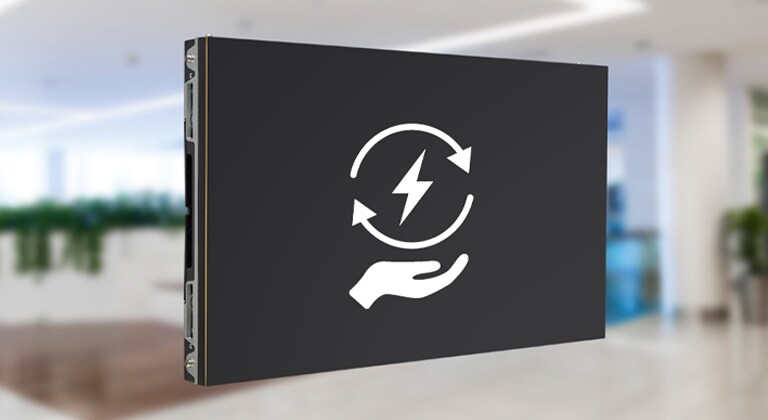

Superior Energy Efficiency Superior Energy Efficiency

Superior Energy Efficiency

The LSCC series improves power consumption by 16% to 25%, depending on pitch models, delivering both energy efficiency and lower operating costs. Consequently, the LSCC series stands as the second most energy-efficient model in LG’s indoor PKG lineup as of Aug 2024.
* Power consumption improvement is compared to the LG LSCB model.
Attachable Wire Hooks for Modules Attachable Wire Hooks for Modules

Attachable Wire Hooks for Modules

All modules come with wire holders attached to the back, allowing wires to be secured for installation on ceilings, walls, or other surfaces as needed. Simply attach a safety wire to prevent the module from falling, providing safety.
* Wires can be ordered separately as accessories.

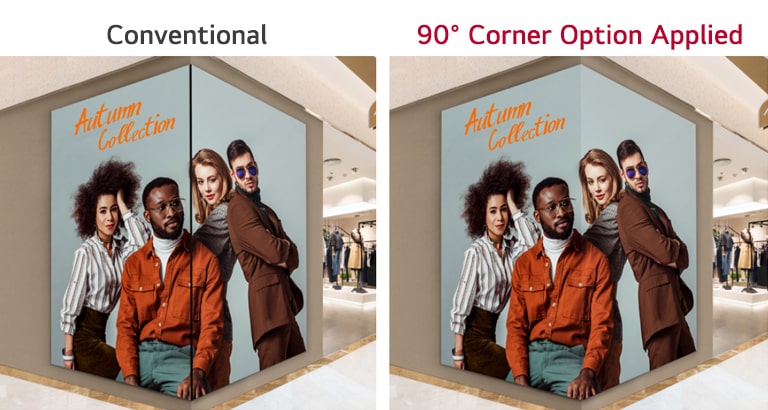

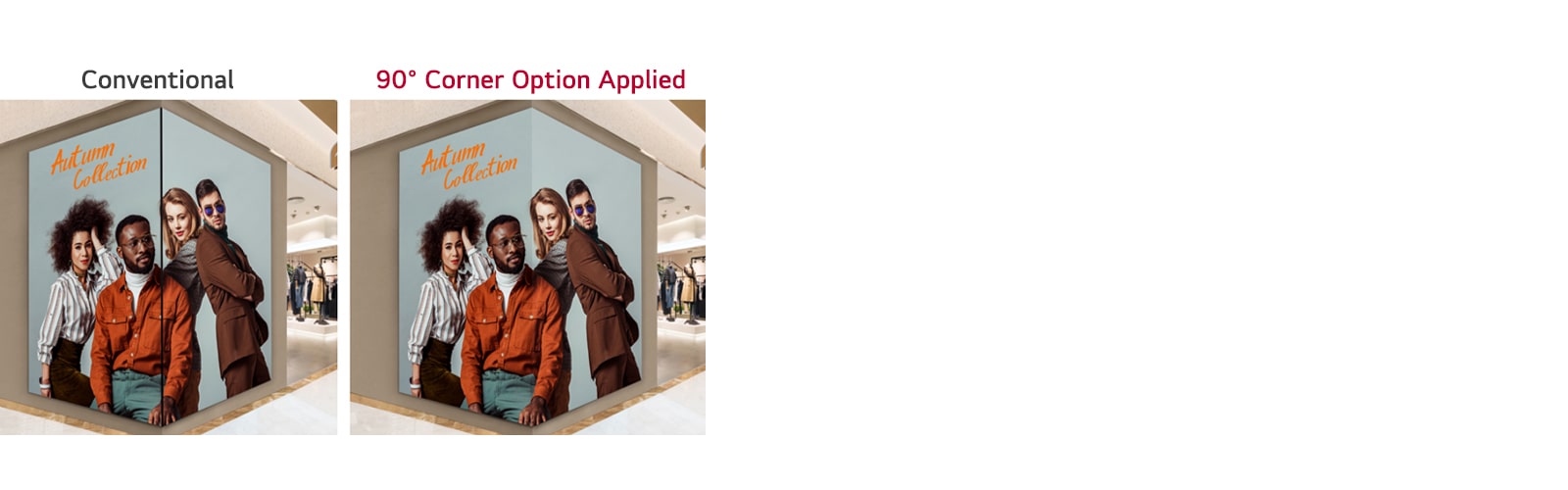

90° Corner Design Available 90° Corner Design Available

90° Corner Design Available

By adding the 90° corner option, the LSCC series seamlessly integrates into any space, delivering smooth content to customers. Additionally, elegantly curved LED screens can be implemented as an option.

Compatibility with LG Software Solutions

When connected with LG's CVCA system controller, the LSCC series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business deftly.

Compatibility with LG Software Solution Compatibility with LG Software Solution
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : LG webOS System Controller (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
Close
PHYSICAL PARAMETERS
  • Pixel Configuration
    Single SMD
    Pixel Pitch (mm)
    1.25
  • Module Resolution (WxH)
    240x135
    Module Dimensions(WxH,mm)
    300x168.75
  • Weight per Module (kg)
    0.31
    No. of Modules per Cabinet (WxH)
    2x2
  • Cabinet Resolution (WxH)
    480x270
    Cabinet Dimensions (W x H x D, mm)
    600x337.5x33.6
  • Cabinet Surface Area (㎡)
    0.2
    Weight per Cabinet (kg/unit)
    5.0
  • Weight per Square Meter (kg/㎡)
    24.69
    Physical Pixel Density (pixels/㎡)
    640,000
  • Flatness of Cabinet (mm)
    ±0.1
    Cabinet material
    Die Casting Aluminum
  • Service access
    Front
OPTICAL SPECIFICATIONS
  • Max Brightness (After Calibration, nit)
    Max. 800
    Color Temperature (K)
    3500-9000K(default:6500K)
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    160
  • Brightness Uniformity(%)
    97%
    Color Uniformity
    ±0.003CxCy
  • Contrast Ratio
    5,000:1
    Processing Depth (bit)
    14 (HDR10, HDR10 Pro)
ELECTRICAL SPECIFICATIONS
  • Power Consumption (W/Cabinet, Max.)
    112
    Power Consumption (W/Cabinet, Avg.)
    37
  • Power Consumption (W/㎡, Max.)
    553
    Heat Dissipation (BTU/h/Cabinet, Max.)
    382
  • Heat Dissipation (BTU/h/Cabinet, Avg.)
    127
    Heat Dissipation (BTU/h/㎡, Max.)
    1,887
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    3,840
OPERATION SPECIFICATIONS
  • LED Lifetime (Half brightness)
    100,000
    Operating Temperature(℃)
    -10∘to +45∘
  • Operating Humidity
    0~80%RH
    IP rating Front
    IP30
  • IP rating Rear
    IP30
STANDARD
  • Certification
    CE, FCC, ETL, EMC Class-A
ENVIRONMENT
  • Environment
    RoHS, REACH
CONTROLLER
  • Controller
    CVCA
90 DEGREE CORNER CUT
  • 90 degree corner cut
    0
