UHD Large Screen Signage Display

98UM5J-B

Key Features

Brightness : 500 nit (Typ.)
Resolution : ULTRA HD (3,840 x 2,160)
Built-in Wi-Fi / Bluetooth
Built-in Speaker (10 W + 10 W)

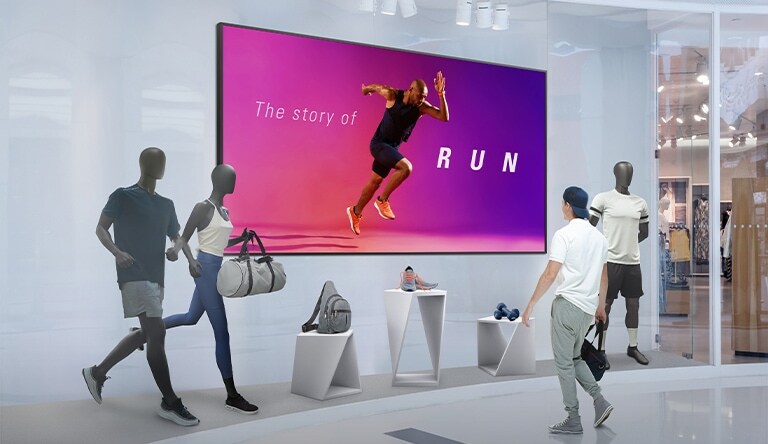

A man is watching an advertisement on the big screen of a sports store.

* All images in this web page are for illustrative purposes only.

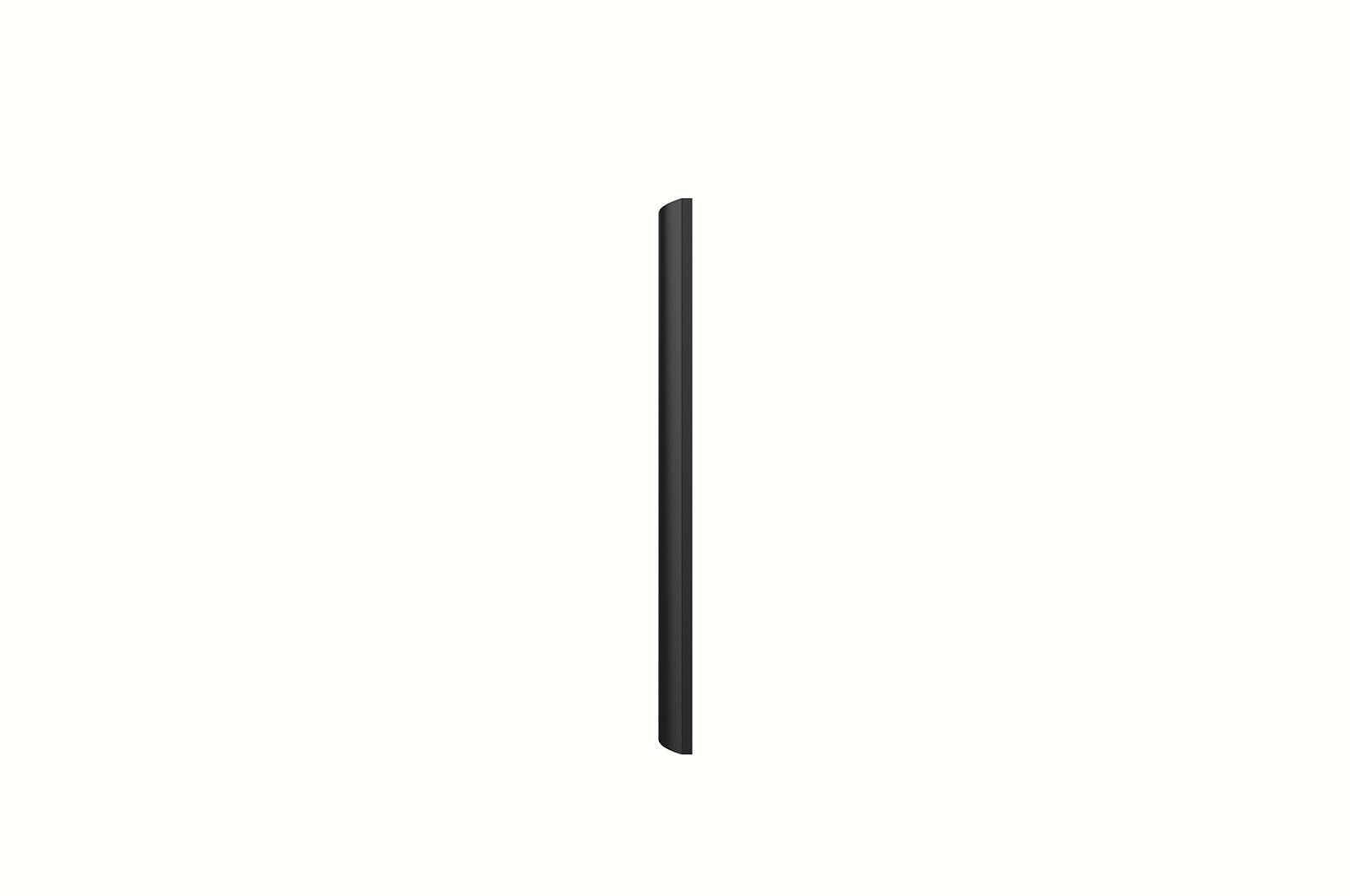

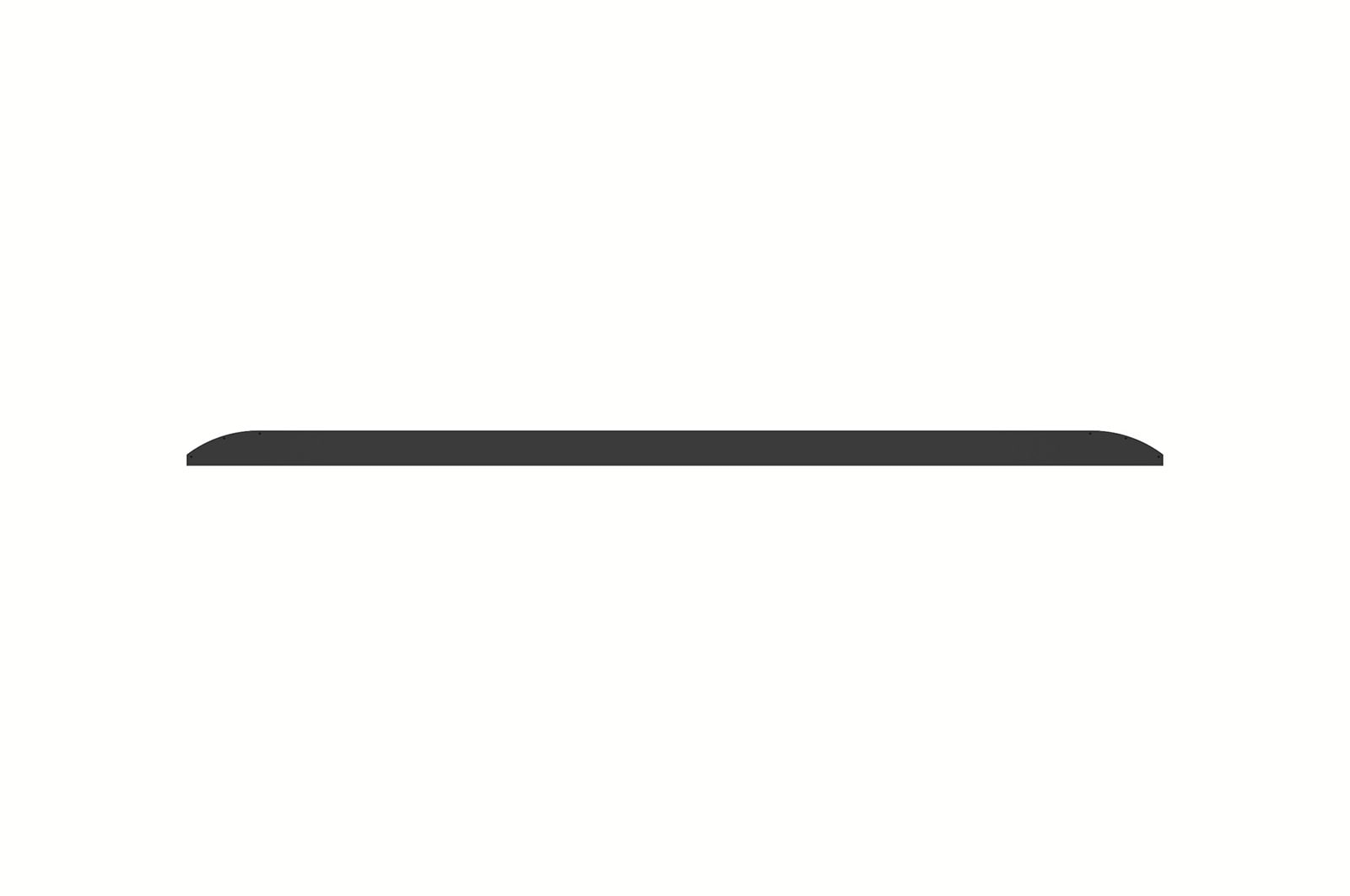

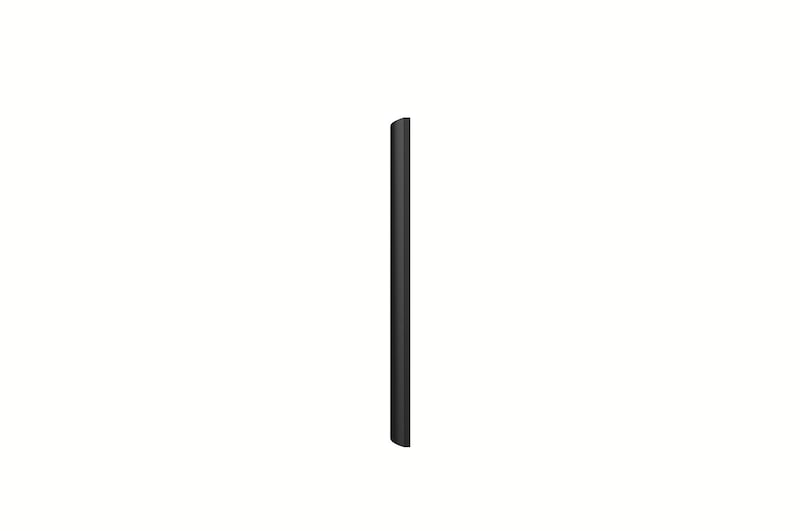

Slim Design

Being slim, a closer installation to the wall is advised. Additionally, this increases the screen’s immersive experience and provides a sophisticated design, improving the installed-space’s décor.

The bezel size of UM5J is 17mm. And the depth of the UM5J 98" is 79.5mm, and 110" is 99mm.

Super High Resolution

Delivering immersive viewing experience by 4 times higher definition picture quality than FHD.

This image illustratively compares FHD resolution and UHD resolution. This image indicates that the screen with UHD has 4 times higher resolution than FHD, so contents can be seen more vivid and colorful.

Built-in Speaker

Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

* Internal Built-in Speaker Support (L/R max 10 W)

High Brightness

With a great brightness of 500 cd/m², UM5J series clearly deliver contents and attract public attention, which is the ultimate display for market of retail, cooperate etc.

UM5J has a brightness of 500 nits, so it is clearly visible, even under strong light.

Support HDMI CEC Command

This allows you to use the LG Remote Controller to control the basic functions of connected HDMI devices.

UM5J has a function called HDMI-CEC, so when HDMI is connected, other devices connected to the TV can be easily operated using an LG Remote Controller.

* The LG Media Player and LG Remote Controller may appear differently than the actual ones.

All Spec

PANEL

Screen Size (Inch)
98
Panel Technology
IPS
Back Light Type
Direct
Aspect Ratio
16:9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
60Hz
Brightness
500nit (Typ.)
Contrast Ratio
1,200:1
Dynamic CR
200,000:1
Color Gamut
DCI 85%
Viewing Angle (H x V)
178º x 178º
Color Depth (Number of Colors)
1.07 Billion colors
Response Time
8ms (G to G)
Surface Treatment (Haze)
Haze 25%
Life time
30,000Hrs (Typ.)
Operation Hours (Hours/Day)
16/7
Portait / Landscape
YES / YES
Transparency
N/A
QWP (Quarter Wave Plate)
N/A

CONNECTIVITY

HDMI In
YES (3ea)
HDMI In (HDCP Ver.)
2.2/1.4
DP In
NO
DVI-D In
NO
RGB In
NO
Audio In
NO
RS232C In
NO
RJ45(LAN) In
YES (1ea)
IR In
NO
USB In
USB2.0 Type A (2ea)
HDMI Out
NO
DP Out
NO
Audio Out
YES
Touch USB
NO
External Speaker Out
NO
RS232C Out
NO
RJ45(LAN) Out
NO
IR Out
NO
Daisy Chain
NO

MECHANICAL SPECIFICATION

Bezel Color
Black
Bezel Width
T/B/L/R: 17mm
Weight (Head)
78Kg
Weight (Head+Stand)
N/A
Packed Weight
105Kg
Monitor Dimensions (W x H x D)
2198 x 1253 x 79.5mm
Monitor Dimension with Stand (W x H x D)
N/A
Carton Dimensions (W x H x D)
2440 x 1468 x 275mm
Handle
NO
VESA Standard Mount Interface
800 x 400 or 800 x 800 mm

FEATURE - HARDWARE

Internal Memory (eMMC)
16GB
Wi-Fi/BT (Built-in)
YES
Temperature Sensor
NO
Auto Brightness Sensor
NO
Pixel Sensor
NO
Proximity Sensor
NO
Current Sensor
NO
BLU Sensor
NO
Humidity Sensor
NO
Acceleration(Gyro) Sensor
NO
Power Indicator
YES
Local Key Operation
YES
FAN (Built-in)
NO

FEATURE - SOFTWARE

OS Ver. (webOS)
Non-webOS
Local Contents Scheduling
NO
Group Manager
NO
USB Plug & Play
NO
Fail over
NO
Booting Logo Image
NO
No Signal Image
NO
RS232C Sync
NO
Local Network Sync
NO
Backlight Sync
NO
PIP
NO
PBP
NO
Screen Share
NO
Video Tag
NO
Play via URL
NO
Screen Rotation
YES
External Input Rotation
NO
Gapless Playback
NO
Tile Mode Setting
NO
Setting Data Cloning
NO
SNMP
NO
ISM Method
NO
Auto Set ID
NO
Status Mailing
NO
Control Manager
NO
Cisco Certification
NO
Crestron Connected
NO
Smart Energy Saving
NO
PM mode
NO
Wake on LAN
NO
Network Ready
NO
Beacon
NO
HDMI-CEC
YES
SI Server Setting
NO
webRTC
NO
Pro:Idiom
NO
Brightness Compensation
NO
W/B Setting by Grey scale
NO
Scan Inversion
NO

ENVIRONMENT CONDITIONS

Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %

POWER

Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-in Power

POWER CONSUMPTION

Typ.
500W
Max.
560W
BTU (British Thermal Unit)
1706 BTU/Hr(Typ.), 1911 BTU/Hr(Max.)
Smart Energy Saving (70%)
N/A
DPM
N/A
Power off
0.5W

SOUND

Speaker (Built-in)
YES (10W x 2)

CERTIFICATION

Safety
UL / CB
EMC
FCC Class "A" / CE Class "A"
ERP / Energy Star
YES(NewErP) / NO
ePEAT(US only)
NO

OPS COMPATIBILITY

OPS Type compatible
NO
OPS Power Built-in
NO

SOFTWARE COMPATIBILITY

SuperSign CMS
NO
SuperSign Control+
NO
SuperSign WB
NO
SuperSign Cloud
NO
Promota
NO
Mobile CMS
NO
Connected Care
YES

LANGUAGE

OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, polski
