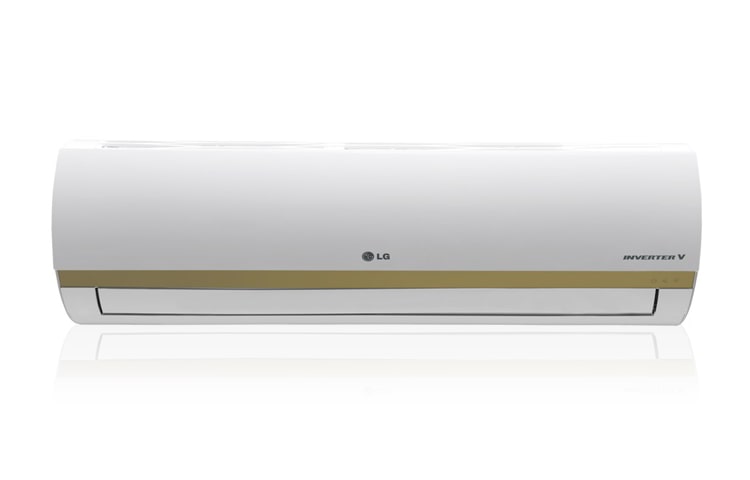

LG’s highly efficient advanced inverter V technology

  • BS-Q096WEA4

  • Discontinued Product

Key Features

  • INVERTER V technology
  • Active Energy Control
  • Anti Bacterial Air Filter
  • Jet Cool
Capacity
Cooling 2,638 W
9,000 Btu/hr
Elec. Rating
Power Supply 1Φ, 220~240V, 50Hz
Power Supply Cable 3*1.0 No.*mm2
Power and Transmission Cable 4*1.0 No.*mm2
Power Input (Cooling) 875 W
Running Current (Cooling) 4.60 A
EER 3.01 W/W
10.29 Btu/hr.W
Circuit Breaker 15 A
Air Flow Rate
Indoor,Max 8.7 (307) ㎥/min(CFM)
Outdoor,Max 28 (989) ㎥/min(CFM)
Sound Level
Indoor,H/M/L/SL 37 / 32 / 28 / 26 dB(A)+1
Outdoor,Max 49 (51) dB(A)+1
Refrigerant
Type R-410A Type
Charge 570 g
Piping Connections
Liquid Side 6.35 mm
Gas Side 9.52 mm
Max. Piping Length 7.5 (24.6) / 15 (49.2) m(ft)
Max. Elevation Difference 7 (23.0) m(ft)
Drain Hose
O.D , I.D 32 / 14.5 (1.26 / 0.57) * 350 mm(in) * mm
Dimensions
Indoor (W*H*D) 756*265*184 mm
Outdoor (W*H*D) 720*500*270 mm
Net Weight
Indoor 7 kg
Outdoor 22 kg
Operation Range
Cooling (Indoor) 16 ~ 32°C °C (oF)
Cooling (Outdoor) 18 ~ 48°C °C (oF)
Indoor Appearance
Tool Code SW BK
Remote 2 Way + Watt Option
Remote Controller Type Wireless LCD
Grille Front Look Blowkiss E
Display 3 LED
Display Screen Power/Timer/Watt Option
Vane Horizontal Normal
Outdoor Appearance
Tool Code UA3
Panel Type Steel
Condenser Type CU (Gold Fin)
Pre-Filter (in Front Grille)
Anti bacteria air filter (Standard Prefilter) Yes
Functions
Vane Horizontal Normal
Temperature Control 16 ~ 30℃
Auto Clean Yes
Natural Wind Yes
Fan Speed 1220H/1100MH/970M/880ML/780L/640S-Low
Airflow Direction Control(up & Down) Auto Swing
Airflow Direction Control(left & right) Manual
Setting Temperature Range (Cooling) 16 ~ 30℃
Temperature Increment 1℃
Auto Operation (Micom Control) Yes
Self Diagnosis Yes
Timer Yes
Sleep Operation Yes
Restart Delay(minute) 3
Display Light (On/Off) Yes
Energy Saving Yes
Jet Cool Yes
Special Function
Monsoon Yes
Moisture Removal 0.8 l/h
Indirect Air Yes
