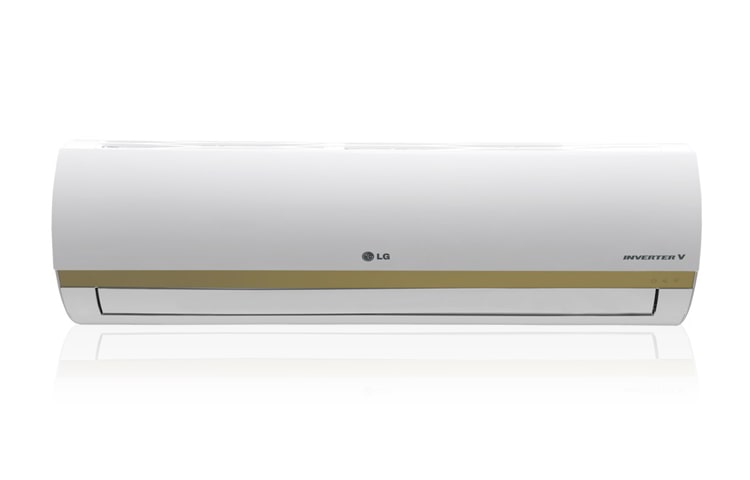

LG’s highly efficient advanced inverter V technology

  • BS-Q096WXA3

  • Discontinued Product

Key Features

  • INVERTER V technology
  • Active Energy Control
  • Anti Bacterial Air Filter
  • Jet Cool
Capacity
Cooling 9000 (Btu/h)
Elec. Rating
Power Supply 1Φ, 220~240V, 50Hz
Power Input (Cooling) 830 W
Running Current (Cooling) 4.35 A
EER 3.18 W/W
Air Flow Rate
Indoor,Max 8.7 ㎥/min
Outdoor,Max 28 ㎥/min
Sound Level
Indoor,H/M/L/SL 39/36/28/24 dB(A)±3
Outdoor,Max 48 dB(A)±3
Fan(Indoor)
Type Cross Flow Fan
Fan(Outdoor)
Type Propeller, Fan
Piping Connections
Liquid Side 6.35(1/4) mm(in)
Gas Side 9.52(3/8) mm(in)
Length,std 5 m
Indoor Appearance
Tool Code SW1
Remote 2 Way Watt Option
Remote Controller Type Wireless LCD
Grille Front Look Blow Kiss E (Copper)
Display LED
Outdoor Appearance
Tool Code UA3
Panel Type Steel
Condenser Type Cu (Gold)
Filter
Anti bacteria air filter (Stallion Prefilter) Yes
Functions
Airflow Direction Control(left & right) Manual
Airflow Direction Control(up & Down) Auto
Auto Clean Yes
Auto Operation (Micom Control) Yes
Display Light (On/Off) Yes
Fan Speed 5
Jet Cool Yes
Natural Wind Yes
Restart Delay(minute) 3
Self Diagnosis Yes
Setting Temperature Range (Cooling) 16-30
Sleep Operation Yes
Temperature Control Thermistor
Temperature Increment 1
Timer 24hr On/Off
Vane Horizontal Normal
Special Function
Active Energy Control Yes
Indirect Air Yes
Dimensions
Indoor (W*H*D) 756*265*184 mm
Outdoor (W*H*D) 720*500*270 mm
Net Weight
Indoor 7 kg
Outdoor 22 kg
