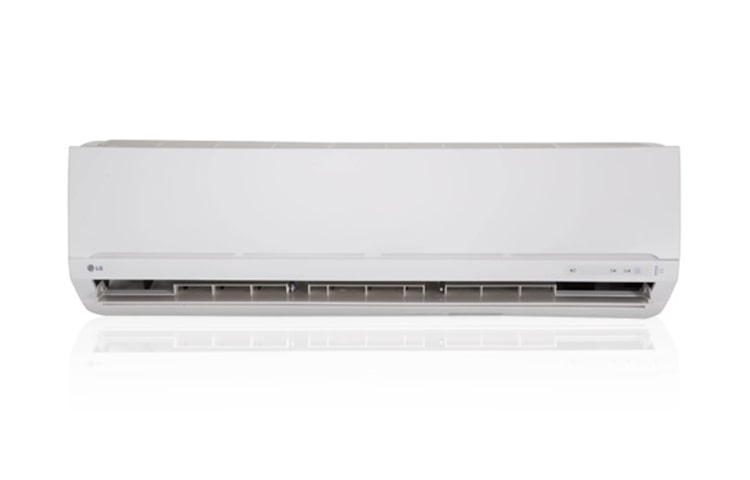

The optimised design of the air outlet provides a powerful airflow

  • TS-C096YDA1

  • Discontinued Product

Key Features

  • Jet Cool

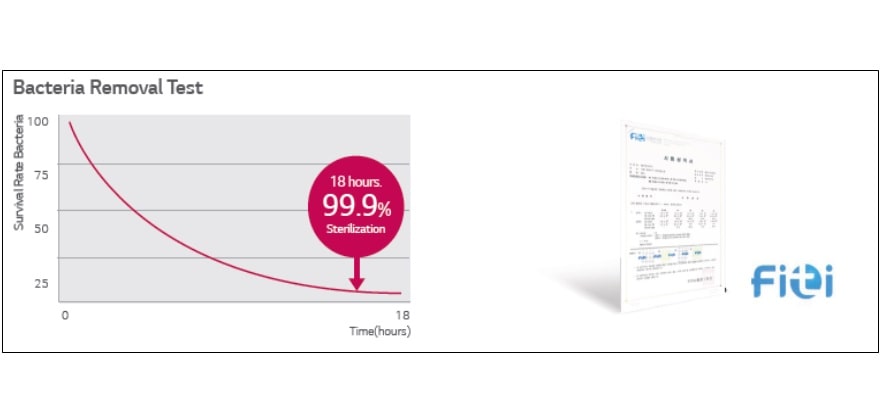

  • Anti Bacterial Air Filter

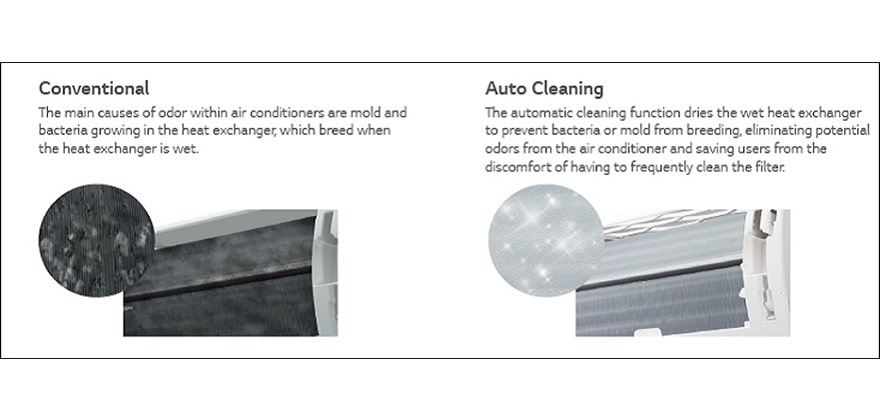

  • Auto Cleaning
Capacity
Cooling 9000 (Btu/h)
Elec. Rating
Power Supply 1Φ, 220V, 50Hz
Power Input (Cooling) 1010 W
Running Current (Cooling) 4.8 A
EER 2.61 W/W
Circuit Breaker S A
Air Flow Rate
Indoor,Max 6 ㎥/min
Outdoor,Max 25 ㎥/min
Sound Level
Indoor,H/M/L/SL 39/-/-/- dB(A)±3
Outdoor,Max 51 dB(A)±3
Piping Connections
Liquid Side 6.35(1/4) mm(in)
Gas Side 9.52(3/8) mm(in)
Length,std 5 m
Compressor
Type Rotary
Indoor Appearance
Remote Controller Type Wireless LCD
Functions
CHAOS Wind(Auto Wind) Yes
Jet Cool Yes
Restart Delay(minute) 3
Steps, Fan/Cool/Heat 3/4/-
Temperature Control Thermistor
Timer 7Hr,On/Off
Dimensions
Indoor (W*H*D) 840*270*153 mm
Outdoor (W*H*D) 770*245*540 mm
Net Weight
Indoor 7 kg
Outdoor 33 kg
