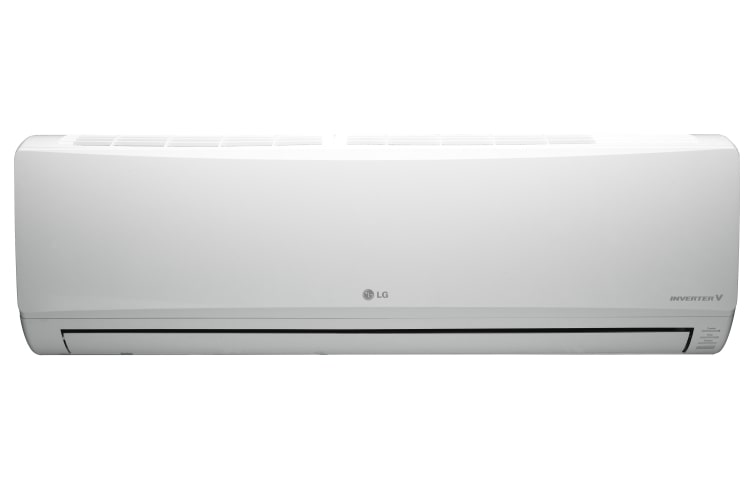

LG’s highly efficient advanced inverter V technology

  • US-Q126B4A3

  • Discontinued Product

Key Features

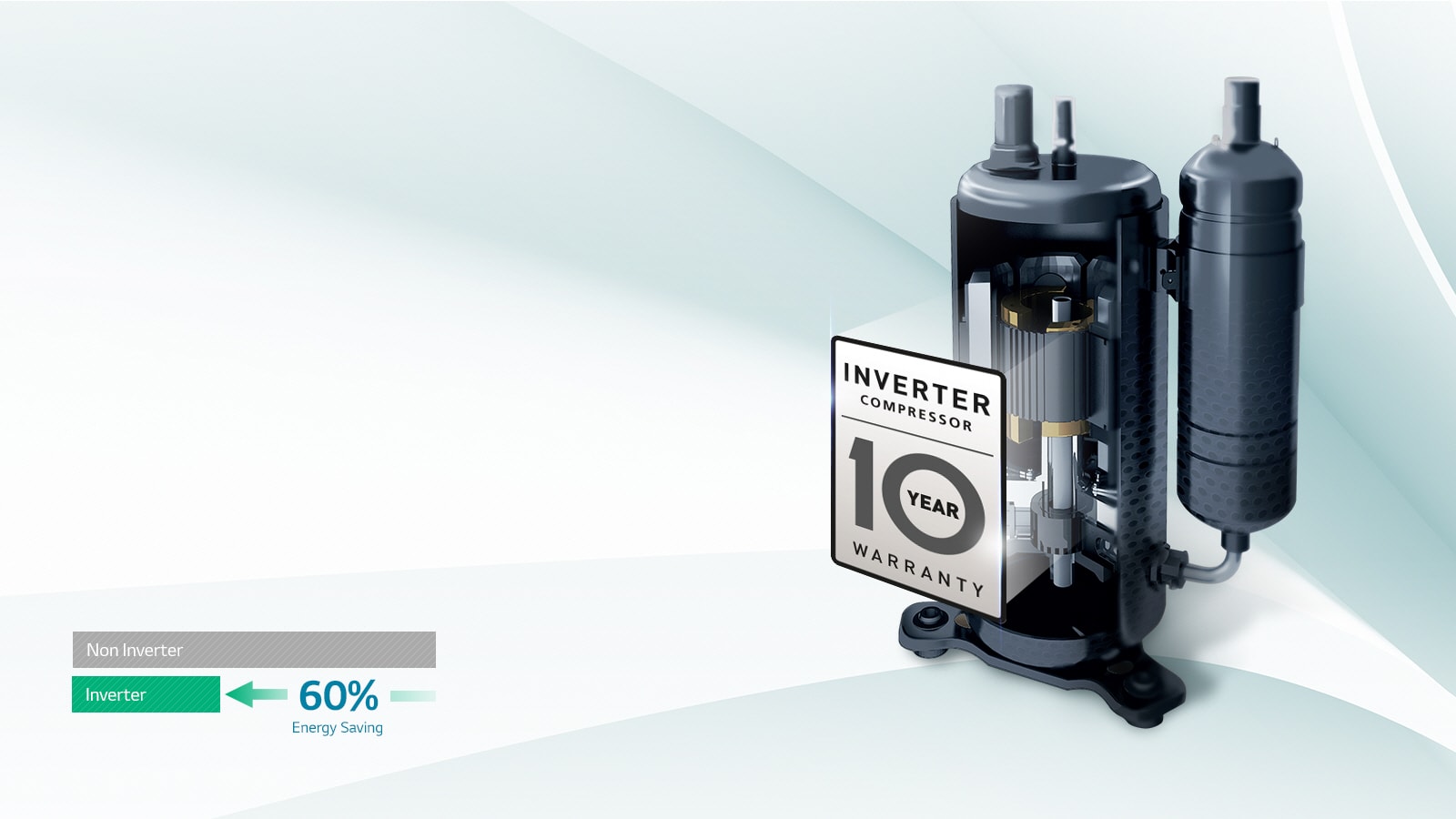

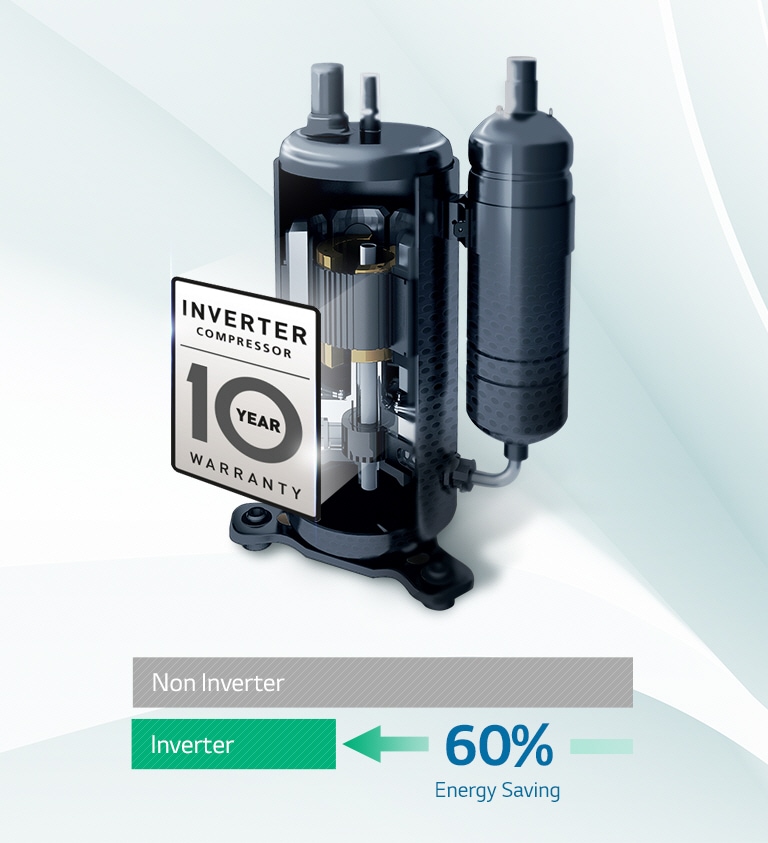

  • INVERTER V technology
  • Low Noise 19dB

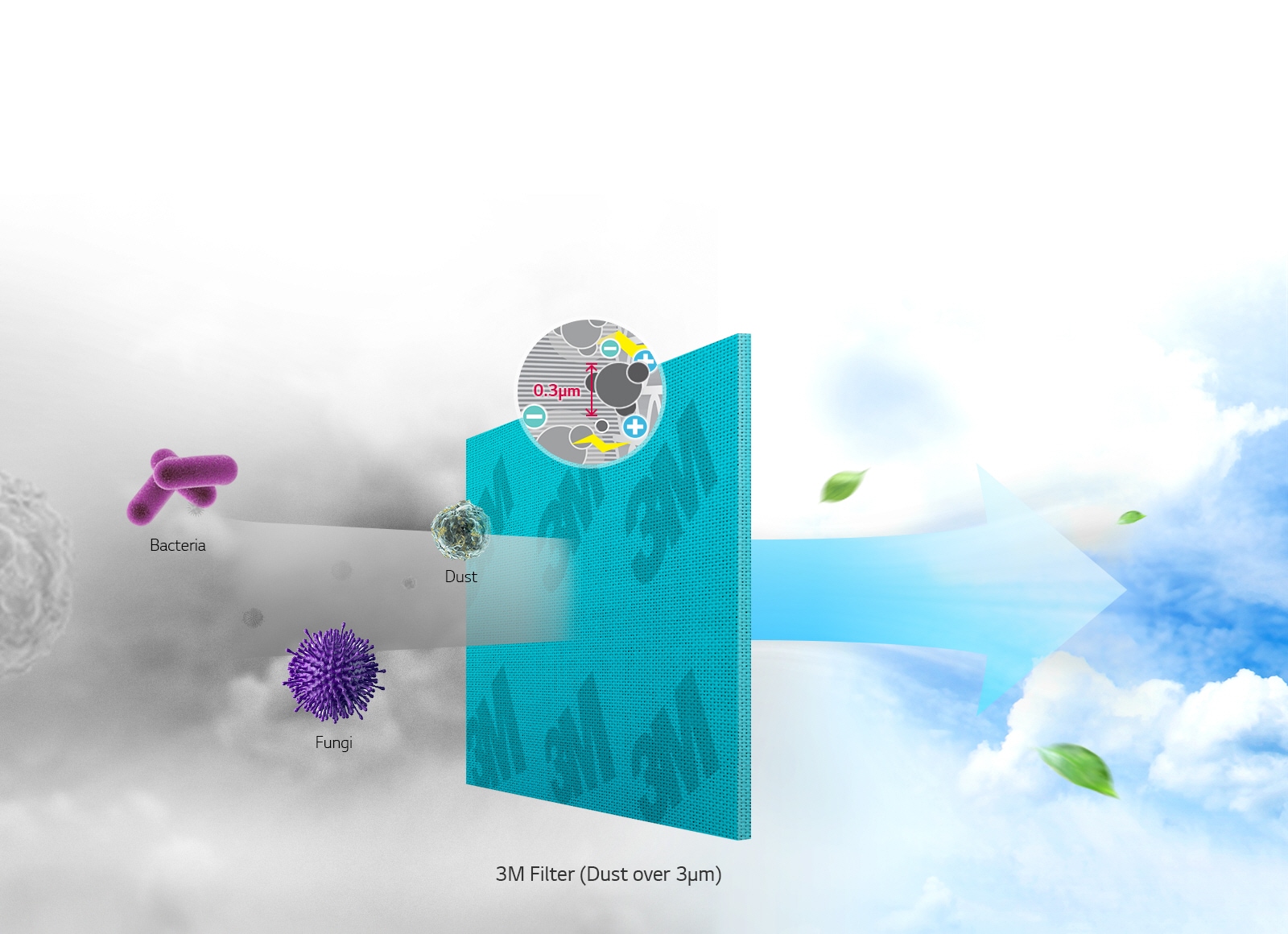

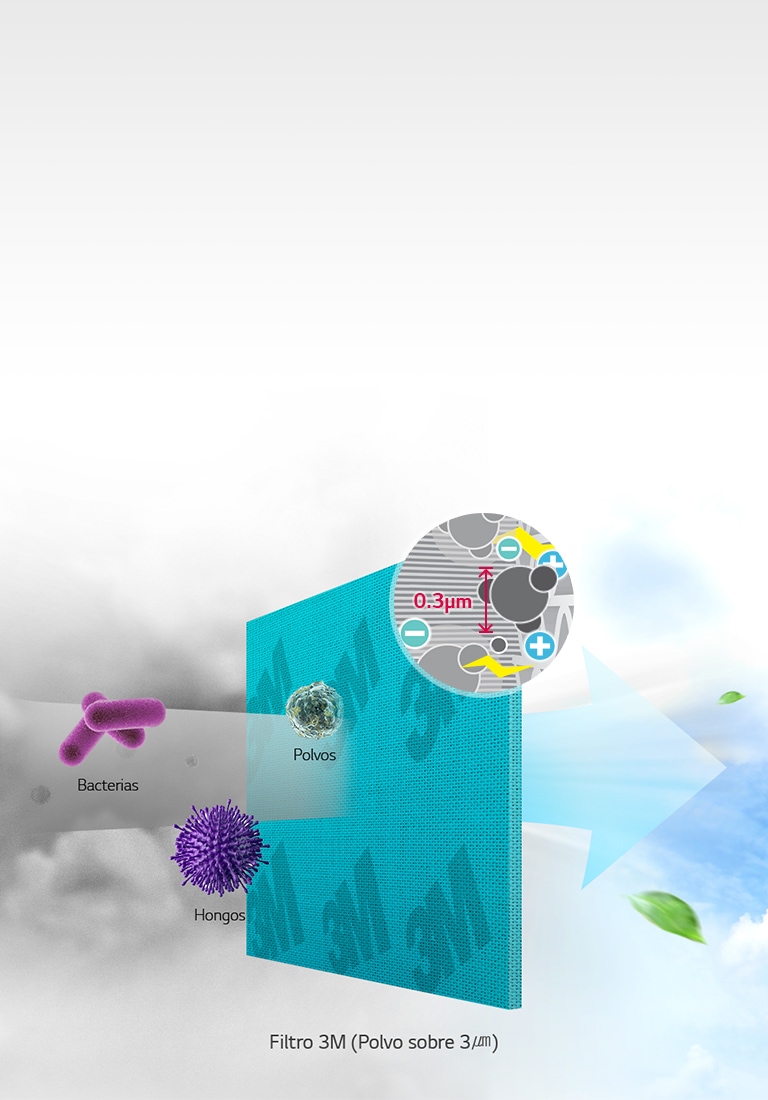

  • Anti Bacterial Air Filter
  • Jet Cool

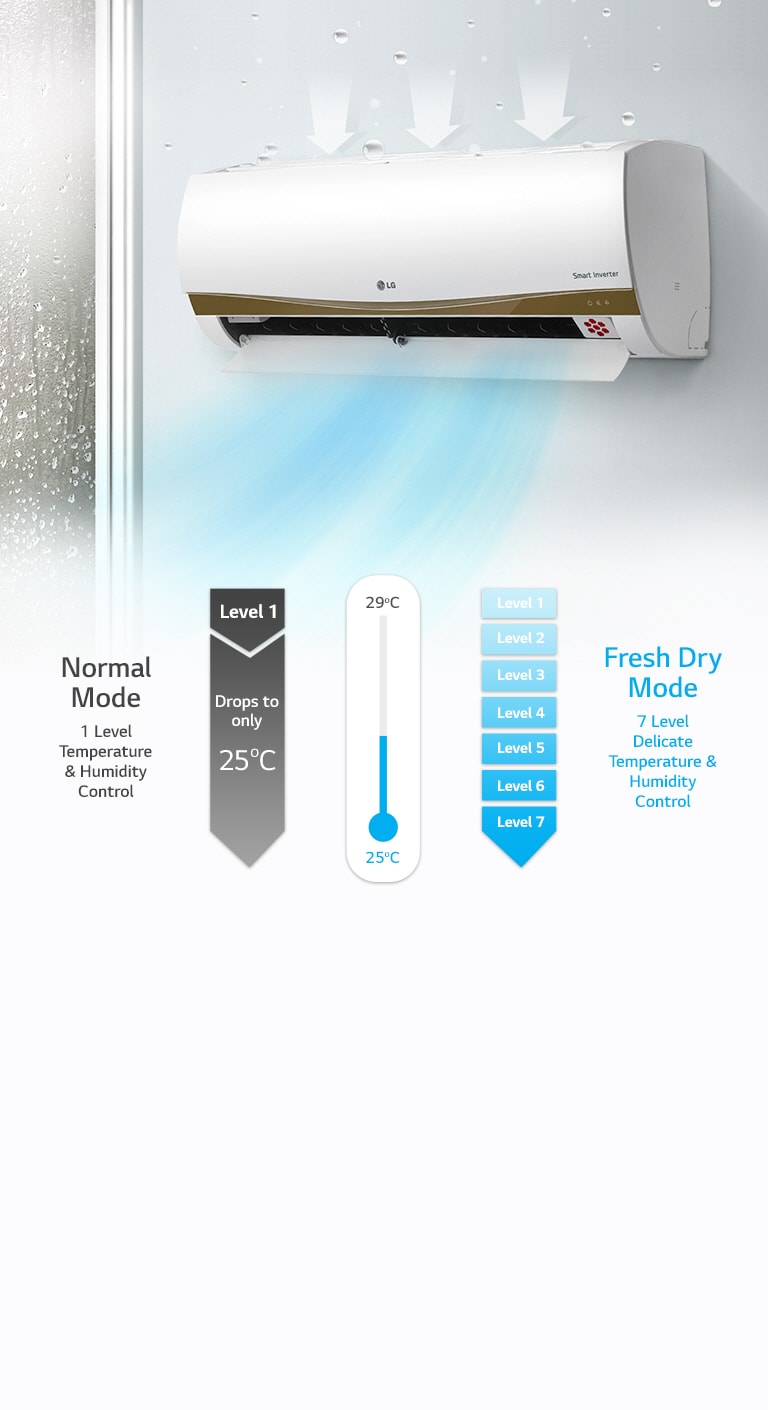

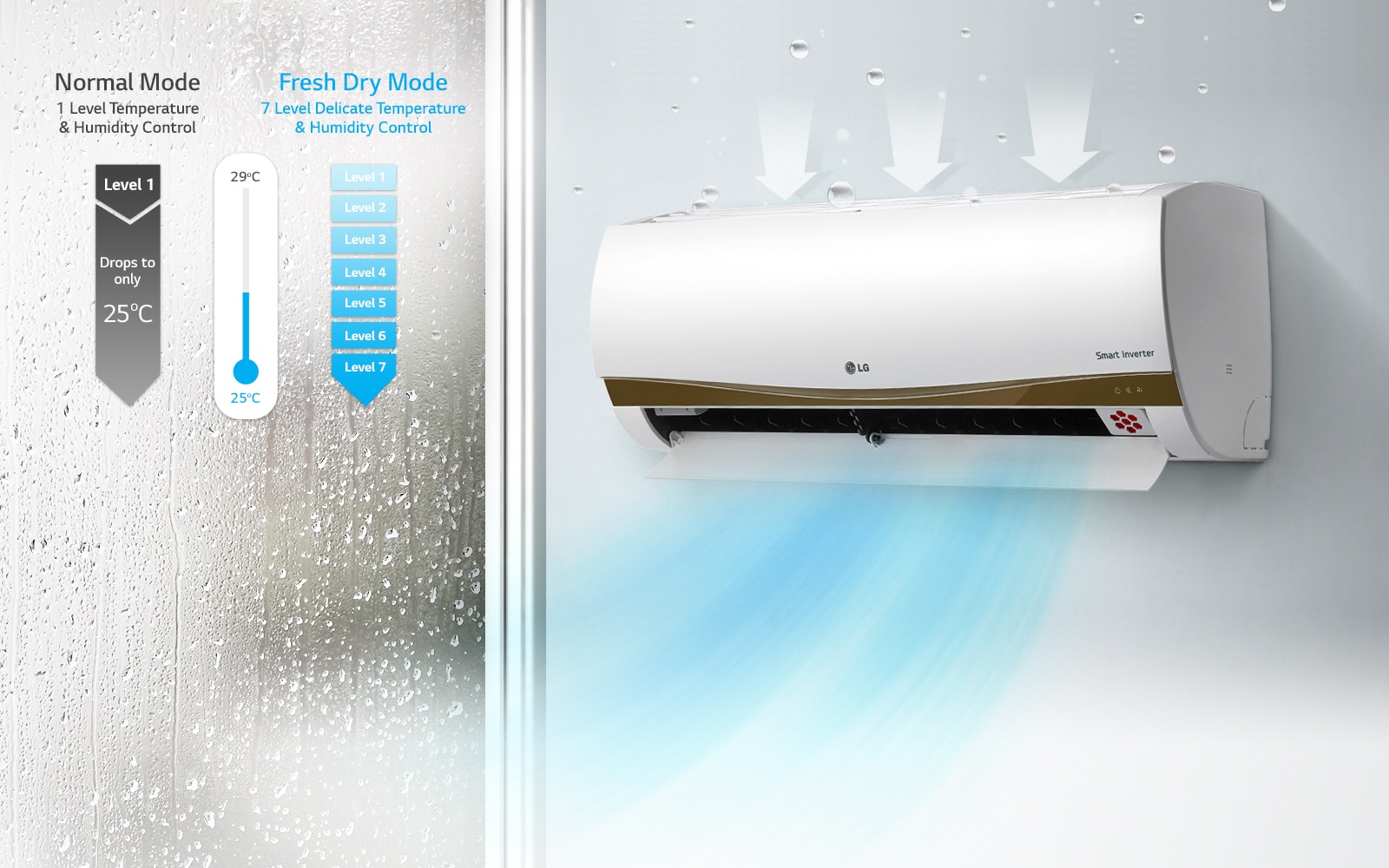

  • Fresh Dry
Capacity
Cooling 2900~12000~13000 (Btu/h)
Elec. Rating
Power Supply 1Φ, 220~240V, 50Hz
Power Supply Cable 3*1.5 (No.*㎟)
Power and Transmission Cable 4*1.0 (No.*㎟)
Power Input (Cooling) 1,085 W
Running Current (Cooling) 5.1 A
Starting Current (Cooling) 5.1 A
EER 3.24 W/W
Circuit Breaker 15A
Air Flow Rate
Indoor,Max 10(353) ㎥/min(CFM)
Outdoor,Max 27(953) ㎥/min(CFM)
Sound Level
Indoor,H/M/L/SL 41/35/27/19 dB(A)+1
Outdoor,Max 49 dB(A)+1
Fan(Indoor)
Type Cross Flow Fan
Motor Type BLDC
Motor Output 20 W
Fan(Outdoor)
Type Propeller, Fan
Motor Type AC
Motor Output 25.2 W
Piping Connections
Liquid Side 6.35(1/4) mm(in)
Gas Side 9.52(3/8) mm(in)
Compressor
Type 1P Rotary
Model GA092MAB
Motor Type Brushless DC Motor
Oil Type FVC68D
Oil Charge 310±5 cc
Operation Range
Cooling (Indoor) 18 ~ 32 (64.4 ~ 89.6) ℃(℉)
Cooling (Outdoor) 18 ~ 48 (64.4 ~ 118.4) ℃(℉)
Dimensions
Indoor (W*H*D) 885*285*210 mm
Pack Indoor (W*H*D) 958*369*264 mm
Outdoor (W*H*D) 717*483*230 mm
Pack Outdoor (W*H*D) 822*516*307 mm
Net Weight
Indoor 9(20) kg(lbs)
Outdoor 25(53) kg(lbs)
Set Weight
Indoor 11(24) kg(lbs)
Outdoor 27(57) kg(lbs)
