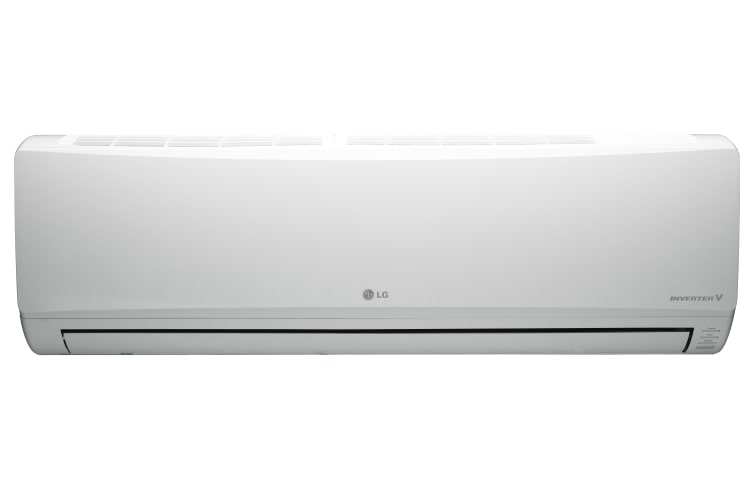

LG’s highly efficient advanced inverter V technology

  • US-Q186C4A4

  • Discontinued Product

Key Features

  • INVERTER V technology
  • Low Noise 19dB
  • Anti Bacterial Air Filter
  • Jet Cool
  • Fresh Dry
Capacity
Cooling 3690 ~ 18000 ~ 18500 Btu/h
Elec. Rating
Power Supply 1Φ, 220~240V, 50Hz
Power Supply Cable 3 * 1.0 No.*㎟
Power and Transmission Cable 4 * 0.75 No.*㎟+No.*㎟ (Including Earth)
Power Input (Cooling) 1615 W
Running Current (Cooling) 7.7 A
Starting Current (Cooling) 7.7 A
EER 3.27 W/W
Circuit Breaker 20 A
RPM (Cooling) 1450Po/1200H/1050M/900L/850S-Low
Air Flow Rate
Indoor,Max 17.8 (629) ㎥/min(CFM)
Outdoor,Max 38 (1342) ㎥/min(CFM)
Special Function
Moisture Removal 0.8 Kg/h
Refrigerant & Charge(at 5m) R410A, 1,210 g
Additional Refrigerant Charge 30 g/m
Sound Level
Indoor,H/M/L/SL 42/40/35/29 dB(A)+1
Outdoor,Max 51 dB(A)+1
Compressor
Type Twin Rotary
Model GKT141MBA
Motor Type Brushless DC Motor
Oil Type FVC68D
Oil Charge 470 cc
Condenser
Tube Type Cu Cond
FPI 18 FPI
Raw × Column 2 × 24
Fan(Indoor)
Type Cross Flow Fan
Motor Type BLDC
Motor Output 30 W
Fan(Outdoor)
Type Propeller
Motor Type BLDC
Motor Output 43 W
Piping Connections
Liquid Side 6.35(1/4) mm(in)
Gas Side 12.7(1/2) mm(in)
Max. Piping Length 20(65.6) m(ft)
Max. Elevation Difference 10(32.8) m(ft)
Drain Hose
O.D , I.D 21.5,16.0(0.85,0.63) mm(in)
Dimensions
Indoor (W*H*D) 1030 * 325 * 250 mm
40.6 * 12.8 * 9.8 inch
Pack Indoor (W*H*D) 1095 * 302 * 394 mm
43.1 * 11.9 * 15.5 inch
Outdoor (W*H*D) 770 * 545 * 288mm
30.3 * 21.5 * 11.3 inch
Pack Outdoor (W*H*D) 905 * 573 * 378 mm
35.6 * 22.6 * 14.9 inch
Net Weight
Indoor 12.4(27.3) kg(lbs)
Outdoor 33.5(73.9) kg(lbs)
Set Weight
Indoor 13.4(29.5) kg(lbs)
Outdoor 35.5(78.3) kg(lbs)
Operation Range
Cooling (Indoor) 18 ~ 32 (64.4 ~ 89.6) ℃(℉)
Cooling (Outdoor) 18 ~ 48 (64.4 ~ 118.4) ℃(℉)
Tool Code(Chassis)
Indoor + Outdoor SC + UL2
