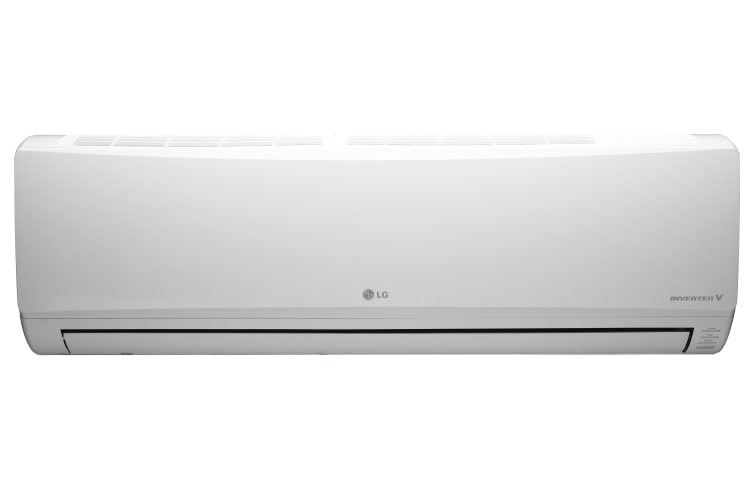

Corrosion Resistant Inverter

  • US-Q246C4J3

  • Discontinued Product

Key Features

  • INVERTER V technology
  • Corrosion Resistant Inverter
  • Anti Bacterial Air Filter
  • Low Noise 19dB
  • Jet Cool
  • Fresh Dry
Capacity
Cooling 3700~22000~24000 (Btu/h)
Elec. Rating
Power Supply 1Φ, 220~240V, 50Hz
Power Supply Cable 3*2.5 (No.*㎟)
Power and Transmission Cable 4*1.5 (No.*㎟)
Power Input (Cooling) 1990 W
Running Current (Cooling) 9.5 A
Starting Current (Cooling) 9.5 A
EER 3.24 W/W
Circuit Breaker 20 A
Air Flow Rate
Indoor,Max 19.5(689) ㎥/min(CFM)
Outdoor,Max 50.0(1766) ㎥/min(CFM)
Sound Level
Indoor,H/M/L/SL 45/40/35/29 dB(A)+1
Outdoor,Max 53 dB(A)+1
Fan(Indoor)
Type Cross Flow Fan
Motor Type BLDC
Motor Output 30 W
Fan(Outdoor)
Type Propeller, Fan
Motor Type BLDC
Motor Output 85 W
Piping Connections
Liquid Side 6.35(1/4) mm(in)
Gas Side 15.88(5/8) mm(in)
Compressor
Type Twin Rotary
Model GKT176MF
Motor Type Brushless DC Motor
Oil Type POE
Oil Charge 470 cc
Operation Range
Cooling (Indoor) 18 ~ 32 (64.4 ~ 89.6) ℃(℉)
Cooling (Outdoor) 18 ~ 48 (64.4 ~ 118.4) ℃(℉)
Dimensions
Indoor (W*H*D) 1030*325*250 mm
Pack Indoor (W*H*D) 1095*394*302 mm
Outdoor (W*H*D) 870*655*320 mm
Pack Outdoor (W*H*D) 1002*696*422 mm
Net Weight
Indoor 12.6(27.78) kg(lbs)
Outdoor 41.8(92.15) kg(lbs)
Set Weight
Indoor 15(33.06) kg(lbs)
Outdoor 45.5(100.31) kg(lbs)
