Essential Commercial TV

Essential Commercial TV

Essential Commercial TV

55UN343H0UA

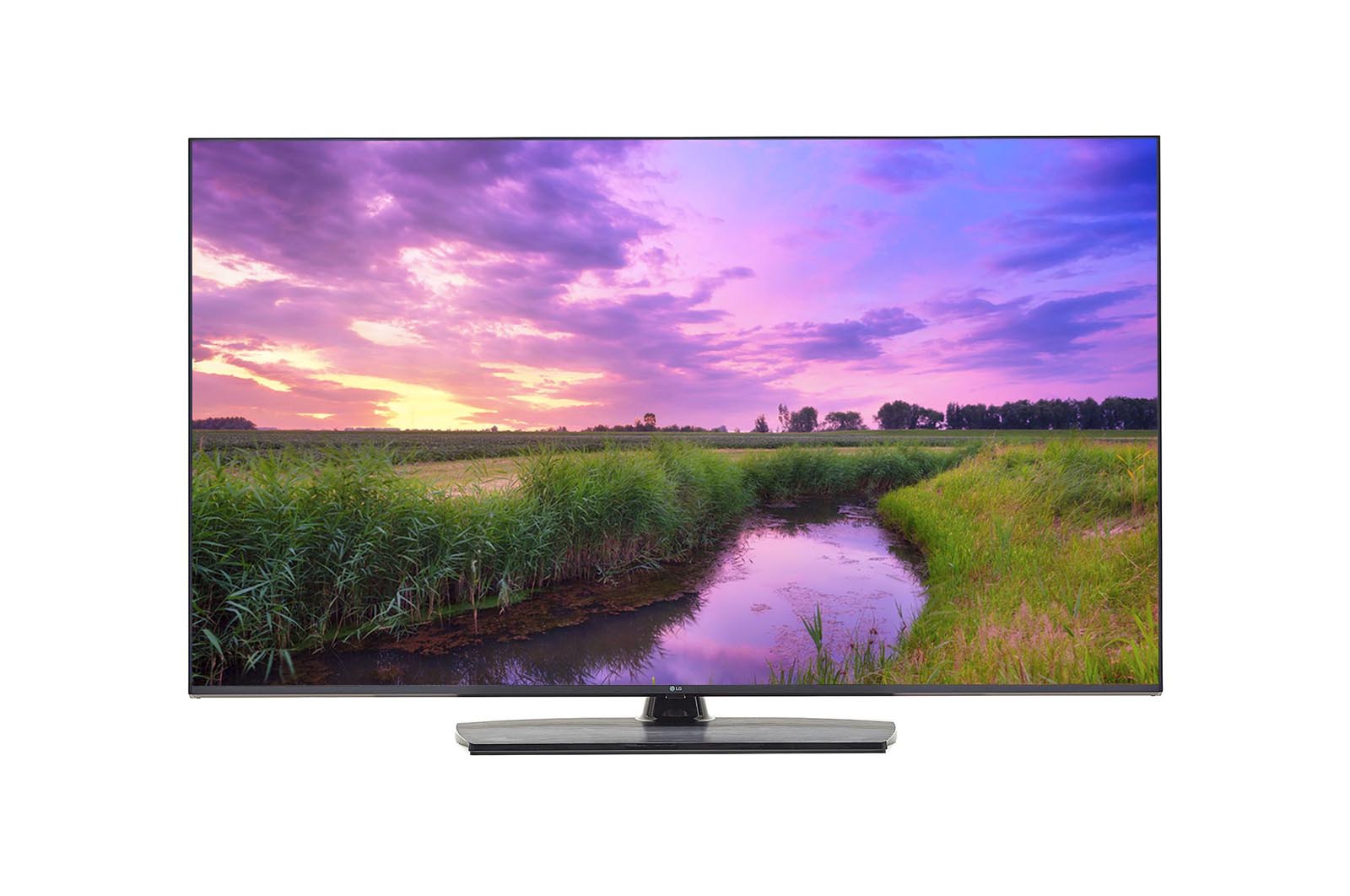

Front view with infill image

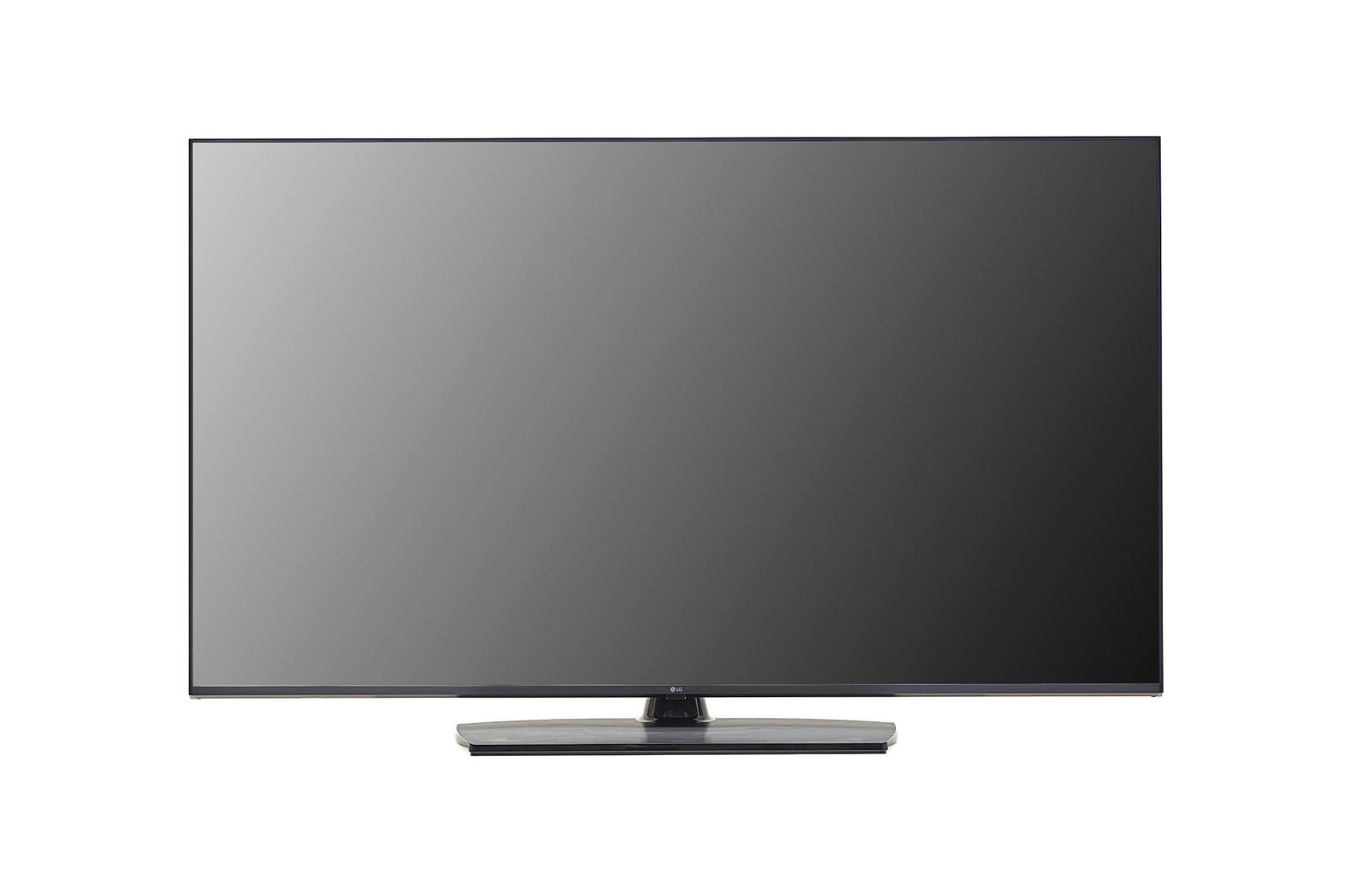

Front view

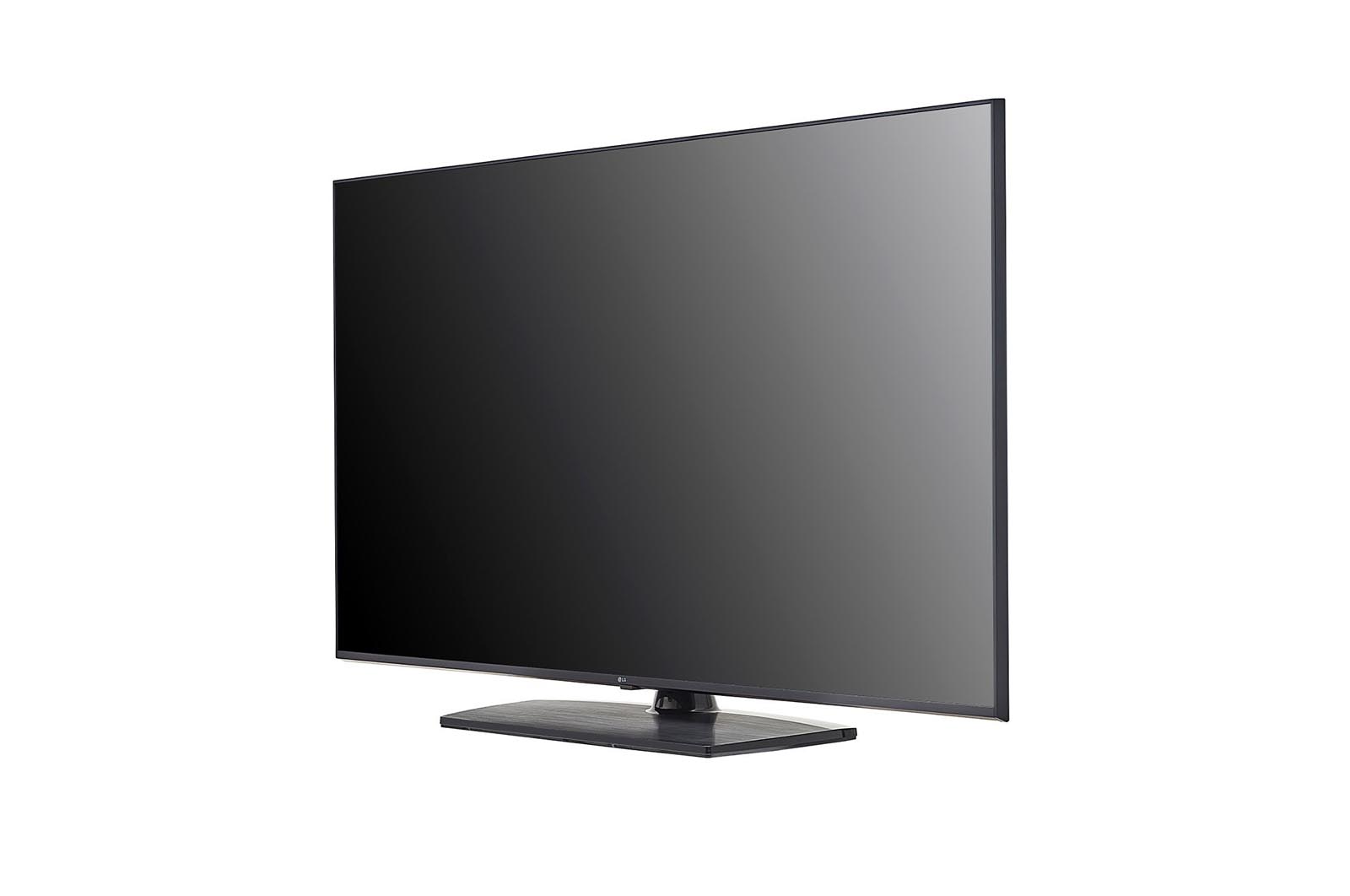

-45 degree side view

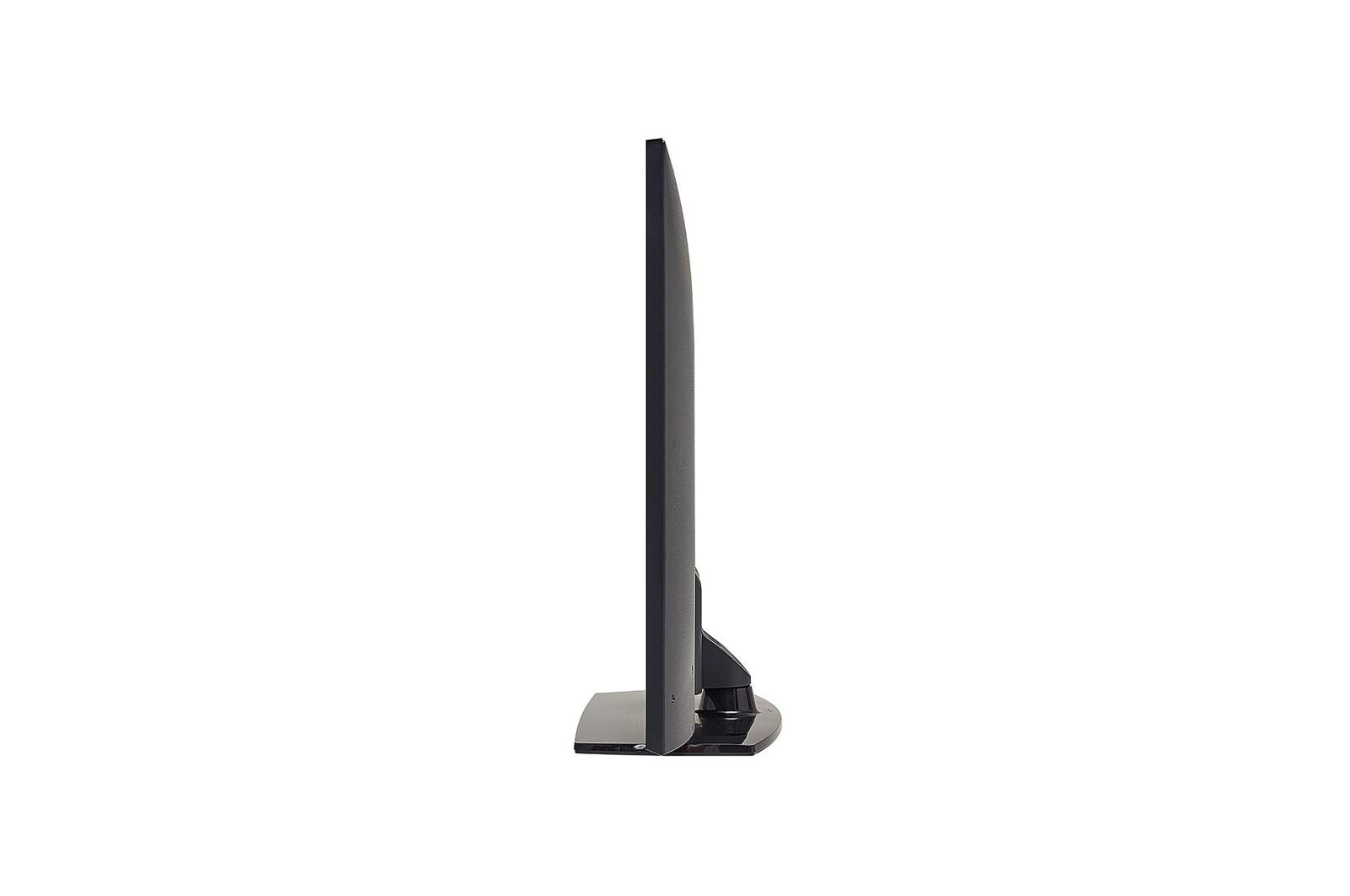

-90 degree side view

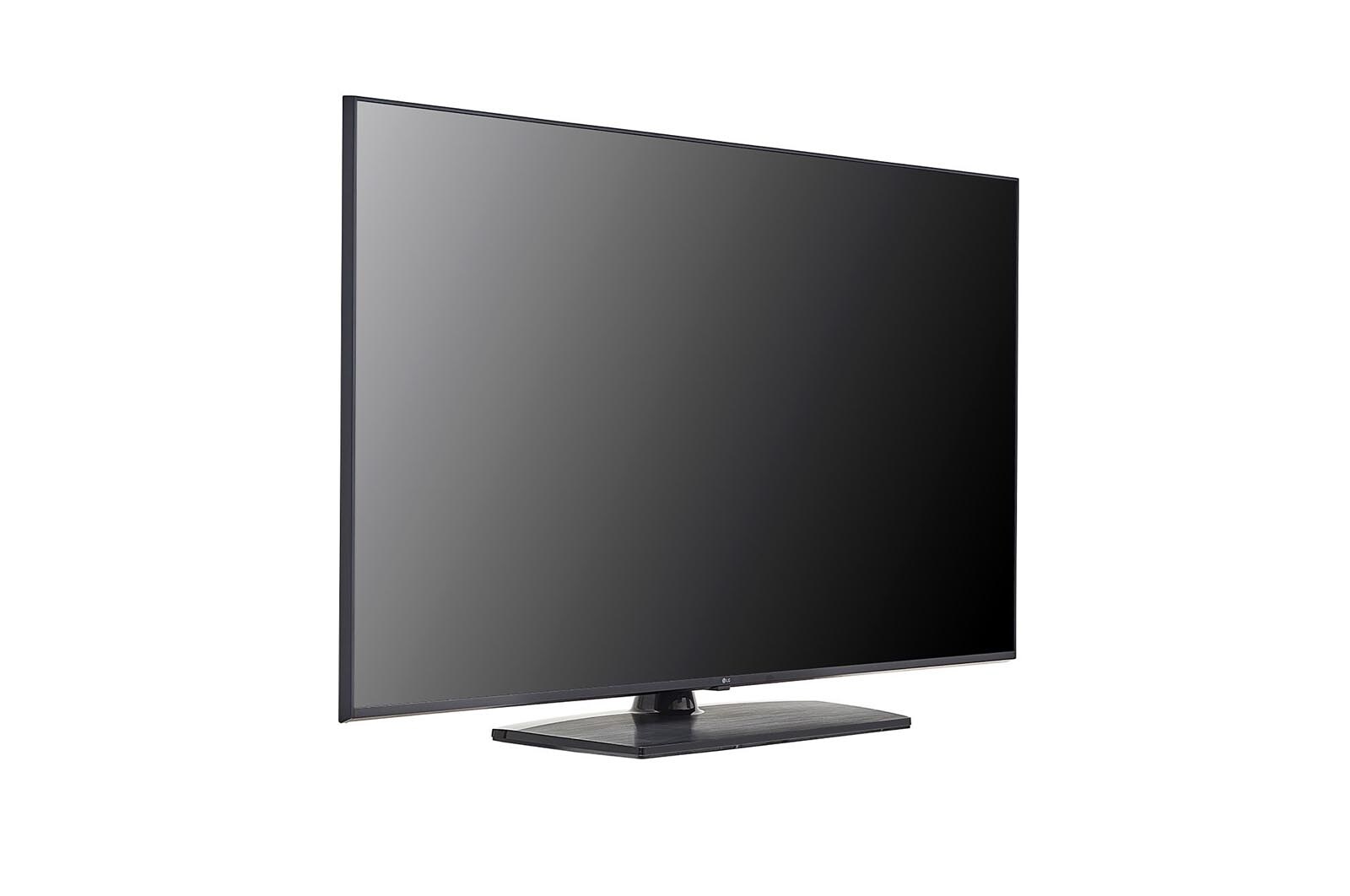

+45 degree side view

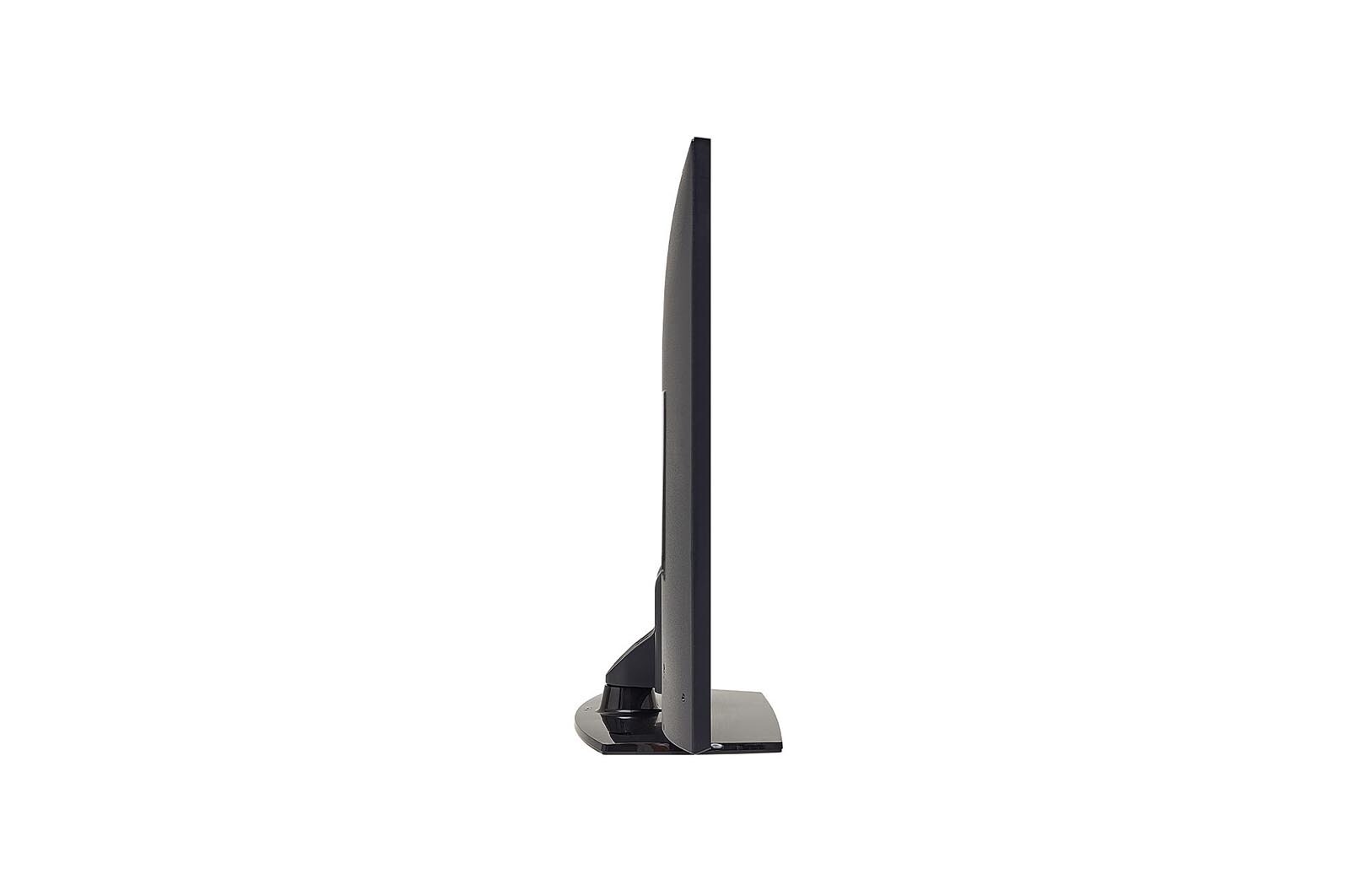

+90 degree side view

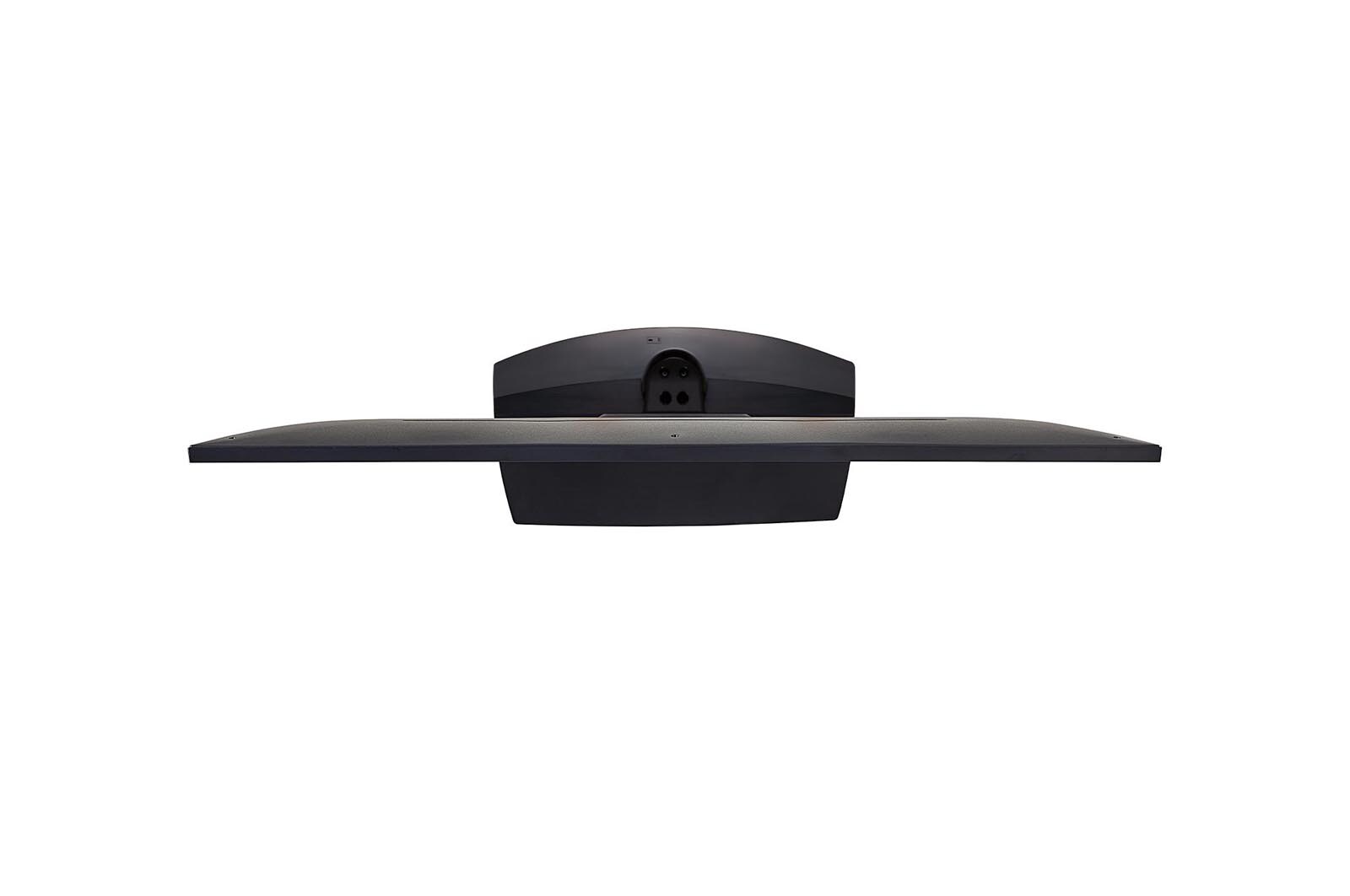

Top view
Front view with infill image
Front view
-45 degree side view
-90 degree side view
+45 degree side view
+90 degree side view
Top view

Key Features

  • 4K UHD
  • USB Cloning
  • Multi IR
Print

All Spec

INFO

  • Category

    Commercial Lite

DESIGN

  • Front Color

    Ashed Blue

  • Stand Type

    1 pole (Swivel : 55")

  • Tool Name

    UP8000

DISPLAY

  • Brightness (Typ.)

    Direct

  • Resolution

    3840 X 2160 (UHD)

  • Size (Inch)

    55"

VIDEO

  • HDR_HDR 10 Pro

    Yes

  • HDR_HLG (Hybrid Log Gamma)

    Yes

AUDIO (SOUND)

  • AI Sound

    Yes

  • Speaker (Audio Output)

    10W + 10W

BROADCASTING SYSTEM

  • Analog (NTSC / SECAM / PAL)

    NTSC

  • Digital

    ATSC, Clear QAM

HOSPITALITY FEATURE

  • Diagnostics

    Yes (USB)

  • Energy Saving mode

    Yes

  • External Power Out

    1 (Spk-out 1, 1W)
    (Stereo, R: 1.0W, L: 1.0W, 8Ω)

  • Hotel Mode / PDM / Installer Menu

    Yes (PDM)

  • HTNG-CEC (Version)

    Yes (1.4)

  • Insert Image

    Yes

  • IR Out

    Yes (ECI, RS232C)

  • Multi IR Code

    Yes

  • Simplink(HDMI-CEC) (Version)

    Yes (1.4)

  • SNMP

    Yes

  • USB Auto playback / playback+

    Yes / No

  • USB Cloning

    Yes

  • Welcome Screen (Splash Image)

    Yes

  • Welcome Video

    Yes

HOSPITALITY SOLUTION

  • Quick Menu (Customizable Portal)

    Yes (5.0)

SMART FUNCTION

  • HDMI-ARC

    Yes (HDMI2)

  • webOS version

    Yes (webOS22)

CONNECTIVITIES

  • Audio Line Out(3.5mm Phone jack)

    Stereo, R: 1.0W, L: 1.0W, 8Ω

  • AV In

    1 (Phone Jack Type)

  • Digital Audio Out (Optical)

    1 (Optical)

  • ECI (RJ12 jack)

    1

  • External Speaker Out(3.5mm Phone jack)

    1 (Spk-out 1, 1W)

  • HDMI In

    2 (2.0)

  • LG SVC only (Phone jack type)

    1

  • RF In

    1 (Tuner)

  • RS-232C (D-Sub 9pin / Phone jack)

    1 (Phone Jack Type)

  • USB (Ver.)

    1 (2.0)

MECHANICAL

  • Kensington Lock

    Yes

  • Credenza/Security Screw Hole

    Yes

  • Lock Down Plate (for easy installing)

    Yes

  • VESA Compatible

    Yes
    300x300

DIMENSIONS/WEIGHT

  • Bezel Width (L/R/U/B, Off Bezel)

    6.8/6.8/6.8/18.4

  • Bezel Width (L/R/U/B, On Bezel)

    12.8/12.8/12.8/19.9

  • Dimension in Shipping (W x H x D)

    1600 x 970 x 228

  • Dimension without Stand (W x H x D)

    1454 x 838 x 57.7

  • Dimension with Stand (W x H x D)

    1454 x 909 x 340

  • Weight in Shipping

    28.9

  • Weight without Stand

    22.9

  • Weight with Stand

    17.2

POWER SPEC.

  • Power Consumption(Typ)

    170W

  • Power Consumption(Max)

    200 W

  • Power Supply (Voltage, Hz)

    AC 100 ~ 240V, 50/60Hz

  • Standby Power Consumption

    0.5W Under

STANDARD

  • EMC

    FCC

  • Safety

    UL

ACCESSORIES

  • Power Cable

    Yes (1.8M,Straight Type)

  • Remote type

    L-Con (In box)
