UHD Signage

55UH5Q-E

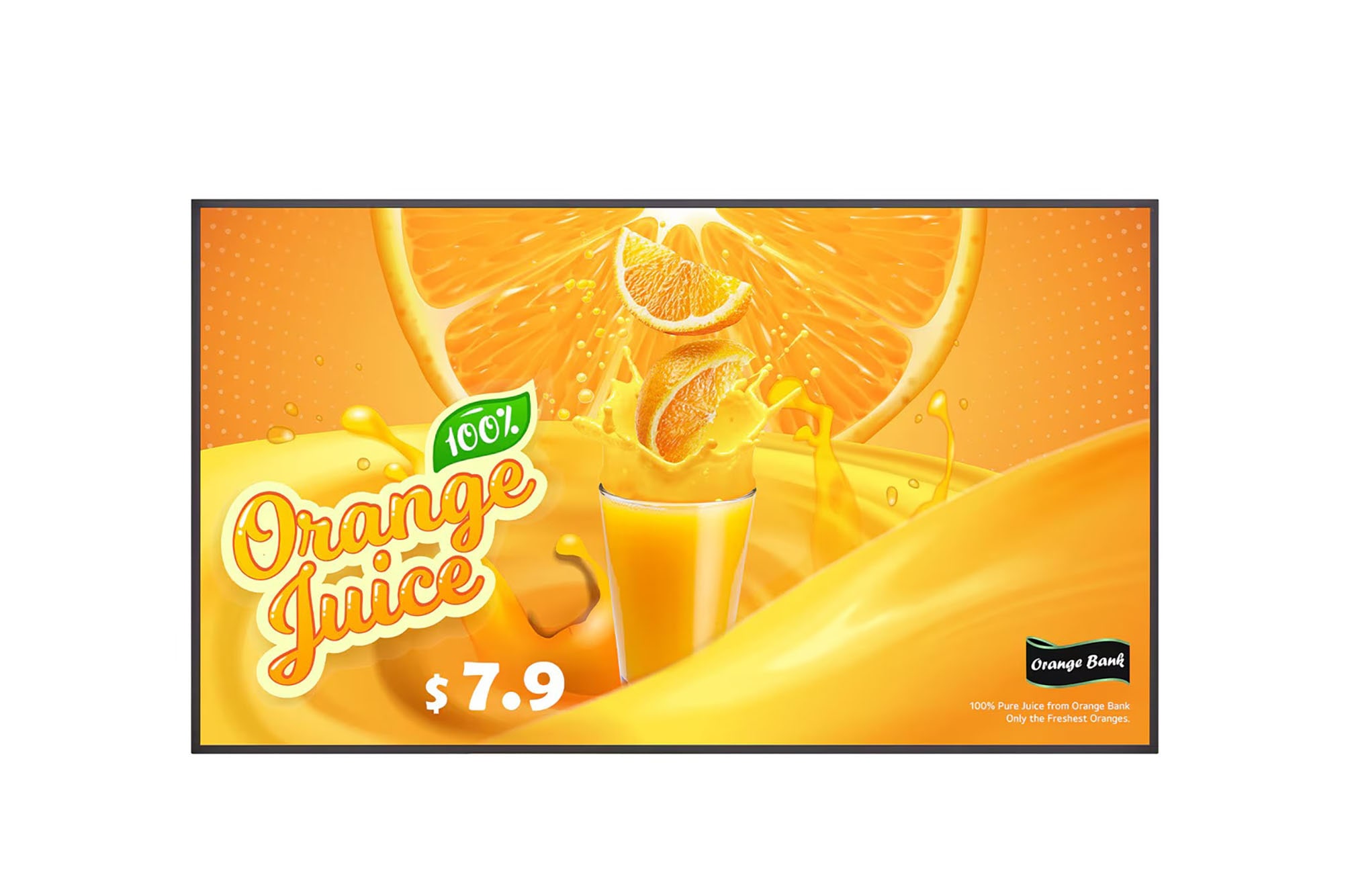

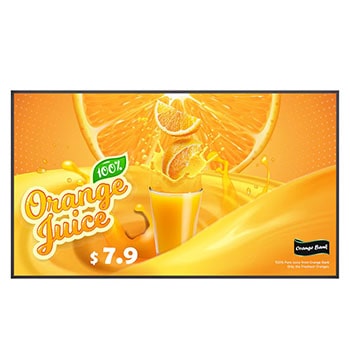

Front view with infill image

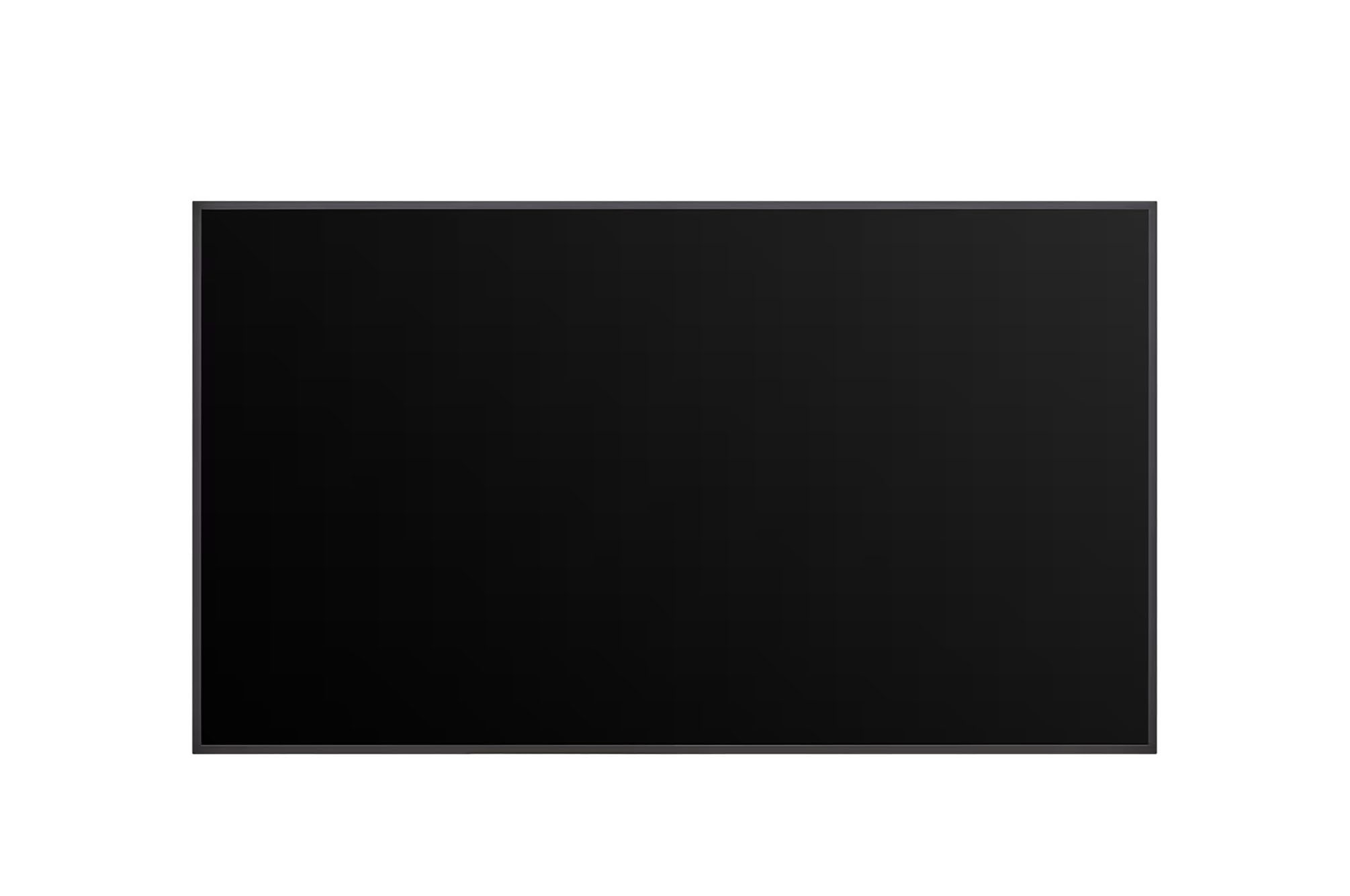

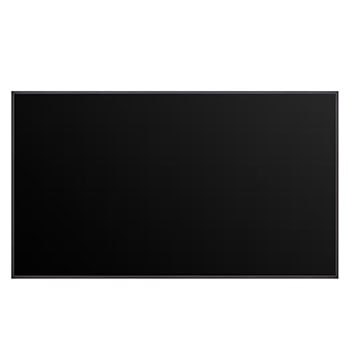

Front view

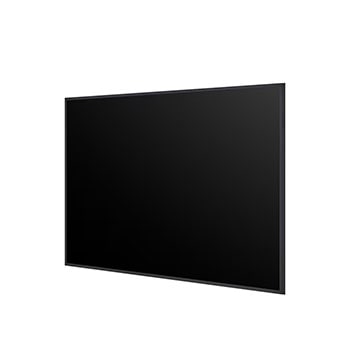

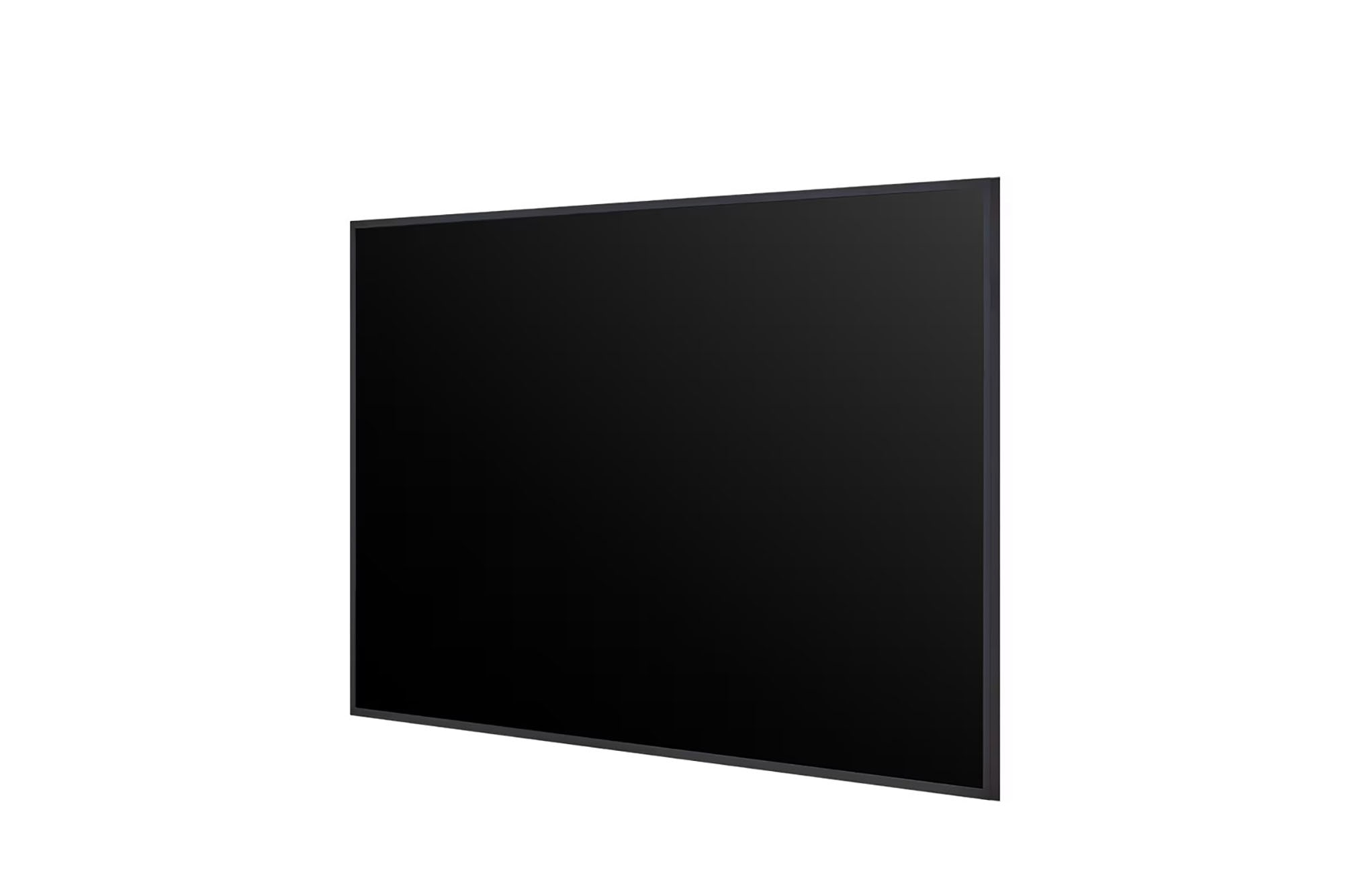

-45 degree side view

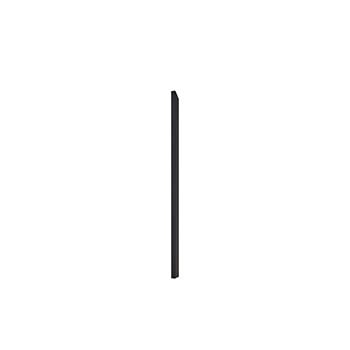

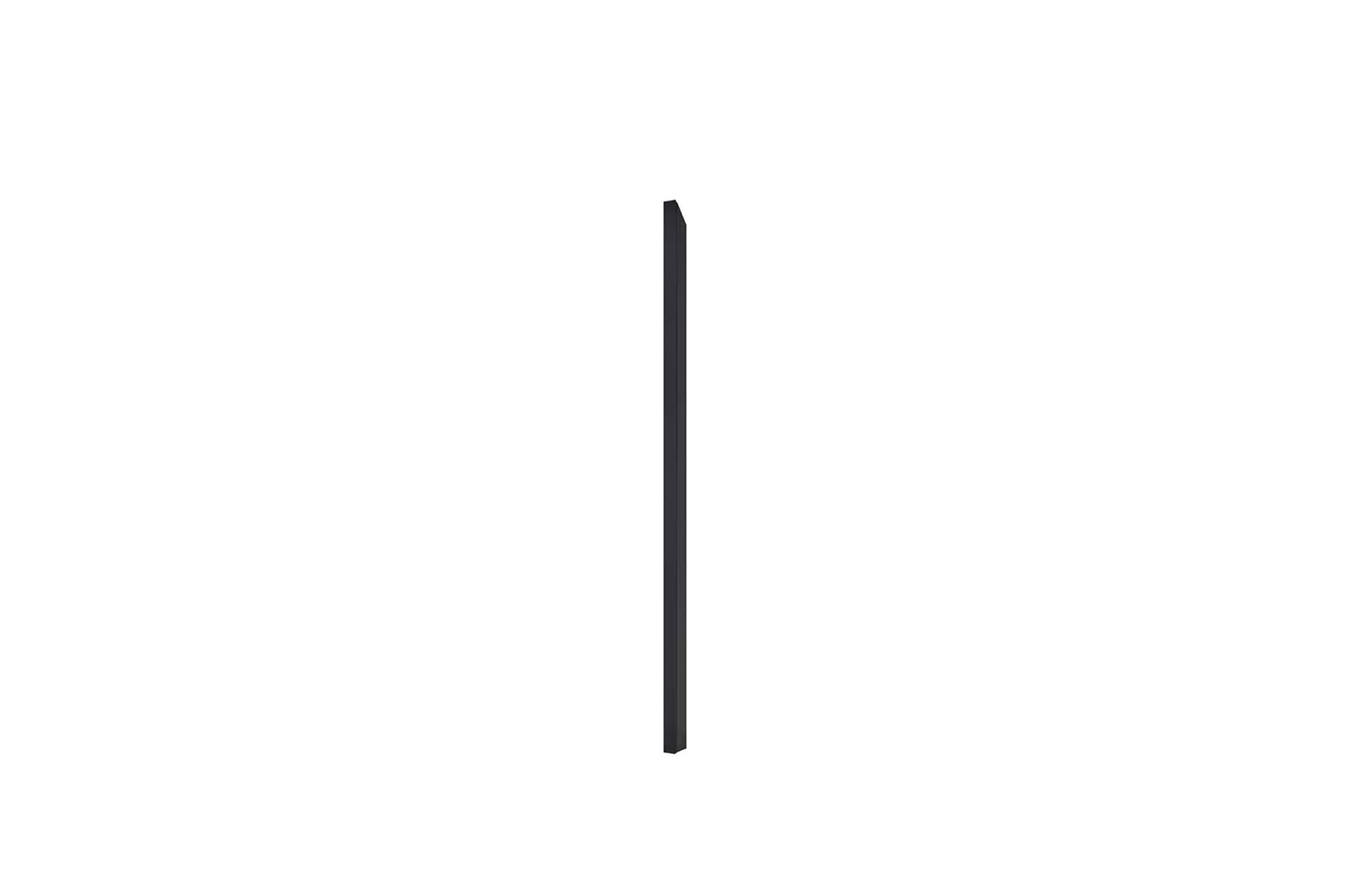

-90 degree side view

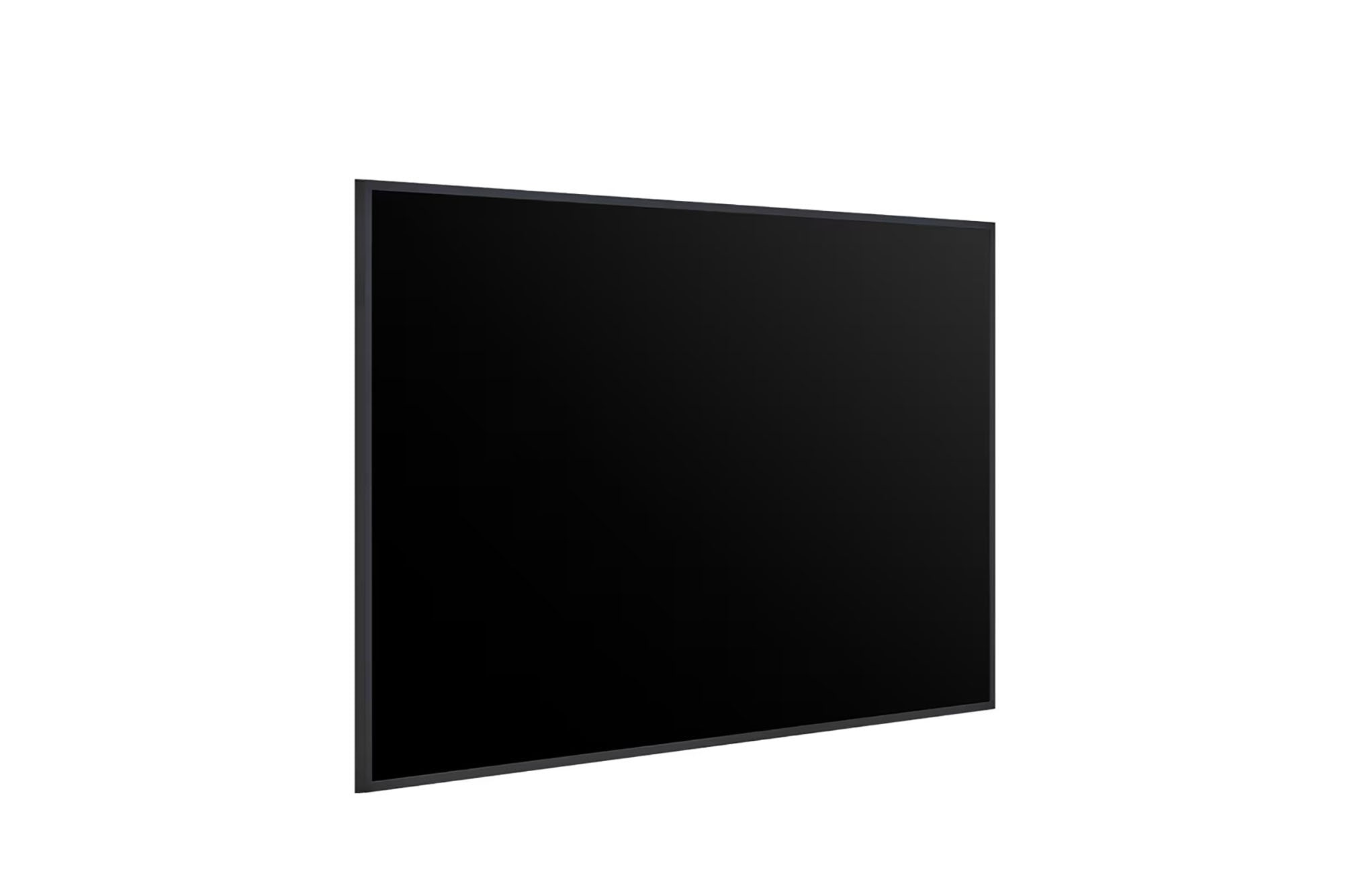

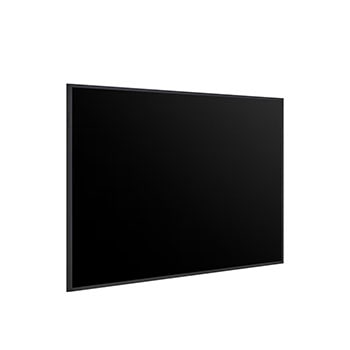

+45 degree side view

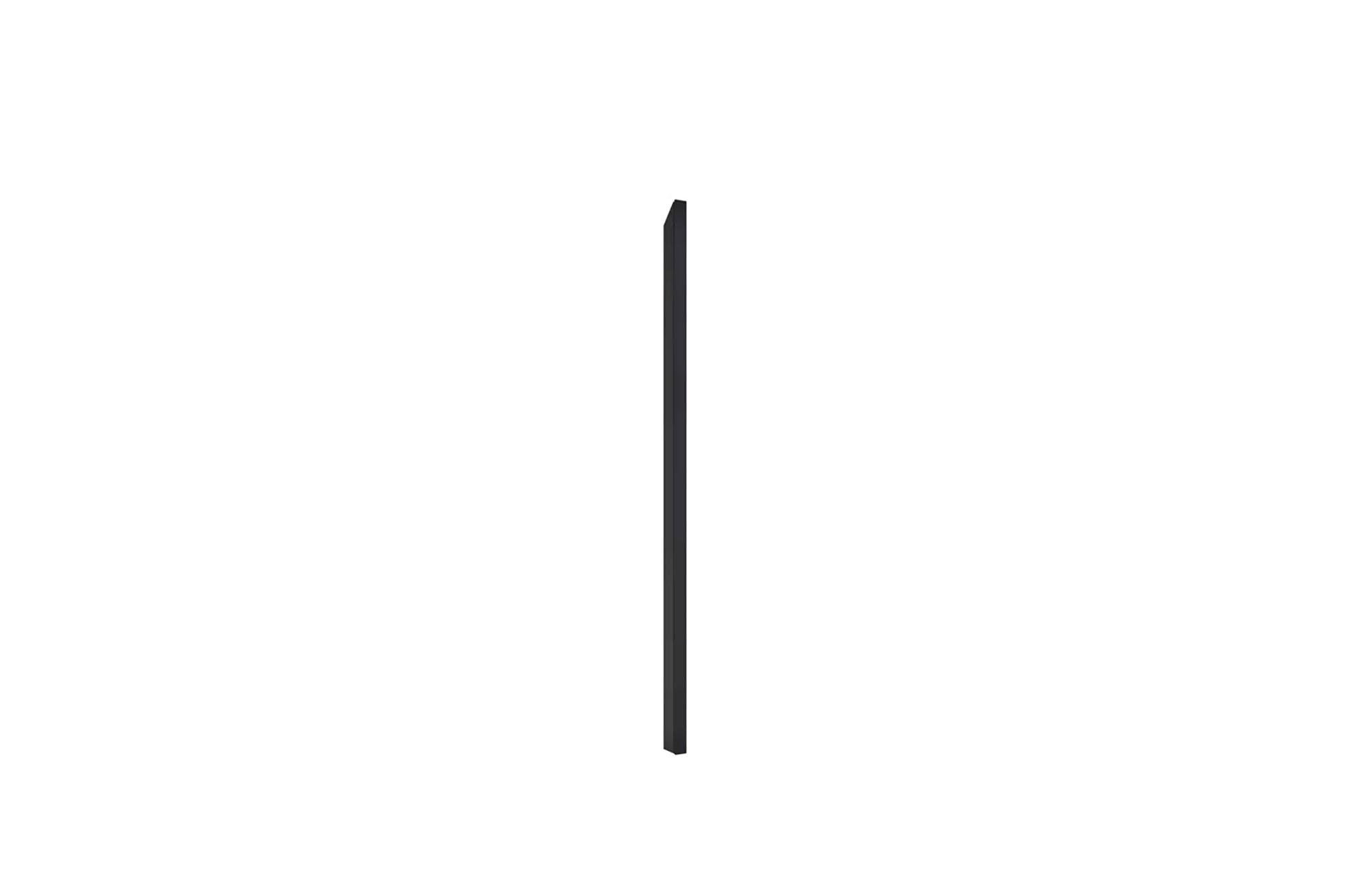

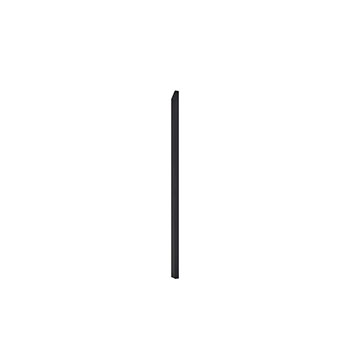

+90 degree side view

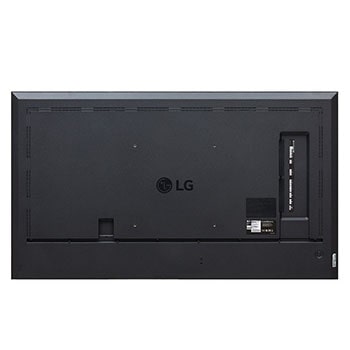

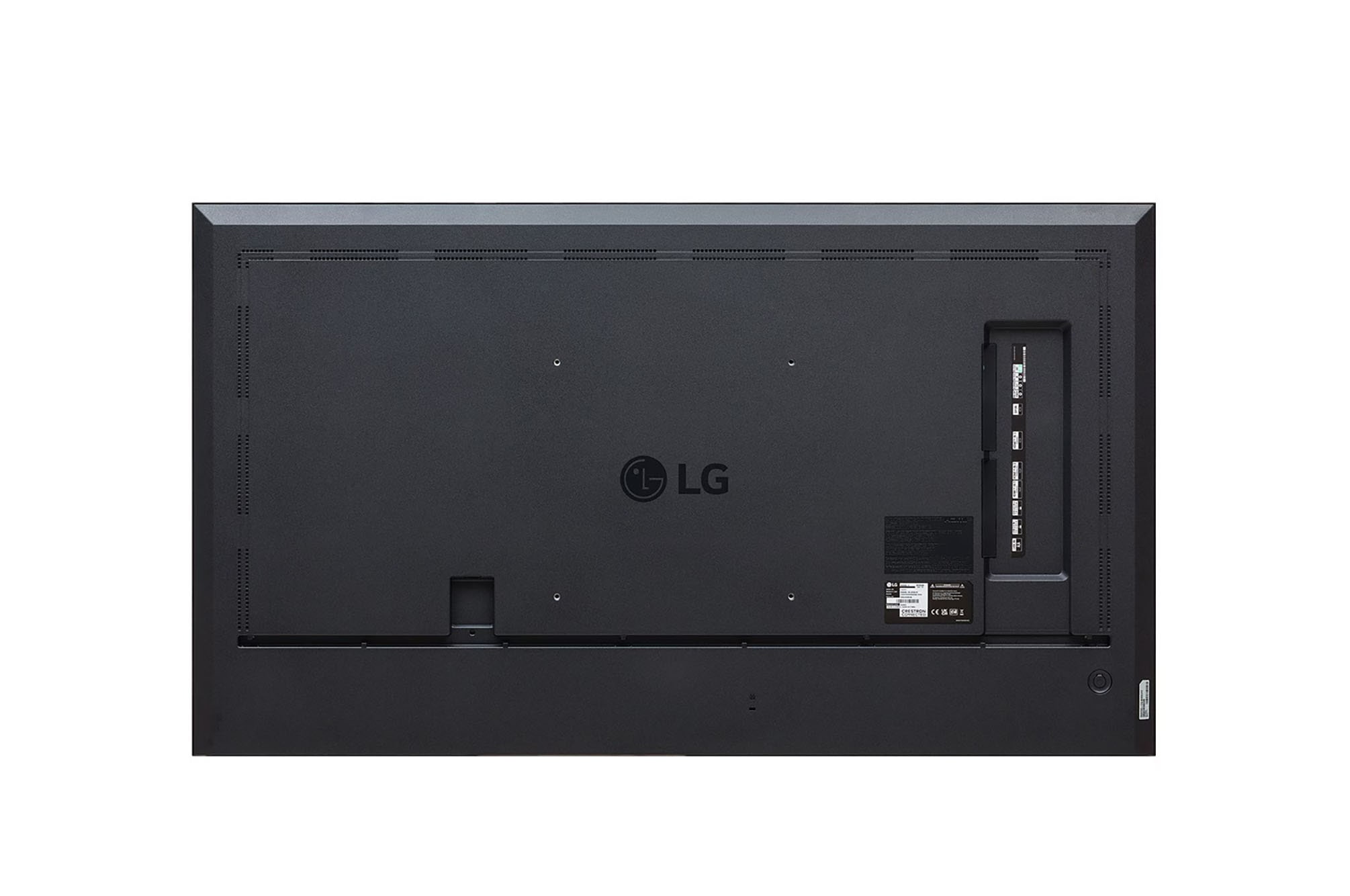

Rear view

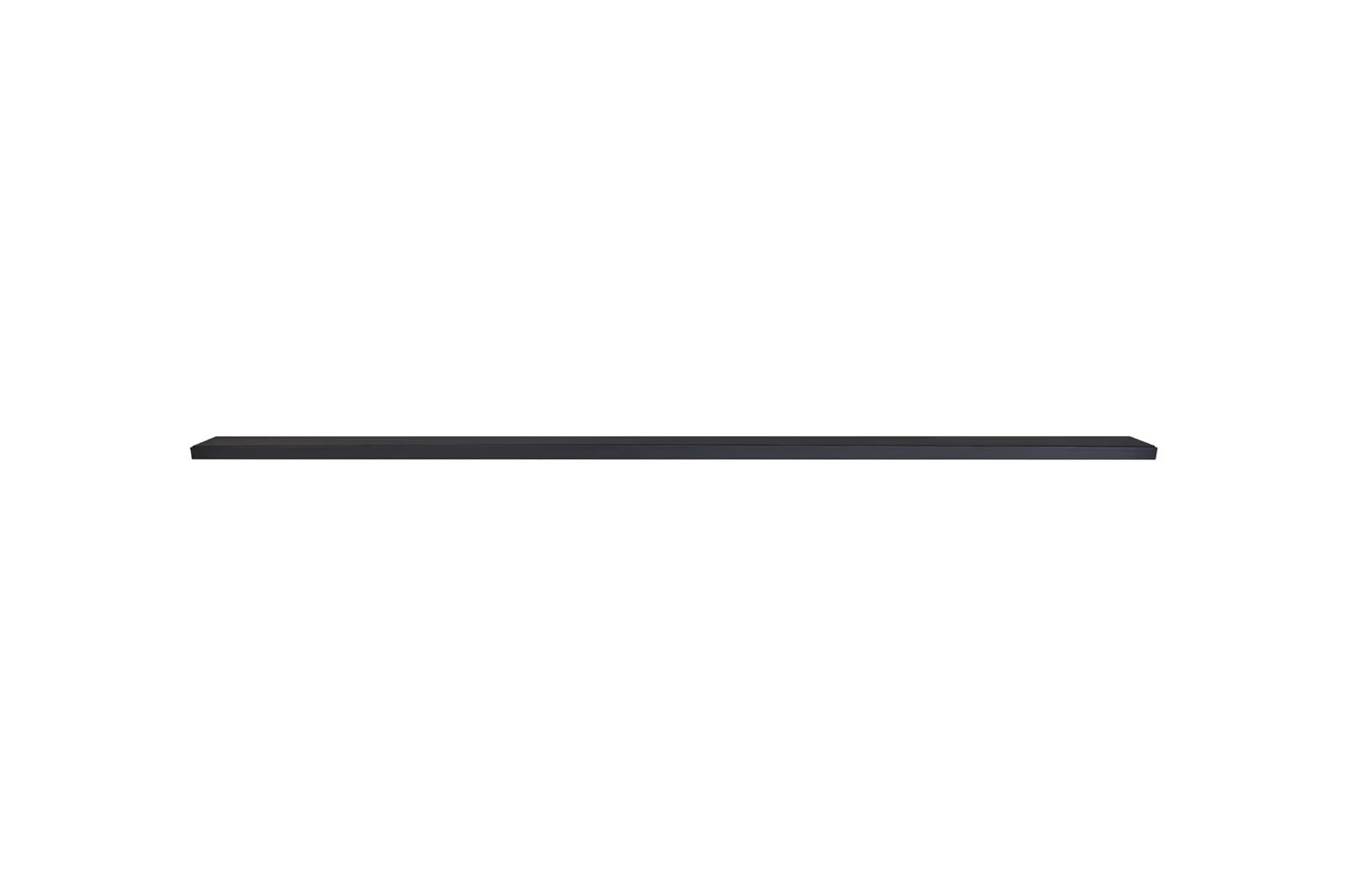

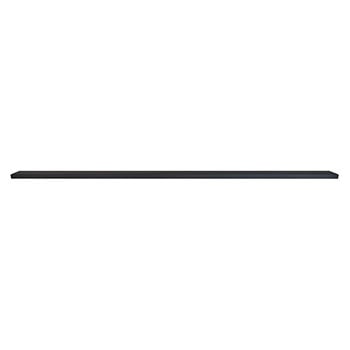

Top view

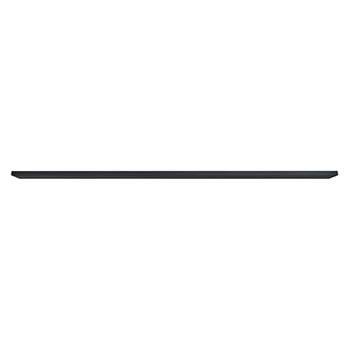

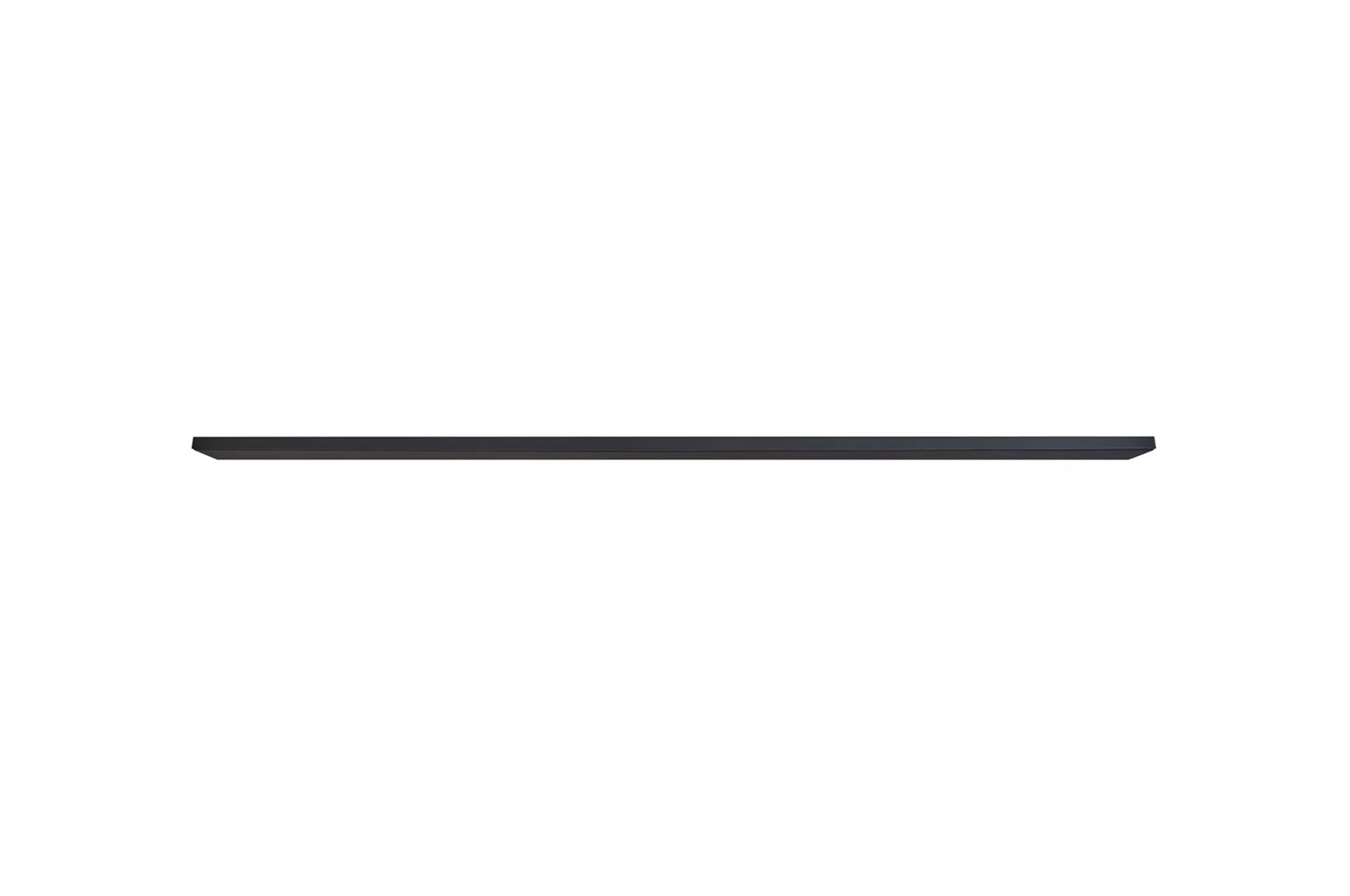

Bottom view

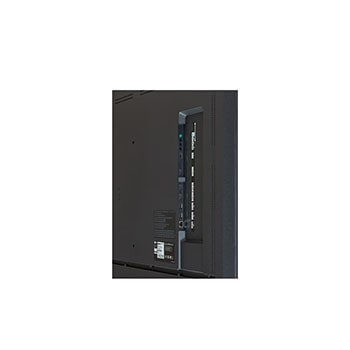

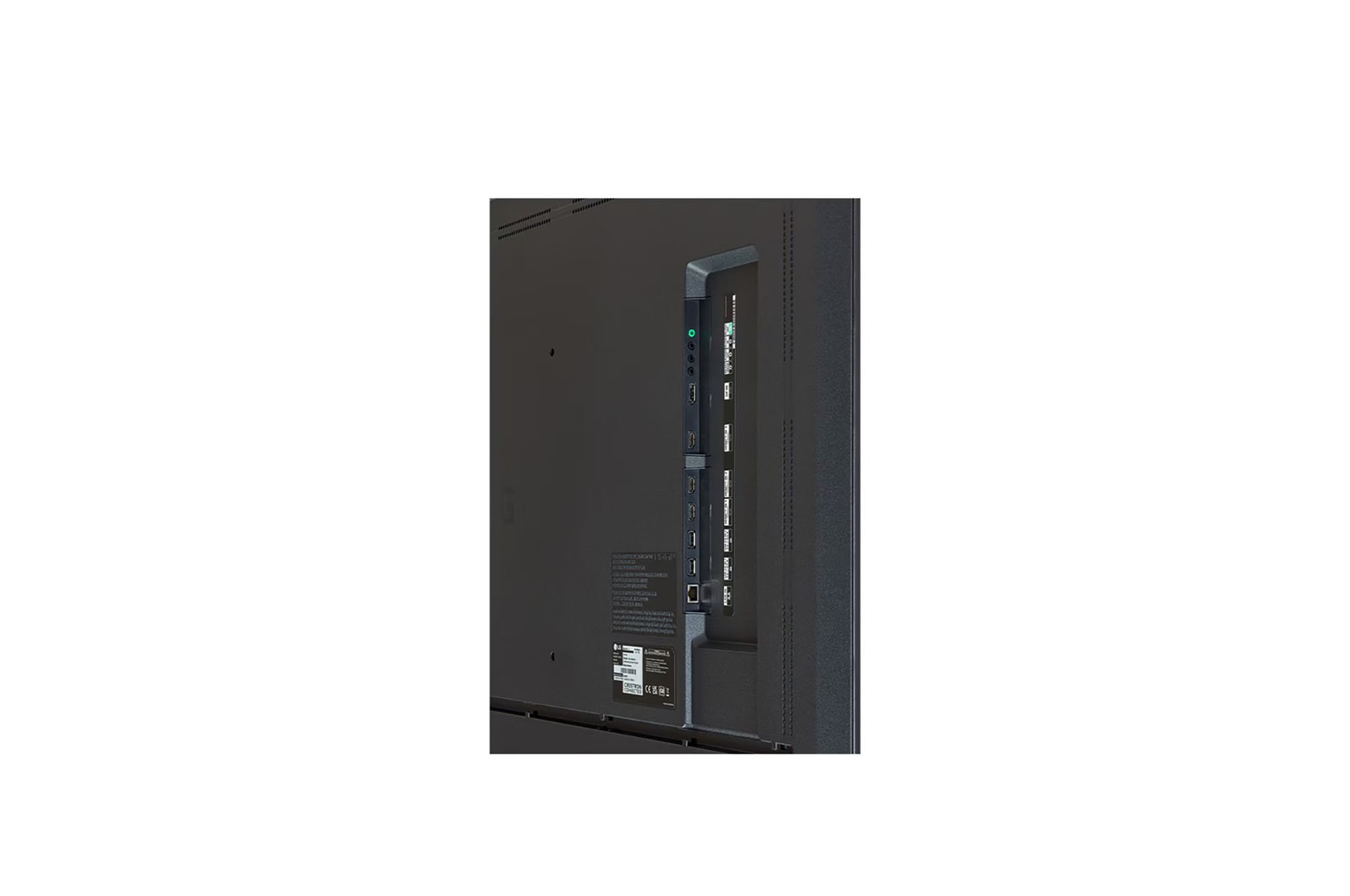

Detail view
Front view with infill image
Front view
-45 degree side view
-90 degree side view
+45 degree side view
+90 degree side view
Rear view
Top view
Bottom view
Detail view

Key Features

  • Resolution : 3,840 × 2,160 (UHD)
  • Brightness : 500 nits (Typ.)
  • Bezel Width : 11.4 mm (Even Bezel)
  • webOS Smart Platform
  • LG Shield
More

UHD Signage Display with
LG webOS Platform and Advanced Security

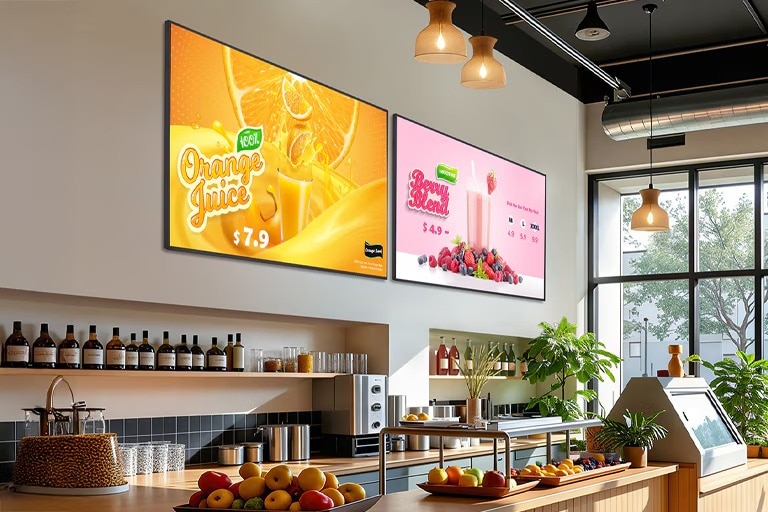

Inside the café, two signage displays are mounted on the wall, each vividly showcasing menu images.

* All images in this page are for illustrative purposes only.

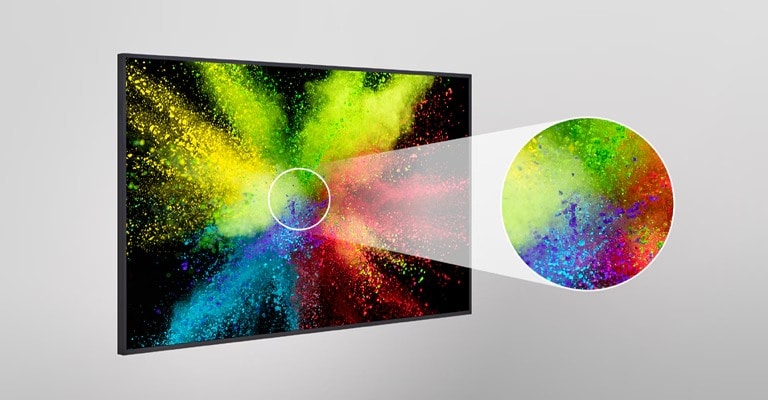

Superb Picture Quality with Ultra HD Resolution

With the resolution of UHD, it makes the colors and details of the content vivid and realistic. In addition, the wide viewing angle provides clear content.

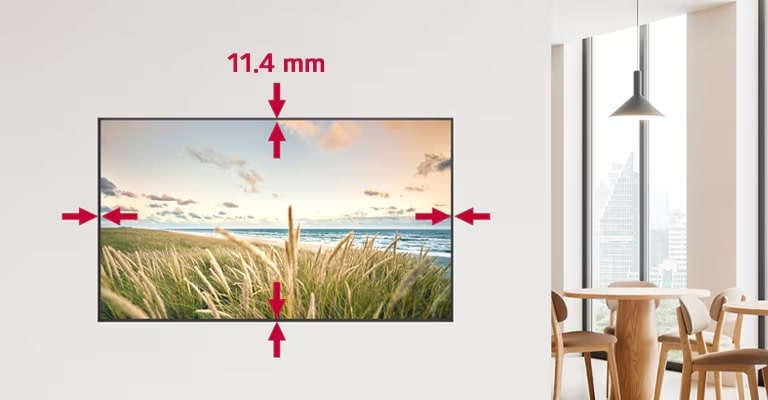

Even & Slim Bezel Design

The UH5Q series features perfectly balanced horizontal and vertical slim bezels, creating a visually harmonious display solution. Its specialized design simplifies installation in retail environments while delivering a truly immersive viewing experience.

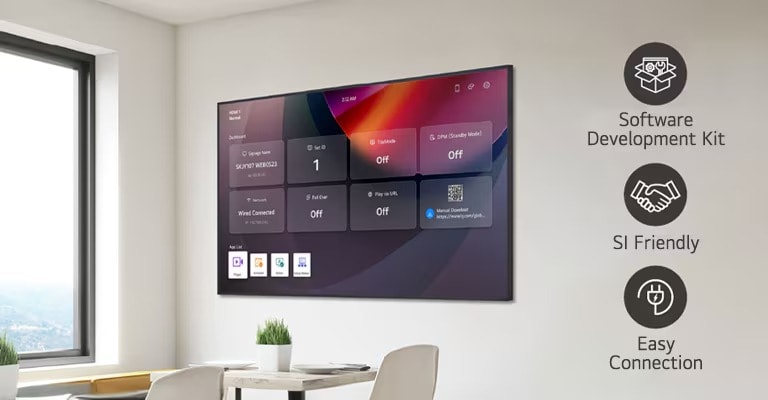

Convenient webOS Platform

The UH5Q is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, and includes webOS partner apps to create an SI-friendly environment.

* SoC : System On Chip
** SI : System Integrator

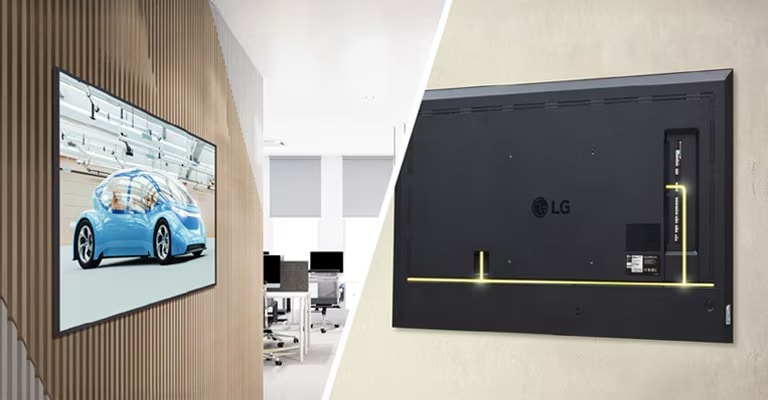

Design for Space Utilization

Designed with thin bezels and simple cable management, the UH5Q saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13.5 mm of space with the slim bracket.

* The product image will differ slightly from the actual appearance of the product due to the variance caused by each inch option.

Durability that Provides Reliability

Optimized for business environments, the UH5Q is protected against salt, dust, iron powder and humidity thanks to conformal partial coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring*, provide both reliability and satisfaction.

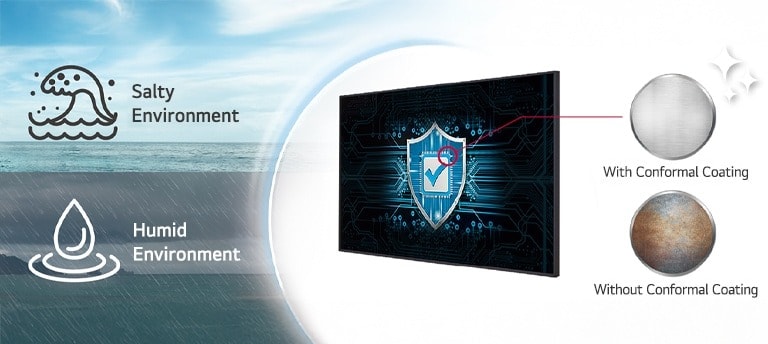

The UH5Q has conformal coating to protect the display even in salty or humid environments.

* When a physical impact occurs on the product, an alert is provided to the administrator through the media controller.

Comprehensive Security

webOS Signage goes beyond security measures at the operating system (OS) level. LG Shield employs a five-tiered defense system, encompassing server, application, operating system, system, and hardware. Each layer operates independently, providing comprehensive protection against various threats. Also webOS platform support ETSI EN 303 645.

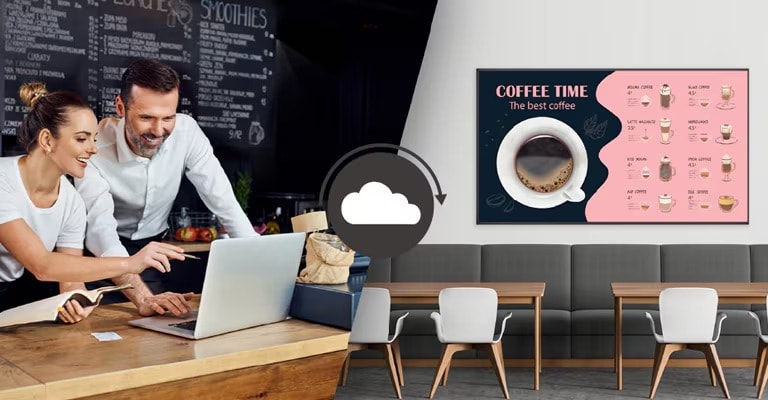

SuperSign Solutions

SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

* SuperSign must be purchased separately.

Print

All Spec

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, Cable Holder (For Power Cord), IR/Light sensor receiver(EU/EK Only), Magnetic sheet(2EA, EU/EK Only)

  • Optional

    Slim Wall Mount (WB21LMA/B), Normal Wall Mount (OLW480A/B), IR/Light sensor receiver (ACC-L)

CERTIFICATION

  • EMC

    FCC Class "B" / CE / KC

  • ePEAT(US only)

    YES / Carbon "Reducing CO2"(TBD)

  • ERP / Energy Star

    YES / YES

  • Safety

    CB / NRTL

CONNECTIVITY

  • Audio Out

    YES(1)

  • DP In

    YES(1), 3840x2160@60Hz, HDCP2.2/1.3

  • HDMI In

    YES(3), 3840x2160@60Hz, HDCP 2.2/1.4

  • IR In

    USB2.0 Type A(2)

  • RJ45(LAN) In

    YES(1)

  • RS232C In

    YES(1), 4pin Phone-jack

  • RS232C Out

    YES(1), 4pin Phone-jack

ENVIRONMENT CONDITIONS

  • Operation Humidity

    10 % to 80 %

  • Operation Temperature

    0 °C to 40 °C

FEATURE - HARDWARE

  • Auto Brightness Sensor

    YES(Built-in for Europe only, sold separately in other regions)

FEATURE - SOFTWARE

  • Cisco Certification

    YES (TBD)

  • OS Ver. (webOS)

    webOS8.0

  • PBP

    YES(4)

  • Tile Mode Setting

    YES (Max. 15x15)

  • Video Tag

    YES(4)

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, Polski

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    Even bezel : 11.4mm

  • Carton Dimensions (W x H x D)

    1360.0 x 810.0 x 152.0mm

  • Monitor Dimensions (W x H x D)

    1240.1 x 711.9 x 29.7mm

  • Packed Weight

    18.1 kg

  • VESA Standard Mount Interface

    300 x 300

  • Weight (Head)

    14.3 kg

PANEL

  • Aspect Ratio

    16:9

  • Back Light Type

    Edge

  • Brightness

    500nit (Typ.)

  • Color Depth (Number of Colors)

    10bit(D), 1.07Billion colors

  • Color Gamut

    BT709 95%

  • Contrast Ratio

    1,200:1 (Typ)

  • Dynamic CR

    1,000,000:1

  • Life time

    50,000Hrs (Min.)

  • Native Resolution

    3840 x 2160 (UHD)

  • Operation Hours (Hours/Day)

    24/7

  • Panel Technology

    ADS

  • Portait / Landscape

    YES/YES

  • Refresh Rate

    60Hz

  • Response Time

    8m (G to G)

  • Screen Size (Inch)

    55"

  • Surface Treatment (Haze)

    25%(Typ)

  • Viewing Angle (H x V)

    178 X 178

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-In Power

POWER CONSUMPTION

  • BTU (British Thermal Unit)

    351 BTU/Hr(Typ.), 525 BTU/Hr(Max)

  • DPM

    0.5W

  • Max.

    154W

  • Power off

    0.5W

  • Smart Energy Saving (70%)

    72W

  • Typ.

    103W

SOUND

  • Speaker (Built-in)

    YES (10W X 2)

SPECIAL FEATURE

  • Conformal Coating (Power Board)

    YES(Partial space coating)

  • IP Rating

    IP5X

  • Tilt (Face down)

    YES(Max 15˚ degree, 40℃ temperature) (TBD)
