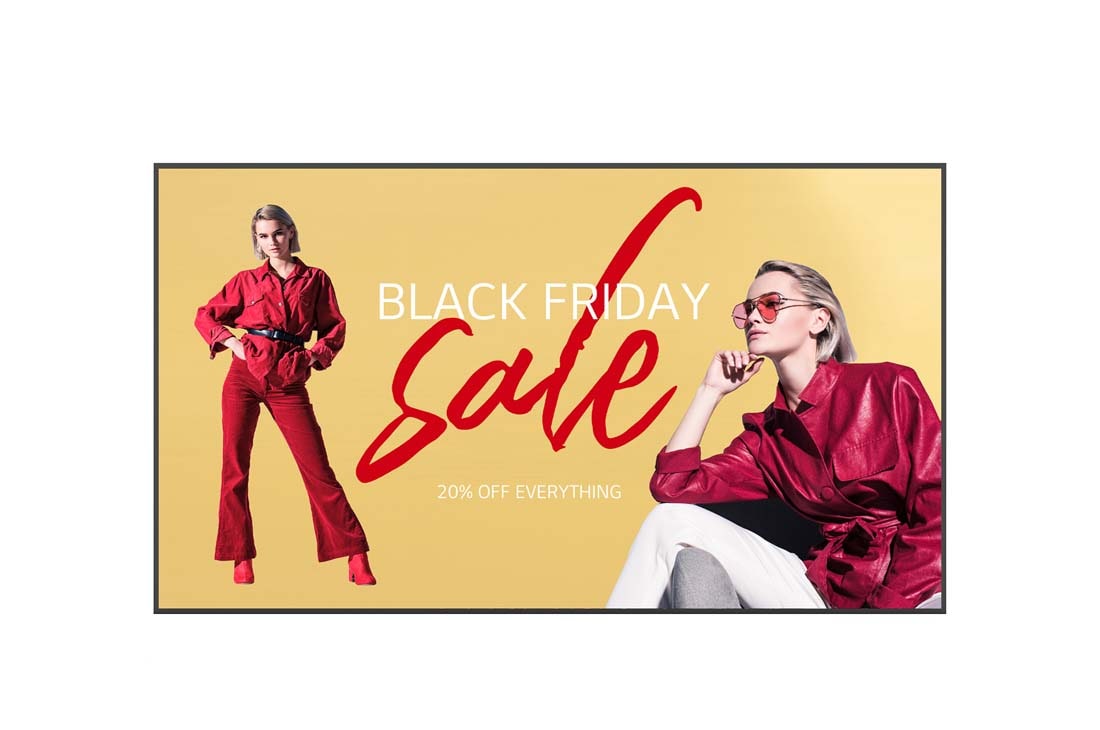

UM5K Series - 110'' UHD Large Screen Signage

110UM5K-B

Key Features

Brightness : 500 nit (Typ.)
Resolution : ULTRA HD (3,840 x 2,160)
Bezel : 17 mm (Even bezel)
Built-in Speaker (10 W + 10 W)
Interface : HDMI(3) / DP / DVI-D / USB 2.0 / RS232C / RJ45 / Audio / IR & Light Sensor

All Spec

CERTIFICATION

Safety: CB / NRTL

EMC: FCC Class "A" / CE / KC

ePEAT(US only): NO

ERP / Energy Star: YES(NewErP) / NO

SOUND

Speaker (Built-in): YES (10W x 2)

LANGUAGE

OSD: English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, Polski

ACCESSORY

Optional: NO

Basic: Remote Controller(include battery 2ea), Power Cord, QSG, IR/Light sensor receiver, Regulation Book, Phone to RS232C Gender

POWER

Power Type: Built-in Power

Power Supply: AC 100-240V~, 50/60Hz

ENVIRONMENT CONDITIONS

Operation Humidity: 10 % to 80 %

Operation Temperature: 0 °C to 40 °C

MECHANICAL SPECIFICATION

Bezel Width: Even bezel : 17mm

Bezel Color: Black

Carton Dimensions (W x H x D): 2680 x 1730 x 320mm

Handle: YES

Monitor Dimensions (W x H x D): 2474 x 1408 x 99mm

Monitor Dimension with Stand (W x H x D): N/A

Packed Weight: 110Kg

VESA Standard Mount Interface: 1500 x 600 mm

Weight (Head): 80Kg

Weight (Head+Stand): N/A

OPS COMPATIBILITY

OPS Power Built-in: NO

OPS Type compatible: NO

SOFTWARE COMPATIBILITY

Connected Care: YES

Mobile CMS: YES

Promota: YES (Not available for EU/CIS)

SuperSign Cloud: YES

SuperSign CMS: YES

SuperSign Control+: YES

SuperSign WB: YES

SPECIAL FEATURE

Power Protection: N/A

Conformal Coating (Power Board): N/A

Direct Sunlight: N/A

IP Rating: N/A

Overlay Touch Compatibility: N/A

Smart Calibration: N/A

Tilt (Face down): N/A

Tilt (Face up): N/A

PANEL

Contrast Ratio: 1,200:1

Aspect Ratio: 16:9

Back Light Type: Direct

Brightness: 500nit (Typ.)

Color Depth (Number of Colors): 1.07 Billion colors

Color Gamut: DCI-P3 88%

Dynamic CR: 1,000,000:1

Life time: 50,000Hrs (Min.)

Native Resolution: 3840 x 2160 (UHD)

Operation Hours (Hours/Day): 16/7

Panel Technology: ADS

Portait / Landscape: NO / YES

QWP (Quarter Wave Plate): N/A

Refresh Rate: 120Hz

Response Time: 8ms (G to G)

Screen Size (Inch): 110

Surface Treatment (Haze): Haze 1%

Transparency: N/A

Viewing Angle (H x V): 178º x 178º

FEATURE - HARDWARE

Local Key Operation: YES

Acceleration(Gyro) Sensor: YES

Auto Brightness Sensor: YES

BLU Sensor: NO

Current Sensor: NO

FAN (Built-in): NO

Humidity Sensor: NO

Internal Memory (eMMC): 16GB

Pixel Sensor: NO

Power Indicator: YES

Proximity Sensor: NO

Temperature Sensor: YES

Wi-Fi/BT (Built-in): YES

CONNECTIVITY

Daisy Chain: Input : HDMI, DP, DVI-D / Output : HDMI

Audio In: YES

Audio Out: YES

DP In: YES (HDCP 2.2/1.3)

DP Out: NO

DVI-D In: YES (HDCP 1.4)

External Speaker Out: NO

HDMI In: YES (3ea)

HDMI In (HDCP Ver.): 2.2/1.4

HDMI Out: YES

IR In: YES

IR Out: NO

RGB In: NO

RJ45(LAN) In: YES (1ea)

RJ45(LAN) Out: NO

RS232C In: YES

RS232C Out: YES

Touch USB: NO

USB In: USB2.0 Type A (1ea)

FEATURE - SOFTWARE

Pro:Idiom: YES

Auto Set ID: YES

Backlight Sync: NO

Beacon: YES

Booting Logo Image: YES

Brightness Compensation: NO

Cisco Certification: YES

Control Manager: YES

Crestron Connected: YES

External Input Rotation: NO

Fail over: YES

Gapless Playback: YES

Group Manager: YES

HDMI-CEC: YES

ISM Method: YES

Local Contents Scheduling: YES

Local Network Sync: YES

Network Ready: YES

No Signal Image: YES

OS Ver. (webOS): webOS 6.0

PBP: YES (4PBP)

PIP: YES

Play via URL: YES

PM mode: YES

RS232C Sync: YES

Scan Inversion: NO

Screen Rotation: NO

Screen Share: YES

Setting Data Cloning: YES

SI Server Setting: YES

Smart Energy Saving: YES

SNMP: YES

Status Mailing: YES

Tile Mode Setting: YES

USB Plug & Play: YES

Video Tag: YES (4 Video Tag)

Wake on LAN: YES

webRTC: YES

W/B Setting by Grey scale: NO

POWER CONSUMPTION

BTU (British Thermal Unit): 1501 BTU/Hr(Typ.), 1945 BTU/Hr(Max.)

DPM: 0.5W

Max.: 570W

Power off: 0.5W

Smart Energy Saving (70%): 308W

Typ.: 440W
