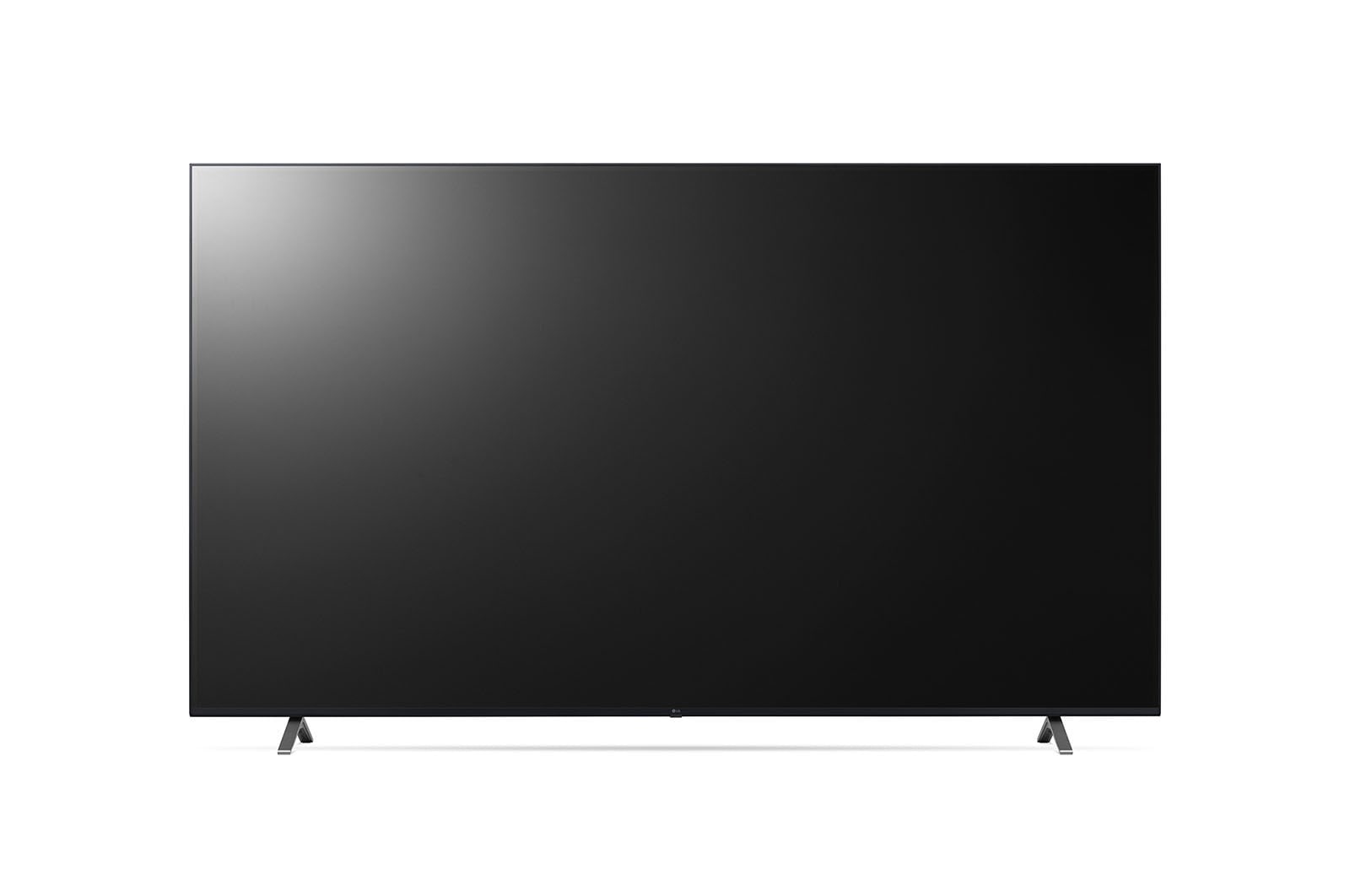

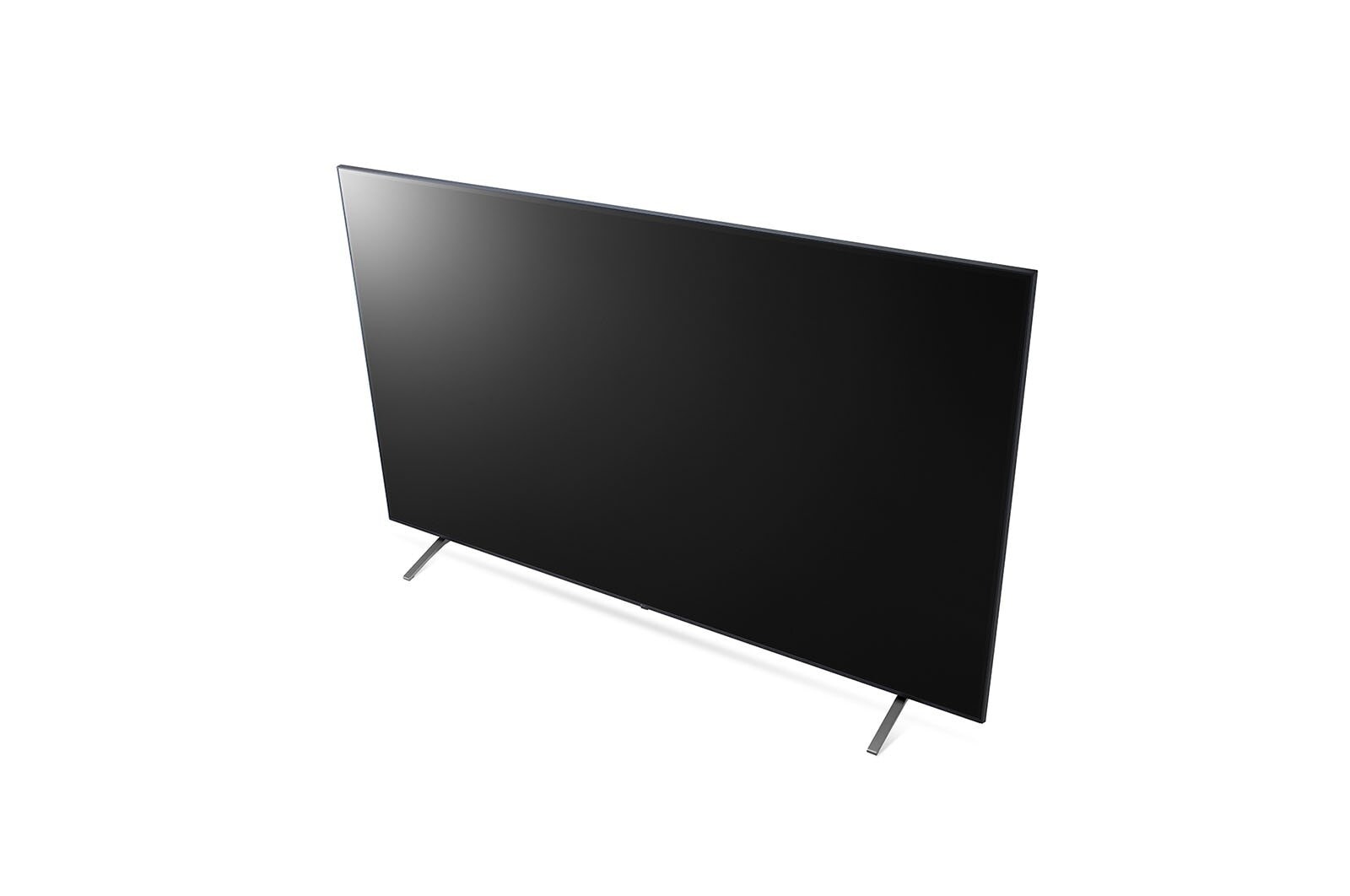

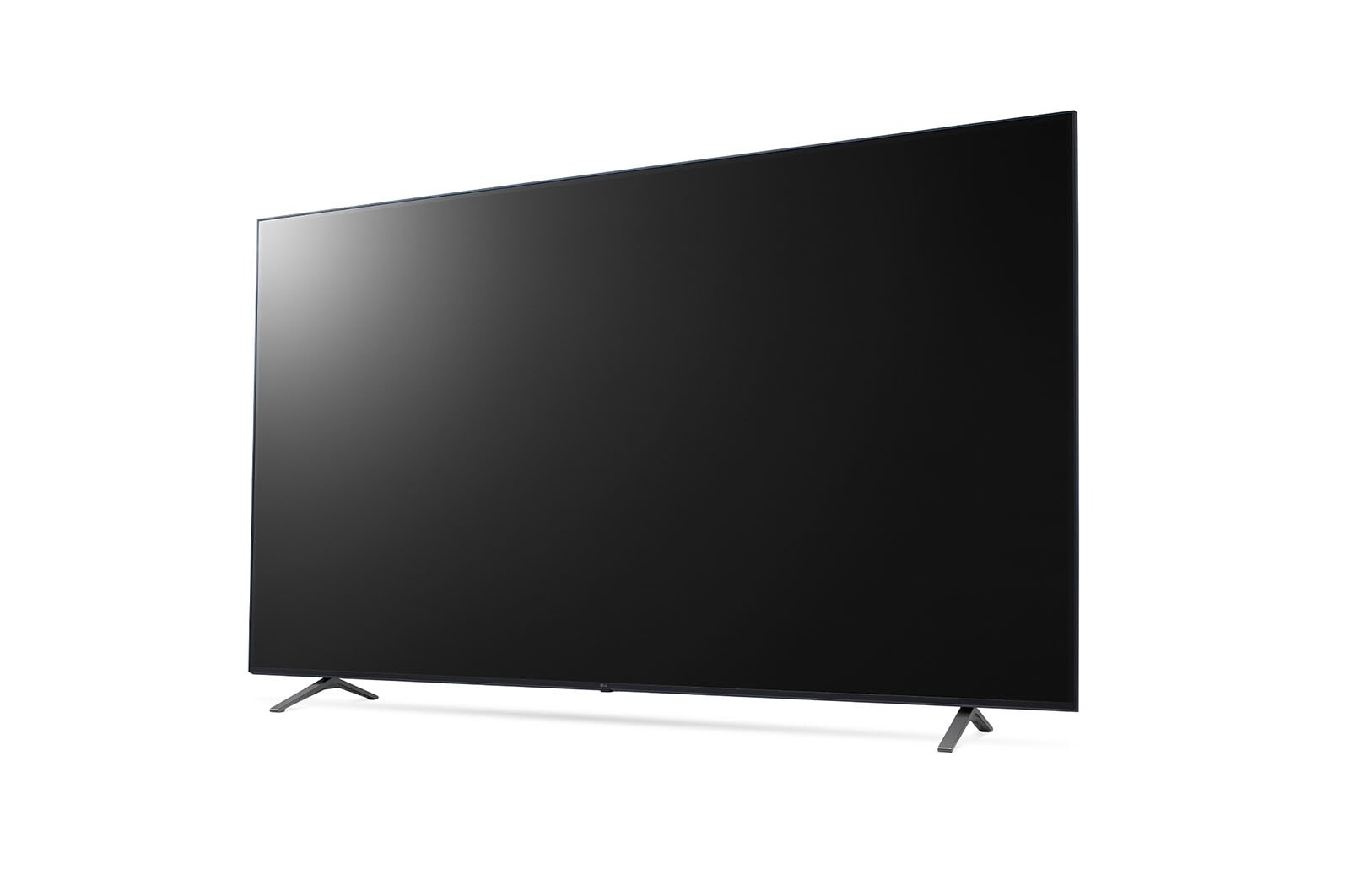

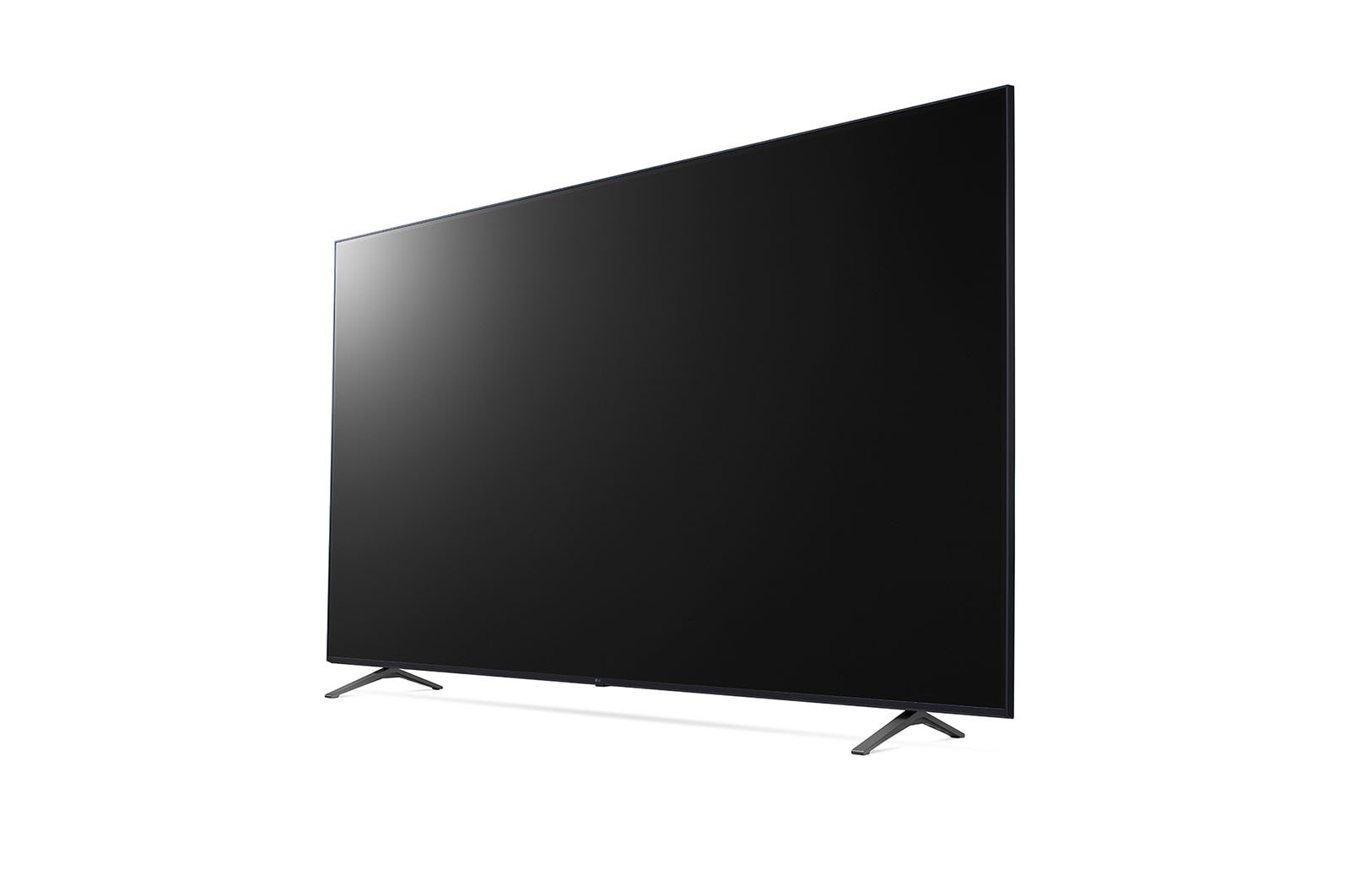

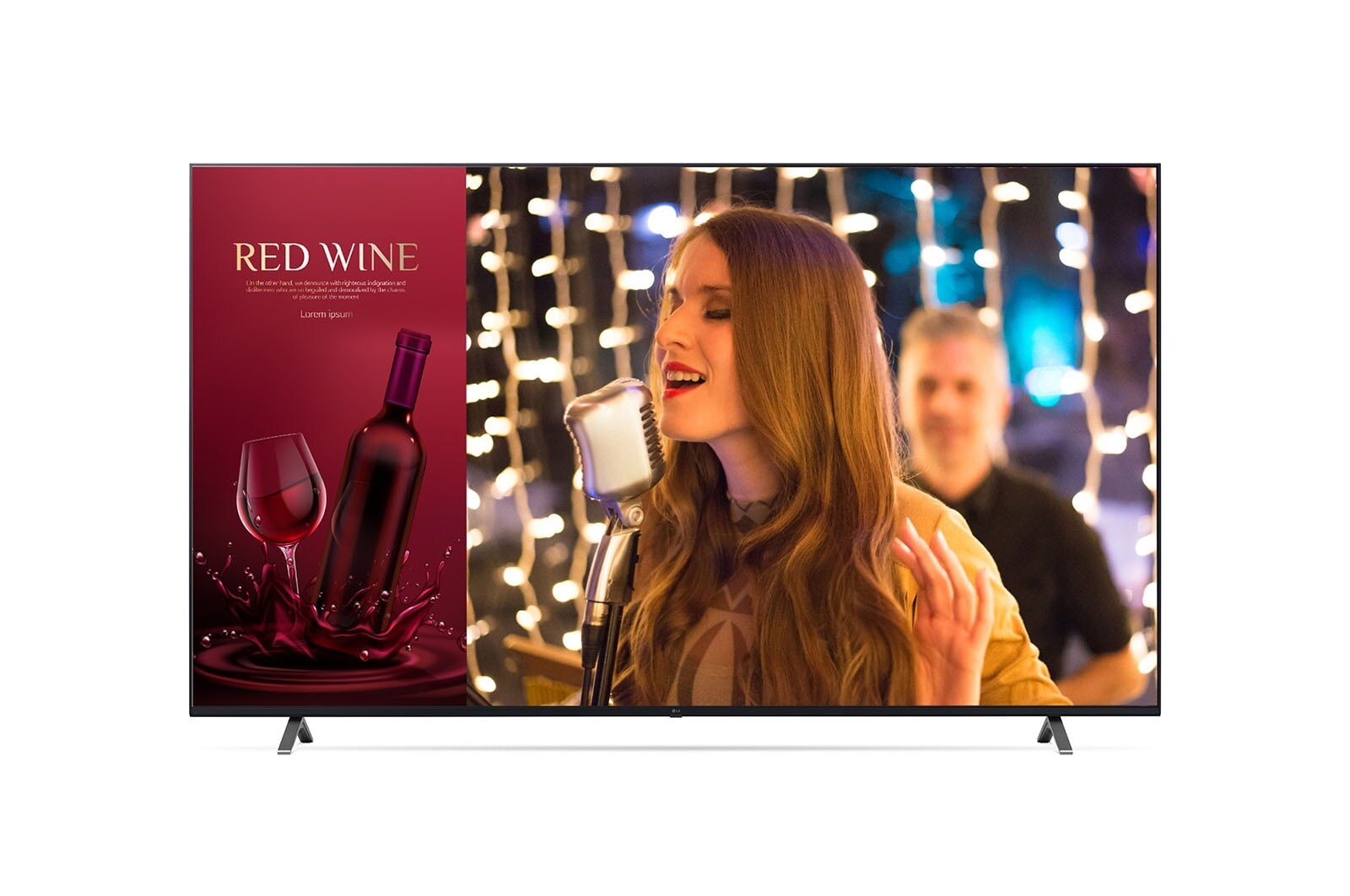

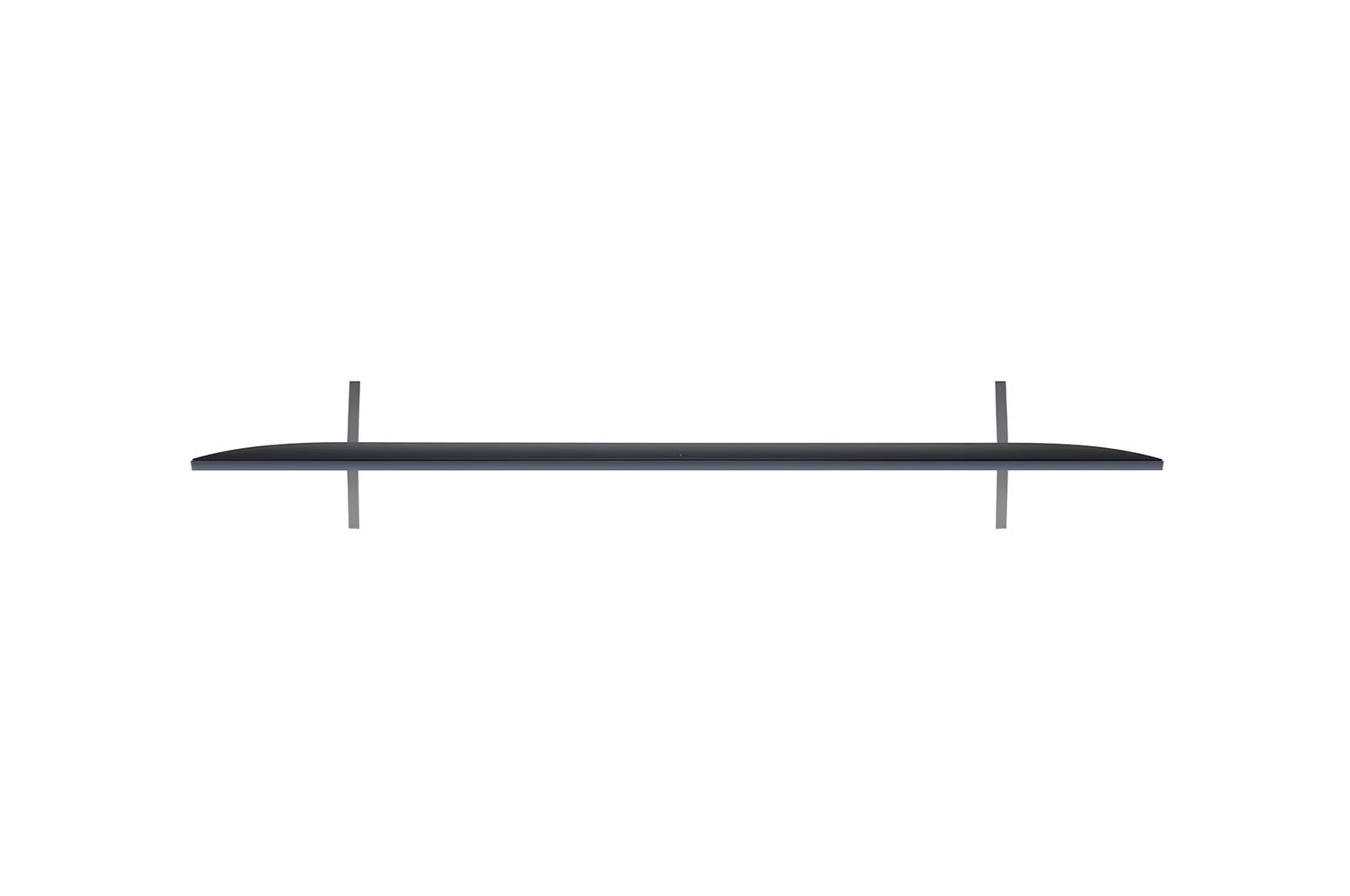

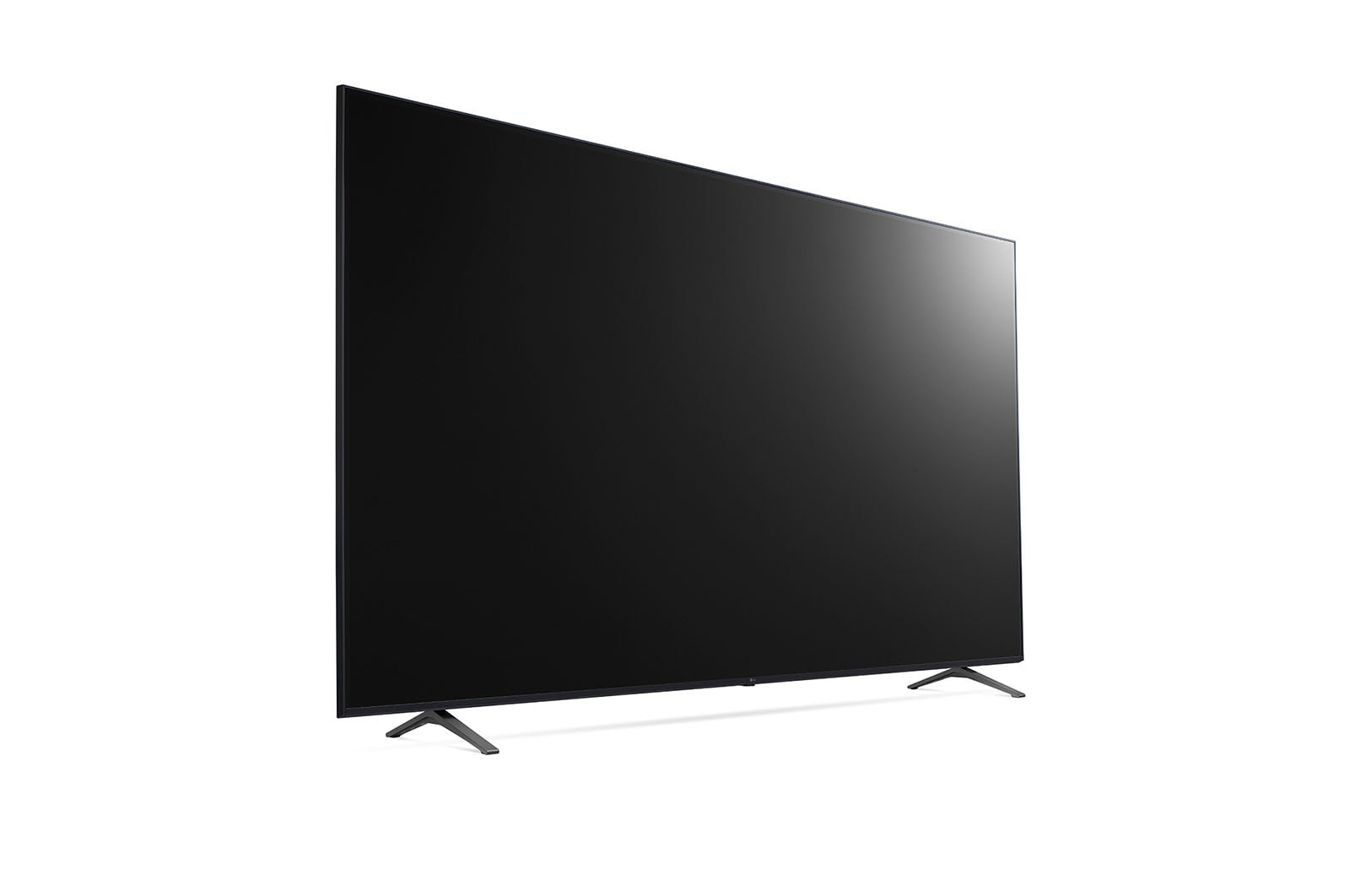

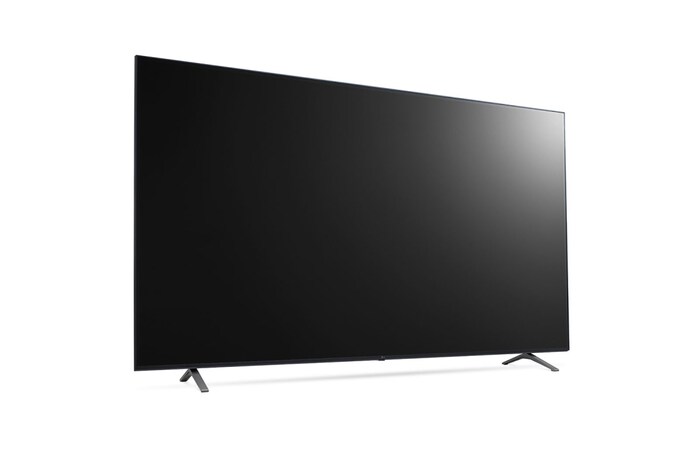

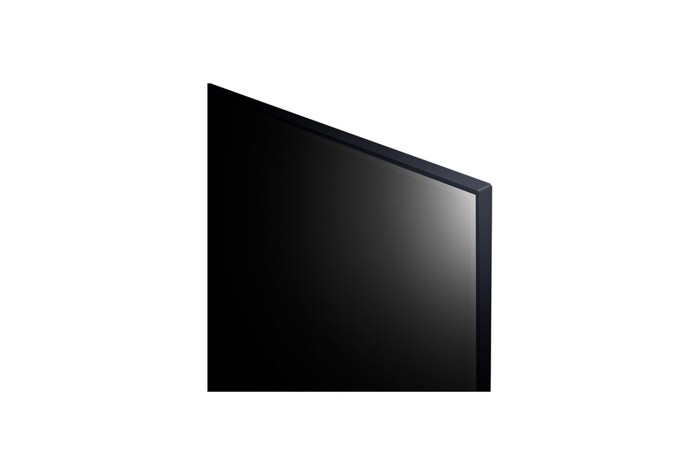

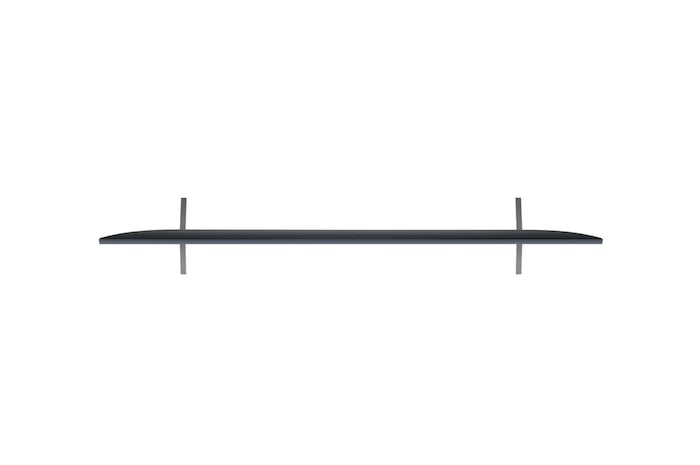

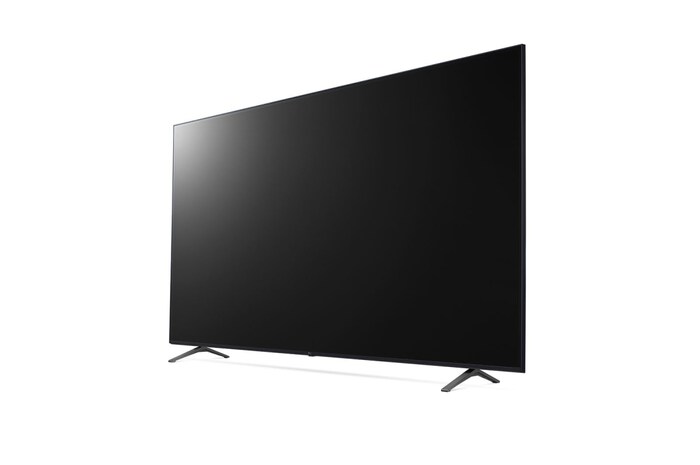

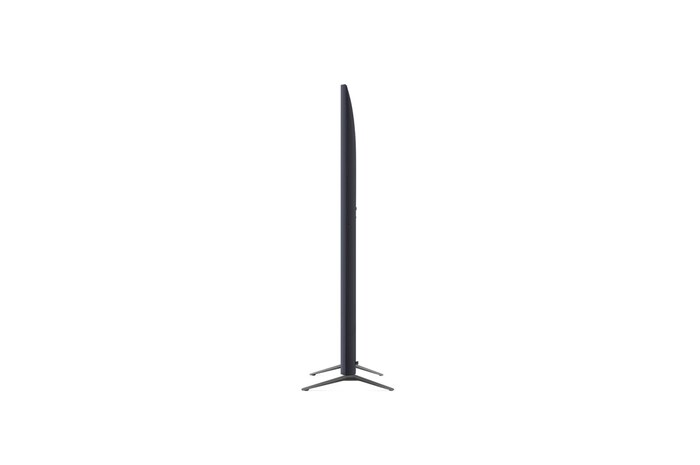

UR640S Series - 75" UHD Commerical TV Signage
75UR640S0CD
(1) Site inspection is required on selected products,. (2) Extra cost involved on installation service at Discovery Bay. Please refer to FAQ section for details.
Shipping delays may occur due to the delivery company's circumstance., weather and traffic.

- Resolution : ULTRA HD (3,840 x 2,160)

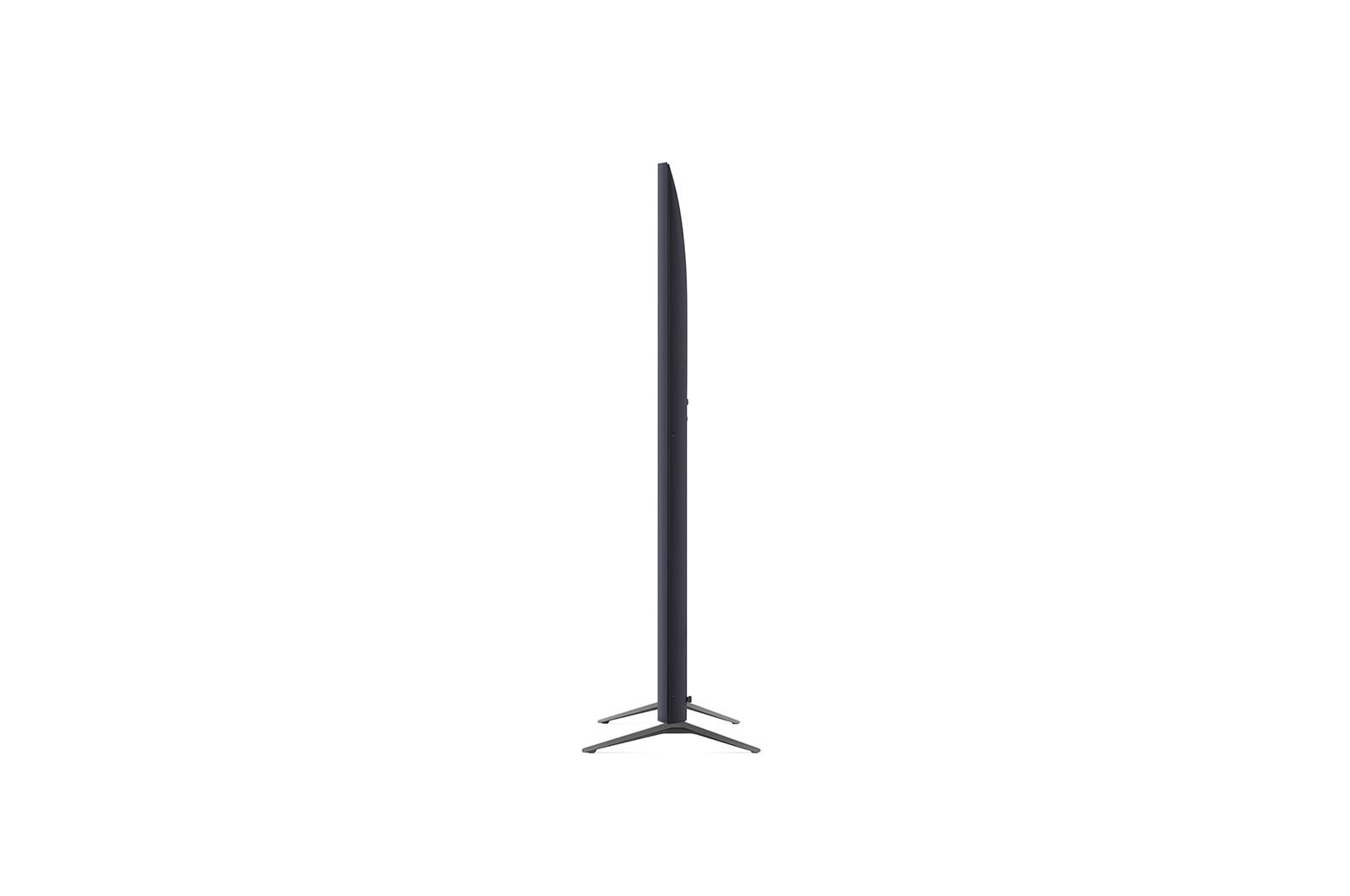

- Improved Design with Slim Depth
- Crestron-certified compatibility with AV control system
- High-Performance with webOS 6.0
- Easy Content Management / Group Management System
- SuperSign Control / CMS Compatibility
All Spec
MECHANICAL
VESA Compatible
400 x 400 mm
Credenza/Security Screw Hole
-
Kensington Lock
YES
Lock Down Plate (for easy installing)
-
VIDEO
AI Picture Pro
-
Game Optimizer
-
HDR_HDR 10 Pro
YES
HDR_HLG (Hybrid Log Gamma)
YES
INFO
Category
Smart TV Signage
BROADCASTING SYSTEM
Analog (NTSC / SECAM / PAL)
PAL
Digital
DTMB
Teletext (Auto Teletext)
-
STANDARD (EU_OLD LABEL(~`21.3))
On Power Consumption
-
Average Annual Consumption(kWh)
-
ErP Class
-
Luminance Ratio (%)
-
SUPERSIGN SW COMPATIBILITY
CMS(Premium)
YES
Control / Control Plus
YES
LG Connected Care
YES
Simple Editor
YES
VERTICAL FUNCTION (HOSPITAL)
Healthcare Headphone Mode
-
Pillow Speaker
-
Protection Cover (Glass)
-
ACCESSORIES
Power Cable
N/A (Attached)
Remote type
S-con
POWER SPEC.
Power Consumption(Max)
228
Power Consumption(Typ)
202W
Power Supply (Voltage, Hz)
AC 100~240V 50-60Hz
Standby Power Consumption
Under 0.5W
STANDARD (EU_NEW LABEL(`21.3~))
HDR Grade
-
HDR On mode
-
SDR Grade
-
SDR On mode
-
DISPLAY
Brightness (Typ.)
330 nit
Resolution
4K Ultra HD (3,840 x 2,160)
Size (Inch)
75
AUDIO (SOUND)
AI Acoustic Tuning
-
AI Sound
-
LG Sound Sync
YES
Speaker (Audio Output)
20W
STANDARD
Others
-
EMC
CE
Safety
CB, CU TR
SMART FUNCTION
AOD
-
Bluetooth
YES
Bluetooth Audio Playback
YES
DIAL
YES
Gallery Mode
-
HDMI-ARC
YES (HDMI2)
Home Office
-
IoT
-
Magic Remote Compatibility
-
Mood Display
YES
Multi-View
-
Screen Share
YES
Soft AP
YES
Voice Recognition (Standalone/Solution)
-
webOS version
webOS 6.0
Web Browser
YES
Wi-Fi
YES
DIMENSIONS/WEIGHT

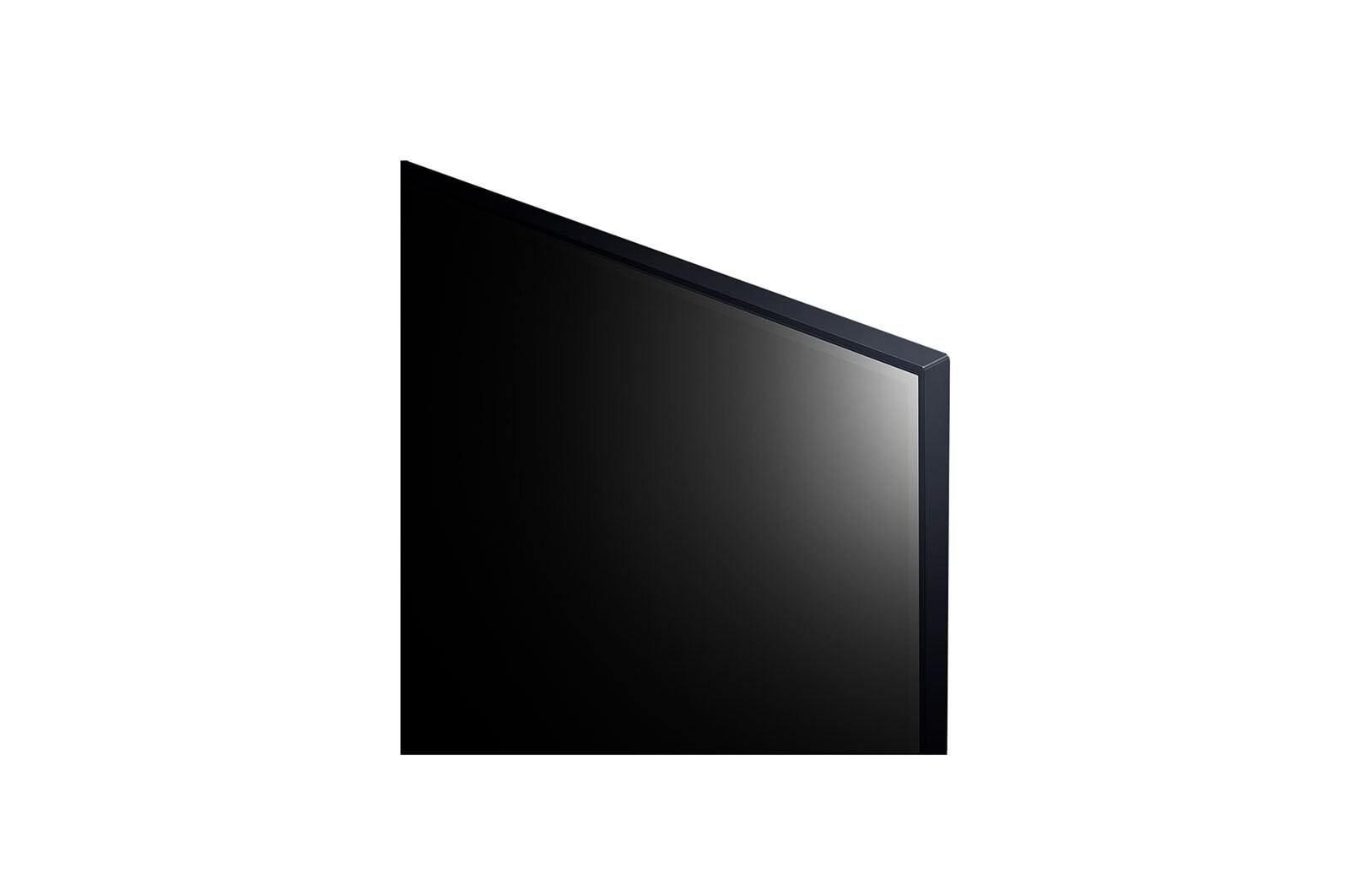

Bezel Width (L/R/U/B, Off Bezel)
7.9/7.9/7.9/18.4 mm
Bezel Width (L/R/U/B, On Bezel)
13.9/13.9/13.9/19.9 mm
Dimension in Shipping (W x H x D)
1880 x 1115 x 200 mm
Dimension without Stand (W x H x D)
1678 x 964 x 59.9 mm
Dimension with Stand (W x H x D)
1678 x 1027 x 362 mm
Weight in Shipping
41.5 kg
Weight without Stand
31.4 kg
Weight with Stand
32.1 kg
HOSPITALITY FEATURE
HTNG-CEC (Version)
YES
b-LAN
-
Conformal Coating
-
Diagnostics
YES (Self Diagnostics(USB))
Energy Saving mode
YES
Enterprise Mode
-
External Power Out
-
External Speaker Out / Line Out
YES (Ext. Speaker Out)
EzManager
-
Full Touch Screen
-
Hotel Mode / PDM / Installer Menu
YES
Insert Image
YES
Instant ON
-
IR Out
YES (RS-232C, HDMI)
Lock mode
YES (Limited)
Mobile Remote
-
Multi IR Code
YES
One Channel Map
YES
Port Block
YES
RJP (Remote Jack Pack) Compatibility
YES
Simplink(HDMI-CEC) (Version)
YES (1.4)
SNMP
YES
USB Auto playback / playback+
-
USB Cloning
YES
V-Lan Tag
-
Wake on RF
-
Welcome Screen (Splash Image)
YES
Welcome Video
-
WOL
YES
HOSPITALITY SOLUTION
Other DRM
-
Pro:Centric Cloud
-
Pro:Centric Direct
-
Pro:Centric Server
-
Pro:Centric Smart
-
Pro:Centric V
-
Pro:Idiom (DRM)
-
Pro:Idiom Media (DRM)
-
Quick Menu (Customizable Portal)
-
webRTC (Real Time Communication)
-
VERTICAL FUNCTION (CORPORATE/RETAIL)
BEACON
YES
CISCO Certi. Compatibility
YES
Crestron Certi. Compatibility
YES
DPM (Digital Power Management)
YES
Embedded CM (Contents Manager)
YES
Embedded GM (Group Manager)
YES
Fail Over
YES
NTP Server Setting
YES
NTP sync timer
YES
Play Via URL
YES
Promota / Mobile CMS
YES
RTC (Real Time Clock)
YES
Time scheduler
YES
Vertical Setup
YES
Video Tag
-
CONNECTIVITIES
Audio Line Out(3.5mm Phone jack)
-
AV In
-
CI Slot
-
Component in (Y,Pb,Pr-Video)
-
DC Adapter In
-
Digital Audio Out (Optical)
YES
ECI (RJ12 jack)
-
Expansion slot (60pin)
-
External Speaker Out(3.5mm Phone jack)
YES
EXT. IR In
-
HDMI In
YES (3ea)
Headphone Out
YES
LG SVC only (Phone jack type)
YES
MPI Port (RJ12 jack)
-
PC Audio Input
-
Pillow Speaker interface (6pin)
-
PoC (Power over Coax)
-
RF In
YES (1ea)
RGB In (D-sub 15pin) - PC
-
RJ45 (Usage Purpose)
YES (LAN)
RS-232C (D-Sub 9pin / Phone jack)
YES (Phone jack)
TV link Configuration (Phone jack type)
-
USB (Ver.)
YES (1ea / 2.0)
DESIGN
Front Color
Ashed Blue

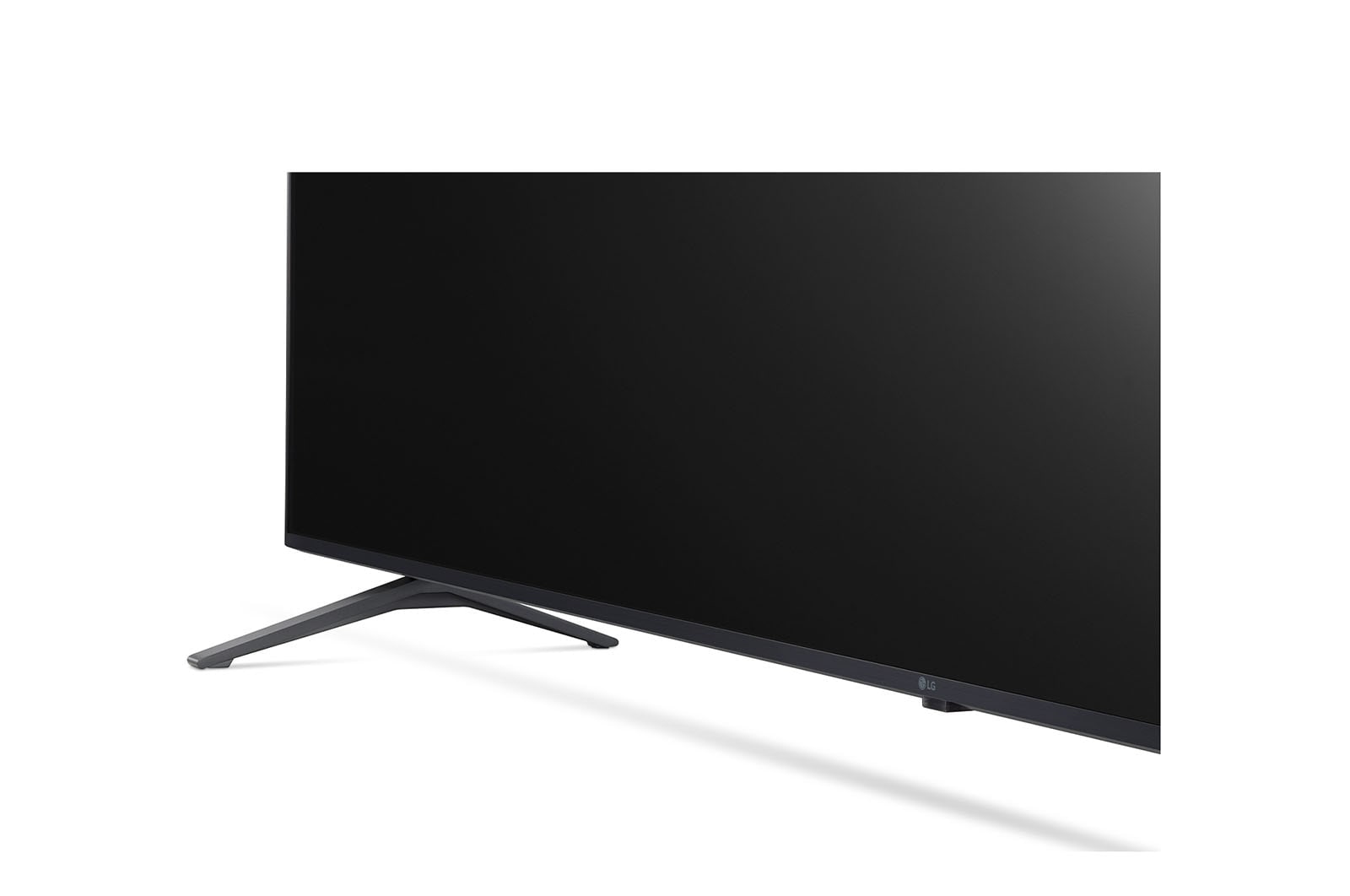

Stand Type
2 Pole
Tool Name
UP8000
