Discontinued

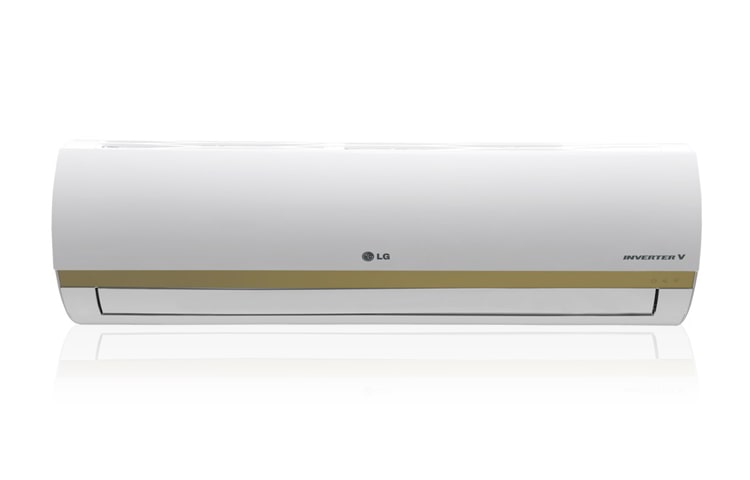

BS-Q096WXA3
LG’s highly efficient advanced inverter V technology
  • INVERTER V technology
  • Active Energy Control
  • Anti Bacterial Air Filter
  • Jet Cool

component-OBScountrySelectDesc

LG’s highly efficient advanced inverter V technology

CAPACITY

  • Cooling
    9000 (Btu/h)

ELEC. RATING

  • Power Supply
    1Φ, 220~240V, 50Hz
    Power Input (Cooling)
    830 W
  • Running Current (Cooling)
    4.35 A
    EER
    3.18 W/W

AIR FLOW RATE

  • Indoor,Max
    8.7 ㎥/min
    Outdoor,Max
    28 ㎥/min

SOUND LEVEL

  • Indoor,H/M/L/SL
    39/36/28/24 dB(A)±3
    Outdoor,Max
    48 dB(A)±3

FAN(INDOOR)

  • Type
    Cross Flow Fan

FAN(OUTDOOR)

  • Type
    Propeller, Fan

PIPING CONNECTIONS

  • Liquid Side
    6.35(1/4) mm(in)
    Gas Side
    9.52(3/8) mm(in)
  • Length,std
    5 m

INDOOR APPEARANCE

  • Tool Code
    SW1
    Remote
    2 Way Watt Option
  • Remote Controller Type
    Wireless LCD
    Grille Front Look
    Blow Kiss E (Copper)
  • Display
    LED

OUTDOOR APPEARANCE

  • Tool Code
    UA3
    Panel Type
    Steel
  • Condenser Type
    Cu (Gold)

FILTER

  • Anti bacteria air filter (Stallion Prefilter)
    Yes

FUNCTIONS

  • Airflow Direction Control(left & right)
    Manual
    Airflow Direction Control(up & Down)
    Auto
  • Auto Clean
    Yes
    Auto Operation (Micom Control)
    Yes
  • Display Light (On/Off)
    Yes
    Fan Speed
    5
  • Jet Cool
    Yes
    Natural Wind
    Yes
  • Restart Delay(minute)
    3
    Self Diagnosis
    Yes
  • Setting Temperature Range (Cooling)
    16-30
    Sleep Operation
    Yes
  • Temperature Control
    Thermistor
    Temperature Increment
    1
  • Timer
    24hr On/Off
    Vane Horizontal
    Normal

SPECIAL FUNCTION

  • Active Energy Control
    Yes
    Indirect Air
    Yes

DIMENSIONS

  • Indoor (W*H*D)
    756*265*184 mm
    Outdoor (W*H*D)
    720*500*270 mm

NET WEIGHT

  • Indoor
    7 kg
    Outdoor
    22 kg
