US-Q126B454 component-copyModelName

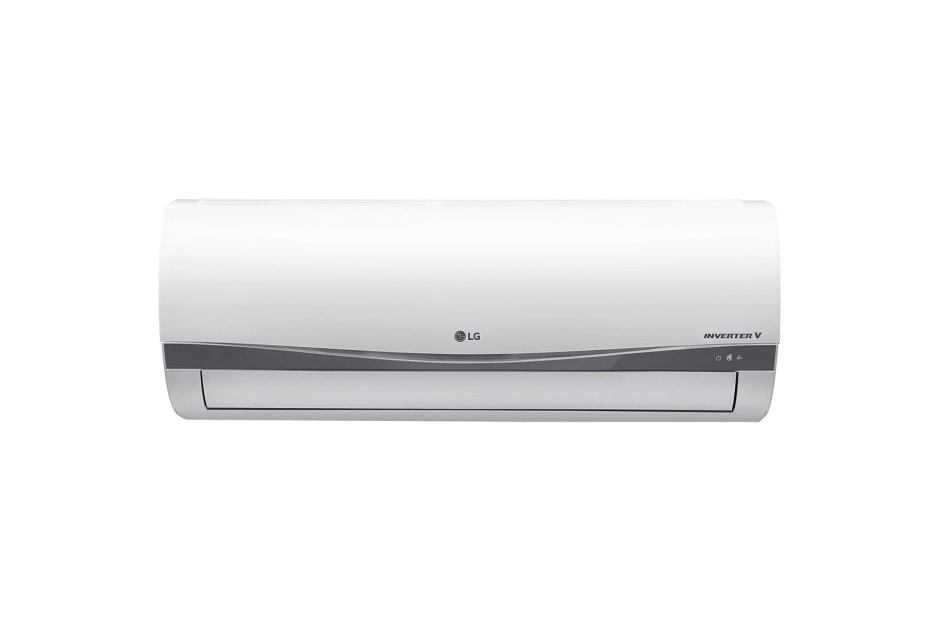

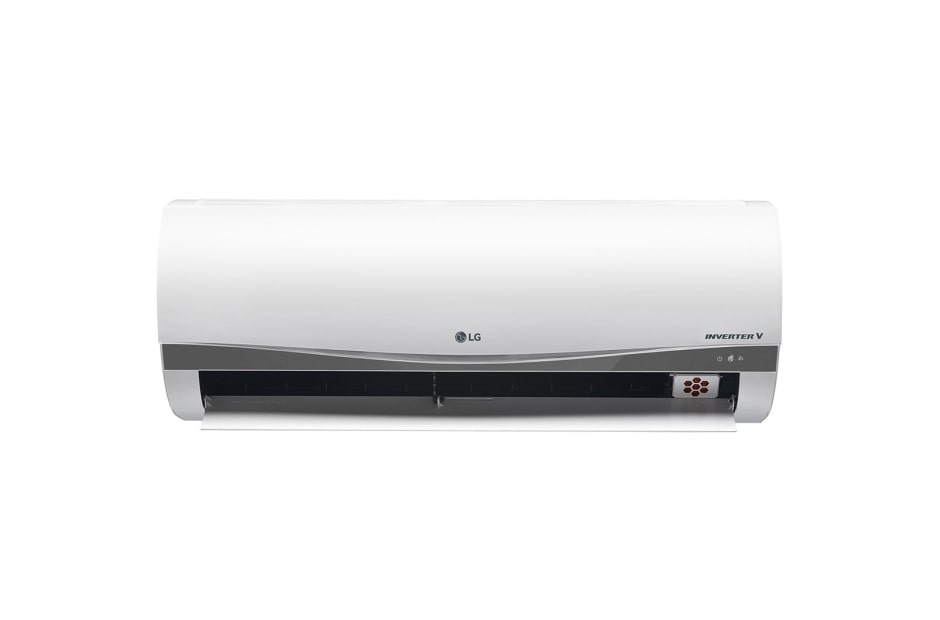

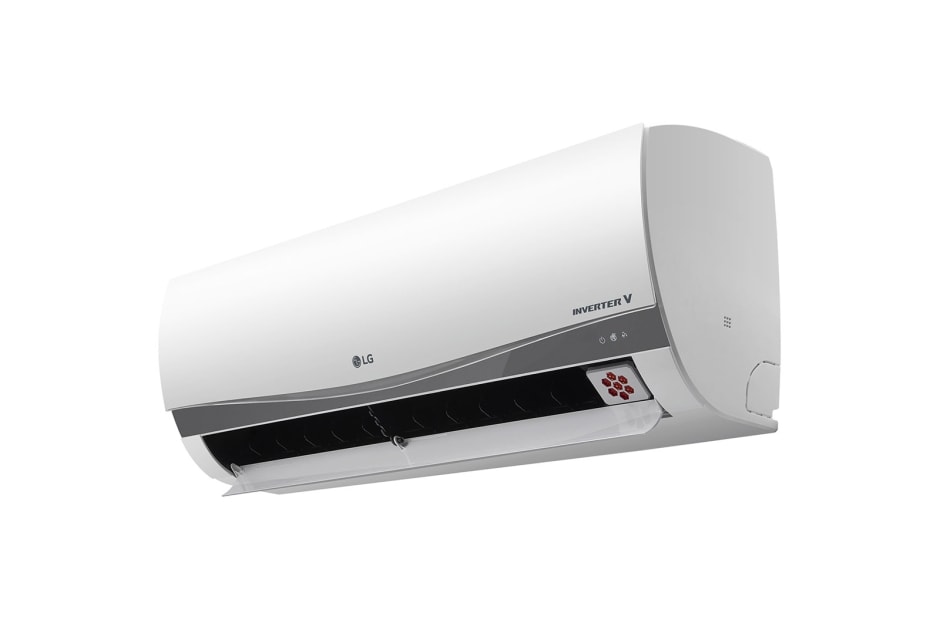

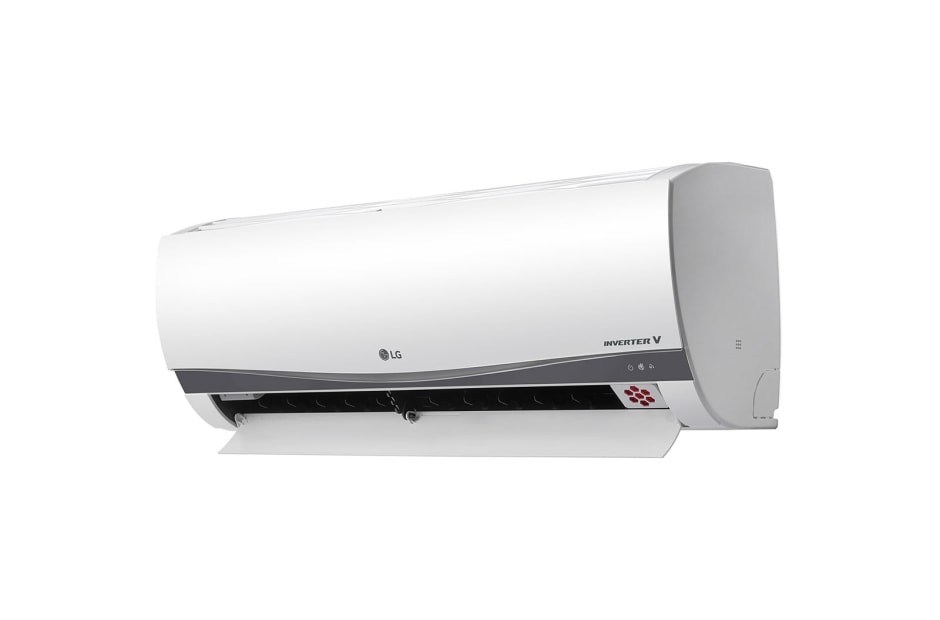

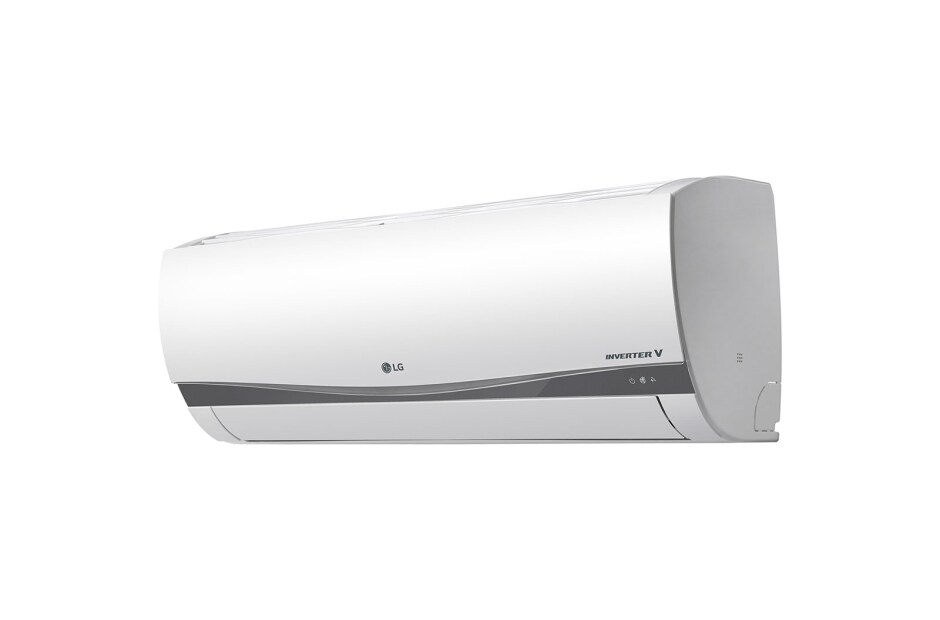

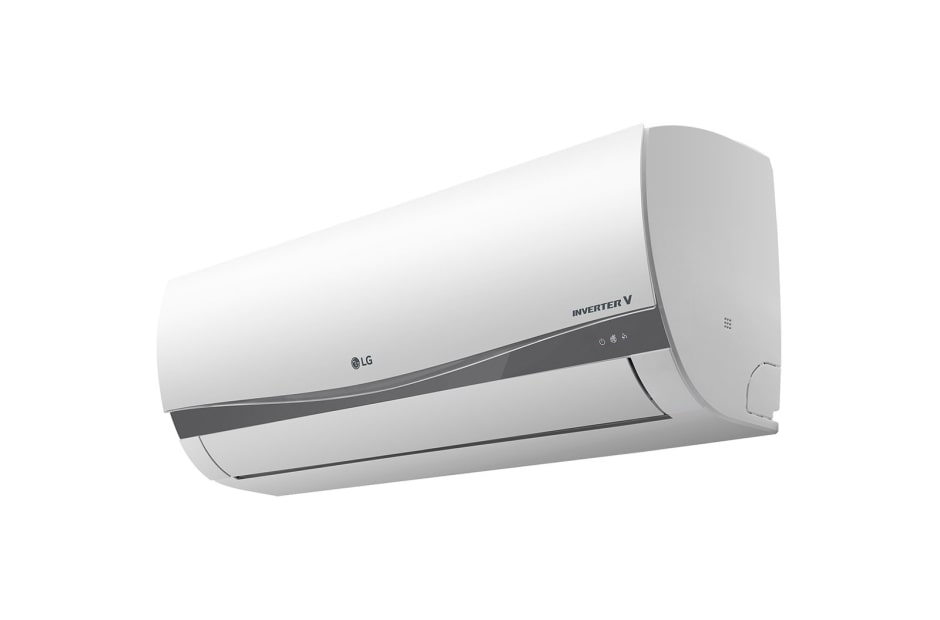

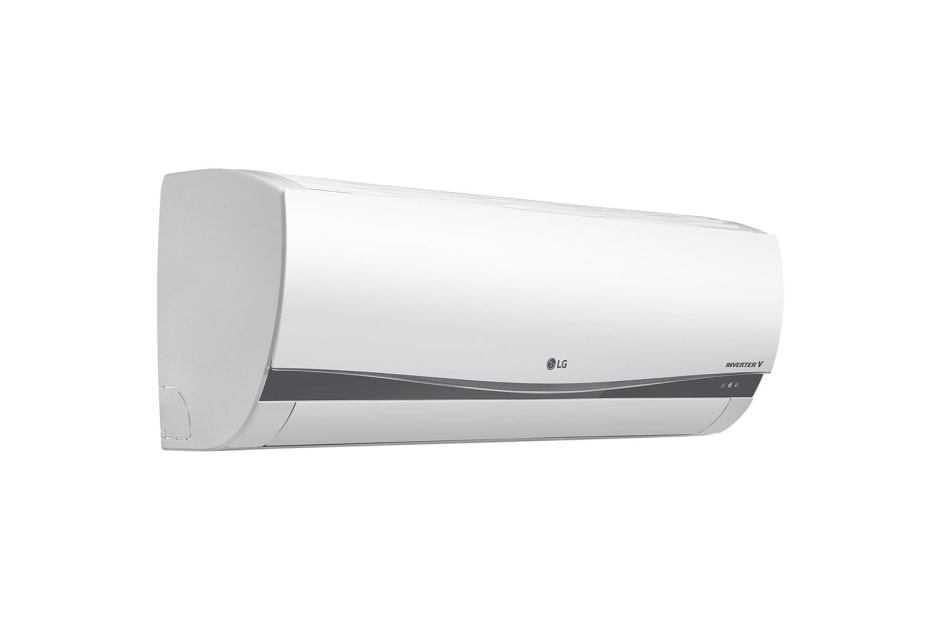

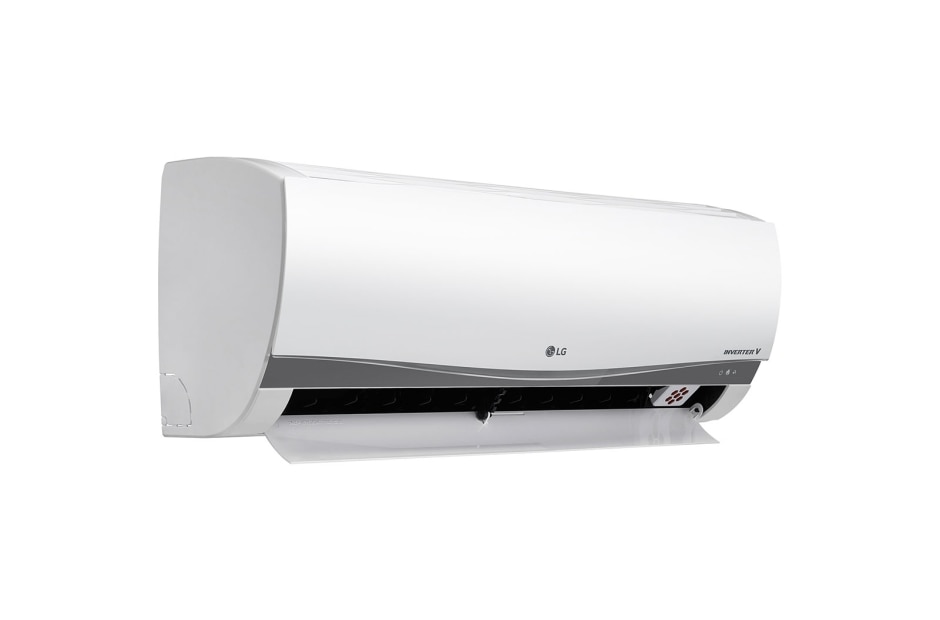

Mosquito Away with Inverter V Technology
Write a review

Key Features

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

Mosquito Away with Inverter V Technology
Close
CAPACITY
  • Cooling
    12000 Btu/h
ELEC. RATING
  • Power Supply
    1Φ, 220~240V, 50Hz
    Power Supply Cable
    3*1.5 No.*㎟
  • Power and Transmission Cable
    4*1.0 No.*㎟+No.*㎟
    Power Input (Cooling)
    1095 W
  • Running Current (Cooling)
    5.22 A
    Starting Current (Cooling)
    5.22 A
  • EER
    3.21 W/W
    Circuit Breaker
    15 A
  • RPM (Cooling)
    1700Po/1450H/1200M/930L/650S-Low
    Power Factor
    95%
AIR FLOW RATE
  • Indoor,Max
    10(353) ㎥/min(CFM)
    Outdoor,Max
    27(953) ㎥/min(CFM)
SOUND LEVEL
  • Indoor,H/M/L/SL
    41/35/27/19 dB(A)+1
    Outdoor,Max
    49 dB(A)+1
REFRIGERANT
  • Type
    R-410A
    Charge
    850 (at 7.5m) g
  • Additional Refrigerant Charge
    20 g/m
COMPRESSOR
  • Type
    1P Rotary
    Model
    GA092MAB
  • Motor Type
    Brushless DC Motor
    Oil Type
    FVC68D
  • Oil Charge
    310±5 cc
FAN(INDOOR)
  • Type
    Cross Flow Fan
    Motor Type
    BLDC
  • Motor Output
    20 W
FAN(OUTDOOR)
  • Type
    Propeller, Fan
    Motor Type
    AC
  • Motor Output
    25.2 W
PIPING CONNECTIONS
  • Liquid Side
    6.35(1/4) mm(in)
    Gas Side
    9.52(3/8) mm(in)
  • Max. Piping Length
    15(49.2) m(ft)
    Max. Elevation Difference
    7(22.9) m(ft)
DRAIN HOSE
  • O.D , I.D
    21.5,16.0(0.85,0.63) mm(in)
DIMENSIONS
  • Indoor (W*H*D)
    894*285*210 mm
    35.2*11.2*8.3 inch
    Pack Indoor (W*H*D)
    958*369*264 mm
    37.7*14.5*10.4 inch
  • Outdoor (W*H*D)
    717*483*230 mm
    28.2*19.0*9.1 inch
    Pack Outdoor (W*H*D)
    822*516*307 mm
    32.4*20.3*12.1 inch
NET WEIGHT
  • Indoor
    9(20) kg(lbs)
    Outdoor
    24.1(53.1) kg(lbs)
SET WEIGHT
  • Indoor
    11(24) kg(lbs)
    Outdoor
    26.1(57.5) kg(lbs)
OPERATION RANGE
  • Cooling (Indoor)
    18 ~ 30 (64.4 ~ 86) ℃(℉)
    Cooling (Outdoor)
    18 ~ 48 (64.4 ~ 118.4) ℃(℉)
TOOL CODE(CHASSIS)
  • Indoor + Outdoor
    SB + UA3 Plus
PRE-FILTER (IN FRONT GRILLE)
  • Anti bacteria air filter (Standard Prefilter)
    Yes
FUNCTIONS
  • Vane Horizontal
    Normal
    Temperature Control
    Thermistor
  • Auto Clean
    Yes
    Natural Wind
    Yes
  • Fan Speed
    4
    Airflow Direction Control(up & Down)
    Auto
  • Airflow Direction Control(left & right)
    Manual
    Setting Temperature Range (Cooling)
    18-30
  • Temperature Increment
    1
    Auto Operation (Micom Control)
    Yes
  • Self Diagnosis
    Yes
    Timer
    24hr On/Off
  • Sleep Operation
    Yes
    Restart Delay(minute)
    3
  • Display Light (On/Off)
    Yes
    Jet Cool
    Yes
SPECIAL FUNCTION

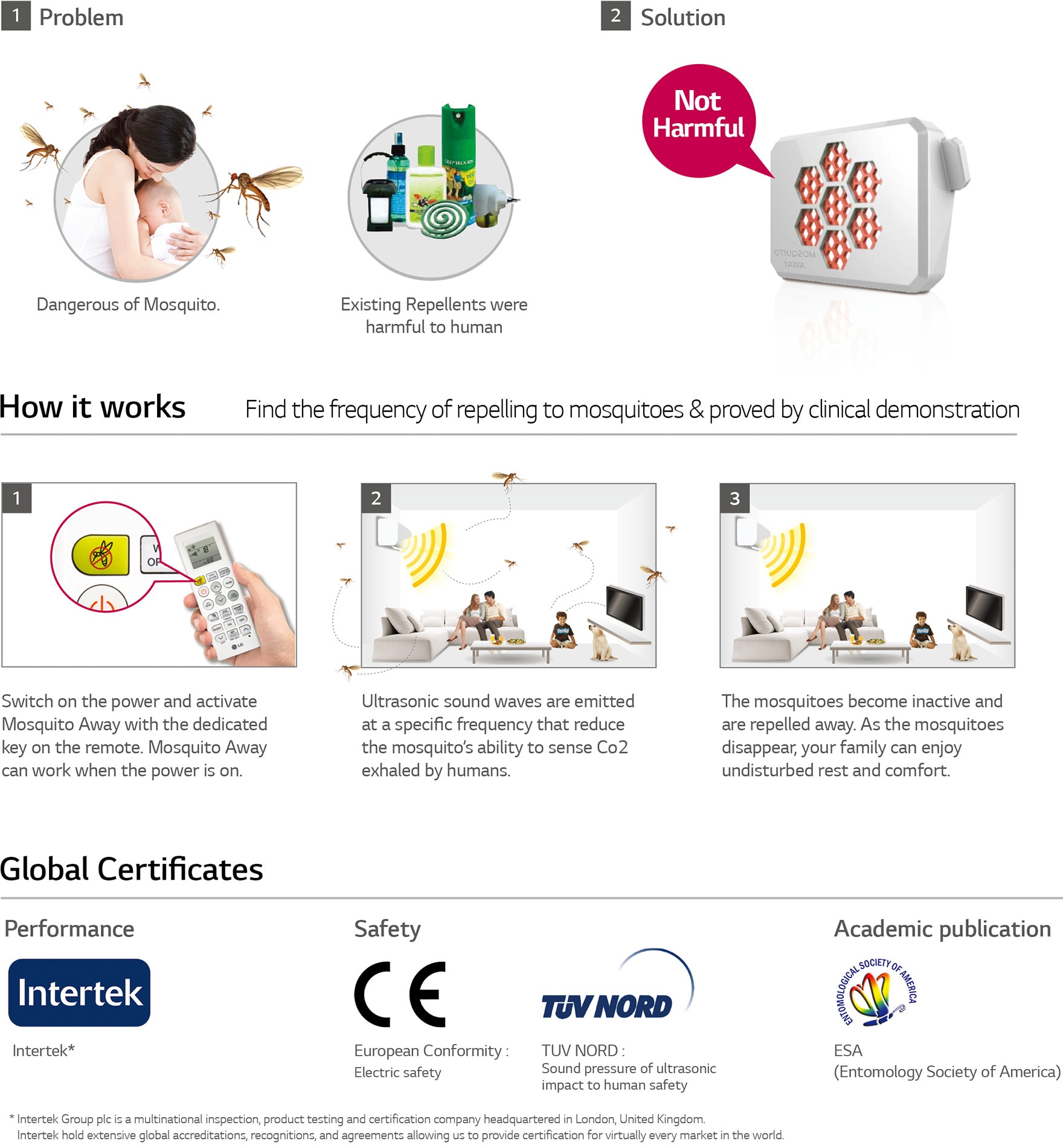

  • Mosquito Away
    Yes
    Corrosion resistance coating
    Yes
