Discontinued

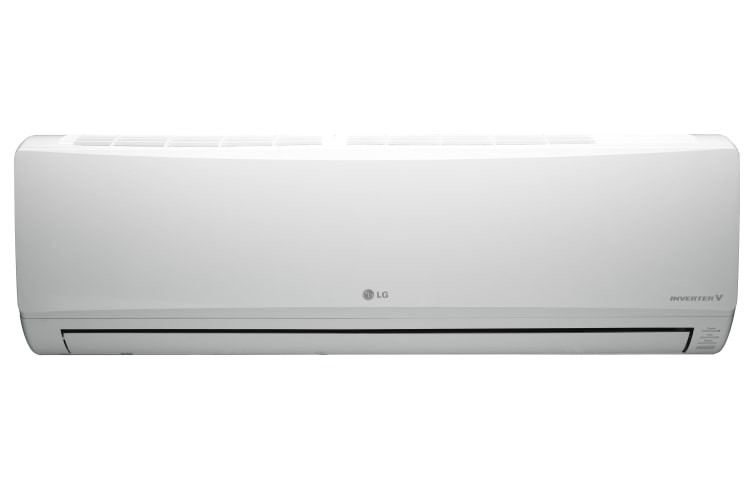

US-Q186C4J3
Corrosion Resistant Inverter
  • INVERTER V technology
  • Corrosion Resistant Inverter
  • Anti Bacterial Air Filter
  • Low Noise 19dB
  • Jet Cool
  • Fresh Dry

component-OBScountrySelectDesc

Corrosion Resistant Inverter

CAPACITY

  • Cooling
    3690~18000~18500 (Btu/h)

ELEC. RATING

  • Power Supply
    1Φ, 220~240V, 50Hz
    Power Supply Cable
    3*1.5 (No.*㎟)
  • Power and Transmission Cable
    4*1.5 (No.*㎟)
    Power Input (Cooling)
    1600 W
  • Running Current (Cooling)
    7.7 A
    Starting Current (Cooling)
    7.7 A
  • EER
    3.30 W/W
    Circuit Breaker
    20 A

AIR FLOW RATE

  • Indoor,Max
    17.8 (629) ㎥/min(CFM)
    Outdoor,Max
    38 (1342) ㎥/min(CFM)

SOUND LEVEL

  • Indoor,H/M/L/SL
    42/40/35/29 dB(A)+1
    Outdoor,Max
    51 dB(A)+1

FAN(INDOOR)

  • Type
    Cross Flow Fan
    Motor Type
    BLDC
  • Motor Output
    30 W

FAN(OUTDOOR)

  • Type
    Propeller
    Motor Type
    BLDC
  • Motor Output
    43 W

PIPING CONNECTIONS

  • Liquid Side
    6.35(1/4) mm(in)
    Gas Side
    12.7(1/2) mm(in)

COMPRESSOR

  • Type
    Twin Rotary
    Model
    GKT141MBA
  • Motor Type
    Brushless DC Motor
    Oil Type
    FVC68D
  • Oil Charge
    470 cc

OPERATION RANGE

  • Cooling (Indoor)
    18 ~ 32 (64.4 ~ 89.6) ℃(℉)
    Cooling (Outdoor)
    18 ~ 48 (64.4 ~ 118.4) ℃(℉)

DIMENSIONS

  • Indoor (W*H*D)
    1030*325*250 mm
    Pack Indoor (W*H*D)
    1095*302*394 mm
  • Outdoor (W*H*D)
    770*545*288 mm
    Pack Outdoor (W*H*D)
    905*573*378 mm

NET WEIGHT

  • Indoor
    12.4(27.3) kg(lbs)
    Outdoor
    32.4(71.4) kg(lbs)

SET WEIGHT

  • Indoor
    13.4(29.5) kg(lbs)
    Outdoor
    34.5(76.1) kg(lbs)
