Discontinued

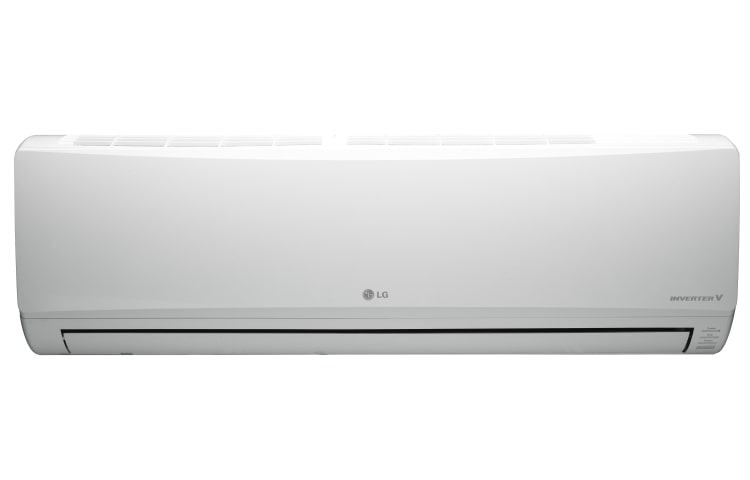

US-Q246C4A3
LG’s highly efficient advanced inverter V technology
  • INVERTER V technology
  • Low Noise 19dB
  • Anti Bacterial Air Filter
  • Jet Cool
  • Fresh Dry

component-OBScountrySelectDesc

LG’s highly efficient advanced inverter V technology

CAPACITY

  • Cooling
    3700~22000~24000 (Btu/h)

ELEC. RATING

  • Power Supply
    1Φ, 220~240V, 50Hz
    Power Supply Cable
    3*2.5 (No.*㎟)
  • Power and Transmission Cable
    4*1.5 (No.*㎟)
    Power Input (Cooling)
    1990 W
  • Running Current (Cooling)
    9.5 A
    Starting Current (Cooling)
    9.5 A
  • EER
    3.24 W/W
    Circuit Breaker
    20 A

AIR FLOW RATE

  • Indoor,Max
    19.5(689) ㎥/min(CFM)
    Outdoor,Max
    50.0(1766) ㎥/min(CFM)

SOUND LEVEL

  • Indoor,H/M/L/SL
    45/40/35/29 dB(A)+1
    Outdoor,Max
    53 dB(A)+1

FAN(INDOOR)

  • Type
    Cross Flow Fan
    Motor Type
    BLDC
  • Motor Output
    30 W

FAN(OUTDOOR)

  • Type
    Propeller, Fan
    Motor Type
    BLDC
  • Motor Output
    85 W

PIPING CONNECTIONS

  • Liquid Side
    6.35(1/4) mm(in)
    Gas Side
    15.88(5/8) mm(in)

COMPRESSOR

  • Type
    Twin Rotary
    Model
    GKT176MF
  • Motor Type
    Brushless DC Motor
    Oil Type
    POE
  • Oil Charge
    470 cc

OPERATION RANGE

  • Cooling (Indoor)
    18 ~ 32 (64.4 ~ 89.6) ℃(℉)
    Cooling (Outdoor)
    18 ~ 48 (64.4 ~ 118.4) ℃(℉)

DIMENSIONS

  • Indoor (W*H*D)
    1030*325*250 mm
    Pack Indoor (W*H*D)
    1095*394*302 mm
  • Outdoor (W*H*D)
    870*655*320 mm
    Pack Outdoor (W*H*D)
    1002*696*422 mm

NET WEIGHT

  • Indoor
    12.6(27.78) kg(lbs)
    Outdoor
    41.8(92.15) kg(lbs)

SET WEIGHT

  • Indoor
    15(33.06) kg(lbs)
    Outdoor
    45.5(100.31) kg(lbs)
