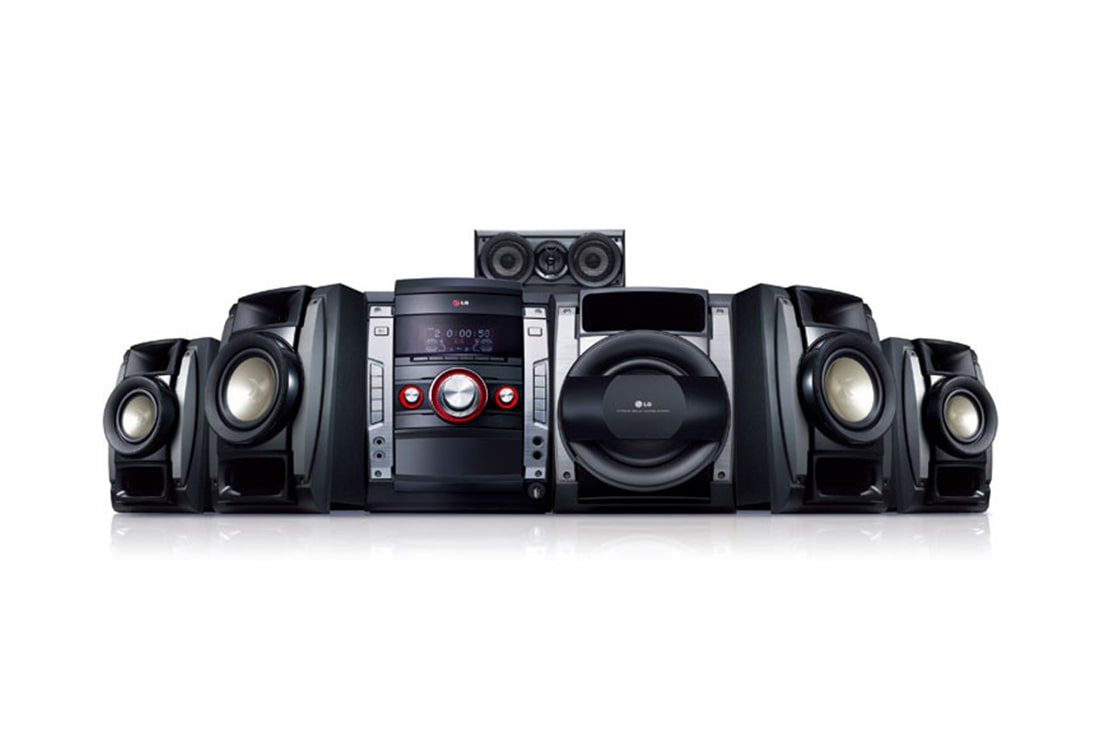

DM7630
DM7630 DVD Mini Audio
  • 740W RMS
  • Auto EQ
  • Bass Blast
  • USB Direct recording
DM7630 DVD Mini Audio
Bass Blast

Bass Blast

Experience powerful bass through the specially tuned sound matrix. Bass Blast produces dynamic and deep bass sound quality.

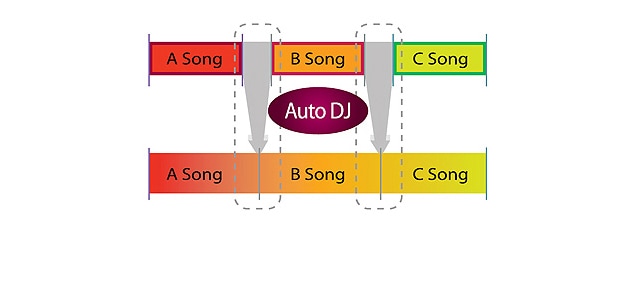

Auto DJ1

Auto DJ

Enjoy seamless listening with no gaps between songs.

Karaoke

Karaoke

Enjoy high quality entertainment. Enjoy LG Audio's karaoke function at anytime.
Portable in1

Portable in

Simply plug in and play your mobile devices (MP3 Player, mobile phone, etc.).

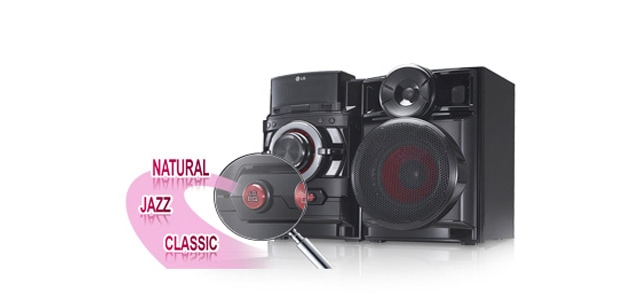

Auto EQ

Auto EQ

Easy to use EQ presets allow you to set the tone by music genre.

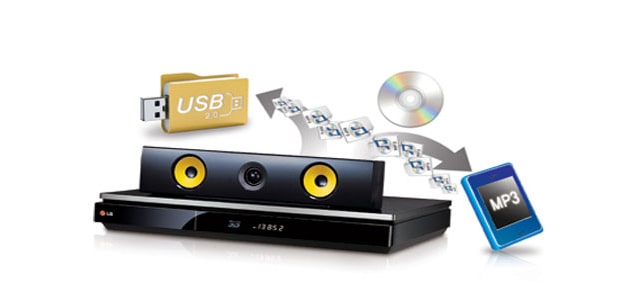

USB Direct Recording & Playback1

USB Direct Recording & Playback

With the LG Home Theater System, Micro and Mini Audio you can not only play files stored on USB devices, but record CD tracks or FM radio programs on your USB, while listening at the same time.

GENERAL

  • Major Sales region
    Asia
    System Model Name
    DM7630-AU
  • Main Set
    DM7630AU
    SPKER Sytem Model Name
    NS7630
  • Front Speaker
    NS7630V
    Center Speaker
    NS7630C
  • Surround Speaker
    NS7630S
    Subwoofer
    NS7630W
  • System
    2PCS

AMPLIFIER

  • Power Output-Front (RMS 10%THD)
    156W x 2
    Power Output-Center (RMS 10%THD)
    75W
  • Power Output-Rear (RMS 10%THD)
    75W x 2
    Power Output-Sub Woofer (RMS 10%THD)
    203W
  • Function-CD/DVD
    Yes
    Selector-TUNER
    Yes
  • Selector-AUX In / Out
    Yes/No
    Selector-USB Plus
    Yes (Front)
  • Selector-Portable In
    Yes (Front)

INTERFACE

  • Audio Out-Headphone jack (Φ3.5 / Φ6.3)
    O (Φ3.5,Front)
    Audio In-USB
    Yes (Front)
  • Audio In-Portable In
    Yes (Front)
    Audio In-AUX IN
    Yes (Rear)
  • Video Out-Composite
    Yes (Rear)
    Video Out-Component
    Yes (Rear)
  • Door Lock Key (Disc)
    Yes
    Speaker Out-Front L/R
    1/1
  • Speaker Out-Surround L/R
    1/1
    Speaker Out-Center
    1
  • Speaker Out-Sub Woofer (Passive/Active)
    1 (Passive)
    Karaoke Function-Mic Volume
    1
  • Karaoke Function-Mic Jack
    2EA (Φ6.3)
    Karaoke Function-Echo
    Yes

DISPLAY

  • Display-Type
    Same with MDS714
    Display-Display Mode
    Same with MDS714
  • Display-Spectrum Band
    L/Meter
    Display-Demo
    Yes

SOUND

  • EQ Master-User EQ
    Yes
    EQ Master-Cluster2 EQ
    Yes
  • EQ Master-Bypass
    Yes
    EQ Master-Pop
    Yes
  • EQ Master-Classic
    Yes
    EQ Master-Rock
    Yes
  • EQ Master-Jazz
    Yes
    EQ Master-Salsa
    Option
  • EQ Master-Samba
    Option
    EQ Master-Auto EQ
    Yes
  • EQ Master-Dangdut
    Option
    EQ Master-Arabic
    Option
  • EQ Master-Persian
    Option
    EQ Master-Afro Hip-hop
    Option
  • EQ Master-India
    Option
    EQ Master-Regueton
    Option
  • EQ Master-Merengue
    Option
    EQ Master-Cumbia
    Option
  • EQ Master-Natural EQ
    Yes
    Auto DJ
    Yes
  • Dimmer
    Yes
    BassBlast
    Yes
  • MP3 Optimizer
    Yes
    VSM (Virtual)
    Yes
  • Mute
    Yes
    Timer
    Yes
  • Volume On TV
    Yes

POWER

  • Power Requirement- Narrow (50/60Hz)
    110 or 220/230V 50/60Hz
    Power Requirement-Wide
    110/220V
  • Power Consumption
    130W
    Power Consumption at stand by
    1W↓

AUDIO CONTROL

  • Dolby Digital
    Yes
    Dolby PrologicⅡ
    Yes
  • Test Tone
    Yes
    Sound Level/Delay Time Seting
    Yes
  • Mute
    Yes

TUNER

  • Tuning Range-FM (50kHz / 100kHz)
    87.5 ~ 108.0 MHz
    Tuning Range-MW / 10 kHz
    520~1720kHz
  • Tuning Range- / 9 kHz
    522~1620 kHz
    External FM/MW Antenna
    75 ohm/LOOP ANT
  • Band-AM(MW)
    Yes
    Band-FM
    Yes
  • Preset-UP
    Yes
    Preset-DOWN
    Yes
  • Preset-Station
    Ran.50
    Preset-Memory /Clear
    Yes
  • Clock/Timer/Sleep/Set
    Yes

DVD/CD/USB PLAYER/BLUETOOTH

  • Disc
    3
    Loading Type
    3-DVD Tray
  • Format(TV System)-NTSC/PAL/AUTO
    AUTO
    Progressive Scan
    Yes
  • Playable DISC Format-CD
    Yes
    Playable DISC Format-DVD +/-RW
    Yes
  • Playable DISC Format-VCD/SVCD
    Yes
    Playable DISC Format-CD-R/CD-RW
    Yes
  • Playable DISC Format-MP3CD
    Yes
    Playable DISC Format-WMA CD
    Yes
  • Playable DISC Format-JPEG Viewer
    Yes
    Playable DISC Format-Divx
    Yes
  • Playable DISC Format-CDG
    Yes
    Convenience-L/R/Stereo
    Yes
  • Convenience-DVD Fast Scan
    Yes
    Convenience-VCD Fast Scan
    Yes
  • Convenience-Slow
    Yes
    VCD Version
    2.0
  • Repeat 1/Disc/All
    Yes/Yes/No
    Marker Play-CD-DA, MP3/WMA
    Yes
  • Random-CD
    Yes
    Random-MP3
    Yes
  • USB Recording
    Yes
    MP3P battery charging by USB
    Yes
  • MP3/WMA ID3 Tag Display
    Yes

KARAOKE

  • CD Voice Remover
    Yes

REMOTE COMMANDER & ACCESSORY

  • Model name
    CB1
    Number of Key
    55
  • Battery
    AAA
    RCA Cable(Video), Yellow, 1P
    Yes
  • -FM Antenna
    FM 75Ω ANT
    -AM Loop Antenna
    Yes
  • -Instruction Manual
    Yes
    Carton Box Type (Tip on / Offset / Flexo)
    Tip on

SPEAKER

  • SPKER Sytem Model Name
    MDS715
    Front Spreaker-Model name
    MDS715V
  • Front Spreaker-System
    2way
    Front Spreaker-Tweeter Unit
    semi horn
  • Front Spreaker-Woofer Unit
    6.5"
    Front Spreaker-Impedance
  • Front Spreaker-Magnetic Shielding
    Perfect
    Surround Spreaker-Model name
    MDS715S
  • Surround Spreaker-System
    2 Way
    Surround Spreaker-Tweeter Unit
    semi horn
  • Surround Spreaker-Woofer Unit
    5"
    Surround Spreaker-Impedance
  • Surround Spreaker-Magnetic Shielding
    No shield
    Center Spreaker-Model name
    MDS715C
  • Center Spreaker-System
    2way
    Center Spreaker-Tweeter Unit
    2"
  • Center Spreaker-Woofer Unit
    3" X 2
    Center Spreaker-Impedance
  • Center Spreaker-Magnetic Shielding
    Perfect
    Sub Woofer-Model name
    MDS715W
  • Sub Woofer-System
    1Way
    Sub Woofer-Woofer Unit
    7"
  • Sub Woofer-Impedance
    Sub Woofer-Magnetic Shielding
    Perfect

STANDARD

  • CE
    Option
    Others-CB
    Yes
  • GOST
    Option
    NOM
    Option

PHYSICAL

  • Size (W x H x D) mm-Main
    277 Χ 340 Χ345
    Size (W x H x D) mm-Front Speaker
    240 x 387 x 336
  • Size (W x H x D) mm-Center Speaker
    277 x 120 x 160
    Size (W x H x D) mm-Rear Speaker
    204 x 331 x 255
  • Size (W x H x D) mm-Subwoofer
    261 x 331 x 409
    Net Weight (Kg)-Main
    5.7
  • Net Weight (Kg)-Front Speaker
    5
    Net Weight (Kg)-Center Speaker
    2
  • Net Weight (Kg)-Rear Speaker
    2.8
    Net Weight (Kg)-Subwoofer
    6.5
  • BOX SIZE
    892x478x431
    Gross weight
    29.7
