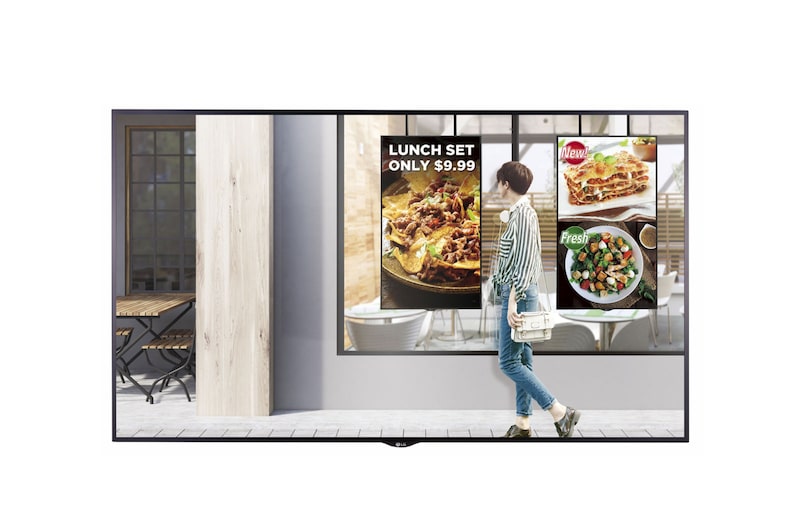

LG 55'' 4000 nits FHD Window Facing, front view with inscreen, 55XS4F-B, thumbnail 1

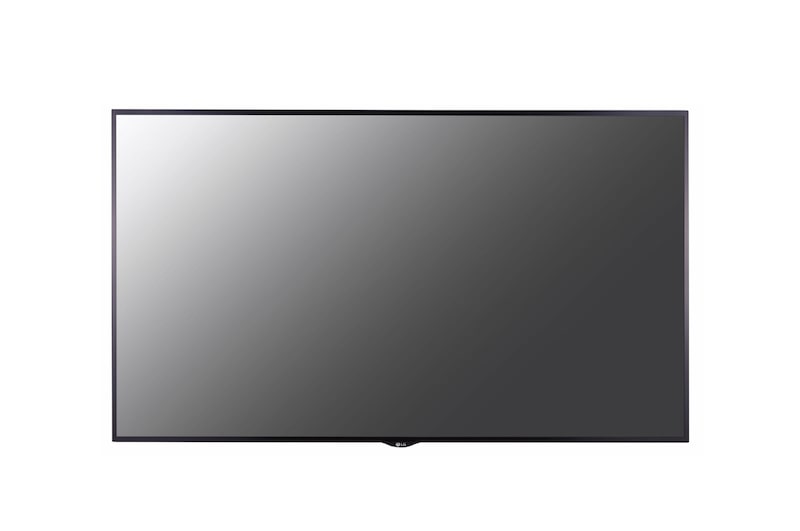

LG 55'' 4000 nits FHD Window Facing, front view , 55XS4F-B, thumbnail 2

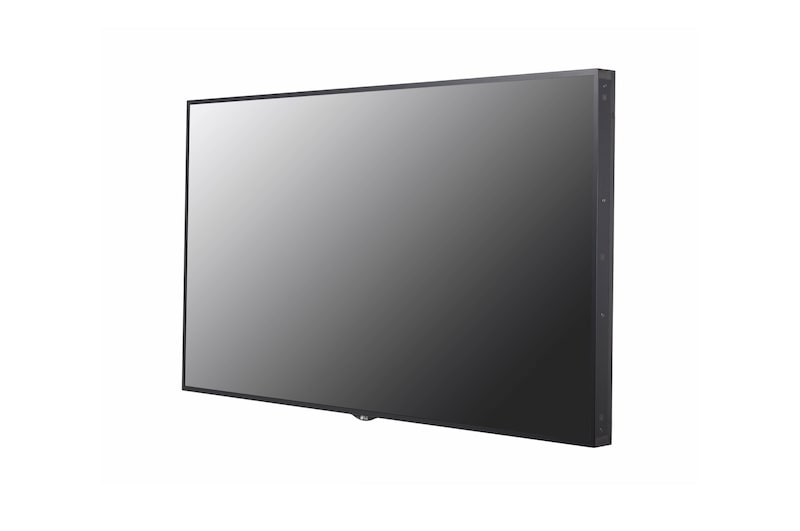

LG 55'' 4000 nits FHD Window Facing, right side view, 55XS4F-B, thumbnail 3

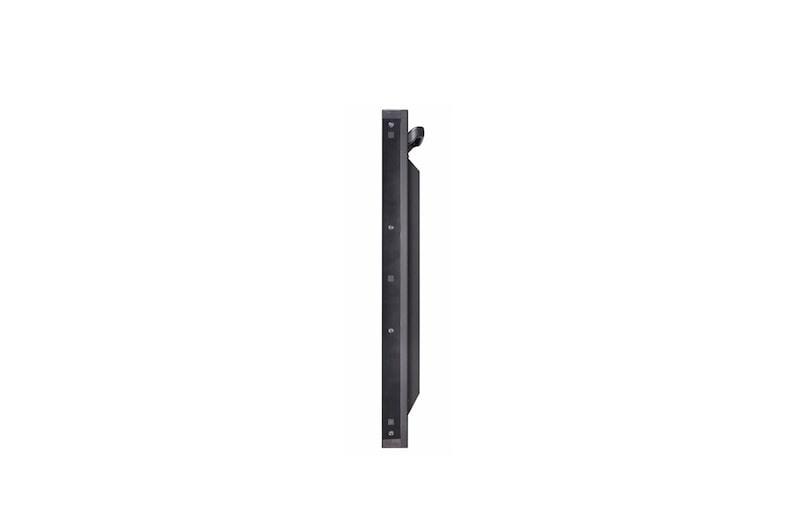

LG 55'' 4000 nits FHD Window Facing, side view, 55XS4F-B, thumbnail 4

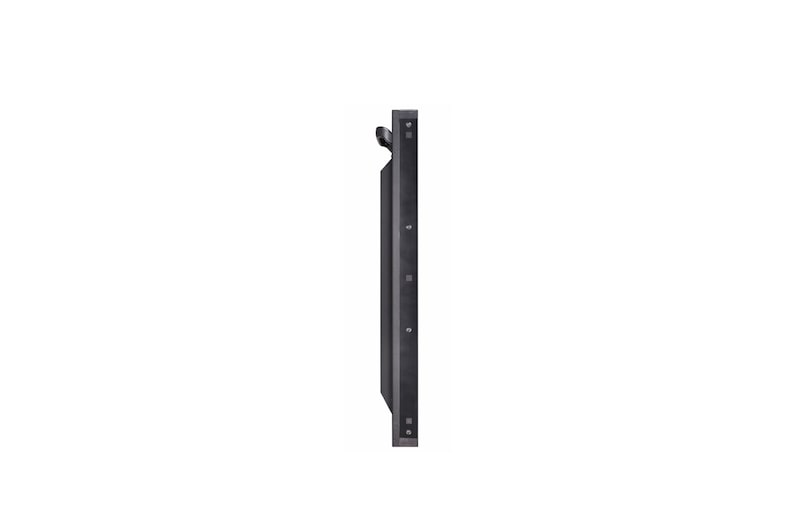

LG 55'' 4000 nits FHD Window Facing, side view, 55XS4F-B, thumbnail 5

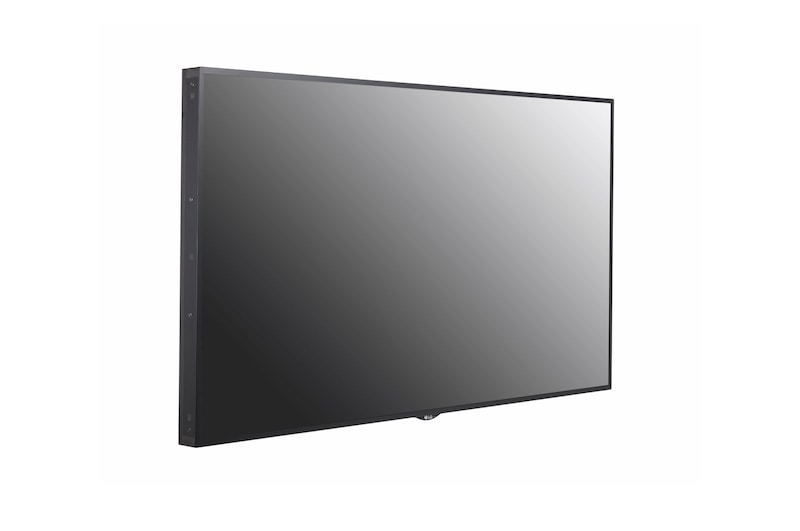

LG 55'' 4000 nits FHD Window Facing, left view, 55XS4F-B, thumbnail 6

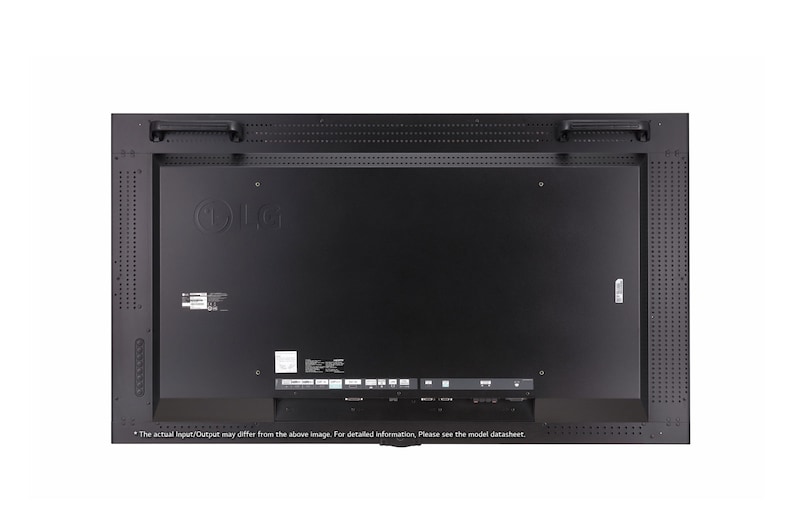

LG 55'' 4000 nits FHD Window Facing, rear view, 55XS4F-B, thumbnail 7

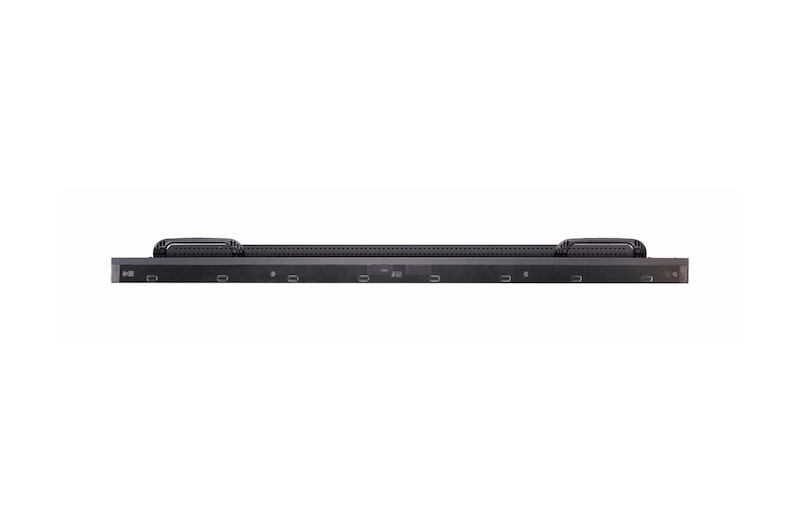

LG 55'' 4000 nits FHD Window Facing, Top view, 55XS4F-B, thumbnail 8

ADD TO WISHLIST

Discontinued

55XS4F-B component-copyModelName

55'' 4000 nits FHD Window Facing

Key Features

Brightness: 4,000cd/m² (Typ)
Life Time: 50,000 Hours
Bezel Width: 12.0 mm (T/B), 9.9 mm (L/R)
Depth: 85.4 mm
Interface: HDMI(2) / DP / DVI-D / RJ45 / IR / RS232C / USB / External Speaker Out(L/R)

Choose your Size

Inquiry to Buy

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness: 4,000cd/m² (Typ)
Life Time: 50,000 Hours
Bezel Width: 12.0 mm (T/B), 9.9 mm (L/R)
Depth: 85.4 mm
Interface: HDMI(2) / DP / DVI-D / RJ45 / IR / RS232C / USB / External Speaker Out(L/R)

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

55'' 4000 nits FHD Window Facing

Outstanding Visibility with Extreme Brightness

LG high brightness window-facing displays provide visual impact to help maximise advertising effectiveness, capturing the attention of passersby.

OUTSTANDING VISIBILITY

High Brightness

The high brightness outdoor display maintains high picture quality and image readability in an outdoor environment even when used for continuous business use (24/7).

OUTSTANDING VISIBILITY

Visible with Polarised Sunglasses

QWP* enables clear visibility even when the viewer is wearing polarised sunglasses.

*Quarter Wave Plate.

PRODUCT DESIGN

Slim Bezel

The XS4F series helps attract attention with elegant design, featuring a slim bezel. An immersive view is attained while maintaining a sleek look.

PRODUCT RELIABILITY

Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.

PRODUCT RELIABILITY

Wide Operating Temperature Range

The panel offers superb reliability under a wide range of operating temperatures*, so LG high brightness displays have fewer constraints for installation, reducing additional costs for air conditioning systems.

*Operating temperature of 0 °C to 40°C (without Direct Sunlight/Direct Sunlight in Cooling System). Operating temperature of 0 °C to 30°C (Direct Sunlight).

PRODUCT RELIABILITY

Conformal Coating

The product can often be exposed to dust and water during maintenance. LG Conformal Coating provides additional protection to circuit boards in harsh environments such as dust and humidity.

EASY MANAGEMENT

webOS Smart Platform

Quad Core SoC* can execute several tasks at the same time without a separate media player. In addition, the webOS 3.0 platform enhances user convenience with intuitive UI and simple app develoment tools.

*System-on-Chip.

PANEL

Screen Size

55"

Panel Technology

IPS, M+ (WRGB)
Aspect Ratio

16:9

Native Resolution

1,920 × 1,080 (FHD)
Brightness

4,000 cd/m²(Typ.),
3,200 cd/m² (Min.)

Viewing Angle (H × V)

178 × 178
Surface Treatment

AGLR (Haze 3%), QWP

Lifetime (Typ.)

50,000 Hrs
Operation Hours

24Hrs

Orientation

Landscape & Portrait

CONNECTIVITY

Input

HDMI(2), DP, DVI-D, Audio, USB

Output

DP, External Speaker
External Control

RS232C In/out, RJ45 (LAN) In, IR In

PHYSICAL SPECIFICATION

Bezel Colour

Black

Bezel Width

12.0 mm (T/B), 9.9 mm (L/R)
Monitor Dimension (W × H × D)

1,235.5 × 709.4 × 85.4 mm

Carton Dimensions (W x H x D)

1,360 x 231 x 844 mm
Weight (Head)

25kg

VESA™ Standard Mount Interface

600 x 400 mm

ENVIRONMENT CONDITIONS

Operation Temperature

0 °C to 40°C (w/o Direct Sunlight, Direct Sunlight in Cooling System) 0 °C to 30°C (Direct Sunlight)

Operation Humidity

10% to 80%

POWER

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power
Power Consumption (Typ.)

375W

Power Consumption (Smart Energy Saving)

140W

STANDARD(CERTIFICATION)

Safety

CB / NRTL

EMC

AS/NZS CISPR32,RCM(Class A)
Energy Rating

No
