Transparent OLED Touch Signage

Transparent OLED Touch Signage

Transparent OLED Touch Signage

55EW5TK-A

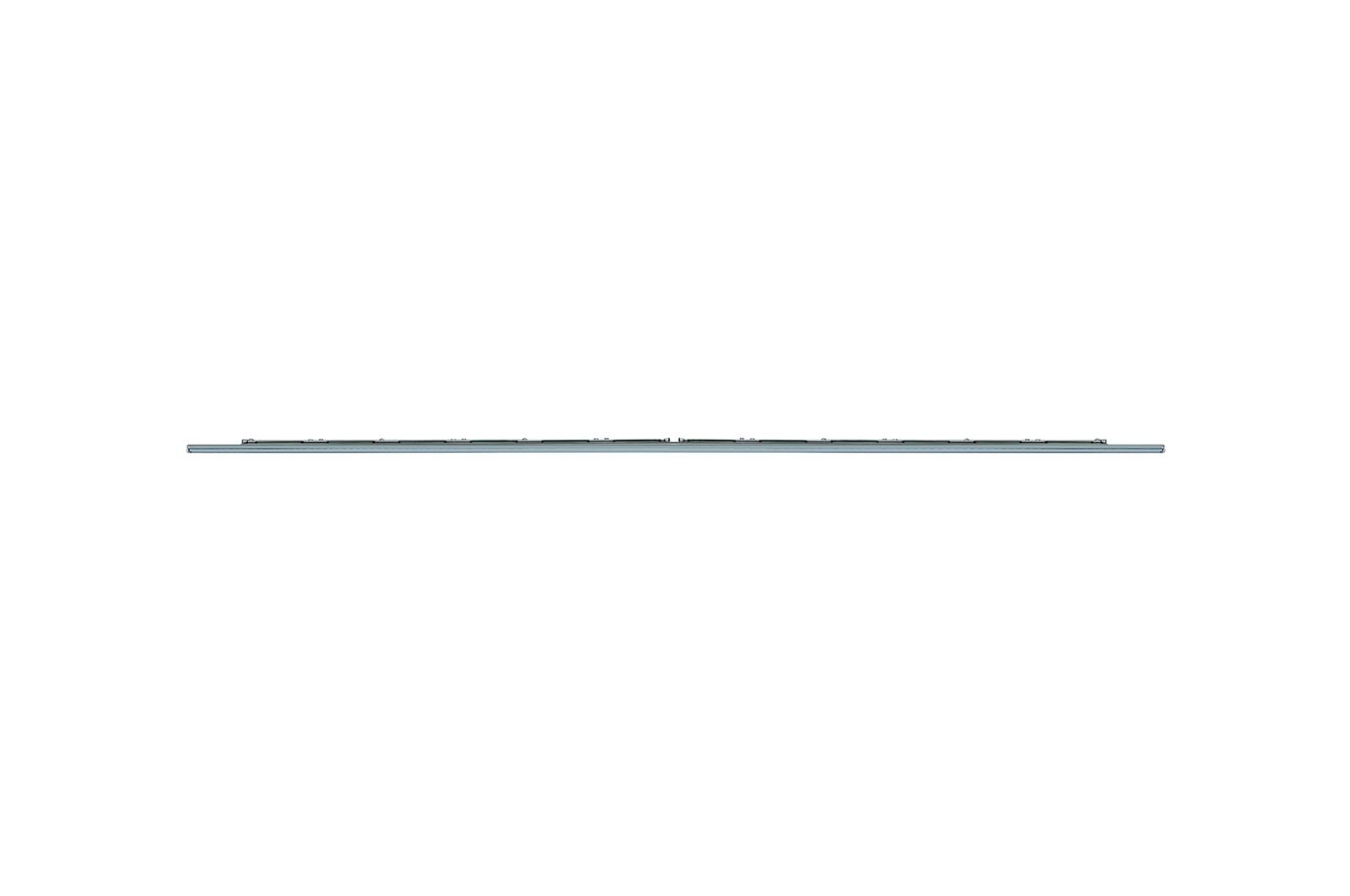

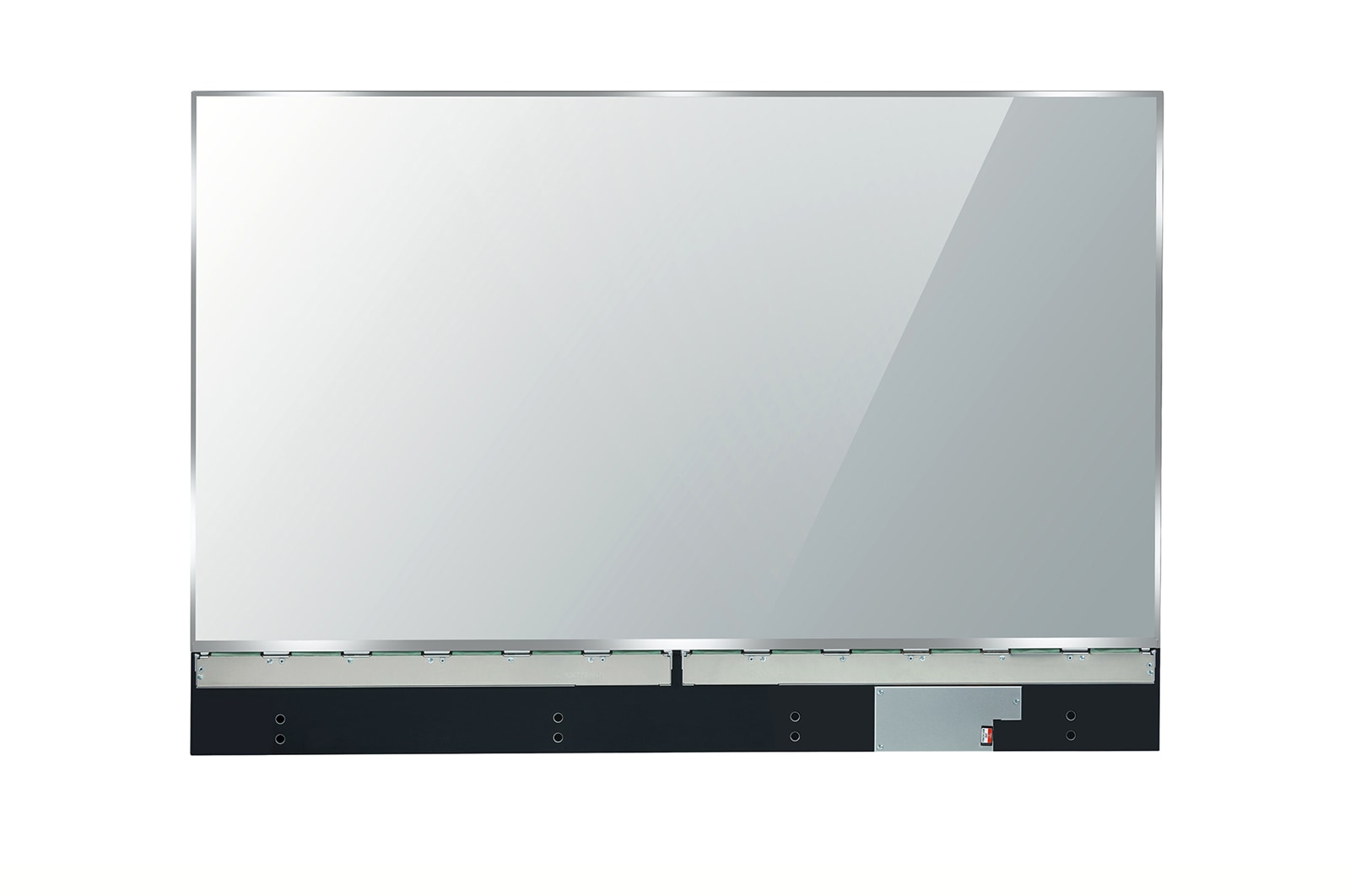

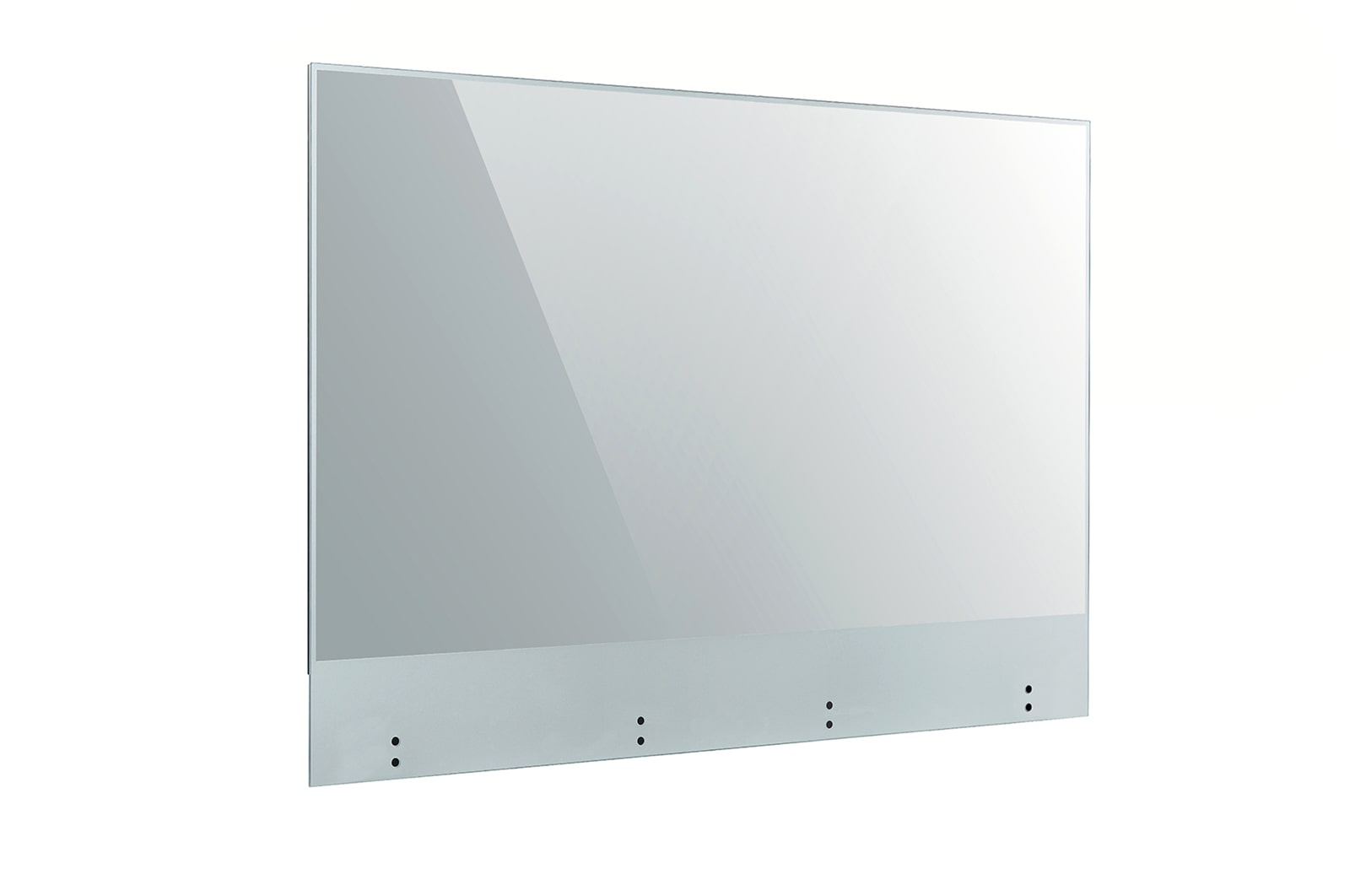

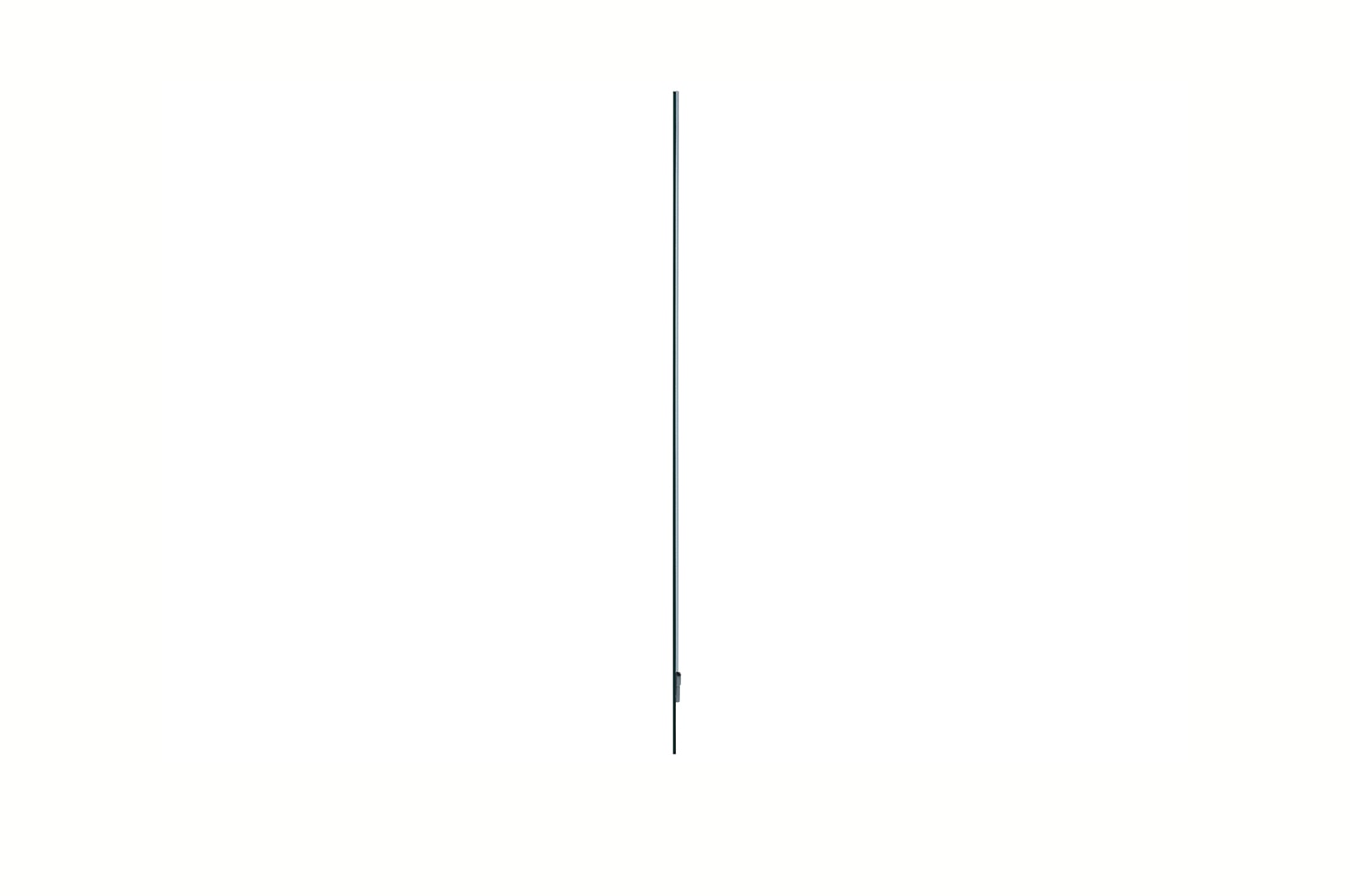

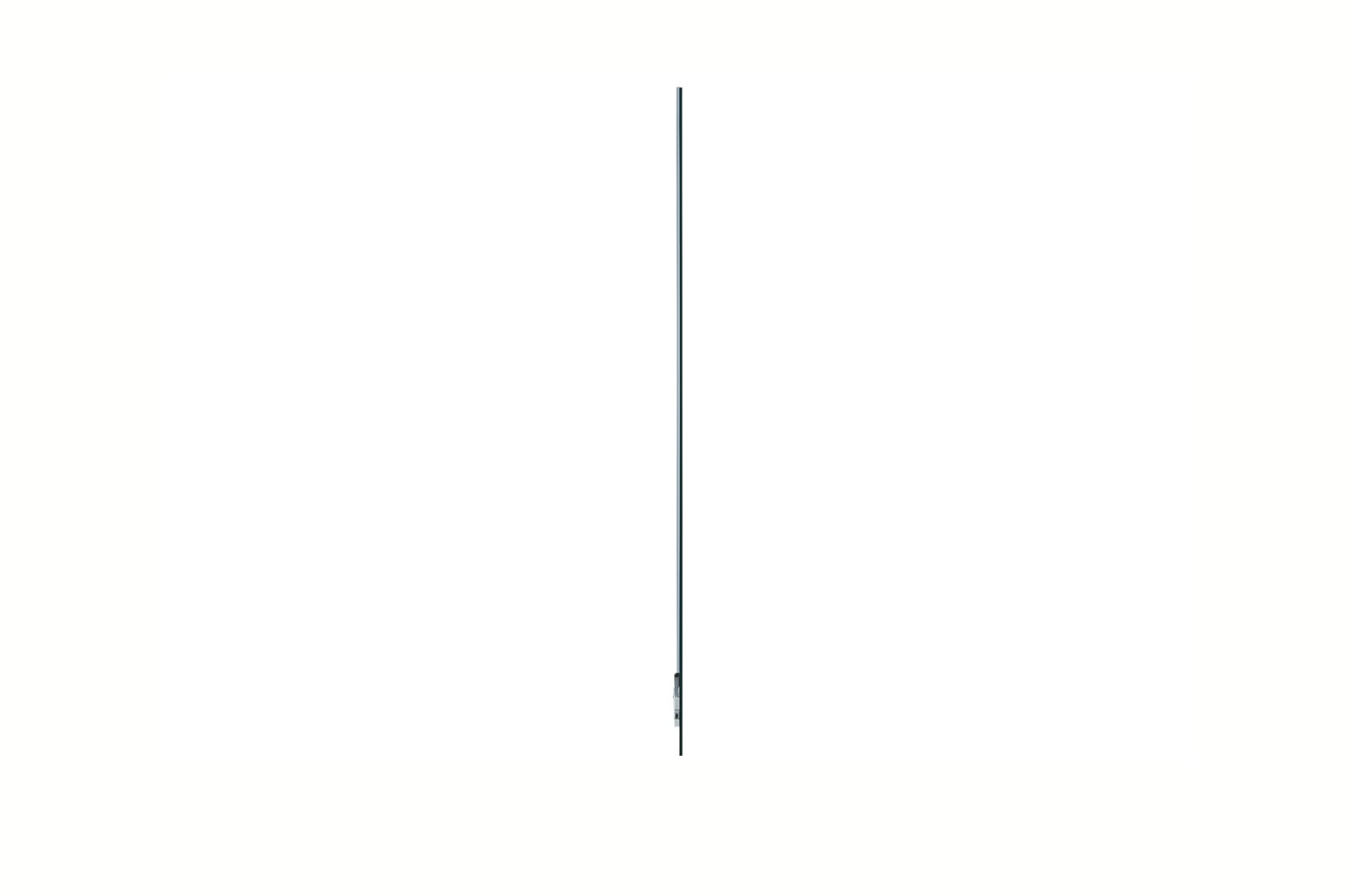

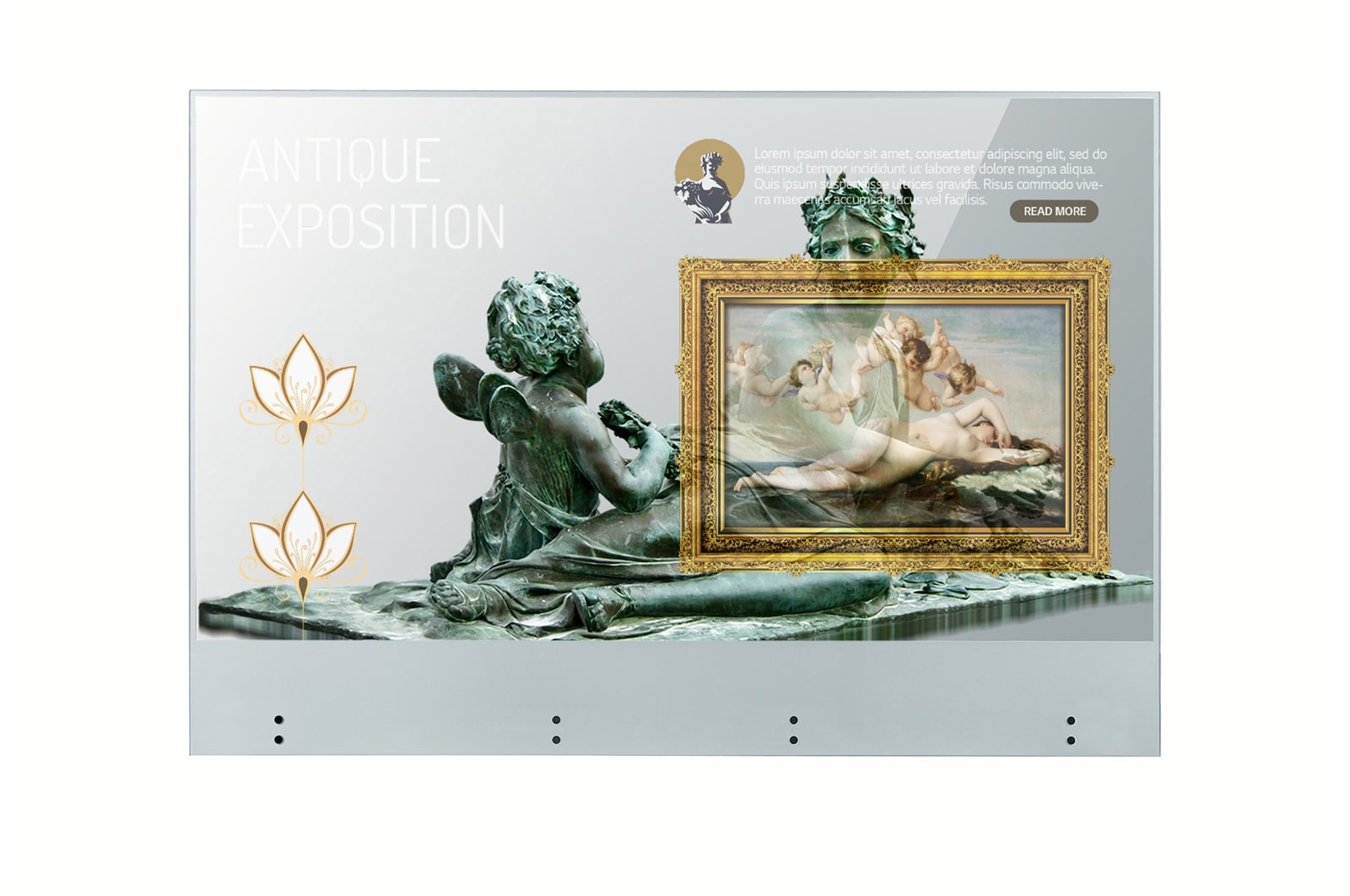

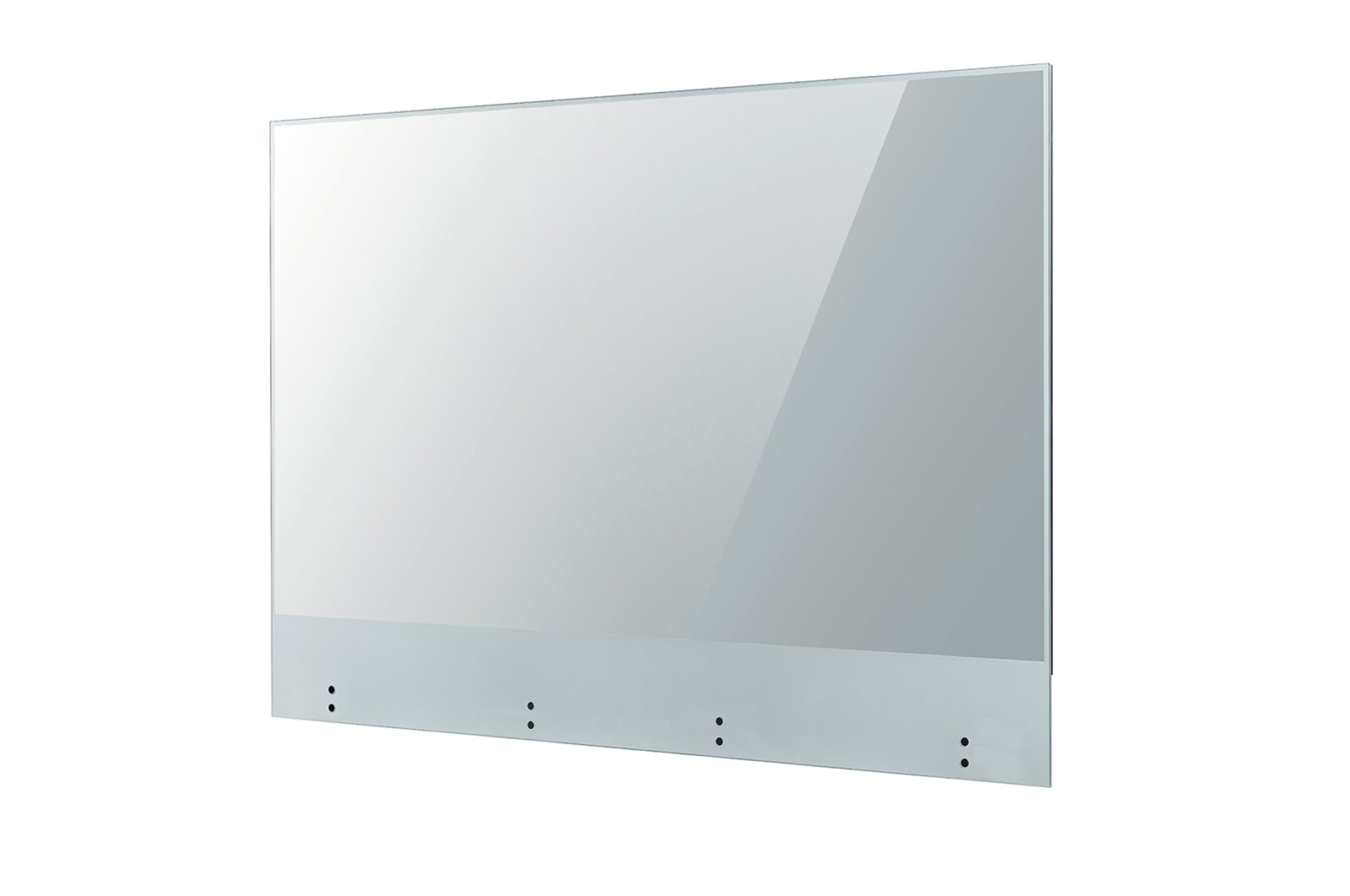

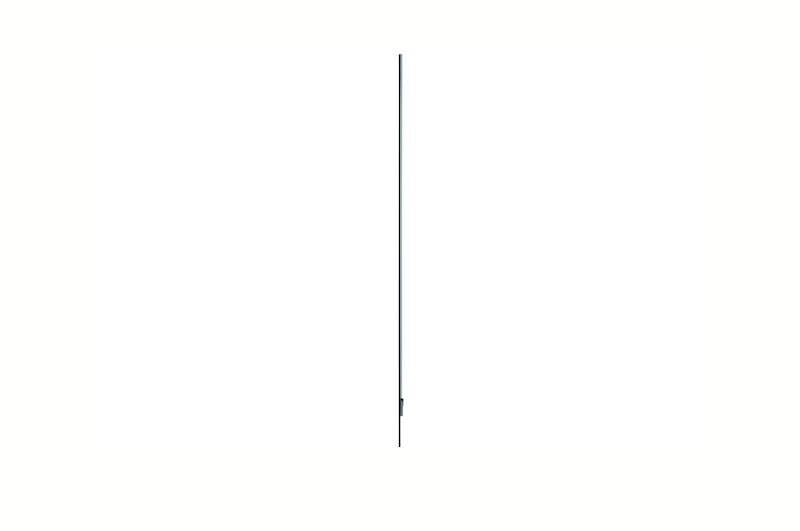

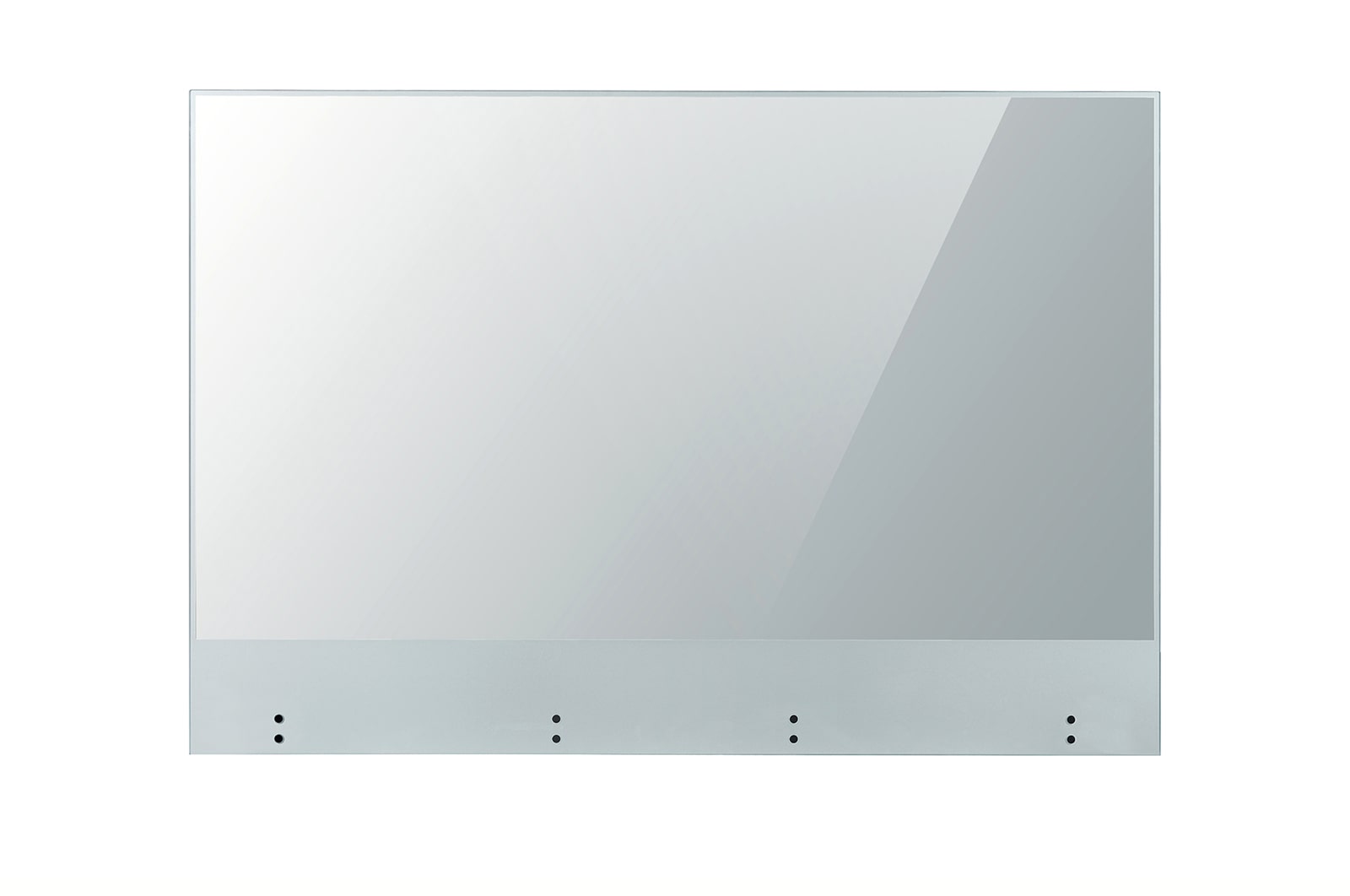

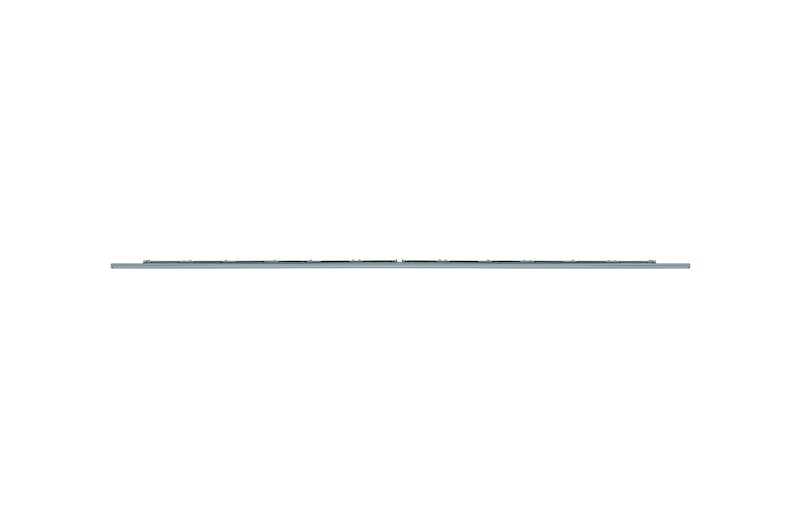

LG Transparent OLED Touch Signage, 55EW5TK-A

LG Transparent OLED Touch Signage, 55EW5TK-A

LG Transparent OLED Touch Signage, 55EW5TK-A

LG Transparent OLED Touch Signage, 55EW5TK-A

LG Transparent OLED Touch Signage, 55EW5TK-A

LG Transparent OLED Touch Signage, 55EW5TK-A

LG Transparent OLED Touch Signage, 55EW5TK-A

LG Transparent OLED Touch Signage, 55EW5TK-A

LG Transparent OLED Touch Signage, 55EW5TK-A

LG Transparent OLED Touch Signage, 55EW5TK-A

LG Transparent OLED Touch Signage, 55EW5TK-A

LG Transparent OLED Touch Signage, 55EW5TK-A

LG Transparent OLED Touch Signage, 55EW5TK-A

LG Transparent OLED Touch Signage, 55EW5TK-A

LG Transparent OLED Touch Signage, 55EW5TK-A

LG Transparent OLED Touch Signage, 55EW5TK-A

Key Features

Brightness(Typ.): 400 cd/m² (APL 25%, without Glass)
Transparency(Typ.) : 33% (Set)
Bezel : 7.9 mm (T/B/L), 144.5 mm (B)
Interface : HDMI / DP / USB 2.0 / Touch USB / RS232C / RJ45 / IR / Audio
P-Cap Touch, Tempered Front Glass (3T)

All Spec

ACCESSORY

Basic
Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, MCX/Harness Cables(3000mmx4ea/3000mmx2ea for connection between panel and Signage Box), HDMI Cable(3M), Micro to A type USB cable(3M(TBD) for connection between Touch and Signage box), A to B type USB cable(Touch out), Screw(M4xL22,12EA / M4 Nut 12EA / M3xL5.5,8EA / M3xL3.5,20EA), Shield Cover Assy', Rubber Damper 4EA, Touch Cable Holder 2EA, MCX Cable Holder 4EA

CERTIFICATION

Safety
IEC 60950-1/EN 60950-1/UL 60950-1
EMC
FCC Class "A" / CE / KC
ErP / Energy Star
Yes / No

ENVIRONMENT CONDITIONS

Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %

KEY FEATURE

HW
Internal Memory 16GB, Temperature Sensor
SW
webOS ver. (webOS4.0), Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Video Tag (4), Rotation (Screen Rotation), Gapless Playback, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Inside), Power (PM mode, Wake on LAN), HDMI-CEC, SI Server Setting, Pro:Idiom

MECHANICAL SPECIFICATION

Bezel Color
Matt Silver
Bezel Width
T/R/L/B : 7.9/7.9/7.9/144.5mm
Weight(Head)
12.9Kg (Head), 3.4Kg (Signage Box)
Packed Weight
24.5Kg
Monitor Dimension(W x H x D)
1225.5 x 832.9 x 7.4mm (Head)782.8 x 238.4 x 34.7mm (Signage Box)
Carton Dimensions(W x H x D) (Box outer size)
1345 x 945 x 207mm
Protection Glass
Depth 3.0mm, Tempered / Chemical strengthening (Chemical strengthening), Anti-Reflective (Coating), Shatter-Proof

PANEL

Screen Size
55"
Panel Technology
OLED
Back Light Type
OLED
Aspect Ratio
16:9
Native Resolution
1920 x 1080 (FHD)
Refresh Rate
120 Hz
Brightness
150/400nit (APL 100%/25%, Without Glass)
Contrast Ratio
150000 : 1
Color gamut
BT709 120%
Viewing Angle(H x V)
178x178
Color Depth
10bit(R), 1.07Bilion colors
Response Time
1 ms (G to G), 8 ms (MPRT)
Surface Treatment(Haze)
Hard coating (2H)
Life Time
30,000 Hrs (Typ.)
Operation Hours (Hours/Day)
18/7 (Moving Content Only)
Portrait / Landscape
Yes
Transparency
33% (SET)

POWER

Power Supply
AC 100-240 V~, 50 /60Hz
Power Type
Built -In Power

POWER CONSUMPTION

Typ.
280W (TBD)
Max.
300W (TBD)
BTU (British Thermal Unit)
TBD
DPM
0.5W
Power Off
0.5W

SOFTWARE COMPATIBILITY

SuperSign CMS
Yes (v2.9)
SuperSign Control / Control+
Yes (v1.7 / v1.9)
SuperSign Media Editor
Yes (v3.11)
Signage 365 Care
Yes (v2.7)

SPECIAL FEATURE

Touch - Available object size for touch
Ø12 mm ↑
Touch - Reponse Time(PC Win10)
120ms ↓
Touch - Accuracy
3.5mm
Touch - Interface
USB2.0
Touch - Protection Glass Thickness
3.0T (Anti-Glare / Anti-Finger print)
Touch - Protection Glass Transmission
84% (Typ.)
Touch - Operating System Support
Windows 8.1, Windows 10
Touch - Multi touch point
Max. 10 Points

LANGUAGE

OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic

CONNECTIVITY(JACK INTERFACE)

Input
HDMI (1, HDCP1.4), DP (1, HDCP1.3), RS232C IN, RJ45(LAN), IR IN (1, External IR Receiver), USB2.0 Type A(1), USB2.0 Type A(1,Touch Control Board only)
Output
DP Out, Audio Out, Touch USB (USB2.0 Type B(1)), RS232C OUT (1, w/ IR out), RJ45(LAN)
