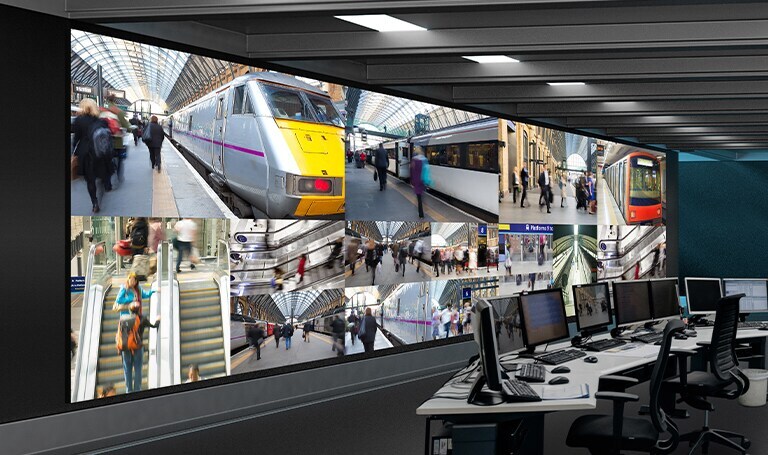

The CCTV security operation room is monitoring the on-site situation with a large LED video wall.
* All images in this web page are for illustrative purposes only.

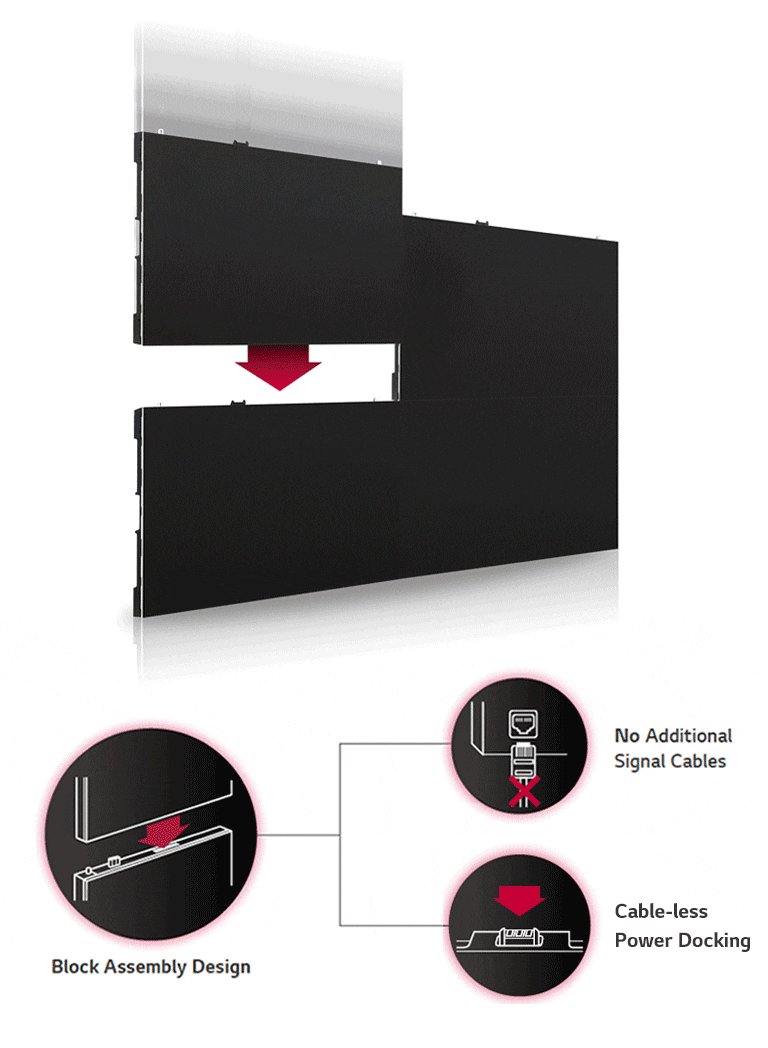

Unlike an LCD video wall, the LSAC series can perform signal transmission
*Connectors use RF (Radio Frequency) to transmit and receive data between two devices.
*Image enhanced to demonstrate feature

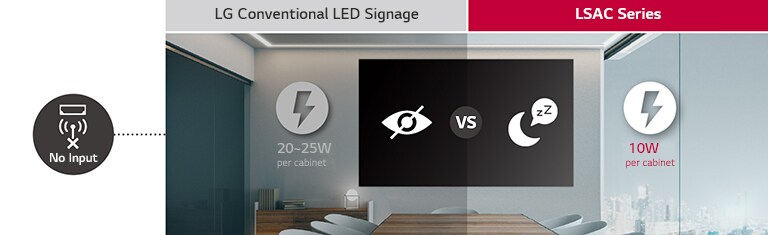

In standby mode, the LSAC series consumes less power than LG’s conventional LED signage.
The LSAC series is equipped with the Alpha 7 Intelligent Processor.

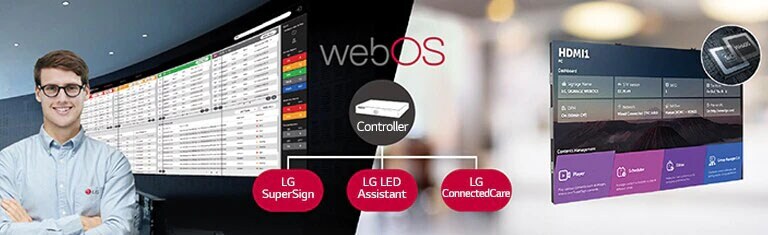

The LG employee is remotely monitoring the LSAC series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables LSAC series to be compatible with LG software solutions.
* 'LG ConnectedCare' and 'SuperSign CMS' need to be purchased separately.
* The availability of the 'LG ConnectedCare' service differs by region, so please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* Actual GUI may vary in different webOS versions.
Pixel Configuration
3 in 1 SMD
Pixel Pitch (mm)
2.5
Module Resolution (W x H)
120 × 90
Module Dimensions (W x H, mm)
300 × 225
Weight per Module (g)
430
No. of Modules per Cabinet (W × H)
4 × 3
Cabinet Resolution (W × H)
480 × 270
Cabinet Dimensions (W × H × D, mm)
1,200 × 675 × 51
Cabinet Surface Area (m²)
0.81
Weight per Cabinet (kg/cabinet)
22.5
Weight per Square Meter (kg/m²)
27.8
Physical Pixel Density (pixels/m²)
160,000
Flatness of Cabinet (mm)
±0.5
Cabinet Material
Die-casting Aluminum
Service Access
Front
Max Brightness (nit)
600
Colour Temperature (K)
3,200-9,300
Visual Viewing Angle (H×V)
160 × 160
Brightness Uniformity
95%
Colour Uniformity
±0.015Cx,Cy
Contrast Ratio
Typ. 5,000 : 1 / Peak. 9,000 : 1
Processing Depth (bit)
20 (HDR10, HDR10 Pro)
Power Consumption (W/cabinet, Max.)
290
Power Consumption (W/cabinet, Avg.)
190
Power Consumption (W/m², Max.)
358
Heat Dissipation (BTU/h/Cabinet, Max.)
990
Heat Dissipation (BTU/h/Cabinet, Avg.)
648
Heat Dissipation (BTU/h/m², Max.)
1,222
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
Lifetime (Half Brightness)
100,000
Operating Temperature (°C)
0°C to +40°C
Operating Humidity
10-80% RH
IP Rating Front
IP20
IP Rating Rear
IP20
Certification
Safety 60950-1, EMC Class B, BS476 Part7 Class1
Environment
RoHS
Controller
CSAC-025K
