TR3BF Series

Specs

Support

Resource

TR3BF Series

Share this content.

You can share the items you like with your friends

TR3BF Series

65TR3BF-B
()
  • Front view of TR3BF Series 65TR3BF-B
  • LG TR3BF Series, 65TR3BF-B
  • LG TR3BF Series, 65TR3BF-B
  • LG TR3BF Series, 65TR3BF-B
  • LG TR3BF Series, 65TR3BF-B
  • LG TR3BF Series, 65TR3BF-B
  • LG TR3BF Series, 65TR3BF-B
  • LG TR3BF Series, 65TR3BF-B

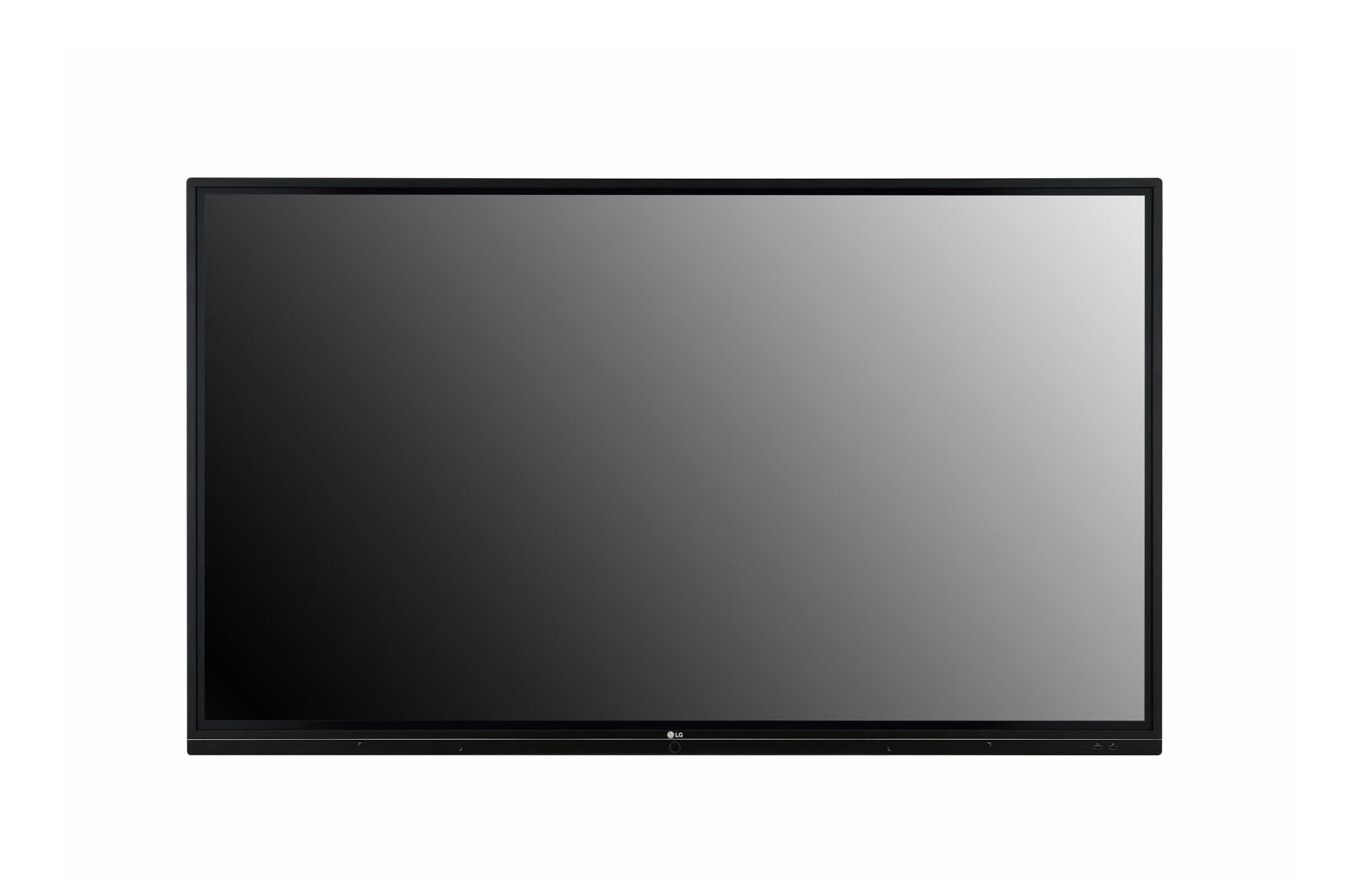

Front view of TR3BF Series 65TR3BF-B
LG TR3BF Series, 65TR3BF-B
LG TR3BF Series, 65TR3BF-B
LG TR3BF Series, 65TR3BF-B
LG TR3BF Series, 65TR3BF-B
LG TR3BF Series, 65TR3BF-B
LG TR3BF Series, 65TR3BF-B
LG TR3BF Series, 65TR3BF-B

Key Features

  • Brightness(w/Protection Glass) : 350 cd/m²
  • Touch Type : IR
  • Multi Touch Point : Max 20 Point
  • Interface: HDMI (3), RGB / Audio In, RS232C In, RJ45, USB 2.0 (3, Front: 2ea, Bottom side: 1ea - Only for software update), USB 3.0 (3), Touch Out (USB2.0, B Type) (2), HDMI (1), Optical Output / Audio Out
More
Print

All Spec

PANEL

  • Screen Size

    65

  • Panel Technology

    IPS

  • Back Light Type

    Direct

  • Aspect Ratio

    16:9

  • Native Resolution

    3,840 x 2,160 (UHD)

  • Brightness (Typ.)

    300cd/m2 (w/Protection Glass)

  • Viewing Angle (H x V)

    178 x 178

  • Surface Treatment

    Hard coating (2H), Anti-glare low reflection treatment of the front polariser (Haze 3%(Typ.))

  • Lifetime (Typ.)

    30,000 Hrs

  • Operation Hours

    16Hrs

  • Orientation

    Landscape

CONNECTIVITY

  • Input

    HDM (3), RGB, Audio, USB (USB3.0) (3), USB (USB2.0) (3, one for software update only)

  • Output

    HDMI, Audio, Coaxial/optical, Touch USB 2.0 (2)

  • External Control

    RS232 In, RJ45 In

PHYSICAL SPECIFICATION

  • Bezel Colour

    Black

  • Bezel Width

    17.7 mm (T/L/R), 45.7 mm (B)

  • Monitor Dimension (W × H × D)

    1488 × 897 × 86 mm

  • Weight (Head)

    40kg

  • VESA™ Standard Mount Interface

    600 x 400 mm

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0°C to 40°C

  • Operation Humidity

    10% to 80%

POWER

  • Power Supply

    100-240V~, 50/60Hz

  • Power Type

    Built-In Power

  • Power Consumption (Typ. / Max.)

    145/275 W

STANDARD(CERTIFICATION)

  • Safety

    CB / NRTL

  • EMC

    AS/NZS CISPR32,RCM (Class A)

  • ErP / Energy Star

    Yes (EU Only) / No

MEDIA PLAYER COMPATIBILITY

  • OPS Type Compatible

    Yes

TOUCH SPECIFICATIONS

  • Touch Type

    IR

  • Available Object Size for Touch

    Ø3 mm ↑

  • Accuracy

    ± 1.5 mm

  • Interface

    USB 2.0

  • Protection Glass Thickness

    4T (Anti-glare)

  • Multi Touch Point

    Max. 20 Points

To access more technical documentation and resources, please visit the LG B2B partner portal.
