webOS Box

WP402-B

Key Features

LG webOS 4.0 Smart Signage Platform
Ultra HD Video Playback
Intuitive UX Dedicated for Digital Signage
Embedded CMS
Compatibility with LG SuperSign Solution and LG ConnectedCare

The User-Friendly Smart Signage Platform

The WP402 webOS box operates webOS 4.0, the enhanced user-friendly LG smart signage platform, and is attached to existing LG digital signages and upgrades them regardless of their original platform. It can execute several tasks at once while providing smooth content playback, and provides an excellent user experience.

* All images in this web page are for illustrative purposes only and may differ from the actual product.

Great Scalability

Upgrade to the webOS 4.0 Smart Signage Platform

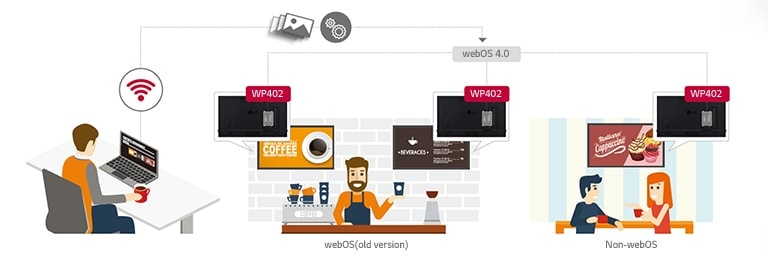

The WP402 may be applied towards any type of LG digital signages regardless of its platform. The webOS box provides user-friendly smart functions with dedicated menus essential for business use. This way, users are able to easily manage and distribute content or develop web-based applications for multiple signages simultaneously.

High Performance Media Player

UHD Video Playback Supported

The WP402 supports Ultra HD high-quality video playback which delivers color and details of content vividly, with four times higher definition than FHD. Only a single webOS box is required for this superior picture quality.

High Performance Media Player

Display Control Capability

Beyond content management, control commands from the WP402 can be sent to LG digital signages through the RS232C cable connection. It allows users to flexibly set up display values such as power, brightness or volume for optimal operation.

User-Friendly Smart Platform

All-in-One Home Menu

The WP402 offers a signage-dedicated home menu that shows key information related to signage operation at a glance. A dashboard showing the status of devices, a content management menu, and shortcuts leading to quick settings greatly enhance user convenience.

User-Friendly Smart Platform

Embedded Content Management

The embedded CMS^{(Content Management System)} allows users to edit content using internal/external sources and set playlists to play at the desired schedule. Users can easily explore and manage content through the intuitive GUI, using various input devices, from a remote control to a laptop.

Flexible Operation

Multi Video Tags

Several different videos can be played at the same time using the multi video tags feature. This gives you greater flexibility to organize and deploy content when various content items need to be delivered simultaneously via web apps.

Flexible Operation

Multi Screen with PBP/PIP

PBP^{(Picture-By-Picture)} features multi screen in a single display with upto 4 input sources while PIP^{(Picture-In-Picture)} supports playing both main screen and sub screen at the same time with various layouts. This gives great flexibility to allocate space for each content souce.

Flexible Operation

Compatibility with LG SuperSign Solutions

LG SuperSign is a comprehensive and indispensable software solution for the integrated management of LG digital signages. With SuperSign, content creation and distribution gets easier and centralized monitoring and control becomes simpler, helping your business save time and operate more effectively across different locations.

09_Real-Time-Remote-Care-Service_1541136056539

Flexible Operation

Real-time LG ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.

* The availability differs by regions.

LG webOS 4.0 Smart Signage Platform
Ultra HD Video Playback
Intuitive UX Dedicated for Digital Signage
Embedded CMS
Compatibility with LG SuperSign Solution and LG ConnectedCare

All Spec

CONNECTIVITY

HDMI In
YES (2ea)
HDMI In (HDCP Ver.)
2.2
DP In
YES (HDCP 1.3)
DVI-D In
NO
RGB In
NO
Audio In
NO
RS232C In
YES
RJ45(LAN) In
YES (1ea)
IR In
YES
USB In
USB2.0 Type A (2ea)
HDMI Out
YES
DP Out
YES
Audio Out
NO
Touch USB
NO
External Speaker Out
NO
RS232C Out
YES
RJ45(LAN) Out
NO
IR Out
NO
Daisy Chain
NO

MECHANICAL SPECIFICATION

Bezel Color
Black
Bezel Width
N/A
Weight (Head)
0.87Kg
Weight (Head+Stand)
N/A
Packed Weight
1.77Kg
Monitor Dimensions (W x H x D)
258.0 x 36.5 x 186.0mm
Monitor Dimension with Stand (W x H x D)
N/A
Carton Dimensions (W x H x D)
359.0 x 124.0 x 314.0mm
Handle
NO
VESA Standard Mount Interface
N/A

FEATURE - HARDWARE

Internal Memory (eMMC)
8GB
Wi-Fi/BT (Built-in)
YES
Temperature Sensor
YES
Auto Brightness Sensor
NO
Pixel Sensor
NO
Proximity Sensor
NO
Current Sensor
NO
BLU Sensor
NO
Humidity Sensor
NO
Acceleration(Gyro) Sensor
NO
Power Indicator
YES
Local Key Operation
YES
FAN (Built-in)
NO

FEATURE - SOFTWARE

OS Ver. (webOS)
webOS 4.0
Local Contents Scheduling
YES
Group Manager
YES
USB Plug & Play
YES
Fail over
YES
Booting Logo Image
NO
No Signal Image
YES
RS232C Sync
NO
Local Network Sync
YES
Backlight Sync
NO
PIP
YES
PBP
YES (4PBP)
Screen Share
YES
Video Tag
YES (4 Video Tag)
Play via URL
YES
Screen Rotation
YES
External Input Rotation
YES
Gapless Playback
YES
Tile Mode Setting
YES
Setting Data Cloning
YES
SNMP
YES
ISM Method
YES
Auto Set ID
NO
Status Mailing
YES
Control Manager
YES
Cisco Certification
NO
Crestron Connected
NO
Smart Energy Saving
NO
PM mode
NO
Wake on LAN
YES
Network Ready
NO
Beacon
YES
HDMI-CEC
YES
SI Server Setting
YES
webRTC
YES
Pro:Idiom
YES
Brightness Compensation
NO
W/B Setting by Grey scale
NO
Scan Inversion
NO

ENVIRONMENT CONDITIONS

Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %

POWER

Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-in Power

POWER CONSUMPTION

Typ.
23W
Max.
27W
BTU (British Thermal Unit)
78.48 BTU/Hr(Typ.), 92.13 BTU/Hr(Max.)
Smart Energy Saving (70%)
N/A
DPM
0.5W(WOL Off)
Power off
0.5W

SOUND

Speaker (Built-in)
NO

CERTIFICATION

Safety
CB / NRTL
EMC
FCC Class "A" / CE Class "A"
ERP / Energy Star
YES / NO
ePEAT(US only)
NO

SOFTWARE COMPATIBILITY

SuperSign CMS
YES
SuperSign Control+
YES
SuperSign WB
YES
SuperSign Cloud
NO
Promota
YES
Mobile CMS
NO
Connected Care
YES

LANGUAGE

OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic
