EV5E Series

EV5E Series

Share this content.

You can share the items you like with your friends

EV5E Series

65EV5E

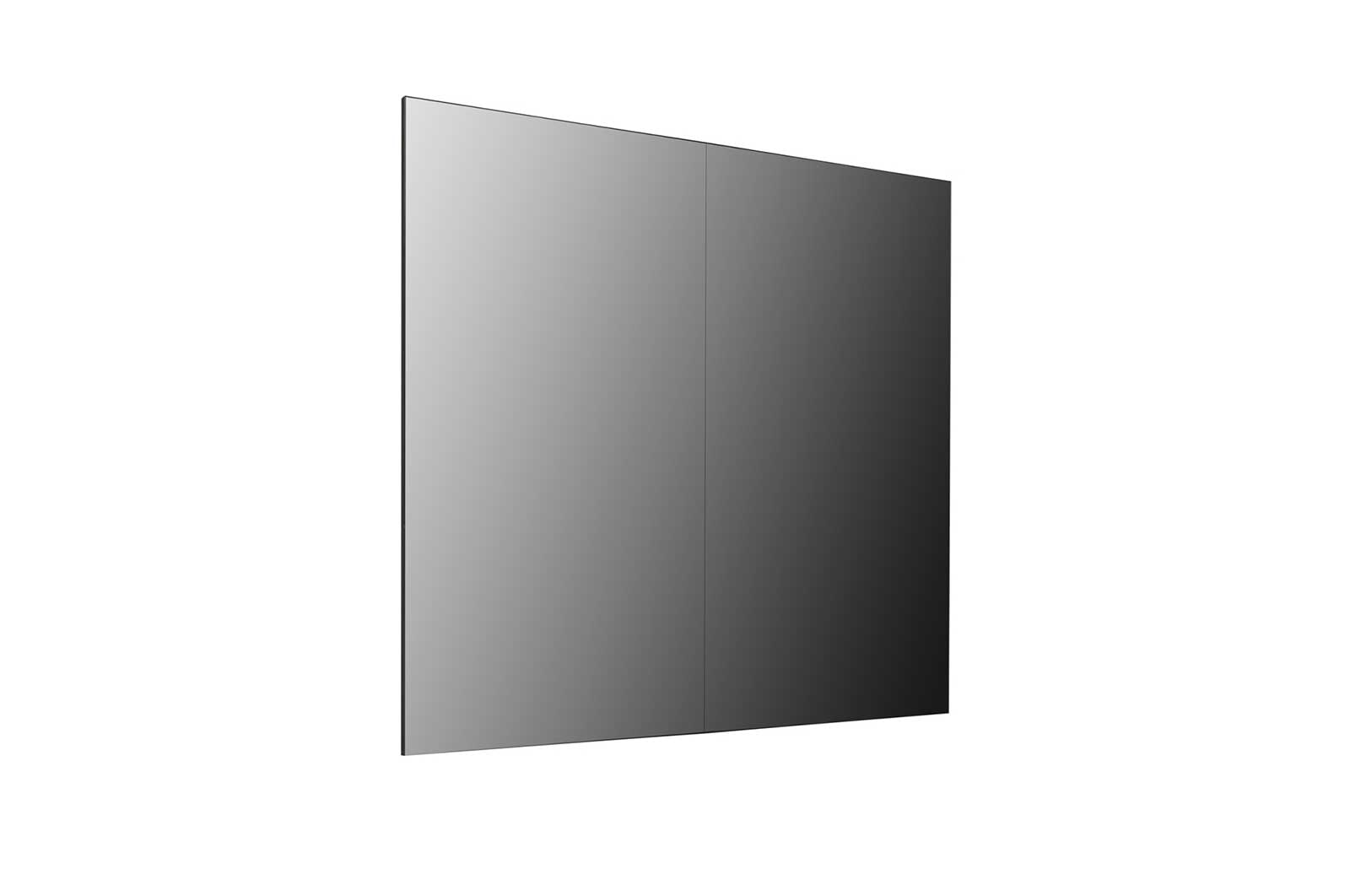

LG EV5E Series, 65EV5E
LG EV5E Series, 65EV5E
LG EV5E Series, 65EV5E
LG EV5E Series, 65EV5E
LG EV5E Series, 65EV5E
LG EV5E Series, 65EV5E
LG EV5E Series, 65EV5E
LG EV5E Series, 65EV5E
LG EV5E Series, 65EV5E
LG EV5E Series, 65EV5E
LG EV5E Series, 65EV5E
LG EV5E Series, 65EV5E
LG EV5E Series, 65EV5E
LG EV5E Series, 65EV5E

Key Features

  • OLED with prefect blacks and explosive colours
  • Wide viewing angle
  • Consistent brightness with VLC
  • 1 x n expandable screen size
More
Print

All Spec

ACCESSORIES

  • Basic

    Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, RS232 Cable (4p-4p), FFC Cables (for Connection Between Panel and Signage Box), DP Cable, LAN Cable, LC (VLC Cable), Fixer Screws, Anchor Bolts, Polyester Tapes, Panel Jigs

CERTIFICATION

  • Safety

    AS/NZS 60950, CB Scheme

  • EMC

    AS/NZS CISPR32, RCM (Class A)

  • ErP / Energy Star

    Yes/No

CONNECTIVITY

  • Input

    HDMI, DP, USB 2.0 (2)

  • Output

    DP, Audio

  • External Control

    RS232C In/out, RJ45 (LAN) In/out, IR In

ENVIRONMENT CONDITIONS

  • Operation Temperature Range

    0°C~40°C

  • Operation Humidity Range

    10%~80%

MEDIA PLAYER COMPATIBILITY

  • External Media Player Attachable

    Yes

PANEL

  • Screen Size

    65"

  • Panel Technology

    OLED

  • Aspect Ratio

    16:9

  • Native Resolution

    3,840 x 2,160 (UHD)

  • Brightness (Typ.)

    400/150cd/m<sup>2</sup> (Average Picture Level 25%/100%)

  • Viewing Angle (H x V)

    178 x 178

  • Response Time

    1ms (G to G), 8ms (MPRT)

  • Surface Treatment (Haze)

    Hard Coating (2H), Anti-reflection Treatment of the Front Polariser (Reflectance Typ. 1.2%)

  • Life Time (Typ.)

    30,000Hrs

  • Operation Hours

    12 Hrs/7 Days *Moving Video Only

  • Orientation

    Portrait

PHYSICAL SPECIFICATION

  • Bezel Colour

    Black

  • Bezel Width

    1.2mm (Even) *Off-Bezel9.1mm (T/B), 8.7mm (L), 11.6mm (R) *On-Bezel6.7mm (Seam)

  • Dimension (W x H x D)

    1,634.6 x 1,446.7 x 7.9 mm (Head 1 x 2)2,445.4 x 1,446.7 x 7.9 mm (Head 1 x 3)782.8 x 35.5 x 239.0 mm (Signage Box)

  • Weight

    29.4kg (Set 1 × 2)/44.5kg (Set 1 × 3)

  • Carton Dimensions (W x H x D)

    1,940 x 1,120 x 536 mm (Set 1 x 2)/1,940 x 1,120 x 646 mm (Set 1 x 3)

  • Packed Weight

    69.6kg (Set 1 x 2, w/Pallet)/96kg (Set 1 x 3, w/Pallet)

POWER

  • Power Supply

    100-240V~, 50/60Hz

  • Power Type

    Built-In Power

  • Power Consumption - Typ.

    440W *8 Colour Bar Based

  • Power Consumption - Max.

    478W *8 Colour Bar Based

SOFTWARE COMPATIBILITY

  • Content Management Software

    SuperSign CMS

  • Control and Monitoring Software

    SuperSign Control+/Control

SPECIAL FEATURES

  • Special features

    Internal Memory (64GB), Temperature Sensor, Embedded CMS (USB Auto Playback, Local Contents Scheduling, Group Manager), Fail Over, Content Sync (RS232C, Local Network), OSD Rotation, Lock Mode, Content Rotation, Gapless Playback, Tile Mode Setting, Setting Data Cloning, Firmware Update by Network, SNMP, ISM Mode, Control Manager, Crestron ConnectedⓇ1), DPM, PM Mode, Wake on LAN, Power on Delay, HDMI-CEC 2), SI Server Setting

To access more technical documentation and resources, please visit the LG B2B partner portal.
