SM3B Series

Specs

Support

Resource

SM3B Series

Share this content.

You can share the items you like with your friends

SM3B Series

22SM3B-B
()

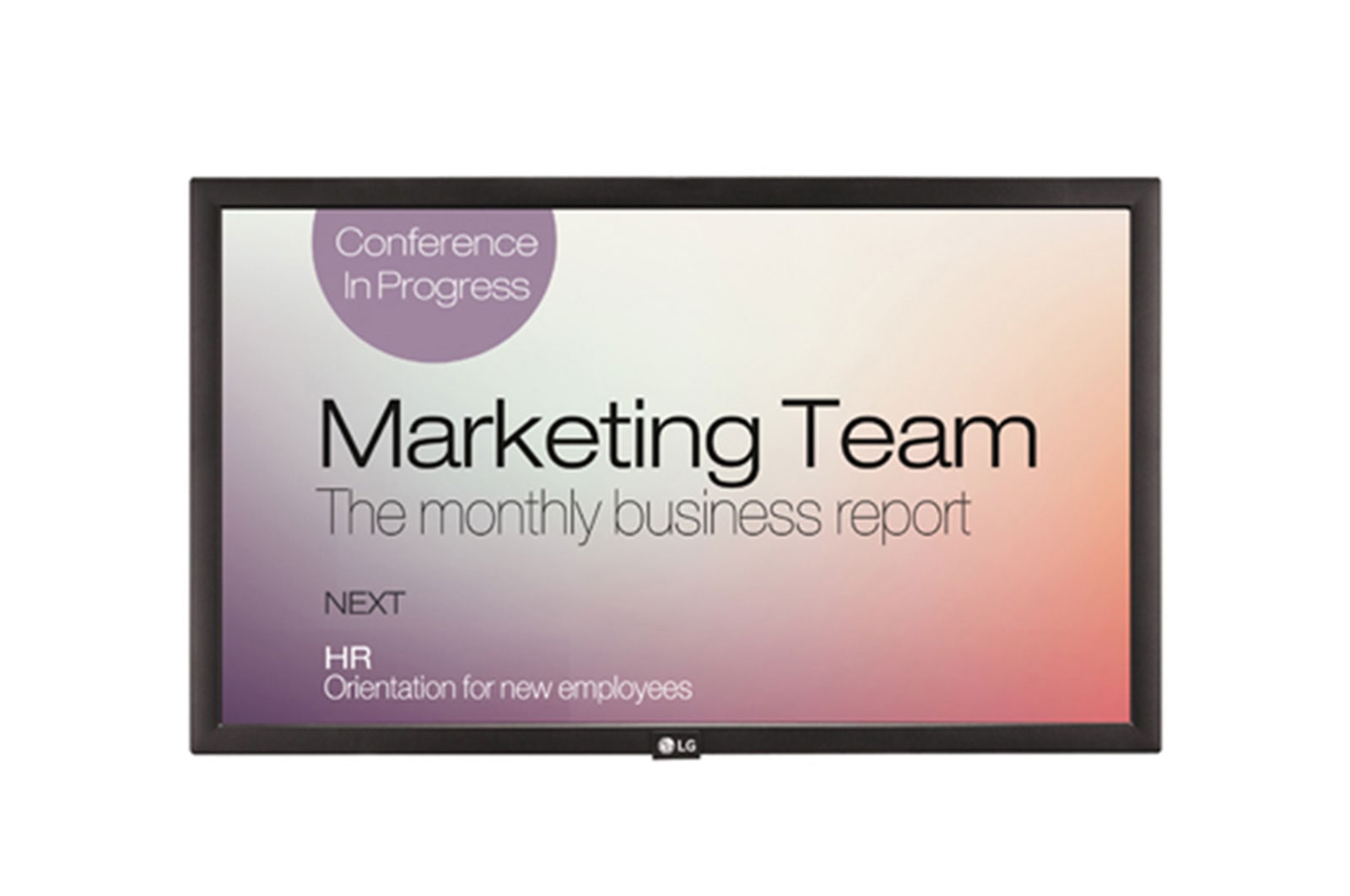

  • Front view of SM3B Series 22SM3B-B
Front view of SM3B Series 22SM3B-B

Key Features

  • Brightness: 250 cd/m²
  • Bezel: 16.3mm (Even Bezel)
  • Depth: 53.8mm
  • Interface: HDMI / USB / RGB / RJ45 / IR
  • 16/7 Operation
More
Print

All Spec

PANEL

  • Screen Size

    22” (55 cm)

  • Panel Technology

    IPS

  • Aspect Ratio

    16:9

  • Native Resolution

    1,920 x 1,080 (FHD)

  • Brightness

    250 cd/m2

  • Contrast Ratio

    1,000:1

  • Viewing Angle (H x V)

    178° x 178°

  • Guaranteed Operating Hour

    16hrs/7days

CONNECTIVITY

  • Input

    HDMI, RGB, Audio, USB 3.0

  • External Control

    RS232C In, IR Receiver, Pixel Sensor, RJ45

PHYSICAL SPECIFICATION

  • Bezel Width

    16.3mm

  • Monitor Dimension(W x H x D)

    510.3 x 302.1 x 53.8 mm

  • Weight (head)

    3.6kg

  • Carton Dimensions (W x H x D)

    565 x 357 x 103 mm

  • Packed Weight

    4.7kg

  • VESA™ Standard Mount Interface

    100mm x 100mm

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0°C to 40°C

  • Operation Humidity

    10% to 80%

POWER

  • Power Supply

    100-240V~, 50/60Hz

  • Power Consumption (Typical)

    35W

  • Power Consumption (Smart Energy Saving)

    On 25.13W/Off 29.76W

STANDARD(CERTIFICATION)

  • Safety

    AS/NZS 60950, CB Scheme

  • EMC

    AS/NZS CISPR32, RCM (Class A)

MEDIA PLAYER COMPATIBILITY

  • OPS Type Compatible

    No

  • External Media Player Attachable

    No

SOFTWARE COMPATIBILITY

  • SuperSign Lite/W

    Yes

  • SuperSign C

    Yes

ACCESSORIES

  • Basic

    Remote Controller (include 2ea batteries), Power Cord, QSG, RGB Cable, Phone to RS232C Gender

  • Optional

    Pixel Sensor (KT-SP0)

To access more technical documentation and resources, please visit the LG B2B partner portal.
