webOS Small-Sized Display

Features

Gallery

Specs

Support

Resource

Find a dealer
Contact Us

webOS Small-Sized Display

Share this content.

You can share the items you like with your friends

webOS Small-Sized Display

22SM3G-B
  • Front view of webOS Small-Sized Display 22SM3G-B
  • LG webOS Small-Sized Display, 22SM3G-B
  • LG webOS Small-Sized Display, 22SM3G-B
  • LG webOS Small-Sized Display, 22SM3G-B
  • LG webOS Small-Sized Display, 22SM3G-B
  • LG webOS Small-Sized Display, 22SM3G-B
  • LG webOS Small-Sized Display, 22SM3G-B

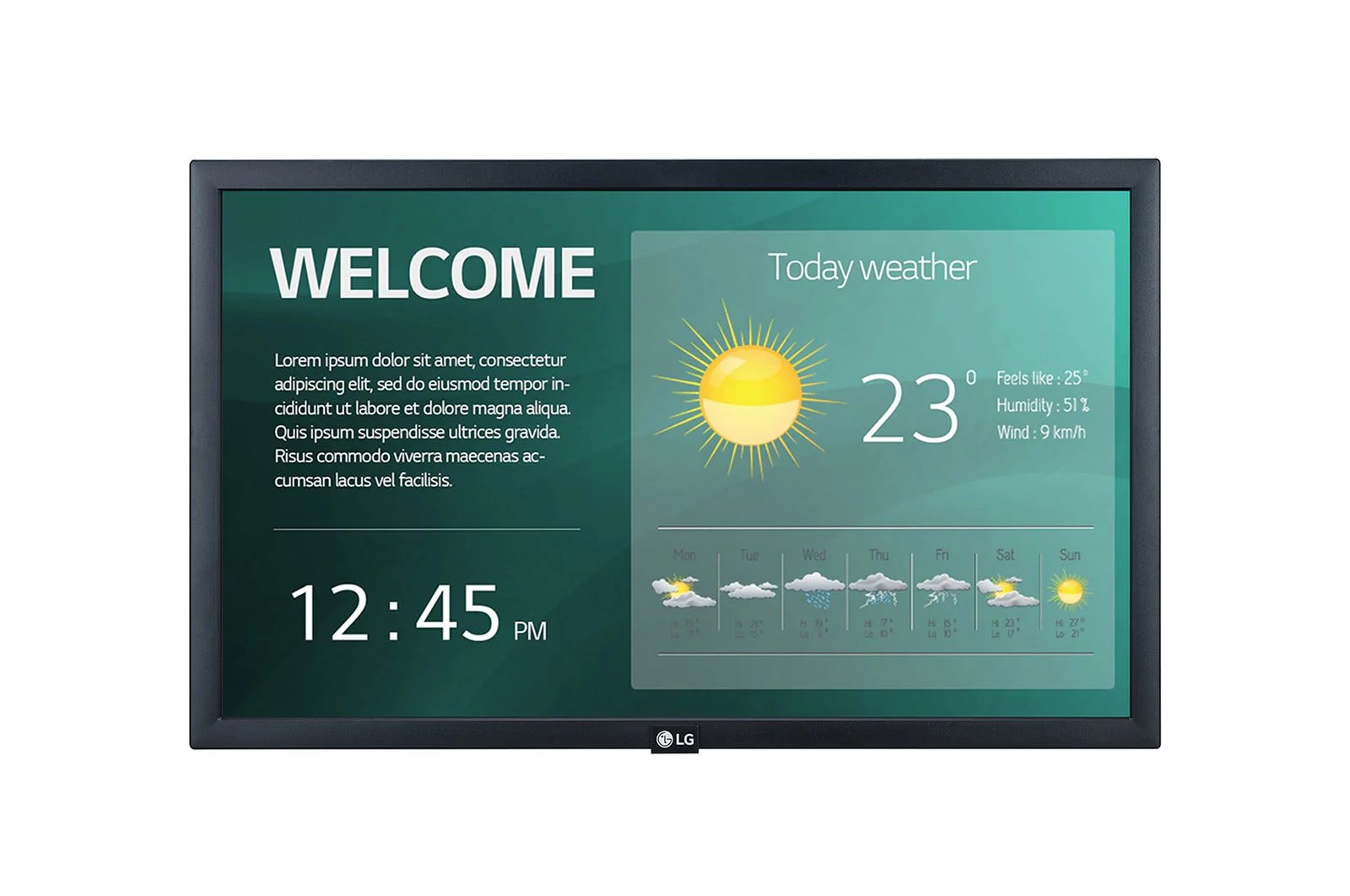

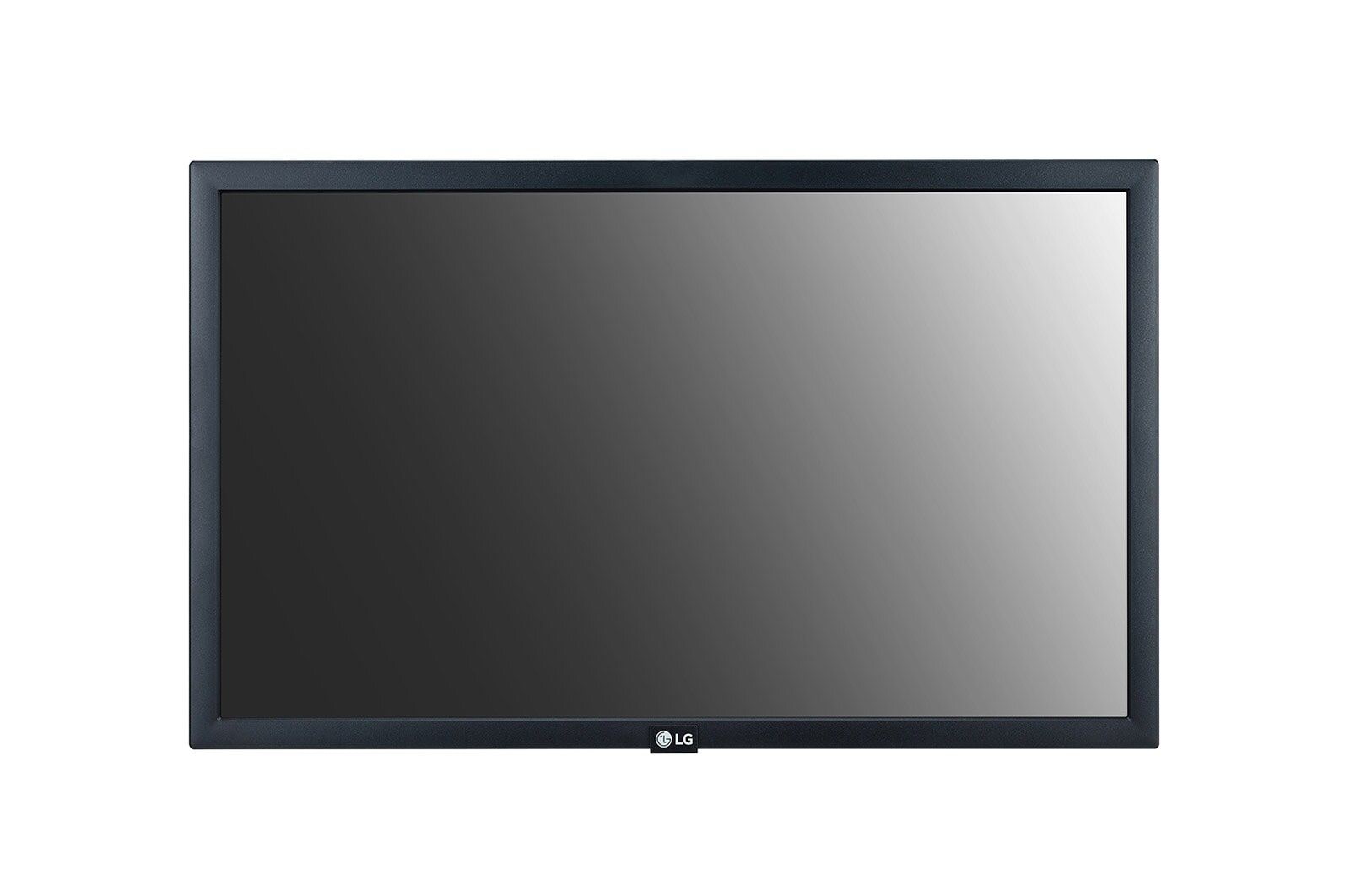

Front view of webOS Small-Sized Display 22SM3G-B

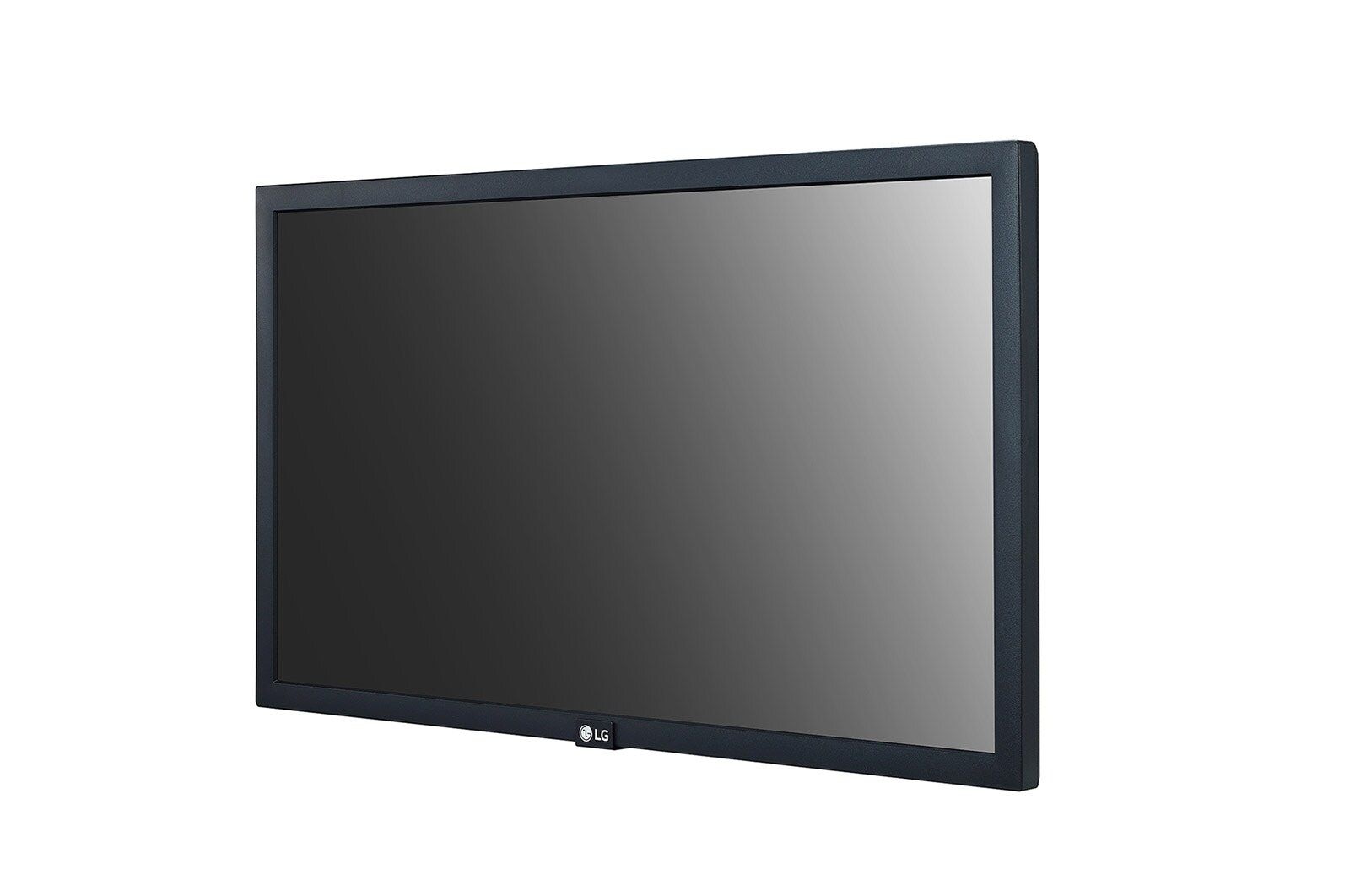

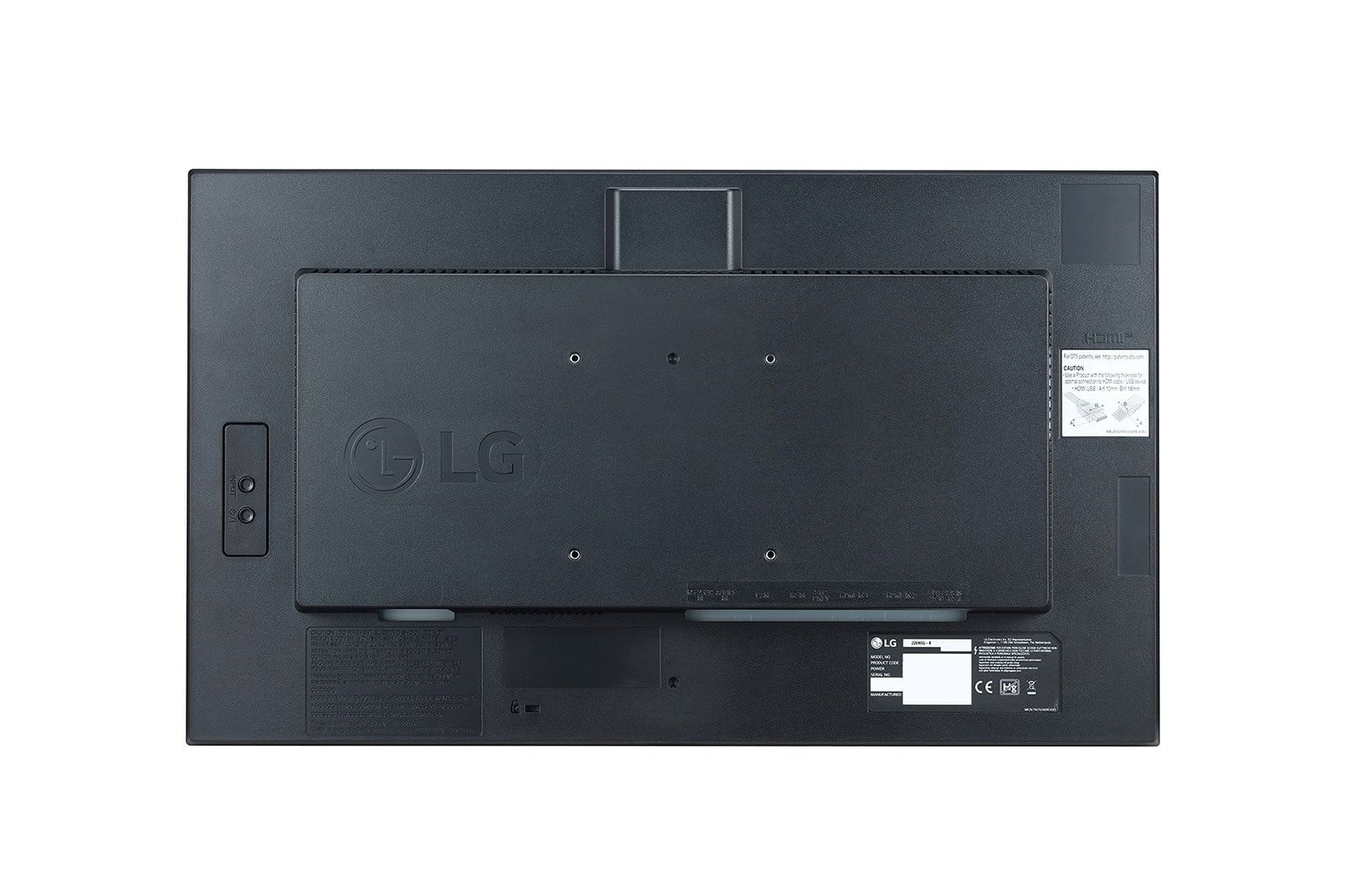

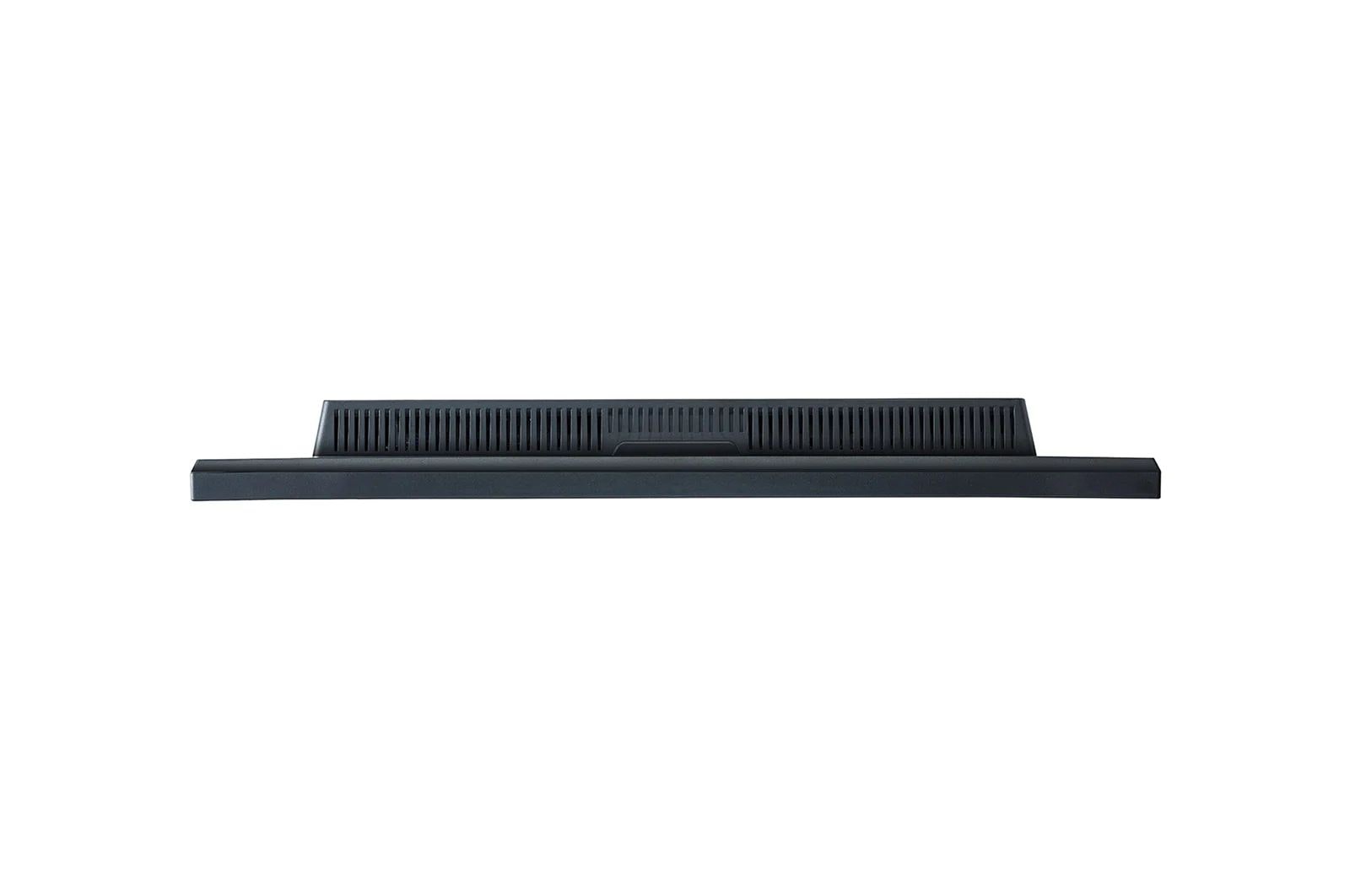

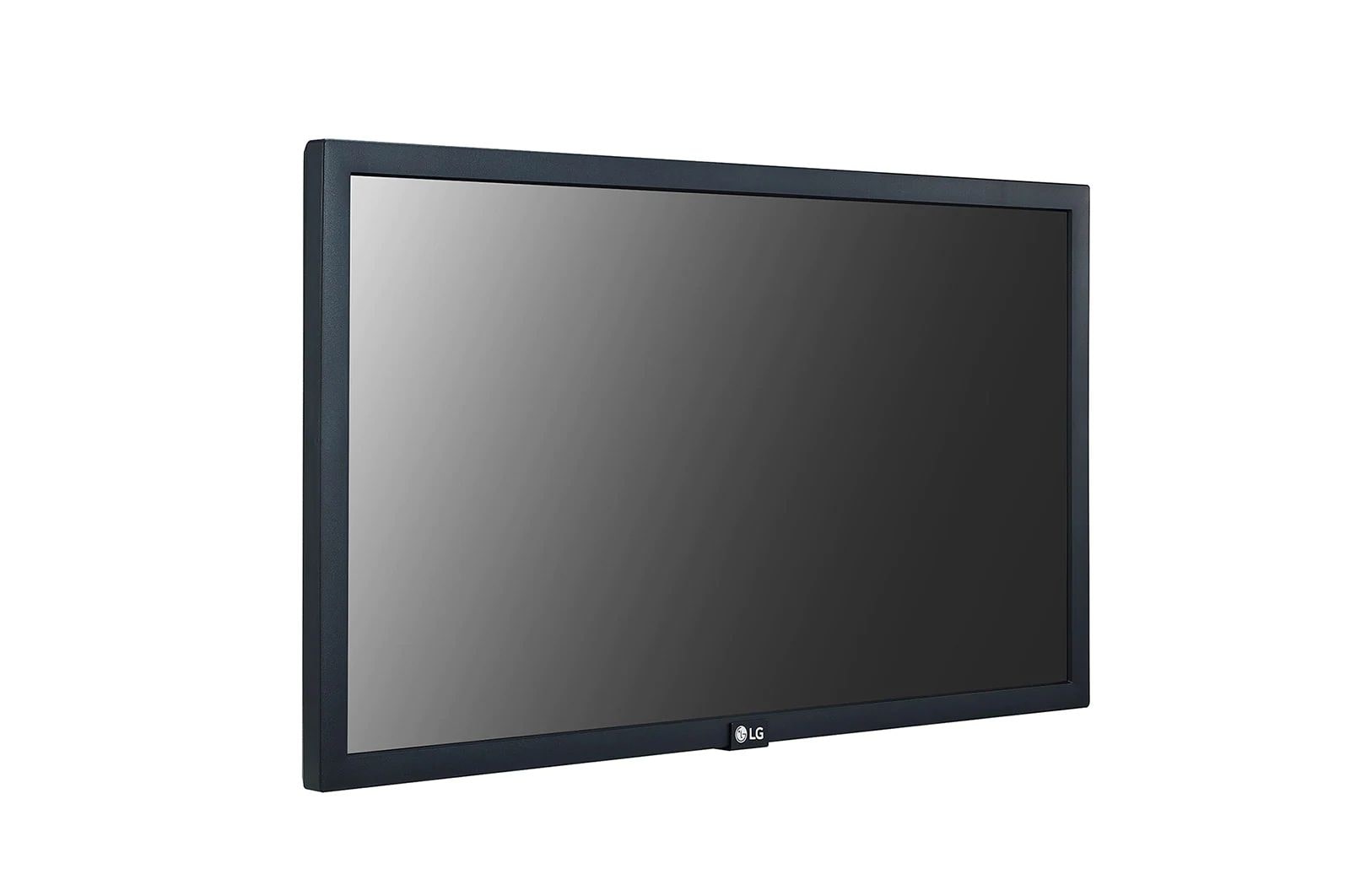

LG webOS Small-Sized Display, 22SM3G-B
LG webOS Small-Sized Display, 22SM3G-B
LG webOS Small-Sized Display, 22SM3G-B
LG webOS Small-Sized Display, 22SM3G-B
LG webOS Small-Sized Display, 22SM3G-B
LG webOS Small-Sized Display, 22SM3G-B

Key Features

  • Brightness(Typ.) : 250 cd/m²
  • Bezel : 16.3mm
  • Depth : 53.8mm
  • Interface : HDMI(2) / USB 2.0 / RS232C / RJ45 / IR / Audio
  • USB Plug & Play, Built-in Wi-Fi
More
22" Signage with Utility for Commercial Space

22" Signage with Utility for Commercial Spaces

The LG 22SM3G-B can deliver information effectively in a variety of commercial spaces, thanks to the convenient and flexible webOS platform.

High Performance SoC with webOS

SMART SIGNAGE PLATFORM



High Performance SoC with webOS

Quad Core SoC (System on Chip) can execute several tasks at the same time without a separate media player. Additionally, the webOS platform enhances user convenience with intuitive UI and simple app development tools.​



Various Sensor Applications
SMART SIGNAGE PLATFORM

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc by using webOS applications and USB plug-in.​

*External sensors are not included and must be purchased separately by a third-party provider. Application may need to be developed by customer-preferred developer.​

A Wide Range of Interfaces
SMART SIGNAGE PLATFORM

A Wide Range of Interfaces

Through its diverse interfaces, users can connect the display with various sources for optimal use. Also, the failover function supports users preparing backup sources in case an unexpected error occurs.
USB Plug
SMART SIGNAGE PLATFORM

USB Plug & Play

22SM3G supports USB Plug & Play feature, so users can easily set content playback using a USB.

Smart Signage Platform

Smart Signage Platform

Content Sharing

Content Mirroring among devices is convenient on a Wi-Fi network.

Real-time Promotion*

With Beacon and BLE (Bluetooth Low Energy), shop managers can provide coupons and information in real-time.

Wireless Solution

The 22SM3G-B operates as a virtual router which can be a wireless access point for mobile devices.

*Beacon mobile app required.

Remote Monitoring and Control
OPERATIONAL EFFICIENCY

Remote Monitoring and Control

Through the embedded web monitoring webpage, (Control Manager*) you can control and monitor the status of displays remotely, allowing you to flexibly and rapidly respond to situations anywhere.

*Network connection is required for webpage browsing.

Signage365Care
OPERATIONAL EFFICIENCY

Signage365Care

Maintenance gets easier and faster with the optional Signage 365 Care service, an additional cloud service solution provided by LG*. Signage 365 Care remotely manages status of displays in your workspaces for fault diagnosis and remote services, helping ensure the stable operation of your business.

*Additional charges apply.

Key Feature

  • Brightness(Typ.) : 250 cd/m²
  • Bezel : 16.3mm
  • Depth : 53.8mm
  • Interface : HDMI(2) / USB 2.0 / RS232C / RJ45 / IR / Audio
  • USB Plug & Play, Built-in Wi-Fi

Summary

Print

DIMENSIONS

All Spec

PANEL

  • Screen Size (Inch)

    21.5

  • Panel Technology

    IPS

  • Back Light Type

    Edge

  • Aspect Ratio

    16:9

  • Native Resolution

    1920 x 1080 (FHD)

  • Refresh Rate

    60Hz

  • Brightness

    250nit (Typ.)

  • Contrast Ratio

    1,000:1

  • Dynamic CR

    400,000:1

  • Color Gamut

    BT709 95%

  • Viewing Angle (H x V)

    178º x 178º

  • Color Depth (Number of Colors)

    16.7 Million colors

  • Response Time

    14ms (G to G)

  • Surface Treatment (Haze)

    Haze 25%

  • Life time

    30,000Hrs (Min.)

  • Operation Hours (Hours/Day)

    16/7

  • Portait / Landscape

    YES / YES

  • Transparency

    N/A

  • QWP (Quarter Wave Plate)

    N/A

CONNECTIVITY

  • HDMI In

    YES (2ea)

  • HDMI In (HDCP Ver.)

    2.2

  • DP In

    NO

  • DVI-D In

    NO

  • RGB In

    NO

  • Audio In

    YES

  • RS232C In

    YES

  • RJ45(LAN) In

    YES (1ea)

  • IR In

    YES

  • USB In

    USB2.0 Type A (1ea)

  • HDMI Out

    NO

  • DP Out

    NO

  • Audio Out

    NO

  • Touch USB

    NO

  • External Speaker Out

    NO

  • RS232C Out

    NO

  • RJ45(LAN) Out

    NO

  • IR Out

    NO

  • Daisy Chain

    NO

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    Even bezel : 16.3mm

  • Weight (Head)

    3.34Kg

  • Weight (Head+Stand)

    N/A

  • Packed Weight

    4.74Kg

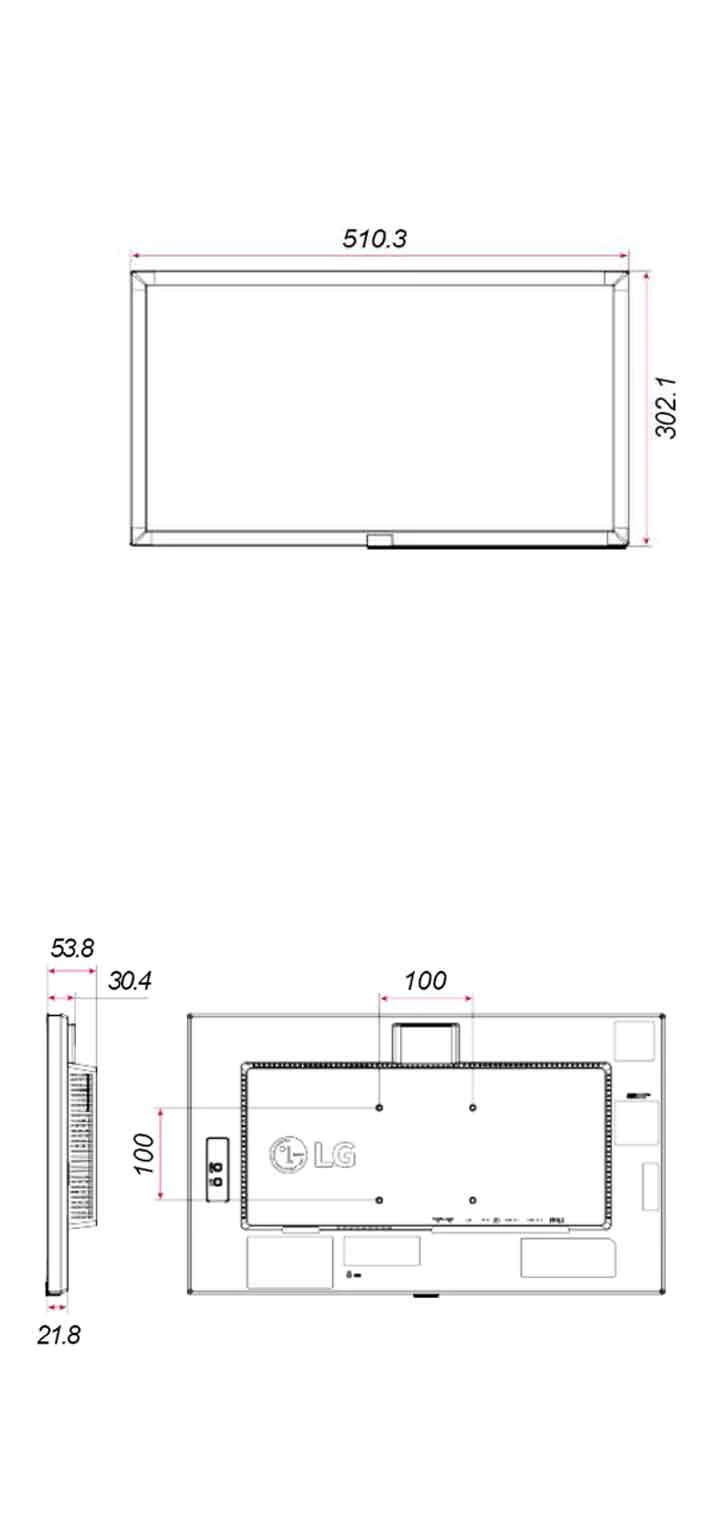

  • Monitor Dimensions (W x H x D)

    510.3 x 302.1 x 53.8mm

  • Monitor Dimension with Stand (W x H x D)

    N/A

  • Carton Dimensions (W x H x D)

    565.0 x 357.0 x 103.0mm

  • Handle

    NO

  • VESA Standard Mount Interface

    100 x 100 mm

FEATURE - HARDWARE

  • Internal Memory (eMMC)

    8GB

  • Wi-Fi/BT (Built-in)

    YES

  • Temperature Sensor

    YES

  • Auto Brightness Sensor

    NO

  • Pixel Sensor

    NO

  • Proximity Sensor

    NO

  • Current Sensor

    NO

  • BLU Sensor

    NO

  • Humidity Sensor

    NO

  • Acceleration(Gyro) Sensor

    NO

  • Power Indicator

    NO

  • Local Key Operation

    YES

  • FAN (Built-in)

    NO

FEATURE - SOFTWARE

  • OS Ver. (webOS)

    webOS 4.1

  • Local Contents Scheduling

    YES

  • Group Manager

    YES

  • USB Plug & Play

    YES

  • Fail over

    YES

  • Booting Logo Image

    YES

  • No Signal Image

    YES

  • RS232C Sync

    NO

  • Local Network Sync

    NO

  • Backlight Sync

    NO

  • PIP

    YES

  • PBP

    YES (2PBP)

  • Screen Share

    YES

  • Video Tag

    YES (2 Video Tag)

  • Play via URL

    YES

  • Screen Rotation

    YES

  • External Input Rotation

    YES

  • Gapless Playback

    YES

  • Tile Mode Setting

    NO

  • Setting Data Cloning

    YES

  • SNMP

    YES

  • ISM Method

    YES

  • Auto Set ID

    NO

  • Status Mailing

    YES

  • Control Manager

    YES

  • Cisco Certification

    NO

  • Crestron Connected

    YES

  • Smart Energy Saving

    YES

  • PM mode

    YES

  • Wake on LAN

    YES

  • Network Ready

    YES

  • Beacon

    YES

  • HDMI-CEC

    YES

  • SI Server Setting

    YES

  • webRTC

    YES

  • Pro:Idiom

    YES

  • Brightness Compensation

    NO

  • W/B Setting by Grey scale

    NO

  • Scan Inversion

    NO

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0 °C to 40 °C

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-in Power

POWER CONSUMPTION

  • Typ.

    30W

  • Max.

    33W

  • BTU (British Thermal Unit)

    103 BTU/Hr(Typ.), 113 BTU/Hr(Max.)

  • Smart Energy Saving (70%)

    15W±5%

  • DPM

    0.5W(WOL Off), 3.2W(WOL On)

  • Power off

    0.5W

SOUND

  • Speaker (Built-in)

    YES (1W x 2)

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE

  • ERP / Energy Star

    NO / NO

  • ePEAT(US only)

    NO

OPS COMPATIBILITY

  • OPS Type compatible

    NO

  • OPS Power Built-in

    NO

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    YES

  • SuperSign Control+

    YES

  • SuperSign WB

    YES

  • SuperSign Cloud

    NO

  • Promota

    NO

  • Mobile CMS

    NO

  • Connected Care

    YES

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, QSG, HDMI Cable, Phone to RS232C Gender, External IR, IR Sheet

  • Optional

    NO

SPECIAL FEATURE

  • Overlay Touch Compatibility

    N/A

  • Smart Calibration

    N/A

  • Tilt (Face up)

    N/A

  • Tilt (Face down)

    N/A

  • IP Rating

    N/A

  • Conformal Coating (Power Board)

    N/A

  • Power Protection

    N/A

  • Direct Sunlight

    N/A

To access more technical documentation and resources, please visit the LG B2B partner portal.
