SM5KD Series

SM5KD Series

Share this content.

You can share the items you like with your friends

SM5KD Series

32SM5KD-B

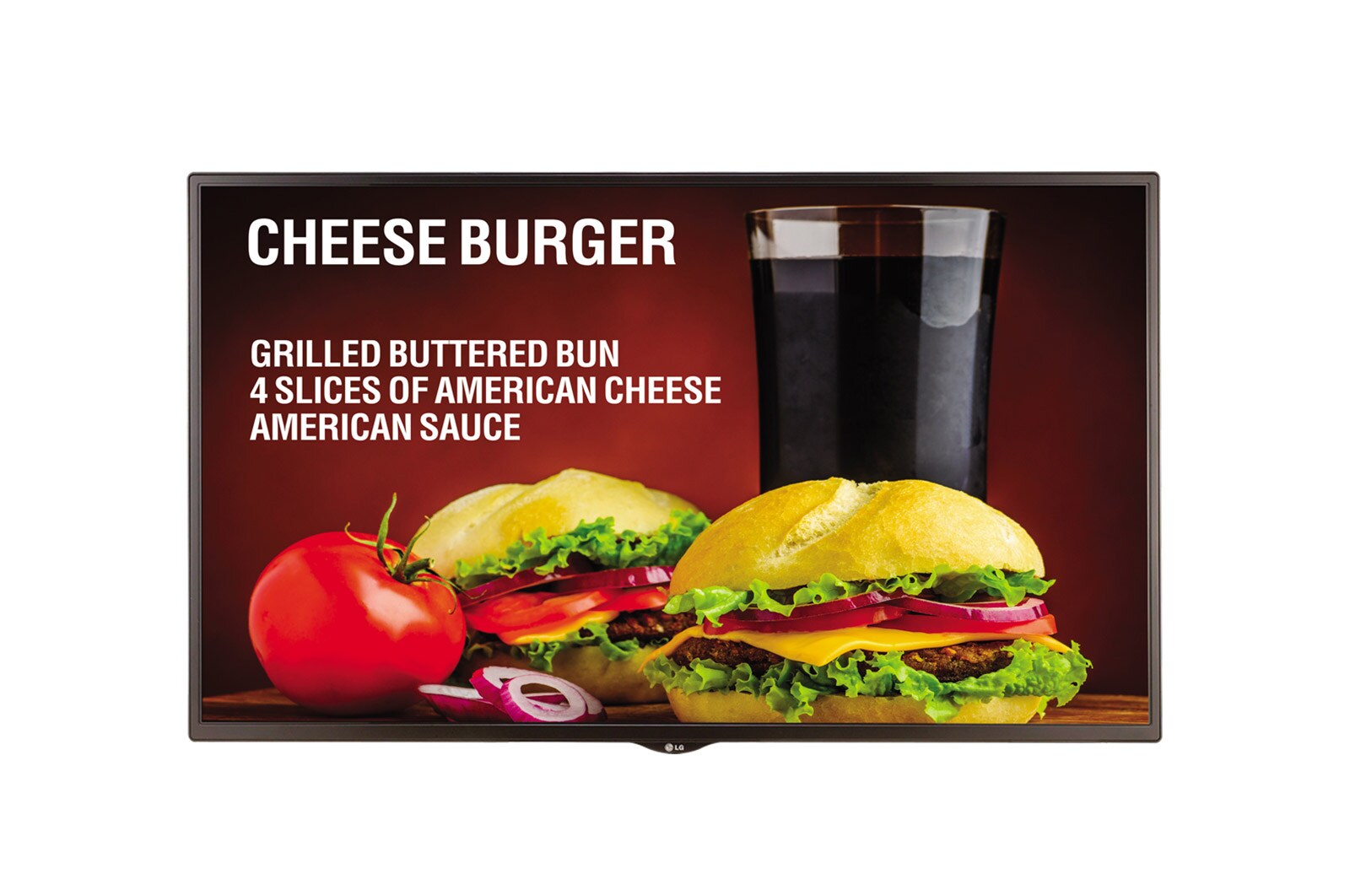

Front view of SM5KD Series 32SM5KD-B

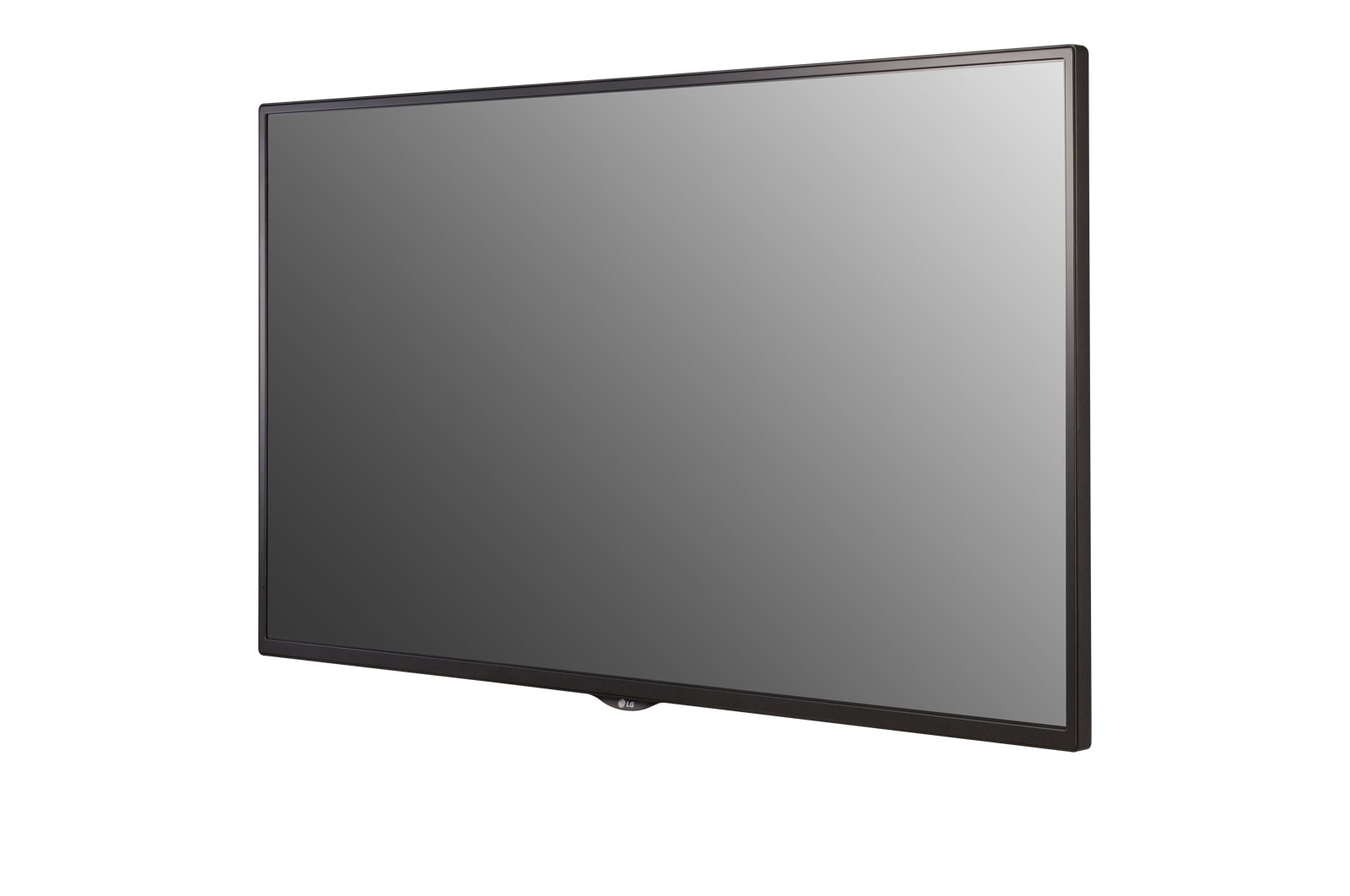

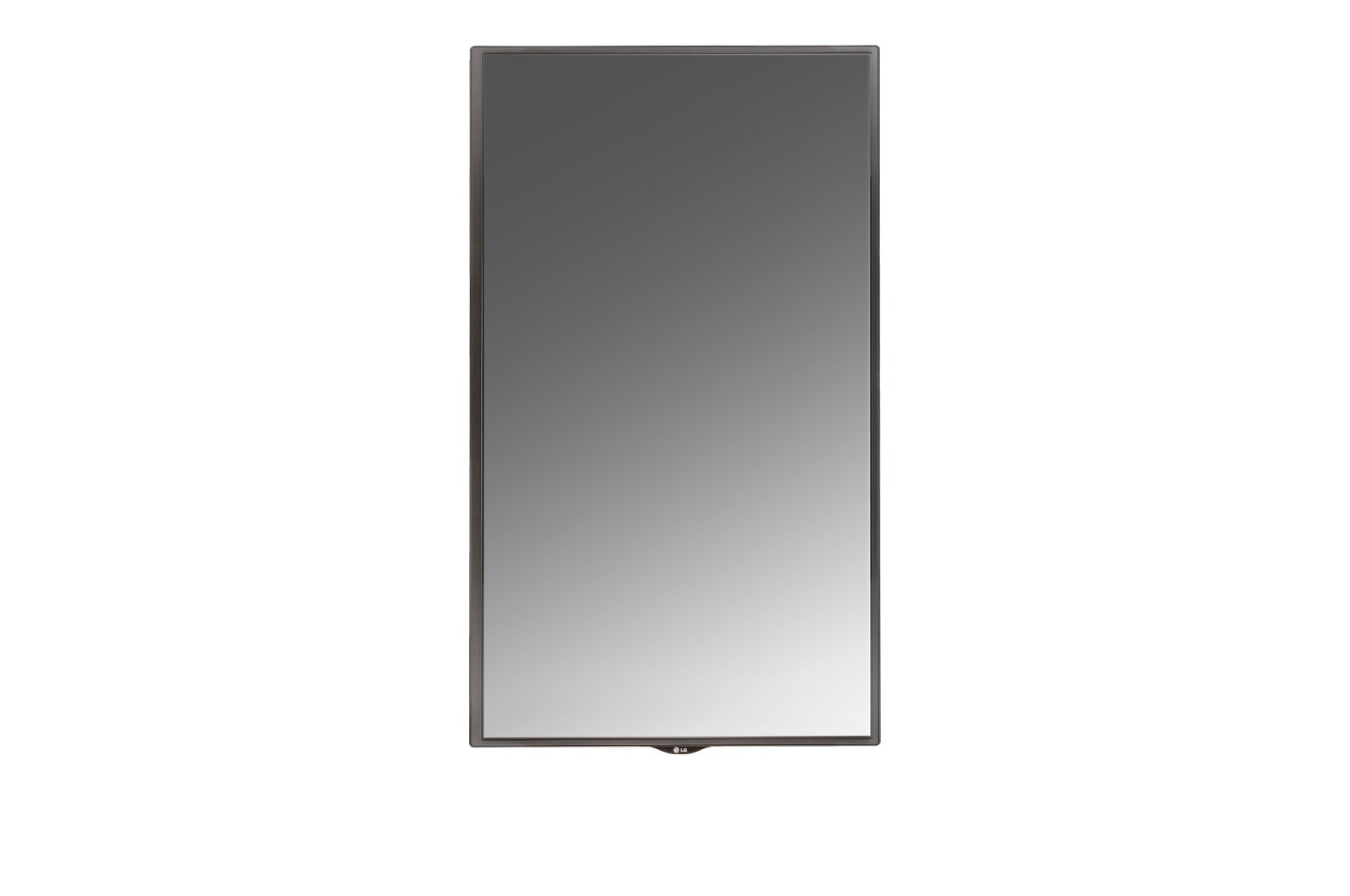

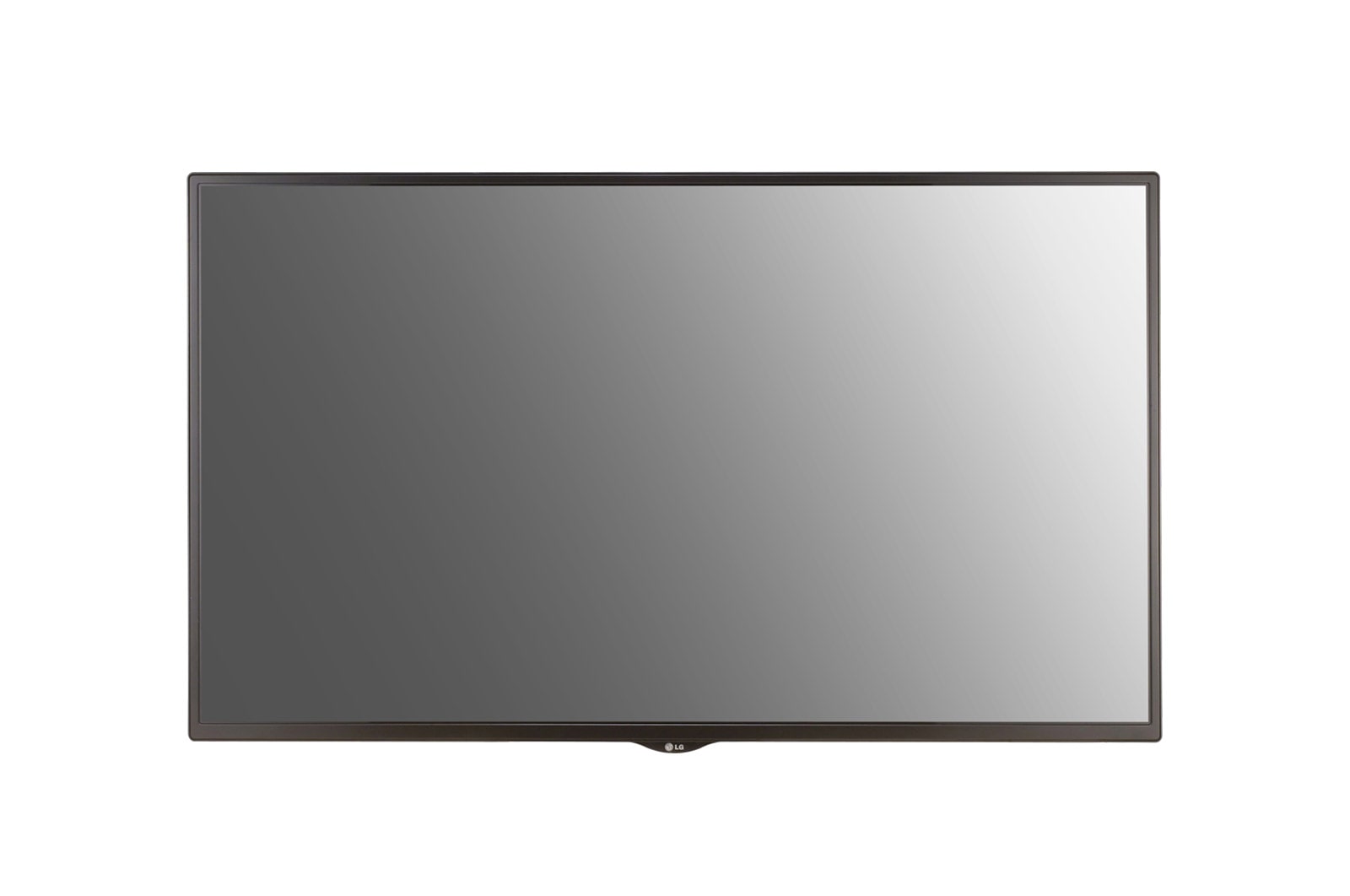

LG SM5KD Series, 32SM5KD-B
LG SM5KD Series, 32SM5KD-B
LG SM5KD Series, 32SM5KD-B
LG SM5KD Series, 32SM5KD-B
LG SM5KD Series, 32SM5KD-B
Front view of SM5KD Series 32SM5KD-B
LG SM5KD Series, 32SM5KD-B
LG SM5KD Series, 32SM5KD-B
LG SM5KD Series, 32SM5KD-B
LG SM5KD Series, 32SM5KD-B
LG SM5KD Series, 32SM5KD-B

Key Features

  • Brightness : 400 cd/m2
  • Bezel : T/L/R 13 mm, B 18.0 mm
  • Depth : 55.5 mm
  • Interface : HDMI(2), DVI, DP, RGB, RJ45, IR, RS232C, USB
  • Built-in Speaker : 10W + 10W
More
Print

All Spec

ACCESSORIES

  • Basic

    Remote Controller (2 ea batteries included), Power Cord, QSG, RGB Cable, Regular Book (depend on regional standard), Phone to RS232C Gender, Memory cover

  • Optional

    SP-5000 (External speaker), KT-OPSA (OPS kits), KT-SP0 (Pixel sensor), Stands(ST-322T), HDBaseT (EBB100), Wall Brackets(LSW230B), Touch Overlay (KT-T320)

CONNECTIVITY

  • Input

    HDMI (2), DP, DVI-D, RGB, Audio, OPS, USB 3.0

  • Output

    DP, Audio

  • External Control

    RS232C in/out, RJ45 in, IR Receiver, Pixel Sensor

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0°C to 40°C

  • Operation Humidity

    10 % to 80 %

MEDIA PLAYER COMPATIBILITY

  • OPS type compatible

    Yes

  • External Media Player Attachable

    No

PANEL

  • Screen Size

    32" (80cm)

  • Panel Technology

    IPS

  • Aspect Ratio

    16:9

  • Native Resolution

    1,920 x 1,080 (FHD)

  • Brightness

    400 cd/m<sup>2</sup>

  • Contrast Ratio

    1,100:1

  • Viewing Angle (H x V)

    178° x 178°

  • Guaranteed Operating Hour

    24 hrs / 7 days

PHYSICAL SPECIFICATION

  • Bezel Width

    13mm (T/R/L), 18mm (B)

  • Monitor Dimension(W x H x D)

    729.4 x 428.9 x 55.5 mm

  • Weight (head)

    5.4 kg

  • Carton Dimensions (W x H x D)

    810 x 510 x 132 mm

  • Packed Weight

    6.7 kg

  • VESA™ Standard Mount Interface

    200mm x 200mm

POWER

  • Power Supply

    100-240V~, 50/60Hz

  • Power Consumption (Typical)

    60W

  • Power Consumption (Smart Energy Saving)

    45W

SOFTWARE COMPATIBILITY

  • SuperSign Premium

    Yes

  • SuperSign C

    Yes

STANDARD(CERTIFICATION)

  • Safety

    AS/NZS 60950, CB Scheme

  • EMC

    AS/NZS CISPR32, RCM (Class A)

  • Energy Rating (EPA)

    Energy Star 7.0

To access more technical documentation and resources, please visit the LG B2B partner portal.
