SM5KD Series

Specs

Support

Resource

SM5KD Series

Share this content.

You can share the items you like with your friends

SM5KD Series

49SM5KD-B
  • Front view of SM5KD Series 49SM5KD-B
  • LG SM5KD Series, 49SM5KD-B
  • LG SM5KD Series, 49SM5KD-B
  • LG SM5KD Series, 49SM5KD-B
  • LG SM5KD Series, 49SM5KD-B
  • LG SM5KD Series, 49SM5KD-B

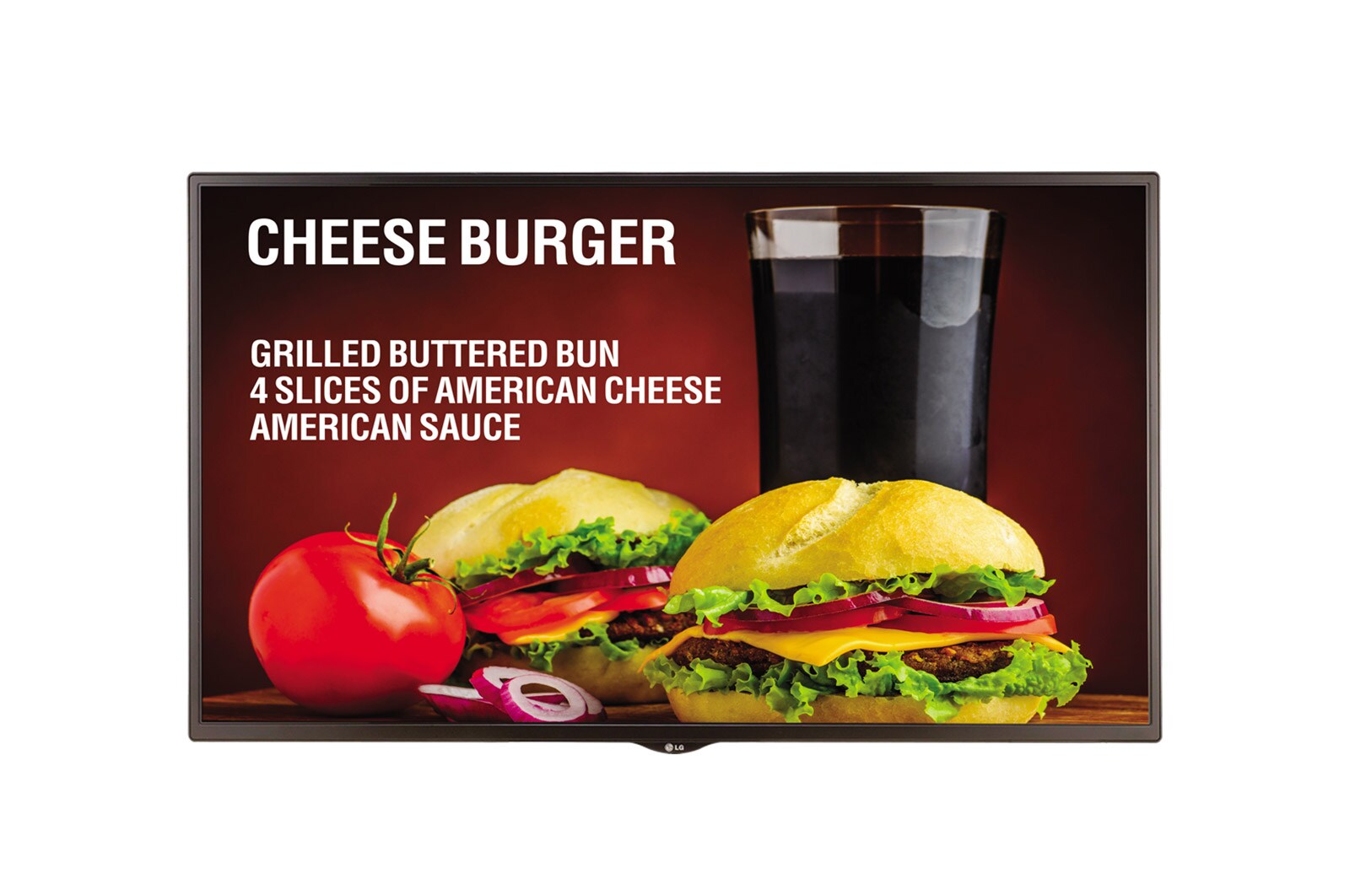

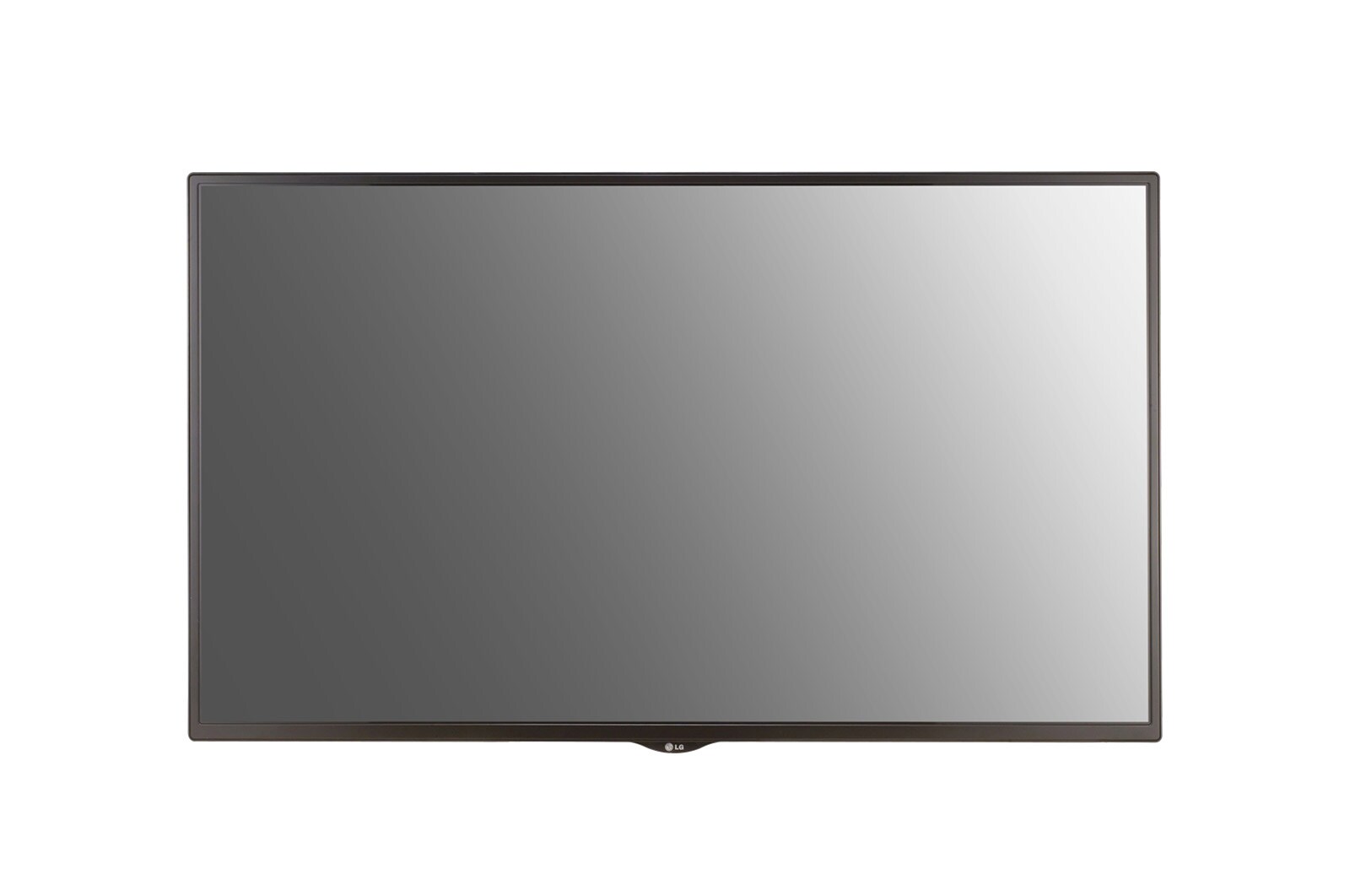

Front view of SM5KD Series 49SM5KD-B

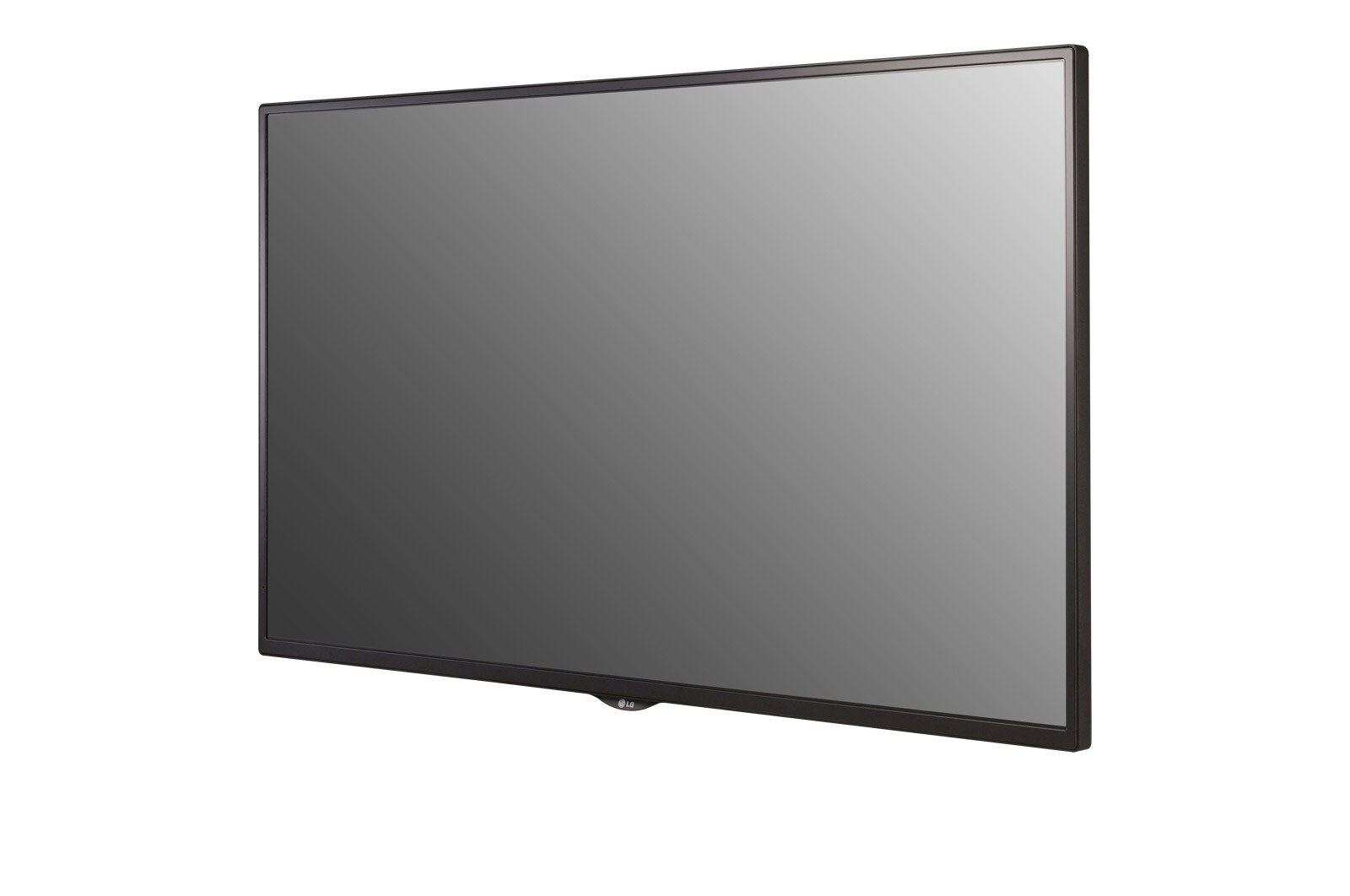

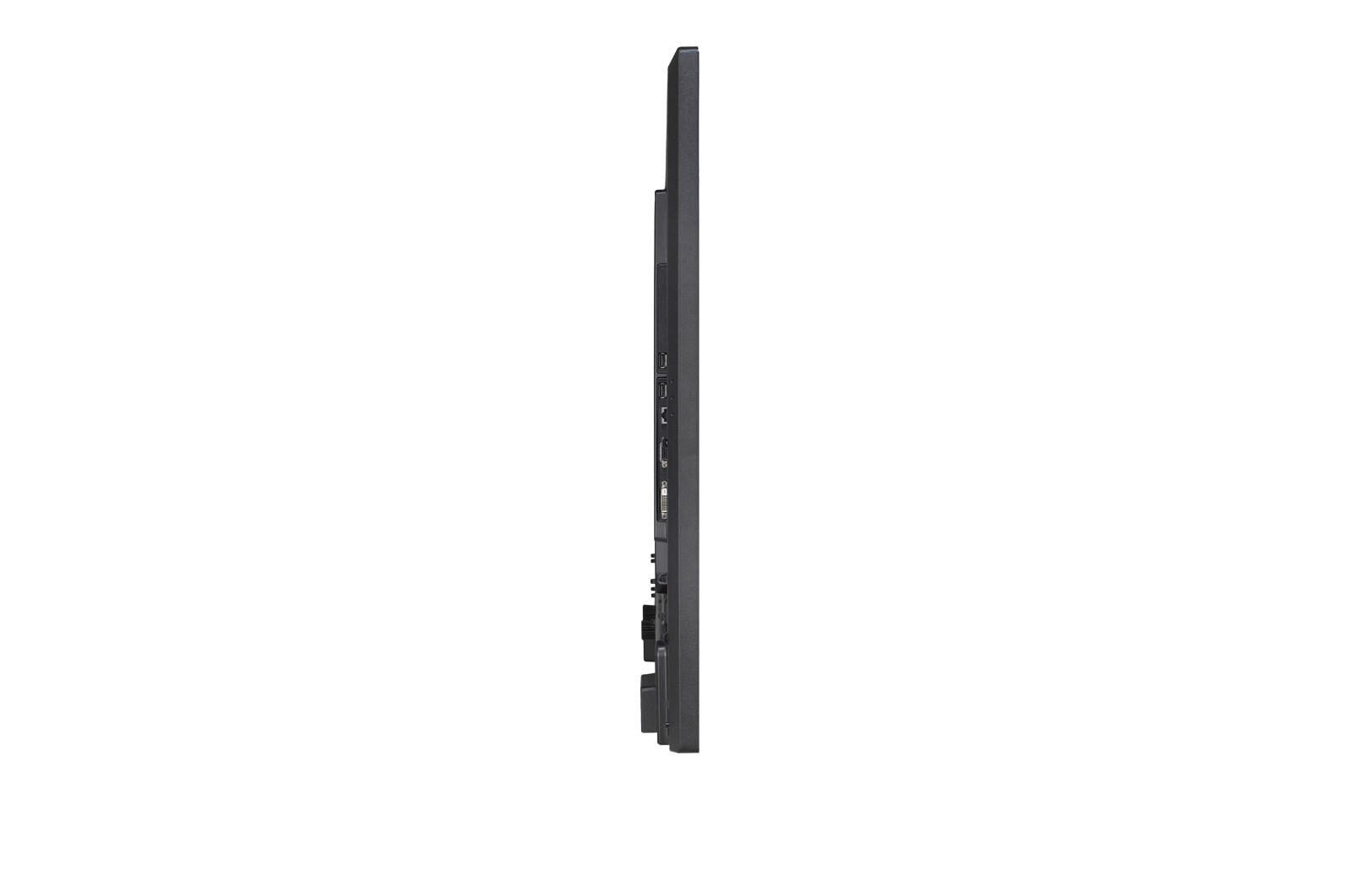

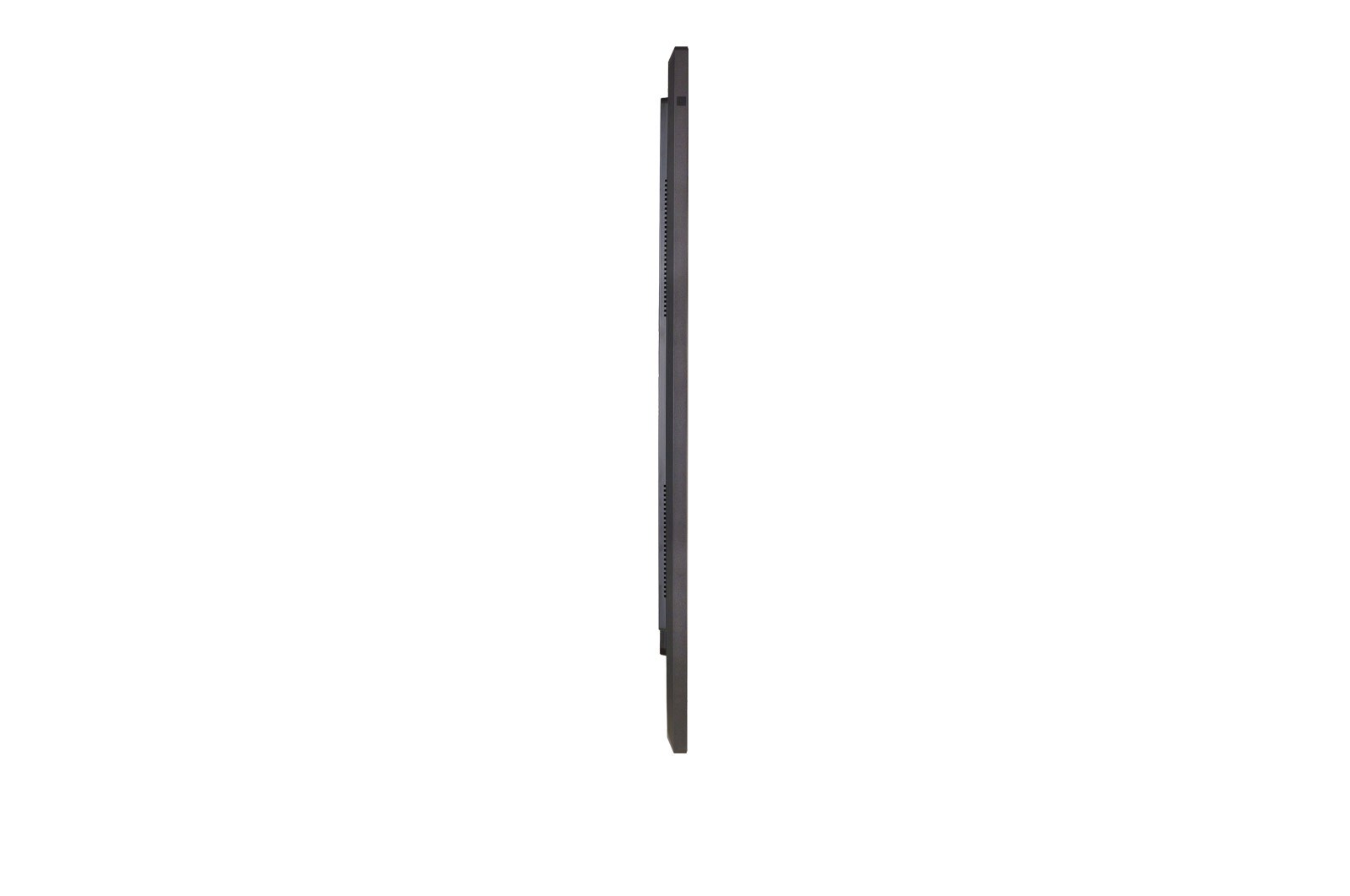

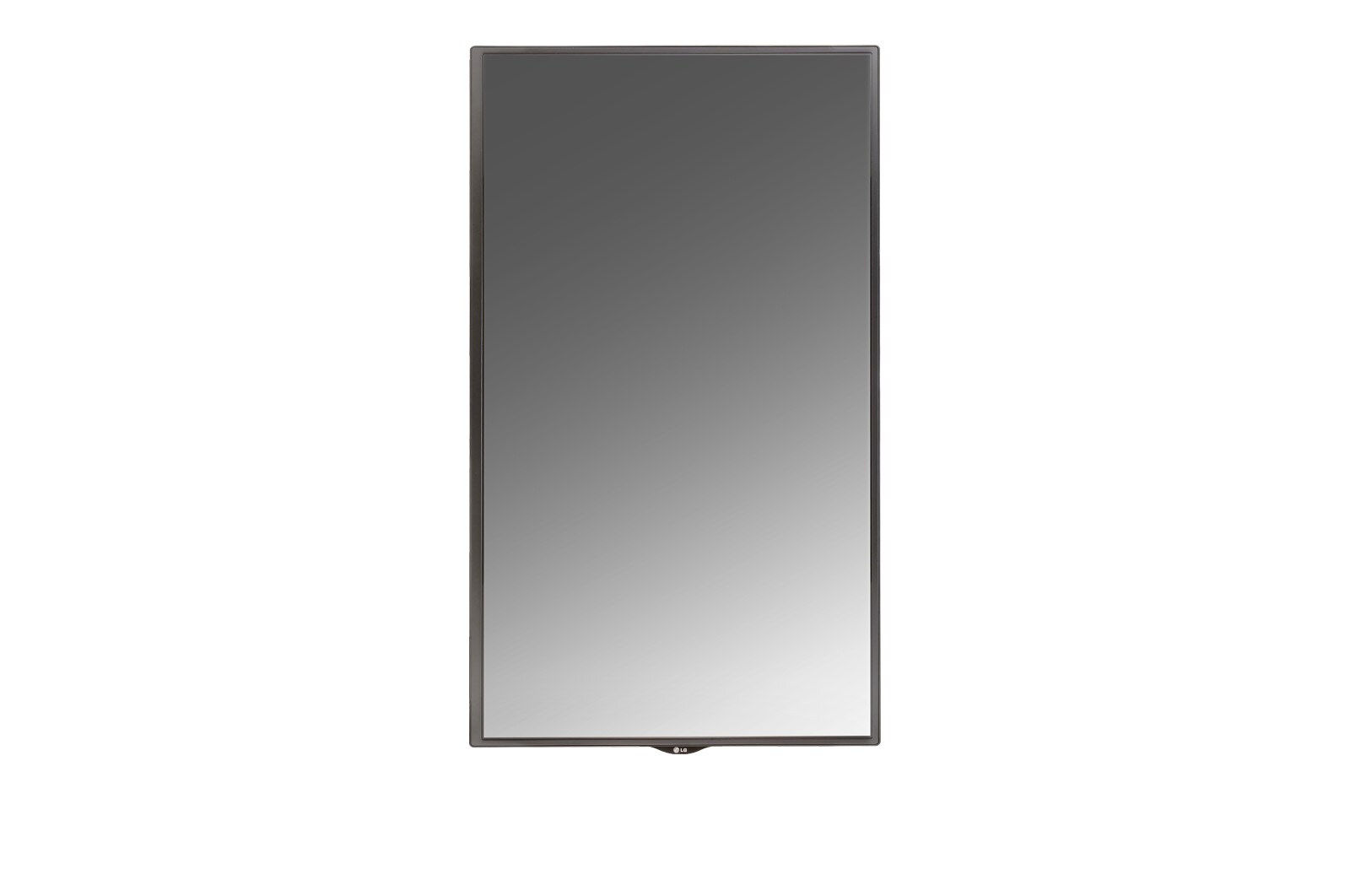

LG SM5KD Series, 49SM5KD-B
LG SM5KD Series, 49SM5KD-B
LG SM5KD Series, 49SM5KD-B
LG SM5KD Series, 49SM5KD-B
LG SM5KD Series, 49SM5KD-B

Key Features

  • Brightness : 450 cd/m2
  • Bezel : T/L/R 11.9 mm, B 18.0 mm
  • Depth : 54 mm
  • Interface : HDMI(2), DVI, DP, RGB, RJ45, IR, RS232C, USB
  • Built-in Speaker : 10W + 10W
More
Print

All Spec

PANEL

  • Screen Size

    49” (123cm)

  • Panel Technology

    IPS

  • Aspect Ratio

    16:9

  • Native Resolution

    1,920 x 1,080 (FHD)

  • Brightness

    450 cd/m2

  • Contrast Ratio

    1,100:1

  • Viewing Angle (H x V)

    178° x 178°

  • Guaranteed Operating Hour

    24 hrs / 7 days

CONNECTIVITY

  • Input

    HDMI (2), DP, DVI-D, RGB, Audio, OPS, USB 3.0

  • Output

    DP, Audio

  • External Control

    RS232C in/out, RJ45 in, IR Receiver, Pixel Sensor

PHYSICAL SPECIFICATION

  • Bezel Width

    11.9mm (T/R/L), 18mm (B)

  • Monitor Dimension(W x H x D)

    1,102.2 x 638.5 x 54 mm

  • Weight (Head)

    14.3 kg

  • Carton Dimensions (W x H x D)

    1,197 x 760 x 166 mm

  • Packed Weight

    17.4 kg

  • VESA™ Standard Mount Interface

    300mm x 300mm

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0°C to 40°C

  • Operation Humidity

    10% to 80%

POWER

  • Power Supply

    100-240V~, 50/60Hz

  • Power Consumption (Typical)

    85W

  • Power Consumption (Smart Energy Saving)

    60W

STANDARD(CERTIFICATION)

  • Safety

    AS/NZS 60950, CB Scheme

  • EMC

    AS/NZS CISPR32, RCM (Class A)

  • Energy Rating (EPA)

    Energy Star 7.0

MEDIA PLAYER COMPATIBILITY

  • OPS type compatible

    Yes

  • External Media Player Attachable

    Yes (MP500/MP700)

SOFTWARE COMPATIBILITY

  • SuperSign Premium

    Yes

  • SuperSign C

    Yes

ACCESSORIES

  • Basic

    Remote Controller (2 ea batteries included), Power Cord, QSG, RGB Cable, Regular Book (depend on regional standard), Phone to RS232C Gender, Memory cover

  • Optional

    SP-5000 (External speaker), KT-OPSA (OPS kits), KT-SP0 (Pixel sensor), Stands (ST-492T), HDBaseT (EBB100), Wall Brackets (LSW350B), VESA Adapter (AM-B330S), Touch Overlay (KT-T490)

To access more technical documentation and resources, please visit the LG B2B partner portal.
