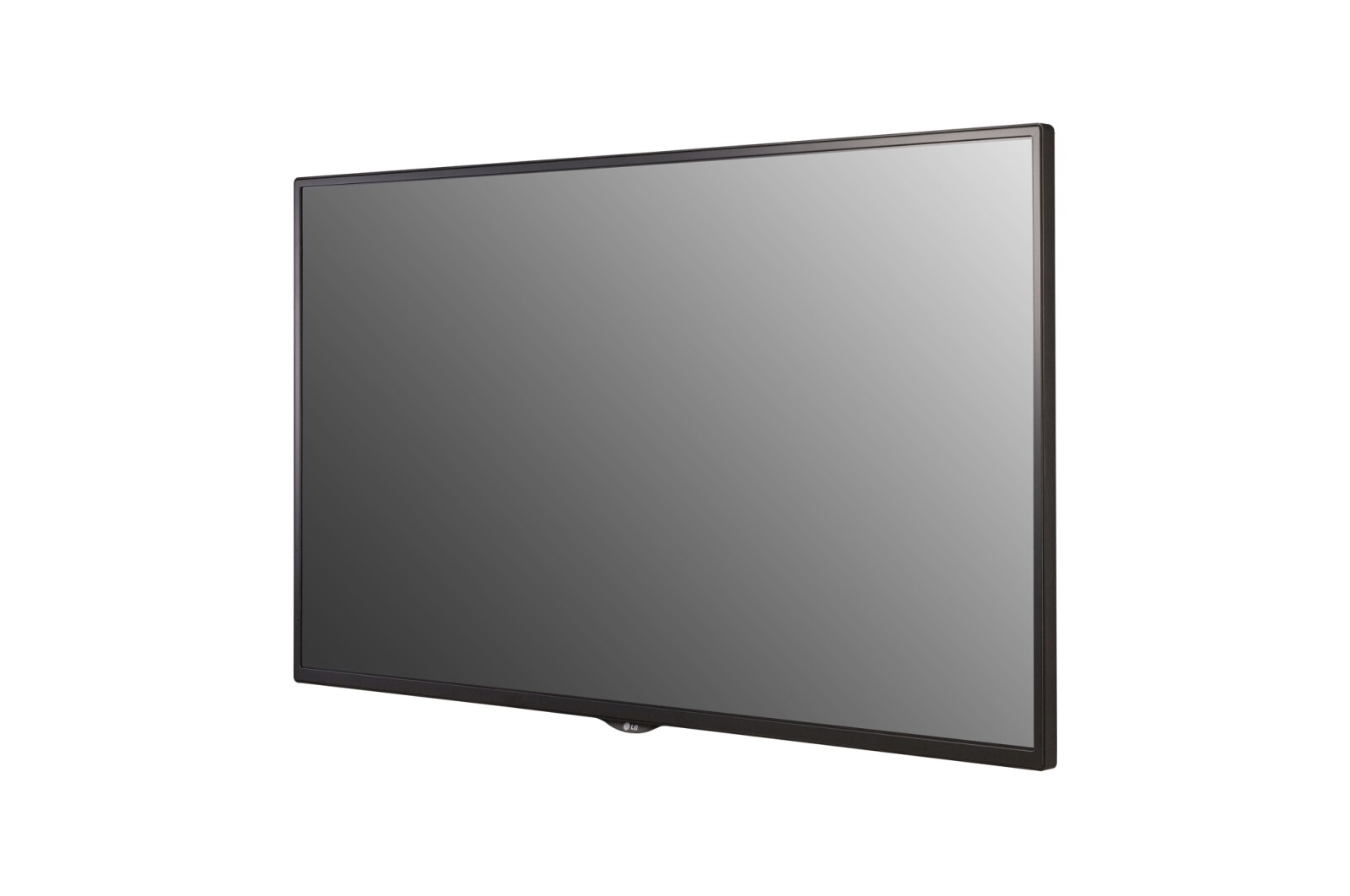

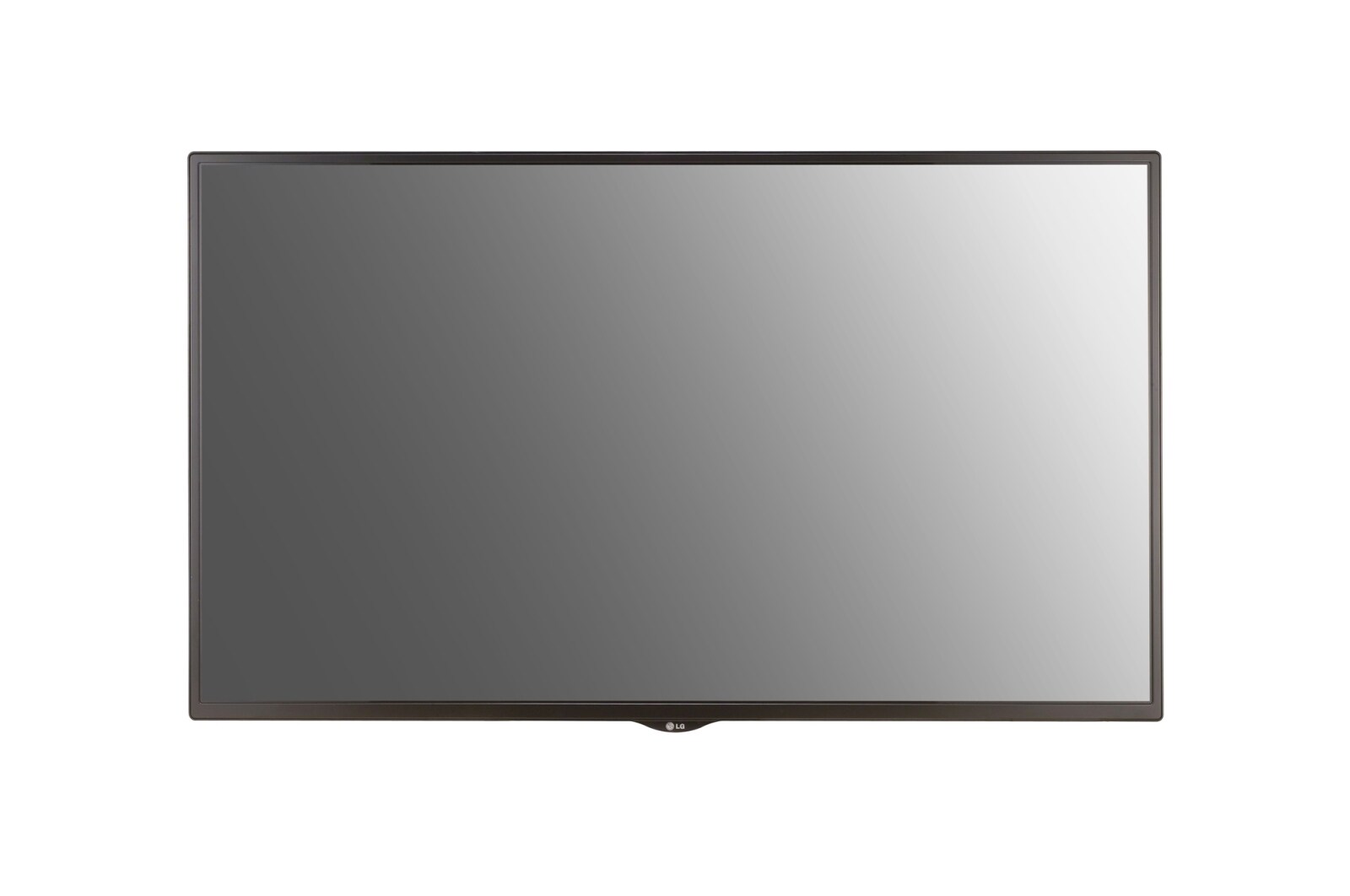

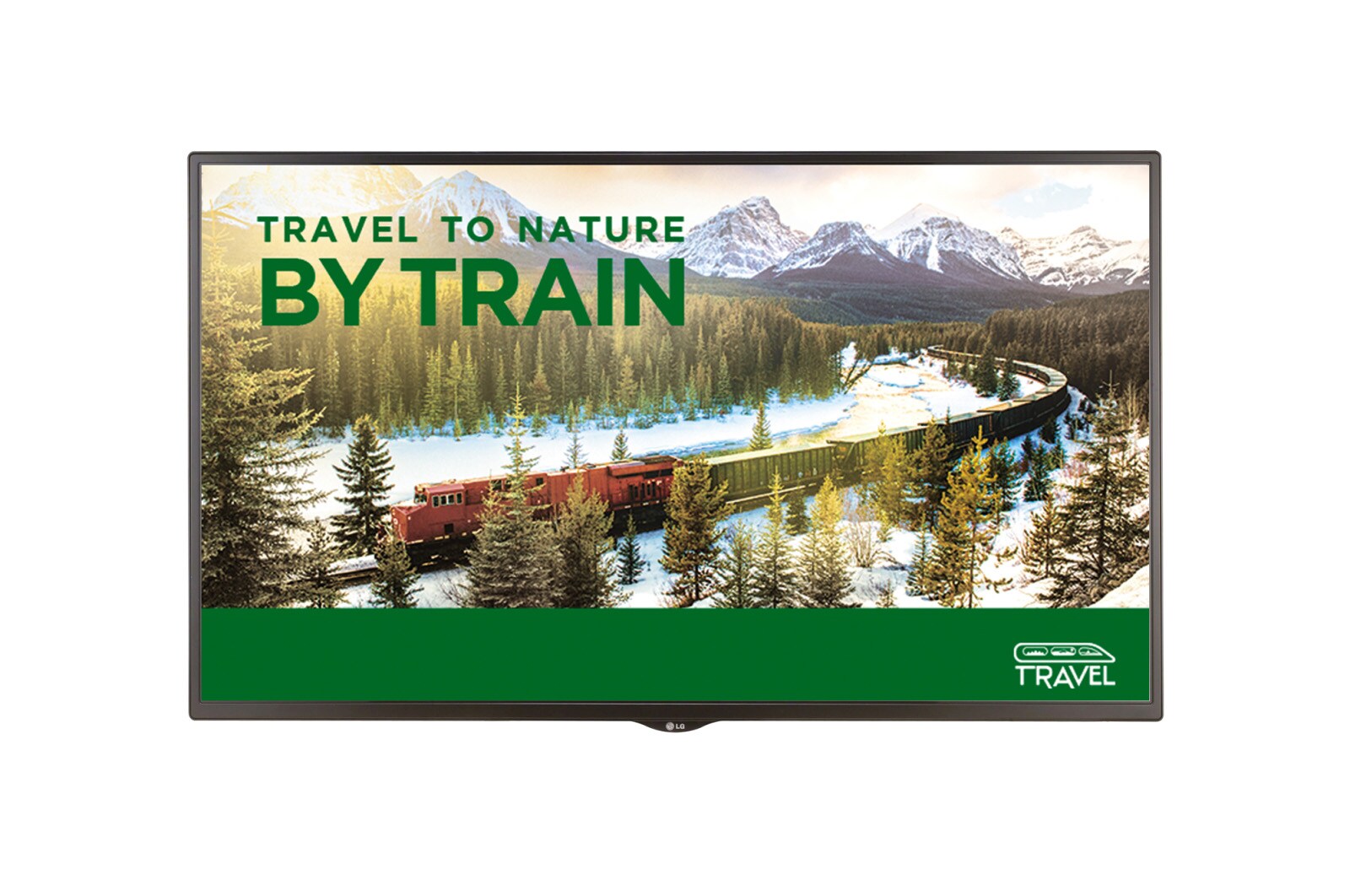

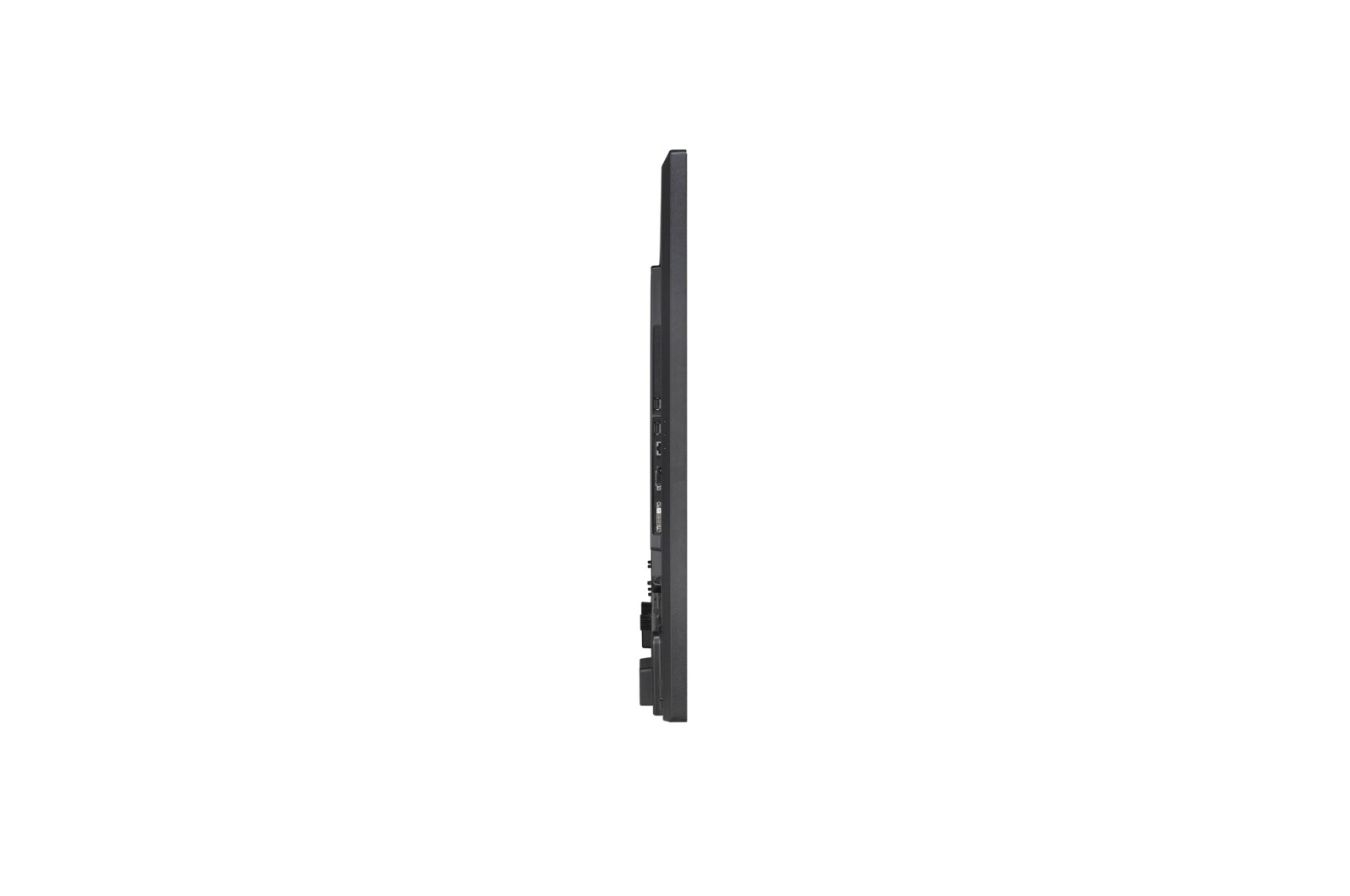

SH7E Series

SH7E Series

All Spec

PANEL

  • Screen Size

    55"(139cm)

  • Panel Technology

    IPS

  • Aspect Ratio

    16 : 9

  • Native Resolution

    1,920 x 1,080 (FHD)

  • Refresh Rate

    60Hz

  • Brightness

    700cd/m²

  • Viewing Angle (H x V)

    178 x 178

  • Surface Treatment (Haze)

    Hard Coating (2H), Anti-glare Low Reflection Treatment of the Front Polariser (Haze 3% (Typ.))

  • Operation Hours

    24 Hrs

  • Orientation

    Landscape & Portrait

CONNECTIVITY

  • Input

    HDMI (3), DP, DVI-D, Audio, USB 3.0

  • Output

    DP (SST),Audio (Off/Fixed/Variable)

  • External Control

    RS232C In/out, RJ45 In, IR In

MECHANICAL SPECIFICATION

  • Bezel Colour

    Black

  • Bezel Width

    11.9 mm (T/R/L), 18 mm (B)

  • Monitor Dimension (W x H x D)

    1,238 x 714.9 x 54 mm

  • Weight (Head)

    17.5 kg

  • Monitor Dimension with Optional Stand

    1,238 x 773.4 x 219.6 mm

  • Weight (Head+Stand)

    20.8 kg

  • Carton Dimensions (W x H x D)

    1,330 x 807 x 170 mm

  • Packed Weight

    21.7 kg

  • VESA™ Standard Mount Interface

    300 x 300 mm

ENVIRONMENTAL CONDITIONS

  • Operation Temperature

    0°C to 40°C

  • Operation Humidity

    10% to 80%

POWER

  • Power Type

    100-240V~, 50/60Hz

  • Power Supply

    Built-In Power

  • Power Consumption-Typ./Max.

    130 W / 150 W

  • Power Consumption-Smart Energy Saving

    91 W

CERTIFICATION

  • Safety

    AS/NZS 60950,CB Scheme

  • EMC

    AS/NZS CISPR32,RCM(Class A)

  • ErP / Energy Star

    Yes / Yes (Energy Star 8.0)

MEDIA PLAYER COMPATIBILITY

  • OPS Type Compatible

    Yes

  • External Media Player Attachable

    Yes

SOFTWARE COMPATIBILITY

  • Content Management Software

    SuperSign CMS

  • Control and Monitoring Software

    SuperSign Control/Control+

ACCESSORIES

  • Basic

    Remote Controller (2 Batteries Included), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender

  • Optional

    Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T55E)

To access more technical documentation and resources, please visit the LG B2B partner portal.
