UH5F Series

Specs

Support

Resource

UH5F Series

Share this content.

You can share the items you like with your friends

UH5F Series

55UH5F-B
  • Front view of UH5F Series 55UH5F-B
  • LG UH5F Series, 55UH5F-B
  • LG UH5F Series, 55UH5F-B
  • LG UH5F Series, 55UH5F-B
  • LG UH5F Series, 55UH5F-B
  • LG UH5F Series, 55UH5F-B
  • LG UH5F Series, 55UH5F-B
  • LG UH5F Series, 55UH5F-B

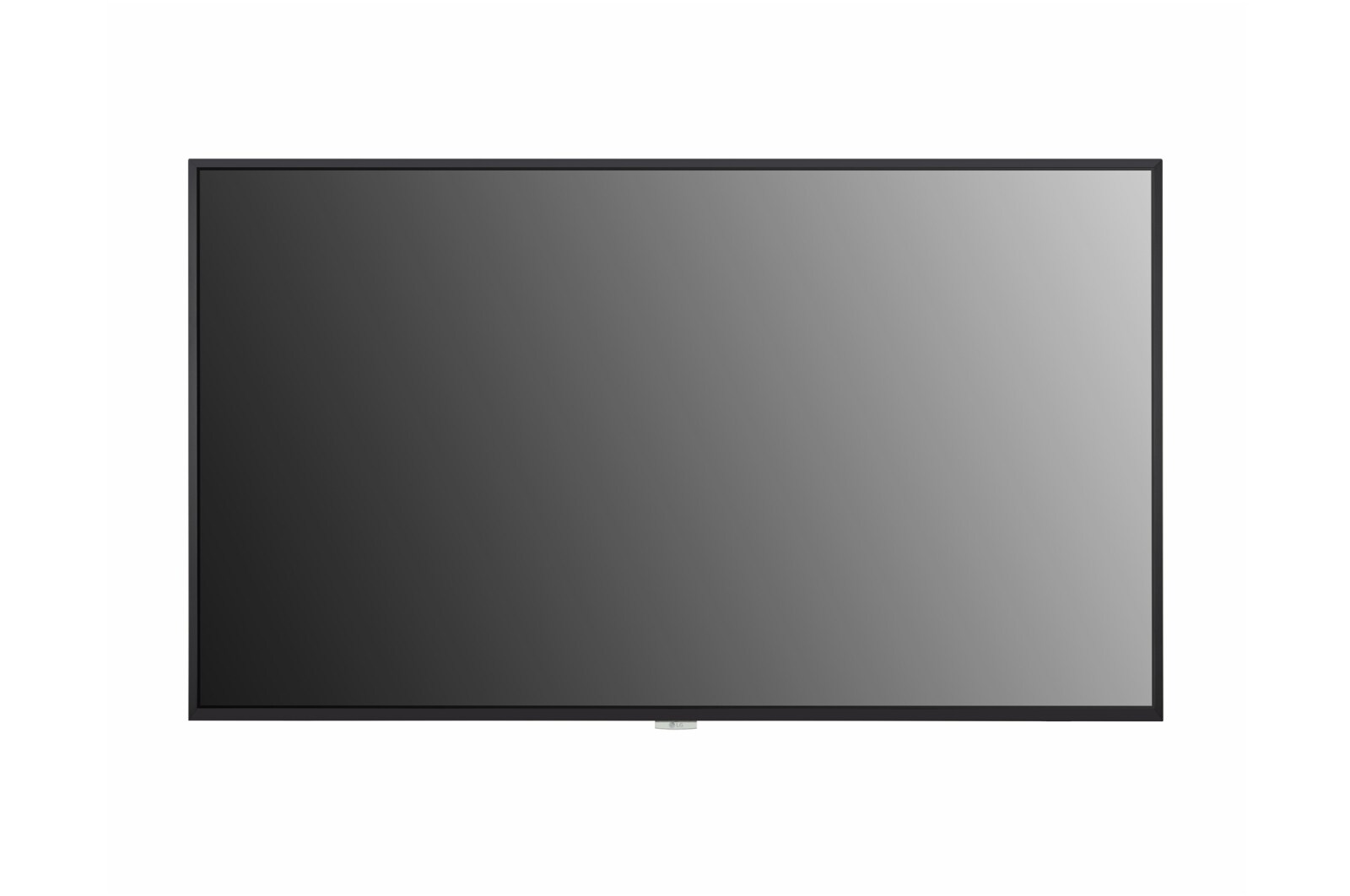

Front view of UH5F Series 55UH5F-B
LG UH5F Series, 55UH5F-B
LG UH5F Series, 55UH5F-B
LG UH5F Series, 55UH5F-B
LG UH5F Series, 55UH5F-B
LG UH5F Series, 55UH5F-B
LG UH5F Series, 55UH5F-B
LG UH5F Series, 55UH5F-B

Key Features

  • Brightness(Typ.) : 500 cd/m²
  • Bezel : 9.9 mm (T/R/L), 14.4 mm (B)
  • Depth : 39.9 mm
  • Interface : HDMI(3)/DP/DVI-D/USB 2.0/ RS232C/ RJ45/ Audio/ IR
  • Built-in Speaker and Detachable Logo
  • 30º Tilting Installation
More
Print

All Spec

PANEL

  • Screen Size

    55"

  • Panel Technology

    IPS

  • Aspect Ratio

    16 : 9

  • Native Resolution

    3,840 x 2,160 (UHD)

  • Brightness (Typ.)

    500 cd/㎡

  • Viewing Angle (H × V)

    178 × 178

  • Surface Treatment

    Haze 3%

  • Lifetime (Typ.)

    50,000 Hrs

  • Operation Hours

    24Hrs

  • Orientation

    Landscape & Portrait

CONNECTIVITY

  • Input

    HDMI (3), DP, DVI-D, Audio, USB (2)

  • Output

    DP, Audio (Off/Fixed/Variable), Built-In Speakers

  • External Control

    RS232C In/out, RJ45 (LAN) In, IR In

PHYSICAL SPECIFICATION

  • Bezel Colour

    Black

  • Bezel Width

    9.9 mm (T/R/L), 14.4 mm (B)

  • Monitor Dimension (W × H × D)

    1,234.4 × 720.9 × 39.9 mm

  • Weight (Head)

    19.0 kg

  • VESA Standard Mount Interface

    300 x 300 mm

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0°C to 40°C

  • Operation Humidity

    10% to 80%

POWER

  • Power Supply

    100-240V~, 50/60Hz

  • Power Type

    Built-In Power

  • Power Consumption - Typ.

    105 W

  • Power Consumption - Smart Energy Saving

    80 W

STANDARD(CERTIFICATION)

  • Safety

    AS/NZS 60950,CB Scheme

  • EMC

    AS/NZS CISPR32,RCM(Class A)

  • Energy Rating

    Yes (Energy Star 7.0)

MEDIA PLAYER COMPATIBILITY

  • OPS Type Compatible

    Yes

  • External Media Player Attachable

    Yes

To access more technical documentation and resources, please visit the LG B2B partner portal.
