UH5F Series

Specs

Support

Resource

UH5F Series

Share this content.

You can share the items you like with your friends

UH5F Series

98UH5F-B

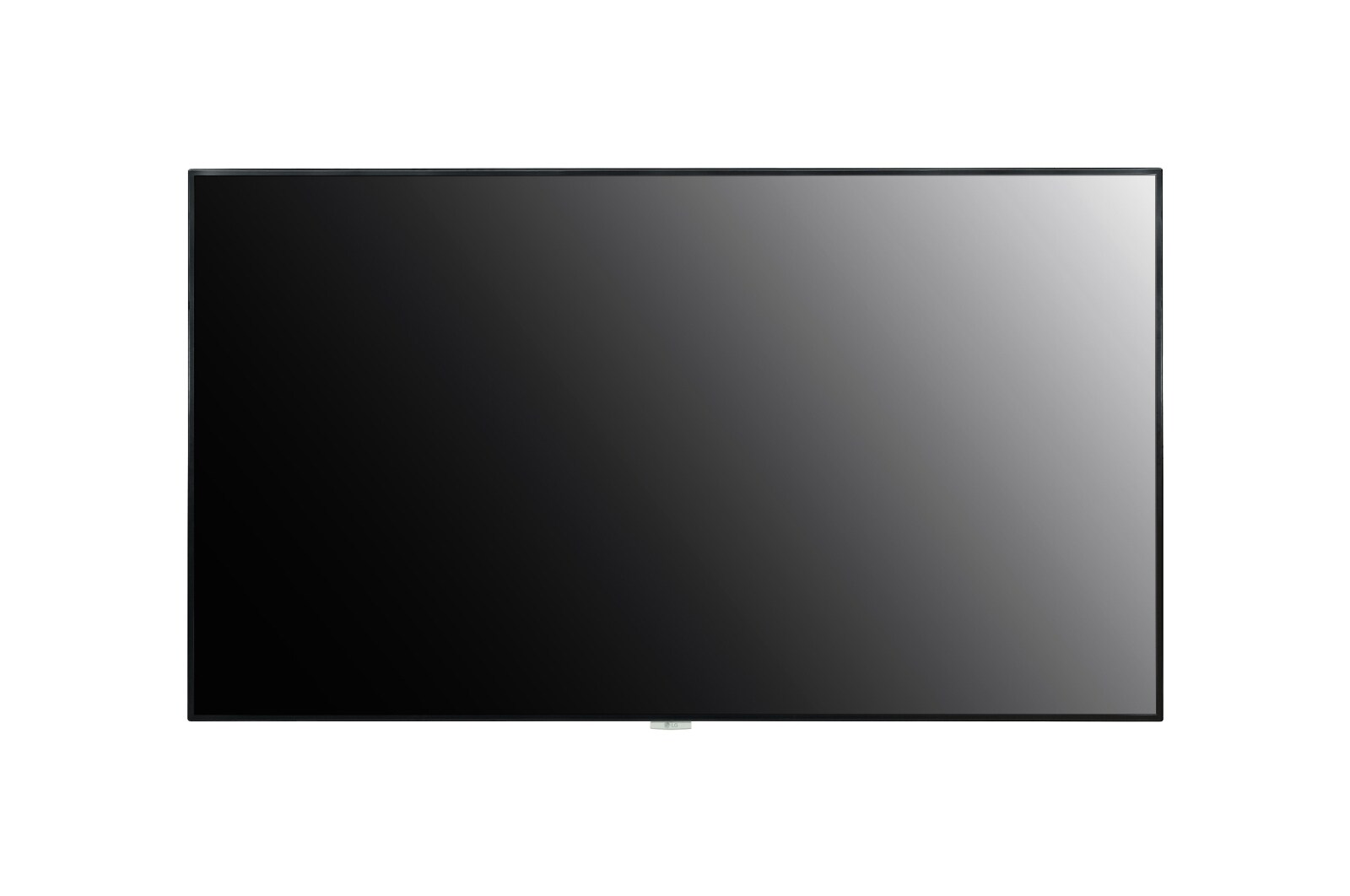

  • Front view of UH5F Series 98UH5F-B
  • LG UH5F Series, 98UH5F-B
  • LG UH5F Series, 98UH5F-B
  • LG UH5F Series, 98UH5F-B
  • LG UH5F Series, 98UH5F-B
  • LG UH5F Series, 98UH5F-B
  • LG UH5F Series, 98UH5F-B
  • LG UH5F Series, 98UH5F-B
Front view of UH5F Series 98UH5F-B
LG UH5F Series, 98UH5F-B
LG UH5F Series, 98UH5F-B
LG UH5F Series, 98UH5F-B
LG UH5F Series, 98UH5F-B
LG UH5F Series, 98UH5F-B
LG UH5F Series, 98UH5F-B
LG UH5F Series, 98UH5F-B

Key Features

  • Brightness(Typ.) : 500 cd/m²
  • Bezel : 14.9 mm (Even, Off-Bezel)
  • Depth : 83.8 mm (without Handle)
  • Interface : HDMI(3)/ DP/ DVI-D/ USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
  • Built-in Speaker and Detachable Logo
More
Print

All Spec

PANEL

  • Screen Size

    98" (248cm)

  • Panel Technology

    IPS

  • Aspect Ratio

    16:9

  • Native Resolution

    3,840 x 2,160 (UHD)

  • Refresh Rate

    120 Hz

  • Brightness (Typ.)

    500 cd/m²

  • Contrast Ratio

    1,300:1

  • Viewing Angle (H x V)

    178 x 178

  • Response Time

    8ms (G to G)

  • Surface Treatment(Haze)

    Haze 1%

  • Life Time (Typ.)

    50,000 Hrs

  • Operation Hours

    24Hrs

  • Orientation

    Portrait & Landscape

CONNECTIVITY

  • Input

    HDMI (3), DP , DVI-D, Audio, USB 2.0 (2)

  • Output

    DP, Audio (Off/Fixed/ Variable)

  • External Control

    RS232C In/out (4 Pin Phone-Jack), RJ45 (LAN) In, IR In

MECHANICAL SPECIFICATION

  • Bezel Colour

    Black

  • Bezel Width

    14.9 mm (Even) * Of f-Bezel

  • Monitor Dimension (W x H x D)

    2,191.8 x 1,246.8 x 83.8 mm (without Handle, with LG logo)

  • Weight (Head)

    81.1 kg

  • Carton Dimensions (W x H x D)

    2,362 x 1,386 x 420 mm

  • Packed Weight

    119 kg

  • Handle

    Yes

  • VESA™ Standard Mount Interface

    800 x 400 mm

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0°C to 40°C

  • Operation Humidity

    10% to 80%

POWER

  • Power Supply

    100-240V~, 50/60Hz

  • Power Type

    Built -In Power

  • Power Consumption - Typ. / Max.

    420 W / 560 W

  • Power Consumption - Smart Energy Saving

    294 W

SOUND

  • Speaker

    Built -in (10W×2)

CERTIFICATION

  • Safety

    AS/NZS 60950.1,CB Scheme

  • EMC

    AS/NZS CISPR32,RCM(Class A)

  • ErP / Energy Star

    Yes (EU Only) / N/A

MEDIA PLAYER COMPATIBILITY

  • External Media Player Attachable

    Yes

SOFTWARE COMPATIBILITY

  • Content Management Software

    SuperSign CMS

  • Control and Monitoring Software

    SuperSign Control/Control+

  • Signage365Care

    Yes

ACCESSORIES

  • Basic

    Remote Controller, Power Cord, QSG, IR/Light Sensor Receiver, DP Cable (1.8M), Regulation Book, Phone to RS232C Gender , Eye-bolt

To access more technical documentation and resources, please visit the LG B2B partner portal.
