Narrow Bezel Video Wall 49VL5B

Specs

Support

Resource

Narrow Bezel Video Wall 49VL5B

Share this content.

You can share the items you like with your friends

Narrow Bezel Video Wall 49VL5B

49VL5B
  • Front view of Narrow Bezel Video Wall 49VL5B 49VL5B
  • LG Narrow Bezel Video Wall 49VL5B, 49VL5B

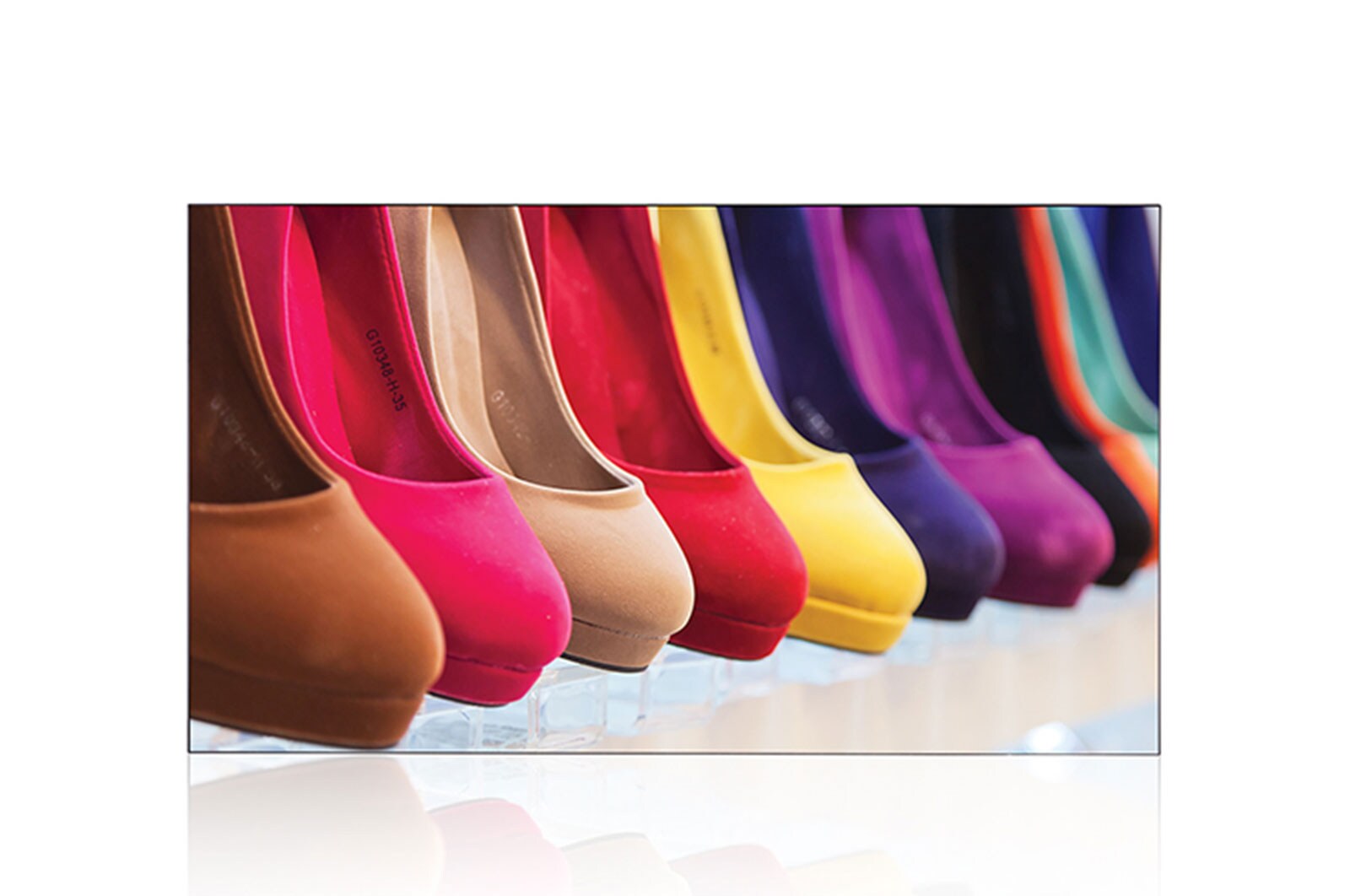

Front view of Narrow Bezel Video Wall 49VL5B 49VL5B
LG Narrow Bezel Video Wall 49VL5B, 49VL5B

Key Features

  • Narrow Bezel
  • Wide Viewing Angle
  • Minimised Image Distortion from Touch Pressure
  • SuperSign W for Content Management
More
Print

All Spec

PANEL

  • Screen Size

    49" (123cm)

  • Panel Technology

    IPS

  • Aspect Ratio

    16 : 9

  • Native Resolution

    1,920 x 1,080 (FHD)

  • Brightness

    450cd/m²

  • Contrast Ratio

    1,300 : 1

  • Viewing Angle (H x V)

    178 x 178

  • Surface Treatment

    Hard coating (3H), Anti-glare treatment of the front polarizer (Haze 10%)

  • Life Time

    50,000 Hrs

  • Orientation

    Portrait & Landscape

  • Response Time

    8ms (G to G)

CONNECTIVITY

  • Input

    HDMI, DVI-D, RGB

  • Output

    DVI-D

  • External Control

    RS232C (In/Out), RJ45, IR Receiver, USB

PHYSICAL SPECIFICATION

  • Bezel Colour

    Black

  • Bezel Width

    2.3mm (Left/Top), 1.2mm (Right/Bottom)

  • Monitor Dimension (W x H x D)

    1,078 x 608 x 90 mm

  • Weight (head)

    17.8kg

  • Carton Dimensions (W x H x D)

    1,214 x 778 x 263 mm

  • Packed Weight

    22.8kg

  • VESA TM Standard Mount Interface

    600 x 400 mm

SPECIAL FEATURES

  • Additional

    Temperature Sensor, Tile Mode (Up to 15x15), Natural Mode@Tile Mode, Energy Saving, Smart Energy Saving, File Play with USB

ENVIRONMENT CONDITIONS

  • Operating Temperature Range

    0 °C to 40 °C

  • Operating Humidity Range

    10% to 80%

POWER

  • Power Supply

    100-240V-, 50/60Hz

  • Power Type

    Built-in Power

  • Power Consumption (Typ. / Max.)

    90W

  • Power Consumption (Smart Energy Saving)

    40W

STANDARD(CERTIFICATION)

  • Safety

    AS/NZS 60950, CB Scheme

  • EMC

    AS/NZS CISPR, RCM (Class A)

  • Energy Rating

    N/A

MEDIA PLAYER COMPATIBILITY

  • Slot PC Compatible (optional)

    No

  • External Media Player Attachable

    Yes

SOFTWARE COMPATIBILITY

  • SuperSign-W/Lite

    Yes

  • SuperSign-C

    Yes

ACCESSORY

  • Accessory

    Remote Controller, Power Cable, DP Cable, Manual, IR Receiver, RS-232C Cable, LAN Cable, Guide Bracket, Screw

  • Optional

    Wall Mount (Landscape : WM-L640V, Portrait : WM-P640V)
