55" 700 nits FHD Slim Bezel Video Wall

55VH7J-H

Key Features

Brightness(Typ.) : 700 nit
Bezel : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm (T/L), 0.44mm (B/R)
Depth : 86.9 mm
Interface : HDMI/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR

A large video wall is installed in the conference room and a man is holding the conference in front of many people.

Seamless Large Screens with Extreme-Narrow Bezel

The ultra slim bezel, with its 1.74mm BtoB (Panel Bezel to Panel Bezel), drastically reduces bezel interference and delivers immersive and seamless content on assembled video wall screens.

*The image is simulated to enhance feature understanding. It may differ from actual use.

Image Gap Reduction

The VH7J-H includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a near seamless viewing experience.

VH7J-H consists of less image gaps between the tiled screens compared to the LG Conventional. This improves the viewing experience of the displayed content as it minimizes the visual disturbance by the gaps.

* The image shown above are for illustration purposes only.

A woman looks up the screen installed upstairs, and the color is vividly displayed without any distortion.

High Viewing Angle

When a large video is positioned higher than human eye level, the VH7J-H series offers a viewing angle that allows for vivid colour display and helping give a uniform picture across the screen.

Wider Viewing Angle

LG IPS panels allow you to enjoy great picture quality with minimal variation from wide viewing angles. Featuring excellent consistency in colours temperature and less change in contrast, LG IPS panels boast excellent image reproduction.

User Convenience Easy Colour Adjustment

Depending on the content, the colour temperature of the screen can be easily adjusted by users with a remote control.

White Balance Adjustment

In previous LG video walls, white balance was adjustable only in “full-white” mode, but the VH7J-H series allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

High Performance and Great Scalability

Thanks to its built-in SoC and webOS smart signage platform, the VM5J-H can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Software Development Kit), it is even easier for SIs to build and optimise their web apps.

* SDK can be downloaded with the link below. (https://webossignage.developer.lge.com)

One side of the video wall is live streaming a soccer game, while the other side of the screen is utilizing CSS effects to add more content.

Flexible Content Creation

Four different videos can be played simultaneously via web apps, and various animation effects, such as scaling or rotating, are added to content using CSS (Cascading Style Sheets) transition effects. Real-time streaming is also available, providing the flexibility to organise and diversify content free from capacity limits.

* Supported protocols : RTSP, RTP, HLS, UDP Multicast

Several tasks could be accomplished simultaneously with the intuitive GUI.

User-Friendly Smart Signage UXIntuitive Menu Structure

The menu structure has been optimised for commercial use. It simplifies the user experience and groups similar functions together, allowing for a more intuitive GUI.

The menu screen consists of both Landscape and Portrait options.

User Convenience Intuitive GUI

Whilst many displays have a GUI based on landscape-oriented TV usage, the GUI of the VM5J-H series is designed so that users can also install screens in a portrait orientation and maintain the user-friendly experience.

Conformal Coating

Video walls can be exposed to environmental factors such as salt, dust and humidity. The conformal coating on the circuit board can help reduce the risks associated with this exposure.

* Actual images (Signage display) available may differ from the example images shown

The LG employee is remotely monitoring the VH7J-H installed in a different place by using cloud-based LG monitoring solution.

Real-Time LG ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.

*LG ConnectedCare' needs to be purchased separately.

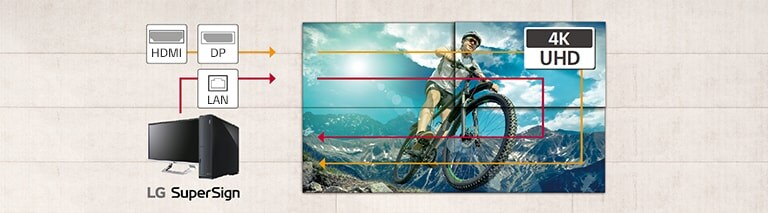

Multiple displays are being managed simultaneously through the LAN daisy chain. The UHD daisy chain utilizing HDMI and DisplayPort allows easy access to adjusting UHD settings.

* Panel itself supports 4K UHD.

Daisy Chain Capability

A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST.

Brightness(Typ.) : 700 nit
Bezel : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm (T/L), 0.44mm (B/R)
Depth : 86.9 mm
Interface : HDMI/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR

All Spec

PANEL

Screen Size (Inch)
55
Panel Technology
IPS
Back Light Type
Direct
Aspect Ratio
16:9
Native Resolution
1920 x 1080 (FHD)
Refresh Rate
60Hz
Brightness
700nit (Typ.)
Contrast Ratio
1,000:1
Dynamic CR
500,000:1
Color Gamut
NTSC 72%
Viewing Angle (H x V)
178º x 178º
Color Depth (Number of Colors)
1.07 Billion colors
Response Time
8ms (G to G)
Surface Treatment (Haze)
Haze 28%
Life time
60,000Hrs (Typ.)
Operation Hours (Hours/Day)
24/7
Portait / Landscape
YES / YES
Transparency
N/A
QWP (Quarter Wave Plate)
N/A

CONNECTIVITY

HDMI In
YES (2ea)
HDMI In (HDCP Ver.)
2.2
DP In
YES (HDCP 2.2)
DVI-D In
YES (HDCP 1.4)
RGB In
NO
Audio In
YES
RS232C In
YES
RJ45(LAN) In
YES (1ea)
IR In
YES
USB In
USB2.0 Type A (1ea)
HDMI Out
NO
DP Out
YES
Audio Out
YES
Touch USB
NO
External Speaker Out
NO
RS232C Out
YES
RJ45(LAN) Out
YES
IR Out
NO
Daisy Chain
Input : HDMI, DP, DVI-D / Output : DP

MECHANICAL SPECIFICATION

Bezel Color
Black
Bezel Width
B2B : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm(T/L), 0.44mm(B/R) A2A : 2.49mm (Active area to Active area), 1.75mm(T/L), 0.74mm(B/R)
Weight (Head)
18.8Kg
Weight (Head+Stand)
N/A
Packed Weight
28.0Kg
Monitor Dimensions (W x H x D)
1212.2 x 683.0 x 86.9mm
Monitor Dimension with Stand (W x H x D)
N/A
Carton Dimensions (W x H x D)
1393 x 955 x 303mm
Handle
YES
VESA Standard Mount Interface
600 x 400 mm

FEATURE - HARDWARE

Internal Memory (eMMC)
8GB
Wi-Fi/BT (Built-in)
NO
Temperature Sensor
YES
Auto Brightness Sensor
NO
Pixel Sensor
NO
Proximity Sensor
NO
Current Sensor
NO
BLU Sensor
YES
Humidity Sensor
NO
Acceleration(Gyro) Sensor
YES
Power Indicator
NO
Local Key Operation
YES
FAN (Built-in)
NO

FEATURE - SOFTWARE

OS Ver. (webOS)
webOS 4.1
Local Contents Scheduling
YES
Group Manager
YES
USB Plug & Play
YES
Fail over
YES
Booting Logo Image
NO
No Signal Image
YES
RS232C Sync
YES
Local Network Sync
YES
Backlight Sync
NO
PIP
NO
PBP
NO
Screen Share
NO
Video Tag
YES (4 Video Tag)
Play via URL
YES
Screen Rotation
YES
External Input Rotation
YES
Gapless Playback
YES
Tile Mode Setting
YES
Setting Data Cloning
YES
SNMP
YES
ISM Method
YES
Auto Set ID
YES
Status Mailing
YES
Control Manager
YES
Cisco Certification
NO
Crestron Connected
YES
Smart Energy Saving
YES
PM mode
YES
Wake on LAN
YES
Network Ready
YES
Beacon
NO
HDMI-CEC
YES
SI Server Setting
YES
webRTC
YES
Pro:Idiom
YES
Brightness Compensation
NO
W/B Setting by Grey scale
YES
Scan Inversion
YES

ENVIRONMENT CONDITIONS

Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %

POWER

Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-in Power

POWER CONSUMPTION

Typ.
200W
Max.
250W
BTU (British Thermal Unit)
682 BTU/Hr(Typ.), 853 BTU/Hr(Max.)
Smart Energy Saving (70%)
105W
DPM
0.5W
Power off
0.5W

SOUND

Speaker (Built-in)
NO

CERTIFICATION

Safety
CB / NRTL
EMC
FCC Class "B" / CE / KC
ERP / Energy Star
YES / Energy Star 8.0
ePEAT(US only)
NO

OPS COMPATIBILITY

OPS Type compatible
YES (Piggyback)
OPS Power Built-in
NO

SOFTWARE COMPATIBILITY

SuperSign CMS
YES
SuperSign Control+
YES
SuperSign WB
YES
SuperSign Cloud
NO
Promota
NO
Mobile CMS
NO
Connected Care
YES

LANGUAGE

OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic

ACCESSORY

Basic
Remote Controller(include battery 2ea), Power Cord, RS232C cable, Lan cable, DP cable, IR Receiver, Guide Bracket, Screws, Manual
Optional
OPS Kit(KT-OPSF)
