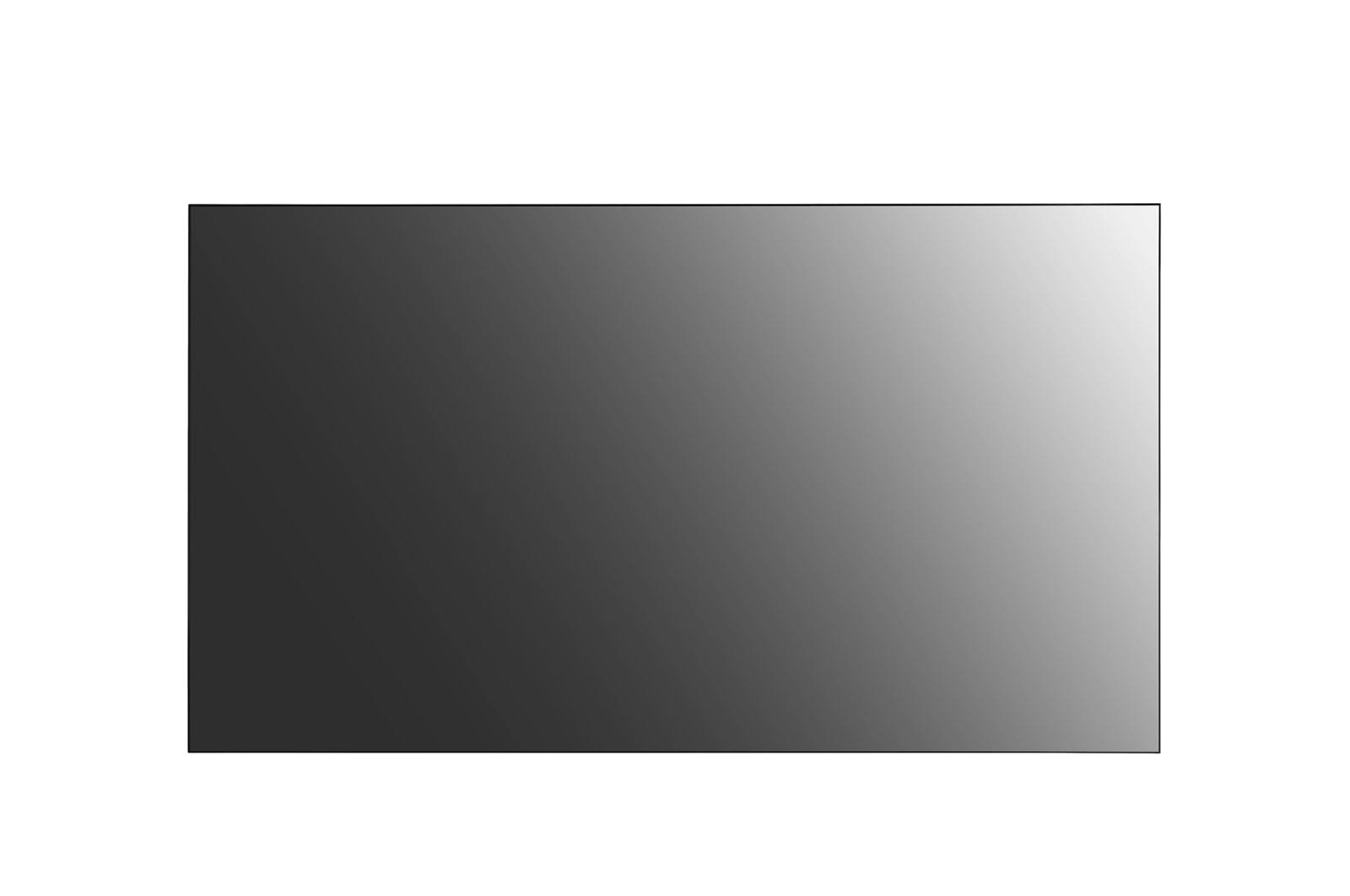

55" 500 nits FHD Slim Bezel Video Wall

55VL5PJ-A

Key Features

Brightness(Typ.) : 500 nit
Bezel : 2.25 mm (T/L), 1.25 mm (B/R)
Depth : 93.1 mm
Interface : HDMI/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR

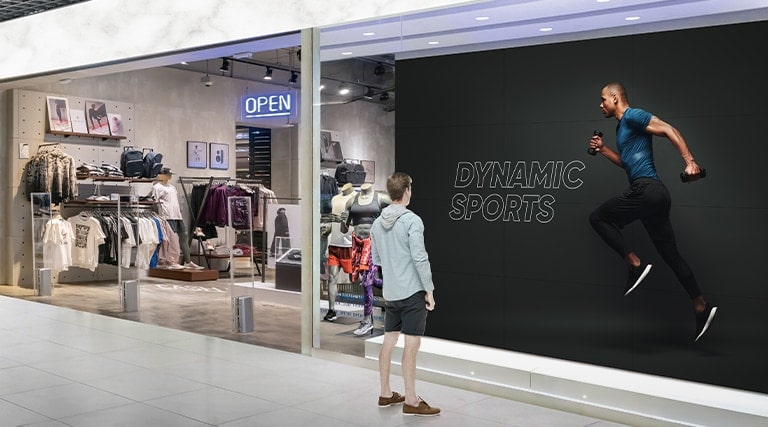

A man is looking at a big screen attached to the window of a sports store.

* All images in this web page are for illustrative purposes only.

Daisy Chain Capability

A daisy chain allows you to control and monitor video walls and even update their firmwares at once.

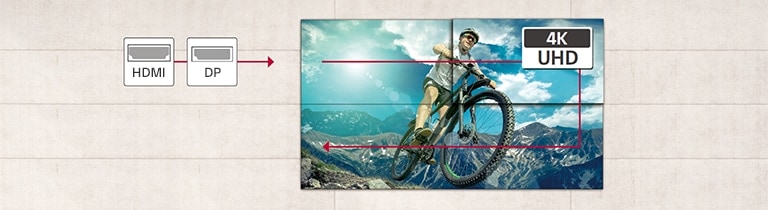

Multiple displays are being managed simultaneously through the daisy chain. The UHD daisy chain utilizing HDMI and DisplayPort allows easy access to adjusting UHD settings.

Real-Time LG ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.

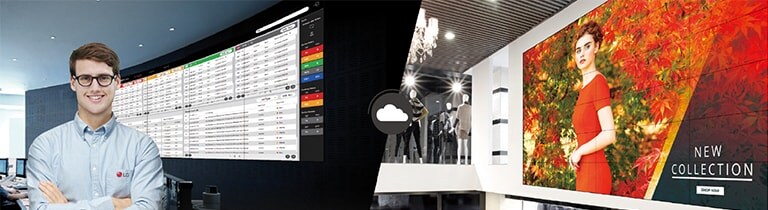

The LG employee is remotely monitoring the VL5PJ installed in a different place by using cloud-based LG monitoring solution.

* LG ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.

The ultra narrow bezel provides immersive images continuously.

Immersive Viewing Experience Narrow Bezel

The 3.5mm narrow bezel size creates an immersive viewing experience on assembled video wall screens.

Easy Colour Adjustment

Depending on the content, the colour temperature of the display can be easily adjusted in increments of 100K using a remote control.

VL5PJ consists of less image gaps between the tiled screens compared to the LG Conventional. This improves the viewing experience of the displayed content as it minimizes the visual disturbance by the gaps.

Image Gap Reduction

The VL5PJ includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

* The "LG Conventional" refers to displays which do not include an image improvement algorithm.
** The image shown above are for illustration purposes only.

The included SoC and webOS smart signage platform demonstrate its ability to execute several tasks at once.

High Performance and Great Scalability

Thanks to its built-in SoC and webOS smart signage platform, the VL5PJ can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Software Development Kit), it is even easier for SIs to build and optimise their web apps.

* SDK can be downloaded with the link below.
(https://webossignage.developer.lge.com)

Brightness(Typ.) : 500 nit
Bezel : 2.25 mm (T/L), 1.25 mm (B/R)
Depth : 93.1 mm
Interface : HDMI/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR

All Spec

PANEL

Screen Size (Inch)
55
Panel Technology
IPS
Back Light Type
Direct
Aspect Ratio
16:9
Native Resolution
1920 x 1080 (FHD)
Refresh Rate
60Hz
Brightness
500nit (Typ.)
Contrast Ratio
1,200:1
Dynamic CR
500,000:1
Color Gamut
NTSC 72%
Viewing Angle (H x V)
178º x 178º
Color Depth (Number of Colors)
1.07 Billion colors
Response Time
8ms (G to G)
Surface Treatment (Haze)
Haze 3%
Life time
60,000Hrs (Typ.)
Operation Hours (Hours/Day)
24/7
Portait / Landscape
YES / YES
Transparency
N/A
QWP (Quarter Wave Plate)
N/A

CONNECTIVITY

HDMI In
YES (2ea)
HDMI In (HDCP Ver.)
2.2
DP In
YES (HDCP 2.2)
DVI-D In
YES (HDCP 1.4)
RGB In
NO
Audio In
YES
RS232C In
YES
RJ45(LAN) In
YES (1ea)
IR In
YES
USB In
USB2.0 Type A (1ea)
HDMI Out
NO
DP Out
YES
Audio Out
YES
Touch USB
NO
External Speaker Out
NO
RS232C Out
YES
RJ45(LAN) Out
NO
IR Out
NO
Daisy Chain
NO

MECHANICAL SPECIFICATION

Bezel Color
Black
Bezel Width
T/R/L/B : 2.25/1.25/2.25/1.25mm
Weight (Head)
23.5Kg
Weight (Head+Stand)
N/A
Packed Weight
26.9Kg
Monitor Dimensions (W x H x D)
1213.4 x 684.2 x 93.1mm
Monitor Dimension with Stand (W x H x D)
N/A
Carton Dimensions (W x H x D)
1337 x 833 x 247mm
Handle
YES
VESA Standard Mount Interface
600 x 400 mm

FEATURE - HARDWARE

Internal Memory (eMMC)
8GB
Wi-Fi/BT (Built-in)
NO
Temperature Sensor
YES
Auto Brightness Sensor
NO
Pixel Sensor
NO
Proximity Sensor
NO
Current Sensor
NO
BLU Sensor
YES
Humidity Sensor
NO
Acceleration(Gyro) Sensor
YES
Power Indicator
NO
Local Key Operation
NO
FAN (Built-in)
NO

FEATURE - SOFTWARE

OS Ver. (webOS)
webOS 4.1
Local Contents Scheduling
YES
Group Manager
YES
USB Plug & Play
YES
Fail over
YES
Booting Logo Image
NO
No Signal Image
YES
RS232C Sync
YES
Local Network Sync
YES
Backlight Sync
NO
PIP
NO
PBP
NO
Screen Share
NO
Video Tag
YES (4 Video Tag)
Play via URL
YES
Screen Rotation
YES
External Input Rotation
YES
Gapless Playback
YES
Tile Mode Setting
YES
Setting Data Cloning
YES
SNMP
YES
ISM Method
YES
Auto Set ID
YES
Status Mailing
YES
Control Manager
YES
Cisco Certification
NO
Crestron Connected
YES
Smart Energy Saving
YES
PM mode
YES
Wake on LAN
YES
Network Ready
YES
Beacon
NO
HDMI-CEC
YES
SI Server Setting
YES
webRTC
YES
Pro:Idiom
YES
Brightness Compensation
NO
W/B Setting by Grey scale
YES
Scan Inversion
YES

ENVIRONMENT CONDITIONS

Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %

POWER

Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-in Power

POWER CONSUMPTION

Typ.
135W
Max.
150W
BTU (British Thermal Unit)
461 BTU/Hr(Typ.), 512 BTU/Hr(Max.)
Smart Energy Saving (70%)
80W
DPM
0.5W
Power off
0.5W

SOUND

Speaker (Built-in)
NO

CERTIFICATION

Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ERP / Energy Star
YES / Energy Star 8.0
ePEAT(US only)
NO

OPS COMPATIBILITY

OPS Type compatible
NO
OPS Power Built-in
NO

SOFTWARE COMPATIBILITY

SuperSign CMS
YES
SuperSign Control+
YES
SuperSign WB
YES
SuperSign Cloud
YES
Promota
NO
Mobile CMS
NO
Connected Care
YES

LANGUAGE

OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic
