All-in-one Smart Series

Share this content.

You can share the items you like with your friends

All-in-one Smart Series

LAEC015-GN2
  • LAEC015-GN2

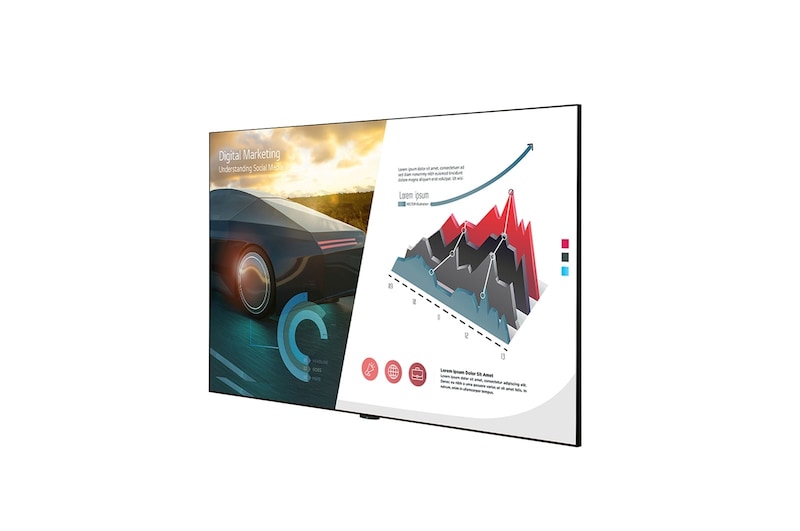

  • LG All-in-one Smart Series, LAEC015-GN2
  • LG All-in-one Smart Series, LAEC015-GN2
  • LG All-in-one Smart Series, LAEC015-GN2
  • LG All-in-one Smart Series, LAEC015-GN2
LAEC015-GN2
LG All-in-one Smart Series, LAEC015-GN2
LG All-in-one Smart Series, LAEC015-GN2
LG All-in-one Smart Series, LAEC015-GN2
LG All-in-one Smart Series, LAEC015-GN2

Key Features

  • Pixel Pitch: 1.56 mm
  • Screen Size: 136 (345.44cm) (Full HD)
  • Brightness: 500 nit
  • Embedded System Controller
  • Built-in Speaker
  • Dedicated Accessories : Wall Mount, Motorized Stand (Optional)
More

LG LED All-in-One Smart Series

The LAEC installed with a motorized stand in a conference room. A user is sharing her laptop screen to the LAEC screen through LG One:Quick Share.

*All images in this web page are for illustrative purposes only and may differ from the actual product.
One:Quick Share dongle shown is not included with the product.

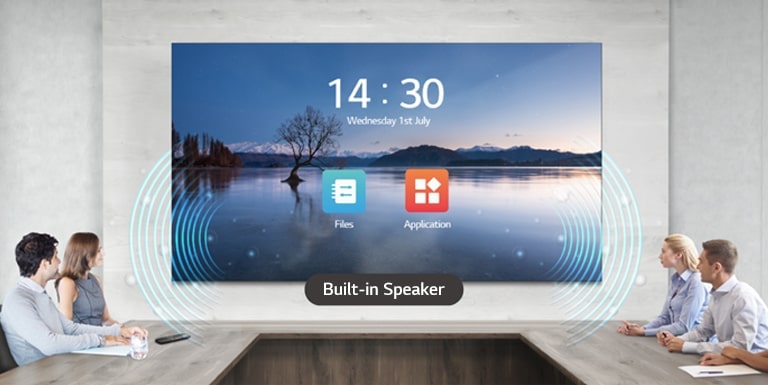

People have a meeting while watching the display and listening sound with the LAEC and its built-in speaker, installed in the meeting room.

All-in-One
LED Screen with Built-in Speaker

The LAEC series is a 136 (345.44cm) large screen which is offered as an all-in-one package including an embedded controller and built-in speaker. It does not require controller connections or module configuration.

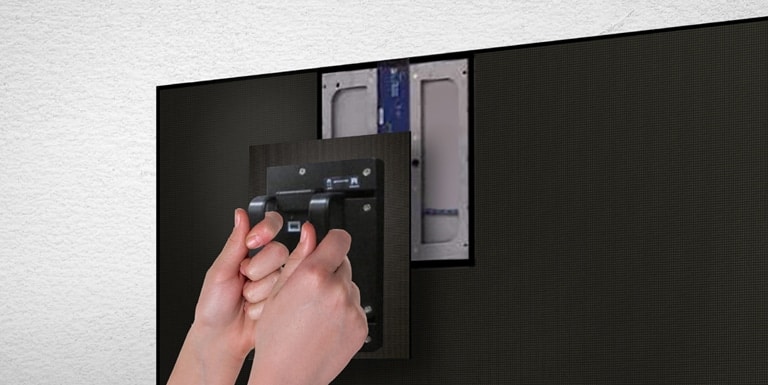

A person replaces one of the LED modules from the front by using the magnetic tool provided.

Quick Maintenance

The LED module can be simply detached by the provided magnetic tool and replaced quickly without cabling.

LG’s Wireless Screen Sharing Solution, LG One:Quick Share

LG One:Quick Share^ is a wireless screen sharing solution available through the LAEC series, USB transmission unit, and its app. You can share personal PC screen to the display with it's USB dongle button and embedded Wi-Fi*, and can adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode** helps you to display the agenda, before the meeting starts.

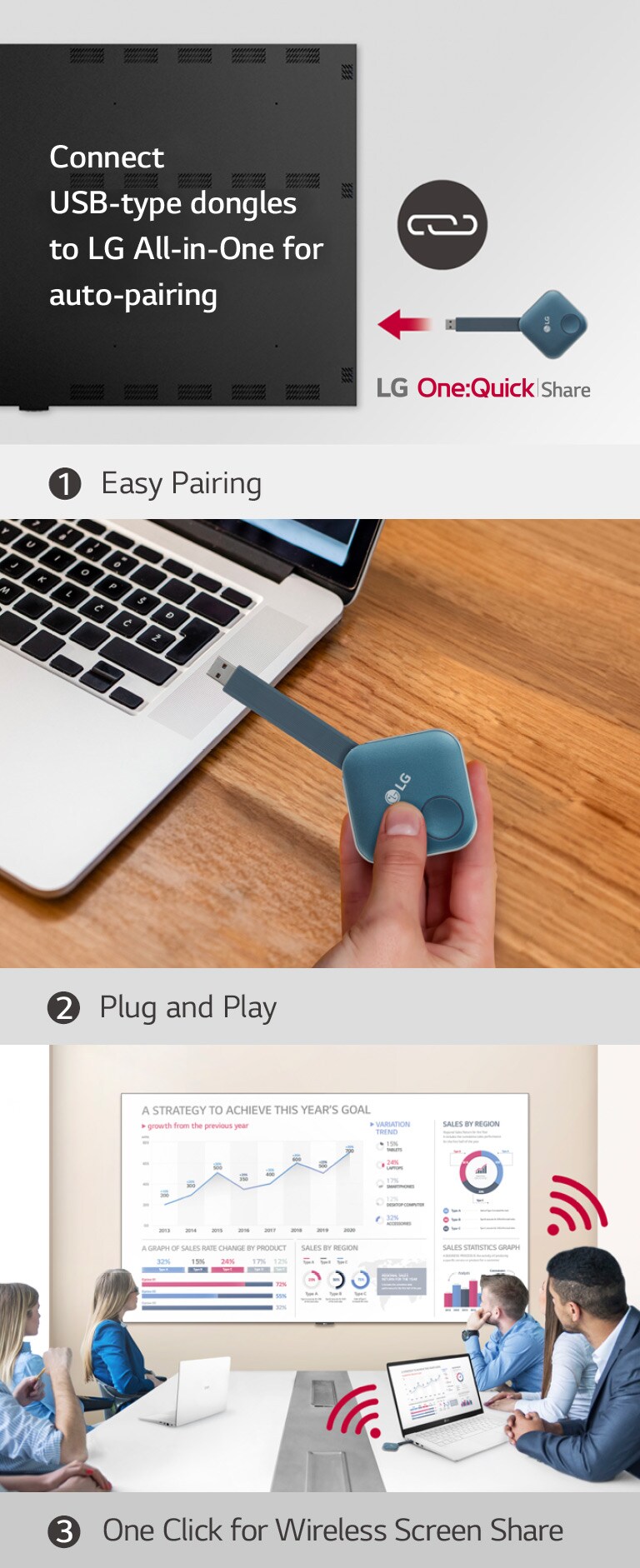

This consists of total 3 steps' images for installing One:Quick Share USB Dongle and sharing the personal screen. The first image is for pairing the USB Dongle and the LG Signage, the second describe a person is holding the USB dongle and trying to connect it to the PC, and the last image is for finally people having a meeting by connecting a USB dongle device to a laptop and sharing a screen with the LAEC on the wall.

*Users need to set up Soft AP enabled at Network Menu of the Signage.
**Users can enable Office Meeting Mode at EZ Setting Menu of the Signage.
^ LG One:Quick Share needs to be purchased separately.

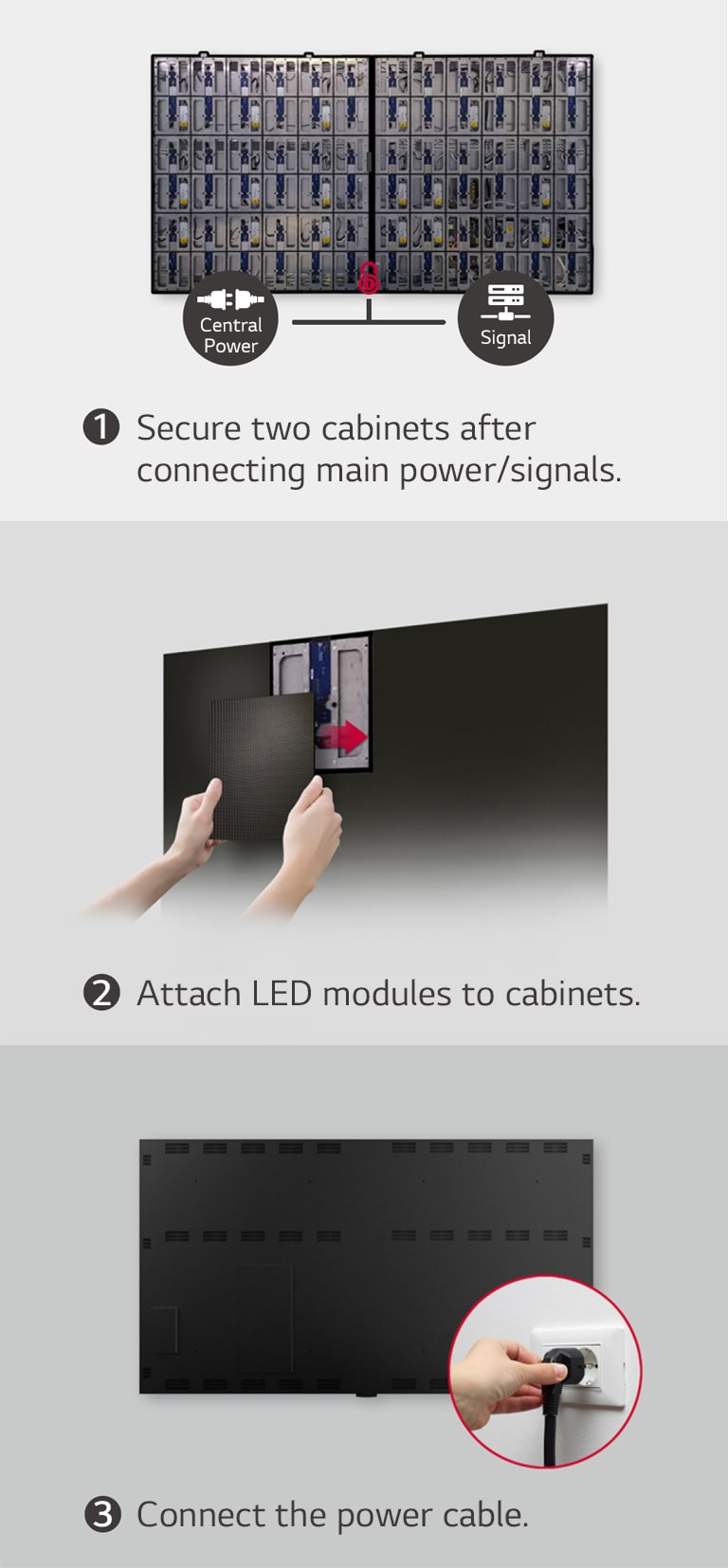

Easy Installation

The installation process of the All-in-One Smart series is very simple. After securing two cabinets which are included in the flight kit, attach each LED display module to them. Lastly, plug in the power cable.

This consists of total 3 steps' images for securing two cabinets, attaching LED modules, and connecting the power cable.

*Fixing screws or installing wall mount / accessories is needed additionally.

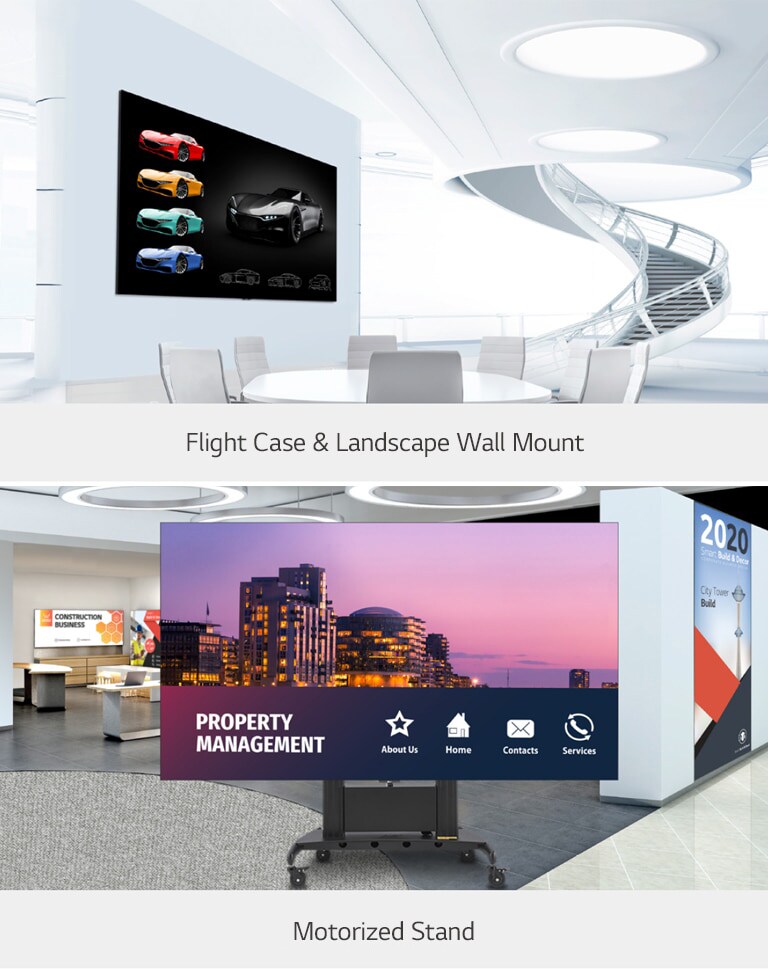

Installation Accessories

The product is offered with the flight case which includes items such as landscape wall mount and tools for installation. The motorized stand is provided as an optional additional accessory. With this stand, you can adjust the height of the screen including stand from 2.0 m to 2.5 m.

The LAEC installed on the wall of high-rise space with wall mounted. The LAEC’s have been installed along with the motorized stand in an event hall.

*Optional (Available for Purchase Separately).

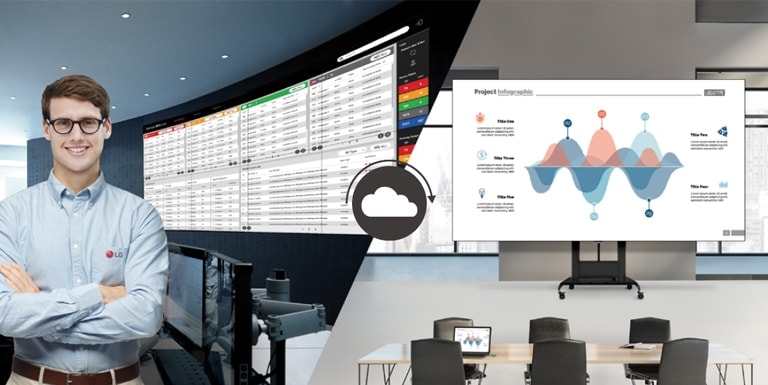

The LG employee is remotely monitoring the LAEC series installed in a different place.

Real-Time LG ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services.

*The availability of LG ConnectedCare differs by region.
Connected Care service requires separate purchase

Key Feature

  • Pixel Pitch: 1.56 mm
  • Screen Size: 136 (345.44cm) (Full HD)
  • Brightness: 500 nit
  • Embedded System Controller
  • Built-in Speaker
  • Dedicated Accessories : Wall Mount, Motorized Stand (Optional)
Print

All Spec

INFORMATION

  • Model name

    LAEC015-GN2

PHYSICAL PARAMETERS

  • Pixel Configuration

    Single SMD

  • Pixel Pitch (mm)

    1.56

  • Module Dimensions(WxH,mm)

    250x281.25

  • Physical Pixel Density (pixels/㎡)

    409,600

  • Flatness of Cabinet (mm)

    ±0.2

  • Cabinet material

    Aluminum

  • Service access

    Front

  • No. of Modules per Screen (WxH)

    12x6 (Total 72)

  • Screen Resolution (WxH)

    1,920x1,080

  • Screen Dimensions (W x H x D, mm, including bezel)

    3,004x1,692x36.5 (Thickest 70)

  • Screen Surface Area (㎡)

    5.06

  • Weight of the screen

    132

OPTICAL SPECIFICATIONS

  • Max Brightness (After Calibration, nit)

    500

  • Visual Viewing Angle (Horizontal)

    160

  • Visual Viewing Angle (Vertical)

    160

  • Brightness Uniformity

    0.98

  • Color Uniformity

    ±0.015Cx,Cy

  • Contrast Ratio

    3,000:1

  • Processing Depth (bit)

    16 (HDR10, HDR10 Pro)

  • Color Temperature

    3,200~9,300

ELECTRICAL SPECIFICATIONS

  • Power Consumption (W/㎡, Max.)

    336

  • Heat Dissipation (BTU/h/㎡, Max.)

    1,146

  • Power Supply (V)

    100 to 240

  • Frame Rate (Hz)

    50 / 60

  • Refresh Rate (Hz)

    3,960

  • Power Consumption (W/Screen, Max.)

    1,700

  • Power Consumption (W/Screen, Avg.)

    680

  • Heat Dissipation (BTU/h/Screen, Max.)

    5,800

  • Heat Dissipation (BTU/h/Screen, Avg.)

    2,321

OPERATION SPECIFICATIONS

  • Operating Temperature(℃)

    0℃ to +40℃

  • Operating Humidity

    10~90%RH

  • IP rating Front

    IP30

  • IP rating Rear

    IP20

  • LED Lifetime (Half brightness)

    100,000

STANDARD

  • Certification

    CE,FCC,ETL,CB,CE-RED

ENVIRONMENT

  • Environment

    RoHS, REACH

CONTROLLER

  • Controller

    Embedded(webOS)

SPEAKER

  • Speaker

    Built-in(9W+9W)

I/O PORT

  • I/O Port

    HDMI(3), DP(1), USB, LAN, RS232C In/Out, IR, Optical Digital Audio Out

To access more technical documentation and resources, please visit the LG B2B partner portal.
