SM5KE Series

Key Features

Choose your Size

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (55SM5KE-B)
    $
    $
    LG Members Price
Total

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (55SM5KE-B)
    $
    $
    LG Members Price
Total

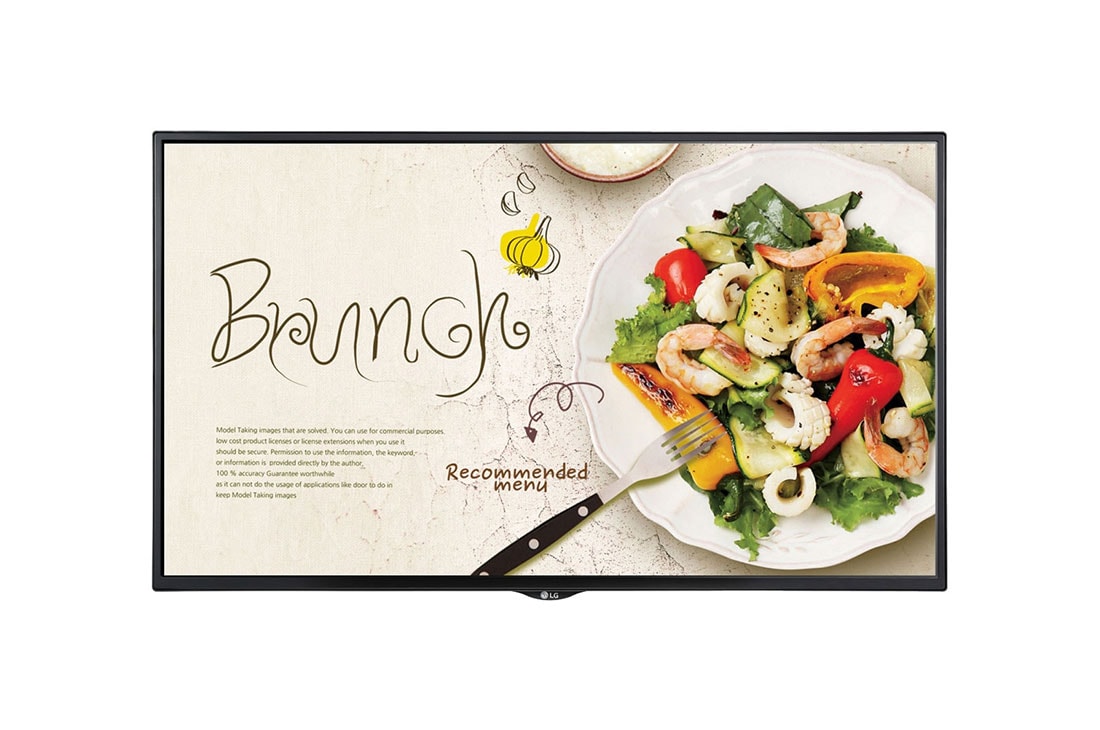

SM5KE Series
*Image is for illustration-purposes only.
*HLS (HTTP Live streaming)/*UDP (User Datagram Prototcol).
*RTSP (Real-Time streaming Prototcol)/*RTP (Real-time Transport Protocol).
  • Content Sharing1

    Content Sharing

    Mirroring among devices is more convenient on a Wi-Fi network.

  • Real-time Promotion1

    Real-time Promotion

    With Beacon and Bluetooth Low Energy (BLE), retail stores can provide coupons and information in real-time.

  • HTTPS1

    HTTPS

    With support for the HTTPS (Hypertext Transfer Protocol over Secure Socket Layer) protocol, communication between the server and signage is more secure.

  • Proxy Server1

    Proxy Server

    Web access speed and security can be improved by supporting proxy server. Managers can not only block unwanted websites, but also quickly access to resources using caches.

*Supported model: NIPPON PRIMEX (NP-3511, NP-3611).
PANEL
  • Screen Size
    55"
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness (Typ.,cd/m²)
    450
CONNECTIVITY
  • Input
    HDMI (3), DP, DVI-D, Audio, USB 3.0
    Output
    DP (SST), Audio (Off/Fixed/Variable)
  • External Control
    RS232C In/Out, RJ45 In, IR Receiver In
PHYSICAL SPECIFICATION
  • Bezel Width
    11.9mm (T/R/L), 18mm (B)
    Monitor Dimension (W x H x D)
    1,238 x 714.9 x 54 mm
  • Weight (Head)
    17.5kg
    Monitor with Optional Stand Dimensions (W x H x D)
    1,238 x 773.4 x 219.6 mm
  • Weight (Head+Stand)
    20.8kg
    Carton Dimensions (W x H x D)
    1,330 x 807 x 170 mm
  • Packed Weight
    21.7kg
    VESA™ Standard Mount Interface
    300 x 300 mm
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ./Max.
    100W (TBD)/115W
    Smart Energy Saving
    70W (TBD)
STANDARD(CERTIFICATION)
  • Safety
    IEC 60950-1/EN 60950-1/UL 60950-1
    EMC
    FCC Class "A"/CE/KC
  • ErP/Energy Star
    N/A / Yes (Energy Star 8.0)
MEDIA PLAYER COMPATIBILITY
  • OPS Type compatible
    Yes
    External Media player Attatchable
    Yes
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control+/Control
ACCESSORY
  • Basic
    Remote Controller (2ea batteries included), Power cord, QSG, HDMI cable, Regulation book, Phone to RS232C gender, Memory cover
    Optional
    Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T55E)
