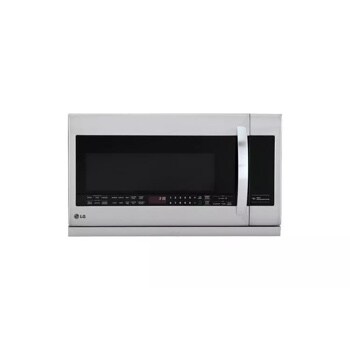

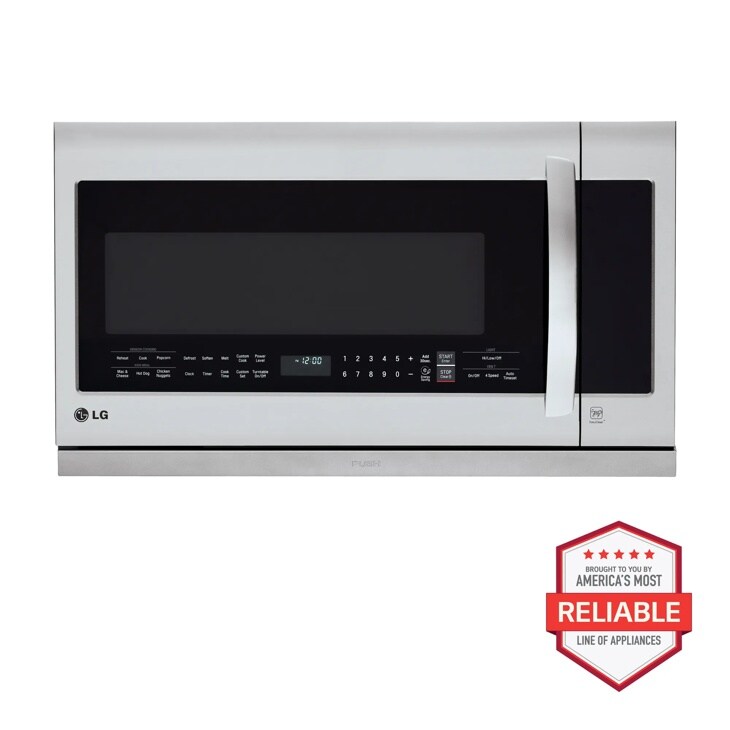

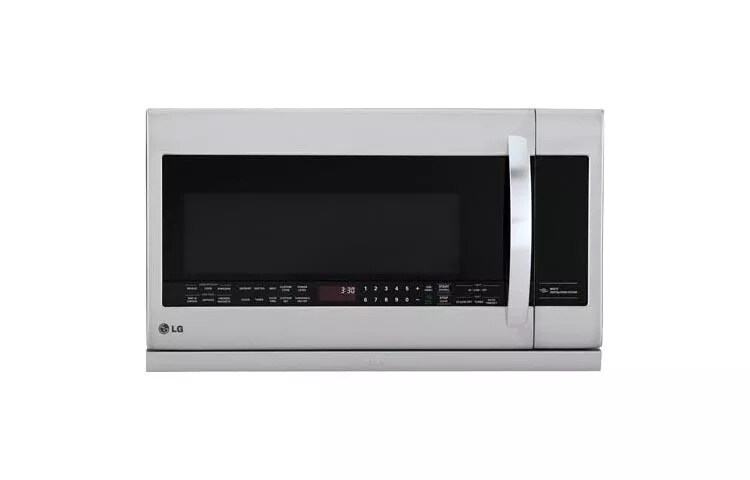

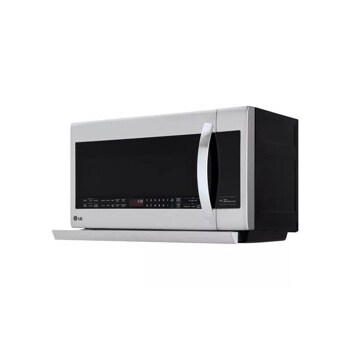

2.2. cu.ft. Over-the-Range Microwave Oven with EasyClean®

  • LMHM2237ST

  • Stainless Steel

Key Features

  • ExtendaVent™ 2.0
  • EasyClean®
  • 2.2 Cu.ft Oven Capacity
  • Sleek Design

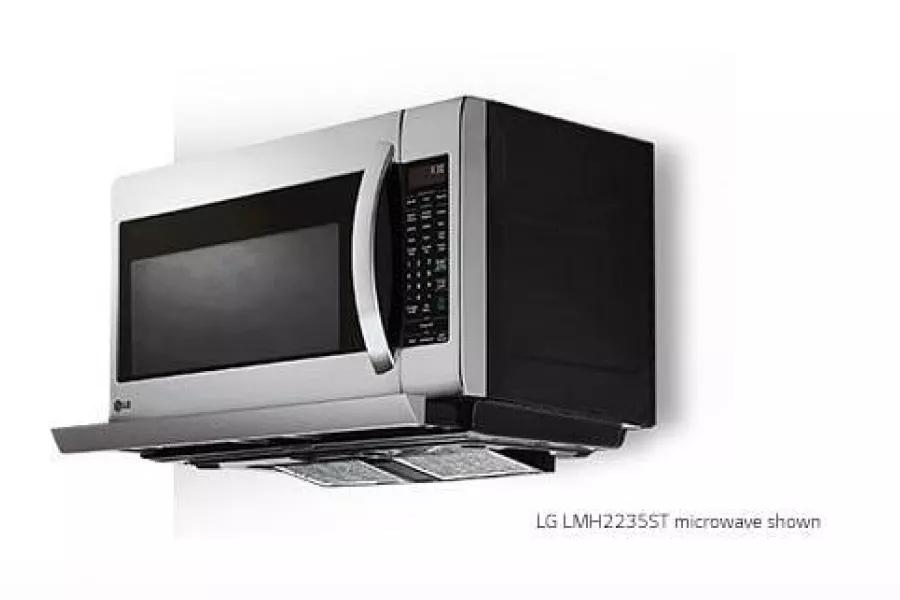

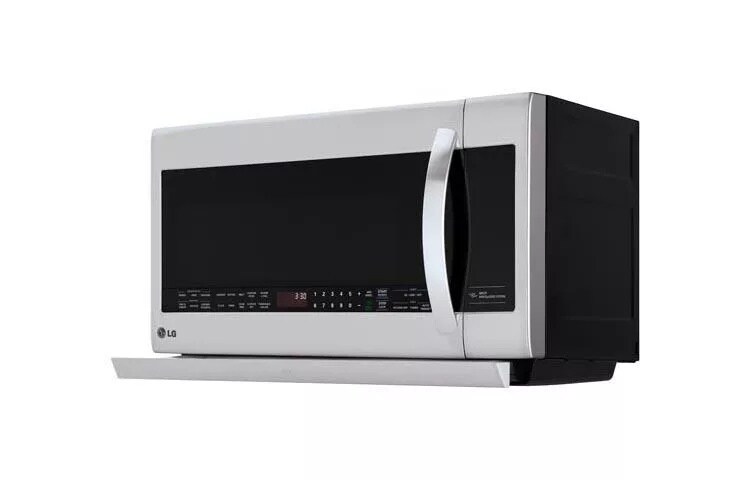

Catch The Smoke

Catch The Smoke

Reduce smoke and lingering cooking smells with LG’s enhanced ExtendaVent™ 2.0. Where most over-the-range microwaves only cover the rear of the cooktop, ExtendaVent™ 2.0 provides powerful ventilation over virtually the entire cooktop, back to front. That’s what we call clearing the air.

EasyClean

EasyClean®

With the new EasyClean® interior, you can have quick and high performance cleaning inside and out without using chemicals.

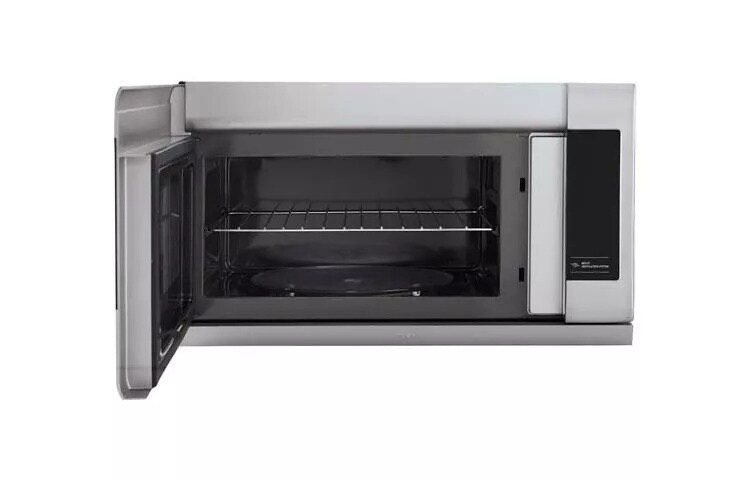

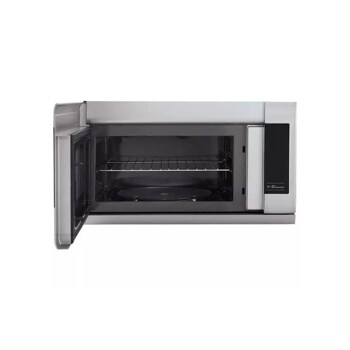

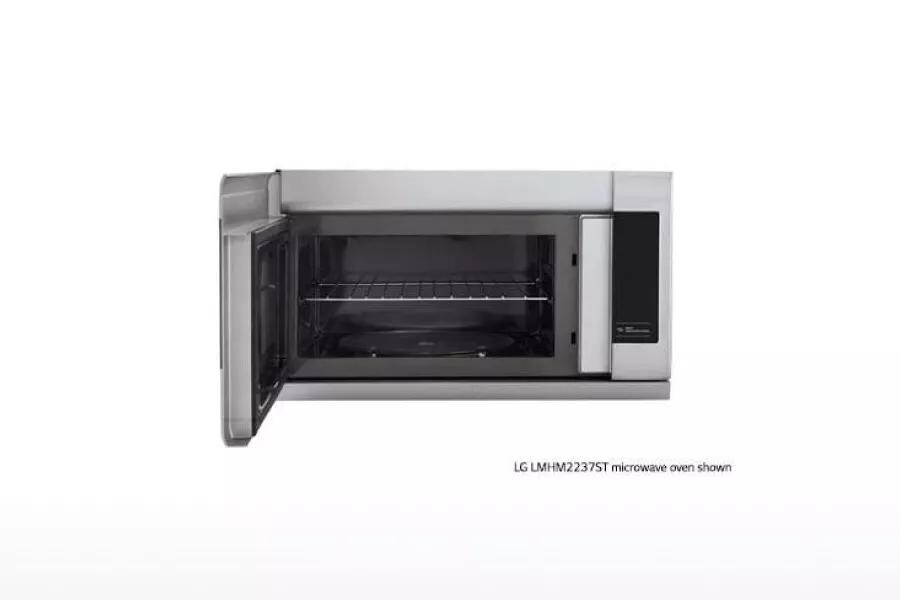

Largest Capacity*

Largest Capacity*

With largest capacity at 2.2. cu.ft., there's always plenty of room to heat large items.

*Based on manufacturers’ published specifications of over-the-range microwaves as of December, 2013.

Touchpad and Display Features

Touchpad and Display Features

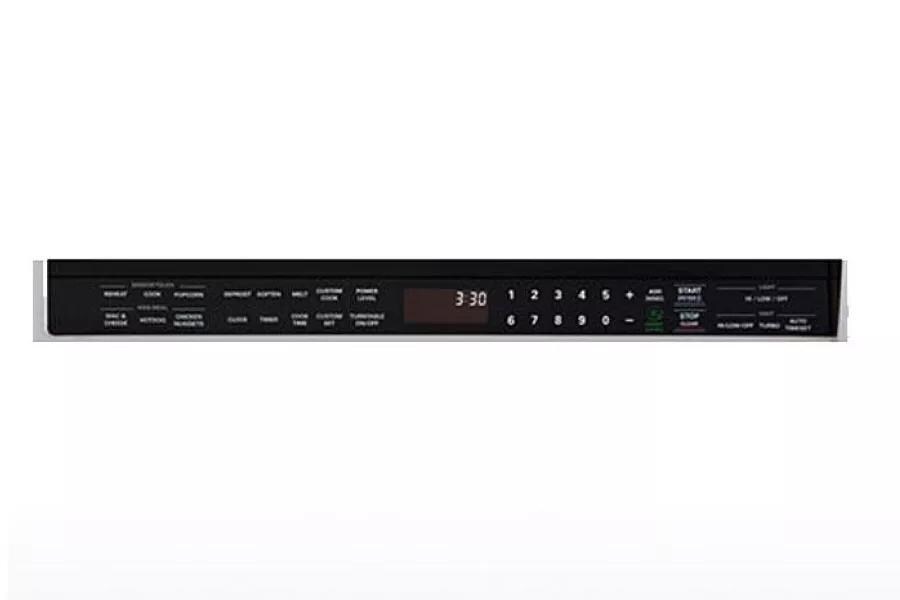

Sleek Design

Sleek Design

With SmoothTouch™ glass controls located at the bottom of the glass door, this microwave delivers on both style and ease of use.

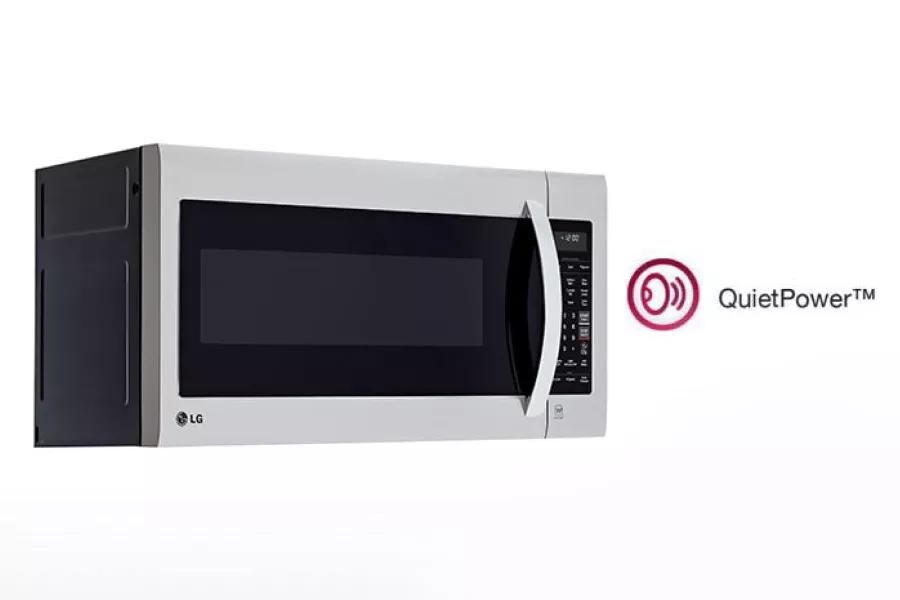

QuietPower™ Ventilation System

QuietPower™ Ventilation System

With an Over-the-Range Microwave Oven, strong ventilation is key. That’s why LG has created the QuietPower vent, which does the job quietly, without interrupting your life.

CAPACITY
Oven Capacity 2.2 cu. ft.
OVEN FEATURES
Watts 1,000
Exterior Design WideView™ Traditional
Control Type Digital
Display SmoothTouch™ Glass Controls White, VFD Scrolling, 2 Line
COOKING FEATURES
Sensor Cook Options 8
Power Levels 10
Defrost Auto, Time and Rapid Defrost
Reheat Sensor Reheat
Popcorn Key Yes
EZ-On Yes
More/Less Yes
Melt/Soften Yes
Custom Set Yes
CONVENIENCE FEATURES
EasyClean® Yes
Energy Savings Key Yes
Bi-Level Cooking Rack Yes
Turntable Type DDS
Turntable Diameter 14.2"
Turntable On/Off Yes
Clock Yes
Kitchen Timer Yes
Completion Beeper Yes
LIGHTING
Lighting LED
SAFETY FEATURES
Child Lock Yes
VENTING SYSTEM
Filtration Charcoal Filter
Vent Grille Type Hidden
Vent Air Flow (CFM) 400
Power Levels 4 (Hi/Mid/Low/Off)
MATERIALS/FINISHES
Available Colors Stainless Steel (ST)
Interior Color Gray
DIMENSIONS/WEIGHT
Interior (WxHxD) 22" x 11 5/8" x 14 5/8"
Exterior (WxHxD) 29 14/16" x 17 13/18" x 15 12/16
Shipping Qty. 288 sets / 40ft.
Shipping (WxHxD) 33 1/2" x 20 3/4" x 20 1/2"
Net Weight (lbs) 73.5 lbs
Shipping Weight (lbs) 78 lbs
WARRANTY/UPC
Limited Warranty 1 Year Parts and Labor (In Home Service) 10 Years Limited on Magnetron (In Home Service)
UPC 048231 318983

What People Are Saying

Rated 5 out of 5 by from Features, Features, Features! My wife and I purchased this appliance two months ago with a stainless steel door-in-door refrigerator and matching range. It looks amazing with our cherry cabinets. The microwave is touch screen technology. The touch screen is highly responsive with the slightest fingertip touch. Be sure your fingers are not oily, sticky or encrusted with flour, or, you will be wiping down the screen of the microwave often. The underside lighting provides enough light to cook on the stove. The fan is powerful and relatively quiet. This microwave has a pop out screen on the underside that pulls out to cover the entire cooking surface of the stove. No more steam or cooking oil rising up to the overhead cabinets. YEAH! This microwave offers multiple selections for warming/heating/cooking a variety of foods using the touchscreen menu to select the food type. No more guessing on minutes and seconds to prepare food such as leftover meals, pasta, casseroles, or soup. I am amazed at the features of this artistically appearing appliance. This appliance has contributed to giving my kitchen a "remodeled" look at a fraction of the price. My wife and I highly recommend this appliance.
Date published: 2017-03-11
Rated 5 out of 5 by from We have purchased it few months ago and it is looking and working great. I have changed the vent from inside circulation to vent-out. Venting out very well.
Date published: 2017-03-04
Rated 3 out of 5 by from Nice features a few problems Liked the looks of the LMHM2237ST and the extend a vent. Replacing an existing microwave so opted to put it in with help. A minor problem is that the wall and cabinet templates have to be trimmed before use and when lined up with the center line on the wall you quickly find out they are not 100% to scale when you place the wall bracket over it. Allowed for that and microwave went up on first try. A bigger problem is when stainless steel is not stainless steel but very cheaply painted white plastic. The door and trim are metal, but the front of the extend a vent is not. As soon as I took off the protective plastic, a small bump with a light brush turned into a white plastic spot. I have no problem with well constructed chromed plastic, but for something that needs to be frequently cleaned for grease, this is very poor. Due to an upcoming trip I will not be able to talk customer support for a couple weeks, but will be surprised if it gets covered and will be too late to take down and return to the store. Chip is on right on bottom vent piece in attached picture. Microwave and vent system itself works well.
Date published: 2017-02-13
Rated 5 out of 5 by from Very Modern Looking for a microwave! Cooks and heats up foods the best we have seen since microwaves were invented. Popcorn...CHECK, Soups....CHECK, Dinners.....CHECK, Quick frozen dinners for kids......CHECK. All this and good looks too?!!! Can't ask for more :)
Date published: 2017-02-08
Rated 5 out of 5 by from GREAT FEATURE I BOUGHT THIS 11 MONTHS AGO AND I HAVE NEVER HAD SUCH GOOD MICROWAVE. EASY TO OPERATE, EASY TO CLEAN, VERY QUIET.
Date published: 2017-02-08
Rated 5 out of 5 by from A Honey of an appliance! My daughter gave me this micro for Christmas to replace one I have had since 1971. I love this LG, and have enjoyed using the different features it offers. Hope to have it for as long as my former one.
Date published: 2017-02-04
Rated 5 out of 5 by from Once agin, not disappointed. This is a lot of microwave with a bunch of bells and whistles. I haven't even used them all to the fullest, but I plan on it eventually. Not sorry we got this at all.
Date published: 2017-02-01
Rated 5 out of 5 by from excellent, easy access and cooking I brought this when I remodeled my kitchen, and boy am I glad I did. matches all my other stainless steel appliances, easy access and cooking.
Date published: 2017-01-21
  • y_2017, m_3, d_21, h_6
  • bvseo_bulk, prod_bvrr, vn_bulk_1.0.0
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_120
  • loc_en_US, sid_MD05122371, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 4ms
  • REVIEWS, PRODUCT

We're here to support you with our product.

View LMHM2237ST Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

What is the total height from top of microwave to bottom of fan and light pull out

Asked by: Naia pooh
The height listed under 'Dimensions' in the specifications for the LG LG Black Stainless Steel Series 2.2 cu.ft. Over-the-Range Microwave Oven, Model # LMHM2237BD ( W x H x D - 29 7/8" x 17 15/16" x 15 7/8") is the height from top to bottom when the ExtendaVent™ 2.0. is in the closed position. We are not clear on what you are referring to as the "bottom of fan and light pull out" and if our response has not answered your inquiry, please clarify your inquiry so that we can answer it appropriately...^IFV
Answered by: LGJoel
Date published: 2017-03-10

We're remodeling our kitchen. The cabinets will not be ready for a few weeks. Can we use this microwave on a countertop in the meantime? Will there be any problems with the ventilation?

Asked by: Ronald1956
We appreciate your interest in this microwave oven. It is not recommended to operate this device while it is on a countertop surface. The circulating fan draws air from under the microwave cabinet.
Answered by: NeilE
Date published: 2017-02-28

Does this model have a filler kit to Fit above A 36" range?

Asked by: Jmled
From my research, I have not found a filler kit for the LMHM2237ST. We have a 36" cooktop and the cabinet maker made our cabinet 36".
Answered by: Baseball Moma
Date published: 2017-01-19

How can I vent outside an LG 2.2 Capacity Over the Range Microwave with Slide-out Vent LMHM2237ST?

Asked by: Michell2180
We appreciate your interest in this microwave oven. The exhaust fan has 3 venting options available: UP, BACK, or FORWARD into the room. Specifics about these options can be found in the installation guide provided with the machine.
Answered by: NeilE
Date published: 2017-01-30

I purchased model LMHM2237BD from HH Gregg and they did not supply the installation hardware. How can I get the installation hardware?

Asked by: SFCDBJ
Parts and accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts. The part number for this item is: 3861W2A006K, 3300W0A045A, 4810W1A151A, and 4900W1A001B.
Answered by: NeilE
Date published: 2016-09-08

My clock display vanishes after 5 minutes even when I use the CUSTOM SET button , press 2 for clock on/off then press 1 for clock on . Any suggestions??

Asked by: JKSW
The Energy Saving feature on your LG 2.2. cu.ft. Over-the-Range Microwave Oven, Model # LMHM2237ST saves energy by turning off the display after 5 minutes of idleness if you press the Energy Saving button. Touch Energy Saving to turn the display on...^IFV
Answered by: LGJoel
Date published: 2016-08-17

I need the installation instructions  Reinstalling after remodeling kitchen LMHM2237ST

Asked by: John999999
We appreciate your interest in this microwave oven. Unfortunately, the installation instructions are not available on our website. However, it may be possible to obtain a copy by contacting our Customer Interactive Center at 800-243-0000.
Answered by: NeilE
Date published: 2016-08-16

Where can we purchase a 36" filler kit for the LG microwave model#LMHM2237ST?

Asked by: Teamddma
We appreciate your interest in this Over-the-Range Microwave oven. This model has not been designed for compatibility with a filler kit.
Answered by: NeilE
Date published: 2016-08-10
