22LT380H

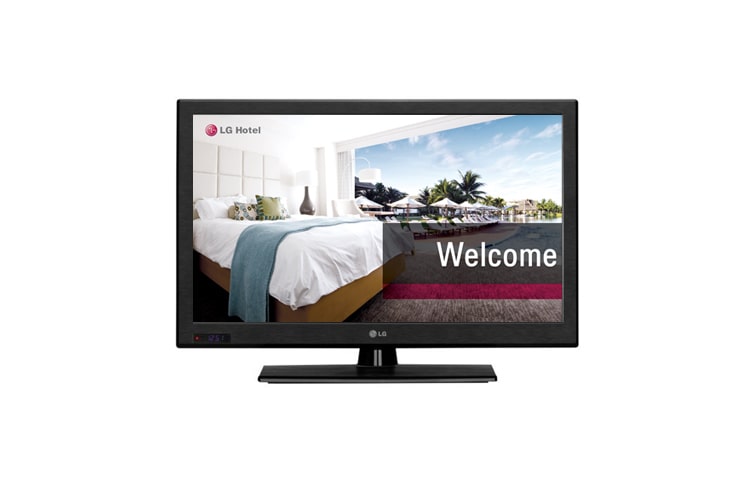

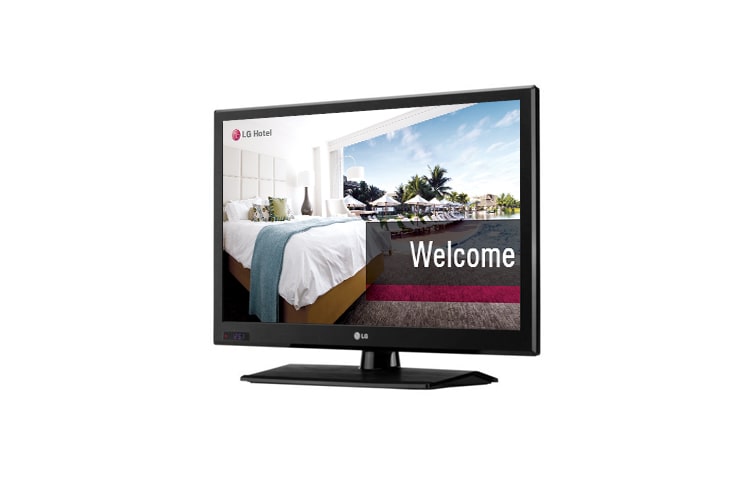

22″ Customization for Your Hotel TV Service
  • Hotel Dedicated Design (Front LED Clock)
  • Multi-DVB (T/C)
  • Welcome Screen
  • One Channel Map

component-OBScountrySelectDesc

22″ Customization for Your Hotel TV Service

AUDIO

  • Audio Output
    5W + 5W

INTERFACE

  • RF In
    Yes
    RGB In
    Yes
  • HDMI In
    Yes(Rear 2, Side 1)
    CI Slot
    Yes
  • Component In
    Yes
    Full Scart
    Yes
  • RS-232C
    Yes

DIMENSION

  • Set (with stand, W x H x D, mm
    517 x 386 x 192
    Weight (with stand, kg)
    3.6

DISPLAY

  • Type
    Edge LED
    Resolution
    1366 x 768 (HD)

SYSTEM

  • DTV
    DVB-T / C

HOTEL FEATURE

  • Welcome Screen
    Yes
    Lock Mode
    Yes
  • One Channel Map
    Yes
    Multi IR Code
    Yes
  • Hotel Mode
    Yes
    USB Cloning
    Yes
  • IR Out
    Yes(RS-232C, HDMI)
    External Power (RS-232C)
    Yes
  • Front LED clock / Ready (ACC)
    Yes
    External Speaker Out
    Yes(Int / Ext Variable / Fixed)
  • RJP Interface
    Yes(RS-232C, HDMI CEC)
    Swivel
    180°
  • Anti-theft System - Kensington Lock
    Yes
    Eco - Smart Energy Saving
    Yes
  • Eco - RoHS
    Yes

POWER

  • Voltage, Hz
    100~240V, 50 / 60Hz
    Typical (Watts)
    35
  • Stand-by
    Clock on: 1W↓, Clock off: 0.5W↓
    Max (Watts)
    50
  • Energy saving (Min)
    28
    Energy saving (Med)
    23
  • Energy saving (Max)
    18

ECO

  • ErP Class
    B
    On Power Consumption (IEC62097 Edition 2)(W)
    24
  • Stand By (W)
    0.5(Clock off), 1(Clock on)
    Luminance Ratio (%)
    65
  • Mercury Content (mg)
    0
    Presence of Lead
    Yes
  • Average Annual Consumption (kWh)
    35
