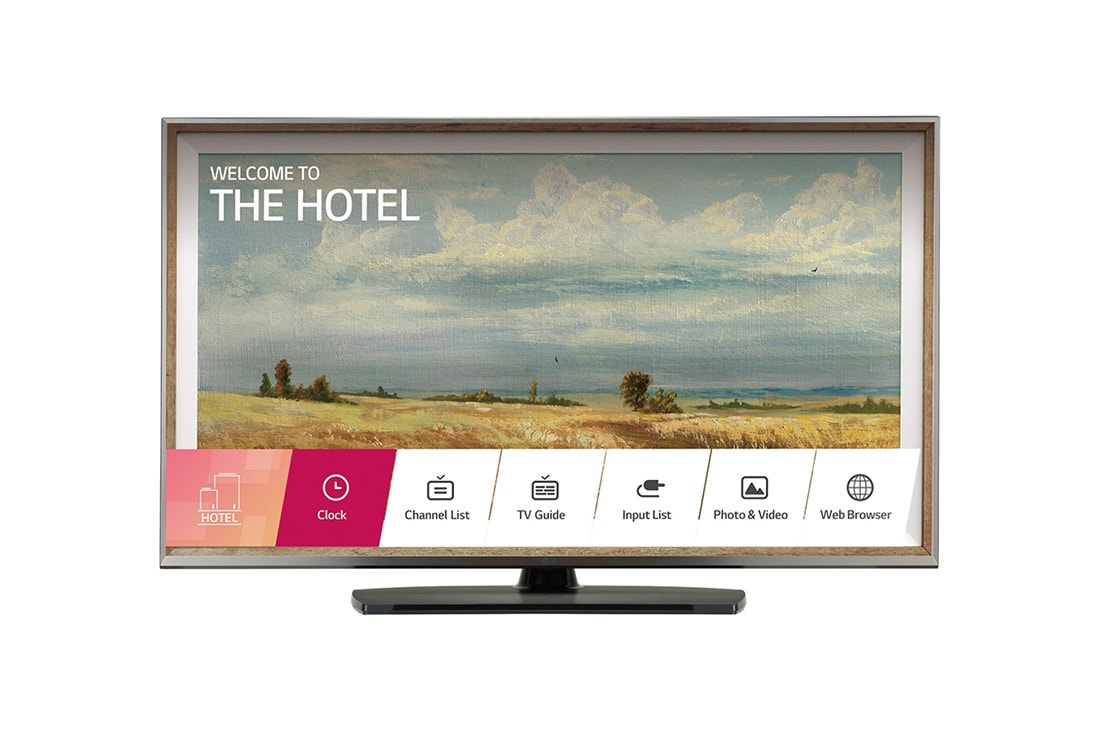

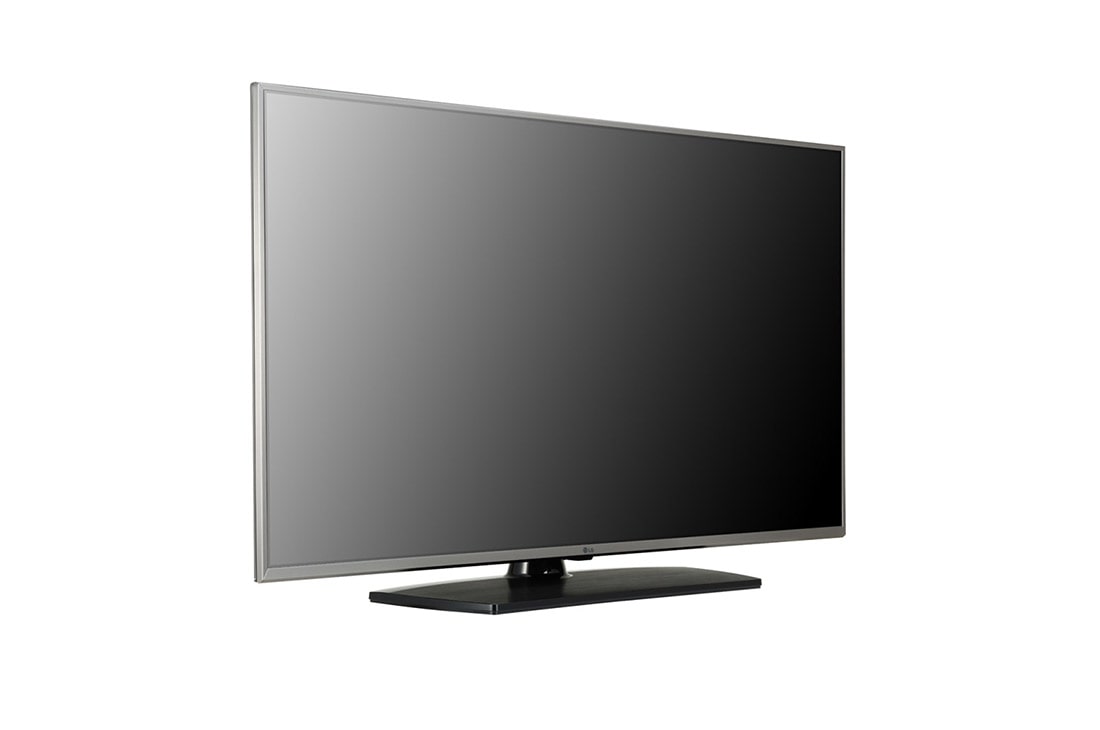

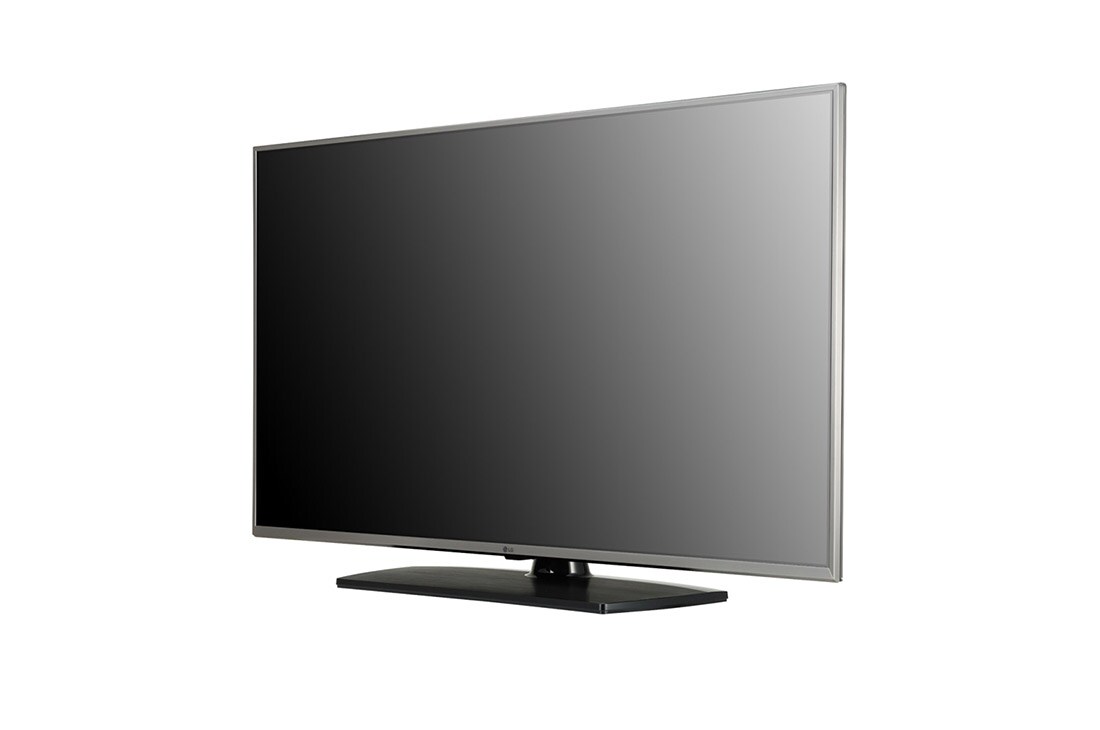

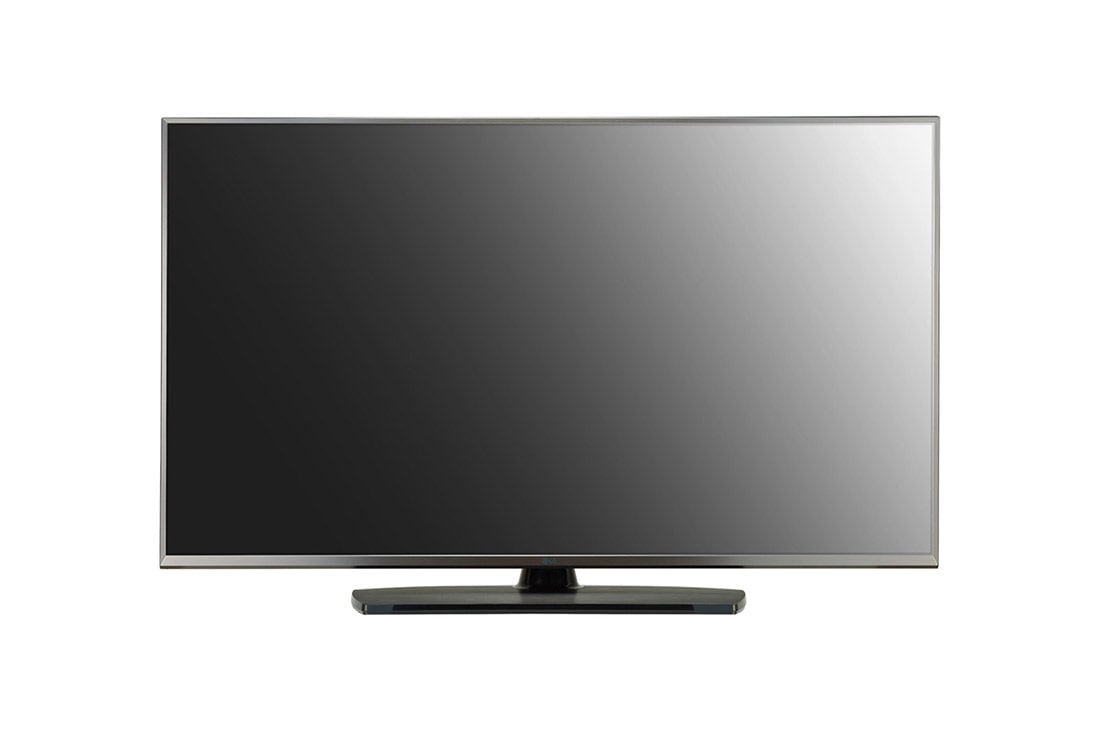

55UU761H
UU761H Series

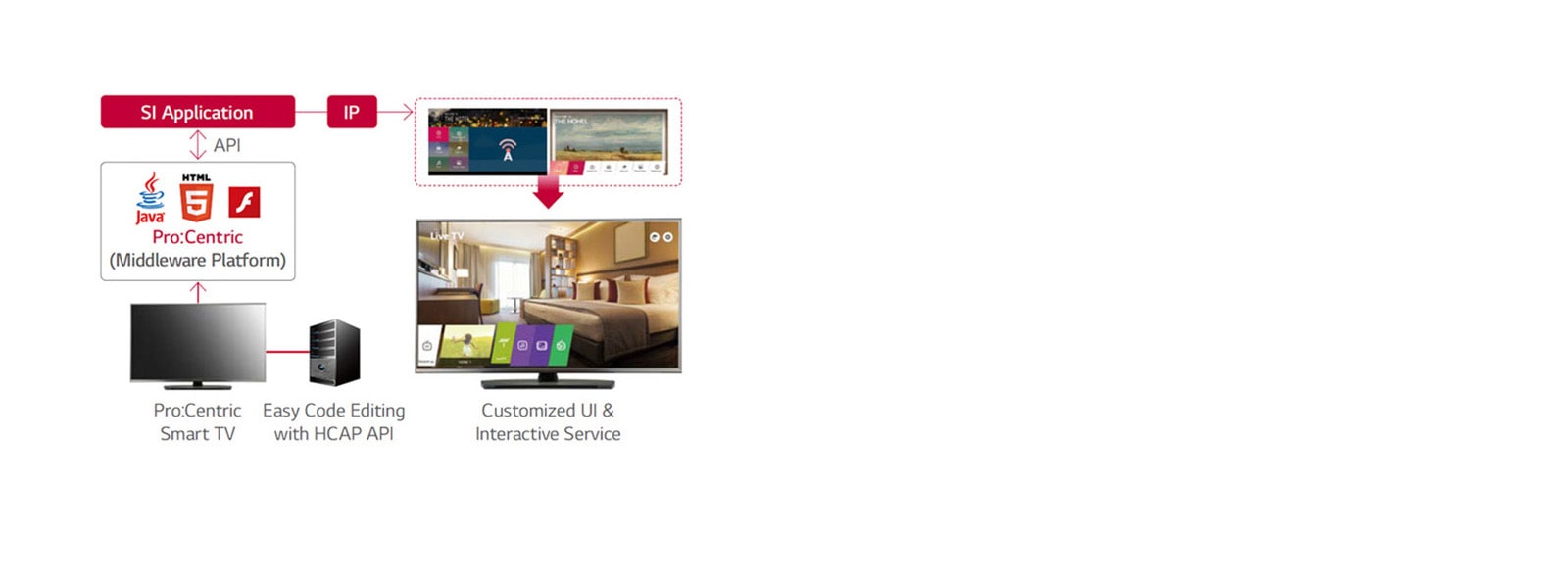

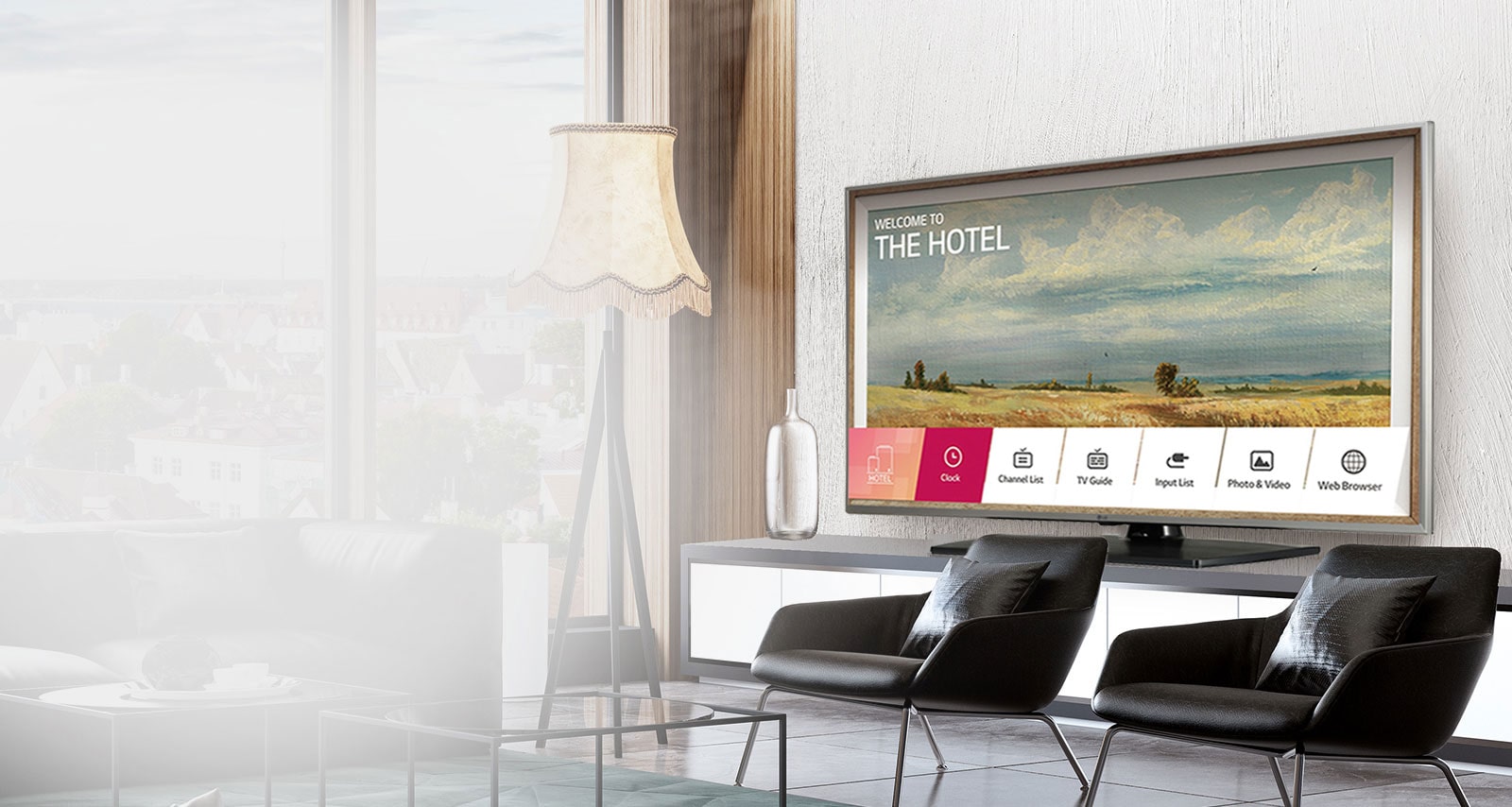

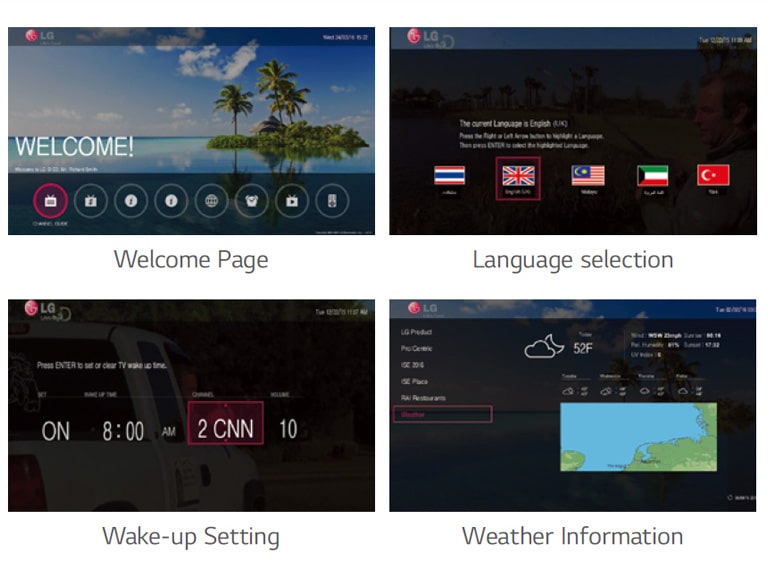

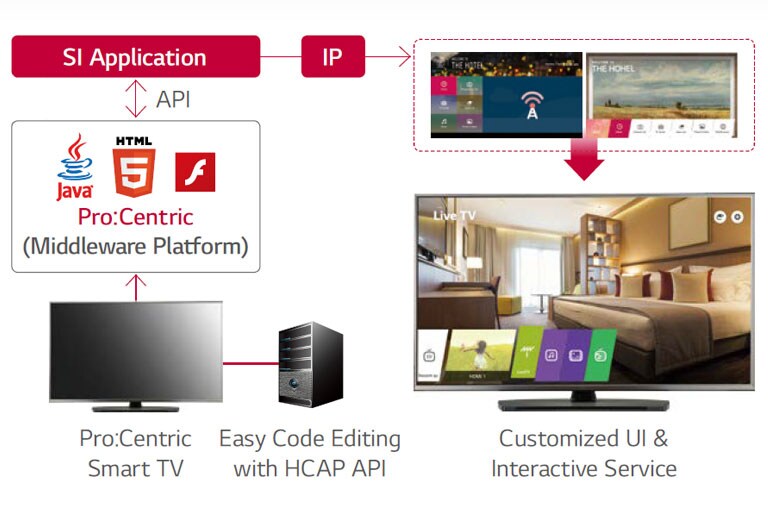

  • Pro:Centric Hotel Management Solution

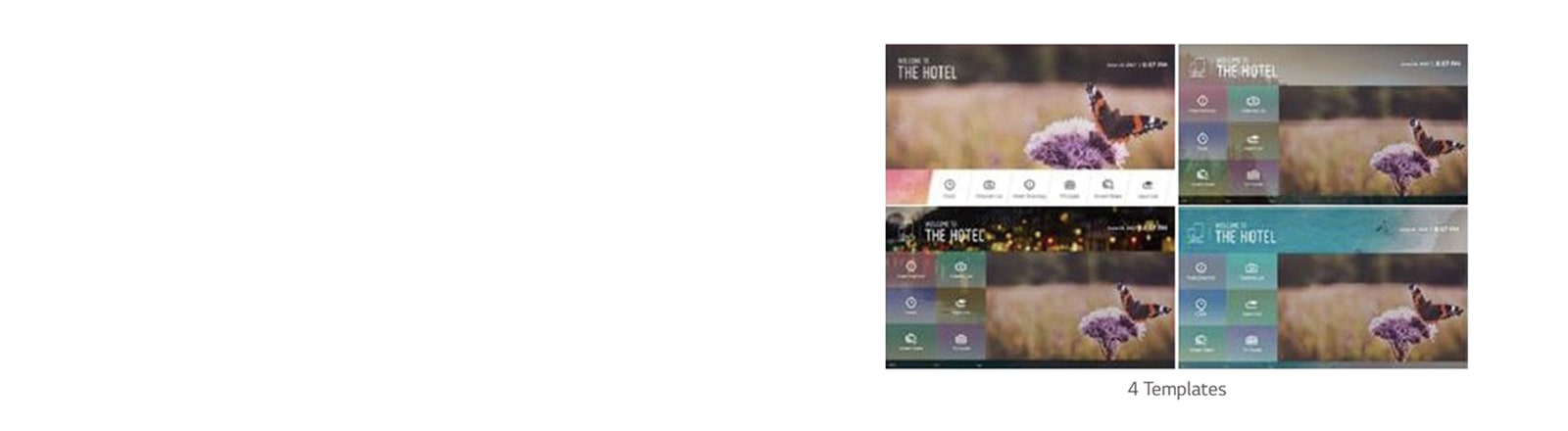

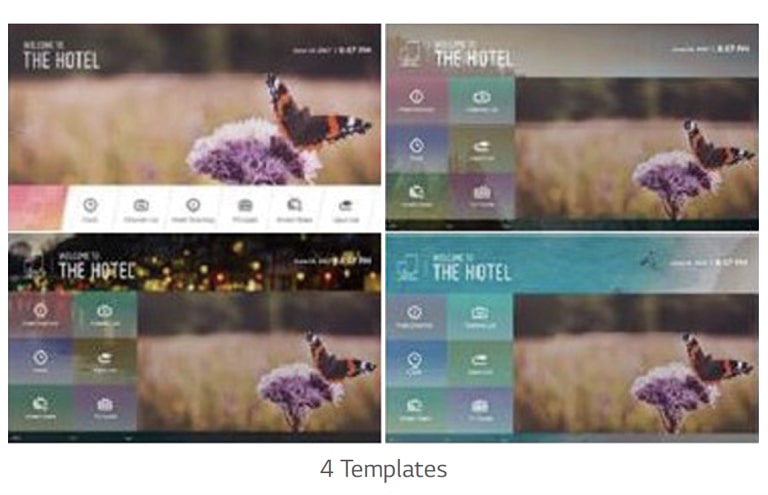

  • Quick Menu (2.0)

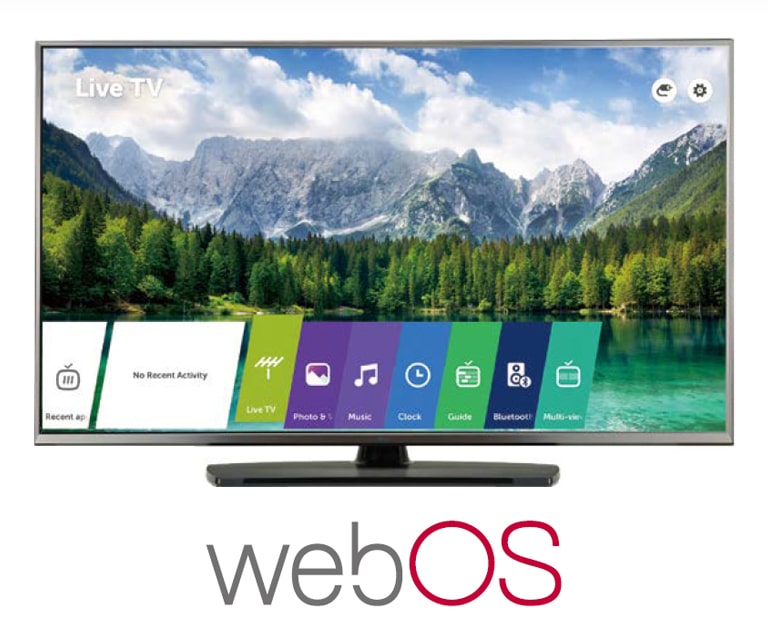

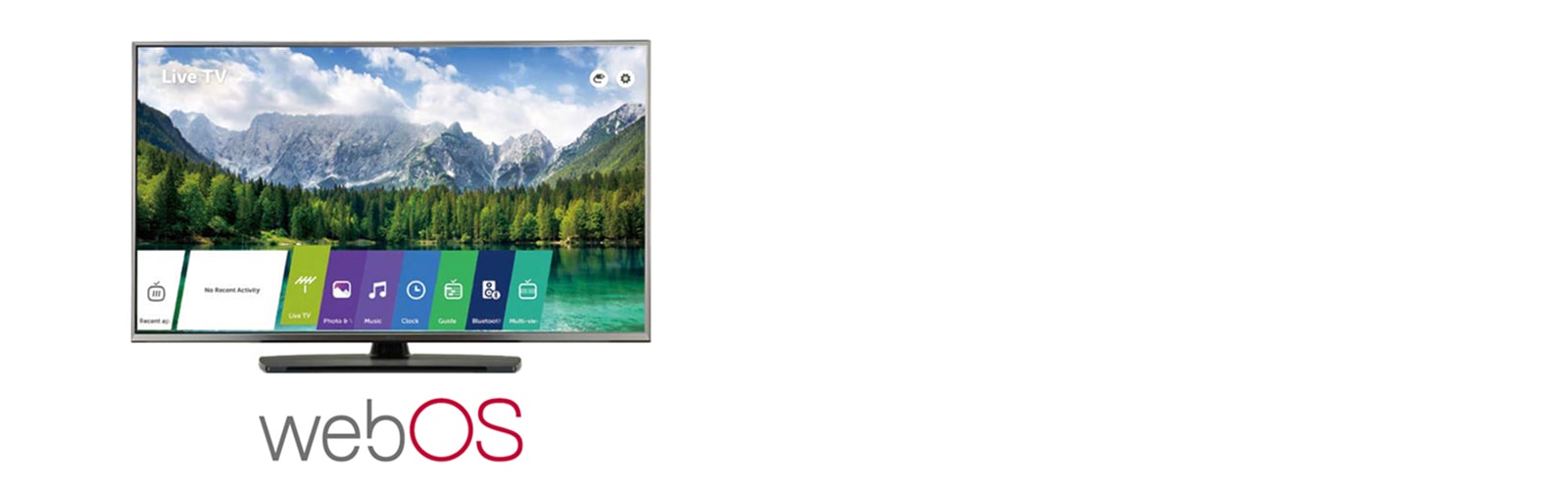

  • WebOS 4.0
  • Facility Virtual View

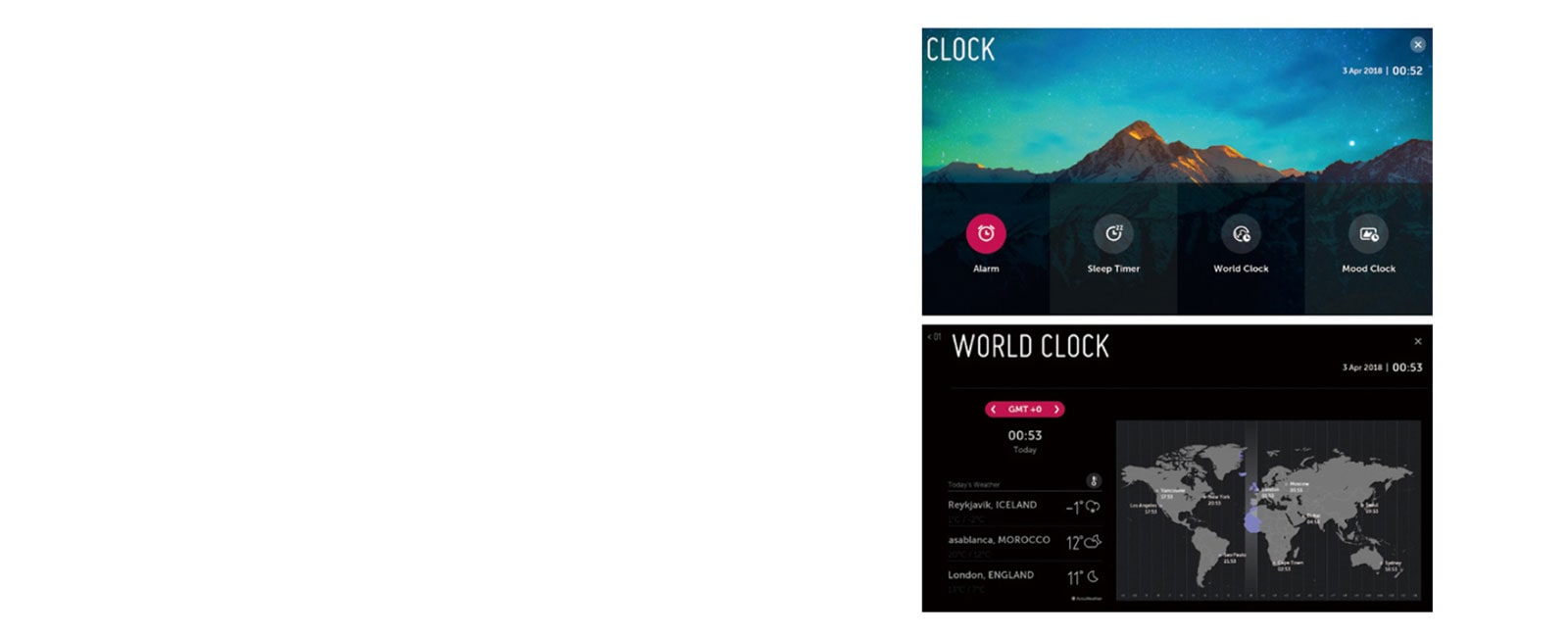

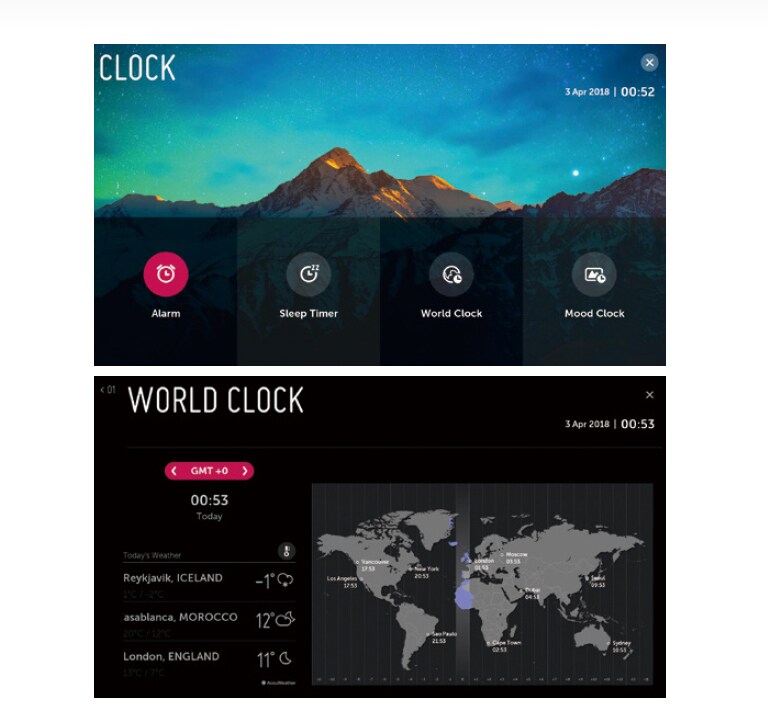

  • Smart Clock (visualized app-based)
UU761H Series
MSRP $

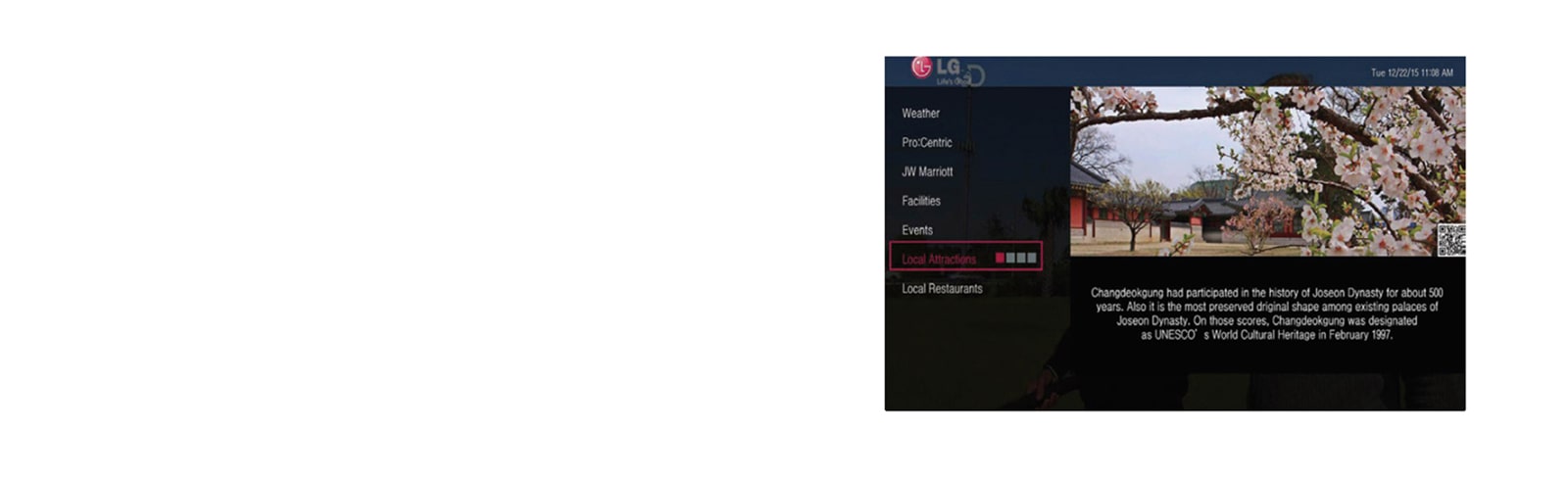

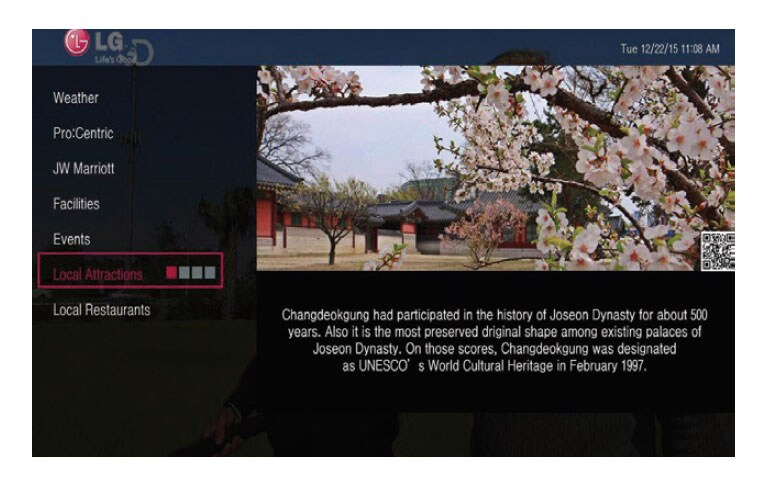

*Customized UI may be little different.
*Actual UI may be little different.
*TV native control.

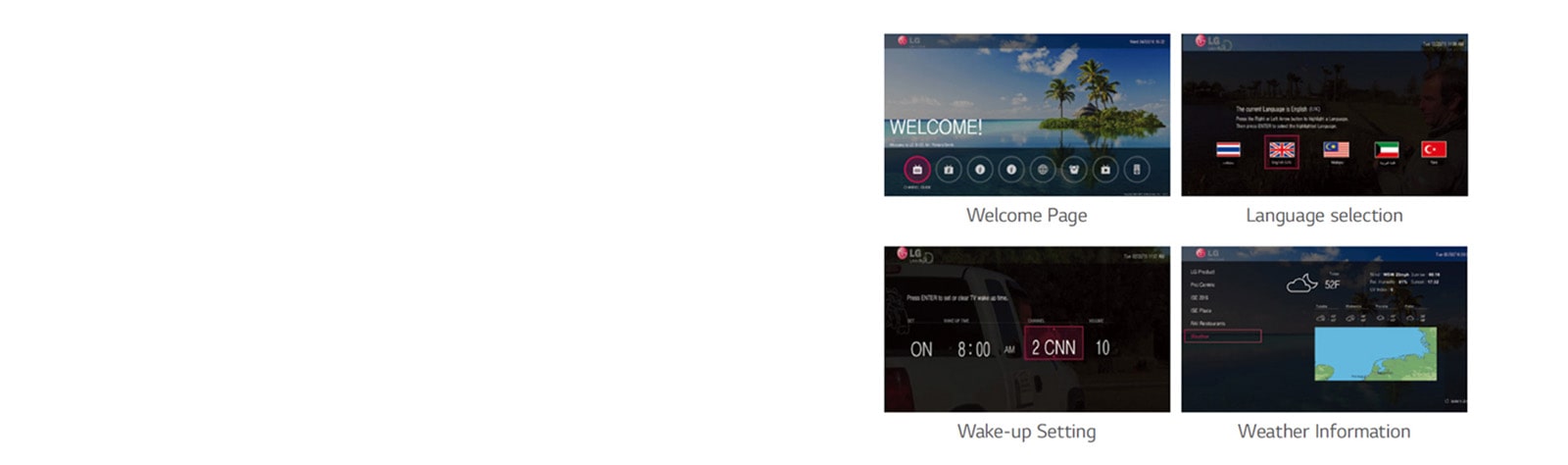

*Server Based control.
*Magic Motion Remote is required (Sold separately).
*Actual In-screen image may be little different.
*Actual In-screen image may be little different.
*All pictures shown below are for illustration purpose only (For a better understanding). Actual device and screen may differ.

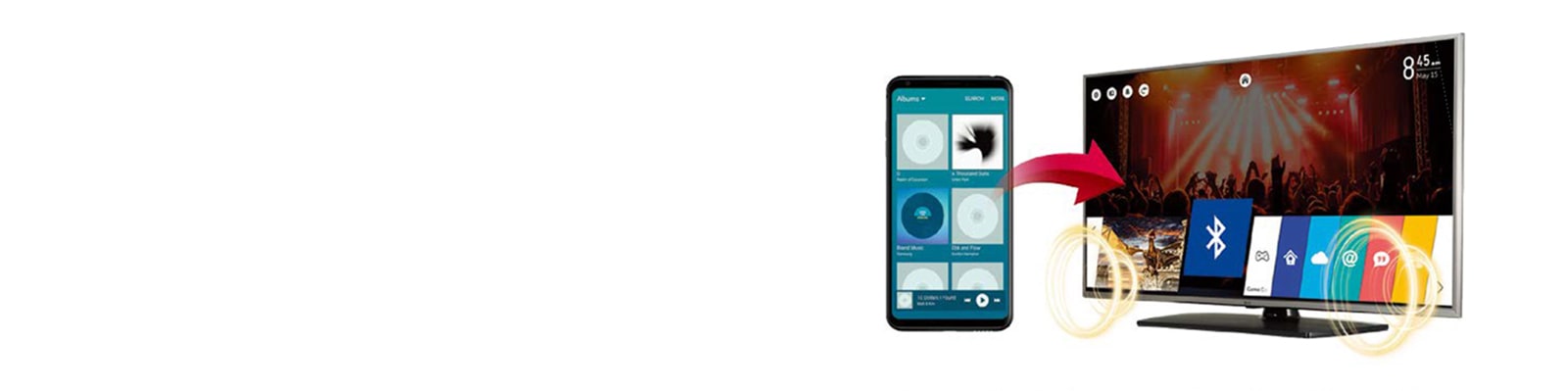

*Support devices for Bluetooth Sound Sync: Android (above v4.4 Kit Kat) / iOS based Mobile Device.

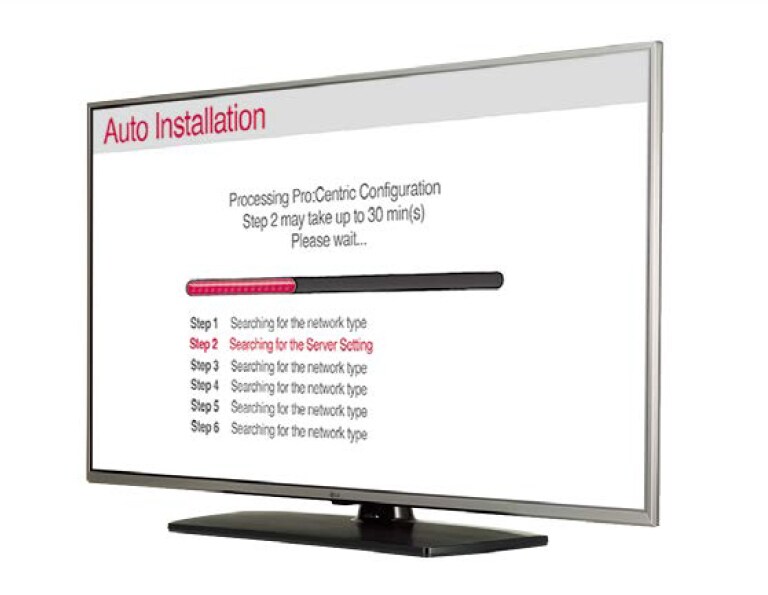

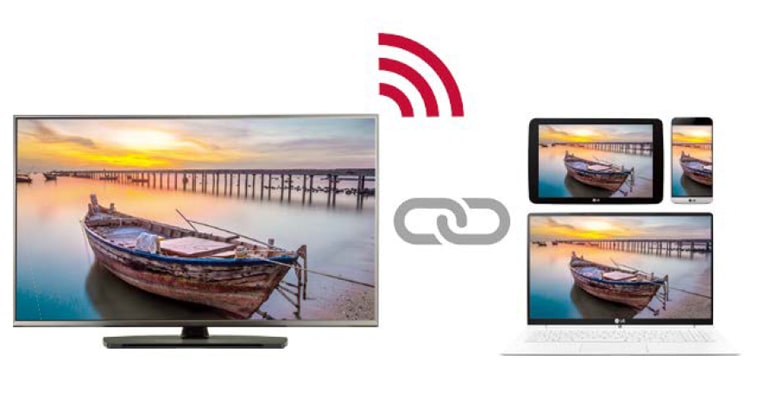

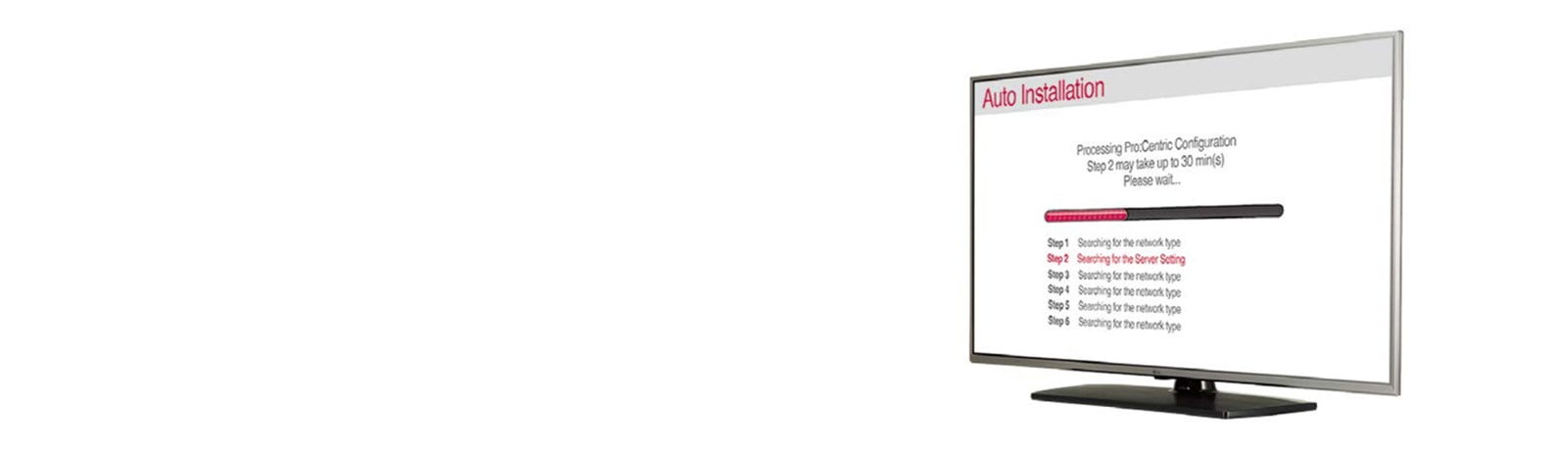

*SoftAP should be set in installation menu after TV is on.

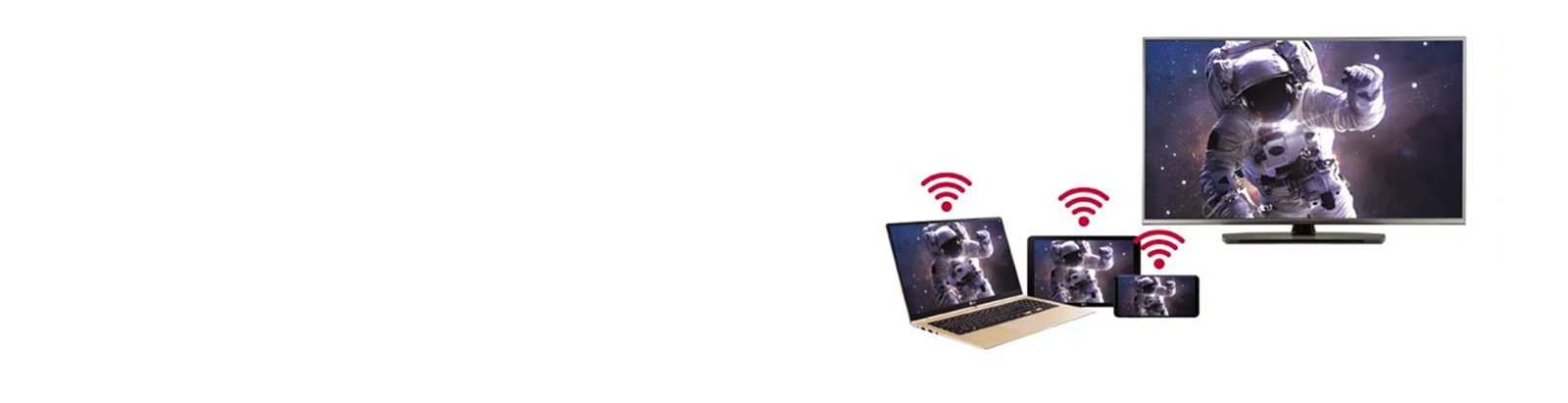

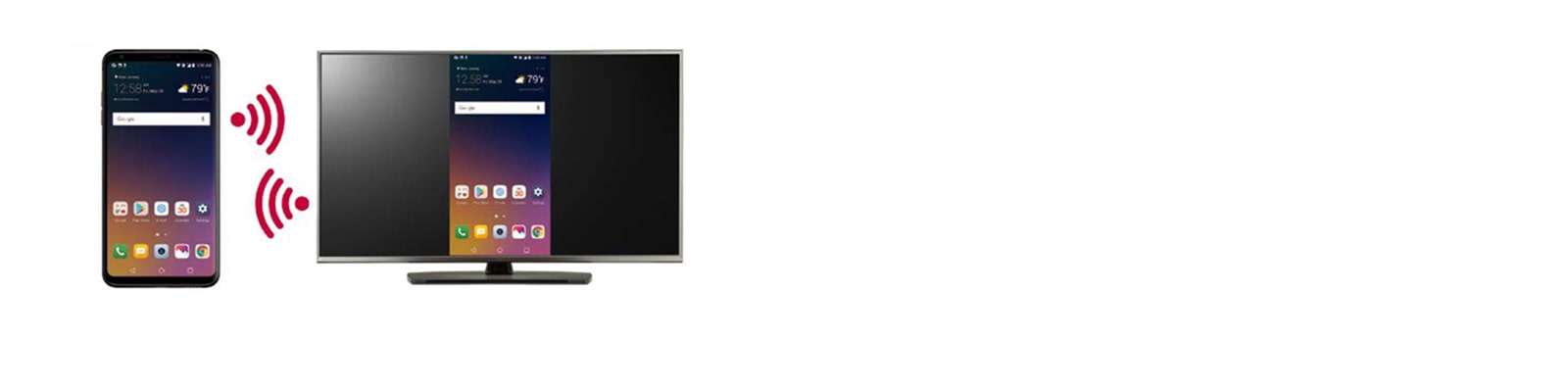

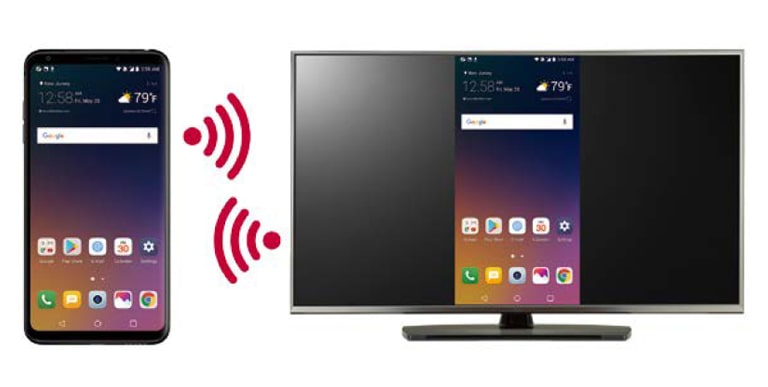

*Smart Mirroring may not be operated at the same time.

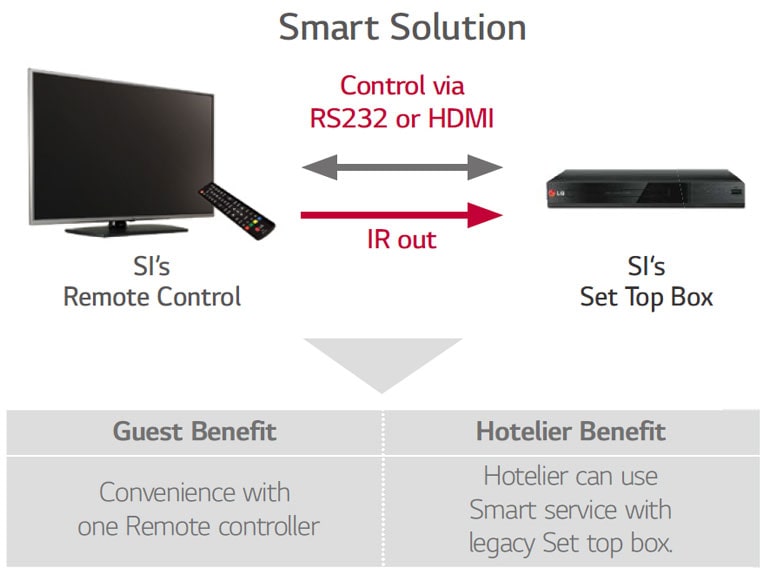

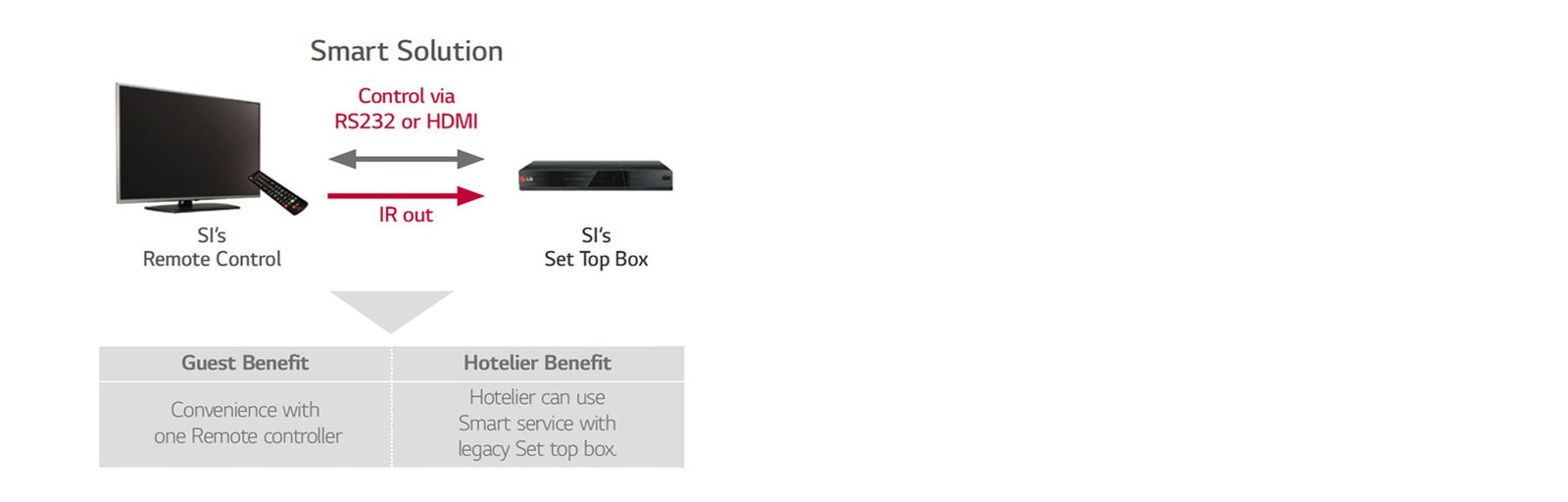

*We provide two protocol for SI solution (HTNG-CEC and TVLink).

DISPLAY

  • Backlight Type
    LED (Edge)
    Resolution
    3,840 x 2,160 (4K UHD)
  • Brightness (cd/m²)
    400

BROADCASTING SYSTEM

  • Analog
    Yes (PAL/SECAM)
    Digital
    Yes

VIDEO

  • XD Engine
    Yes
    Aspect Ratio
    Yes 6 modes (16:9, Original, Full wide, 4:3, Vertical Zoom, All-Direction Zoom)
  • HDR 10
    Yes

AUDIO

  • Audio Output
    10W + 10W
    Speaker System
    2.0ch
  • Sound Mode
    Yes 6 modes (Standard, Cinema, Clear Voice III, Sports, Music, Game)
    Clear Voice
    Yes (Clear VoiceⅢ)

HOSPITALITY SOLUTION

  • Solution Type

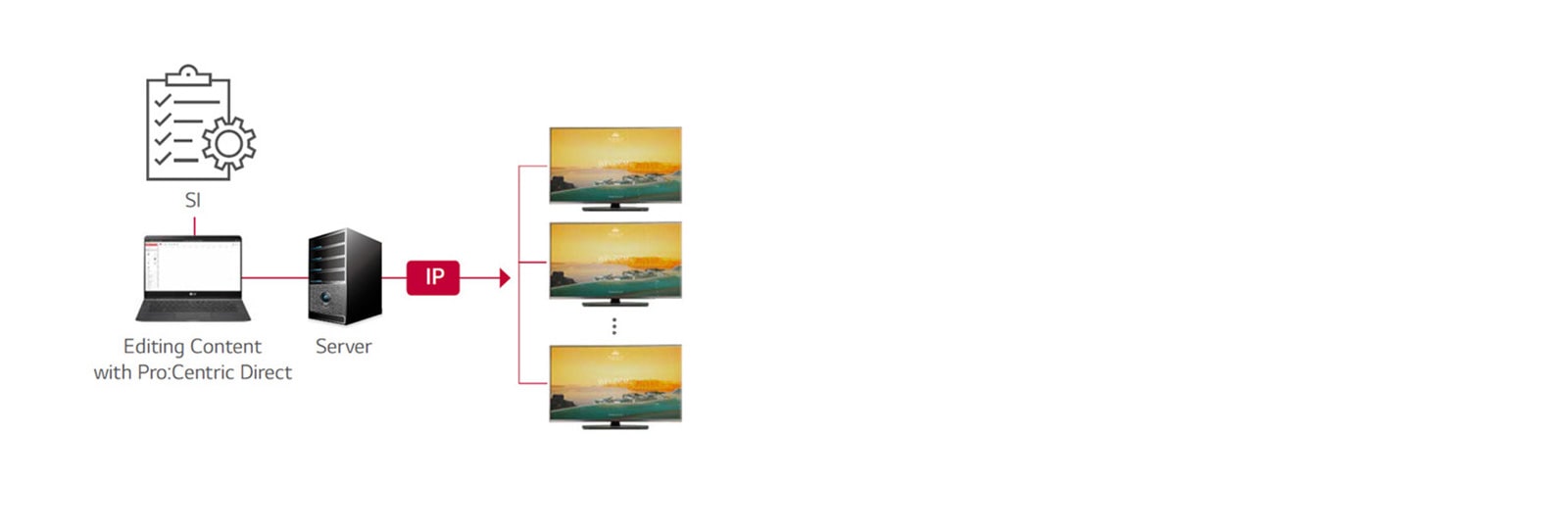

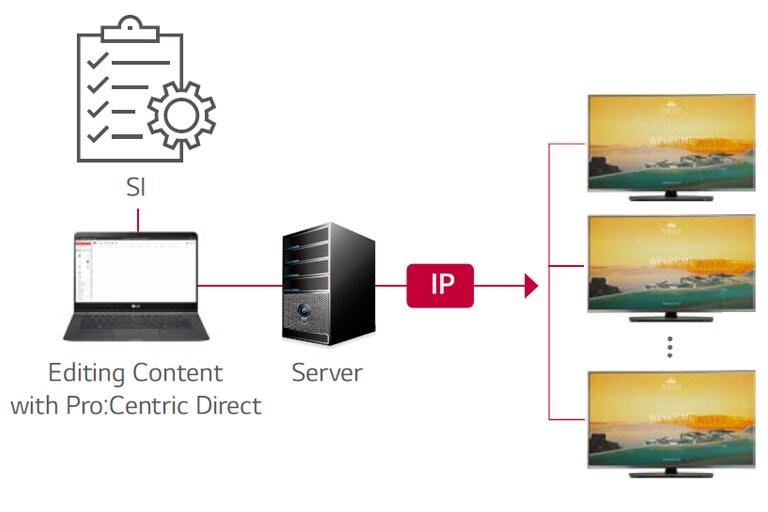

    Pro:Centric (Smart, V, Direct), Quick Menu 2.0
    Data Streaming (IP & RF)
    Yes
  • RF
    Yes (1 Tuner)
    HCAP (GEM/FLASH/HTML)
    ※ Service Carousel (TLL/XML)
    GEM/Flash/HTML5
  • Pro:Centric Application

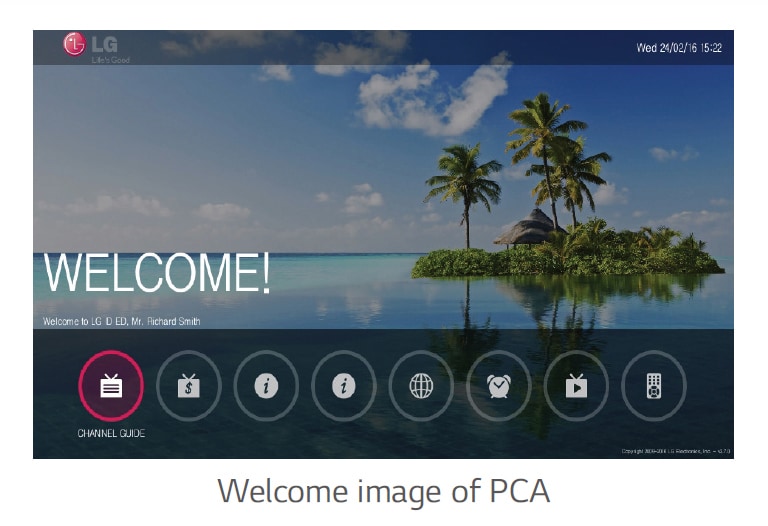

    PCA 3.7
    DRM

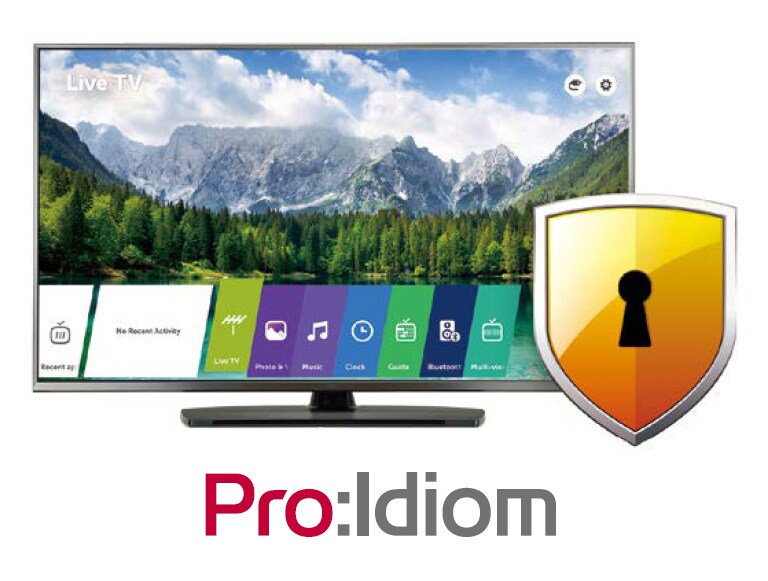

    Pro:Idiom (S/W Type)

FEATURE

  • Hospitality

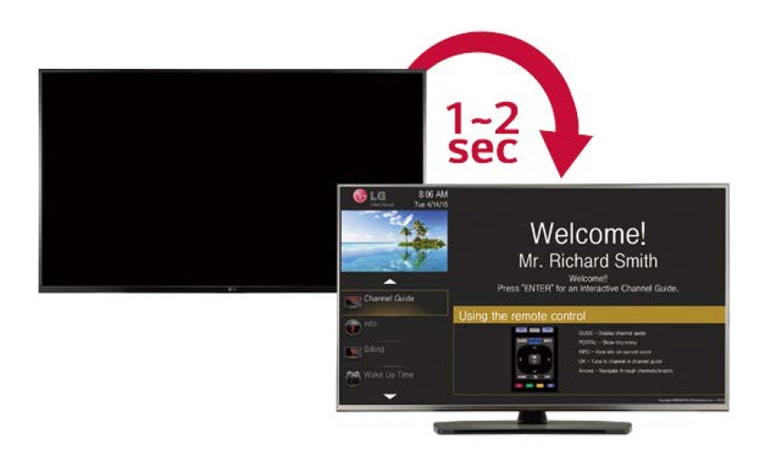

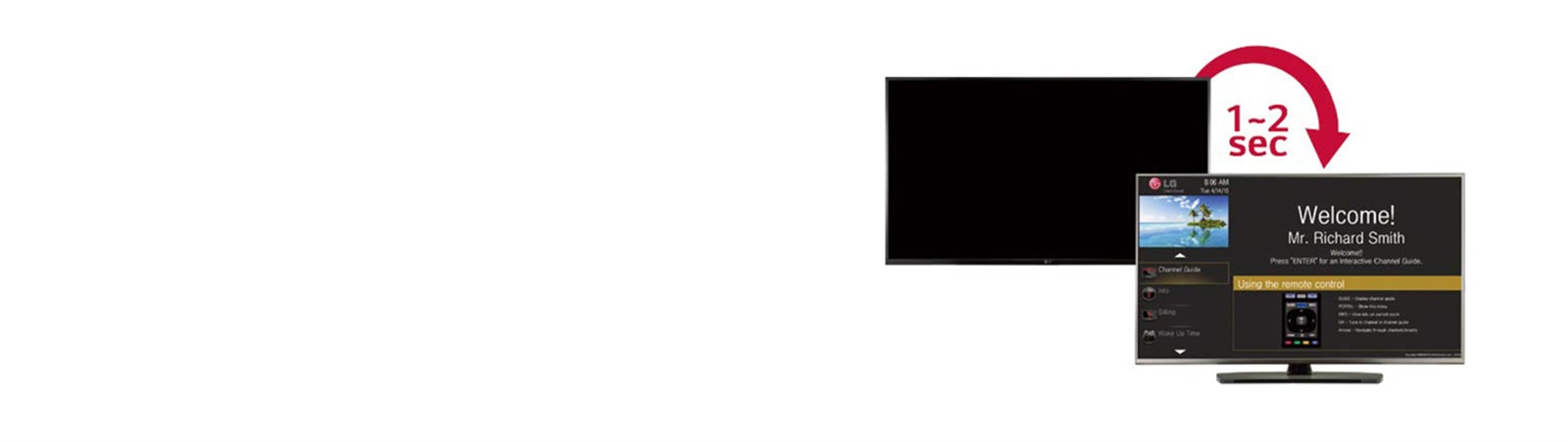

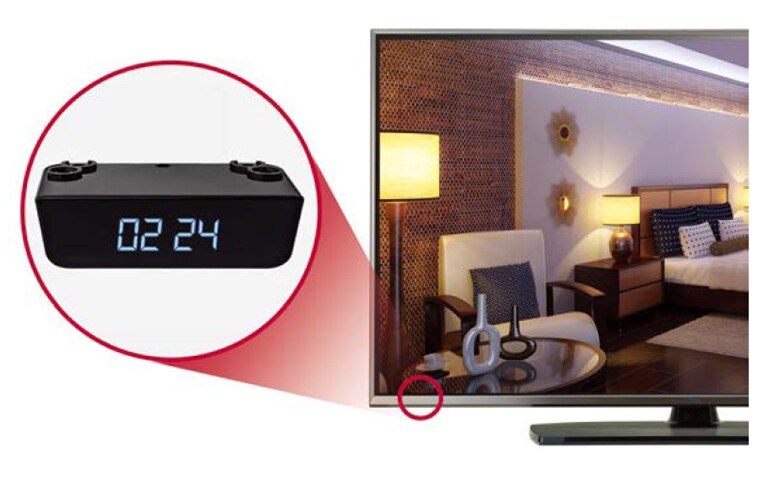

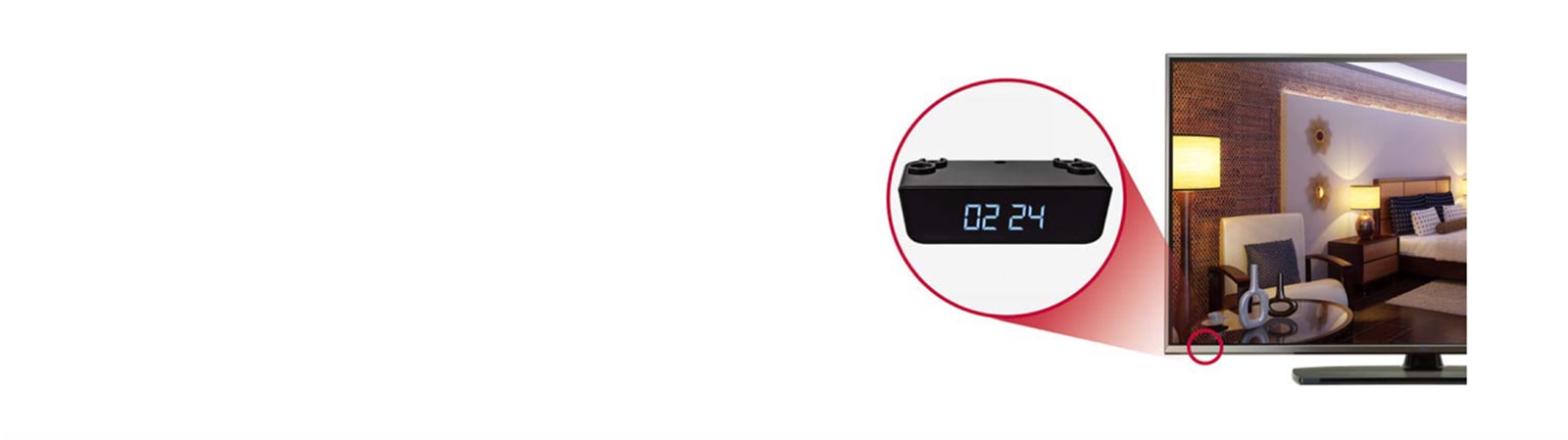

    Hotel Mode/PDM/Installer Menu, Lock Mode, Welcome Screen, Insert Image, One Channel Map, External Speaker Out, Instant On, External Power, V-Lan Tag, RJP Interface, RJP Compatibility, External Clock Compatibility, Clock (World Clock/Alarm), 360 Viewer

JACK INTERFACE

  • Set Side
    HDMI In 2.0, USB 2.0 (2), CI Slot

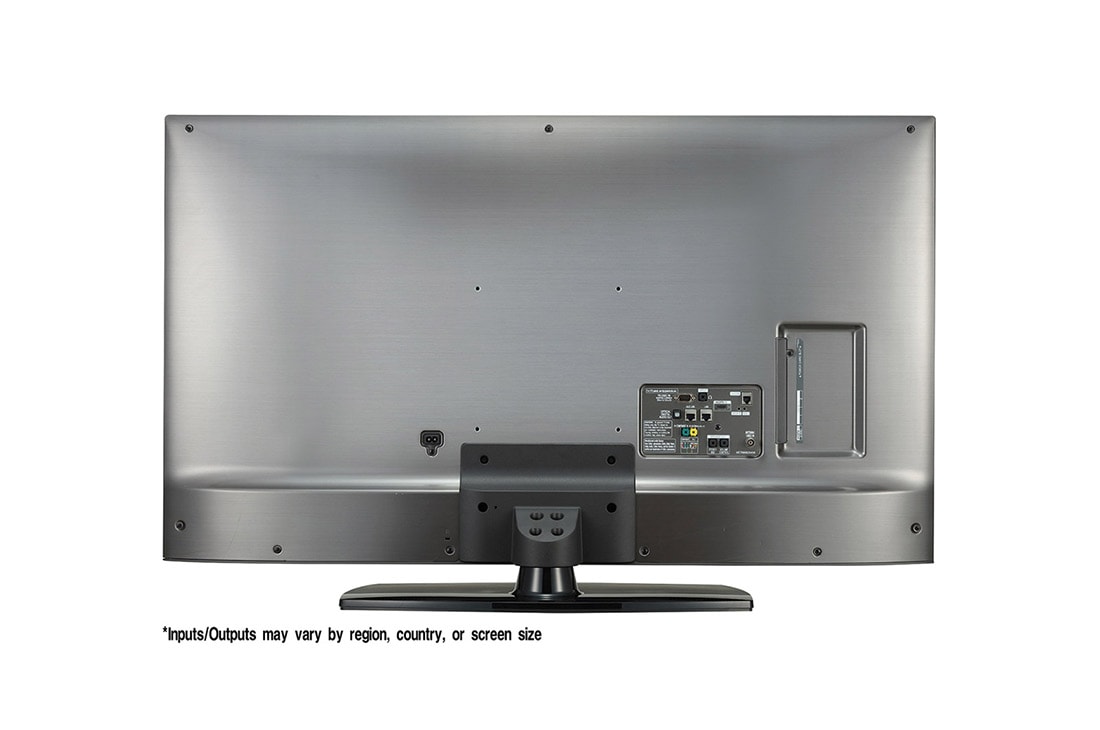

    Set Rear
    RF In, AV In, Component In (Phone Jack Type), Digital Audio Out (Optical), HDMI/HDCP Input, RS-232C (Control & Service), Headphone Out, Clock Interface (RJ12), RJ45 (2), External Speaker Out

DIMENSION (UNIT: MM)

  • Vesa
    300 x 300
    W x H x D / Weight (with stand)
    1,237 x 774 x 303/19.4kg
  • W x H x D / Weight (without stand)
    1,237 x 721 x 36.6 (SPK: 63.3)/16.1kg
    W x H x D / Weight (Packing)
    1,360 x 860 x 190/24.1kg

POWER (UNIT : WATTS)

  • Voltage, Hz
    100 ~ 240V, 50/60Hz
    Max
    167
  • Typical
    142
    Energy saving (Min / Med / Max)
    96/69/42
  • Stand-by
    0.5 ↓

GENERAL

  • Region
    Middle East & Africa
