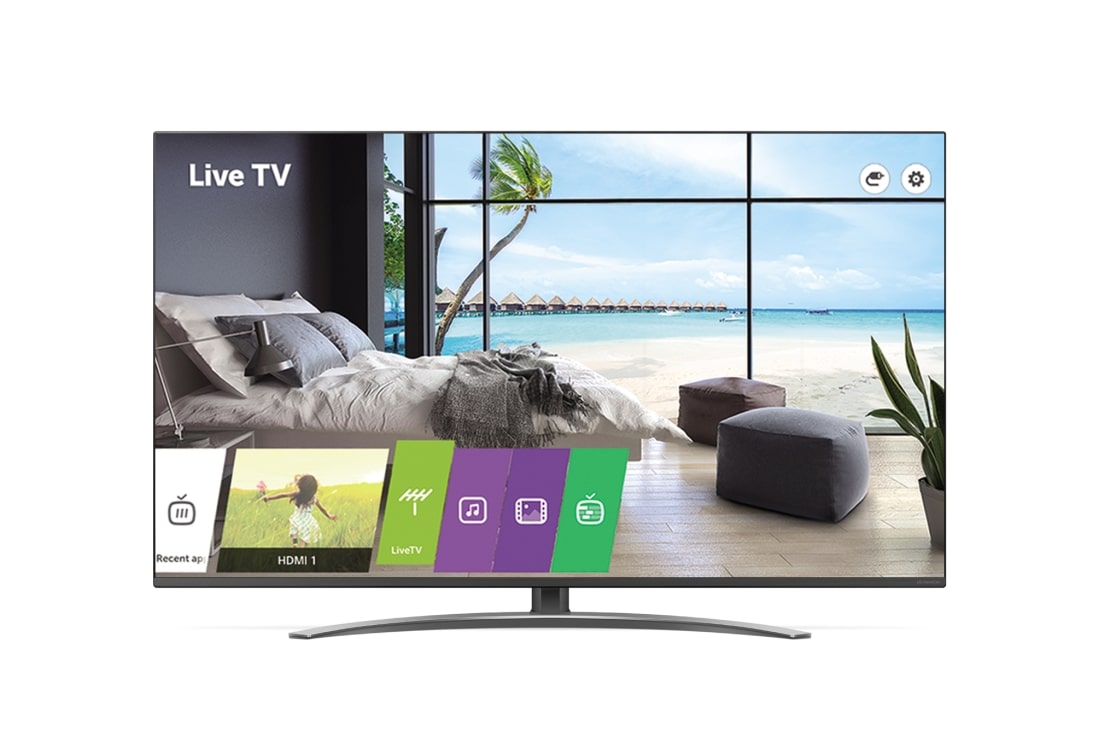

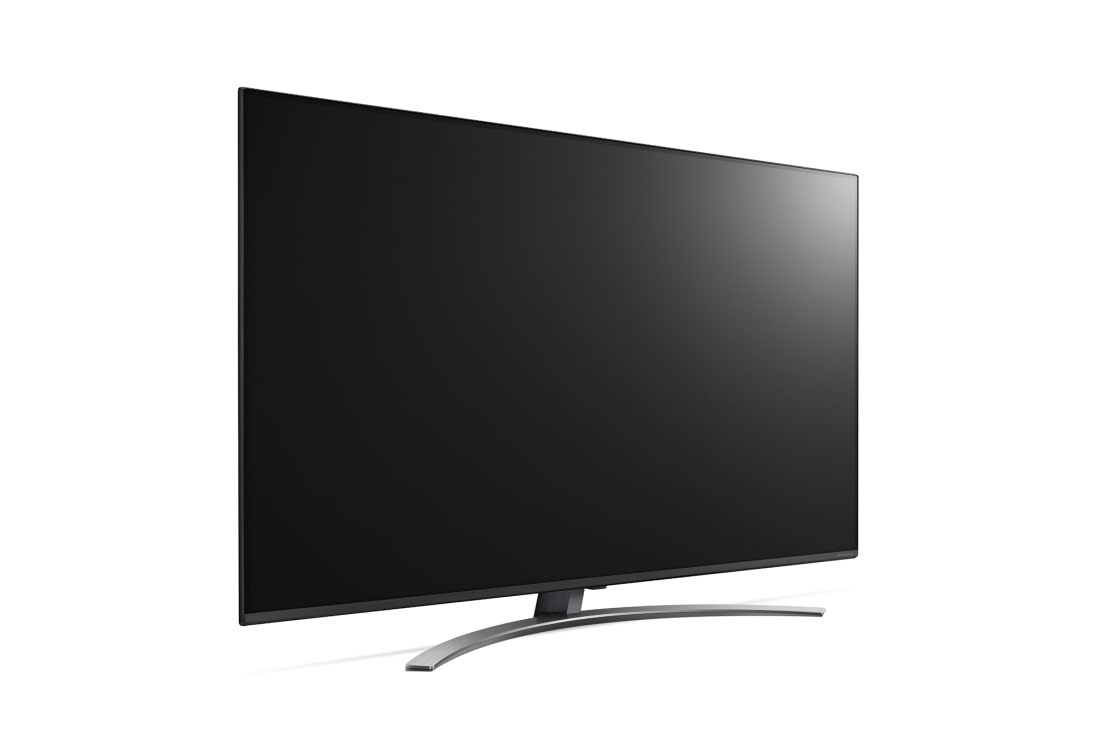

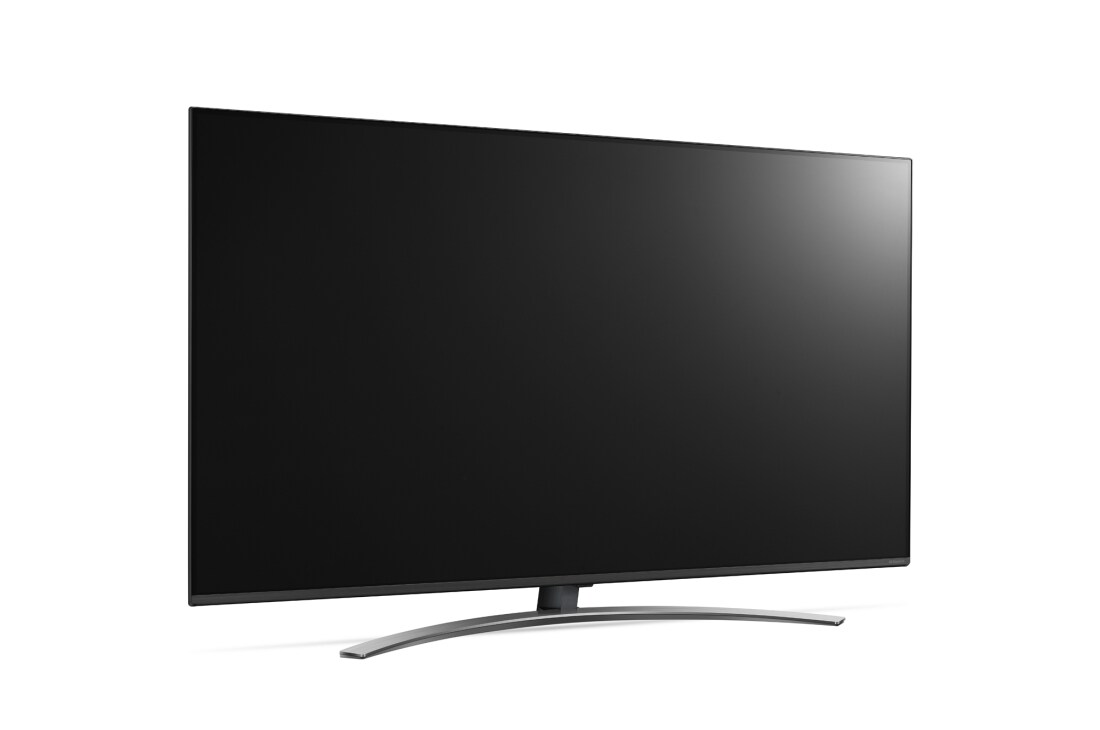

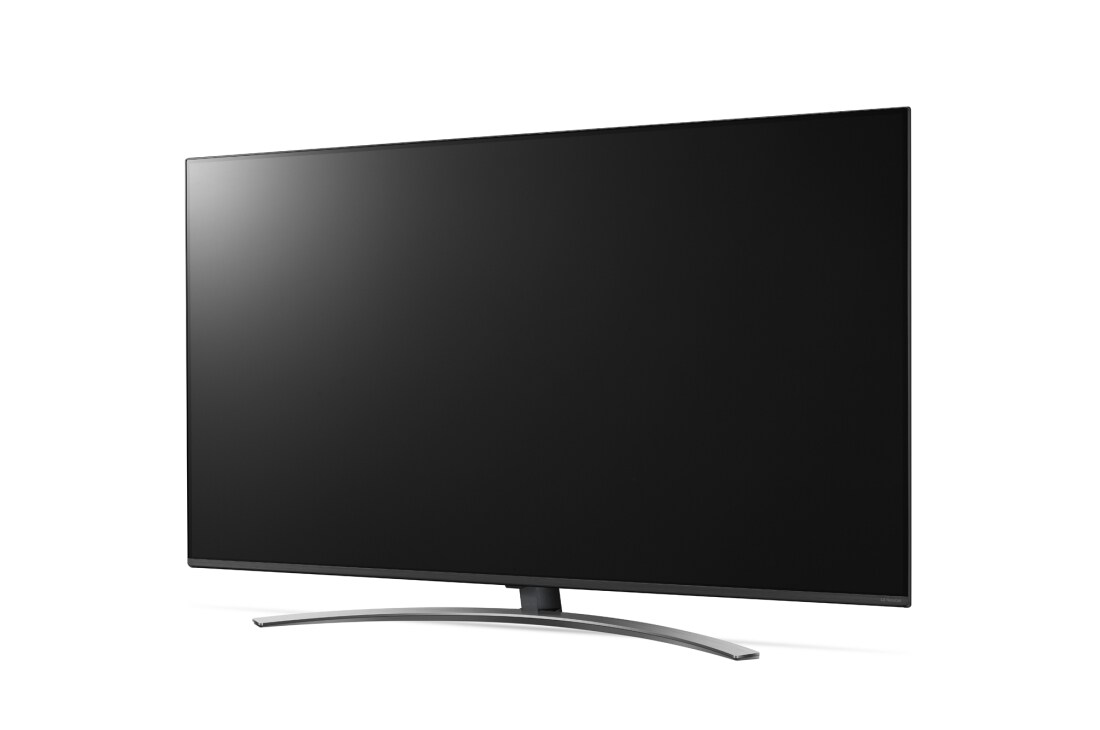

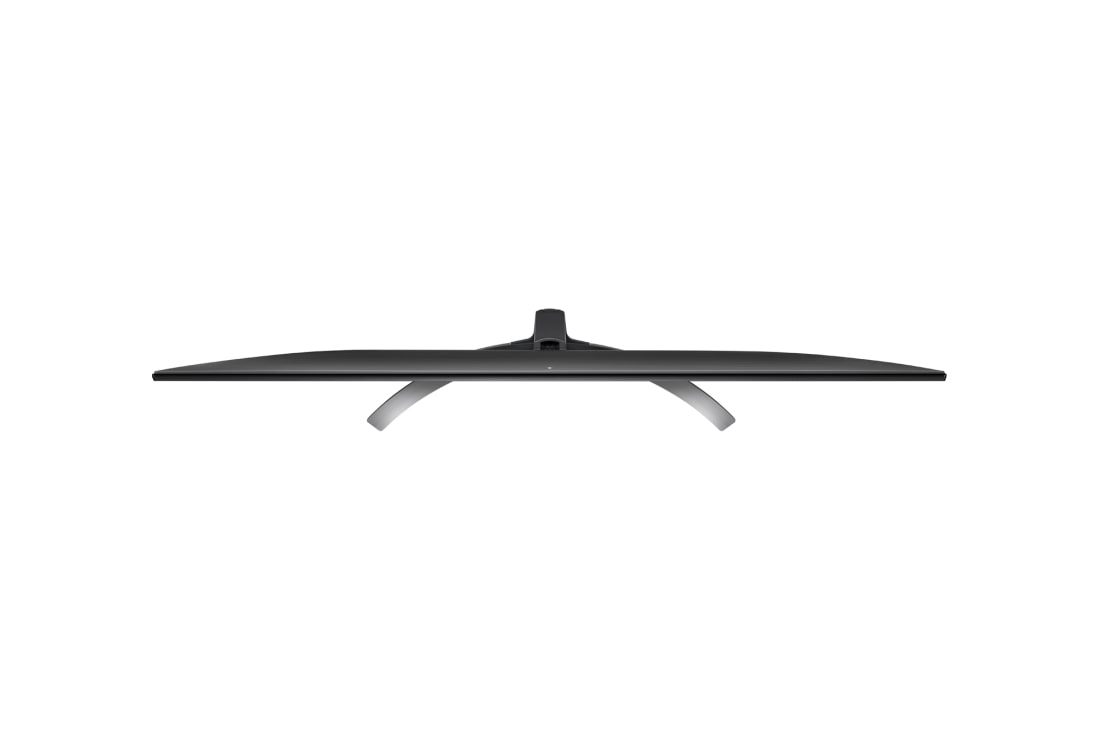

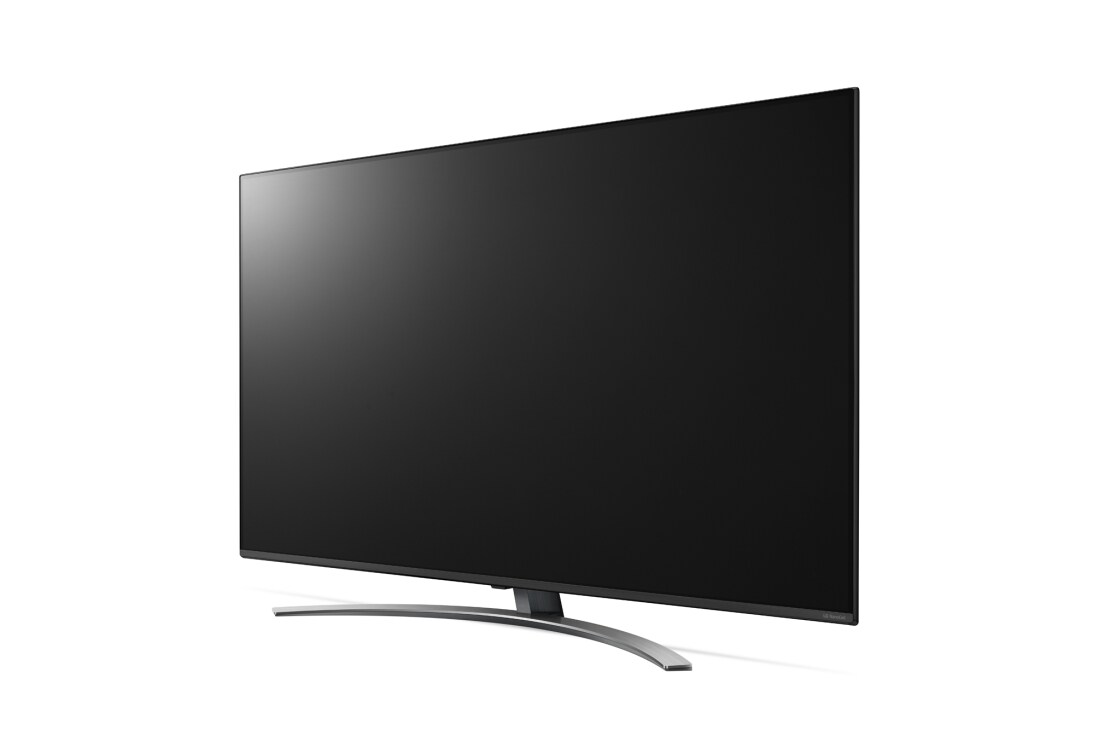

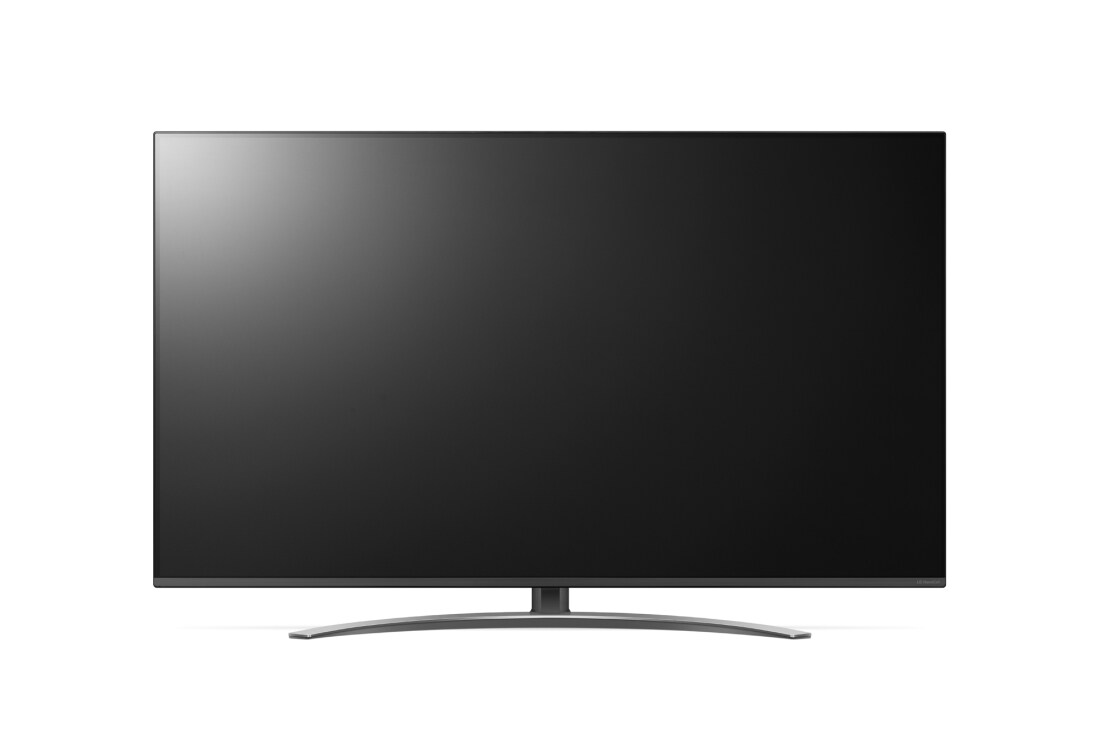

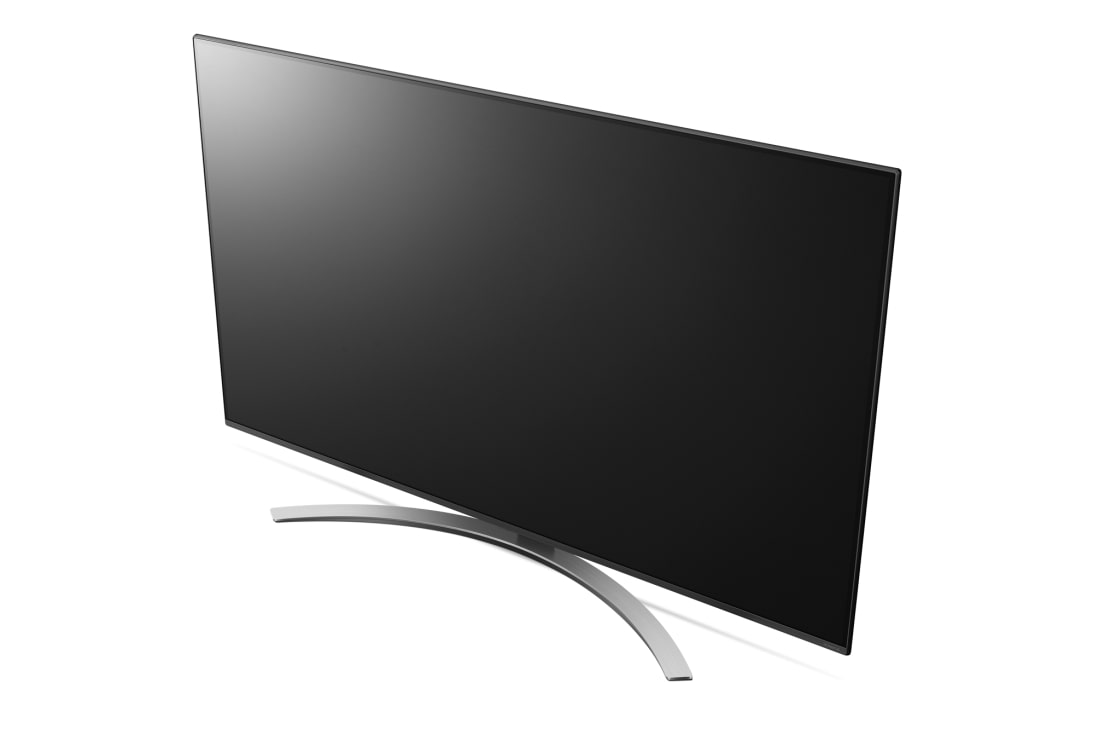

65UT761H0GB
UT761H Series

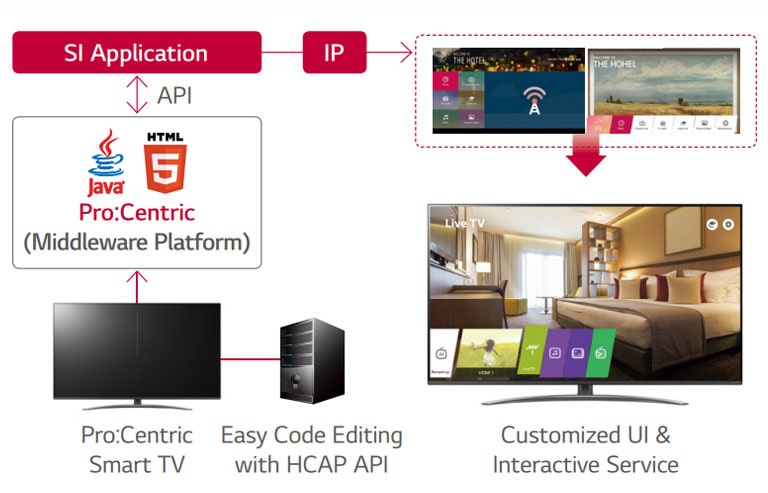

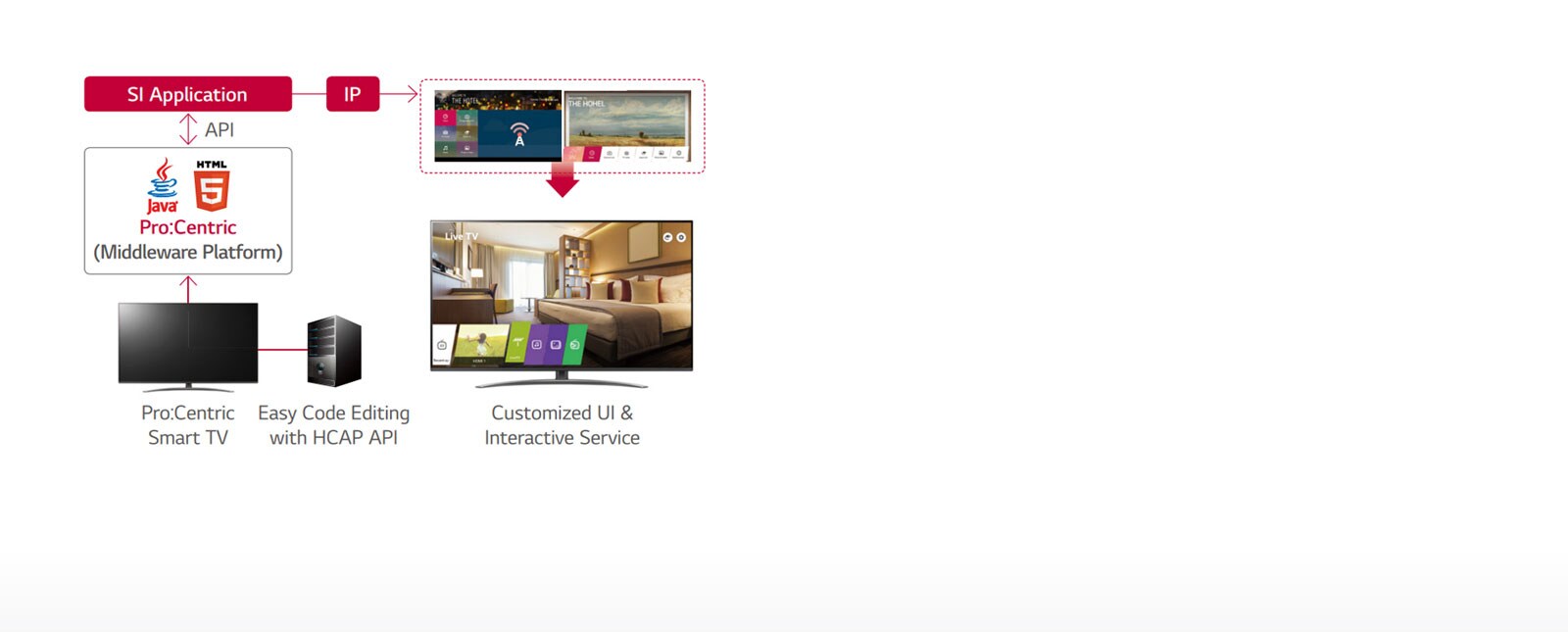

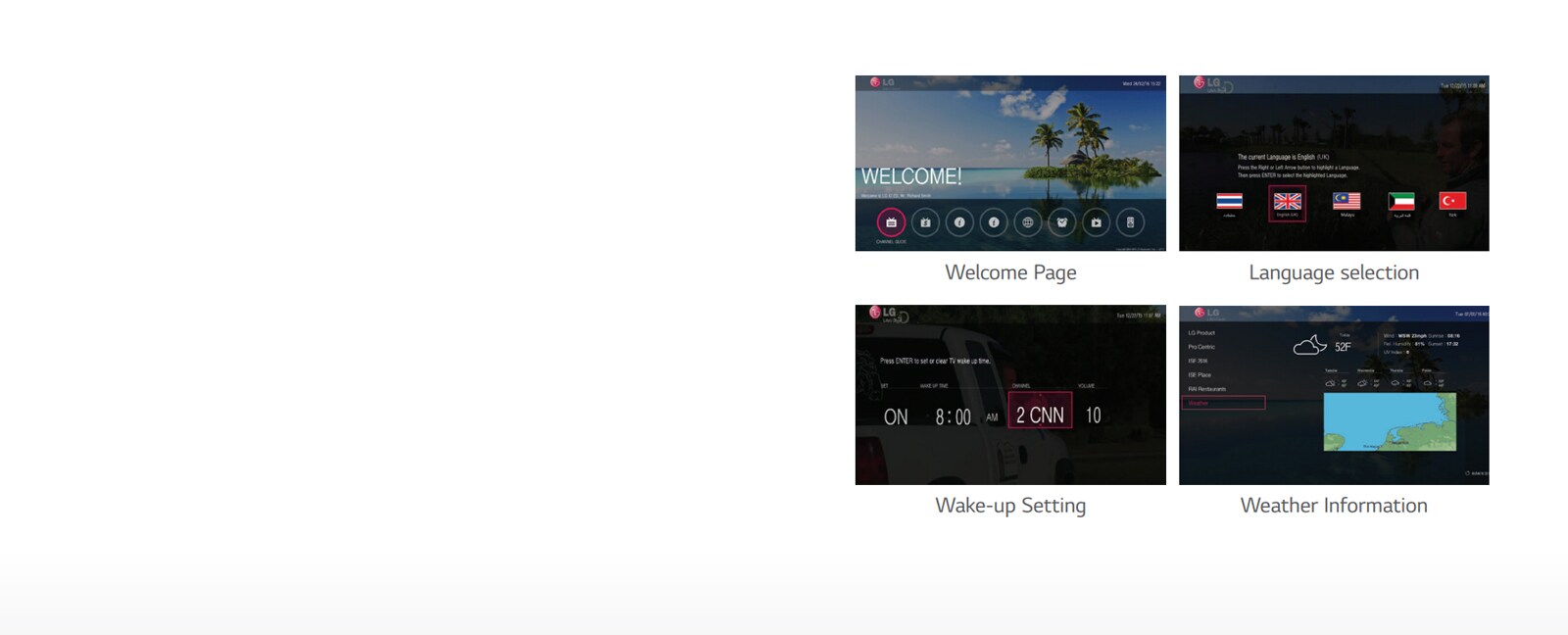

  • Pro:Centric Hotel Management Solution
  • Voice Recognition

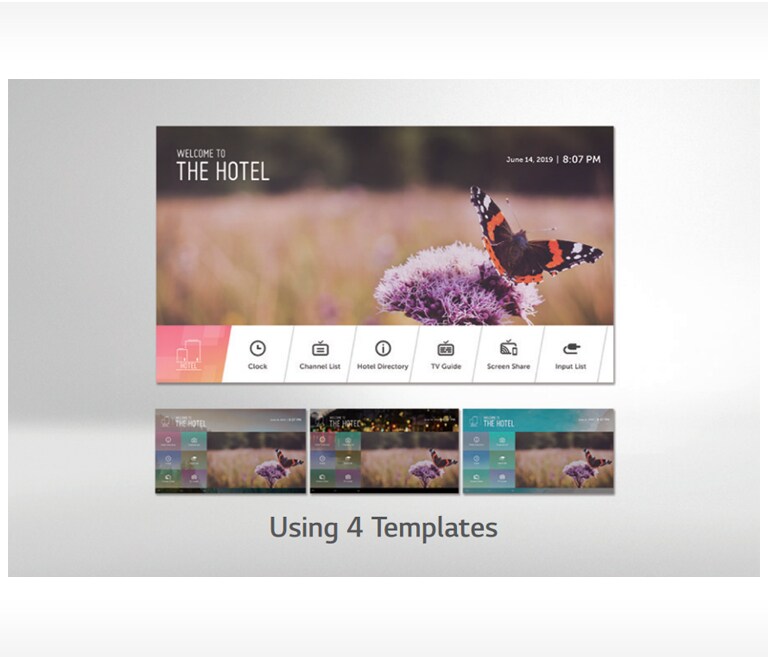

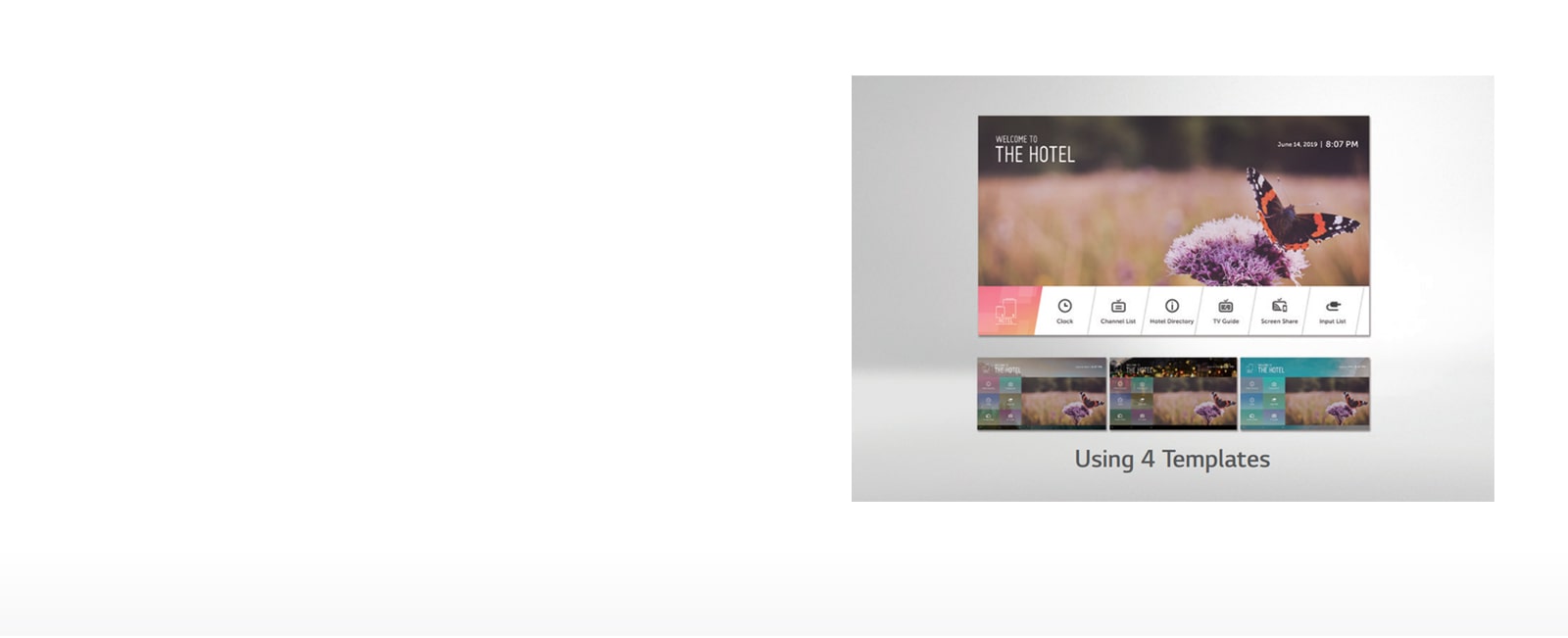

  • Quick Menu

component-OBScountrySelectDesc

UT761H Series

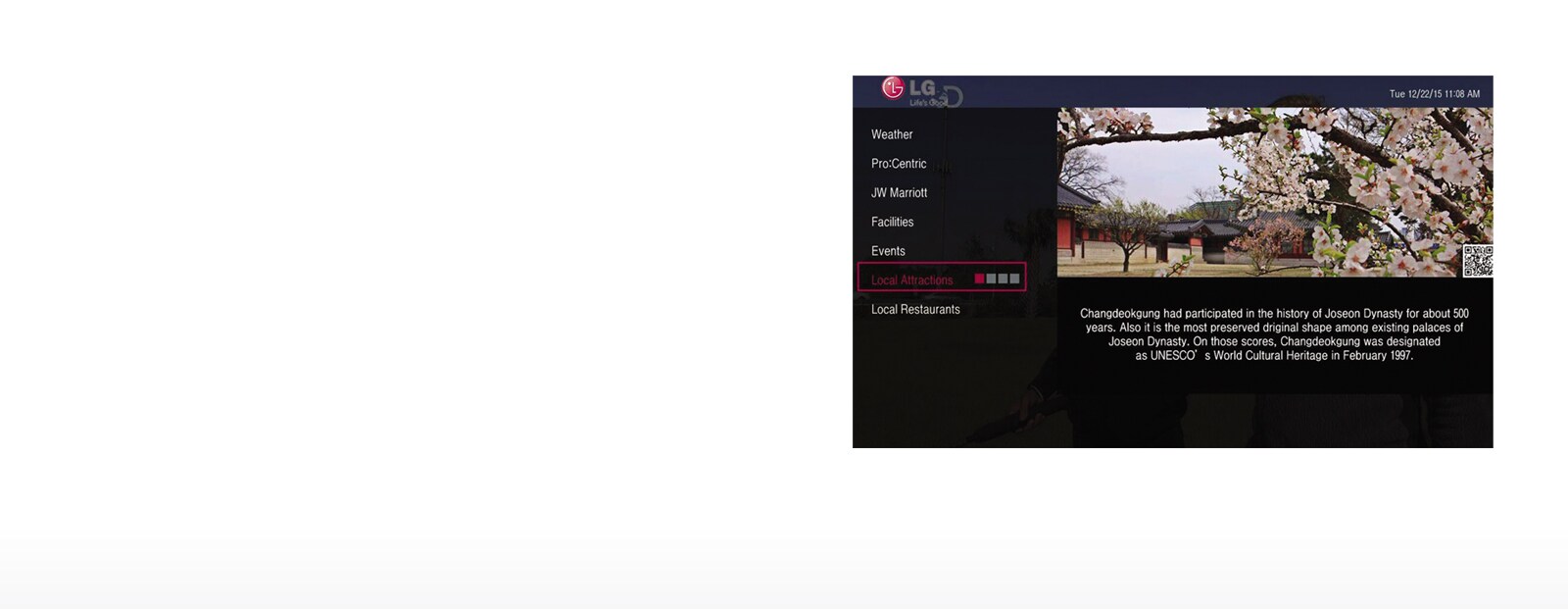

* Customized Ul may be little different.
* Actual Ul may be litter different

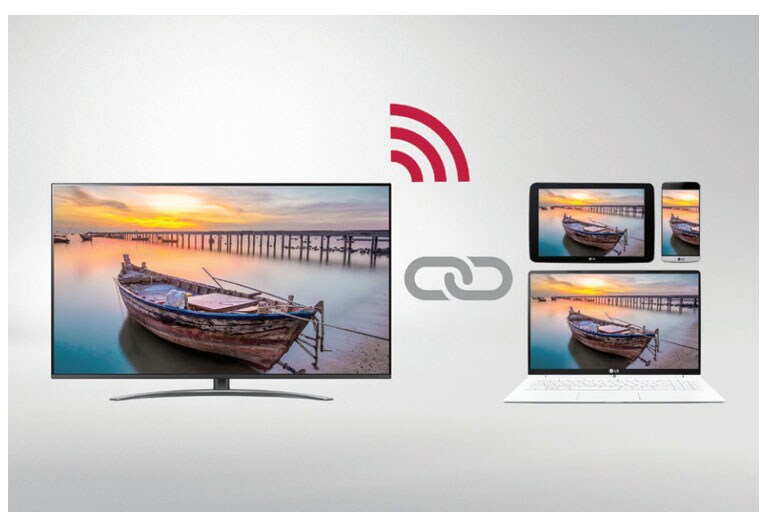

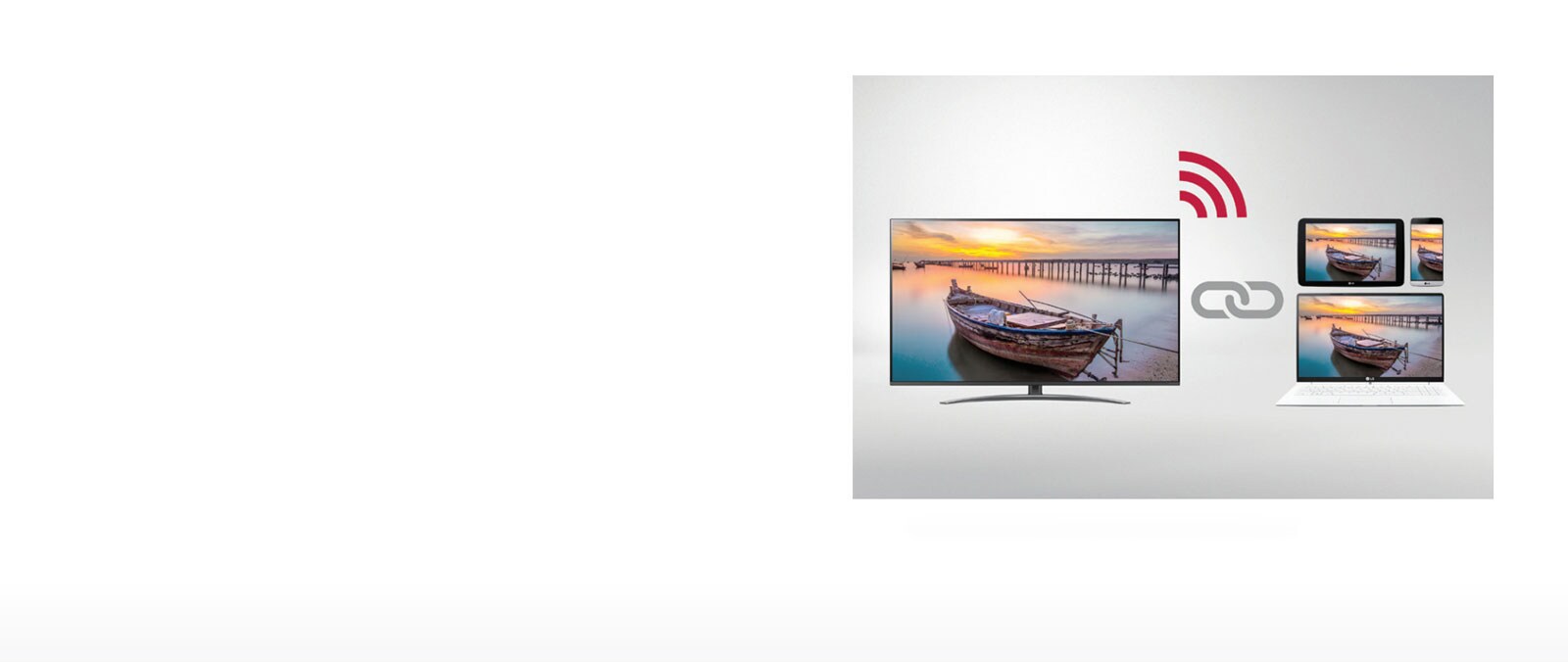

* SoftAP should be set in installation menu after TV is on.
* Smart Mirroring may not be operated at the same time.

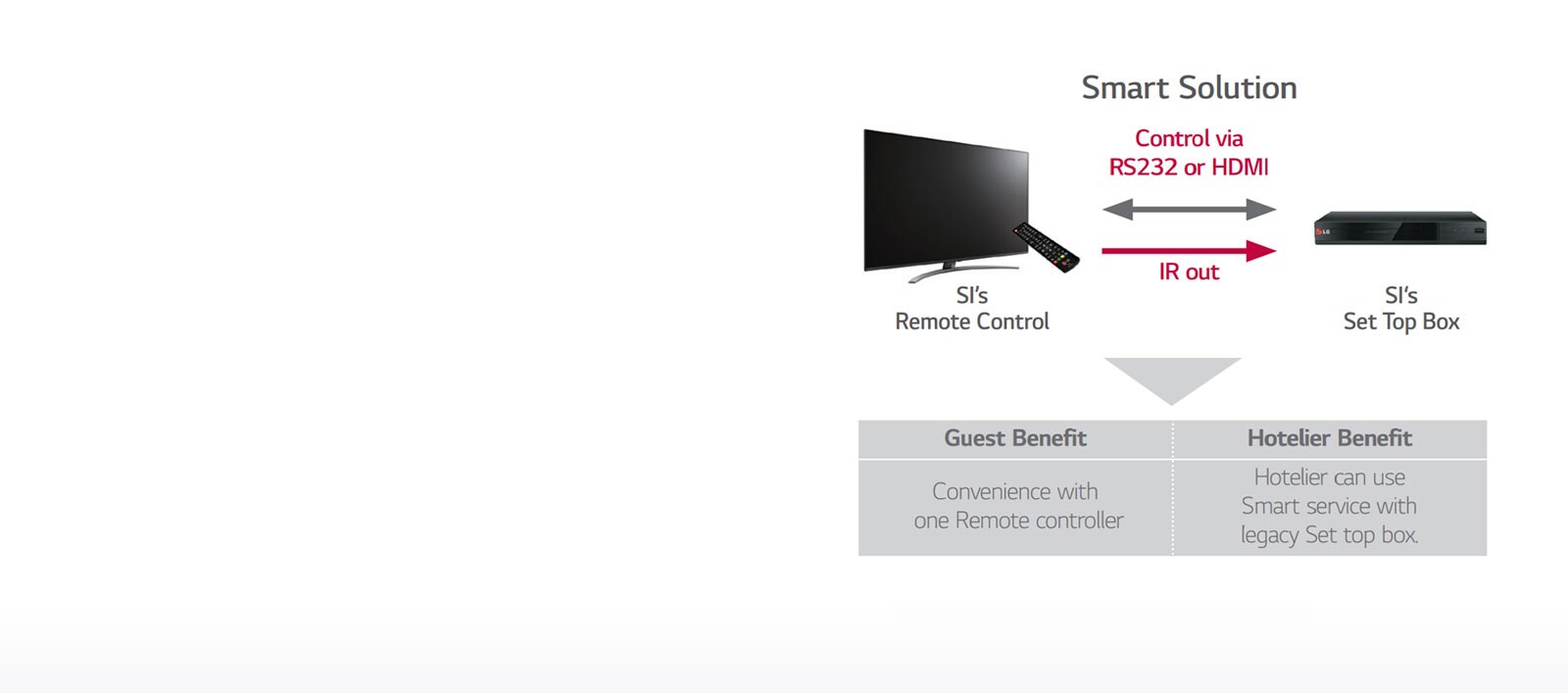

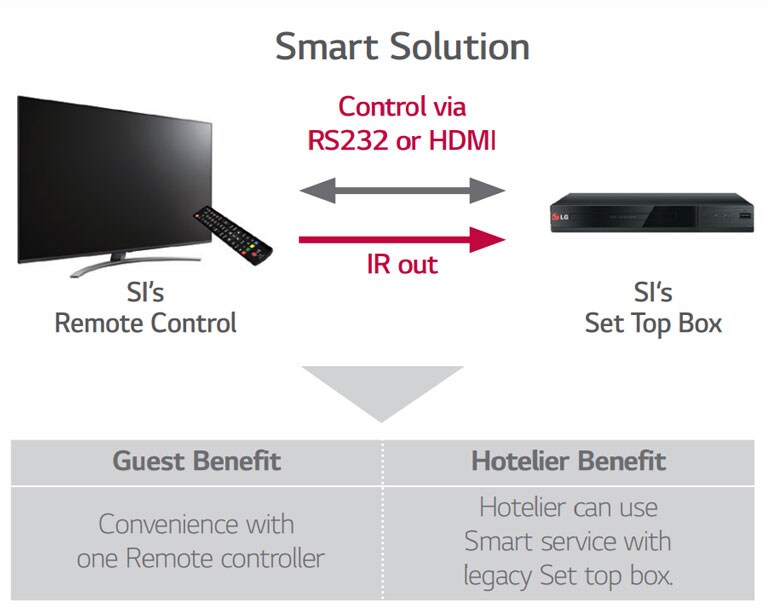

* We provide two protocol for SI solution (HTNG-CEC and TVLink)
* Only available for LG TV models

DISPLAY

  • Inch
    65
    Resolution
    3,840 x 2,160 (UHD)
  • Backlight Unit Type
    Edge
    Brightness (nit)
    400

BROADCASTING SYSTEM

  • Digital
    Yes (DVB - T2 / C / S2)

VIDEO

  • HDR (Dolby Vision / 10 Pro / HLG)
    No / Yes / Yes

AUDIO

  • Audio Output
    10W + 10W
    Speaker System
    2.0 ch
  • DOLBY ATMOS
    Yes
    Deep Learning AI Sound
    Yes
  • LG Sound Sync
    Yes (Required Bluetooth)

HOSPITALITY SOLUTION

  • Solution Type

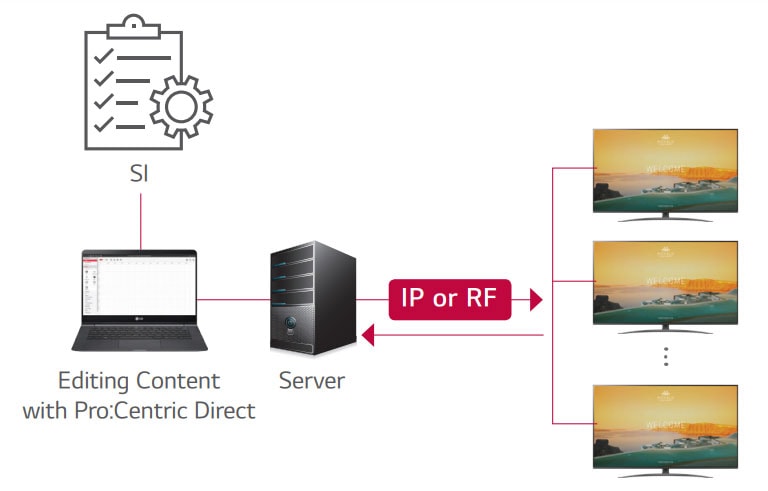

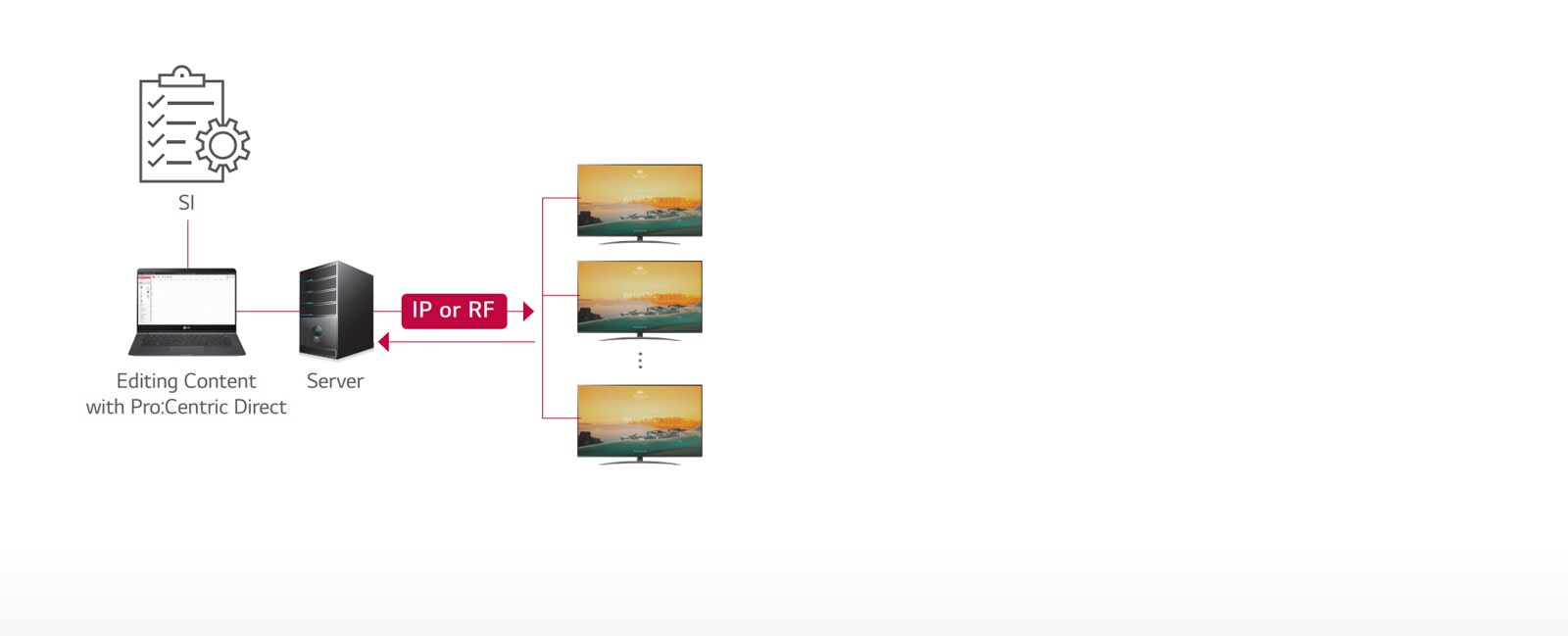

    Pro:Centric (Smart, V, Direct), Quick Menu 3.0
    Data Streaming (IP & RF)
    Yes
  • HCAP (GEM/FLASH/HTML)
    ※ Service Carousel (TLL/XML)
    GEM / HTML5
    IP Return path
    Yes
  • Multicast / Unicast ready
    Yes
    webRTC (Real Time Communication)
    Yes

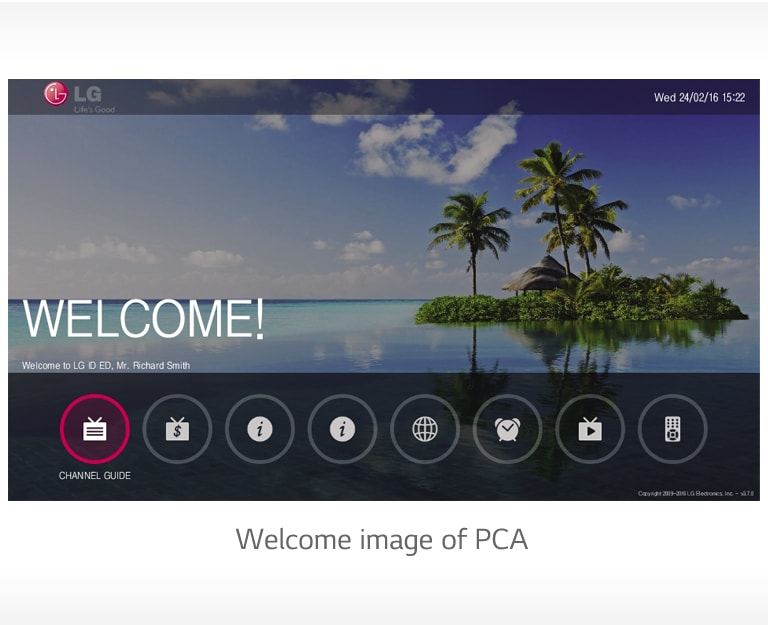

  • Pro:Centric Application (version)
    Yes (PCA3.8)

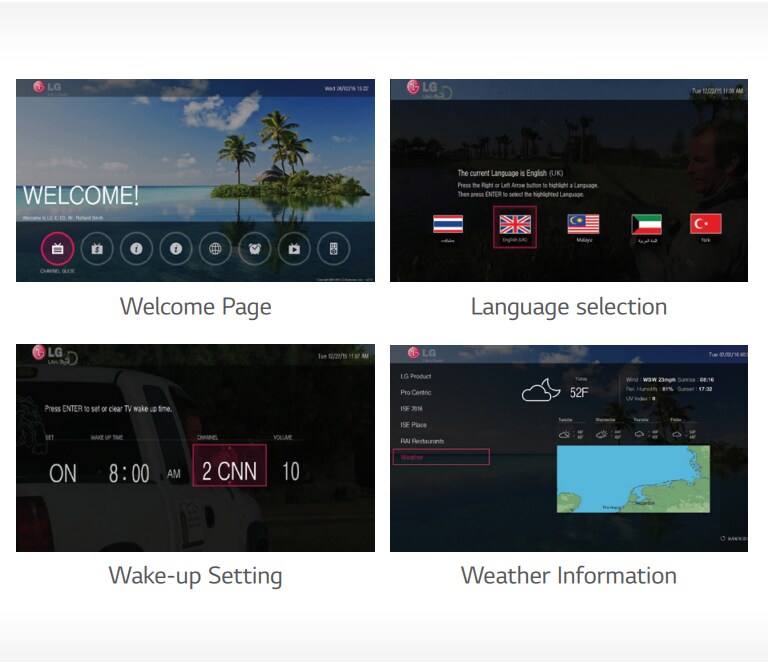

    Pro:Centric Server
    PCS400R
  • DRM
    Pro:Idiom (S/W Type), Pro:Idiom (Mobile, Lite)

FEATURES

  • Hospitality

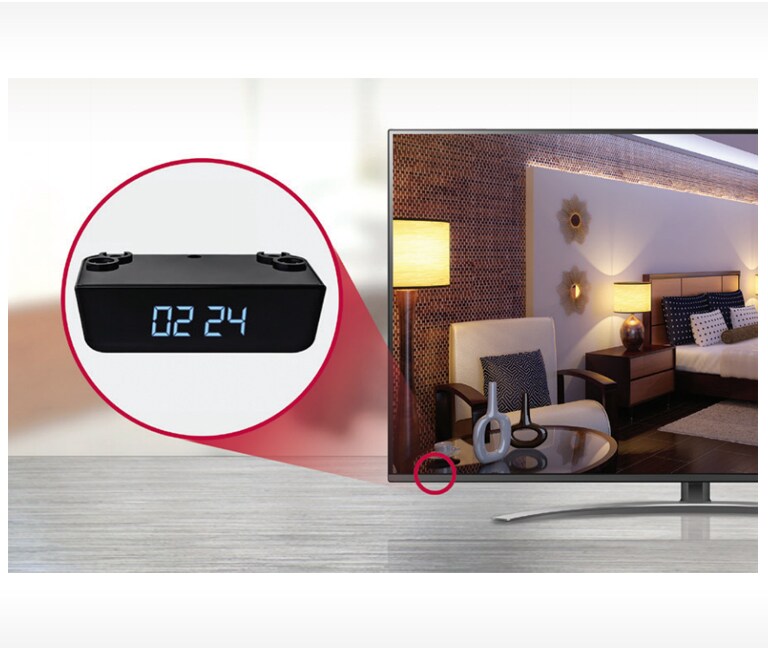

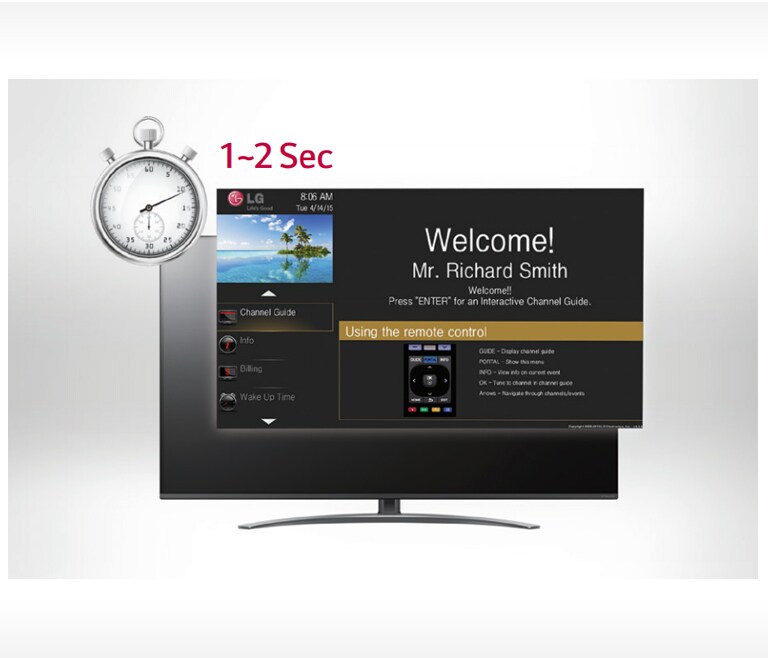

    Hotel Mode, Lock mode (Limited), Welcome Video / Screen, Insert Image, One Channel Map, IP Chanenel Manager, External Speaker Out (Int / Ext Variable / Fixed), Instant ON, External Power Out, V-Lan Tag, RJP (Remote Jack Pack) Compatibility, LG / Teleadapt (RS232C), Teleadapt / Guestlink (HDMI CEC), External Clock Compatibility (LEC-005), Auto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care, BEACON, RTC (Real Time Clock), NTP sync timer

JACK INTERFACE

  • Set Side
    HDMI In 2.0, USB 2.0 (2), CI Slot
    Set Rear
    HDMI In (HDCP) 2.0 (2), Digital Audio Out (Optical), RS-232C (Control & Service), Clock Interface (RJ12), RJ45 (Usage Purpose : 2 (Ethernet, Aux)), External Speaker Out (3.5mm Phone Jack) : 2 (Spk-out 1, 4W (Stereo, R : 2.0W, L : 2.0W, 8Ω) - Vol. Control1)

DIMENSION (UNIT: MM / KG)

  • Vesa
    300 x 300
    W x H x D / Weight (with stand)
    1,451 x 910 x 323.7 / 25.8
  • W x H x D / Weight (without stand)
    1,451 x 840 x 64 / 24.1
    W x H x D / Weight (Shipping)
    1,600 x 1,035 x 207 / 33.3

POWER (UNIT : WATTS)

  • Voltage, Hz
    100 ~ 240, 50 / 60
    Typical
    169W
  • Stand-by
    0.5

GENERAL

  • Region
    Middle East & Africa
