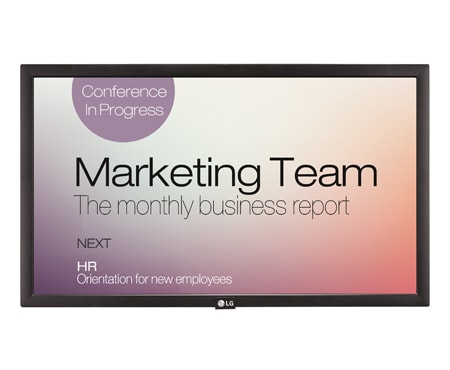

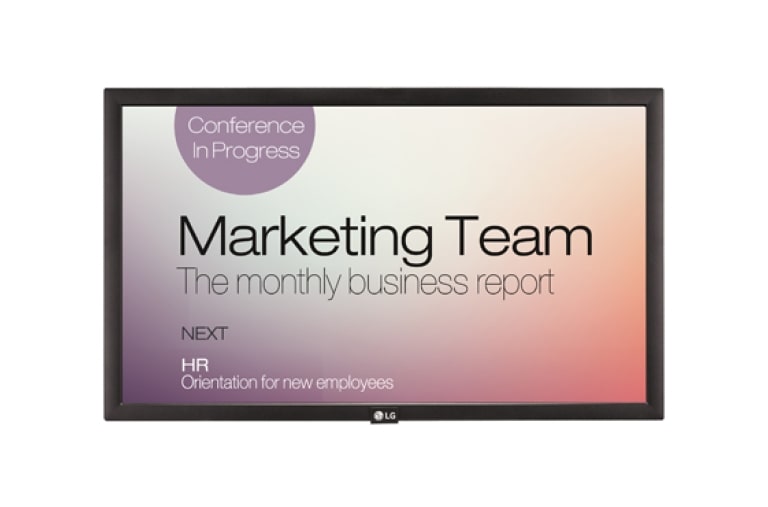

22SM3B
SM3B Series
  • Brightness : 250 cd/m²
  • Bezel : 16.3mm (Even Bezel)
  • Depth : 53.8mm
  • Interface : HDMI / USB / RGB / RJ45 / IR
  • 16/7 Operation

component-OBScountrySelectDesc

SM3B Series

PANEL

  • Screen Size
    21.5"
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness
    250cd/m²

CONNECTIVITY - INTPUT

  • HDMI
    Yes (1), HDMI1.4b/HDCP2.2
    DP
    No
  • DVI-D
    No
    Analog (RGB)
    Yes (1)
  • Audio In
    Yes (1), RGB
    External Control (RS232C IN)
    Yes (1)
  • External Control (RJ45)
    Yes (1)
    External Control (IR receiver)
    Yes (Built-in type)
  • External Control (Pixel Sensor)
    Yes (1)
    USB (USB3.0)
    Yes (1)
  • SD Card (SDHC/Full Size)
    No

CONNECTIVITY - OUTPUT

  • DP Out
    No
    Audio Out
    No
  • Externel Speaker Out
    No
    External Control (RS232C OUT)
    No

PHYSICAL SPECIFICATION

  • Bezel Width
    16.3mm (T/R/L/B)
    Monitor Dimension (W x H x D)
    510.3mm X 302.1mm X 53.8mm
  • Weight (Head)
    3.6kg
    VESA™ Standard Mount Interface
    100mm x 100mm

MEDIA PLAYER COMPATIBILITY

  • OPS type compatible
    No
    External Media player Attatchable
    No

SOFTWARE COMPATIBILITY

  • SuperSign-w lite
    Yes
    SuperSign-c
    Yes

ACCESSORY

  • Basic
    Remote Controller (include battery 2ea), Power Cord, QSG, RGB Cable, Phone to RS232C Gender
    Optional
    Pixel sensor (KT-SP0)

GENERAL

  • Region
    Global
