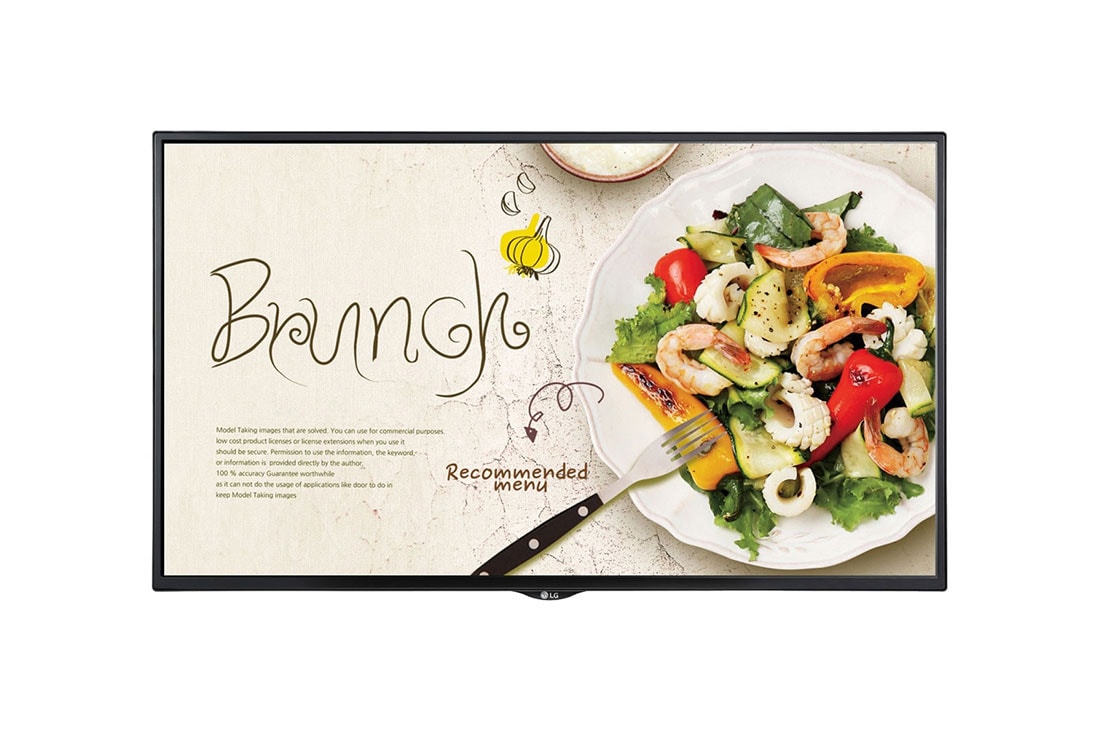

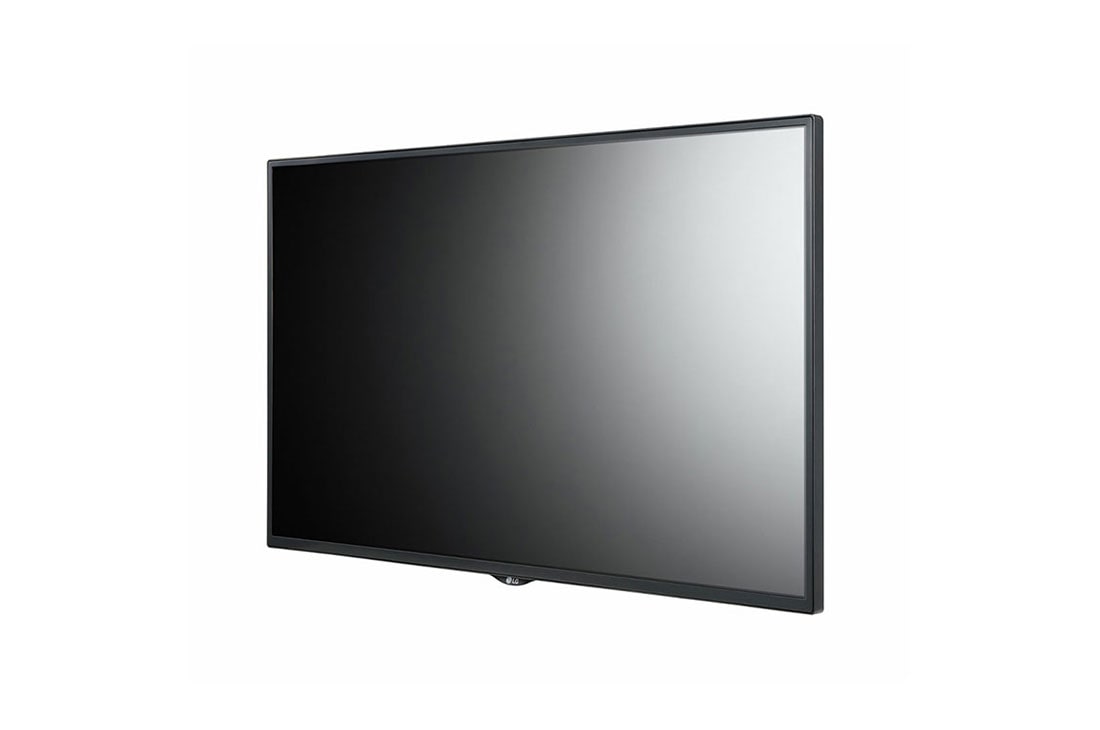

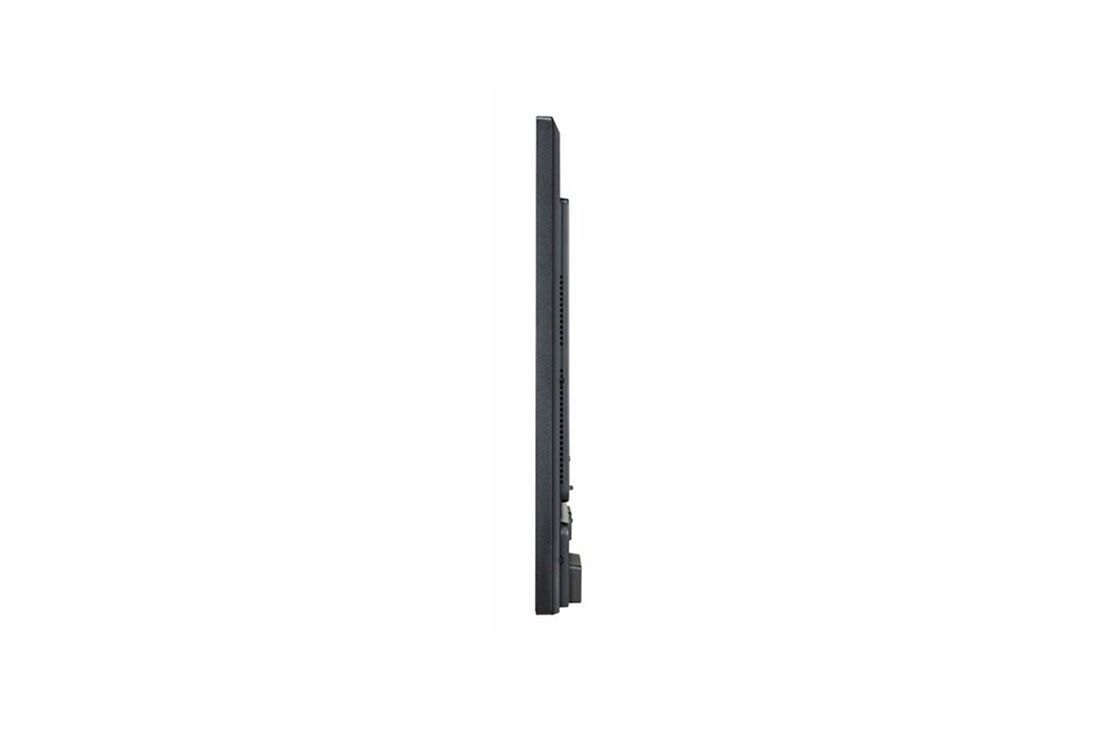

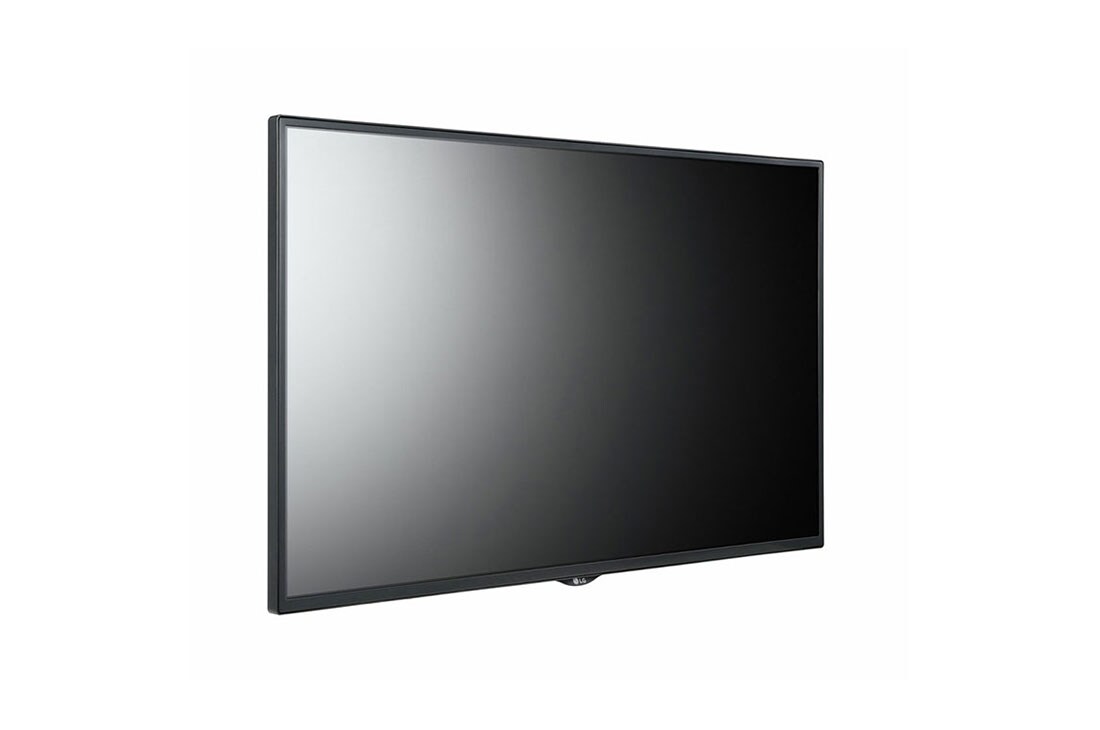

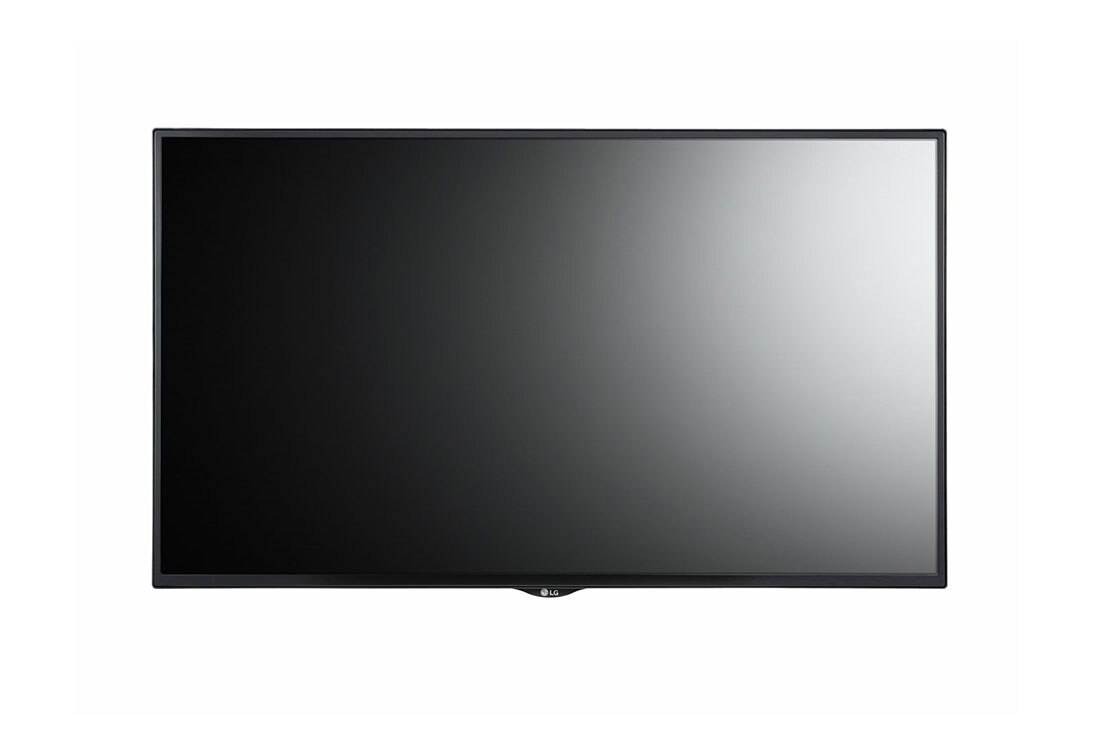

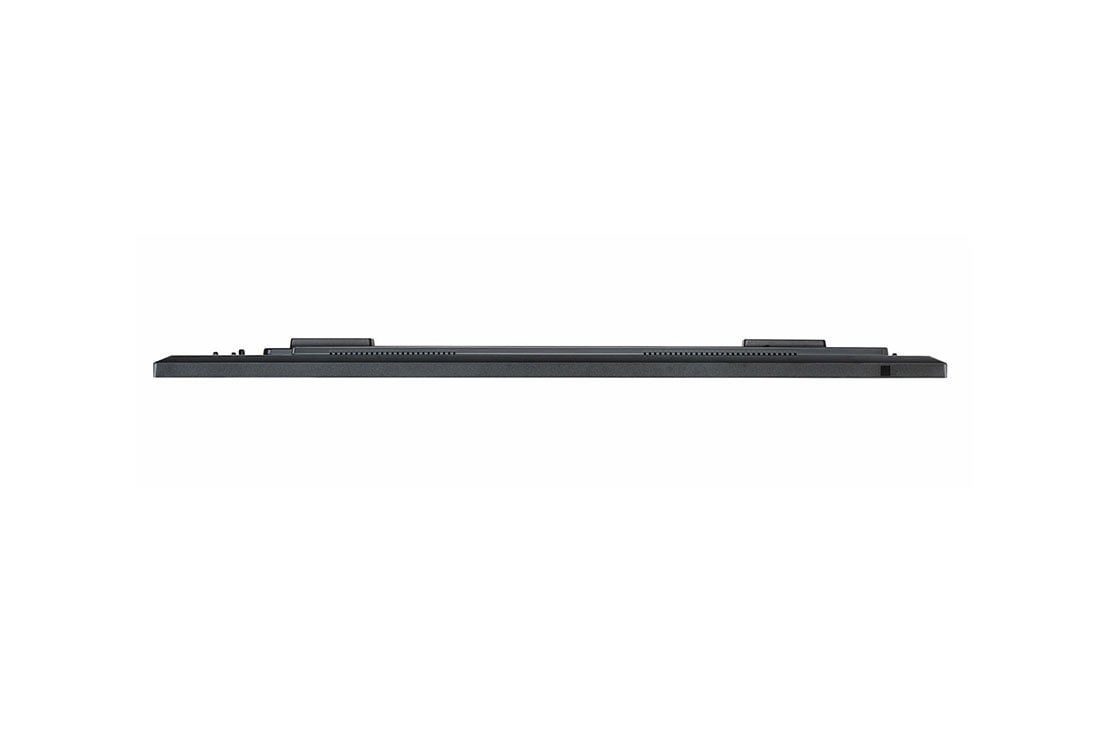

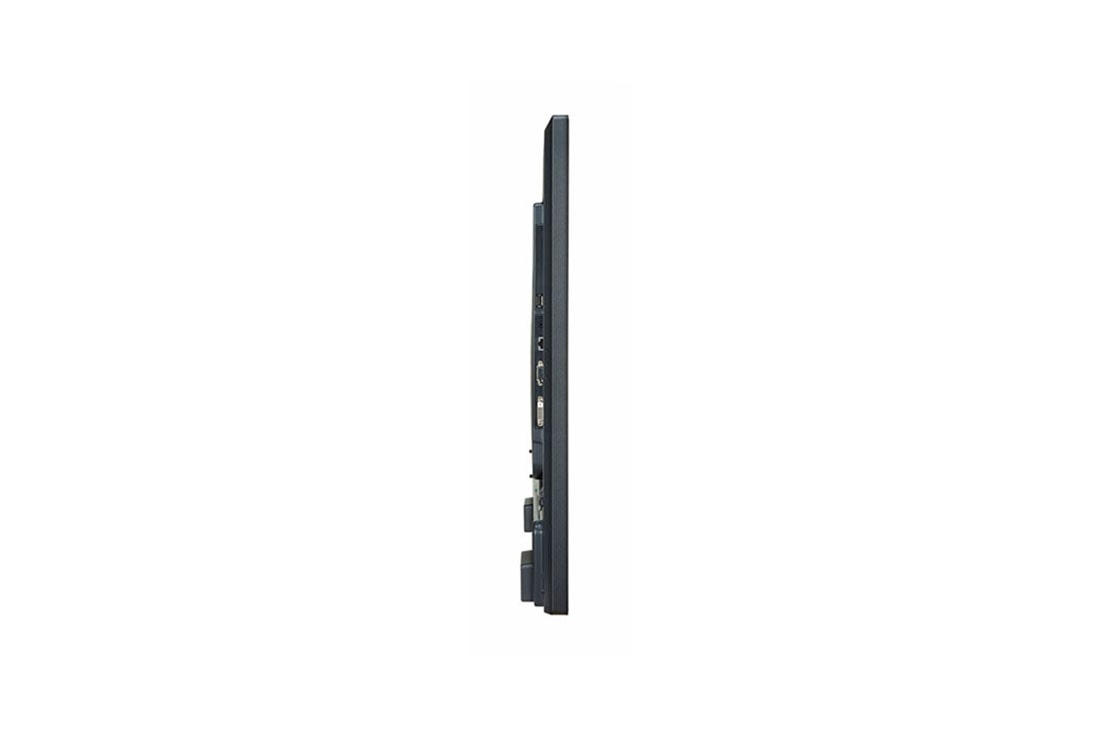

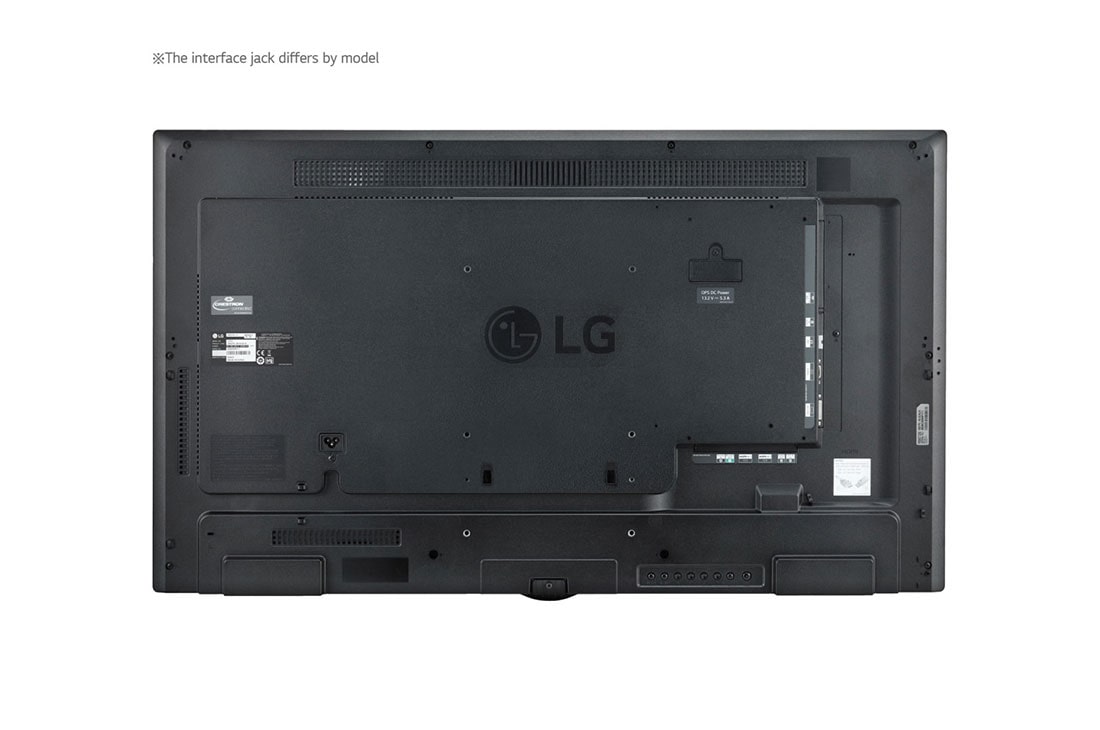

32SM5KE-B
SM5KE Series
55" 49" 43" 32"
CompareAdd to CompareRemove Compare
  • Brightness(Typ.): 400 cd/m²
  • Bezel: 13 mm (T/R/L), 18 mm (B)
  • Depth: 55.5 mm
  • Interface: HDMI(3)/DP/DVI-D/USB 3.0/RS232C/RJ45/Audio/IR
  • Built-in Speaker: 10W + 10W

component-OBScountrySelectDesc

SM5KE Series
High Performance Smart Platform1 High Performance Smart Platform2
Quad Core SoC with webOS

High Performance Smart Platform

Quad Core SoC (System-on-Chip) executes several tasks at once with smooth content playback without a media player. webOS smart signage platform enhances user convenience with intuitive UI and simple development tools.
Easy Contents Management1 Easy Contents Management2
Integrated CMS

Easy Contents Management

Embedded CMS (Content Management System) allows users to edit and play content, and create playlists, all without a seperate PC. It's a one-stop solution that lets users manage signage simply, and effectively.
Enhanced Usability1 Enhanced Usability2
GUI for B2B & EZ Setting

Enhanced Usability

A B2B dedicated GUI for portrait and long range environment modes provides convenient user management. With the 'EZ setting', users get integrated management of signage special features through a unifying access point.
Real-time Streaming1 Real-time Streaming2
Video Streaming

Real-time Streaming

Various types of IP video streaming protocols such as RTSP/RTP/HLS and UDP Multicast are supported for real-time content streaming. It is easy to manage content as it is free from capacity limits for content playback, and provides live broadcasts.
*Image is for illustration-purposes only.
*HLS (HTTP Live streaming)/*UDP (User Datagram Prototcol).
*RTSP (Real-Time streaming Prototcol)/*RTP (Real-time Transport Protocol).
Seamless Content Playback1 Seamless Content Playback2
Gapless Playback

Seamless Content Playback

During playback of diverse content such as videos, images, and HTML, enjoy seamless transition between screens with no black screen gaps with webOS.
Multiple Screen Composition1 Multiple Screen Composition2
PBP/PIP

Multiple Screen Composition

PBP (Picture-By-Picture) and PIP (Picture-In-Picture) enables up to two divided split screens in landscape or portrait display format enabling users to more flexibly allocate space for each content source.
Suited for Industrial Design1 Suited for Industrial Design2
Detachable Logo & Built-in Speaker

Suited for Industrial Design

The detachable logo allows for installation in the desired orientation: landscape or portrait mode. Also, sounds can be played from built-in speakers, giving advertisements greater impact.
Wireless Solutions1 Wireless Solutions2

Wireless Solutions

  • Content Sharing1

    Content Sharing

    Mirroring among devices is more convenient on a Wi-Fi network.

  • Real-time Promotion1

    Real-time Promotion

    With Beacon and Bluetooth Low Energy (BLE), retail stores can provide coupons and information in real-time.

Support for Network Protocol1 Support for Network Protocol2

Support for Network Protocol

  • HTTPS1

    HTTPS

    With support for the HTTPS (Hypertext Transfer Protocol over Secure Socket Layer) protocol, communication between the server and signage is more secure.

  • Proxy Server1

    Proxy Server

    Web access speed and security can be improved by supporting proxy server. Managers can not only block unwanted websites, but also quickly access to resources using caches.

Thermal Printer Supported1 Thermal Printer Supported2
Value-added Offerings

Thermal Printer Supported

Users can easily enable the thermal printer solution* by plugging a USB into the display. It functions versatilely as a ticketing machine for various locations such as restaurants, movie theaters, banks and airports.
*Supported model: NIPPON PRIMEX (NP-3511, NP-3611).
Real-time Care Service1 Real-time Care Service2
Value-added Offerings

Real-time Care Service

The maintenance gets easier and faster with an optional service Signage 365 Care, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client's business.
Conformal Coating1 Conformal Coating2

Conformal Coating

The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on major circuit board eliminates such troubles by protecting it against dust, iron powder, humidity, etc.
Close

PANEL

  • Screen Size
    32"
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness (Typ.,cd/m²)
    400

CONNECTIVITY

  • Input
    HDMI (3), DP, DVI-D, Audio, USB 3.0
    Output
    DP (SST), Audio (Off/Fixed/Variable)
  • External Control
    RS232C In/Out, RJ45 In, IR Receiver In

PHYSICAL SPECIFICATION

  • Bezel Width
    13mm (T/R/L), 18mm (B)
    Monitor Dimension (W x H x D)
    729.4 x 428.9 x 55.5 mm
  • Weight (Head)
    5.4kg
    Monitor with Optional Stand Dimensions (W x H x D)
    729.4 x 481 x 154.2 mm
  • Weight (Head+Stand)
    6.2kg
    Carton Dimensions (W x H x D)
    810 x 510 x 132 mm
  • Packed Weight
    6.7kg
    VESA™ Standard Mount Interface
    200 x 200 mm

ENVIRONMENT CONDITIONS

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%

POWER

  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power

POWER CONSUMPTION

  • Typ./Max.
    60W (TBD)/85W
    Smart Energy Saving
    45W (TBD)

STANDARD (CERTIFICATION)

  • Safety
    IEC 60950-1/EN 60950-1/UL 60950-1
    EMC
    FCC Class "A"/CE/KC
  • ErP/Energy Star
    N/A / Yes (Energy Star 8.0)

MEDIA PLAYER COMPATIBILITY

  • OPS Type compatible
    Yes
    External Media player Attatchable
    Yes

SOFTWARE COMPATIBILITY

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control+/Control

ACCESSORY

  • Basic
    Remote Controller (2ea batteries included), Power cord, QSG, HDMI cable, Regulation book, Phone to RS232C gender, Memory cover
    Optional
    Stand (ST-322T), Media Player, Wall Bracket (LSW230B), VESA Adapter (AM-B220S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T32E)
