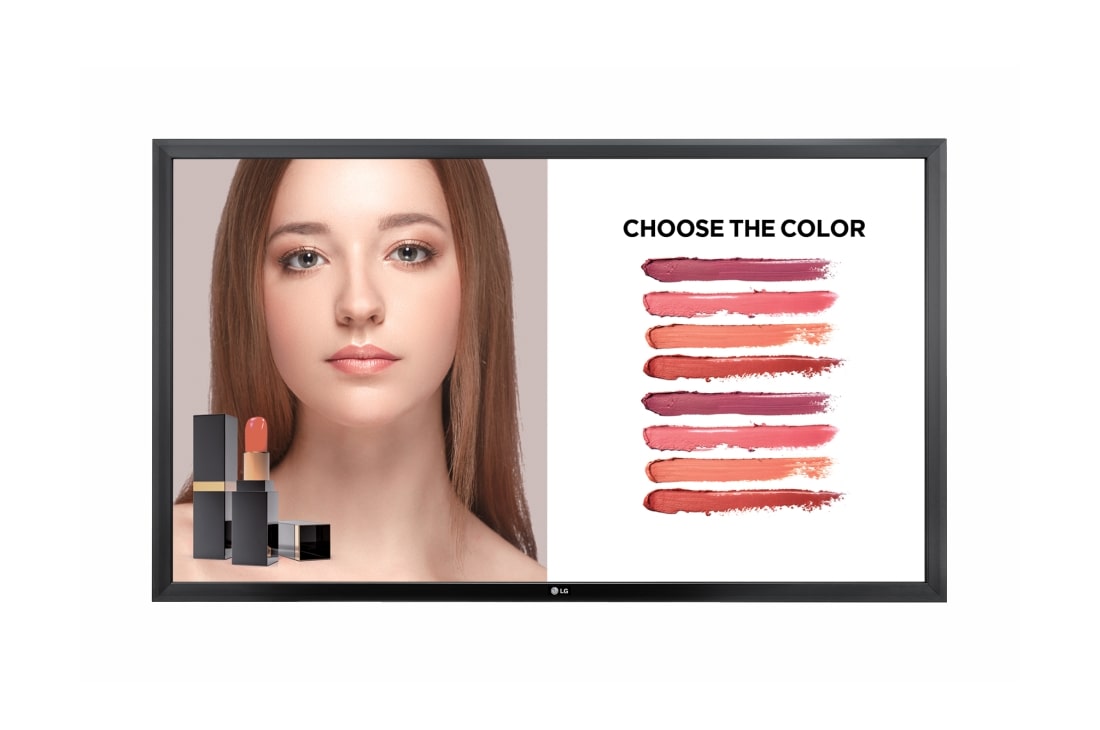

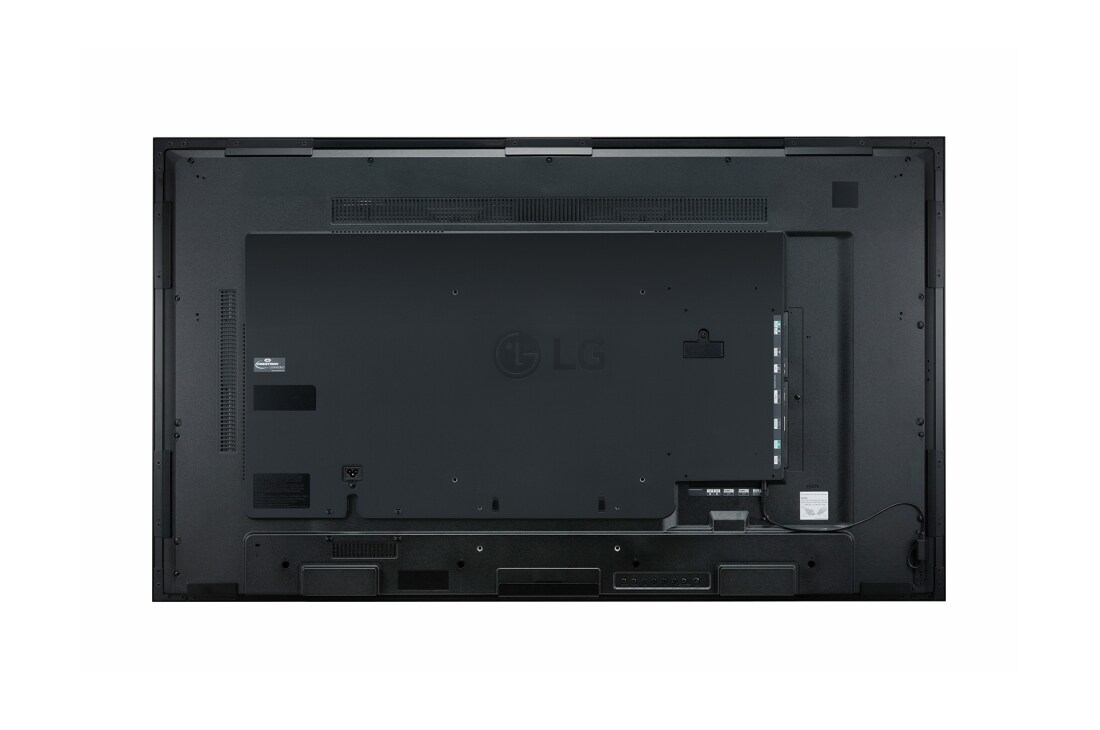

32TA3E-B
TA3E Series
  • Brightness(Typ.): 450 cd/m²
  • Touch Type: IR (Scattering)
  • Multi touch point: Max 10 Points
  • Interface: HDMI (2), DP, DVI-D, RGB, USB 3.0, RS232C, RJ45, IR Receiver, Pixer Sensor

component-OBScountrySelectDesc

TA3E Series
*Touch points can vary depending on the connection environment.
*SDK: Software Development Kit.
*It is a network based control system. Available AV control system may differ by regions.
*The priority can be set by users.
*PBP: Picture-by-Picture.
**PIP: Picture-in-Picture.

PANEL

  • Screen Size
    32"
    Brightness(Module, Typ., cd/m²)
    450

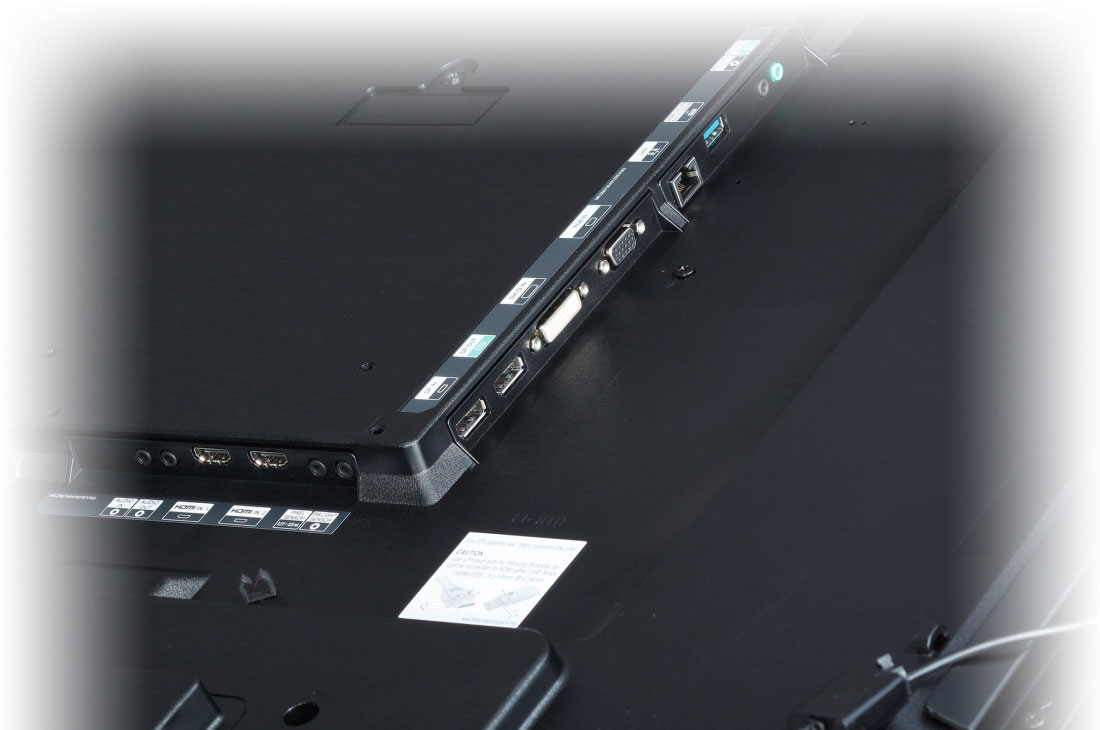

CONNECTIVITY

  • Input
    HDMI (2), DP, DVI-D, RGB, Audio In, USB 3.0
    Output
    DP, Audio Out
  • External Control
    RS232C In/out, RJ45 In, IR Receiver In, Pixer Sensor In

PHYSICAL SPECIFICATION

  • Bezel Width
    32.7mm (Even)
    Monitor Dimension (W x H x D)
    768.4 x 462.9 x 74.5mm
  • Weight (Head)
    10.3kg
    Carton Dimensions (W x H x D)
    852 x 560 x 152mm
  • Packed Weight
    12.2kg
    VESA™ Standard Mount Interface
    200 x 200mm

ENVIRONMENT CONDITIONS

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%

SOFTWARE COMPATIBILITY

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Link

ACCESSORY

  • Basic
    Remote Controller (2ea batteries included), Power cord, QSG, RGB cable, Regulation book, Phone to RS232C gender, Memory cover
    Optional
    Stand (ST-322T), Wall Bracket (LSW230B), OPS Kit (KT-OPSA), HDBaseT (EB-B100)

TOUCH

  • Touch type
    IR (Scattering)
    Scan Time
    10ms ↓
  • Interface
    USB 2.0
    Protection Glass Thickness
    2.8T (Anti-Glare)
  • Operating Systme Support
    Windows 7, Windows 8/8.1/10, Mac OS X (10.7 or later), Android, Linux (kernel 3.9 or later)
    Multi touch point
    Max 10 Points
